Data Logger for Environmental Monitoring Stations and Networks
- Slides: 29
Data Logger for Environmental Monitoring Stations and Networks Jörg Kilgus, June 2012
Basic Job Definition The air. Qlog is a 19“ data logger and data management system, that adds service and support tools to an easy configurable data ackquisition device.
Outstanding Features • Nice and useful design for both Monitoring station and laboratory • Self-monitoring hardware and software platform, shared with other recordum solutions • Bi-directional communications with central network management systems • Easy configuration of instruments and sensors, big number of preconfigured instrument drivers • Direct access to the user interface over Internet and web browser (no special software required)
The Design Plain front with power switch. Connector front – also with power switch.

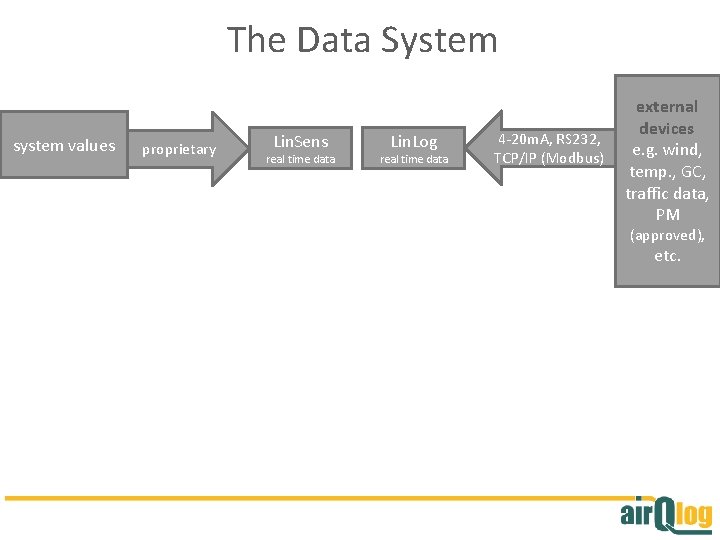

The Data System system values proprietary Lin. Sens real time data Lin. Log real time data 4 -20 m. A, RS 232, TCP/IP (Modbus) external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values proprietary Lin. Sens real time data Lin. Log real time data 4 -20 m. A, RS 232, TCP/IP (Modbus) external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values proprietary Lin. Sens real time data Lin. Log real time data 4 -20 m. A, RS 232, TCP/IP (Modbus) external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values proprietary PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log real time data 4 -20 m. A, RS 232, TCP/IP (Modbus) external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values proprietary PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log real time data Watchdog software to[psupervise pm] [µg/m³] [rpm] bar] [m/s/]h] [%] [m b] ³] p [km m p / [ g [m the system operation 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [°C] Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.
The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc.

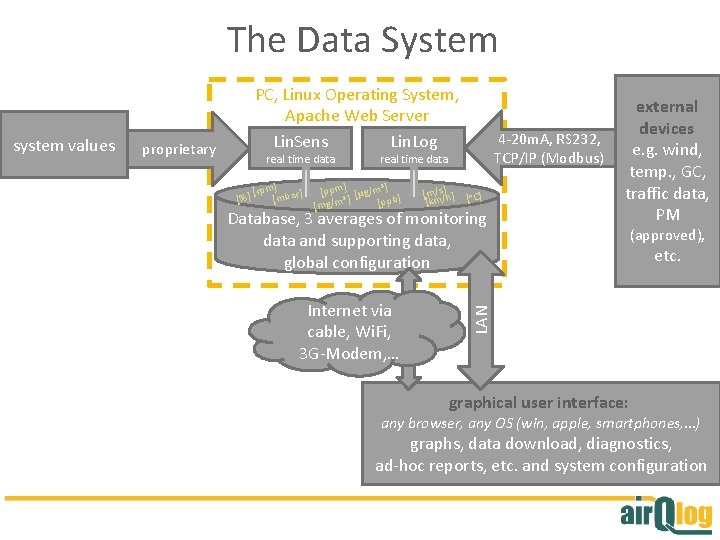

The Data System proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Database, 3 averages of monitoring data and supporting data, global configuration Internet via cable, Wi. Fi, 3 G-Modem, … external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc. LAN system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration

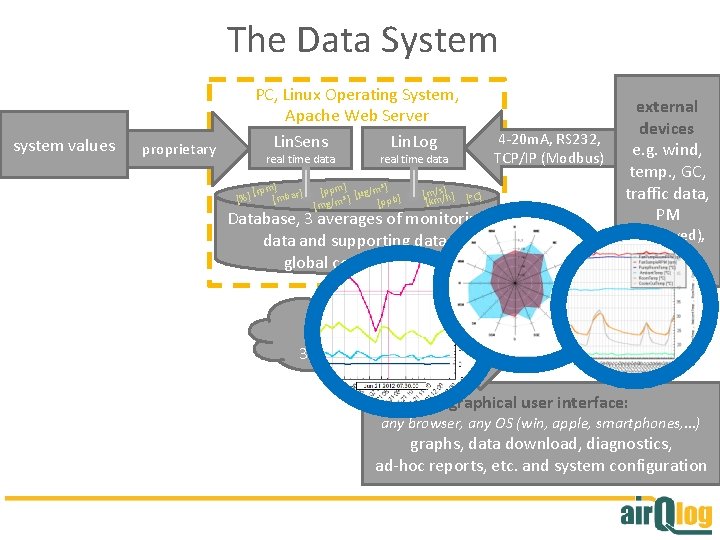

The Data System proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Database, 3 averages of monitoring data and supporting data, global configuration Internet via cable, Wi. Fi, 3 G-Modem, … external devices e. g. wind, temp. , GC, traffic data, PM (approved), etc. LAN system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration

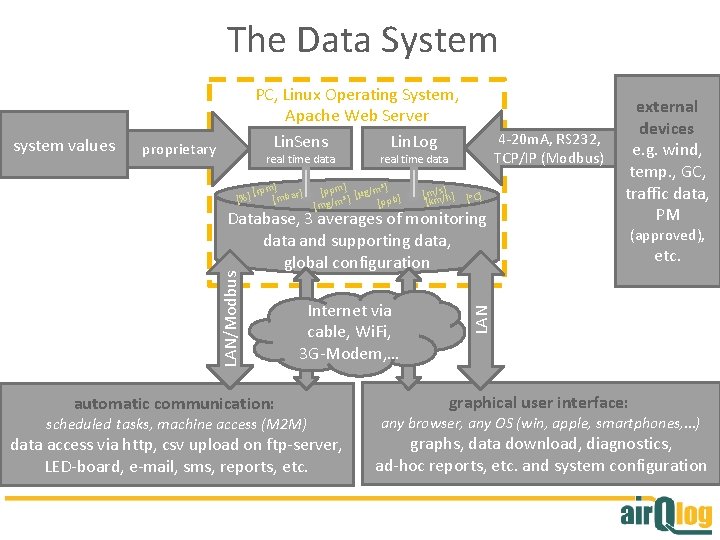

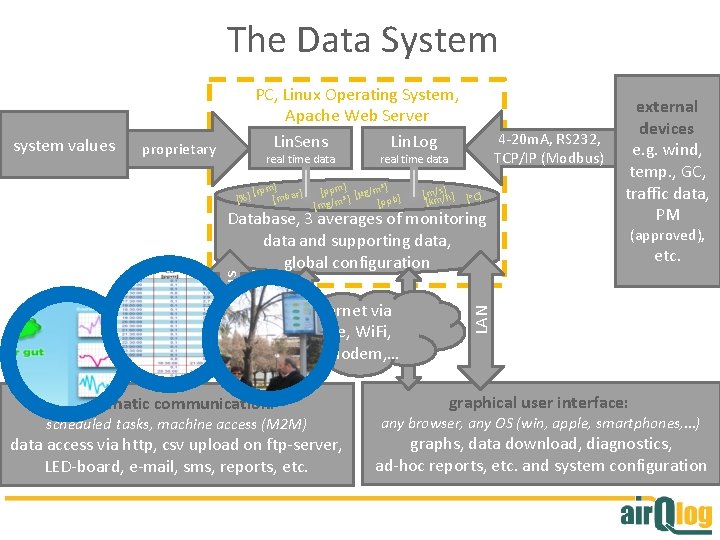

The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Internet via cable, Wi. Fi, 3 G-Modem, … automatic communication: scheduled tasks, machine access (M 2 M) data access via http, csv upload on ftp-server, LED-board, e-mail, sms, reports, etc. (approved), etc. LAN/Modbus Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration
The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Internet via cable, Wi. Fi, 3 G-Modem, … automatic communication: scheduled tasks, machine access (M 2 M) data access via http, csv upload on ftp-server, LED-board, e-mail, sms, reports, etc. (approved), etc. LAN/Modbus Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration
The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Internet via cable, Wi. Fi, 3 G-Modem, … automatic communication: scheduled tasks, machine access (M 2 M) data access via http, csv upload on ftp-server, LED-board, e-mail, sms, reports, etc. (approved), etc. LAN/Modbus Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration
The Data System system values PC, Linux Operating System, Apache Web Server Lin. Sens Lin. Log proprietary real time data [%] [rpm] bar] [m 4 -20 m. A, RS 232, TCP/IP (Modbus) real time data [ppm] [µg/m³] ³] [ppb] [mg/m [m/s/]h] [km [°C] Internet via cable, Wi. Fi, 3 G-Modem, … automatic communication: scheduled tasks, machine access (M 2 M) data access via http, csv upload on ftp-server, LED-board, e-mail, sms, reports, etc. (approved), etc. LAN/Modbus Database, 3 averages of monitoring data and supporting data, global configuration external devices e. g. wind, temp. , GC, traffic data, PM graphical user interface: any browser, any OS (win, apple, smartphones, …) graphs, data download, diagnostics, ad-hoc reports, etc. and system configuration
Communication with the Central • http protocol for central software to retrieve data – recordum protocol – UBIS/AIP protocol • Automatic scheduled data file upload to ftp server • Automatic scheduled e-mailing of data files • recordum MS Windows software to retrieve data (windows service) • Modbus over IP
Inside and Outside Power Supply Harddisks Unibase Board AD Modul PC 104 Boards Mains RS 232 Interfaces Power Switch RS 232 for Meteo Ethernet USB Ports
Communication with the Central • http protocol for central software to retrieve data – recordum protocol – UBIS/AIP protocol http: //airpointer. domain. at/http_if/download. php? loginstring=max&user_p w=secret&tstart=2005 -09 -01, 15: 00. . . central data center server air. Qlog (or airpointer®) Data Processing
Communication with the Central • recordum MS Windows software to retrieve data (windows service)
Configuration Made Easy

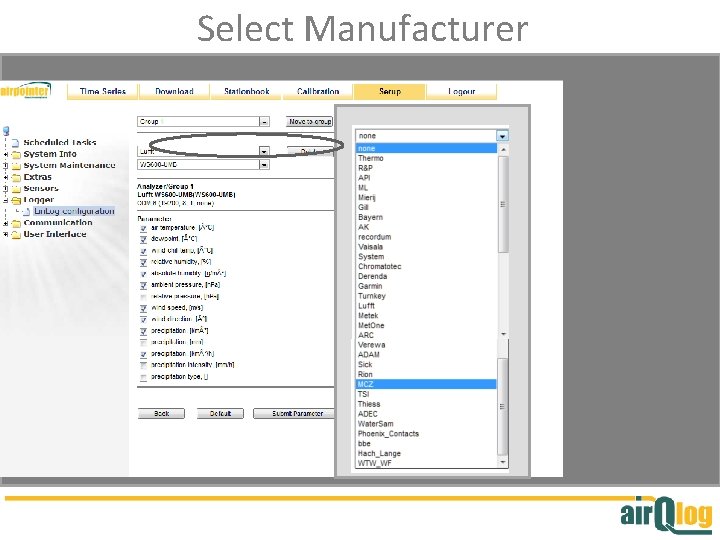

Select Manufacturer
Select Instrument and more…
The User Interface Show measurement data in one graph Select from one to six parameters Make general settings to the graph
The User Interface Make advanced settings to your graph Select from four different types – line, filled line, steps and bar Adjust the color of the lines Configure every parameter individually
The User Interface Zoom into graphs to get details of events Crosshairs show measurement values in the graph with timestamp
Summary
Thank you for your attention!
