Data Hub OPC Tunneller Overview and Demo About
Data. Hub OPC Tunneller ® Overview and Demo
About Cogent § Cogent Real-Time Systems - Established in 1994 - Wholly owned subsidiary of Skkynet Cloud Systems § Key stats - Over 8, 000 active licenses used worldwide - Two offices • Corporate headquarters in Mississauga, Canada • Ni. C Corporation (Osaka, Japan) • Established to focus on the embedded market • Develop for M 2 M, M 2 C software for embedded devices
Cogent Products § Cogent Data. Hub® - Windows - § OPC Tunnelling Web HMI Data Logging OPC Server – Server Bridging Excel Historian System Monitor Email/SMS notifications Modbus OPC Server Modbus Tunnelling DDE Tunnelling (Networking Excel) Cascade Data. Hub® - Linux – Windows connectivity
What makes the Data. Hub so unique? § § § It works! Easy to configure Efficient - Can handle up to 50, 000 data point changes per second using standard offthe-shelf PC hardware § Extendable - Offers open APIs for custom projects - The Cogent Data. Hub® comes with a powerful scripting language that helps you customize a solution that gets the job done. § § § Supports modern proxy servers for best in class plant network isolation Secure Cloud Ready! - Connect your plant to the cloud in a single install, securely. • Third party monitoring, data aggregation, remote monitoring and supervisory control
Data. Hub OPC Tunneller - Benefits § § Network any number of OPC servers and clients. Avoid the hassles of DCOM. - Easy to configure - Robust - Secure § Add any other Data. Hub Features - § Web. View Data Logging Bridging Redundancy Email/SMS etc. Also tunnels Modbus or Excel

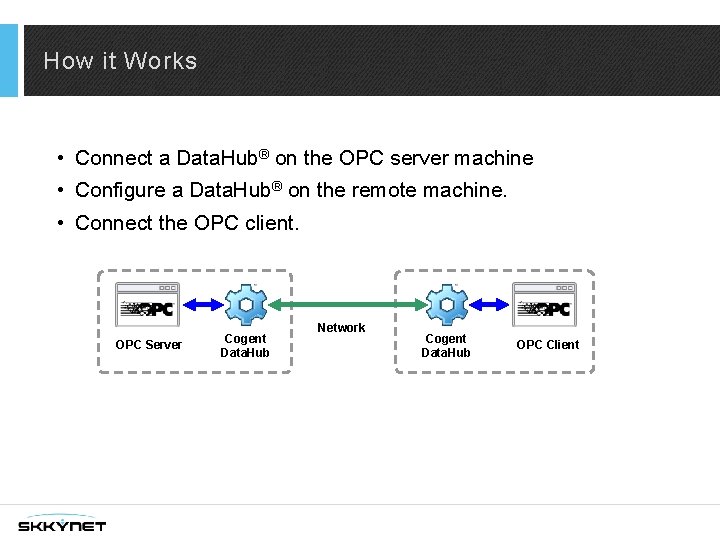

How it Works • Connect a Data. Hub® on the OPC server machine • Configure a Data. Hub® on the remote machine. • Connect the OPC client. OPC Server Cogent Data. Hub Network Cogent Data. Hub OPC Client
The best implementation of OPC Tunnelling ü Local OPC transactions protect OPC server and client―they always stay connected. o Extending OPC transactions across the network link exposes the OPC server and OPC client to network breaks. cal o L C OP Local Extended OPC Extended
Multiple connections – Hub and Spoke A typical hub-and-spoke OPC tunnelling scenario OPC Server Cogent Data. Hub Network Cogent Data. Hub OPC Client
Multiple connections – Redundancy Seamless, split-second switchovers, only triggers when the data source changes. PLC OPC Server Switchover can trigger on changes in point value or quality, for a single point or any point in a group. Cogent Data. Hub Allows selection of a preferred data source. Network Cogent Data. Hub OPC Client No dependency on timers reduces switchover latencies. PLC OPC Server Cogent Data. Hub Rate of change monitor to switch when data flow slows down. Complete access to both data sources at all times to facilitate diagnostics.
Multiple connections – Daisy Chain A typical daisy chain OPC tunnelling scenario Cogent Data. Hub OPC Server Network Cogent Data. Hub OPC Client (etc. . . )
Tunnelling to the Cloud Industrial System OPC ODBC TCP DDE HMI OPC Server Data. Hub Cogent Data. Hub® is cloud-ready • Connects to Skkynet’s Secure Cloud System via Tunnelling feature. • Bi-directional data flow with no open firewalls. • Connect to any legacy system. MES
Data. Hub OPC Tunneller § Eliminates DCOM. - Easy to configure - Robust - Secure § § § Maintains all OPC connections when the network is down. Works with OPC, DDE (Excel), and Modbus. Integrates seamlessly with all Data. Hub features: Data Logging, Web. View, Bridging, Scripting, Email/SMS, and more.
