Data Hiding system Cover image Stego image 10101

  • Slides: 30
Download presentation

Data Hiding system Cover image Stego image 10101 00101 11100 Secret message 2

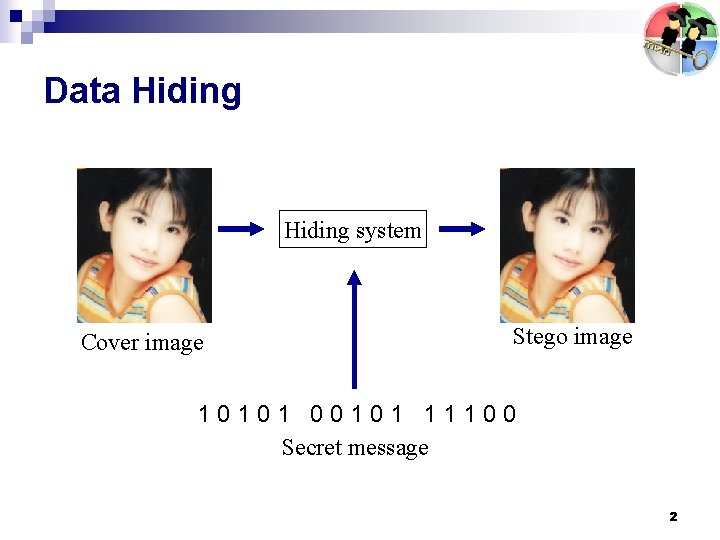

Data Hiding system Cover image Stego image 10101 00101 11100 Secret message 2

Cover Carriers Image n Video n Sound n Text n 3

Cover Carriers Image n Video n Sound n Text n 3

VQ Encoding (120, 155, …, 80) (90, 135, …, 120) (100, 125, …, 150)

VQ Encoding (120, 155, …, 80) (90, 135, …, 120) (100, 125, …, 150) … Original Image 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Index table (49, 117, …, 25) (50, 42, …, 98) (20, 65, …, 110) Codebook 4

Previous Work of Steganography on VQ To find the closest pairs 5

Previous Work of Steganography on VQ To find the closest pairs 5

d(CW 0, CW 8) > TH d(CW 13, CW 14) > TH CW 0,

d(CW 0, CW 8) > TH d(CW 13, CW 14) > TH CW 0, CW 8, CW 13, CW 14 Unused CW 1 , CW 2 CW 4, CW 5 CW 6, CW 7 1 CW 11 , CW 3 CW 15, CW 10 CW 12, CW 9 0 6

Encode Index Table Original Image CW 0, CW 8, CW 13, CW 14 Unused

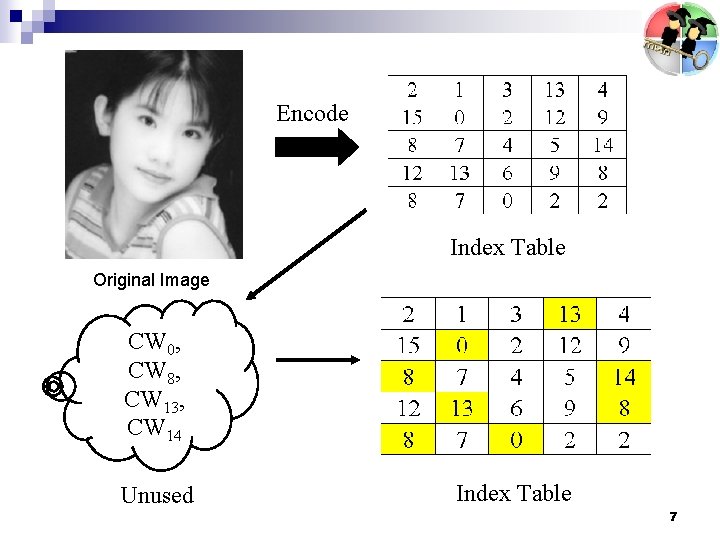

Encode Index Table Original Image CW 0, CW 8, CW 13, CW 14 Unused Index Table 7

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 1 1 0 1 0 Index Table CW 1, CW 2, CW 4, CW 5 CW 6, CW 7 1 Secret bits CW 11, CW 3 CW 15, CW 10 CW 12, CW 9 0 8

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 1 1 0 1 0 Index Table CW 1, CW 2, CW 4, CW 5 CW 6, CW 7 1 Secret bits CW 11, CW 3 CW 15, CW 10 CW 12, CW 9 0 9

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 1 1 0 1 0 Index Table Secret bits 10

Limitations of the Previous Work n Irreversible ¨ Original index values can not be

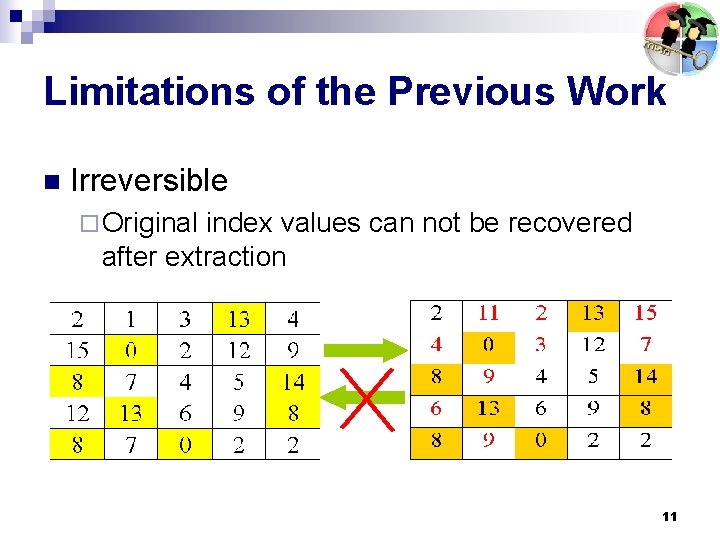

Limitations of the Previous Work n Irreversible ¨ Original index values can not be recovered after extraction 11

Find the most dissimilar pairs (De-clustering) CW 2 CW 9 CW 3 CW 10

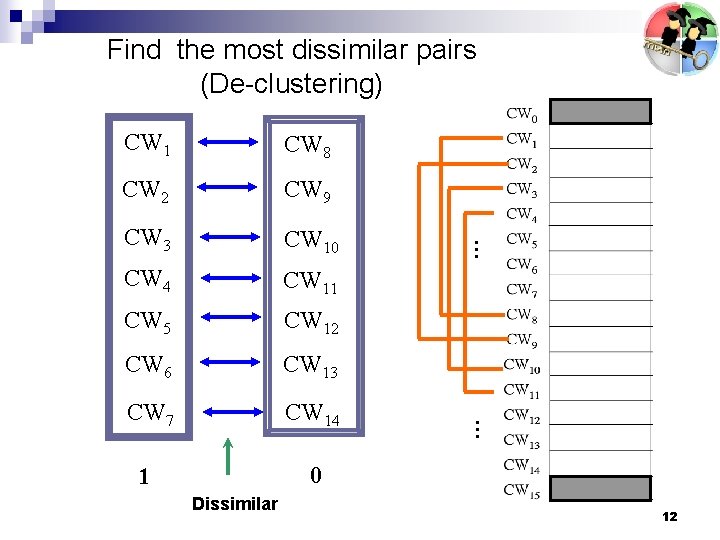

Find the most dissimilar pairs (De-clustering) CW 2 CW 9 CW 3 CW 10 CW 4 CW 11 CW 5 CW 12 CW 6 CW 13 CW 7 CW 14 1 0 Dissimilar … CW 8 … CW 1 12

Encode Index Table Original Image 13

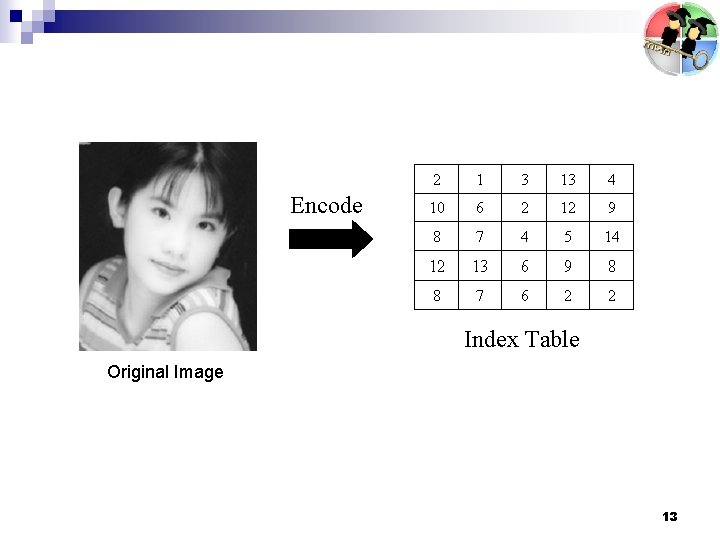

Encode Index Table Original Image 13

Embedding Using Side-Match CW 1 CW 8 : Dissimilar Pair Assume X = CW

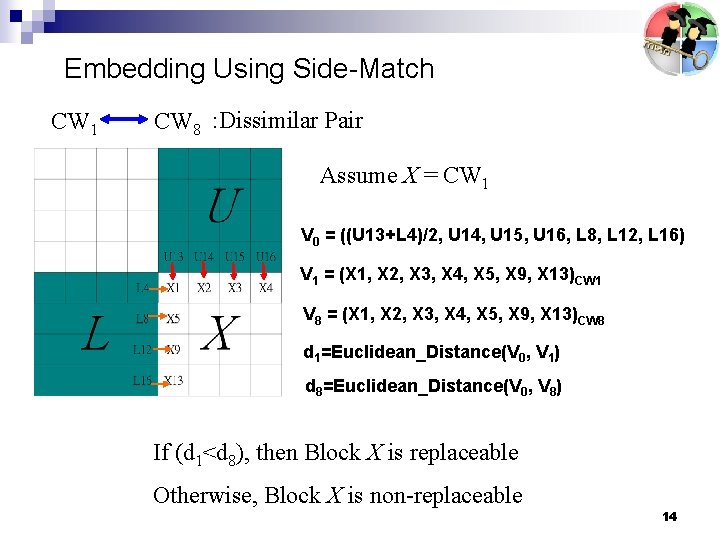

Embedding Using Side-Match CW 1 CW 8 : Dissimilar Pair Assume X = CW 1 V 0 = ((U 13+L 4)/2, U 14, U 15, U 16, L 8, L 12, L 16) V 1 = (X 1, X 2, X 3, X 4, X 5, X 9, X 13)CW 1 V 8 = (X 1, X 2, X 3, X 4, X 5, X 9, X 13)CW 8 d 1=Euclidean_Distance(V 0, V 1) d 8=Euclidean_Distance(V 0, V 8) If (d 1<d 8), then Block X is replaceable Otherwise, Block X is non-replaceable 14

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 0 1 1 0 1 Index Table 0 1 0 0 Secret bits 0 1 1 0 If (d 6<d 13) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 6 Embedding Result 15

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 0 1 1 0 1 Index Table 0 1 0 0 Secret bits 0 1 1 0 If (d 2<d 9) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7, CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 6 9 Embedding Result 16

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 0 1 1 0 1 Index Table 0 1 0 0 Secret bits 0 1 1 0 If (d 12>=d 5) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 CW 15: embed 1 6 9 15||12 Embedding Result 17

A secret message: 1 0 1 0 0 1 1 1 1 0 0

A secret message: 1 0 1 0 0 1 1 1 1 0 0 0 1 1 0 1 Index Table 0 1 0 0 Secret bits 0 1 1 0 If (d 9>=d 2) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 CW 0: embed 0 6 9 15||12 0||9 Embedding Result 18

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table 1 Extract Secret bits

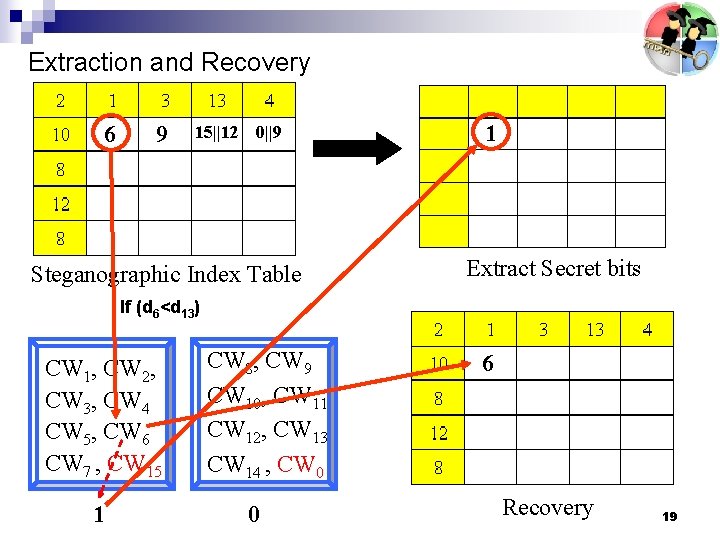

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table 1 Extract Secret bits If (d 6<d 13) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 6 Recovery 19

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table 1 0 Extract Secret

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table 1 0 Extract Secret bits If (d 9>=d 2) CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 6 2 Recovery 20

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table CW 1, CW 2,

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 1 Extract Secret bits 6 2 12 Recovery 21

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table CW 1, CW 2,

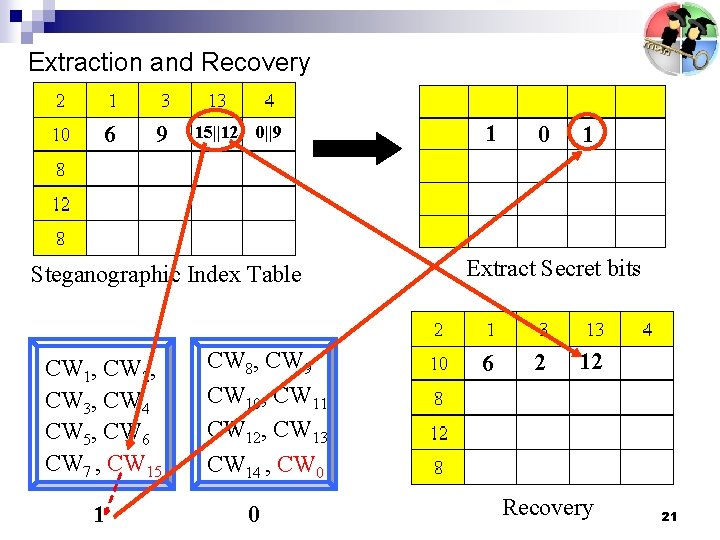

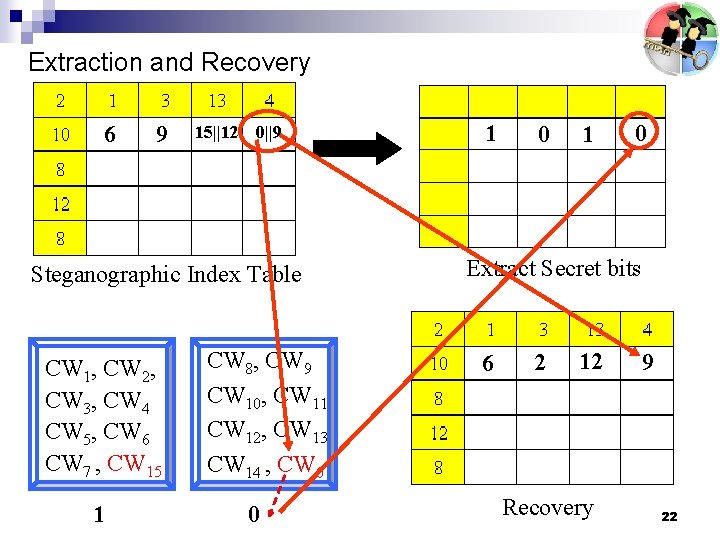

Extraction and Recovery 6 9 15||12 0||9 Steganographic Index Table CW 1, CW 2, CW 3, CW 4 CW 5, CW 6 CW 7 , CW 15 1 CW 8, CW 9 CW 10, CW 11 CW 12, CW 13 CW 14 , CW 0 0 1 0 Extract Secret bits 6 2 12 Recovery 9 22

How to find the dissimilar pairs? Codebook CW 1 CW 2 CW 3 CW

How to find the dissimilar pairs? Codebook CW 1 CW 2 CW 3 CW 4 CW 5 CW 6 CW 7 CW 8 CW 9 CW 10 CW 11 CW 12 CW 13 CW 14 23

Codeword Distribution 24

Codeword Distribution 24

Codeword Projection by PCA (Principle Component Analysis) 25

Codeword Projection by PCA (Principle Component Analysis) 25

Find the Dissimilar Pairs 26

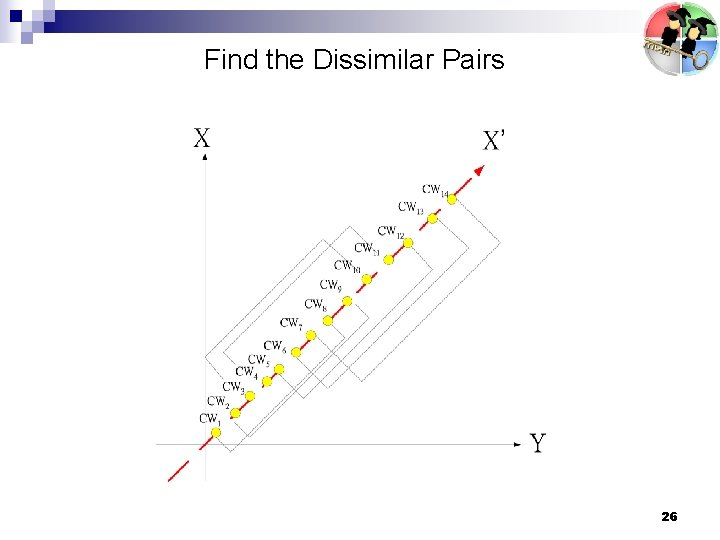

Find the Dissimilar Pairs 26

Experiments Codebook size: 512 Codeword size: 16 The number of original image blocks: 128*128=16384

Experiments Codebook size: 512 Codeword size: 16 The number of original image blocks: 128*128=16384 The number of non-replaceable blocks: 139 27

Experiments Codebook size: 512 Codeword size: 16 The number of original image blocks: 128*128=16384

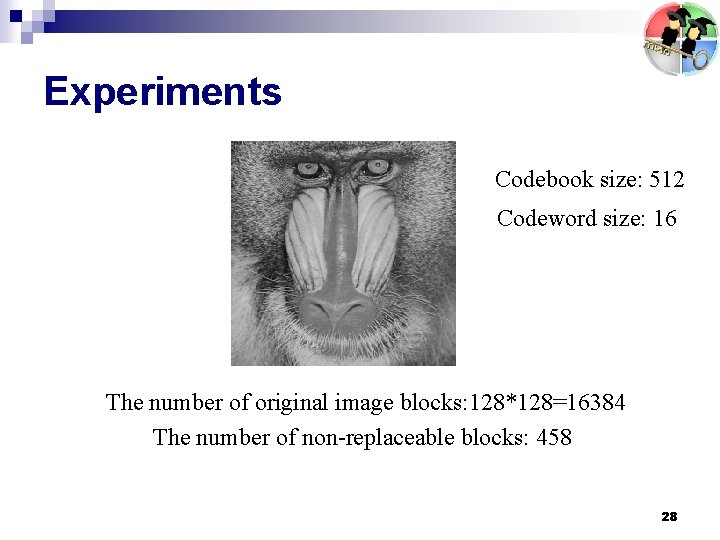

Experiments Codebook size: 512 Codeword size: 16 The number of original image blocks: 128*128=16384 The number of non-replaceable blocks: 458 28

Conclusions n A reversible VQ steganographic mehtod is proposed 29

Conclusions n A reversible VQ steganographic mehtod is proposed 29

Thank you very much for your attention !! 30

Thank you very much for your attention !! 30
