Data Flow Architecture

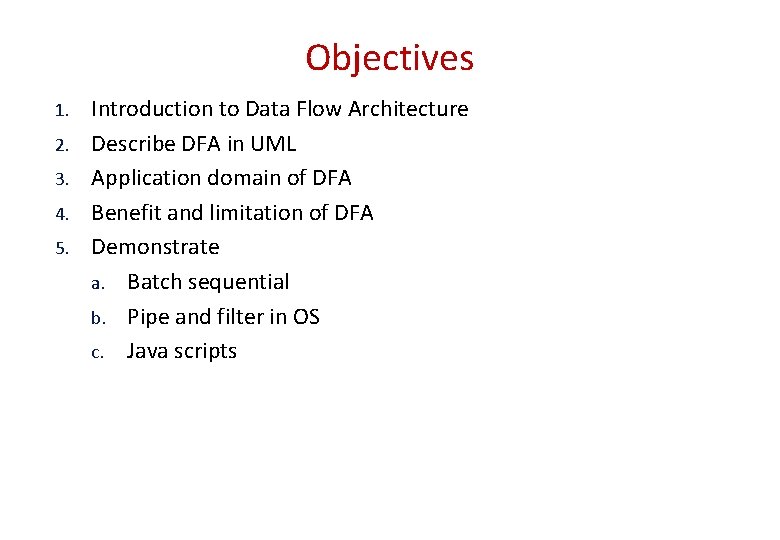

Objectives 1. 2. 3. 4. 5. Introduction to Data Flow Architecture Describe DFA in UML Application domain of DFA Benefit and limitation of DFA Demonstrate a. Batch sequential b. Pipe and filter in OS c. Java scripts

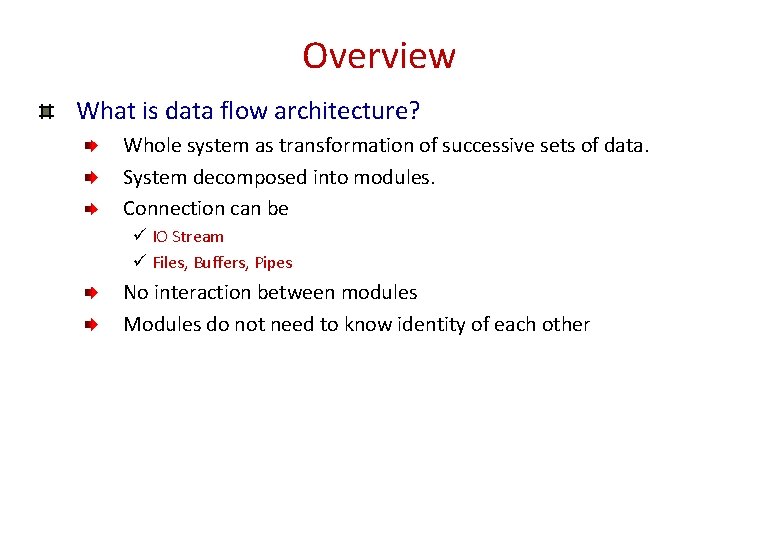

Overview What is data flow architecture? Whole system as transformation of successive sets of data. System decomposed into modules. Connection can be ü IO Stream ü Files, Buffers, Pipes No interaction between modules Modules do not need to know identity of each other

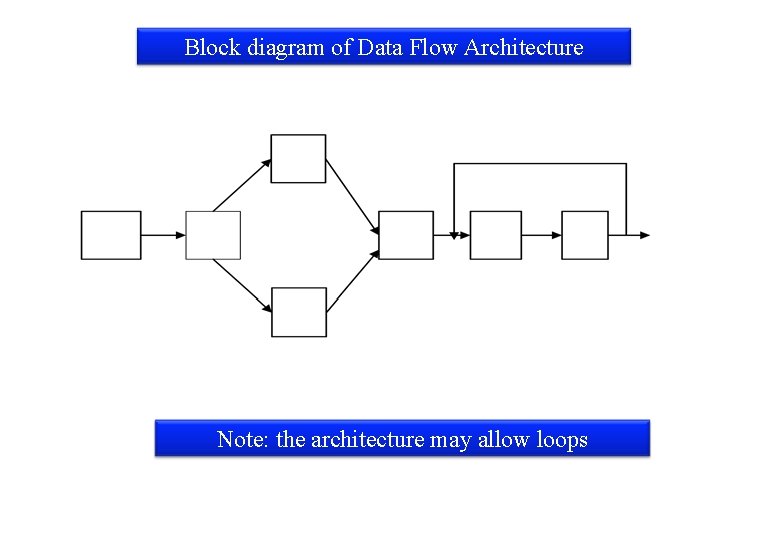

Block diagram of Data Flow Architecture Note: the architecture may allow loops

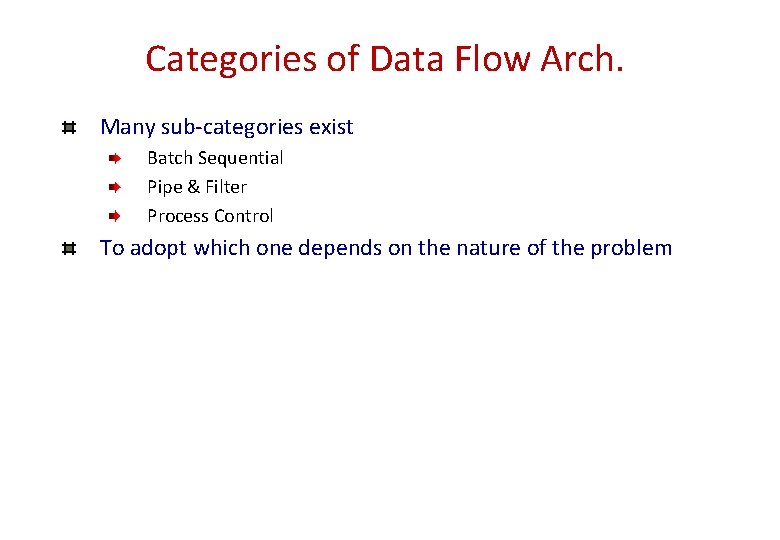

Categories of Data Flow Arch. Many sub-categories exist Batch Sequential Pipe & Filter Process Control To adopt which one depends on the nature of the problem

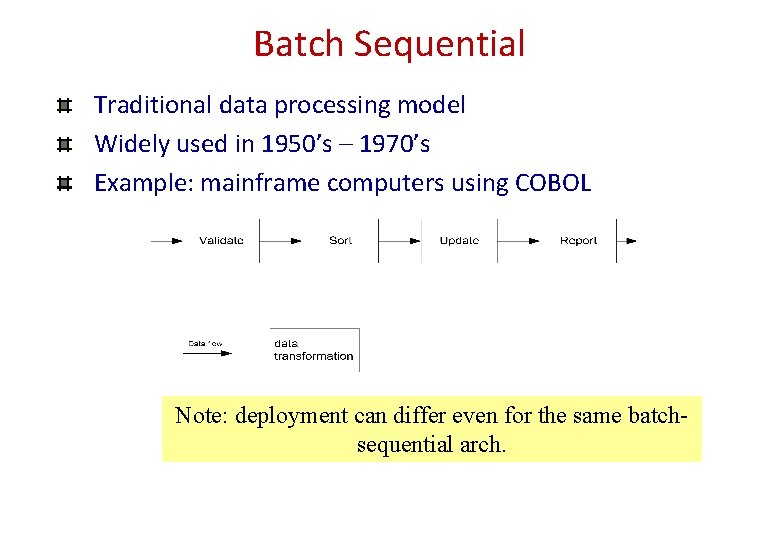

Batch Sequential Traditional data processing model Widely used in 1950’s – 1970’s Example: mainframe computers using COBOL Note: deployment can differ even for the same batchsequential arch.

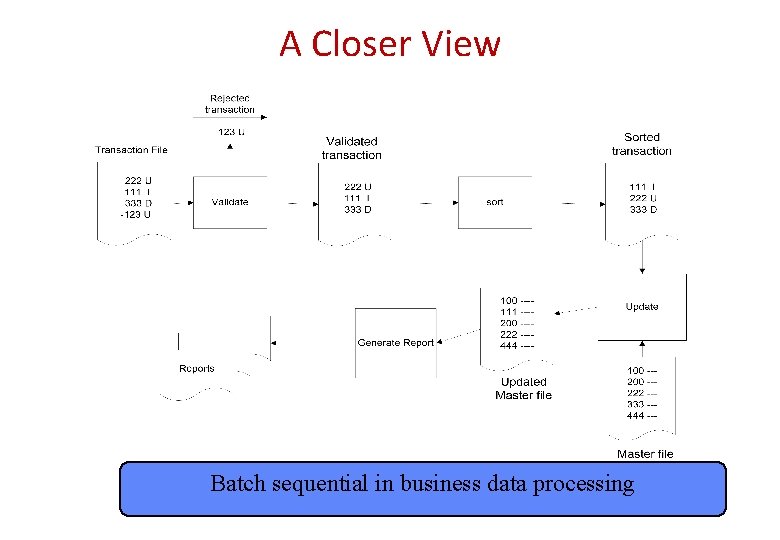

A Closer View Batch sequential in business data processing

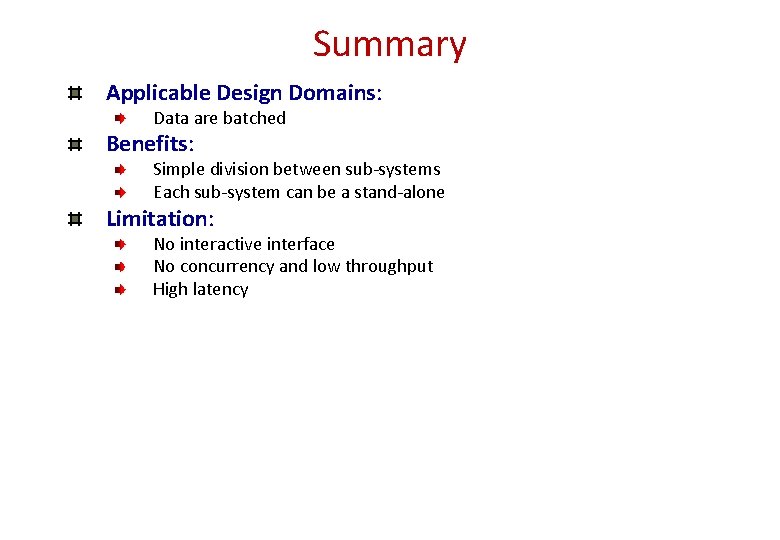

Summary Applicable Design Domains: Data are batched Benefits: Simple division between sub-systems Each sub-system can be a stand-alone Limitation: No interactive interface No concurrency and low throughput High latency

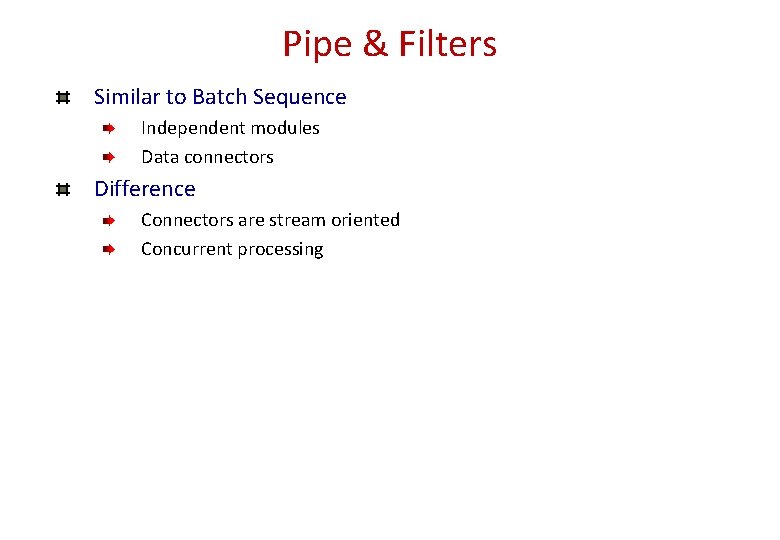

Pipe & Filters Similar to Batch Sequence Independent modules Data connectors Difference Connectors are stream oriented Concurrent processing

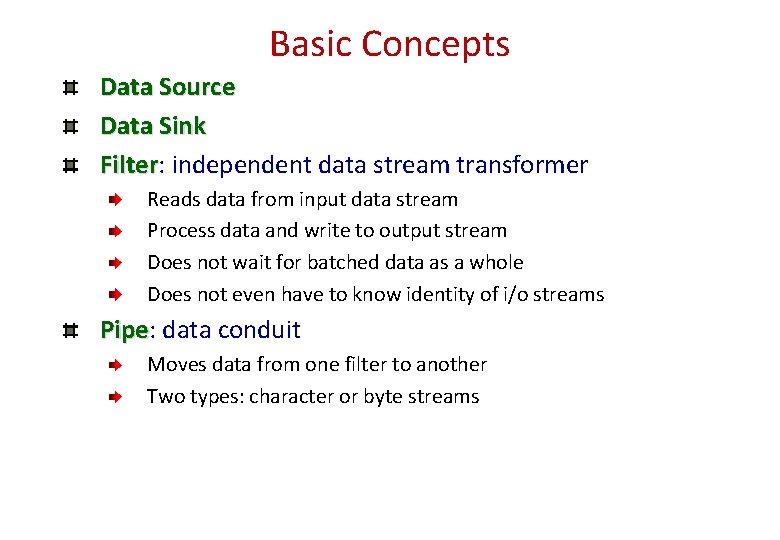

Basic Concepts Data Source Data Sink Filter: Filter independent data stream transformer Reads data from input data stream Process data and write to output stream Does not wait for batched data as a whole Does not even have to know identity of i/o streams Pipe: Pipe data conduit Moves data from one filter to another Two types: character or byte streams

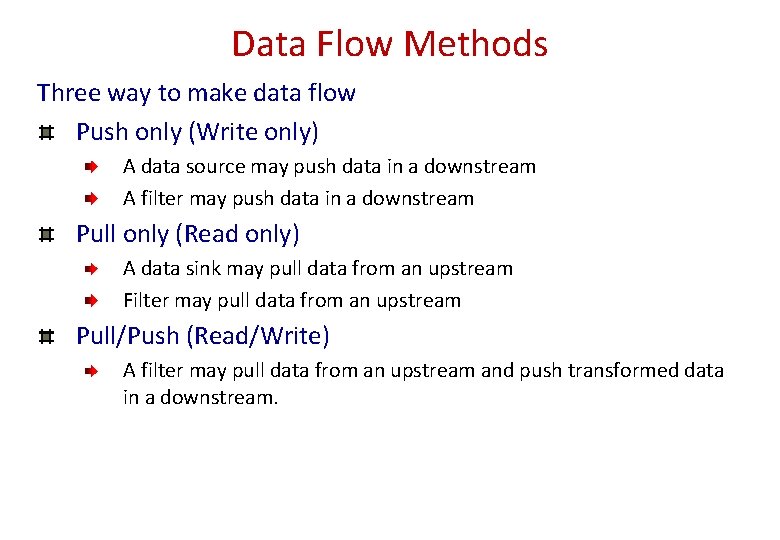

Data Flow Methods Three way to make data flow Push only (Write only) A data source may push data in a downstream A filter may push data in a downstream Pull only (Read only) A data sink may pull data from an upstream Filter may pull data from an upstream Pull/Push (Read/Write) A filter may pull data from an upstream and push transformed data in a downstream.

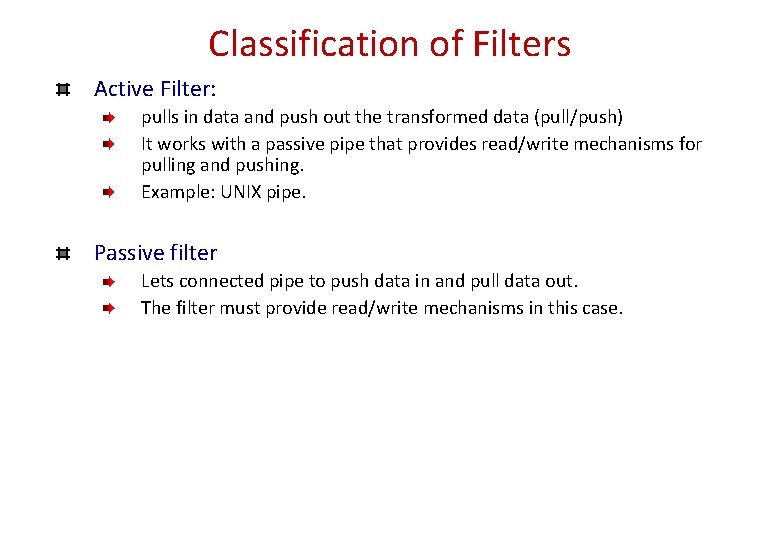

Classification of Filters Active Filter: pulls in data and push out the transformed data (pull/push) It works with a passive pipe that provides read/write mechanisms for pulling and pushing. Example: UNIX pipe. Passive filter Lets connected pipe to push data in and pull data out. The filter must provide read/write mechanisms in this case.

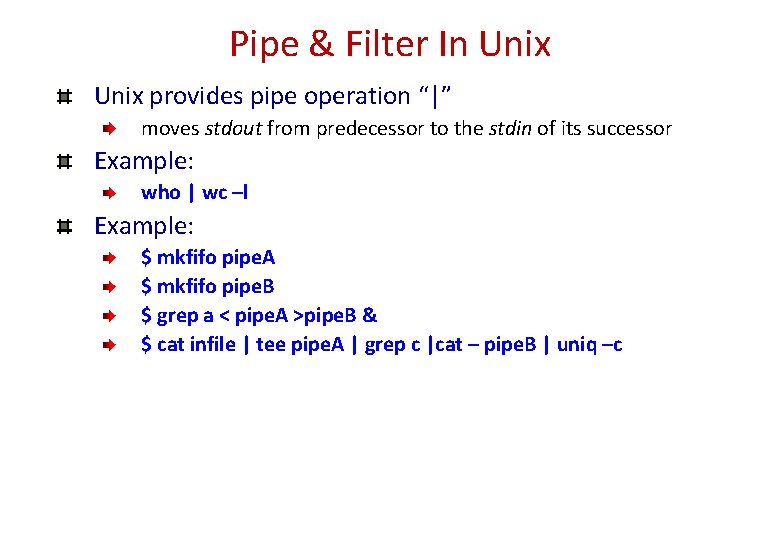

Pipe & Filter In Unix provides pipe operation “|” moves stdout from predecessor to the stdin of its successor Example: who | wc –l Example: $ mkfifo pipe. A $ mkfifo pipe. B $ grep a < pipe. A >pipe. B & $ cat infile | tee pipe. A | grep c |cat – pipe. B | uniq –c

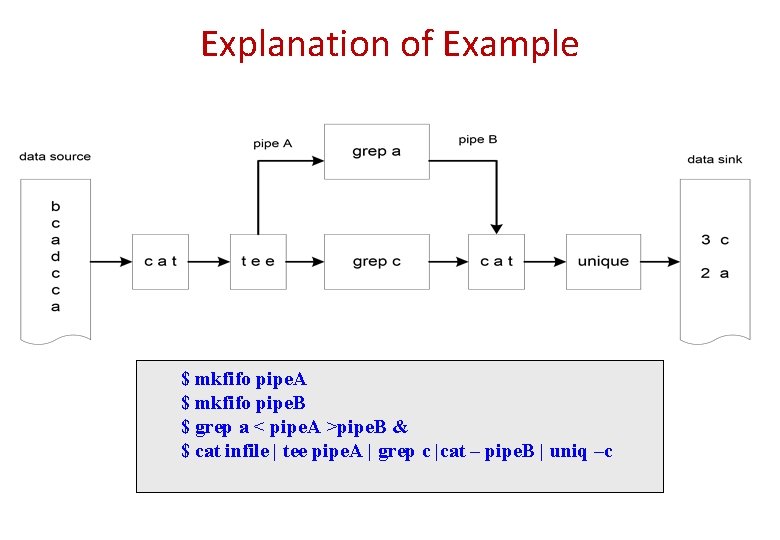

Explanation of Example $ mkfifo pipe. A $ mkfifo pipe. B $ grep a < pipe. A >pipe. B & $ cat infile | tee pipe. A | grep c |cat – pipe. B | uniq –c

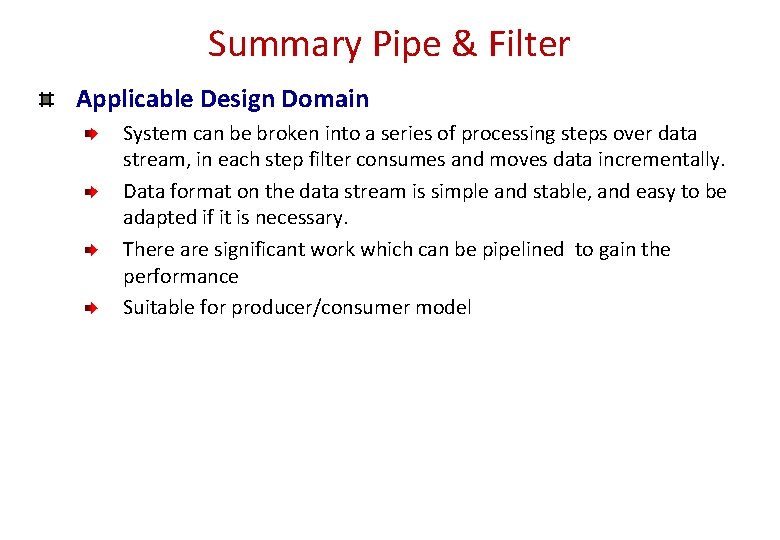

Summary Pipe & Filter Applicable Design Domain System can be broken into a series of processing steps over data stream, in each step filter consumes and moves data incrementally. Data format on the data stream is simple and stable, and easy to be adapted if it is necessary. There are significant work which can be pipelined to gain the performance Suitable for producer/consumer model

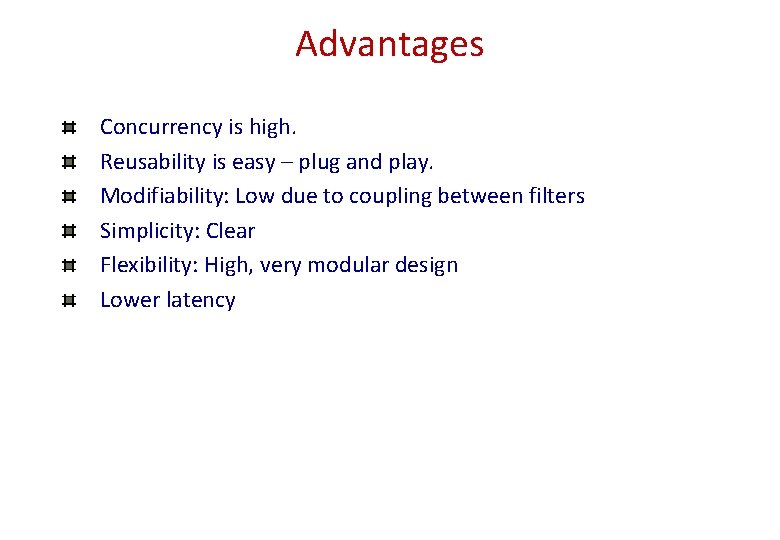

Advantages Concurrency is high. Reusability is easy – plug and play. Modifiability: Low due to coupling between filters Simplicity: Clear Flexibility: High, very modular design Lower latency

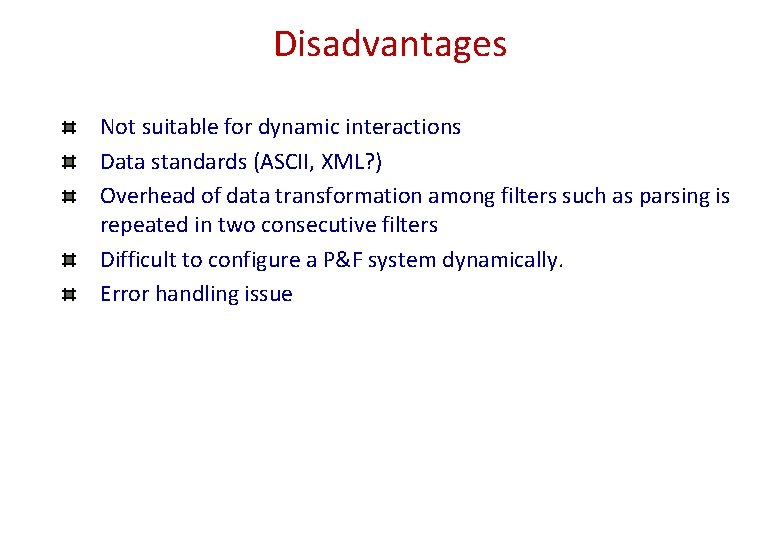

Disadvantages Not suitable for dynamic interactions Data standards (ASCII, XML? ) Overhead of data transformation among filters such as parsing is repeated in two consecutive filters Difficult to configure a P&F system dynamically. Error handling issue

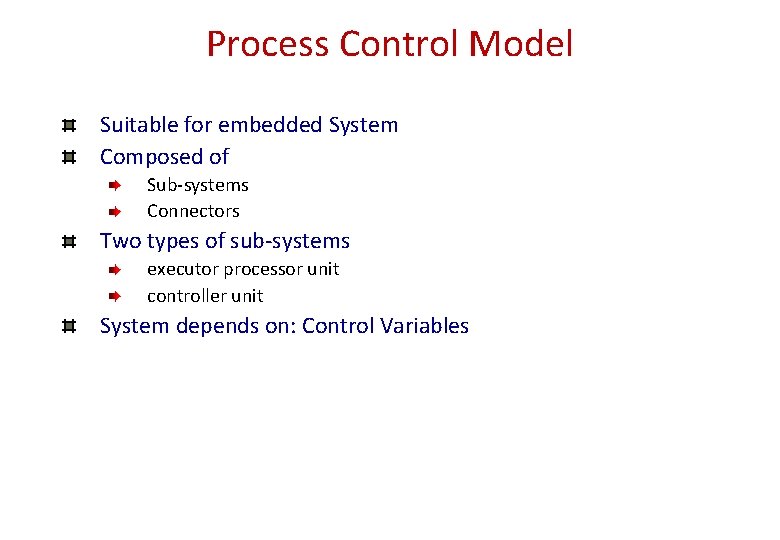

Process Control Model Suitable for embedded System Composed of Sub-systems Connectors Two types of sub-systems executor processor unit controller unit System depends on: Control Variables

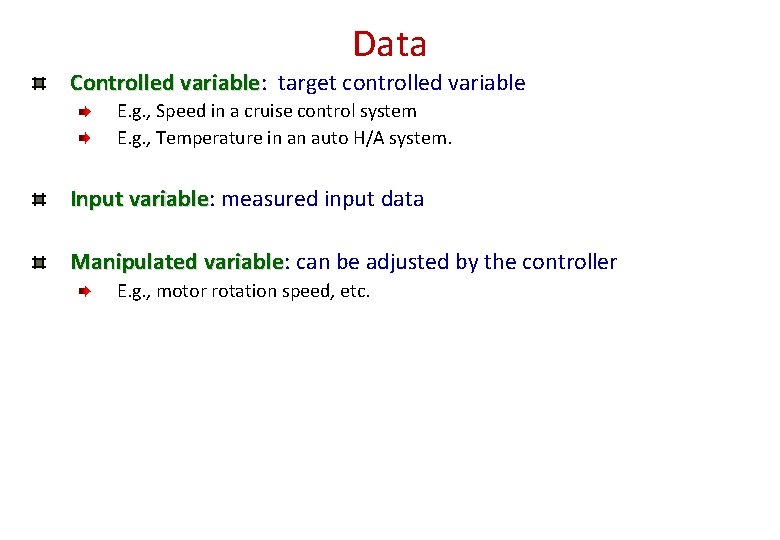

Data Controlled variable: variable target controlled variable E. g. , Speed in a cruise control system E. g. , Temperature in an auto H/A system. Input variable: variable measured input data Manipulated variable: variable can be adjusted by the controller E. g. , motor rotation speed, etc.

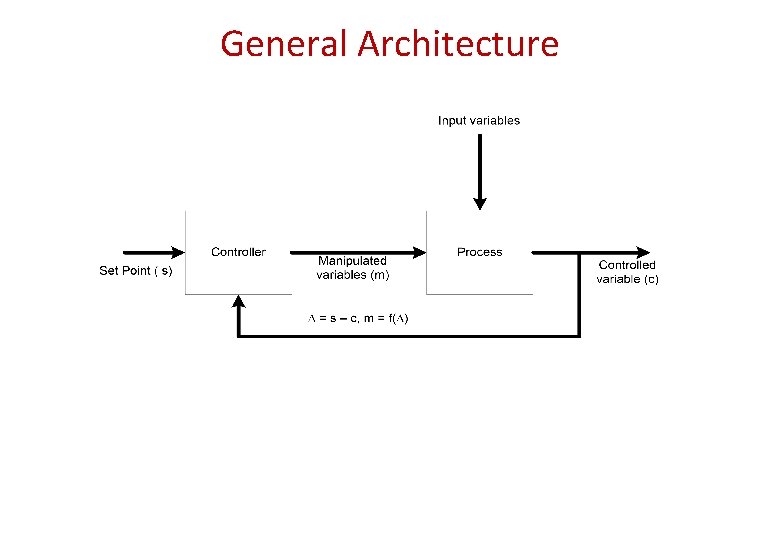

General Architecture

Applicable Domains Embedded software system involving continuing actions. Needs to maintain an output data at a stable level. The system has a set point which is the goal the system will reach and stay at that level.

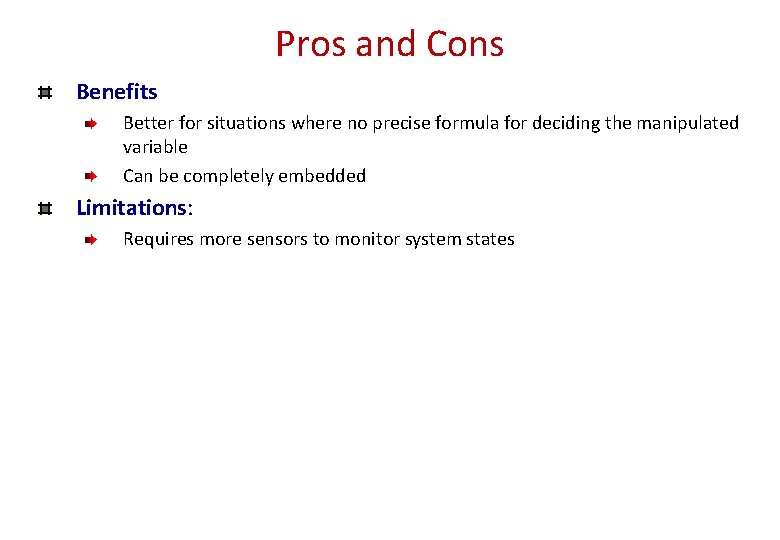

Pros and Cons Benefits Better for situations where no precise formula for deciding the manipulated variable Can be completely embedded Limitations: Requires more sensors to monitor system states
