Data Errors, Model Errors, and Estimation Errors Frontiers of Geophysical Inversion Workshop Waterways Experiment

Data Errors, Model Errors, and Estimation Errors Frontiers of Geophysical Inversion Workshop Waterways Experiment Station Vicksburg, MS 17 -19 February 2002 P. B. Stark Department of Statistics University of California Berkeley CA www. stat. berkeley. edu/~stark

Acknowledgements Excerpted from Evans, S. N. and Stark, P. B. , 2001. “Inverse Problems

Acknowledgements Excerpted from Evans, S. N. and Stark, P. B. , 2001. “Inverse Problems as Statistics, ” Technical report 609, Department of Statistics, University of California, Berkeley.

Theory and Practice In Theory, there is no difference between Theory and Practice, but

Theory and Practice In Theory, there is no difference between Theory and Practice, but in Practice, there is. + Reality. What a concept!++ Challenge: accept the complexity and unpredictability of practice; develop useful (& computable) methodology. +Jan L. A. de Snepscheut. ++Robin Williams

Forward Problems in Statistics • Measurable space X of possible data. • Set of

Forward Problems in Statistics • Measurable space X of possible data. • Set of possible descriptions of the world—models. • Family P = {P : } of probability distributions on X , indexed by models . • Forward operator P maps model into a probability measure on X. Data X are a sample from P. P is whole story: stochastic variability in the “truth, ” contamination by measurement error, systematic error, censoring, etc.

Models Index set usually has special structure. For example, could be a convex subset

Models Index set usually has special structure. For example, could be a convex subset of a separable Banach space T. (geomag, seismo, grav, MT, …) The forward mapping P maps the index of the model to a probability distribution for the data. The physical significance of generally gives P reasonable analytic properties, e. g. , continuity.

Example: Function estimation w/ systematic and random error Observe • f C , a

Example: Function estimation w/ systematic and random error Observe • f C , a set of smooth of functions on [0, 1] • tj [0, 1] • | j| 1, j=1, 2, …, n • j iid N(0, 1) with

Example, cont’d Let = C [-1, 1]n, X = Rn, = (f, 1, 2,

Example, cont’d Let = C [-1, 1]n, X = Rn, = (f, 1, 2, …, n) P is the probability distribution on Rn with density

Forward Problems in Geophysics Composition of steps: – transform idealized description of Earth into

Forward Problems in Geophysics Composition of steps: – transform idealized description of Earth into perfect, noise-free, infinite-dimensional data (“approximate physics”) – censor perfect data to retain only a finite list of numbers, because can only measure, record, and compute with such lists – possibly corrupt the list with measurement error. Equivalent to single-step procedure with corruption on par with physics, and mapping incorporating the censoring.

Geophysical v. Statistical Forward Problems Statistical framework forward problems more general: Forward problems of

Geophysical v. Statistical Forward Problems Statistical framework forward problems more general: Forward problems of Applied Math and Geophysics are instances of statistical forward problems.

Parameters A parameter of a model θ is the value g(θ) at θ of

Parameters A parameter of a model θ is the value g(θ) at θ of a continuous G-valued function g defined on . (g can be the identity. )

Inverse Problems Observe data X drawn from distribution Pθ for some unknown . (Assume

Inverse Problems Observe data X drawn from distribution Pθ for some unknown . (Assume contains at least two points; otherwise, data superfluous. ) Use data X and the knowledge that to learn about ; for example, to estimate a parameter g( ).

Applied Math and Statistical Perspectives • Applied Math: recover a parameter of a pde

Applied Math and Statistical Perspectives • Applied Math: recover a parameter of a pde or the solution of an integral equation from infinitely many data, noise-free or with deterministic error. – Common issues: existence, uniqueness, construction, stability for deterministic noise. • Statistics: estimate or draw inference about parameter from finitely many noisy data – Common issues: identifiability, consistency, bias, variance, efficiency, MSE, etc.

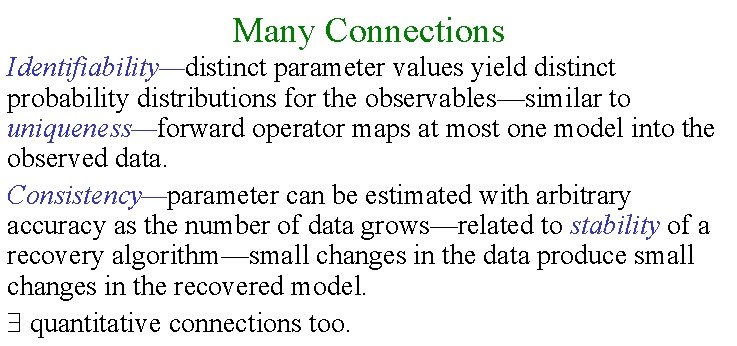

Many Connections Identifiability—distinct parameter values yield distinct probability distributions for the observables—similar to uniqueness—forward

Many Connections Identifiability—distinct parameter values yield distinct probability distributions for the observables—similar to uniqueness—forward operator maps at most one model into the observed data. Consistency—parameter can be estimated with arbitrary accuracy as the number of data grows—related to stability of a recovery algorithm—small changes in the data produce small changes in the recovered model. quantitative connections too.

Geophysical Inverse Problems • Inverse problems in geophysics often “solved” using applied math methods

Geophysical Inverse Problems • Inverse problems in geophysics often “solved” using applied math methods for Ill-posed problems (e. g. , Tichonov regularization, analytic inversions) • Those methods are designed to answer different questions; can behave poorly with data (e. g. , bad bias & variance) • Inference construction: statistical viewpoint more appropriate for interpreting geophysical data.

Elements of the Statistical View Distinguish between characteristics of the problem, and characteristics of

Elements of the Statistical View Distinguish between characteristics of the problem, and characteristics of methods used to draw inferences One fundamental property of a parameter: g is identifiable if for all η, υ Θ, {g(η) g(υ)} {Pη Pυ}. In most inverse problems, g(θ) = θ not identifiable, and few linear functionals of θ are identifiable

Decision Rules A (randomized) decision rule δ: X M 1(A) x δx(. ), is

Decision Rules A (randomized) decision rule δ: X M 1(A) x δx(. ), is a measurable mapping from the space X of possible data to the collection M 1(A) of probability distributions on a separable metric space A of actions. A non-randomized decision rule is a randomized decision rule that, to each x X, assigns a unit point mass at some value a = a(x) A.

Estimators An estimator of a parameter g(θ) is a decision rule for which the

Estimators An estimator of a parameter g(θ) is a decision rule for which the space A of possible actions is the space G of possible parameter values. ĝ=ĝ(X) is common notation for an estimator of g(θ). Usually write non-randomized estimator as a G-valued function of x instead of a M 1(G)-valued function.

Comparing Decision Rules Infinitely many decision rules and estimators. Which one to use? The

Comparing Decision Rules Infinitely many decision rules and estimators. Which one to use? The best one! But what does best mean?

Loss and Risk • Formulate as 2 -player game: Nature v. Statistician. • Nature

Loss and Risk • Formulate as 2 -player game: Nature v. Statistician. • Nature picks θ from Θ. θ is secret, but statistician knows Θ. • Statistician picks δ from a set D of decision rules. δ is secret. • Generate data X from Pθ, apply δ. • Statistician pays loss l (θ, δ(X)). l should be dictated by scientific context, but… • Risk is expected loss: r(θ, δ) = Eθl (θ, δ(X)) • Good decision rule has small risk, but what does small mean?

Strategy Rare that a single decision rule has smallest risk for every . •

Strategy Rare that a single decision rule has smallest risk for every . • Decision is admissible if not dominated by another. • Minimax decision minimizes sup r (θ, δ) over d D • Bayes decision minimizes over d D for a given prior probability distribution p on .

Minimax is Bayes for least favorable prior Pretty generally for convex , D, concave-convexlike

Minimax is Bayes for least favorable prior Pretty generally for convex , D, concave-convexlike r, If minimax risk >> Bayes risk, prior π controls the apparent uncertainty of the Bayes estimate.

Common Risk: Mean Distance Error (MDE) Let d. G denote the metric on G.

Common Risk: Mean Distance Error (MDE) Let d. G denote the metric on G. MDE at θ of estimator ĝ of g is MDEθ(ĝ, g) = Eθ [d(ĝ, g(θ))]. When metric derives from norm, MDE is called mean norm error (MNE). When the norm is Hilbertian, (MNE)2 is called mean squared error (MSE).

Bias When G is a Banach space, can define bias at θ of ĝ:

Bias When G is a Banach space, can define bias at θ of ĝ: biasθ(ĝ, g) = Eθ [ĝ - g(θ)] (when the expectation is well-defined). • If biasθ(ĝ, g) = 0, say ĝ is unbiased at θ (for g). • If ĝ is unbiased at θ for g for every θ , say ĝ is unbiased for g. If such ĝ exists, g is unbiasedly estimable. • If g is unbiasedly estimable then g is identifiable.

More Notation Let T be a separable Banach space, T * its normed dual.

More Notation Let T be a separable Banach space, T * its normed dual. Write the pairing between T and T * < • , • >: T * x T R.

Linear Forward Problems A forward problem is linear if • Θ is a subset

Linear Forward Problems A forward problem is linear if • Θ is a subset of a separable Banach space T • For some fixed sequence (κj)j=1 n of elements of T*, X = (Xj) j=1 n, where Xj = <κj, θ> + εj, θ Θ, and ε = (εj)j=1 n is a vector of stochastic errors whose distribution does not depend on θ (so X = Rn).

Linear Forward Problems, contd. • The linear functionals {κj} are the “representers” • The

Linear Forward Problems, contd. • The linear functionals {κj} are the “representers” • The distribution Pθ is the probability distribution of X. Typically, dim(Θ) = ; at the very least, n < dim(Θ), so estimating θ is an underdetermined problem. Define K : T Rn Θ (<κj, θ>)j=1 n. Abbreviate forward problem by X = Kθ + ε, θ Θ.

Linear Inverse Problems Use X = Kθ + ε, and the knowledge θ Θ

Linear Inverse Problems Use X = Kθ + ε, and the knowledge θ Θ to estimate or draw inferences about g(θ). Probability distribution of X depends on θ only through Kθ, so if there are two points θ 1, θ 2 Θ such that Kθ 1 = Kθ 2 but g(θ 1) g(θ 2), then g(θ) is not identifiable.

Backus-Gilbert++: Necessary conditions Let g be an identifiable real-valued parameter. Suppose θ 0 Θ,

Backus-Gilbert++: Necessary conditions Let g be an identifiable real-valued parameter. Suppose θ 0 Θ, a symmetric convex set Ť T, c R, and ğ: Ť R such that: 1. θ 0 + Ť Θ 2. For t Ť, g(θ 0 + t) = c + ğ(t), and ğ(-t) = -ğ(t) 3. ğ(a 1 t 1 + a 2 t 2) = a 1ğ(t 1) + a 2ğ(t 2), t 1, t 2 Ť, a 1, a 2 0, a 1+a 2 = 1, and 4. supt Ť | ğ(t)| <. Then 1×n matrix Λ s. t. the restriction of ğ to Ť is the restriction of Λ. K to Ť.

Backus-Gilbert++: Sufficient Conditions Suppose g = (gi)i=1 m is an Rm-valued parameter that can

Backus-Gilbert++: Sufficient Conditions Suppose g = (gi)i=1 m is an Rm-valued parameter that can be written as the restriction to Θ of Λ. K for some m×n matrix Λ. Then 1. g is identifiable. 2. If E[ε] = 0, Λ. X is an unbiased estimator of g. 3. If, in addition, ε has covariance matrix Σ = E[εεT], the covariance matrix of Λ. X is Λ. Σ. ΛT whatever be Pθ.

Corollary: Backus-Gilbert Theory Let T be a Hilbert space; let Θ = T ;

Corollary: Backus-Gilbert Theory Let T be a Hilbert space; let Θ = T ; let g T = T * be a linear parameter; and let The parameter g(θ) is identifiable iff g = Λ. K for some 1×n matrix Λ. In that case, if E[ε] = 0, then ĝ = Λ. X is unbiased for g. If, in addition, ε has covariance matrix Σ = E[εεT], then the MSE of ĝ is Λ. Σ. ΛT.

Consistency in Linear Inverse Problems • Xi = i + i, i=1, 2, 3,

Consistency in Linear Inverse Problems • Xi = i + i, i=1, 2, 3, … subset of separable Banach { i} * linear, bounded on { i} iid • consistently estimable w. r. t. weak topology iff {Tk}, Tk Borel function of X 1, . . . , Xk s. t. , >0, *, limk P {| Tk - |> } = 0

Importance of the Error Distribution • µ a prob. measure on ; µa(B) =

Importance of the Error Distribution • µ a prob. measure on ; µa(B) = µ(B-a), a • Hellinger distance • Pseudo-metric on **: • If restriction to converges to metric compatible with weak topology, can estimate consistently in weak topology. • For given sequence of functionals { i}, µ rougher consistent estimation easier.

Summary • Statistical viewpoint is useful abstraction. Physics in map P ; prior information

Summary • Statistical viewpoint is useful abstraction. Physics in map P ; prior information in constraint . Represents systematic and stochastic errors, censoring, etc. • Separating “model” from parameters of interest is useful: Sabatier’s “well posed questions. ” • “Solving” inverse problem means different things to different audiences. Thinking about measures of performance is useful. • Difficulty of problem performance of specific method.
