Data compression

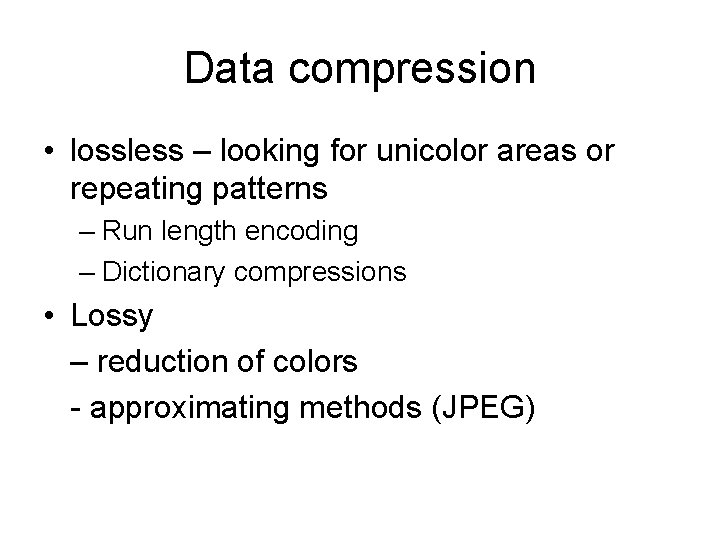

Data compression • lossless – looking for unicolor areas or repeating patterns – Run length encoding – Dictionary compressions • Lossy – reduction of colors - approximating methods (JPEG)

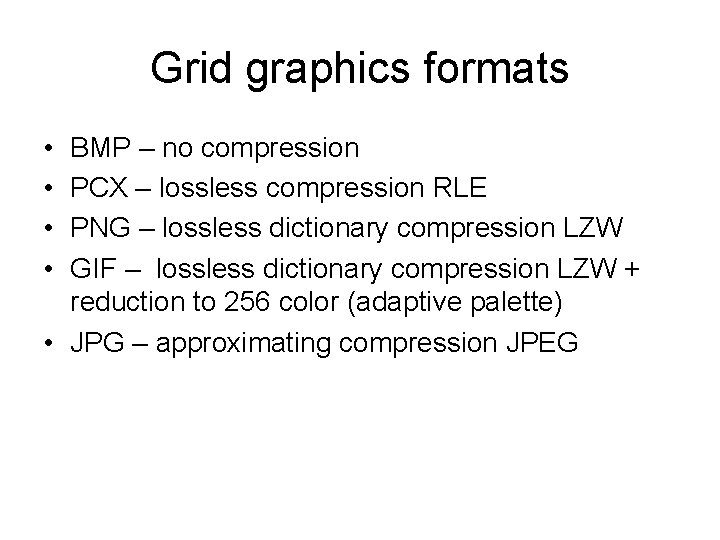

Grid graphics formats • • BMP – no compression PCX – lossless compression RLE PNG – lossless dictionary compression LZW GIF – lossless dictionary compression LZW + reduction to 256 color (adaptive palette) • JPG – approximating compression JPEG

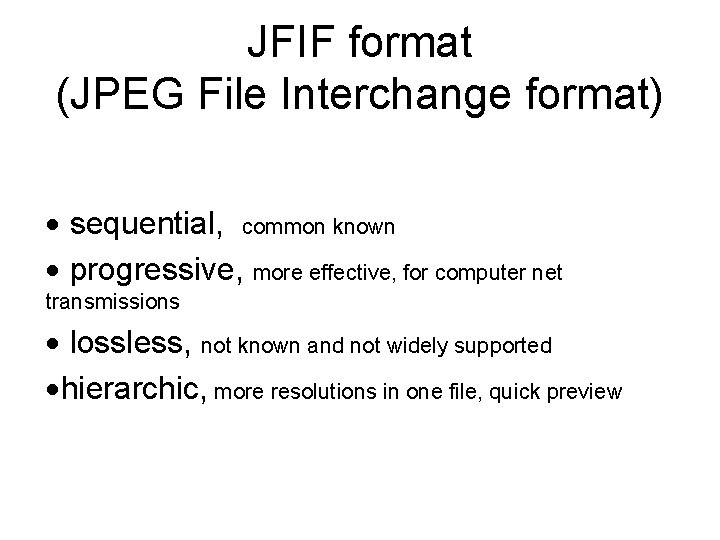

JFIF format (JPEG File Interchange format) sequential, common known progressive, more effective, for computer net transmissions lossless, not known and not widely supported hierarchic, more resolutions in one file, quick preview

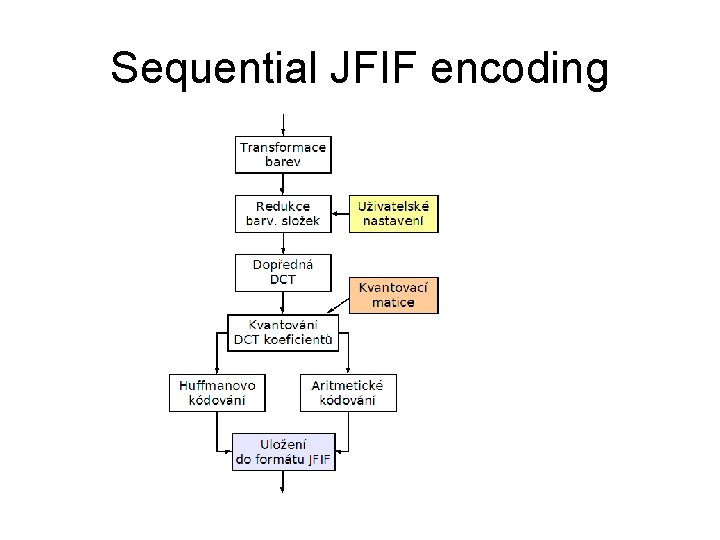

Sequential JFIF encoding
Color model transofmation RGB → Y Cb Cr Y= 0, 299*R + 0, 587*G + 0, 114*B (brightness) Cb = - 0, 1687*R - 0, 3313*G + 0, 5*B + 128 Cr = 0, 5*R - 0, 4187*G - 0, 0813*B + 128 R=Y + 1. 402*(Cr-128) G = Y - 0. 34414*(Cb-128) - 0. 71414*(Cr-128) B = Y + 1. 772*(Cb-128)
Subsampling of Cb, Cr Computing of average value for the block • 2 x 1 pixels (6 bits sample), – 6 bits -> 4 bits (compression 67%) • or 2 x 2 pixels (12 bits sample), – 12 bits -> 6 bits (compression 50%)
DCT transformation
Example 139 144 149 153 155 155 144 151 153 156 159 156 156 150 155 160 163 158 156 156 159 161 162 160 159 159 160 161 162 155 155 161 161 160 157 157 162 161 163 162 157 157 162 161 163 158 158
DCT coefficients AC coefficient (= 8 x average brightness
Quantization matrix – example for 90% “qality”
Quantization matrices Defined by standardization committee JPEG. Separately for brightness and for color components. • Defined matrices for quality 10% and 90%. • For other values of quality between 10% and 90%obtained by linear interpolation. • For values under 10% or over 90% extrapolation can be used but it is not recommended. •
Coefficients after quantisation
AC coefficients • Stored separately • Not compressed • Possibility used for quick preview •
Huffman encoding

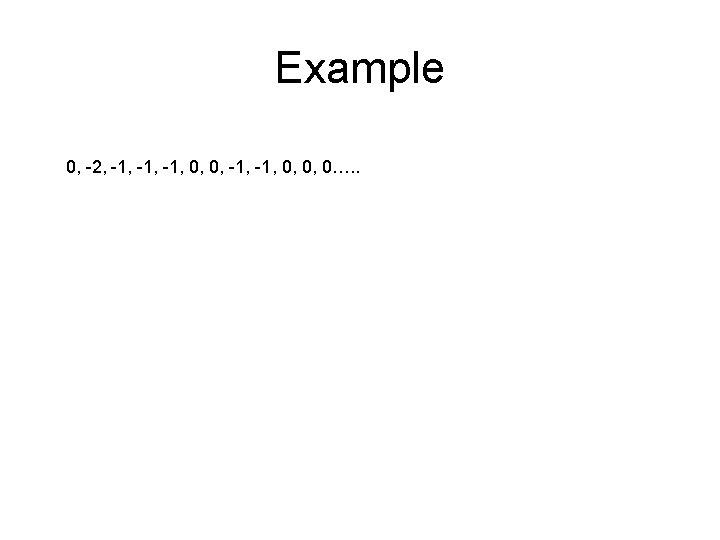

Example 0, -2, -1, -1, 0, 0, 0…. .
Reconstruction of DCT coeffients

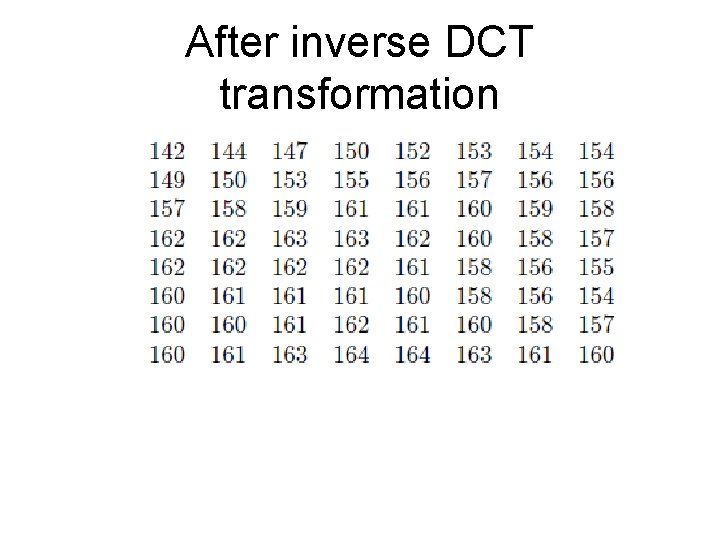

After inverse DCT transformation

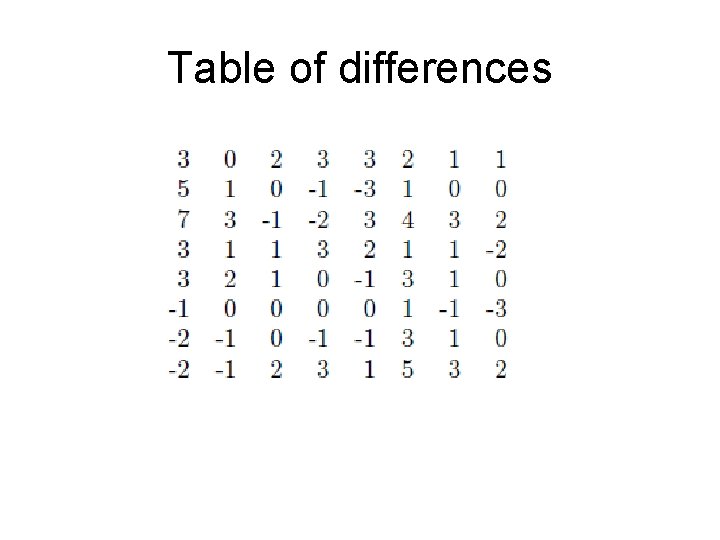

Table of differences
Grid Pictures Modification
Geometrical Modifications • Clip – Rectangular – Other shapes • Rotate – Left, Right – 180 degrees – Flip

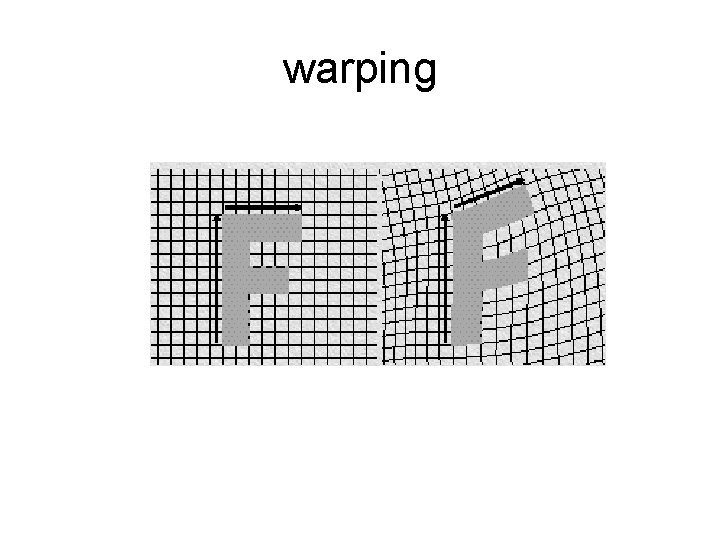

warping
warping
Morphing

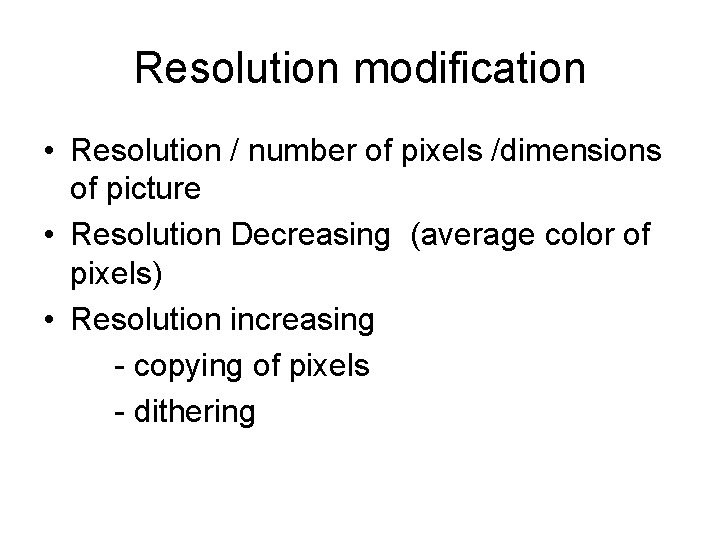

Resolution modification • Resolution / number of pixels /dimensions of picture • Resolution Decreasing (average color of pixels) • Resolution increasing - copying of pixels - dithering
Color depth decreasing • • Rounding of colors Establishing of color palette Half toning Dithering

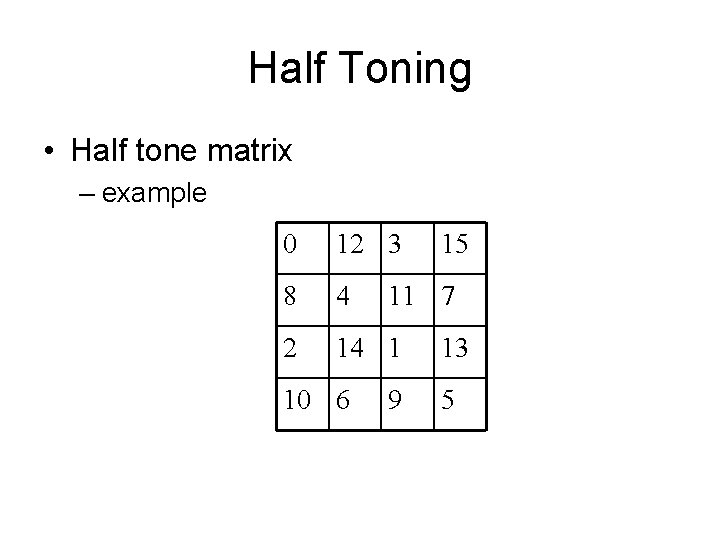

Half Toning • Half tone matrix – example 0 12 3 8 4 2 14 1 10 6 15 11 7 9 13 5
Floyd Steinberg dithering 7/16 1/16 5/16 3/16
Pixel color correction • Color correction • Saturation correction • Brightness correction – Simple brightness correction – Contrast correction – Gamma correction

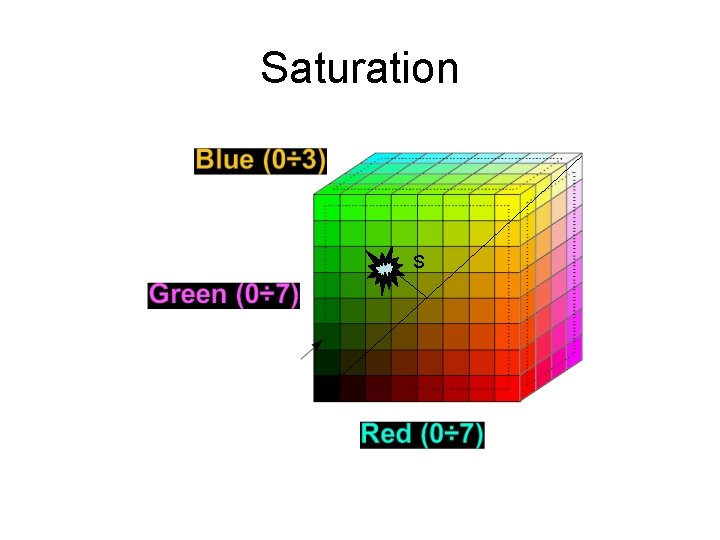

Saturation S
Saturation correction S
Brightness Light
Brightness histogramm K W
Color brightness • Y = 0, 299 R + 0, 587 G + 0. 114 B
Simple brightness correction New br Original br

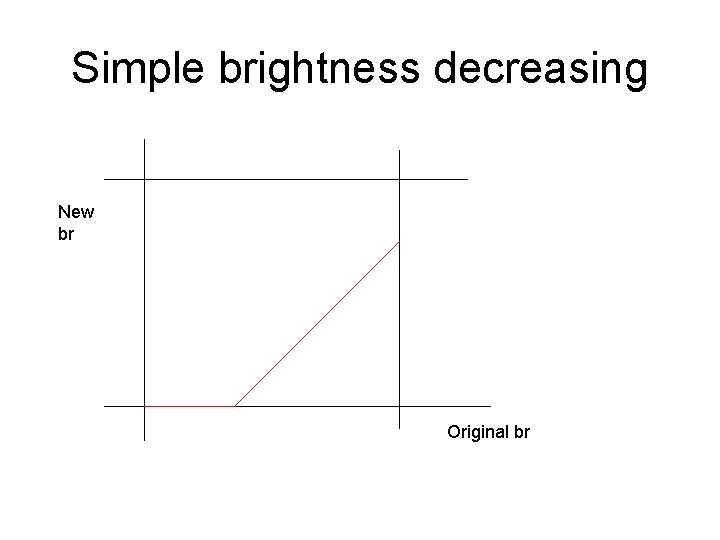

Simple brightness decreasing New br Original br
Contrast decreasing New br Original br

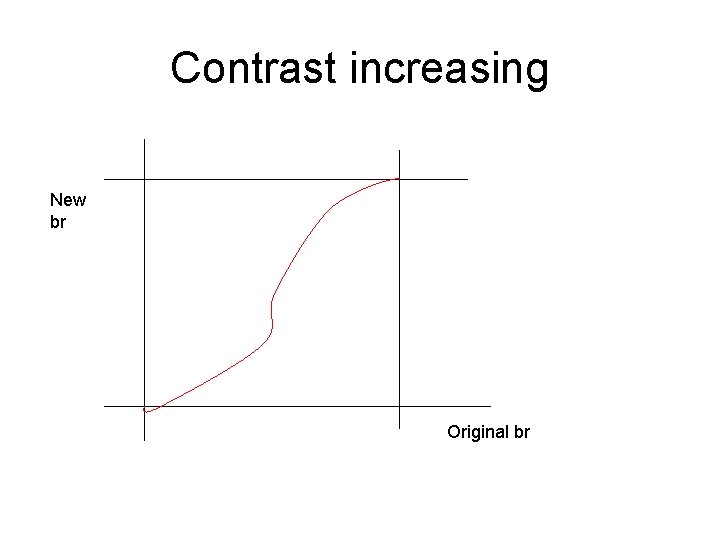

Contrast increasing New br Original br

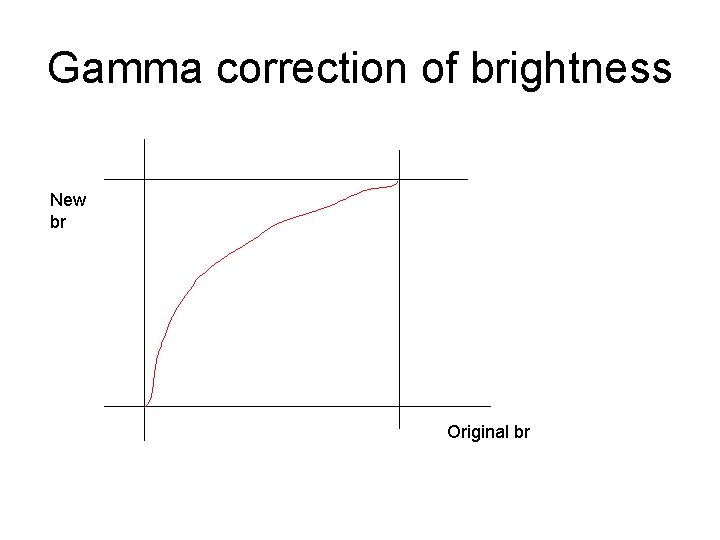

Gamma correction of brightness New br Original br

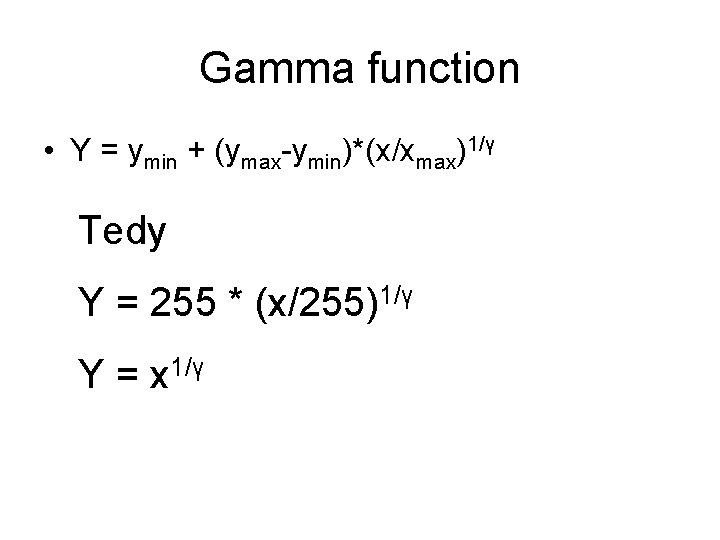

Gamma function • Y = ymin + (ymax-ymin)*(x/xmax)1/γ Tedy Y = 255 * (x/255)1/γ Y = x 1/γ

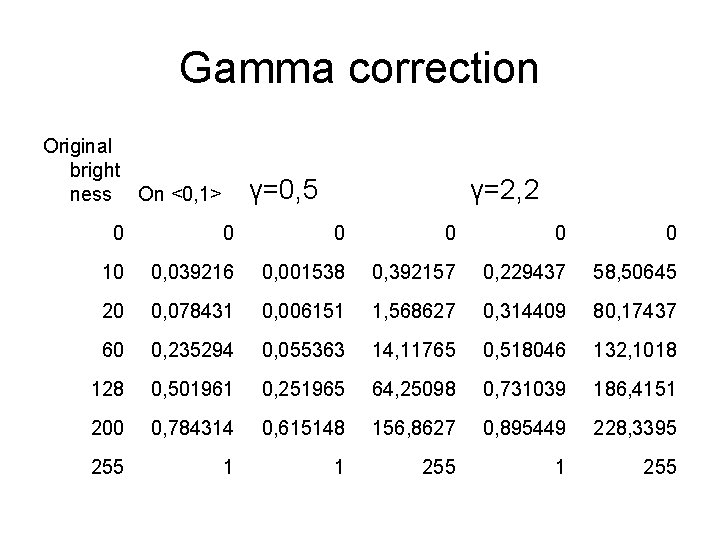

Gamma correction Original bright ness On <0, 1> γ=0, 5 γ=2, 2 0 0 0 10 0, 039216 0, 001538 0, 392157 0, 229437 58, 50645 20 0, 078431 0, 006151 1, 568627 0, 314409 80, 17437 60 0, 235294 0, 055363 14, 11765 0, 518046 132, 1018 128 0, 501961 0, 251965 64, 25098 0, 731039 186, 4151 200 0, 784314 0, 615148 156, 8627 0, 895449 228, 3395 255 1 1 255
