Data Bits Models Classes Rows Schemes Tables Keys

Data Bits Models Classes & Rows & Schemes Tables Keys Associations $100 $100 $200 $200 $300 $300 $400 $400 $500 $500 Final Data. Bit

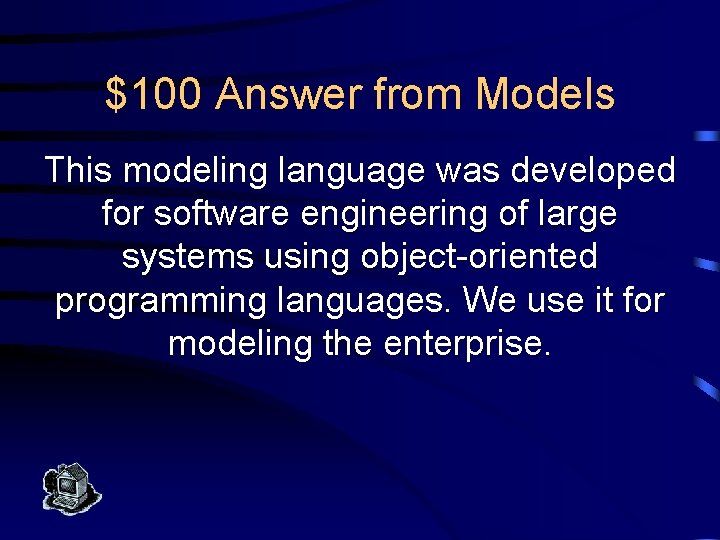

$100 Answer from Models This modeling language was developed for software engineering of large systems using object-oriented programming languages. We use it for modeling the enterprise.

$100 Question from Models What is the Unified Modeling Language (UML)?

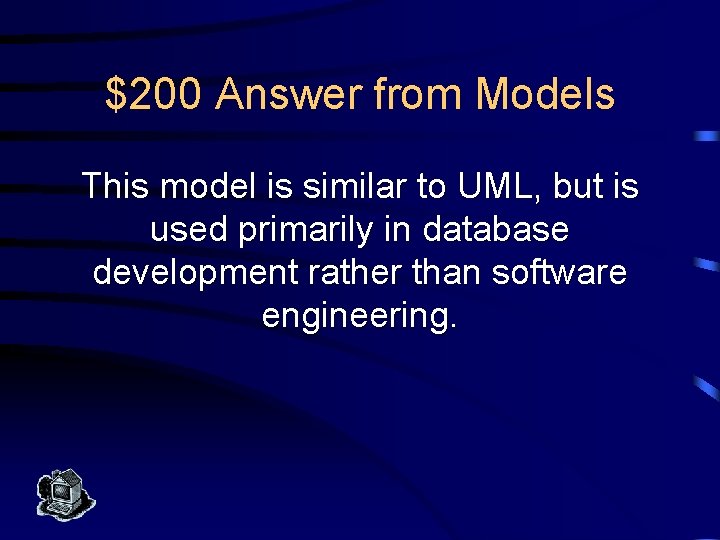

$200 Answer from Models This model is similar to UML, but is used primarily in database development rather than software engineering.

$200 Question from Models What is the Entity-Relationship (ER) model?

CATEGORY 1 - $300 Answer from Models This is the formal mathematical model of a relational database.

$300 Question from Models What is the Relational Model?

$400 Answer from Models This formal language is used to symbolically manipulate objects of the relational model.

$400 Question from Models What is Relational Algebra?

$500 Answer from Models This is the informal set of terms for relational model objects, used most often in database work.

$500 Question from Models What is the table model?

$100 Answer from Classes & Schemes This is any "thing" in the enterprise that is to be represented in the database by a UML model. (It is called an entity in the ER model. )

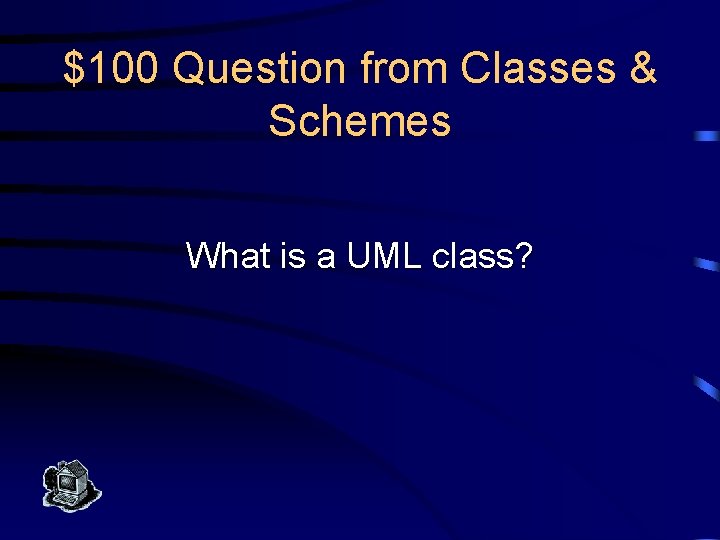

$100 Question from Classes & Schemes What is a UML class?

$200 Answer from Classes & Schemes This is any "thing" in the enterprise that is to be represented in the database by an ER model. (It is called a class in UML. )

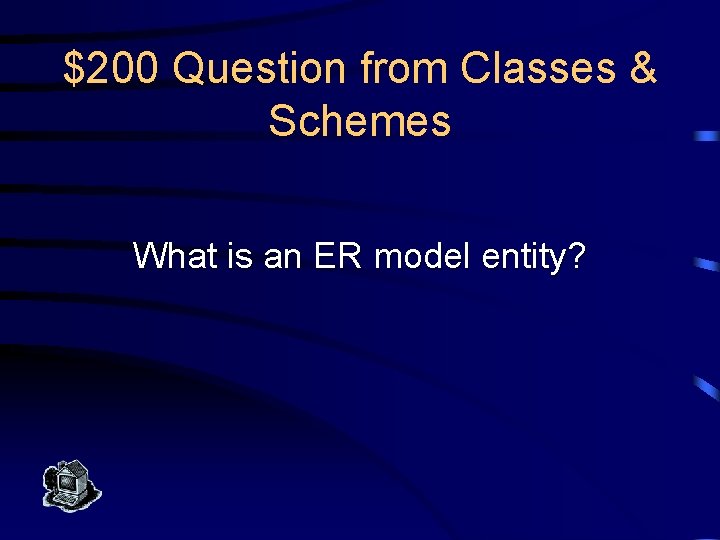

$200 Question from Classes & Schemes What is an ER model entity?

$300 Answer from Classes & Schemes This is one piece of information that characterizes each member of a class or entity type.

$300 Question from Classes & Schemes What is an attribute? (UML, ER, RM)

$400 Answer from Classes & Schemes This is an attribute that provides realworld information, relevant to the enterprise, about the class that we are modeling.

$400 Question from Classes & Schemes What is a descriptive attribute?

$500 Answer from Classes & Schemes This is a set of attributes, with an assignment rule. It provides the structure for a database table.

$500 Question from Classes & Schemes What is a relation scheme?

$100 Answer from Rows & Tables This contains information about one individual in a database table. (It is called a tuple in the relational model. )

$100 Question from Rows & Tables What is a (table model) row?

$200 Answer from Rows & Tables This function assigns a constant value from the attribute domain to each attribute in a relation scheme. (It is called a row in the table model. )

$200 Question from Rows & Tables What is a (relational model) tuple?

$300 Answer from Rows & Tables This set of rows represents all of the individual in a class. (It is called a relation in the relational model. )

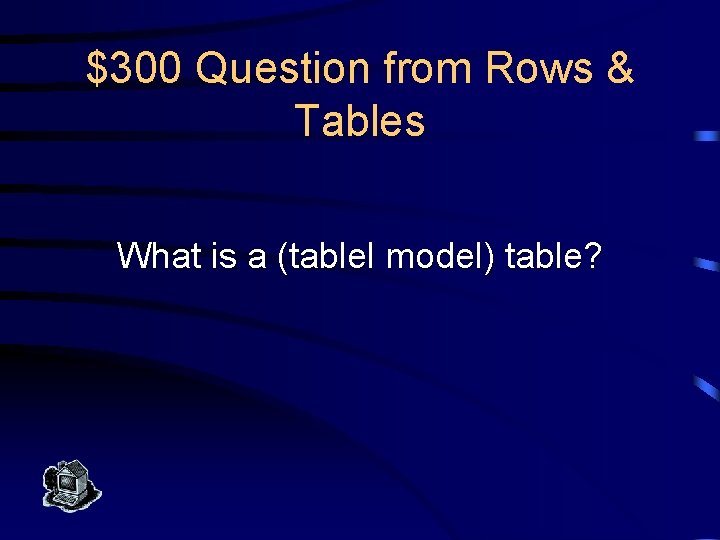

$300 Question from Rows & Tables What is a (tablel model) table?

$400 Answer from Rows & Tables This set of tuples contains the information for all individuals in a class. (It is called a table in the table model. )

$400 Question from Rows & Tables What is a (relational model) relation?

$500 Answer from Rows & Tables This special constant value is compatible with any data type and means "this field doesn't have any value assigned to it. "

$500 Question from Rows & Tables What is NULL?

$100 Answer from Keys This can be any set of attributes in a relation whose values, taken together, guarantee uniqueness of the rows in a table.

$100 Question from Keys What is a super key?

$200 Answer from Keys This minimal super key can't have an attribute deleted without losing the super key property, or added without losing its distinction.

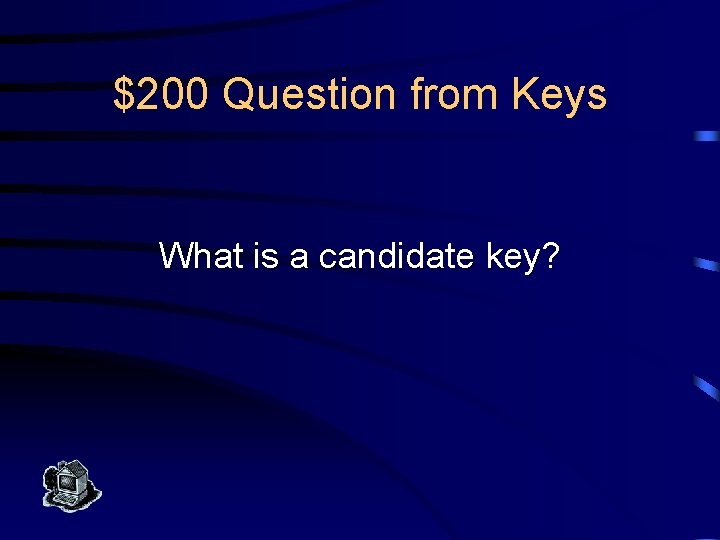

$200 Question from Keys What is a candidate key?

$300 Answer from Keys This candidate key is picked by the database designer to guarantee uniqueness of each row in a table.

$300 Question from Keys What is a primary key?

$400 Answer from Keys This made-up primary key has no descriptive value about an individual.

$400 Question from Keys What is a surrogate key?

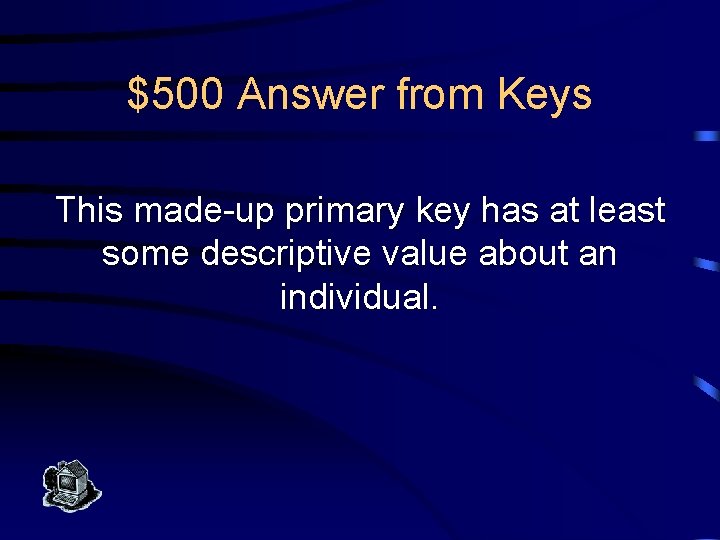

$500 Answer from Keys This made-up primary key has at least some descriptive value about an individual.

$500 Question from Keys What is a substitute key?

$100 Answer from Associations The minimum and maximum number of individuals of one class that may be associated with a single member of another class. (Called cardinality in ER, RM and table model)
