Data Bits Many to Many Subkeys Joins Queries
Data Bits Many to Many Subkeys Joins Queries Attributes $100 $100 $200 $200 $300 $300 $400 $400 $500 $500 Final Data. Bit

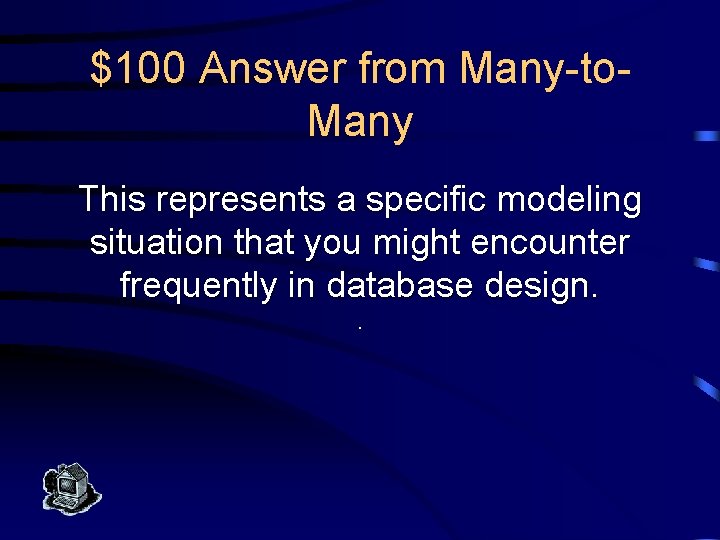

$100 Answer from Many-to. Many This represents a specific modeling situation that you might encounter frequently in database design. .
$100 Question from Many-to. Many What is a design pattern?

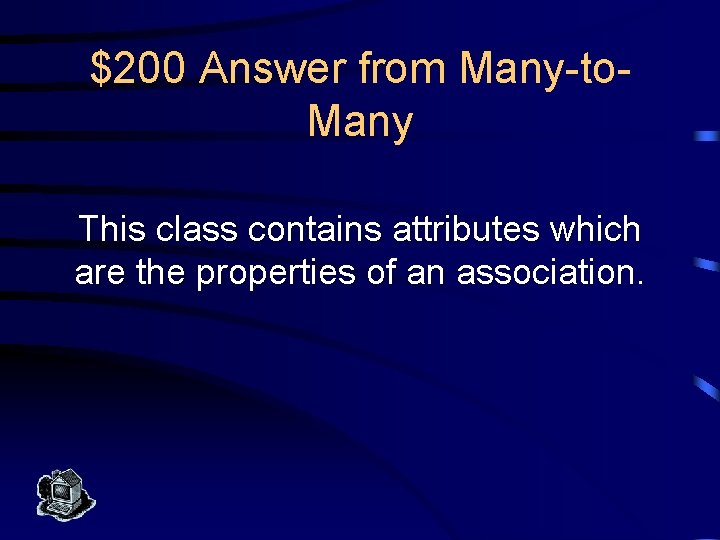

$200 Answer from Many-to. Many This class contains attributes which are the properties of an association.
$200 Question from Many-to. Many What is an association class?
$300 Answer from Many-to. Many This association has a maximum multiplicity of "*" on both sides.
$300 Question from Many-to. Many What is a many-to-many association?

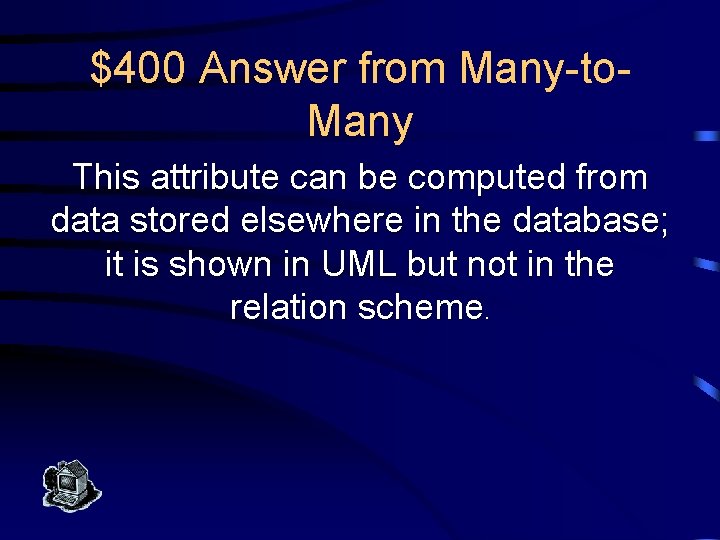

$400 Answer from Many-to. Many This attribute can be computed from data stored elsewhere in the database; it is shown in UML but not in the relation scheme.
$400 Question from Many-to. Many What is a derived attribute?
$500 Answer from Many-to. Many This table is created to hold the linking attributes (FKs) from both sides of a many-to-many association, whether or not there is an association class.

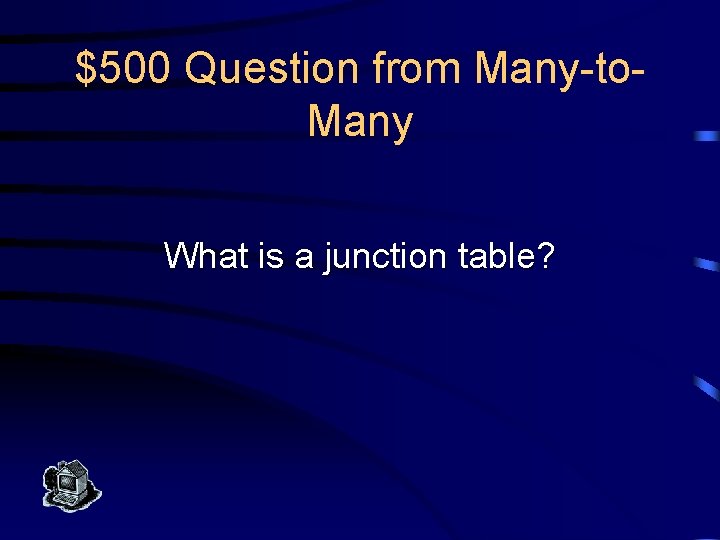

$500 Question from Many-to. Many What is a junction table?
$100 Answer from Subkeys This is the formal definition of the super key property; if I know the value of set "X" of attributes in a relation, I can uniquely determine the value of set "Y" (as well as X).
$100 Question from Subkeys What is a functional dependency?
$200 Answer from Subkeys This set of attributes is a super key for some, but not all, of the attributes in a relation.
$200 Question from Subkeys What is a subkey?

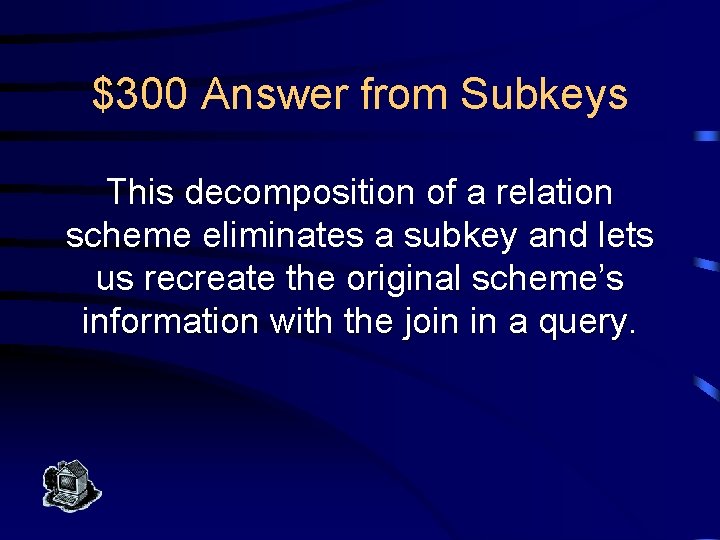

$300 Answer from Subkeys This decomposition of a relation scheme eliminates a subkey and lets us recreate the original scheme’s information with the join in a query.

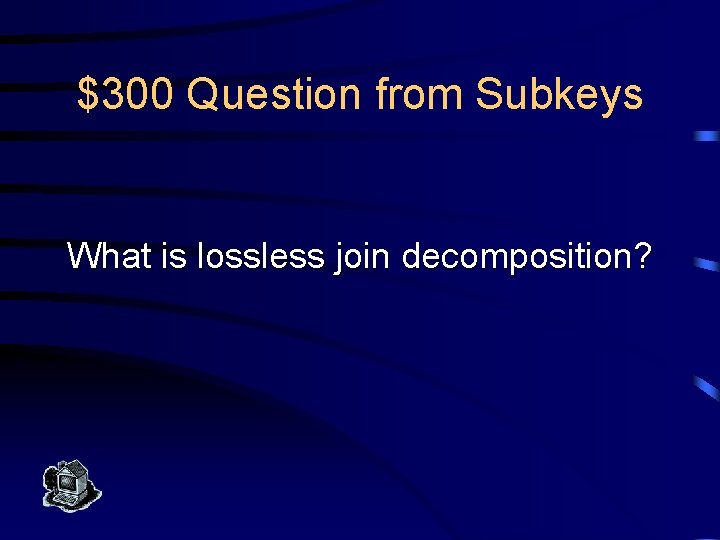

$300 Question from Subkeys What is lossless join decomposition?
$400 Answer from Subkeys Following this set of rules insures that a database is well designed.

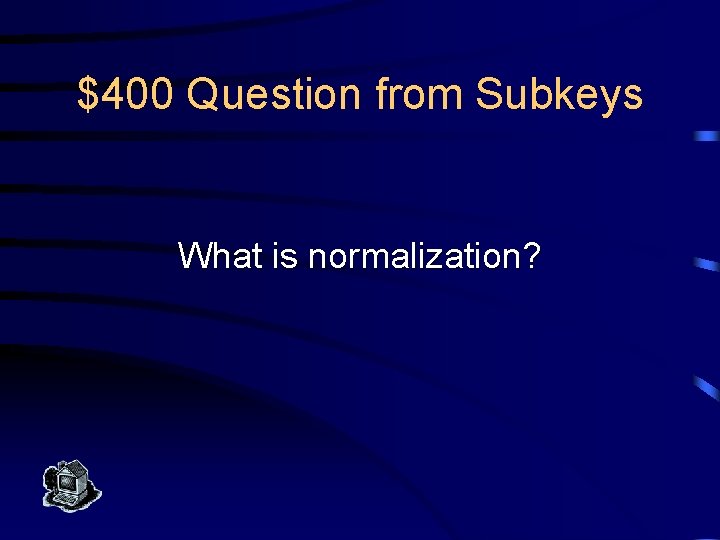

$400 Question from Subkeys What is normalization?
$500 Answer from Subkeys A database with no subkey in any relation (with rare exceptions) is said to be in this form.
$500 Question from Subkeys What is third normal form?
$100 Answer from Joins Join of two tables with the intersection of their schemes used as join attributes.
$100 Question from Joins What is a natural join?
$200 Answer from Joins Join of two tables with join attributes specified by the programmer.
$200 Question from Joins What is an inner join?
$300 Answer from Joins Join of two tables that retains unmatched join attributes from one or both sides.
$300 Question from Joins What is an outer join?
$400 Answer from Joins Paste of every pair of tuples from each relation, disregarding join attributes. Also know as a Cartesian product.

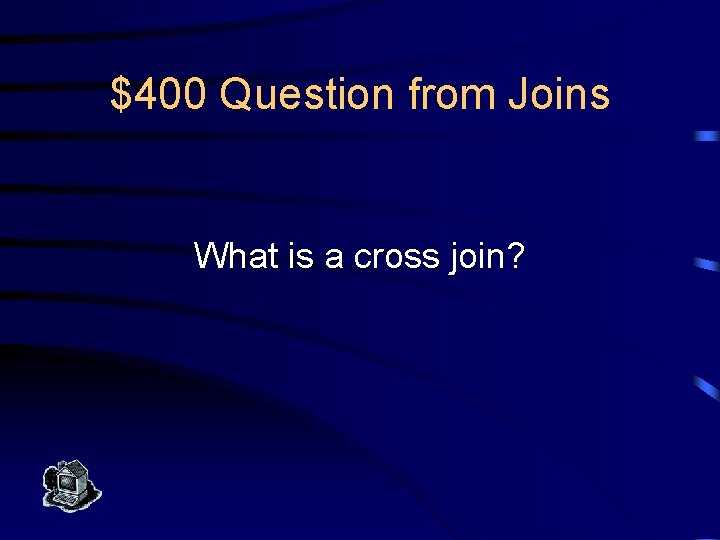

$400 Question from Joins What is a cross join?
$500 Answer from Joins An alternate, short name for a table in the FROM clause of a SELECT statement.
$500 Question from Joins What is an alias?
$100 Answer from Queries This language is used to build and manipulate relational databases. It is declarative, rather than procedural.
$100 Question from Queries What is the Structured Query Language (SQL)?
$200 Answer from Queries Statements to create and modify tables and other database objects.

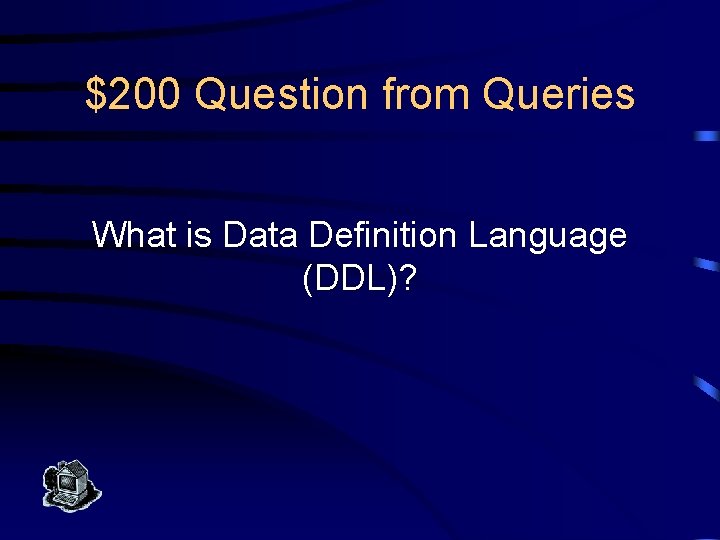

$200 Question from Queries What is Data Definition Language (DDL)?
$300 Answer from Queries Statements to work with data in a table.
$300 Question from Queries What is Data Manipulation Language (DML)?

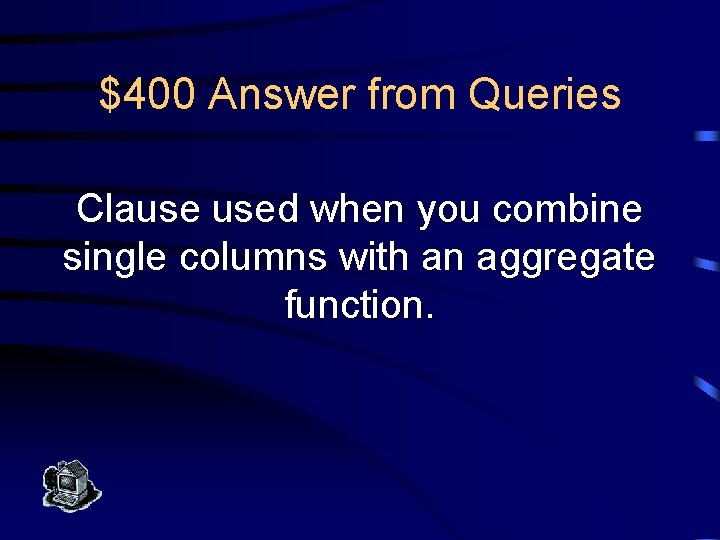

$400 Answer from Queries Clause used when you combine single columns with an aggregate function.
$400 Question from Queries What is a Group By Clause?
$500 Answer from Queries Function that operates on a group of rows, for example, SUM.
$500 Question from Queries What is an Aggregate Function?

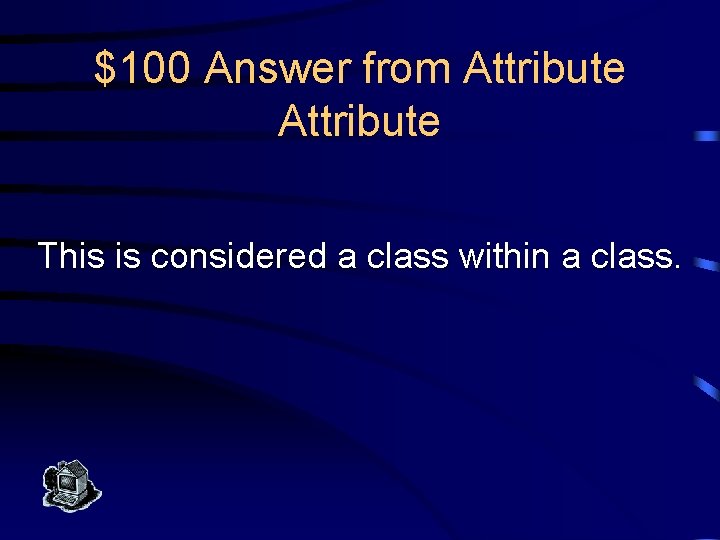

$100 Answer from Attribute This is considered a class within a class.
$100 Question from Attribute What is a weak entity?
$200 Answer from Attribute There are many distinct values entered for this in the same column of the table.

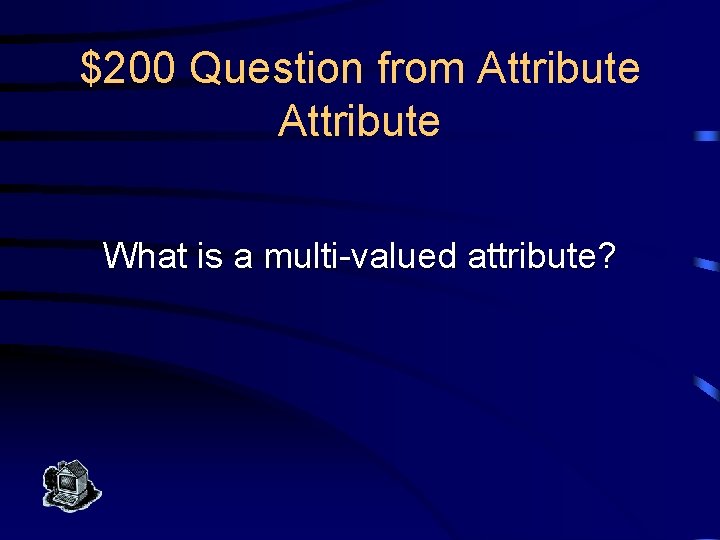

$200 Question from Attribute What is a multi-valued attribute?
$300 Answer from Attribute This causes a large number of null values in a table row.
$300 Question from Attribute What is a repeated attribute?

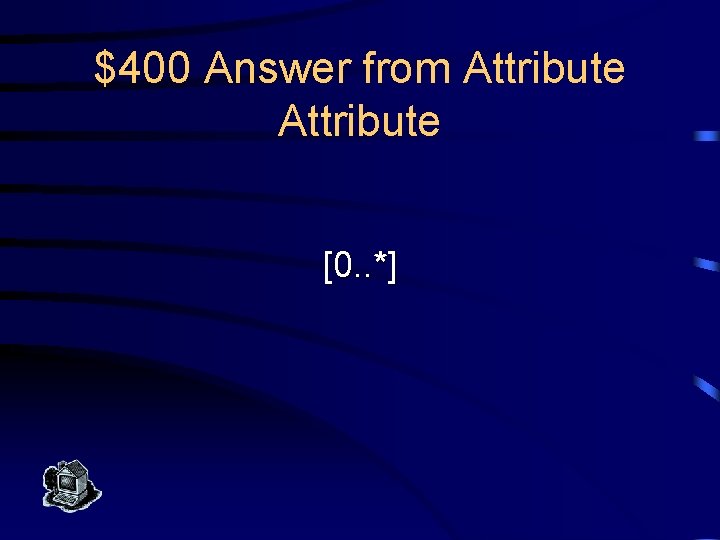

$400 Answer from Attribute [0. . *]

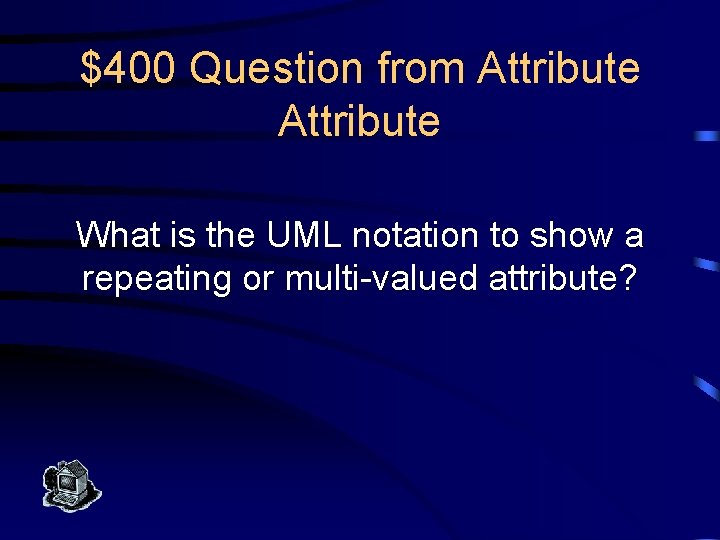

$400 Question from Attribute What is the UML notation to show a repeating or multi-valued attribute?

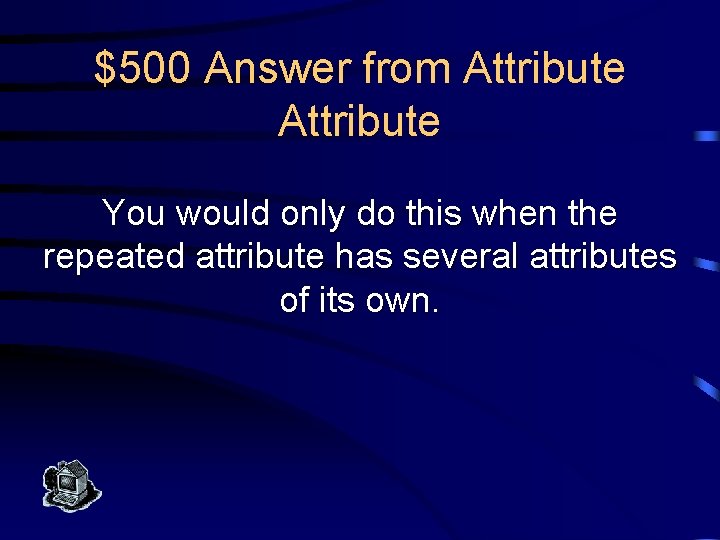

$500 Answer from Attribute You would only do this when the repeated attribute has several attributes of its own

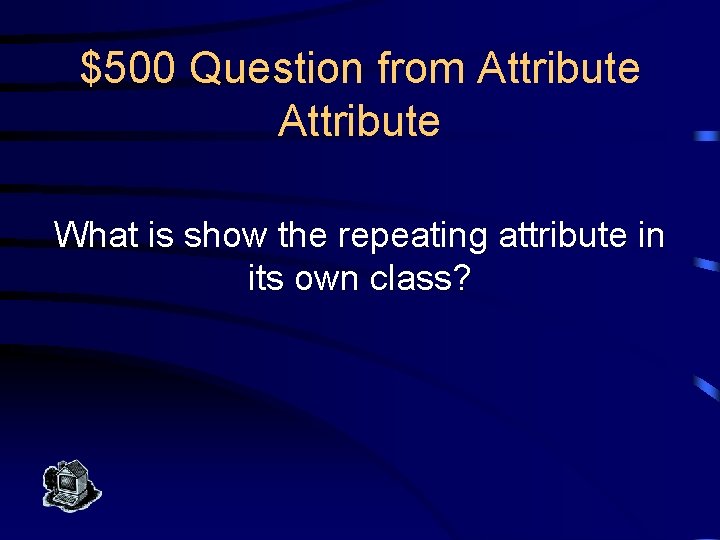

$500 Question from Attribute What is show the repeating attribute in its own class?
Final Data. Bit Keys An outside agency such as a standards body or a government agency has developed this so that we can use it as if it were a descriptive attribute.
Final Data. Bit What is an external (surrogate) key?
