Data Availability and Comparability by Sector in Northern

Data Availability and Comparability by Sector in Northern Ireland the Republic of Ireland Nicola Fisher & Naomi Mc. Laughlin DRD NI

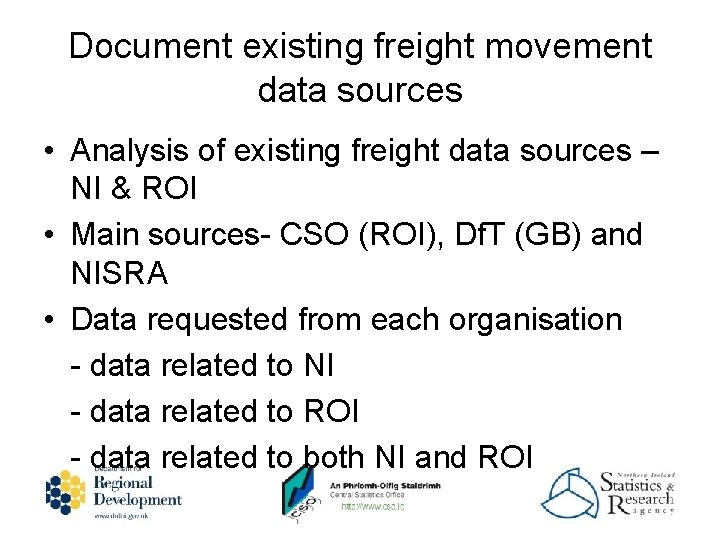

Document existing freight movement data sources • Analysis of existing freight data sources – NI & ROI • Main sources- CSO (ROI), Df. T (GB) and NISRA • Data requested from each organisation - data related to NI - data related to ROI - data related to both NI and ROI

Document existing freight movement data sources • Data Sources document drawn up by mode - Organisations (data providers) - Data Source - Data Summary Description - Collation Method (census, admin system) - Geographical coverage - Publication frequency - Published metadata

Assess North-South data comparability and highlight significant issues • Comparability table by mode created: - availability of data (except rail) for NI & ROI - comparability of data - reason data aren’t comparable - potential for comparability in future

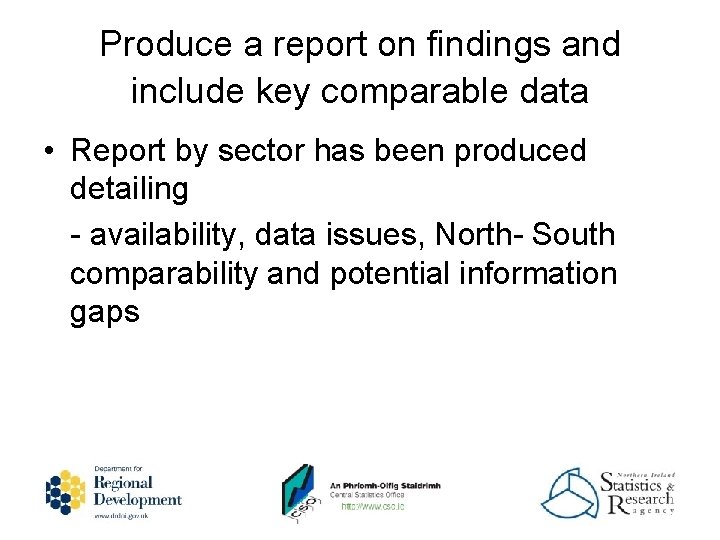

Produce a report on findings and include key comparable data • Report by sector has been produced detailing - availability, data issues, North- South comparability and potential information gaps

Road Freight • EU legislation 1172/98 on statistical returns in respect of the carriage of goods by road. • Should ensure comparability between EU nations. • Gathering detailed European statistics on road freight transport and harmonising them has been the challenge of the Council Regulation 1172/98.

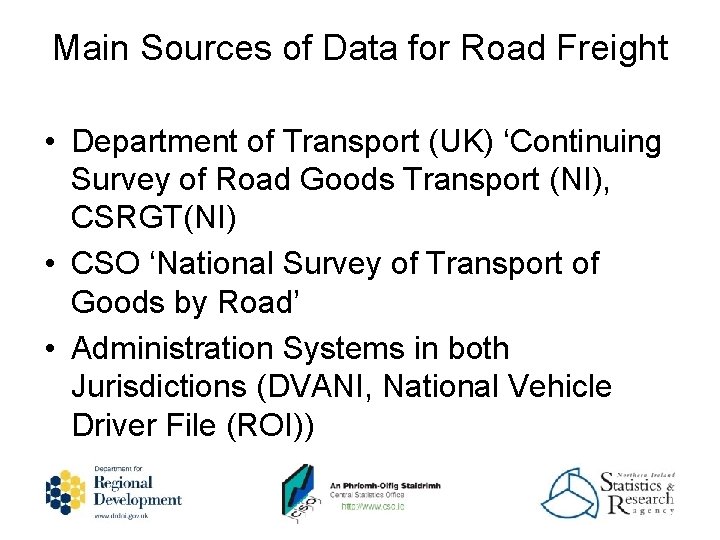

Main Sources of Data for Road Freight • Department of Transport (UK) ‘Continuing Survey of Road Goods Transport (NI), CSRGT(NI) • CSO ‘National Survey of Transport of Goods by Road’ • Administration Systems in both Jurisdictions (DVANI, National Vehicle Driver File (ROI))

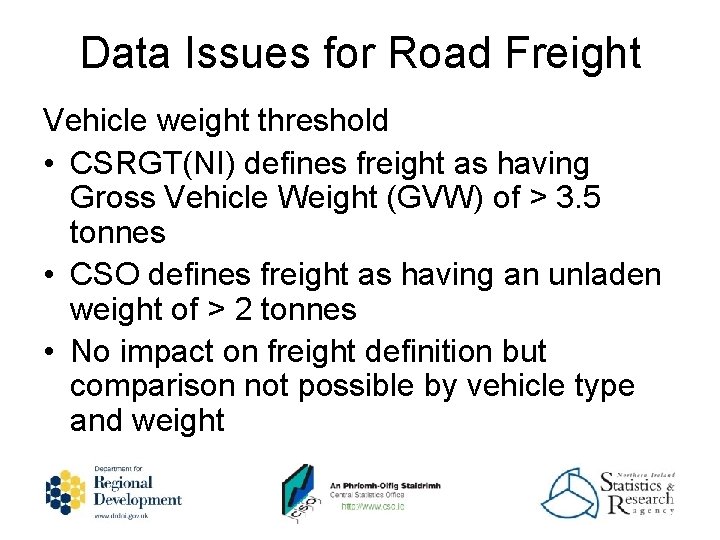

Data Issues for Road Freight Vehicle weight threshold • CSRGT(NI) defines freight as having Gross Vehicle Weight (GVW) of > 3. 5 tonnes • CSO defines freight as having an unladen weight of > 2 tonnes • No impact on freight definition but comparison not possible by vehicle type and weight

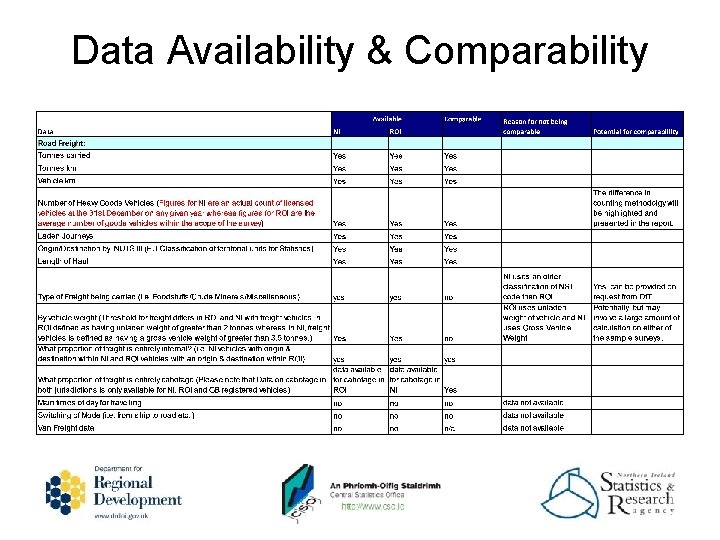

Data Availability & Comparability

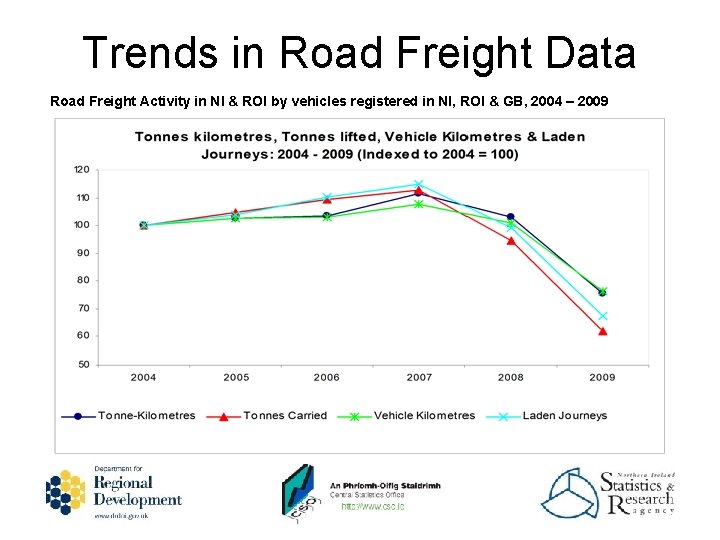

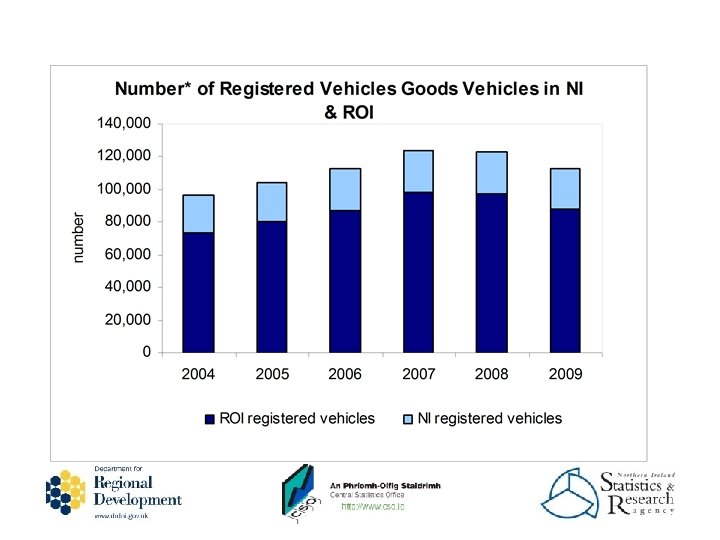

Trends in Road Freight Data Road Freight Activity in NI & ROI by vehicles registered in NI, ROI & GB, 2004 – 2009

Data Gaps Activities of Foreign Trucks • How long do they stay? • What are they carrying? • Nationality of Vehicles and Drivers? • Cabotage undertaken? • Tonnes lifted / tonnes km / Vehicle km

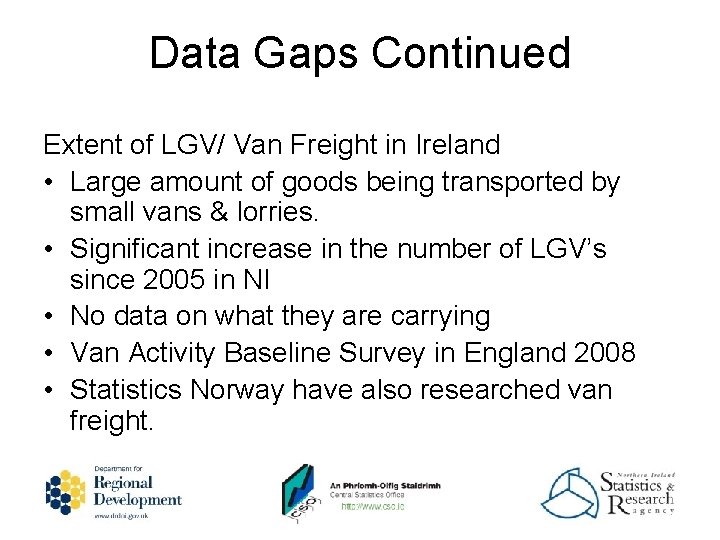

Data Gaps Continued Extent of LGV/ Van Freight in Ireland • Large amount of goods being transported by small vans & lorries. • Significant increase in the number of LGV’s since 2005 in NI • No data on what they are carrying • Van Activity Baseline Survey in England 2008 • Statistics Norway have also researched van freight.

Maritime Freight • EC Maritime Statistics Directive (Council Directive 2009/42/EC on statistical returns in respect of the carriage of goods and passengers by sea) • Quarterly returns from ports collecting data by route, nationality of vessel and cargo type.

Main Sources of Maritime Freight Data Northern Ireland • Northern Ireland Ports Traffic - DETI • UK Maritime Statistics Report (detailed info on NI Ports) Republic of Ireland • Statistics of Port Traffic – CSO • The Irish Maritime Transport Economist – IMDO - also includes info on NI Ports

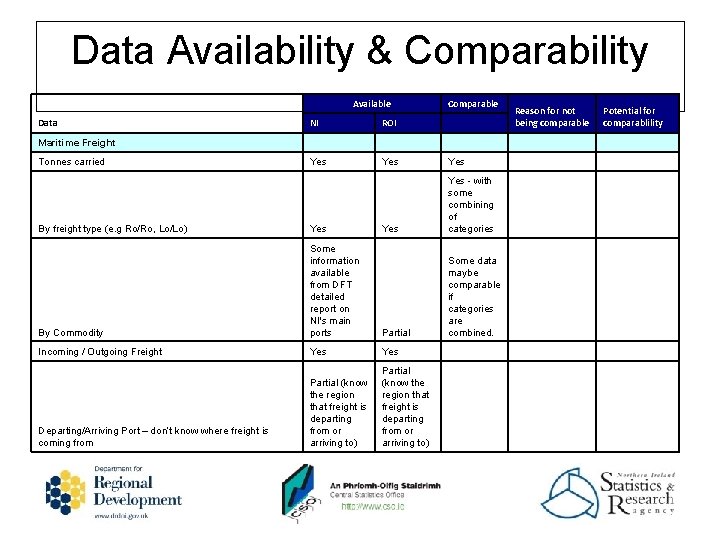

Data Availability & Comparability Available Comparable Data NI ROI Reason for not being comparable Potential for comparablility Maritime Freight Tonnes carried Yes Yes Yes - with some combining of categories By freight type (e. g Ro/Ro, Lo/Lo) Yes By Commodity Some information available from DFT detailed report on NI's main ports Partial Some data maybe comparable if categories are combined. Incoming / Outgoing Freight Yes Departing/Arriving Port – don’t know where freight is coming from Partial (know the region that freight is departing from or arriving to)

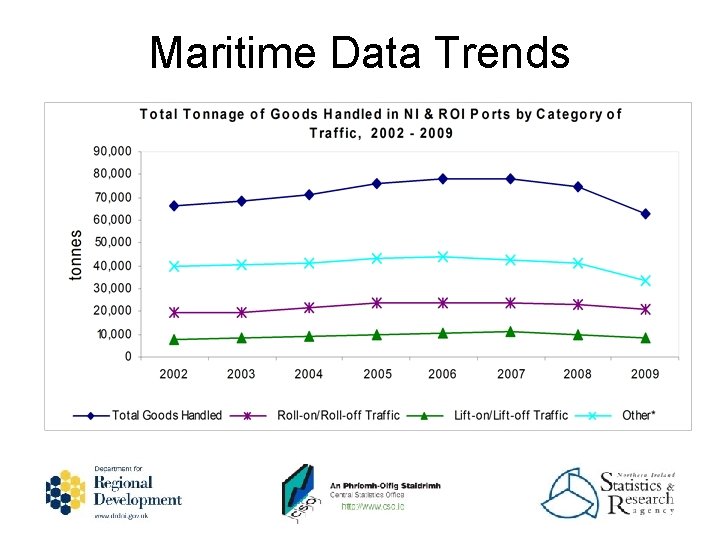

Maritime Data Trends

Maritime Data Trends

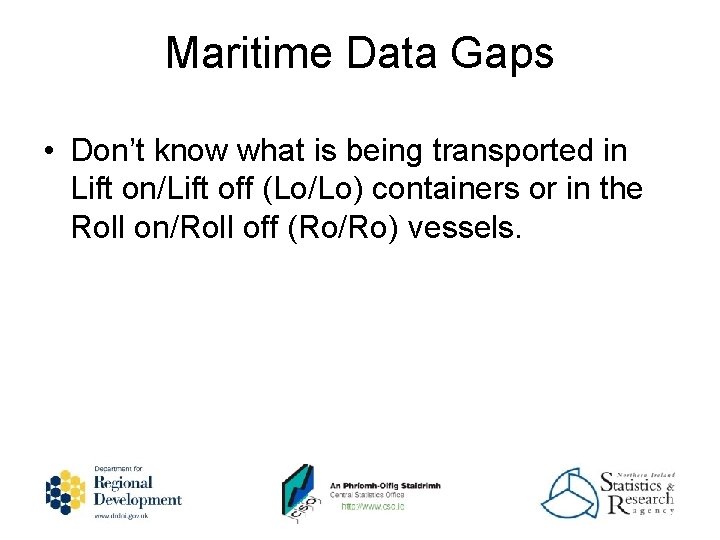

Maritime Data Gaps • Don’t know what is being transported in Lift on/Lift off (Lo/Lo) containers or in the Roll on/Roll off (Ro/Ro) vessels.

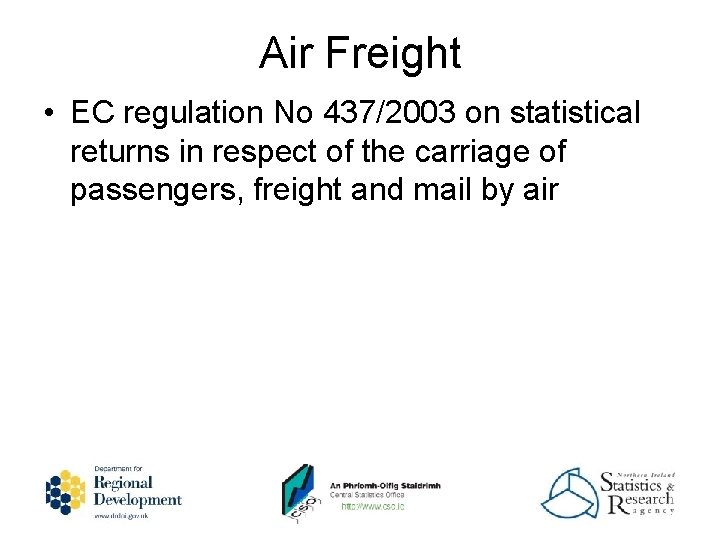

Air Freight • EC regulation No 437/2003 on statistical returns in respect of the carriage of passengers, freight and mail by air

Main Sources of Air Freight Data Northern Ireland • Civil Aviation Authority (CAA) - compile administrative returns from airports. • Statistics are published monthly / annually Republic of Ireland • Aviation Statistics Survey – data published annually in Transport Omnibus Report

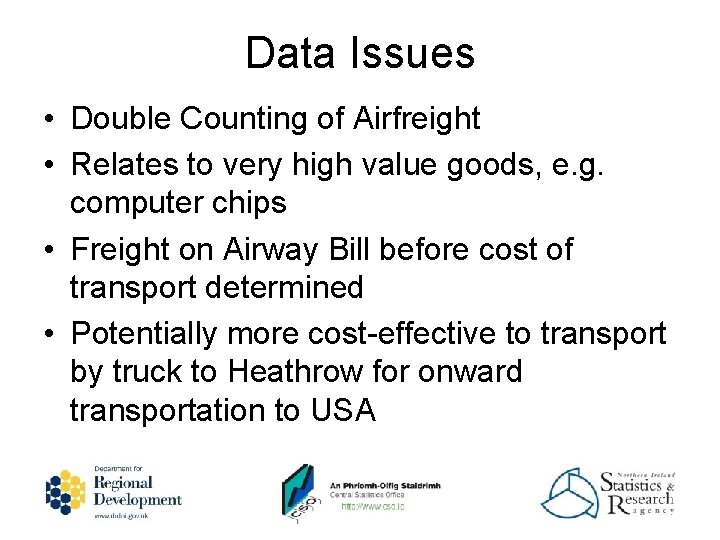

Data Issues • Double Counting of Airfreight • Relates to very high value goods, e. g. computer chips • Freight on Airway Bill before cost of transport determined • Potentially more cost-effective to transport by truck to Heathrow for onward transportation to USA

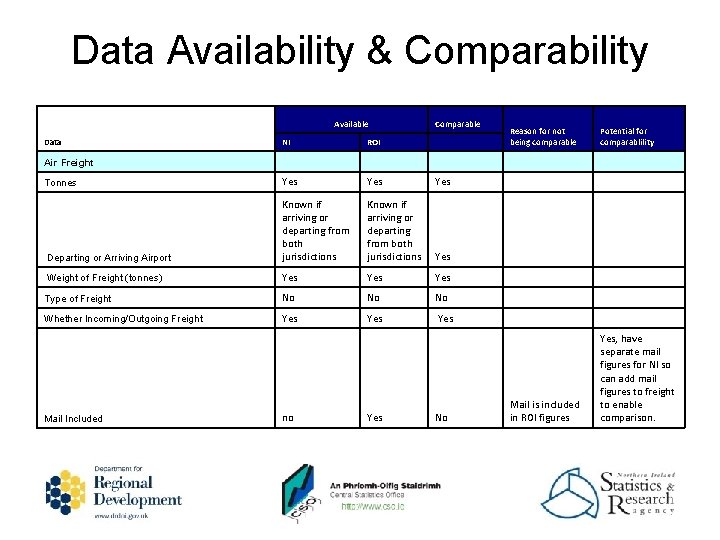

Data Availability & Comparability Available Comparable Data NI ROI Reason for not being comparable Potential for comparablility Air Freight Tonnes Yes Yes Departing or Arriving Airport Known if arriving or departing from both jurisdictions Yes Weight of Freight (tonnes) Yes Yes Type of Freight No No No Whether Incoming/Outgoing Freight Yes Mail is included in ROI figures Yes, have separate mail figures for NI so can add mail figures to freight to enable comparison. Mail Included no Yes No

Air Freight Trends

Data Gaps for Air Freight • No significant air freight gaps identified yet

Rail Freight • Rail Freight ceased in NI in 2003 • Data for ROI is provided by Iarnród Éireann and published in CSO Transport Omnibus on an annual basis

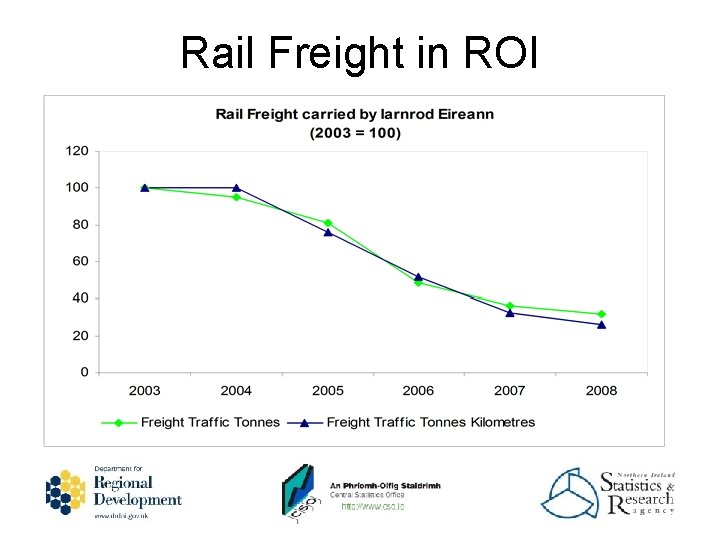

Rail Freight in ROI

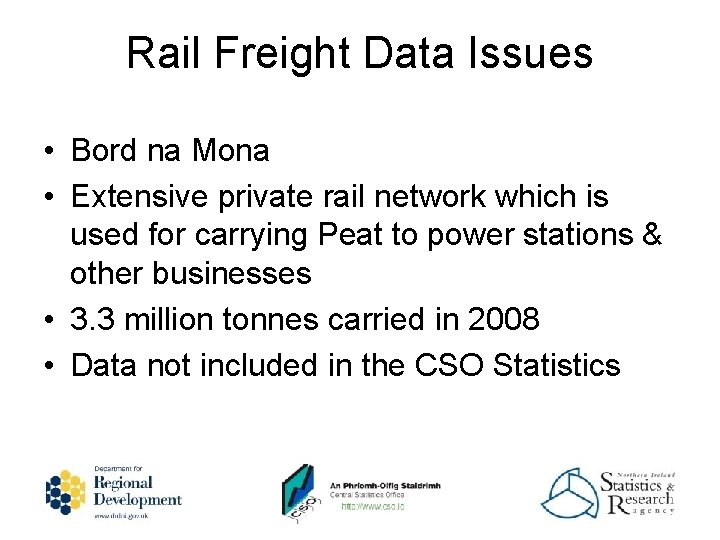

Rail Freight Data Issues • Bord na Mona • Extensive private rail network which is used for carrying Peat to power stations & other businesses • 3. 3 million tonnes carried in 2008 • Data not included in the CSO Statistics

Rail Freight Data Gaps • No significant data gaps identified yet
