Data Aire Controls By Minh Tran Sr Controls
Data Aire Controls By Minh Tran Sr. Controls Engineer

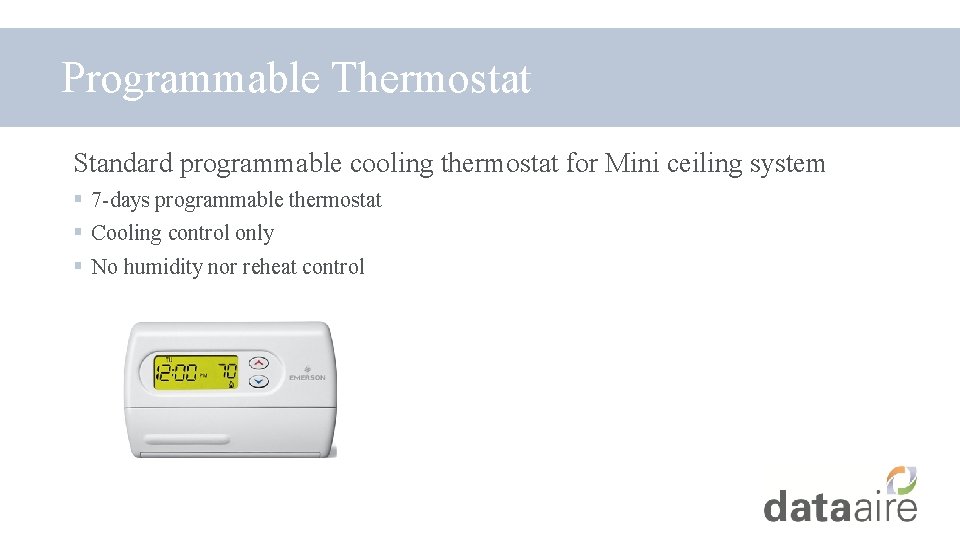

Programmable Thermostat Standard programmable cooling thermostat for Mini ceiling system § 7 -days programmable thermostat § Cooling control only § No humidity nor reheat control

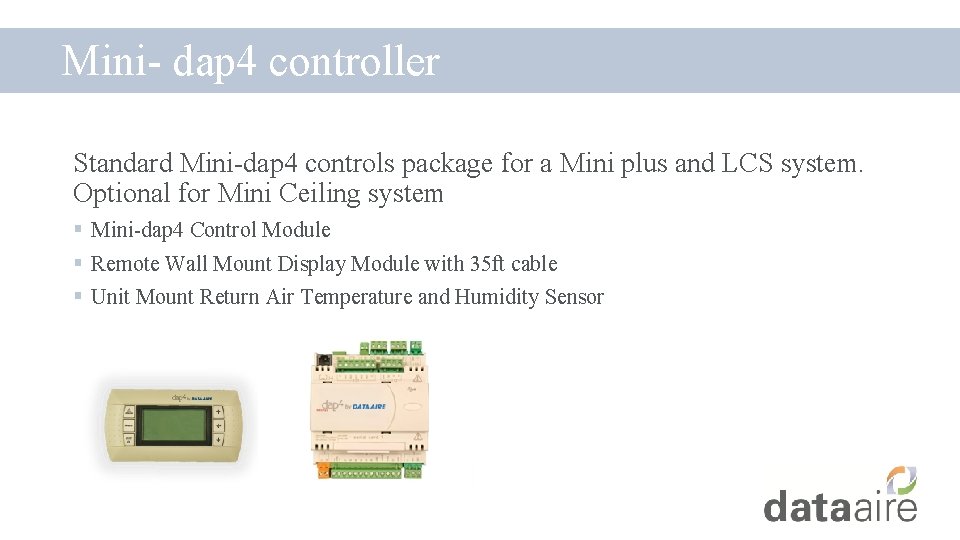

Mini- dap 4 controller Standard Mini-dap 4 controls package for a Mini plus and LCS system. Optional for Mini Ceiling system § Mini-dap 4 Control Module § Remote Wall Mount Display Module with 35 ft cable § Unit Mount Return Air Temperature and Humidity Sensor

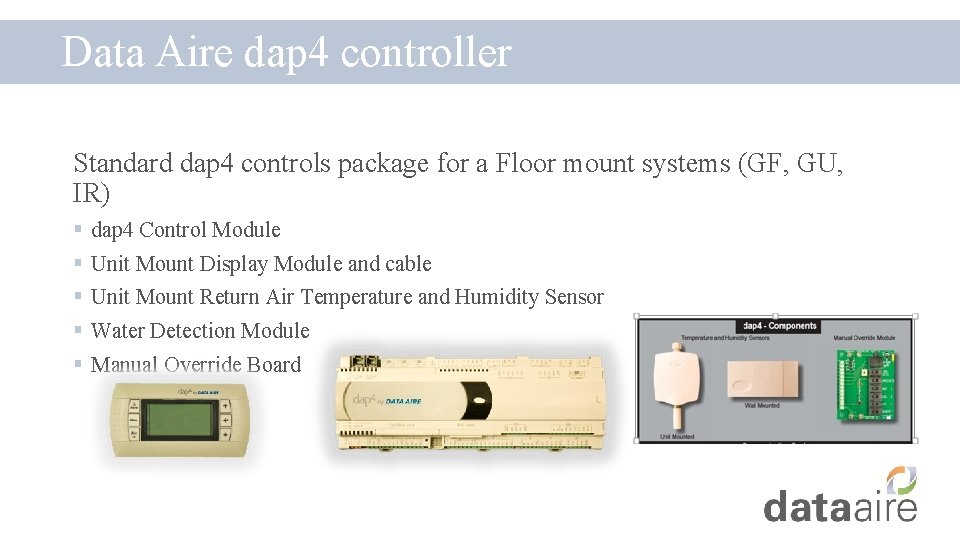

Data Aire dap 4 controller Standard dap 4 controls package for a Floor mount systems (GF, GU, IR) § dap 4 Control Module § Unit Mount Display Module and cable § Unit Mount Return Air Temperature and Humidity Sensor § Water Detection Module § Manual Override Board

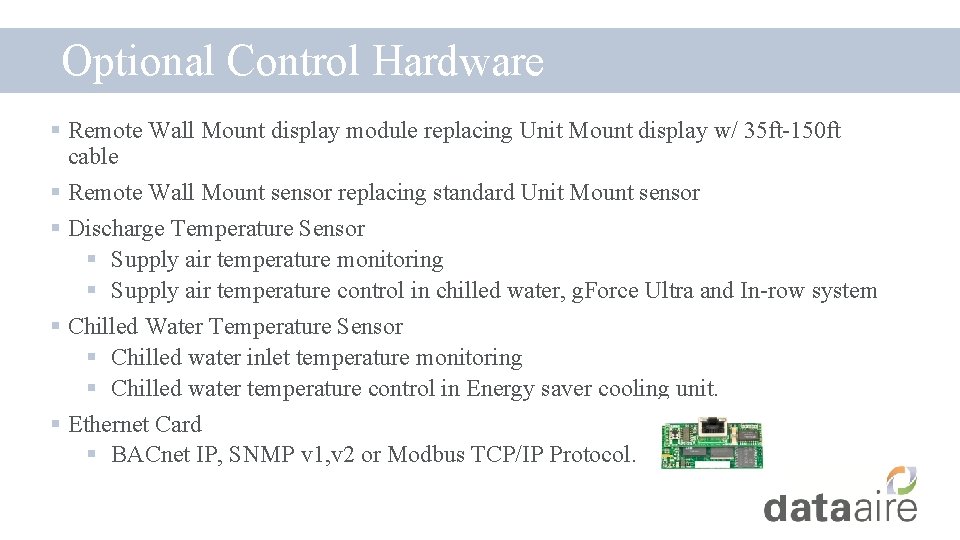

Optional Control Hardware § Remote Wall Mount display module replacing Unit Mount display w/ 35 ft-150 ft cable § Remote Wall Mount sensor replacing standard Unit Mount sensor § Discharge Temperature Sensor § Supply air temperature monitoring § Supply air temperature control in chilled water, g. Force Ultra and In-row system § Chilled Water Temperature Sensor § Chilled water inlet temperature monitoring § Chilled water temperature control in Energy saver cooling unit. § Ethernet Card § BACnet IP, SNMP v 1, v 2 or Modbus TCP/IP Protocol.

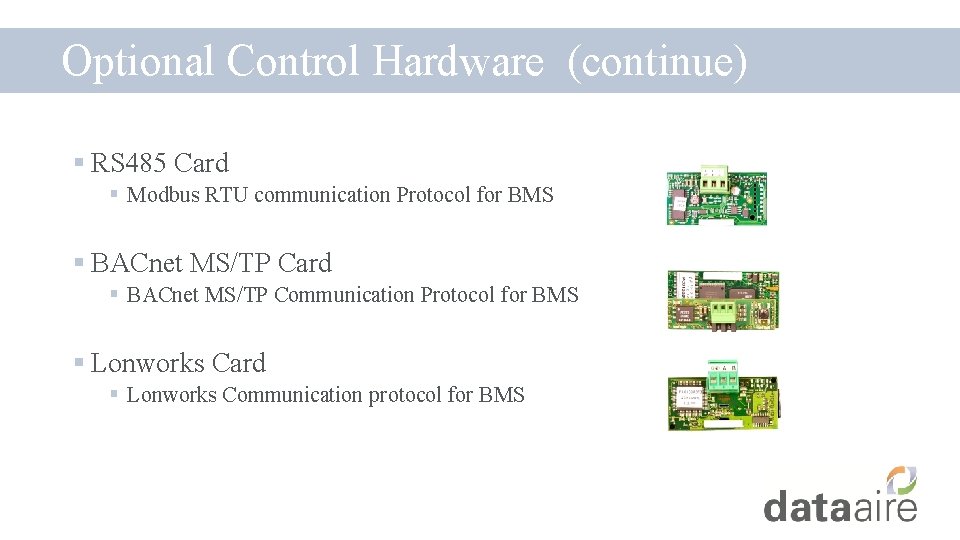

Optional Control Hardware (continue) § RS 485 Card § Modbus RTU communication Protocol for BMS § BACnet MS/TP Card § BACnet MS/TP Communication Protocol for BMS § Lonworks Card § Lonworks Communication protocol for BMS

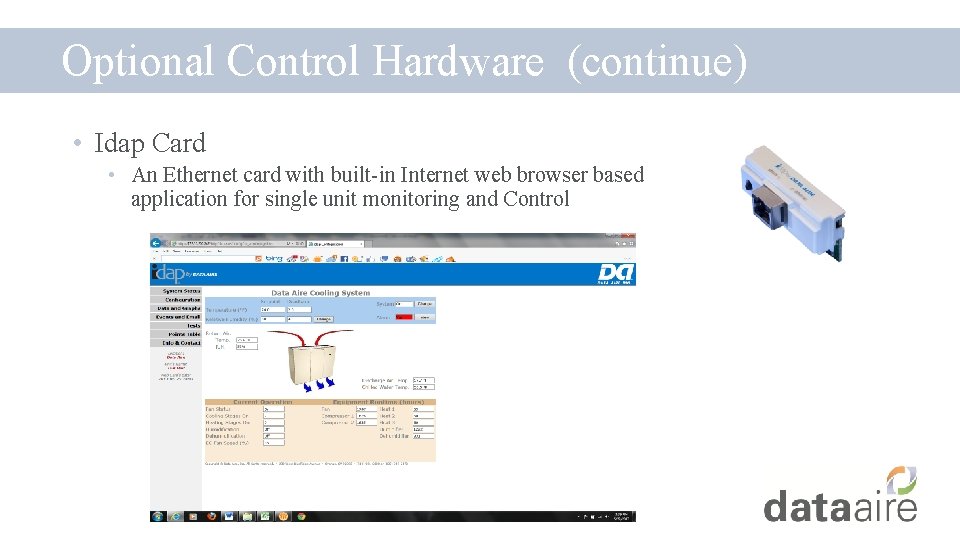

Optional Control Hardware (continue) • Idap Card • An Ethernet card with built-in Internet web browser based application for single unit monitoring and Control

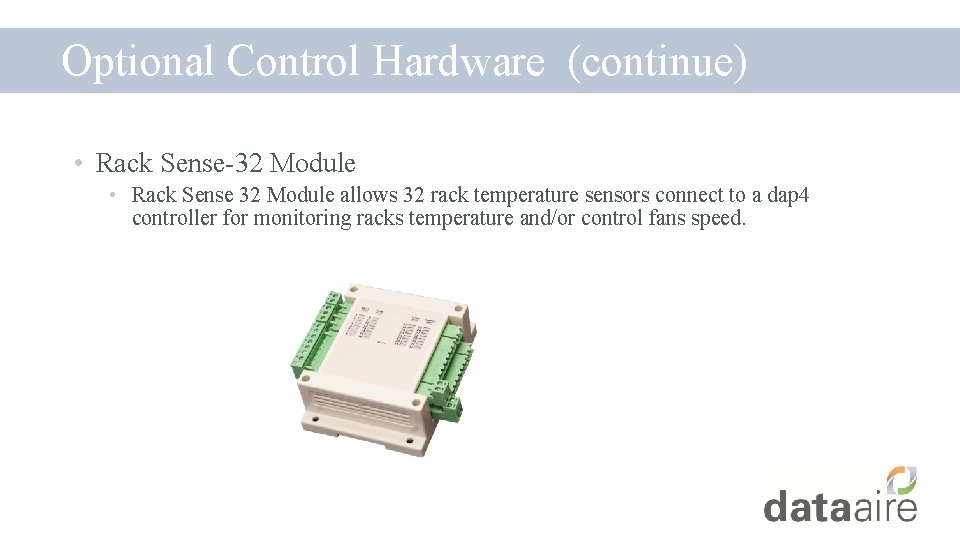

Optional Control Hardware (continue) • Rack Sense-32 Module • Rack Sense 32 Module allows 32 rack temperature sensors connect to a dap 4 controller for monitoring racks temperature and/or control fans speed.
Optional Zone Master Controls § Zone Master § Provides Lead/ lag rotation, switch-over on alarm events and team work control logic for up to 16 Data Aire dap 4 or Mini-dap 4 units. § Twisted pair daisy-chain loop wiring and software activation (per unit) required.
Optional Zone Controls § Dara-4 g 2 panel § Provide lead/lag rotation and Alarm Auto changeover control for up to four HVAC units (Data Aire or Non. Data Aire system). § Use four control relays with 8 Amp non-power control contacts.

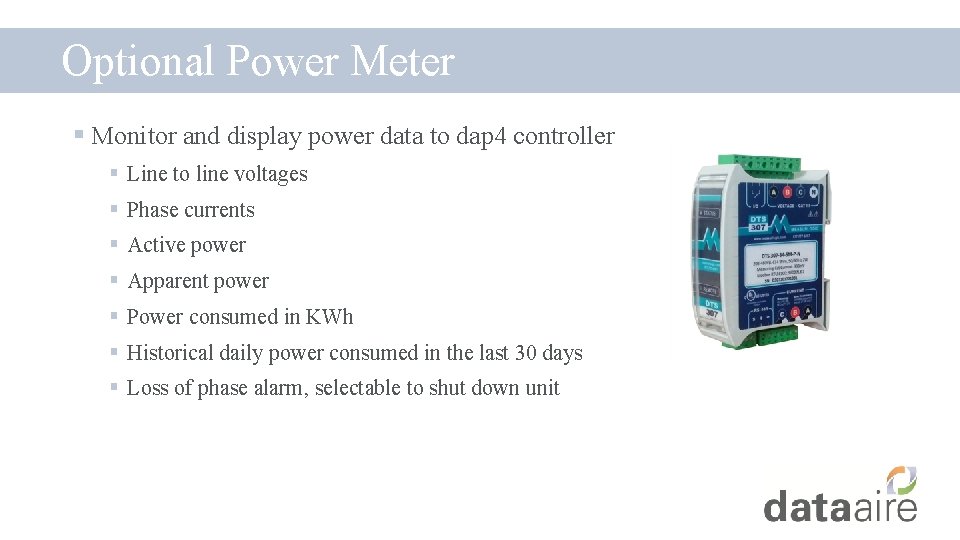

Optional Power Meter § Monitor and display power data to dap 4 controller § Line to line voltages § Phase currents § Active power § Apparent power § Power consumed in KWh § Historical daily power consumed in the last 30 days § Loss of phase alarm, selectable to shut down unit
