DAS1 DAS2 DAS3 Henri Bal Vrije Universiteit Amsterdam

DAS-1 DAS-2 DAS-3 Henri Bal Vrije Universiteit Amsterdam Faculty of Sciences

Outline • • Introduction DAS-1, DAS-2, DAS-3 systems Impact of DAS Collaborations with - VL-e - SURFnet - Grid’ 5000 • New users

Distributed ASCI Supercomputer • Joint infrastructure of ASCI research school • Clusters integrated in a single distributed testbed • Long history (10 years) and continuity

DAS is a Computer Science grid • Motivation: CS needs its own infrastructure for - Systems research and experimentation - Distributed experiments - Doing many small, interactive experiments • DAS is simpler and more homogeneous than other grids - Single operating system - “A simple grid that works’’

Typical heterogeneous Grid

Configuration 200 MHz Pentium Pro 64 -128 MB memory 2. 5 GB local disk DAS-1 (1997 -2002) VU (128) Amsterdam (24) Myrinet interconnect BSDI => Redhat Linux 6 Mb/s ATM Leiden (24) Delft (24)

Configuration two 1 GHz Pentium-3 s >= 1 GB memory 20 -80 GB disk DAS-2 (2002 -2007) VU (72) Myrinet interconnect Redhat Enterprise Linux Globus 3. 2 PBS => Sun Grid Engine Amsterdam (32) SURFnet 1 Gb/s Leiden (32) Utrecht (32) Delft (32)

DAS-3 Procedure • • • NWO proposal (ASCI, VL-e, Multimedia. N), Sep’ 04 Funding from NWO/NCF, Apr’ 05 Steering group + implementation group European tender (with Stratix and TUD/GIS) Selected Cluster. Vision, Apr’ 06 • Optical wide-area network by SURFnet (Giga. Port-NG project)

dual AMD Opterons 4 GB memory 250 -1500 GB disk More heterogeneous: 2. 2 -2. 6 GHz Single/dual core nodes Myrinet-10 G (exc. Delft) Gigabit Ethernet Scientific Linux 4 Globus, SGE DAS-3 Uv. A/Multimedia. N (46) VU (85) SURFnet 6 Uv. A/VL-e (40) 10 Gb/s lambdas TU Delft (68) Leiden (32)

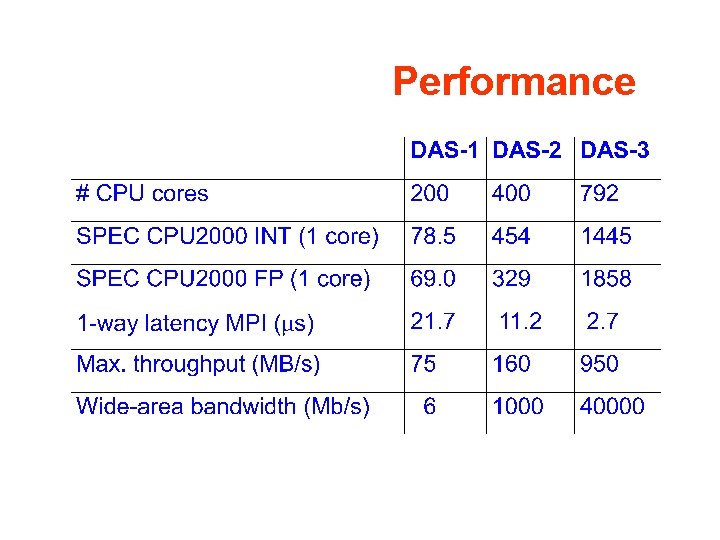

Performance

Outline • • Introduction DAS-1, DAS-2, DAS-3 systems Impact of DAS Collaborations with - VL-e - SURFnet - Grid’ 5000 • New users

Usage of DAS • ~200 users, 34 Ph. D. theses • Clear shift of interest: Cluster computing Distributed computing Grids & peer-to-peer computing Virtual laboratories for e-Science

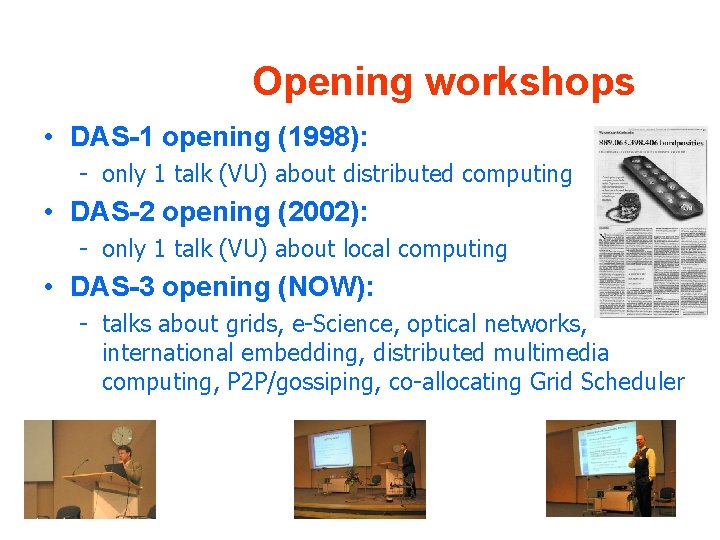

Opening workshops • DAS-1 opening (1998): - only 1 talk (VU) about distributed computing • DAS-2 opening (2002): - only 1 talk (VU) about local computing • DAS-3 opening (NOW): - talks about grids, e-Science, optical networks, international embedding, distributed multimedia computing, P 2 P/gossiping, co-allocating Grid Scheduler

Impact of DAS • Major incentive for VL-e 20 M€ BSIK funding - Virtual Laboratory for e-Science • Collaboration SURFnet on DAS-3 - SURFnet provides multiple 10 Gb/s light paths • Collaboration with French Grid’ 5000 - Towards a European scale CS grid? Grid’ 5000

VL-e: Virtual Laboratory for e-Science

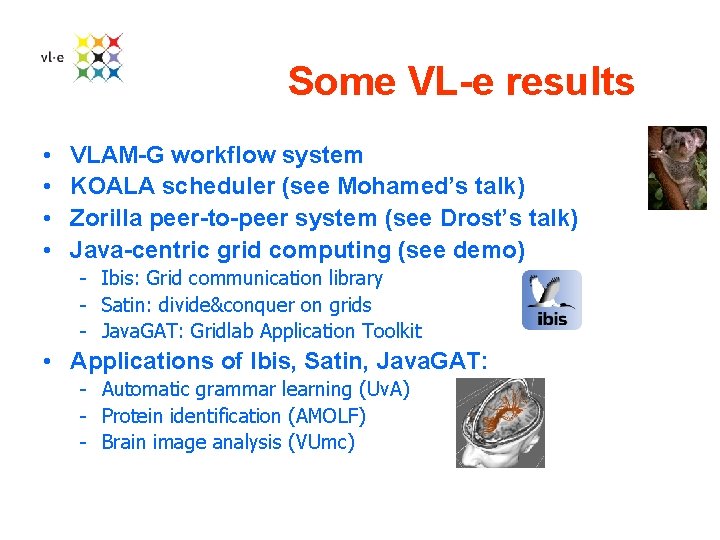

Some VL-e results • • VLAM-G workflow system KOALA scheduler (see Mohamed’s talk) Zorilla peer-to-peer system (see Drost’s talk) Java-centric grid computing (see demo) - Ibis: Grid communication library - Satin: divide&conquer on grids - Java. GAT: Gridlab Application Toolkit • Applications of Ibis, Satin, Java. GAT: - Automatic grammar learning (Uv. A) - Protein identification (AMOLF) - Brain image analysis (VUmc)

SURFnet 6 • 4 DAS-3 sites happen to be on Subnetwork 1 (olive green) • Only VU needs extra connection Source: Erik-Jan Bos

Adding 10 G waves for DAS-3 WSS • • Uv. A Multi. Median VU Leiden Delft “spur” – hardwired connections Band 5 added at all participating nodes WSS added for reconfigurability “Spur” to connect VU Full photonic mesh possible • Source: Erik-Jan Bos • Also see De Laat’s talk

International grid experiments • Distributed supercomputing on Grid. Lab - Real speedups on a very heterogeneous testbed • Crossgrid experiments - N-body simulations (astronomy) - Grid-based interactive visualization of medical images

Grid’ 5000 500 1000 500 Rennes Lyon Sophia Grenoble Bordeaux Orsay Toulouse 500 500 500

Connecting DAS-3 and Grid’ 5000 • Optical 10 Gb/sec link between Paris and Amsterdam, funded by VL-e • See Cappello’s talk (and keynote @ CCGrid 2007)

Users of DAS-3 • ASCI, VL-e • Multimedia. N - See Multimedia. N talk + demo • NWO projects - Star. Plane, JADE-MM, GUARD-G, VEARD, GRAPE Grid, SCARIe, Astro. Stream, Cell. Math, Meso. Scale, …. . • NCF projects (off-peak hours)

New users • DAS is intended primarily for computer scientists from ASCI, VL-e, Multimedia. N • How do we define “Computer Scientist”? • Need a light-weight admission test …

Proposed test There are only 10 types of people in the world: Those who understand binary and those who don't. J= Pass as Computer Scientist Source:

Acknowledgements • • • Lex Wolters Dick Epema Cees de Laat Frank Seinstra Erik-Jan Bos Henk van der Vorst • • • NWO NCF SURFnet VL-e Multimedia. N VU, Uv. A, TUD, Leiden • • • Andy Tanenbaum Bob Hertzberger Henk Sips Aad van der Steen Many others • • ASCI Cluster. Vision TUD/GIS Stratix

Special acknowledgement …. • Reasons why DAS is ``a simple grid that works’’ • 1) simple, homogeneous design • 2) Kees Verstoep
