DAP1525 Wireless 11 n Smart Beam Access Point

DAP-1525 Wireless 11 n Smart Beam Access Point Sales Guide v 1. 2 Wireless & Router Product Div Feb 15 st , 2011 D-Link HQ

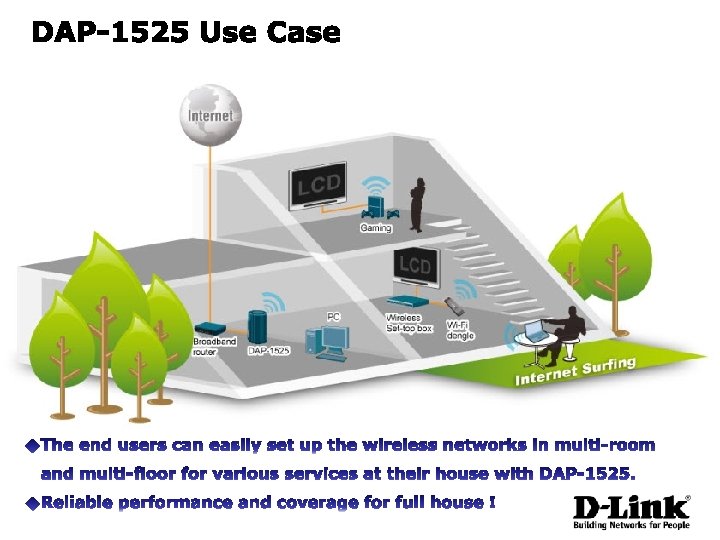

Product introduction Product Positioning Smart Antenna Algorithm Target Market- DAP-1525 Use Case DAP-1525 Selling Point DAP-1525 Features Competitive advantages

Product Briefing

Impressive Wireless Performance • Selectable 2. 4 GHz and 5 GHz operation bands • Reliable performance with 2 x 2 MIMO technology • Beam-forming support High Range Coverage • State-of-the-Art Multiple Antenna algorithm • Suitable for full house, multi-floor home users Flexible Application Options • USB Share. Port. TM • 4 Gigabit Ethernet Ports • Host/Guest zone administration New Fancy Look • New ID design with better quality • i. F Design award

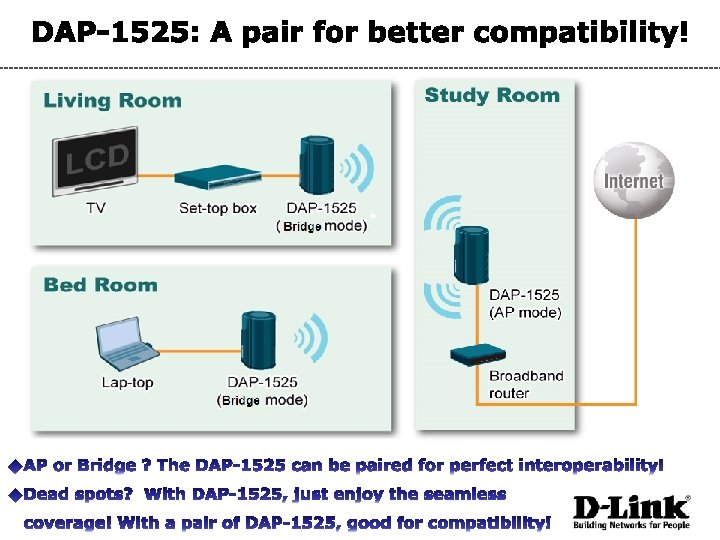

High-end Pair to transmit 11 n Media Streaming Adaptors DAP-1560 Multi-Media Video streaming Streaming Market Segment Advanced Qo. S Wireless N dual band AP with Smart Beam DAP-1525 Smart. Beamforming Share Port PLUS SOHO/Home AP Entry. Level Wireless 11 N AP DAP-1522 AP/Client mode Wireless 11 N AP DAP-1360 Normal Extended Coverage

What is Smart Beam ?

Multiple-element antennas can have different combinations switching to reach the optimal performance. Reduce interference levels and transmit the signal in the direction of the particular users. Auto selecting the antenna composition based on connected Station traffic quality according to “Packet Error Rate”, “Received signal” and “throughput”.

The D-Link Smart Beam. TM technology can differentiate the desired, and undesired signals (interferences) such as 2. 4 GHz cordless phone, wireless cameras and microwave ovens, and alternatively focus on the conversations at a time. 2. 4 GHz cordless phone Desired User 1 Desired User 2 Interfering User 2. 4 GHz wireless Camera

n Extend the coverage The D-Link Smart. Beam. TM system can automatically optimize its reception pattern and maximize the signal gain toward to the desired users to reduce the dead spots and extend the link range. n Interference Mitigation The system can select the “best” antenna composition to provide the service in a specific direction. This minimizes the co-channel interference and improves the SNR (signalto-interference ratio) of the received signals effectively by avoiding sending the signals to the undesired users. n Power Efficiency The system combines the inputs to multiple elements for more power gain and utilize the signal strength to prevent from wasting energy.

The scenario of Smart Beam

The Performance

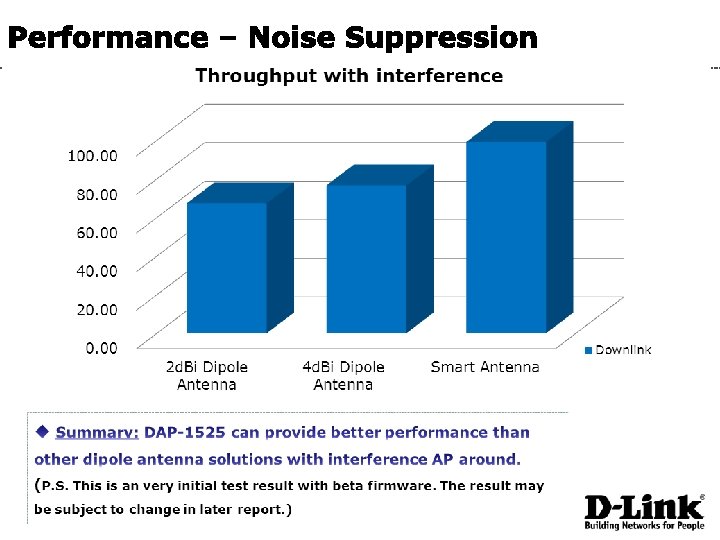

u. Test environment: 1. Office (about 7000 square feet) 2. DUT (AP) in association with STA 2 u. DUTs: (AP) 1. DAP-1525 with Smart Antenna 2. 4 d. Bi dipole antenna solution 3. 2 d. Bi dipole antenna solution u Test Set-up: The Interference AP is 2. 2 M around with STA 1; and The DUTs are associated with STA 2.

u Environment: 1. Office environment at 7 locations with different ranges. 2. Test in different floors (4 th Floor 5 th Floor) 3. UDP throughput test u DUTs: 1. D-Link DAP-1525 AP mode v. s DAP-1525 Bridge mode (4 d. Bi antenna gain) 2. Ruckus 7811 AP v. s 7111 Adaptor (7 d. Bi antenna gain)

90. 00 80. 00 70. 00 60. 00 50. 00 Ruckus 7811+7111 40. 00 30. 00 D-Link DAP -1525 Pair 20. 00 10. 00 L 1 L 2 L 3 L 4 L 5 L 6 L 7 4 F->5 F (P. S. This is an very initial test result with beta firmware. The result may be subject to change in later report. )

In terms of the above test results, it is obvious to see the DAP-1525 with D-Link Smart. Beam. TM antenna is able to : • Increase almost 50% throughput more in a single client connection, with interference STA around. • For media streaming application, D-Link DAP-1525 can provide very competitive connection performance and quality compared to other solutions ! • Able to provide better vertical coverage (across-floor) more than dipole antenna solutions and Ruckus !

Features of DAP-1525

Uplink port Low priority Medium priority High priority

LAN Port 1 High Priority 1000 Mbp s IPTV LAN Port 2 IPTV Medium Priority Skype phone LAN Port 3 Data Typical DSL Bandwidth : • Downlink: 3 -6 Mbps • Uplink: 384 kbps-1 Mbps GIGABIT ETHERNET Low Priority Data

Host User SSID Internet Guest User SSID

DAP-1525 Selling Point

! R E ID Full-house Coverage W • Double Wi-Fi Range ! • Optimize the available power gain for longer range S FA ! R TE Reliable Performance • 50% higher transmission speed ! • Selectable Dual band N for less interference & e ar y! h S lit Multi-media Application a Qu • Enhanced Qo. S for reliable bandwidth • Files, photos and media contents sharing via USB port

Dual-Band Selection • Selectable dual band N for more choices. • Clean 5 GHz Band for Less Interference GIGABIT ETHERNET Gigabit Ethernet • High speed wired connection for multi-media streaming • Energy Efficient Ethernet function for power saving DOUBLE • Range Boosting • Built-in D-Link Smart Beam. TM multiple antenna design COVERAGE • At least double coverage than dipole antenna Enhanced Qo. S Engine PRIORITY BY PORT • Service priority and bandwidth control by physical ports • Easy Plug-n-Play via directly connecting to the specific port
