Dali JPA Tools

About Dali • Dali JPA Tools is an Eclipse Web Tools Platform sub-Project • Dali 1. 0 is a part of WTP 2. 0 Europa coordinated release • Goal - to build extensible frameworks and exemplary tools for the definition and editing of object-relational mappings for JPA Entities • Provide creation and automated initial mapping wizards, programming assistance such as dynamic problem identification

Dali Goals • Simplicity • • Intuitiveness • • Use existing and consistent modelling and tooling practices in Eclipse Compliance • • • Automated mapping wizards and intelligent mapping assistance Support any and all Java Persistence API compliant runtime implementations Test using EJB 3. 0 JPA Reference Implementation Extensibility • Provide extension points for vendors and open source projects to add their own value-add features

Information 1. Dali Web Site: http: //www. eclipse. org/webtools/dali/main. php 1. Dali User’s Guide: http: //www. eclipse. org/webtools/dali/docs/dali_user_guide. pdf 1. Dali Tutorial: http: //www. eclipse. org/webtools/dali/docs/tutorial_1. 0/dal i_jsf_tutorial. pdf 1. Dali Developer Documentation http: //wiki. eclipse. org/index. php/Dali_Developer_Documenta tion

JPA Development Perspective • To start using Dali JPA Tools in Eclipse open “JPA Development” perspective

Basic Steps • • • Create a database connection Create a JPA project Create persistent Java entities Associate the entity with a database table Create OR mapping • id • columns • relationships

Database Connection • Create database connection using a “Data Source Explorer” view

JPA Details View • The JPA Details view displays the persistence information for the currently selected entity

JPA Structure View • The JPA Structure view displays an outline of the structure (its attributes and mappings) of the entity that is currently selected or opened in the editor

Managing the persistence. xml file • When creating a JPA project, you can also create the persistence. xml file • Use the Persistence XML Editor to edit the persistence. xml file • Synchronizing classes • as you work with the classes in your Java project, you will need to update the persistence. xml file to reflect the changes • right-click the persistence. xml file JPA Tools Synchronize Classes

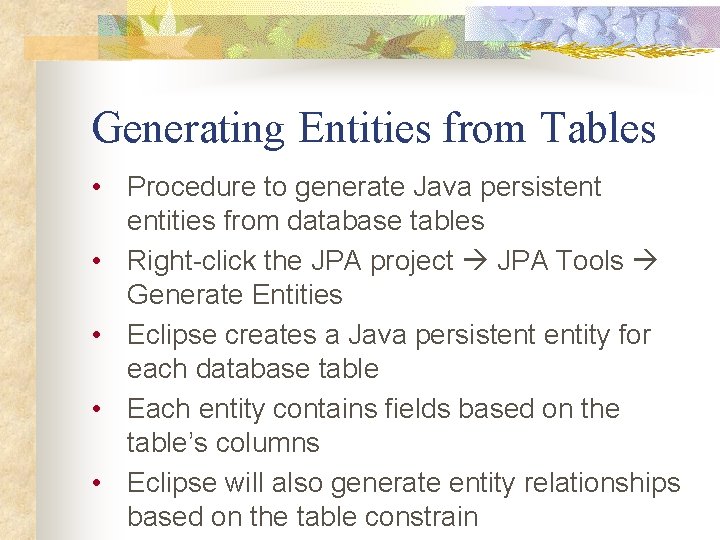

Generating Entities from Tables • Procedure to generate Java persistent entities from database tables • Right-click the JPA project JPA Tools Generate Entities • Eclipse creates a Java persistent entity for each database table • Each entity contains fields based on the table’s columns • Eclipse will also generate entity relationships based on the table constrain

Table Generation from Entities • Generates platform specific tables from Entities through the DDL generation • Right-click the JPA project JPA Tools Generate DDL

Demos • On the project web site it’s possible to view visual Demos for: • • • Creating a Database Connection Creating a Database Schema Creating a JPA Project Mapping with Annotations Mapping with XML
