DALI Dimmer Knowledge about DALI Digital Addressable Lighting Interface (DALI) DALI is specified by technical standards IEC 62386 and IEC 60929. Standards conformance ensures that equipment from different manufacturers will interoperate. Members of the AG DALI (founded by Philips lighting in 1984) were freely allowed to use the DALI trademark until DALI working party was dissolved on 30 th March 2017. Since 9 th June 2017, Digital Illumination Interface Alliance (Dii. A) certifies DALI equipment.
A typical DALI configuration Assign addresses to each device. Monitor and control each device A DALI network requires a 24 V DC 250 m. A power supply DALI Power Supply DALI Controller Group 1:Max 64 DALI + DALI - DALI Device 。。。 Device (Driver ) DALI Gateway w/ Power Supply doesn't need any termination resistors Group 2 DALI Driver 。。。 DALI Driver The dimmer can be set to Group 1 or 2 through the DIP so as to control G 1 or G 2.
A single DALI group configuration The DALI dimmer can control On/Off and dimming for a group of DALI drivers without DALI controller and DALI PS (Set DIP to broadcast)
CV Dimming control for LED strips Triac dimming 1 -10 V Dali or Push dimming Triac 1 -10 V or Push PHOT O Dali or Push Ac. TEC is also providing relevant high quality dimmers matching with the above drivers for a perfect dimming of the LED strips.

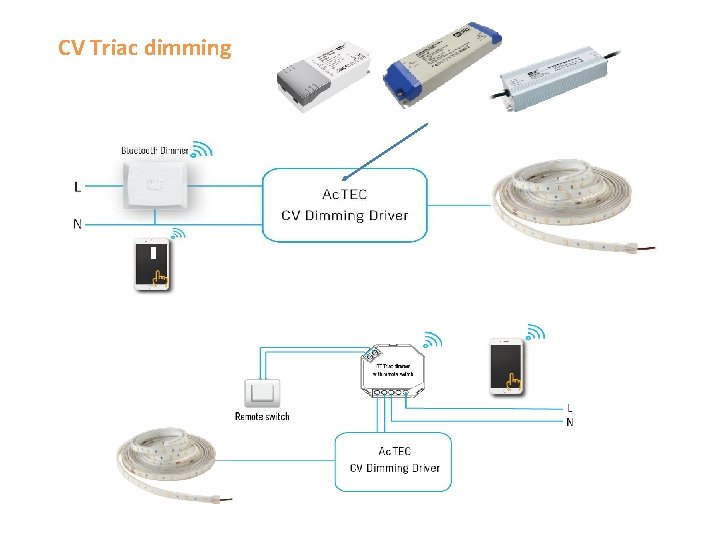

CV Triac dimming SM 06 A
CV 1 -10 V dimming
