Dahua Parking Guidance System Solution Requirement Requirements Existing

Dahua Parking Guidance System Solution

Requirement

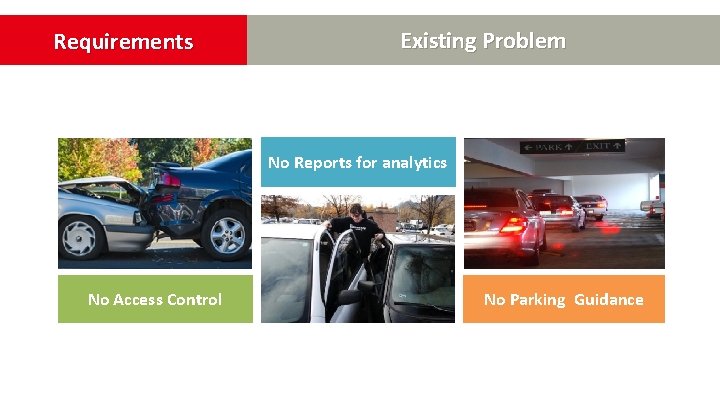

Requirements Existing Problem No Reports for analytics No Access Control No Parking Guidance

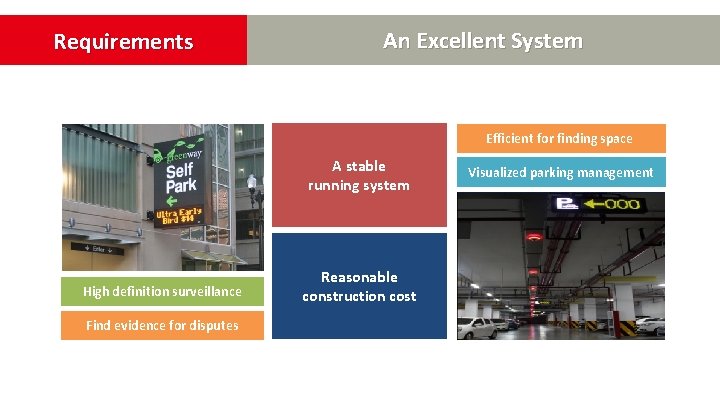

Requirements An Excellent System Efficient for finding space A stable running system High definition surveillance Find evidence for disputes Reasonable construction cost Visualized parking management

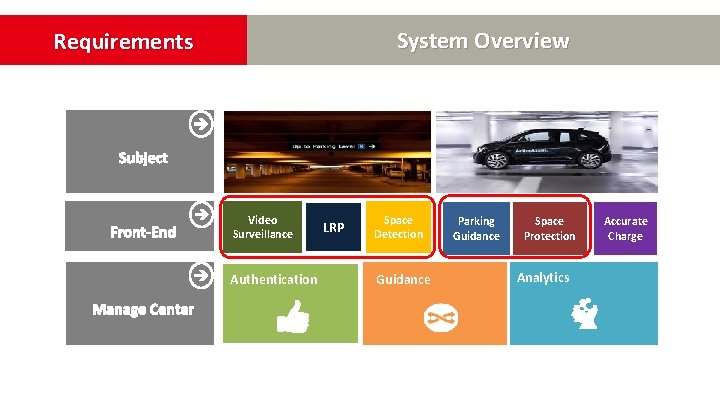

System Overview Requirements 深化业务实战应用 智能化实战 平台 Video Surveillance Authentication LRP Space Detection Guidance Parking Guidance Space Protection Analytics Accurate Charge

System Design

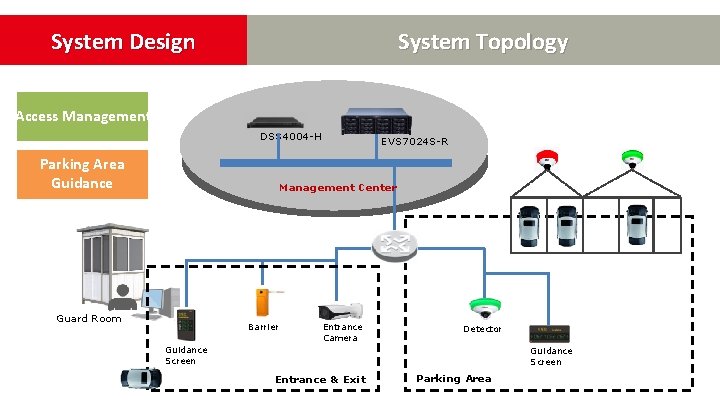

System Design System Topology Access Management DSS 4004 -H Parking Area Guidance EVS 7024 S-R Management Center Guard Room Barrier E Entrance Camera Detector Guidance Screen Entrance & Exit Parking Area

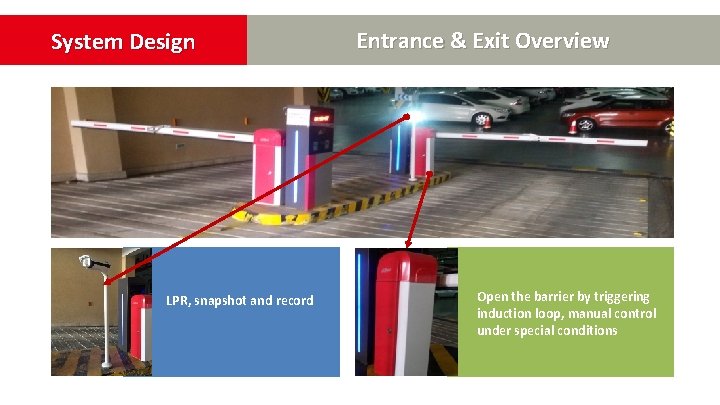

System Design LPR, snapshot and record Entrance & Exit Overview Open the barrier by triggering induction loop, manual control under special conditions

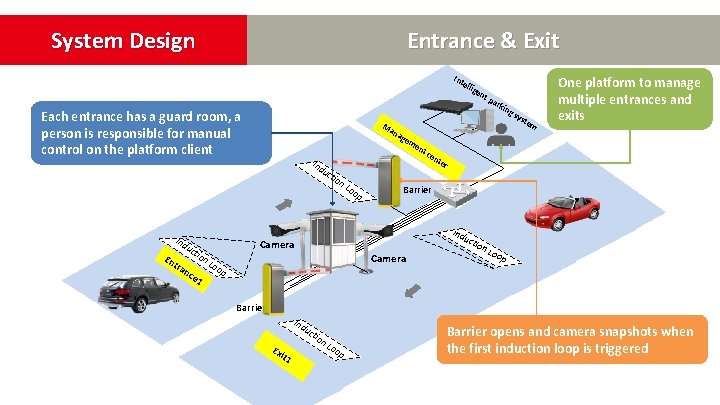

System Design Entrance & Exit Int ell Ma Ind uc tio n L En uc tra nc p ge me nt ter Barrier uct Camera oo p sy ste One platform to manage multiple entrances and exits cen Ind n L e 1 oo ng m na Camera tio nt pa rki Each entrance has a guard room, a person is responsible for manual control on the platform client Ind ige ion Lo op Barrier Ind uc tio Ex it n L 1 oo p Barrier opens and camera snapshots when the first induction loop is triggered

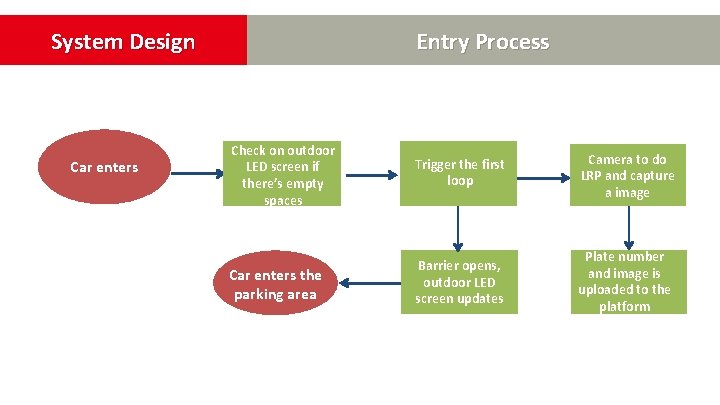

System Design Car enters Entry Process Check on outdoor LED screen if there’s empty spaces Trigger the first loop Camera to do LRP and capture a image Car enters the parking area Barrier opens, outdoor LED screen updates Plate number and image is uploaded to the platform

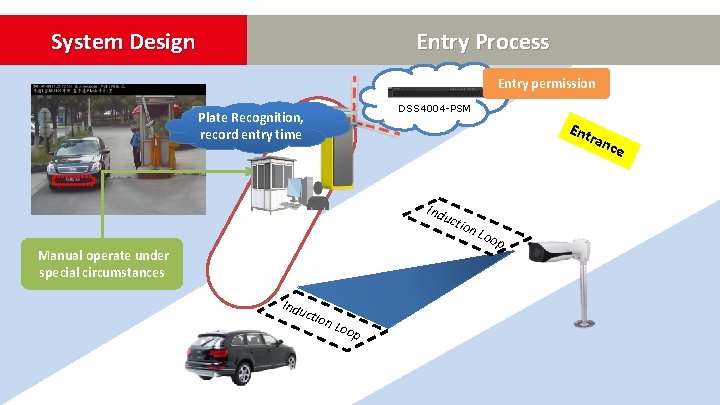

System Design Entry Process Entry permission DSS 4004 -PSM Plate Recognition, record entry time Ent Ind uct Manual operate under special circumstances Indu ctio n Lo op ion Loo p ran ce

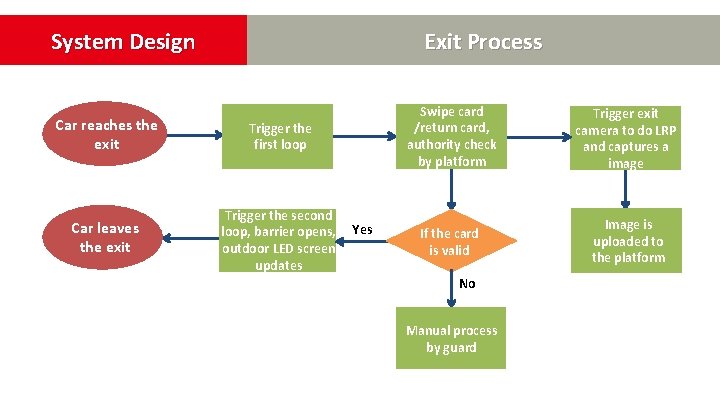

System Design Car reaches the exit Car leaves the exit Exit Process Trigger the first loop Trigger the second loop, barrier opens, Yes outdoor LED screen updates Swipe card /return card, authority check by platform Trigger exit camera to do LRP and captures a image If the card is valid Image is uploaded to the platform No Manual process by guard

System Design Exit Process Check the plate number and time Identity check, exit permission by platform DSS 4004 -PSM Ex Ind uct Manual operate under special circumstances Vid eo det ect ion coi l it

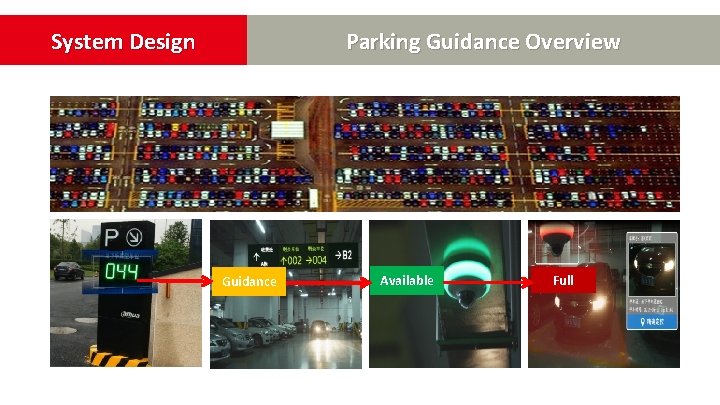

System Design Parking Guidance Overview Guidance Available Full

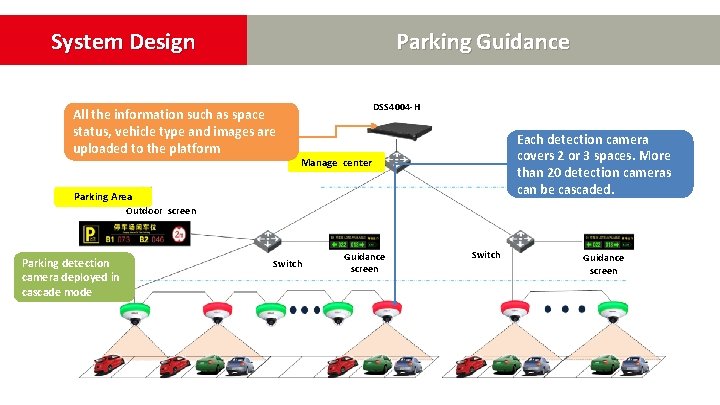

System Design Parking Guidance All the information such as space status, vehicle type and images are Position uploaded to the platform terminal DSS 4004 -H Each detection camera covers 2 or 3 spaces. More than 20 detection cameras can be cascaded. Manage center Parking Area Outdoor screen Parking detection camera deployed in cascade mode Switch Guidance screen

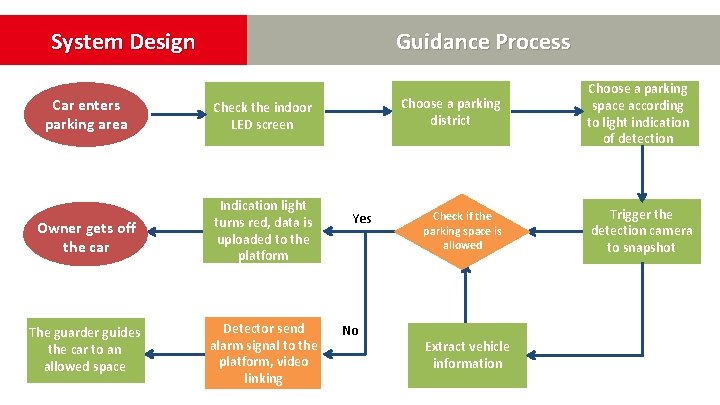

System Design Guidance Process Car enters parking area Check the indoor LED screen Owner gets off the car Indication light turns red, data is uploaded to the platform The guarder guides the car to an allowed space Detector send alarm signal to the platform, video linking Choose a parking district Yes No Check if the parking space is allowed Extract vehicle information Choose a parking space according to light indication of detection camera Trigger the detection camera to snapshot

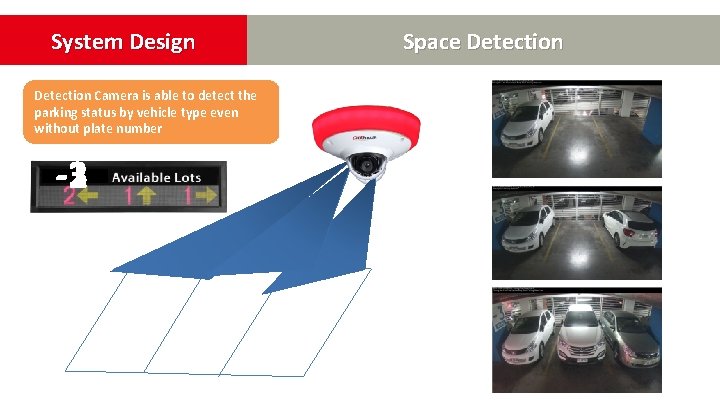

System Design Detection Camera is able to detect the parking status by vehicle type even without plate number -1 -3 -2 Space Detection

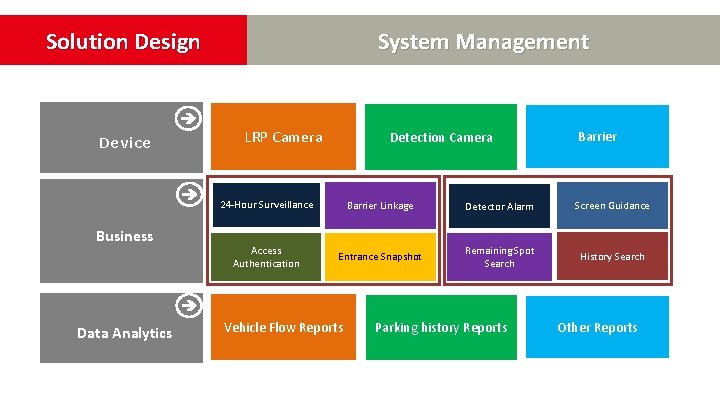

Solution Design Device Business Data Analytics System Management LRP Camera Detection Camera Barrier 24 -Hour Surveillance Barrier Linkage Detector Alarm Screen Guidance Access Authentication Entrance Snapshot Remaining Spot Search History Search Vehicle Flow Reports Parking history Reports Other Reports

Solution Design Management Client Visualized Parking Lot Entrance History

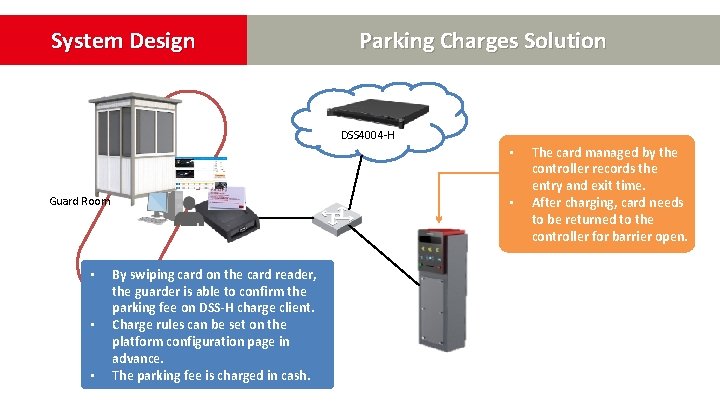

System Design Parking Charges Solution DSS 4004 -H • • Guard Room • • • By swiping card on the card reader, the guarder is able to confirm the parking fee on DSS-H charge client. Charge rules can be set on the platform configuration page in advance. The parking fee is charged in cash. The card managed by the controller records the entry and exit time. After charging, card needs to be returned to the controller for barrier open.

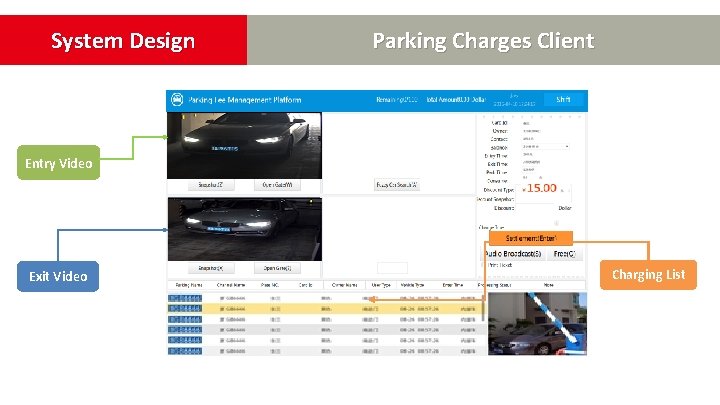

System Design Parking Charges Client Entry Video Exit Video Charging List

Highlight

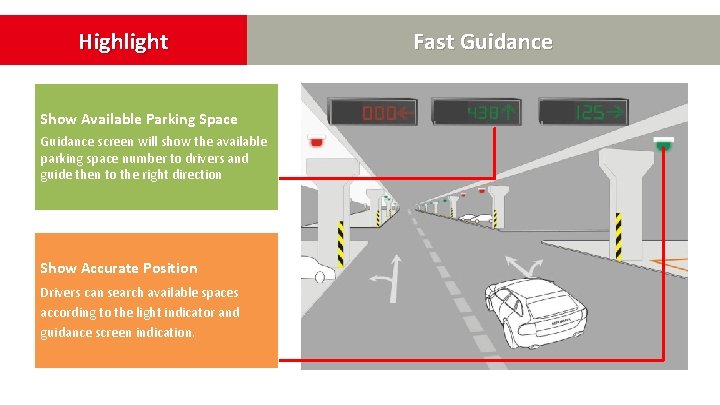

Highlight Show Available Parking Space Guidance screen will show the available parking space number to drivers and guide then to the right direction Show Accurate Position Drivers can search available spaces according to the light indicator and guidance screen indication. Fast Guidance

Highlight All-Round Monitoring Snapshot Record Cover 3 Parking Spaces

Highlight Simplify Deployment Traditional way Simplify Deployment & Cost Down • • • Reduce UTP cable deployment and cost （83%） Reduce the quantities of switches Reduce the cost of cable bridge（63% ） Innovative way

Product

Product Parking System Platform Processor Operating System Memory Ethernet Interface USB Interface VGA Interface Disk DSS 4004 -H Disk Mode Baytrail J 1900 platform, 4 core 2. 0 G CPU Embedded Linux 8 GB, expansible, ECC validation 4 * 100/1000 Mbs 2* front USB 3. 0 2* back USB 2. 0 1 4* 2. 5’’, full built-in，or 2* 3. 5’’ Single, RAID 0, RAID 1, RAID 5 Power Supply 100 V ~ 240 V，47 ~ 63 Hz Consumption 10 W~200 W (Disk included) Temperature 0℃~50℃ Installation Second Development Standard 19’’ rack-mounted Support SDK

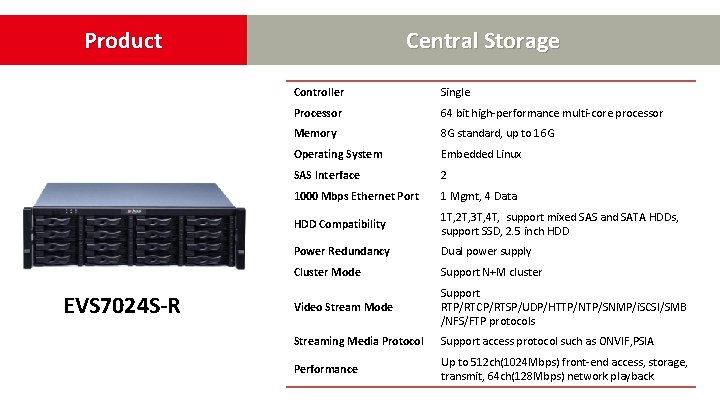

Product EVS 7024 S-R Central Storage Controller Single Processor 64 bit high-performance multi-core processor Memory 8 G standard, up to 16 G Operating System Embedded Linux SAS Interface 2 1000 Mbps Ethernet Port 1 Mgmt, 4 Data HDD Compatibility 1 T, 2 T, 3 T, 4 T, support mixed SAS and SATA HDDs, support SSD, 2. 5 inch HDD Power Redundancy Dual power supply Cluster Mode Support N+M cluster Video Stream Mode Support RTP/RTCP/RTSP/UDP/HTTP/NTP/SNMP/i. SCSI/SMB /NFS/FTP protocols Streaming Media Protocol Support access protocol such as ONVIF, PSIA Performance Up to 512 ch(1024 Mbps) front-end access, storage, transmit, 64 ch(128 Mbps) network playback

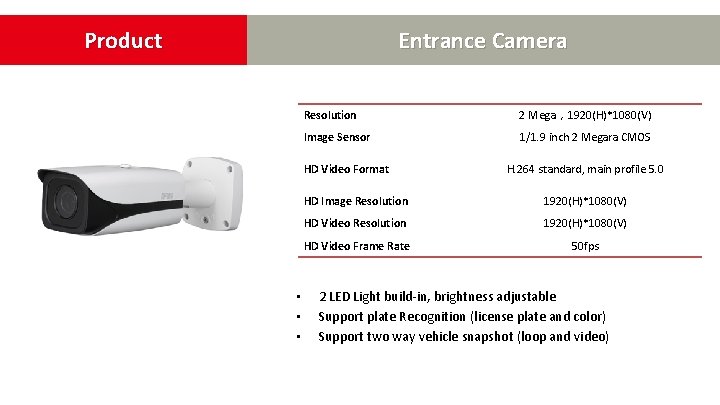

Product Entrance Camera Resolution 2 Mega，1920(H)*1080(V) Image Sensor 1/1. 9 inch 2 Megara CMOS HD Video Format • • • H. 264 standard, main profile 5. 0 HD Image Resolution 1920(H)*1080(V) HD Video Frame Rate 50 fps 2 LED Light build-in, brightness adjustable Support plate Recognition (license plate and color) Support two way vehicle snapshot (loop and video)

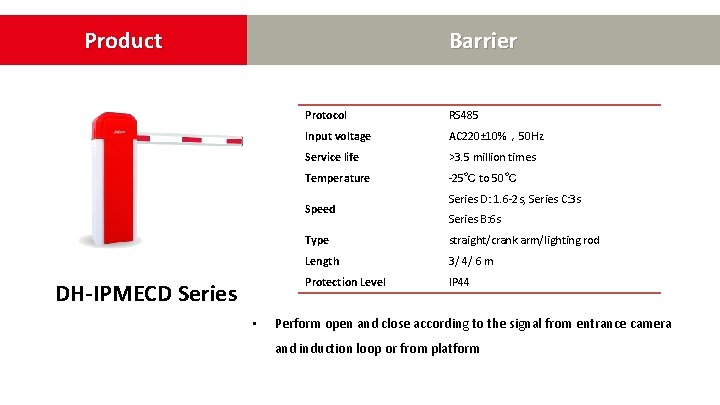

Product Barrier Protocol RS 485 Input voltage AC 220± 10%，50 Hz Service life >3. 5 million times Temperature -25℃ to 50℃ Speed DH-IPMECD Series • Series D: 1. 6 -2 s, Series C: 3 s Series B: 6 s Type straight/crank arm/lighting rod Length 3/ 4/ 6 m Protection Level IP 44 Perform open and close according to the signal from entrance camera and induction loop or from platform

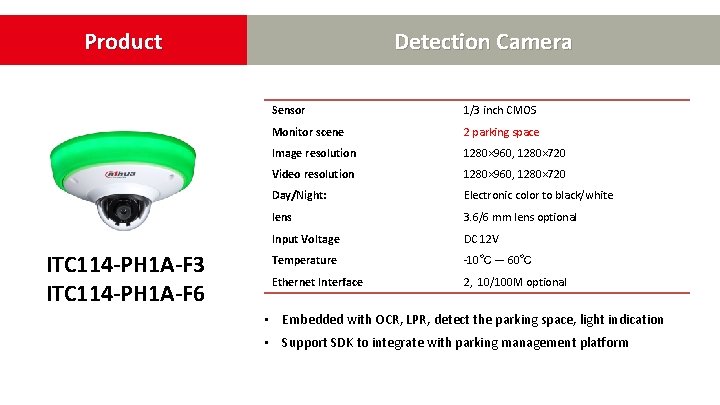

Product ITC 114 -PH 1 A-F 3 ITC 114 -PH 1 A-F 6 Detection Camera Sensor 1/3 inch CMOS Monitor scene 2 parking space Image resolution 1280× 960, 1280× 720 Video resolution 1280× 960, 1280× 720 Day/Night: Electronic color to black/white lens 3. 6/6 mm lens optional Input Voltage DC 12 V Temperature -10℃ — 60℃ Ethernet Interface 2, 10/100 M optional • Embedded with OCR, LPR, detect the parking space, light indication • Support SDK to integrate with parking management platform

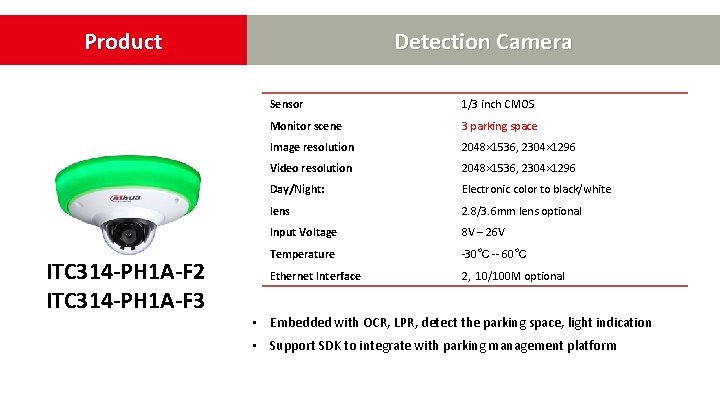

Product ITC 314 -PH 1 A-F 2 ITC 314 -PH 1 A-F 3 Detection Camera Sensor 1/3 inch CMOS Monitor scene 3 parking space Image resolution 2048× 1536, 2304× 1296 Video resolution 2048× 1536, 2304× 1296 Day/Night: Electronic color to black/white lens 2. 8/3. 6 mm lens optional Input Voltage 8 V – 26 V Temperature -30℃ -- 60℃ Ethernet Interface 2, 10/100 M optional • Embedded with OCR, LPR, detect the parking space, light indication • Support SDK to integrate with parking management platform

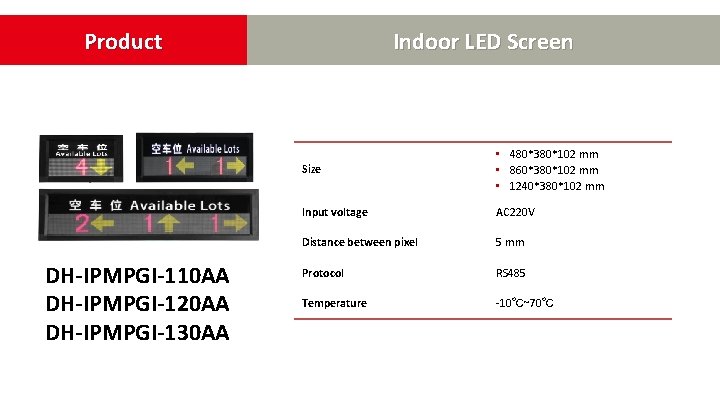

Product DH-IPMPGI-110 AA DH-IPMPGI-120 AA DH-IPMPGI-130 AA Indoor LED Screen Size • 480*380*102 mm • 860*380*102 mm • 1240*380*102 mm Input voltage AC 220 V Distance between pixel 5 mm Protocol RS 485 Temperature -10℃~70℃

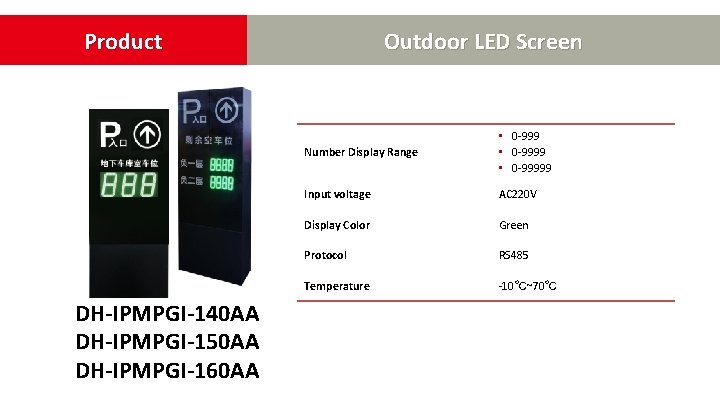

Product DH-IPMPGI-140 AA DH-IPMPGI-150 AA DH-IPMPGI-160 AA Outdoor LED Screen Number Display Range • 0 -99999 Input voltage AC 220 V Display Color Green Protocol RS 485 Temperature -10℃~70℃
