Cylinder Head Motorcycle Engineering 021 Overhaul Cylinder Head

Cylinder Head Motorcycle Engineering (021) Overhaul Cylinder Head (SK-KD – 04)

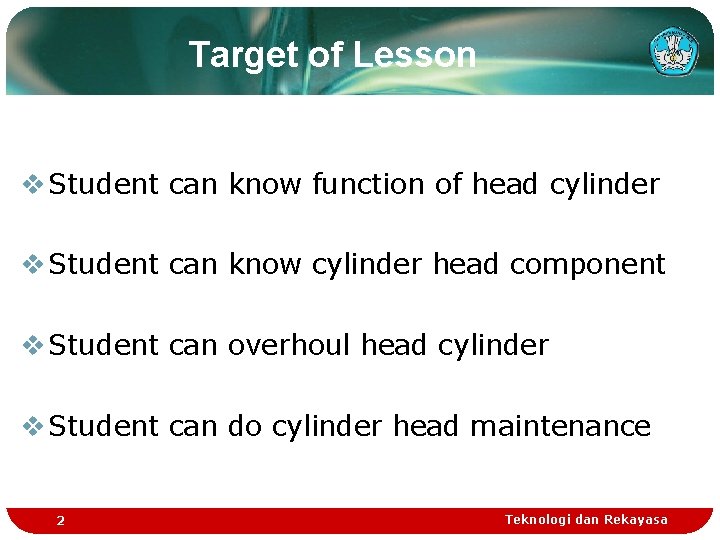

Target of Lesson v Student can know function of head cylinder v Student can know cylinder head component v Student can overhoul head cylinder v Student can do cylinder head maintenance 2 Teknologi dan Rekayasa

Cylinder Head Function v Place of valve mechanism v Place of intake system v Place of combustion chamber 3 Teknologi dan Rekayasa

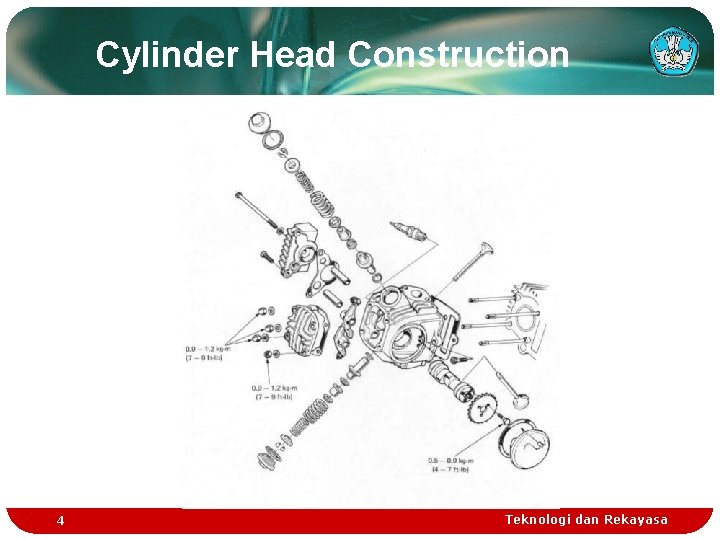

Cylinder Head Construction 4 Teknologi dan Rekayasa

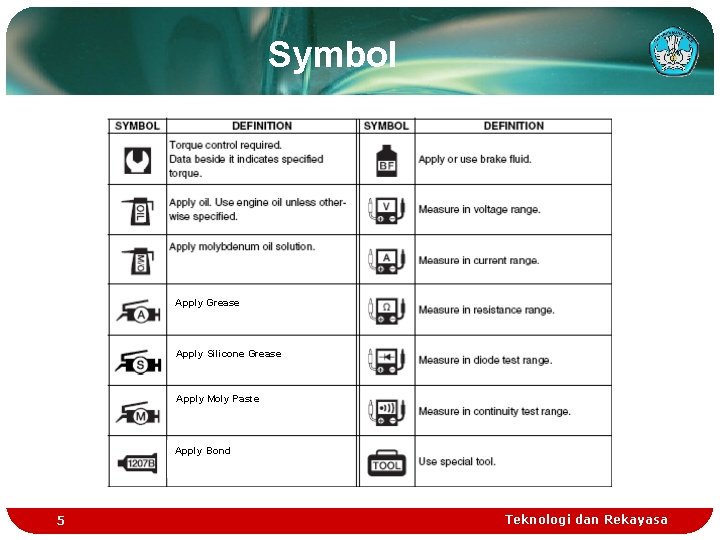

Symbol Apply Grease Apply Silicone Grease Apply Moly Paste Apply Bond 5 Teknologi dan Rekayasa

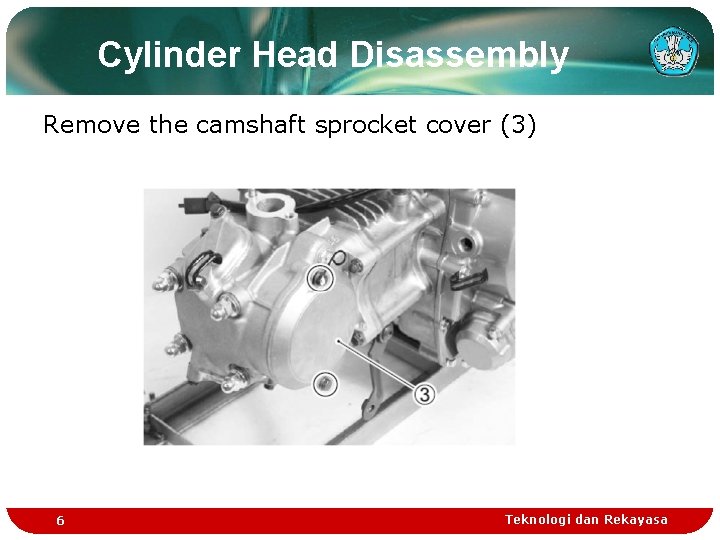

Cylinder Head Disassembly Remove the camshaft sprocket cover (3) 6 Teknologi dan Rekayasa

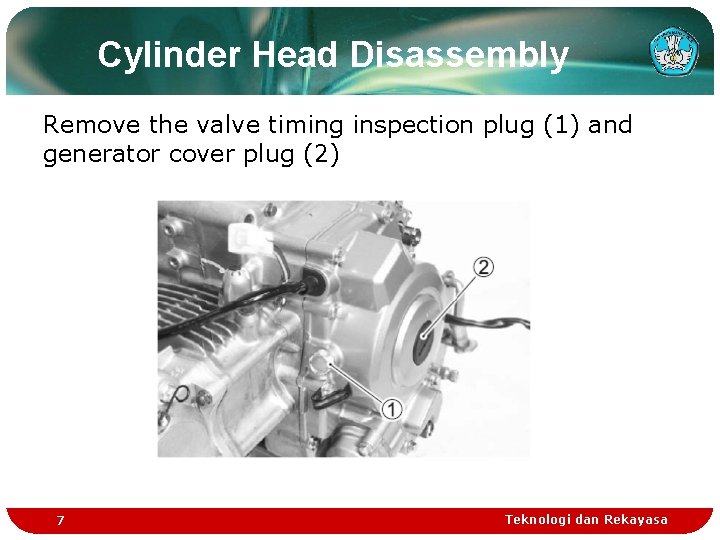

Cylinder Head Disassembly Remove the valve timing inspection plug (1) and generator cover plug (2) 7 Teknologi dan Rekayasa

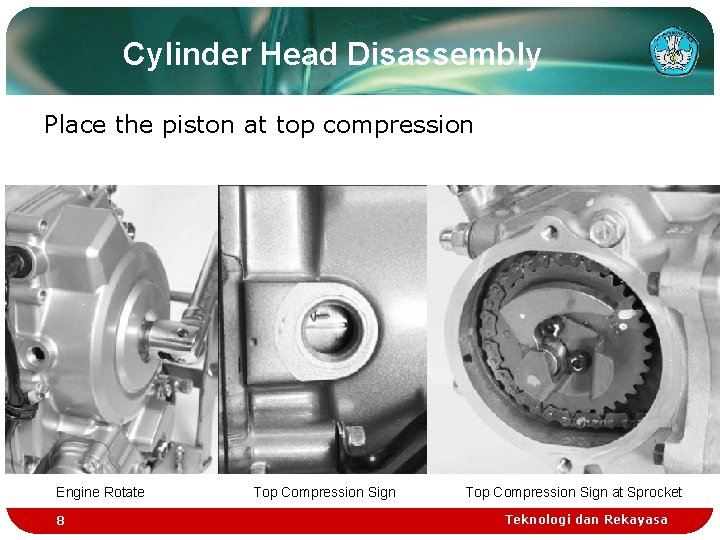

Cylinder Head Disassembly Place the piston at top compression Engine Rotate 8 Top Compression Sign at Sprocket Teknologi dan Rekayasa

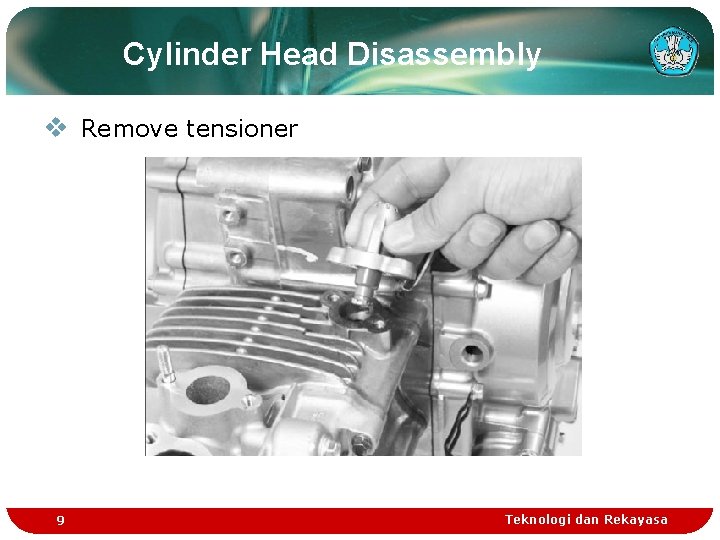

Cylinder Head Disassembly v Remove tensioner 9 Teknologi dan Rekayasa

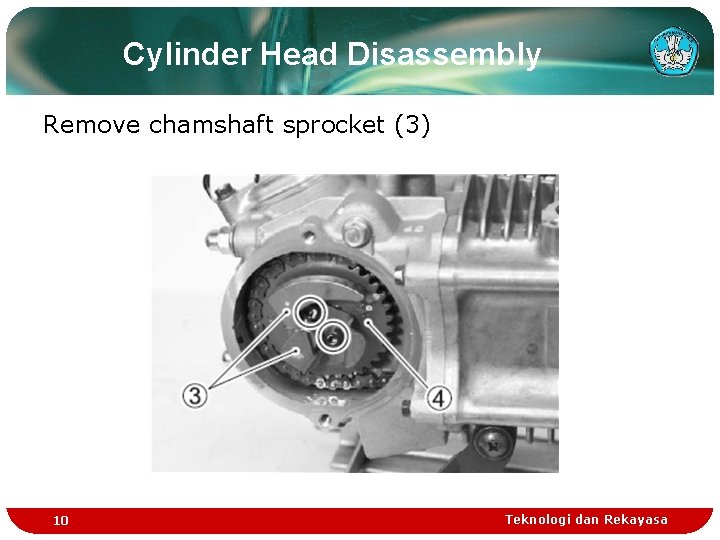

Cylinder Head Disassembly Remove chamshaft sprocket (3) 10 Teknologi dan Rekayasa

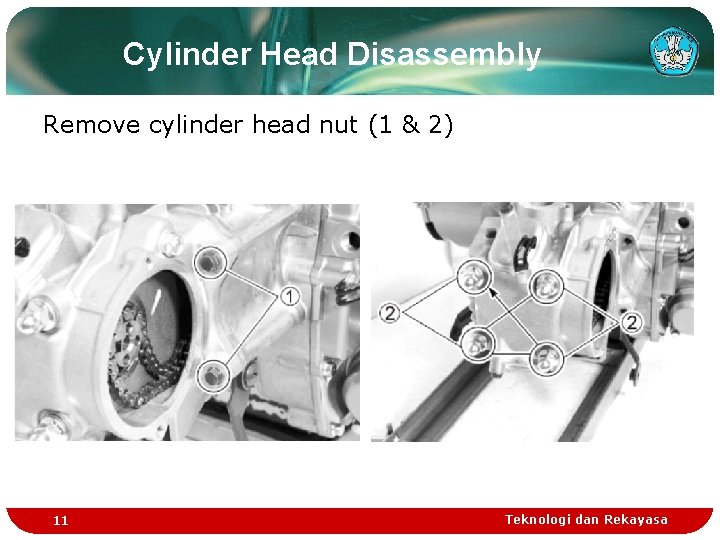

Cylinder Head Disassembly Remove cylinder head nut (1 & 2) 11 Teknologi dan Rekayasa

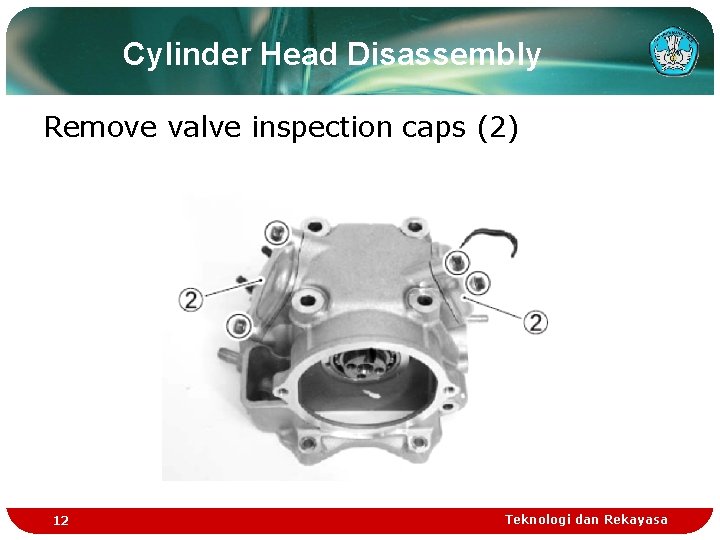

Cylinder Head Disassembly Remove valve inspection caps (2) 12 Teknologi dan Rekayasa

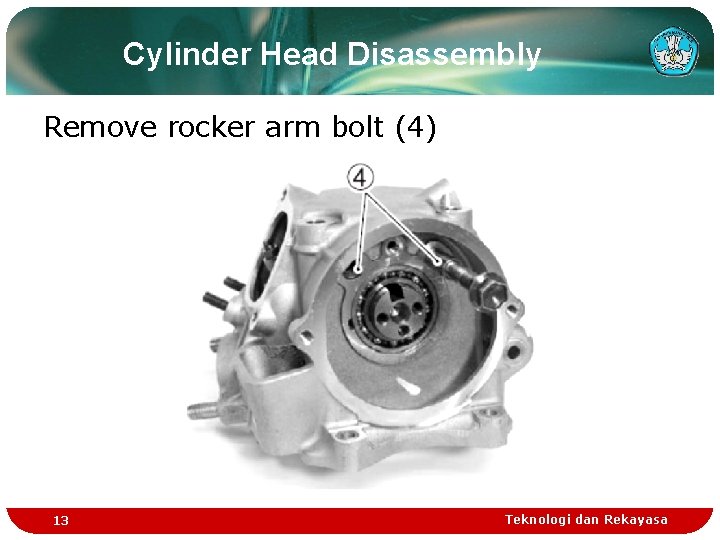

Cylinder Head Disassembly Remove rocker arm bolt (4) 13 Teknologi dan Rekayasa

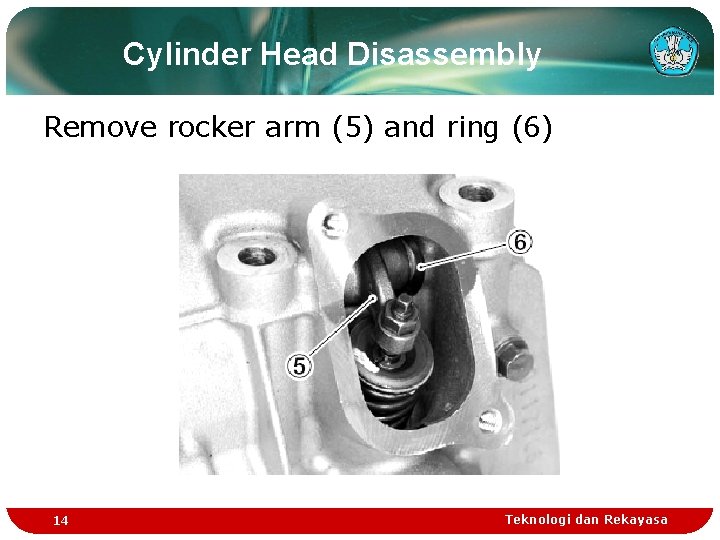

Cylinder Head Disassembly Remove rocker arm (5) and ring (6) 14 Teknologi dan Rekayasa

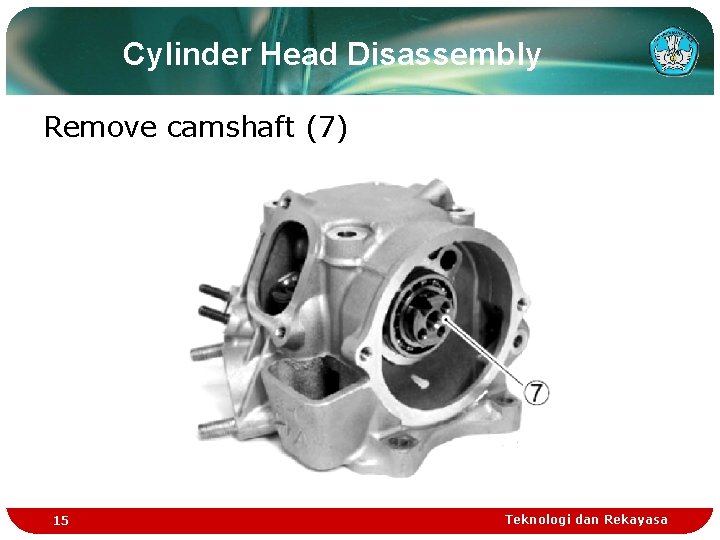

Cylinder Head Disassembly Remove camshaft (7) 15 Teknologi dan Rekayasa

Cylinder Head Disassembly Remove valve (8) 16 Teknologi dan Rekayasa

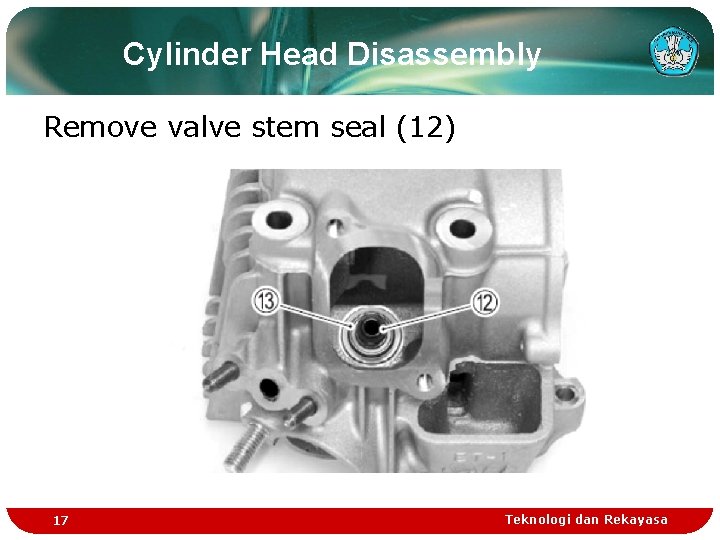

Cylinder Head Disassembly Remove valve stem seal (12) 17 Teknologi dan Rekayasa

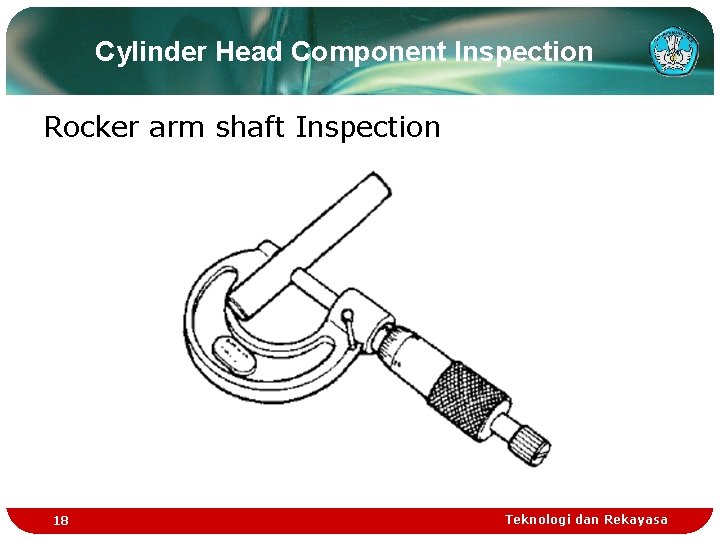

Cylinder Head Component Inspection Rocker arm shaft Inspection 18 Teknologi dan Rekayasa

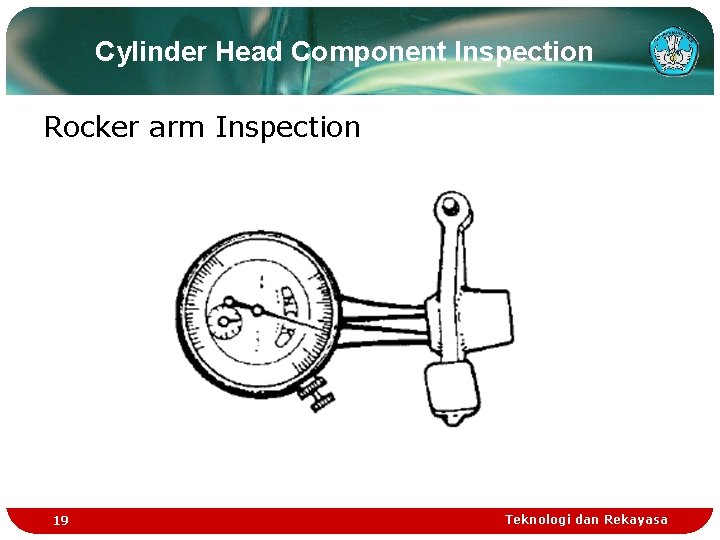

Cylinder Head Component Inspection Rocker arm Inspection 19 Teknologi dan Rekayasa

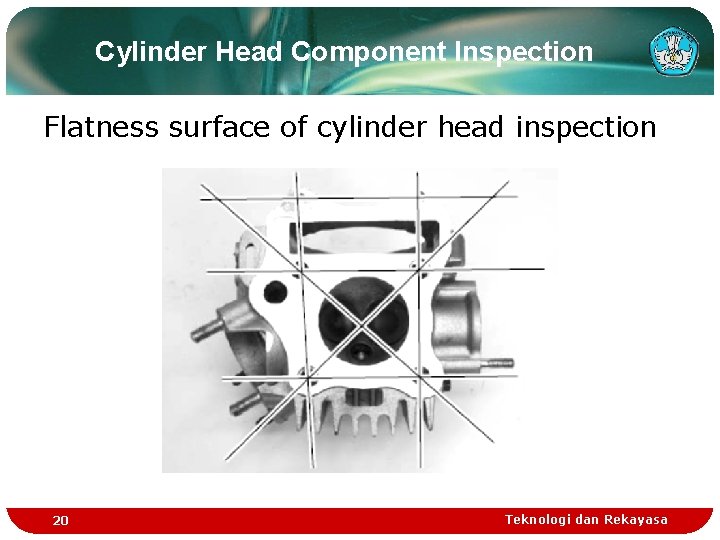

Cylinder Head Component Inspection Flatness surface of cylinder head inspection 20 Teknologi dan Rekayasa

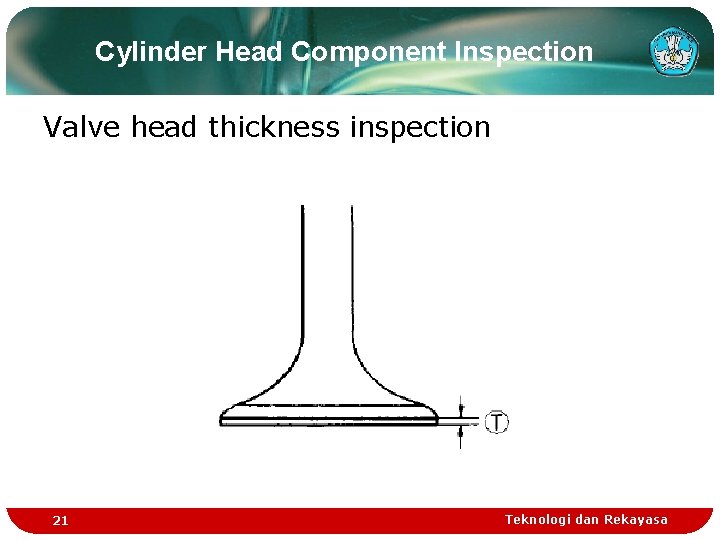

Cylinder Head Component Inspection Valve head thickness inspection 21 Teknologi dan Rekayasa

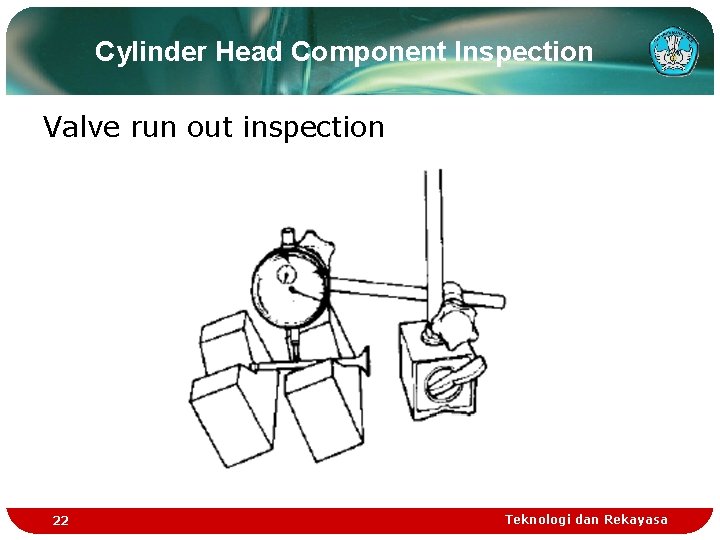

Cylinder Head Component Inspection Valve run out inspection 22 Teknologi dan Rekayasa

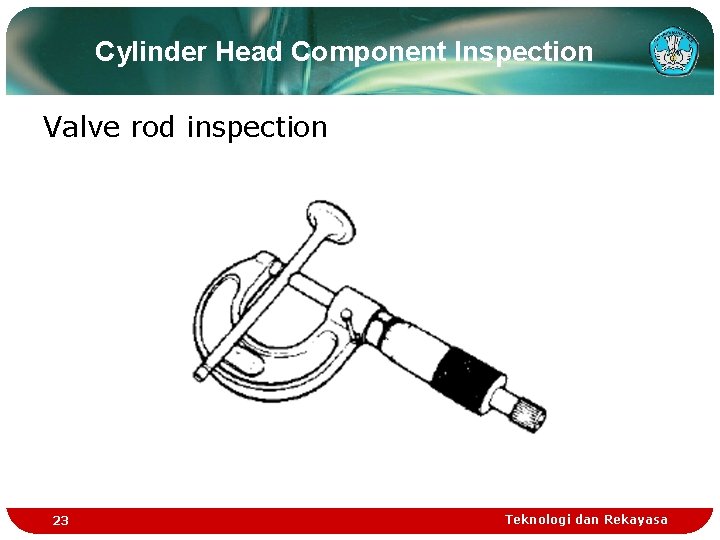

Cylinder Head Component Inspection Valve rod inspection 23 Teknologi dan Rekayasa

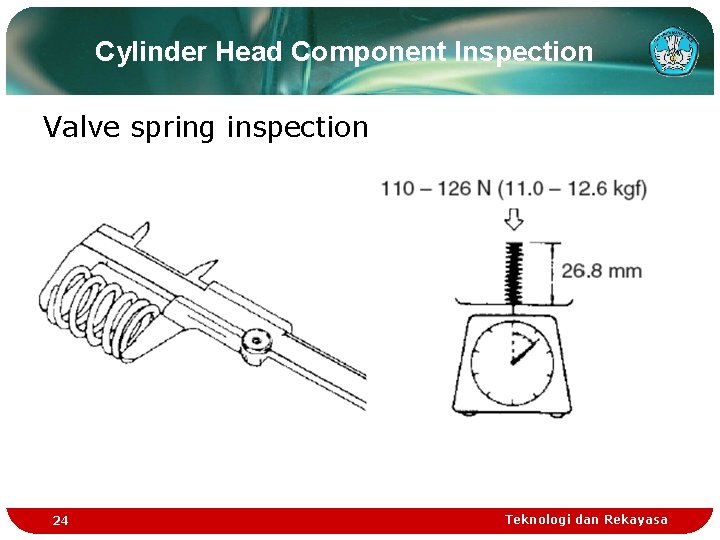

Cylinder Head Component Inspection Valve spring inspection 24 Teknologi dan Rekayasa

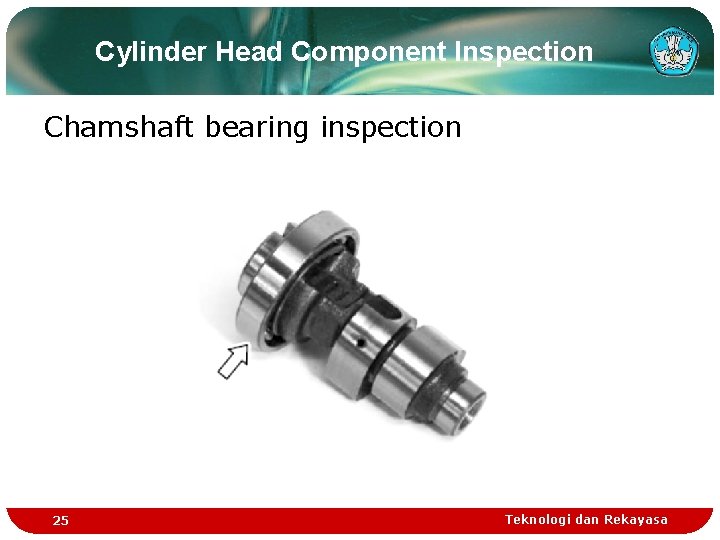

Cylinder Head Component Inspection Chamshaft bearing inspection 25 Teknologi dan Rekayasa

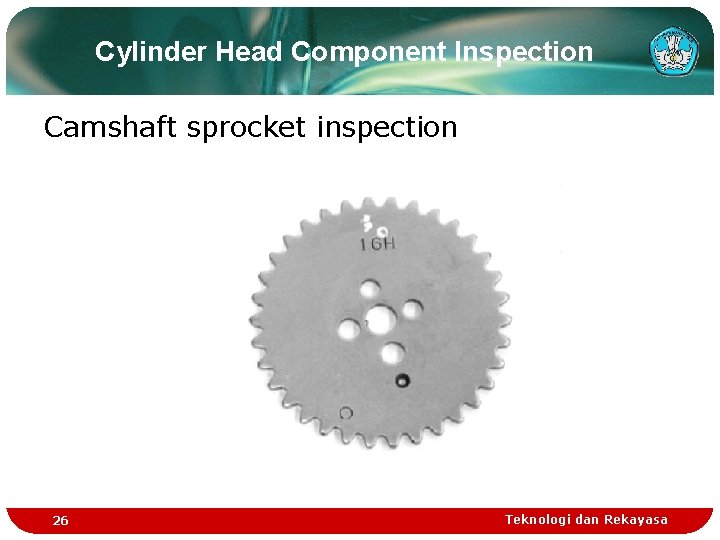

Cylinder Head Component Inspection Camshaft sprocket inspection 26 Teknologi dan Rekayasa

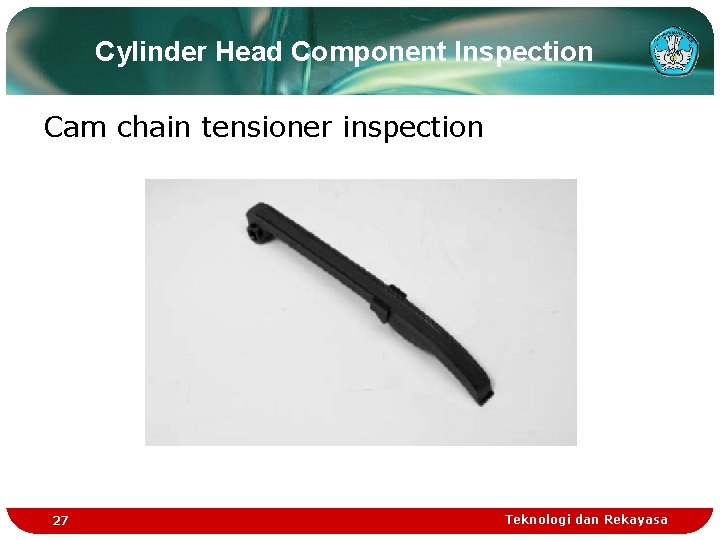

Cylinder Head Component Inspection Cam chain tensioner inspection 27 Teknologi dan Rekayasa

Cylinder Head Component Inspection Valve guide change 28 Teknologi dan Rekayasa

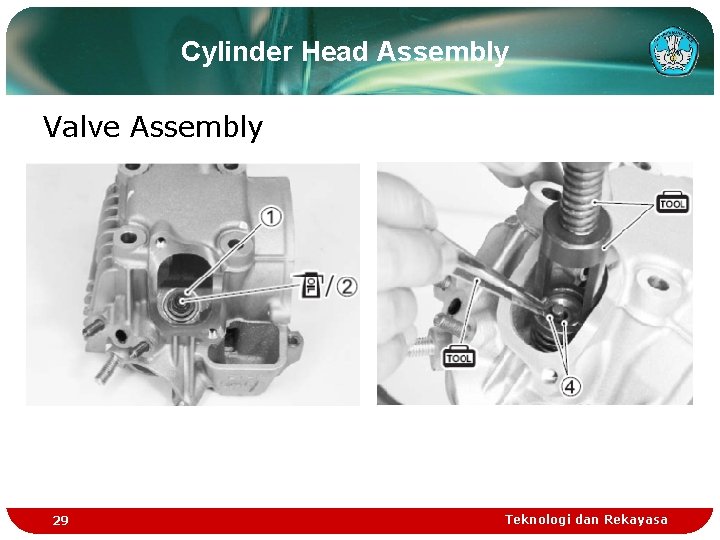

Cylinder Head Assembly Valve Assembly 29 Teknologi dan Rekayasa

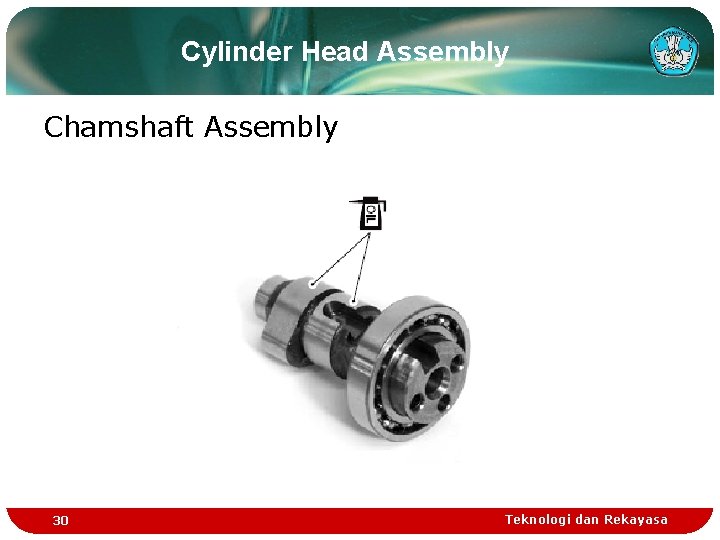

Cylinder Head Assembly Chamshaft Assembly 30 Teknologi dan Rekayasa

Cylinder Head Assembly Rocker Arm Assembly 31 Teknologi dan Rekayasa

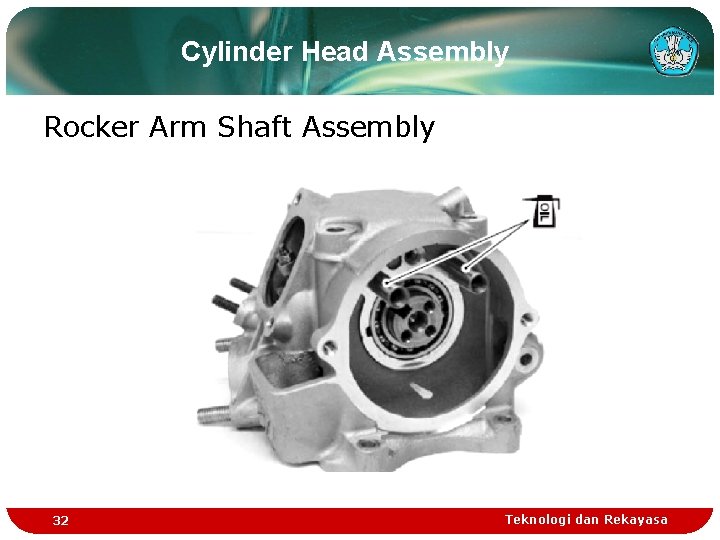

Cylinder Head Assembly Rocker Arm Shaft Assembly 32 Teknologi dan Rekayasa

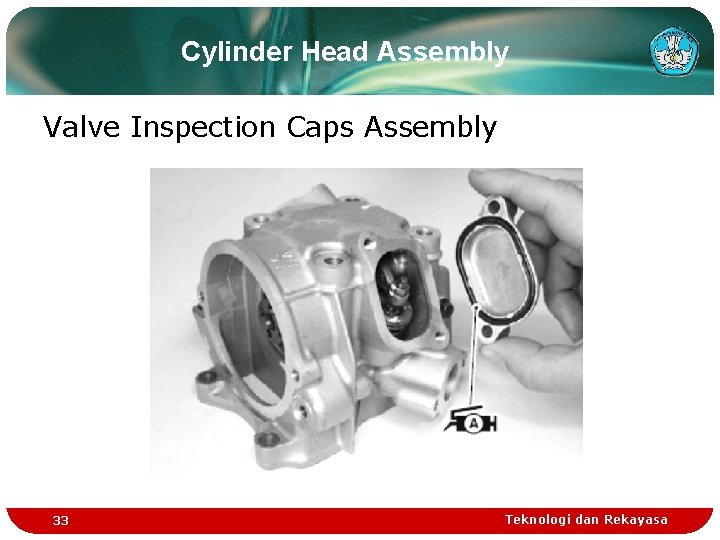

Cylinder Head Assembly Valve Inspection Caps Assembly 33 Teknologi dan Rekayasa

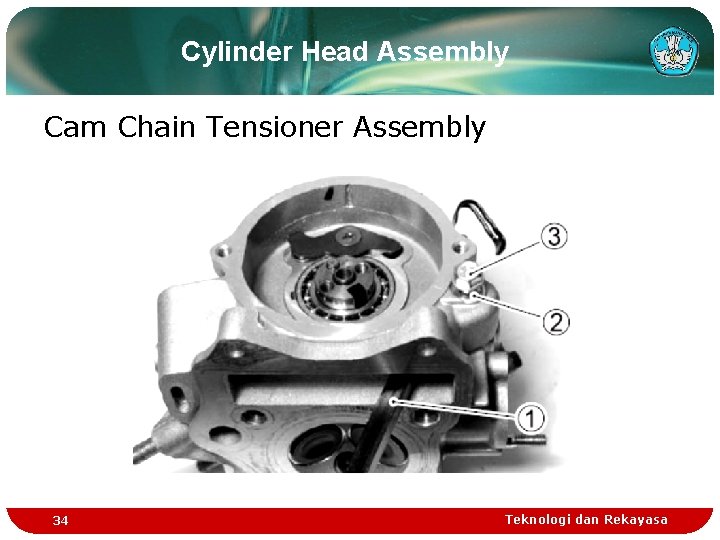

Cylinder Head Assembly Cam Chain Tensioner Assembly 34 Teknologi dan Rekayasa

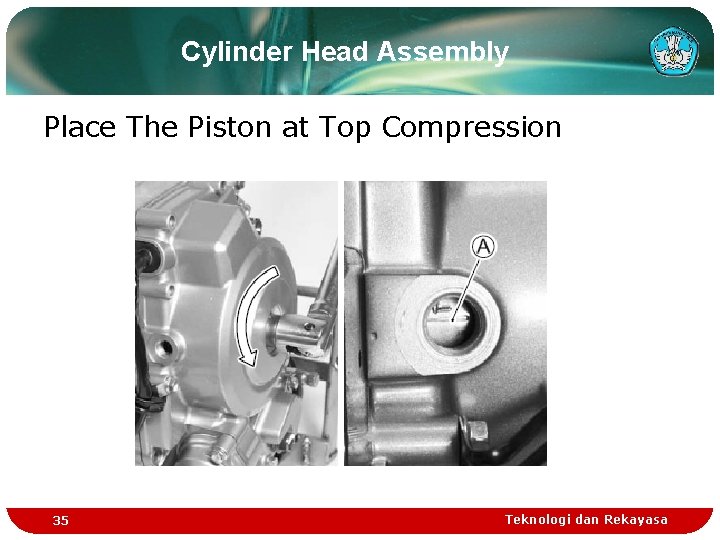

Cylinder Head Assembly Place The Piston at Top Compression 35 Teknologi dan Rekayasa

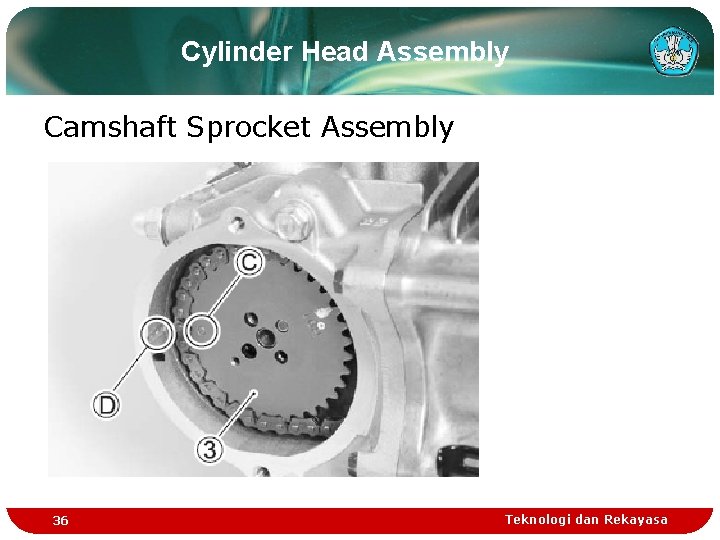

Cylinder Head Assembly Camshaft Sprocket Assembly 36 Teknologi dan Rekayasa

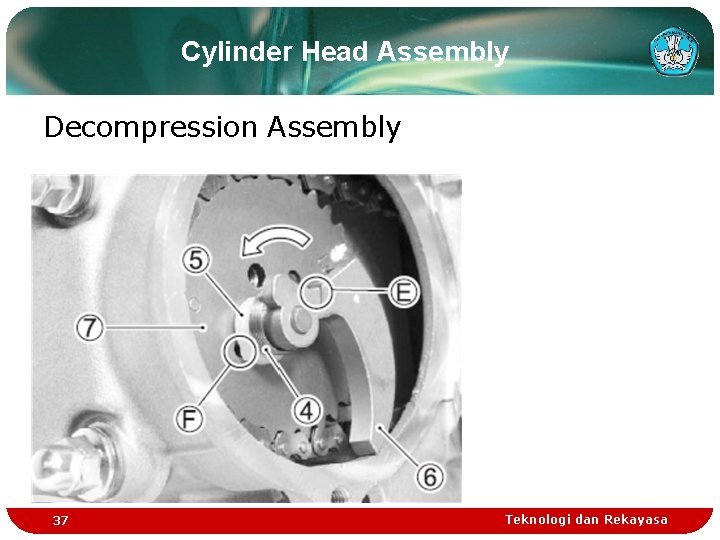

Cylinder Head Assembly Decompression Assembly 37 Teknologi dan Rekayasa

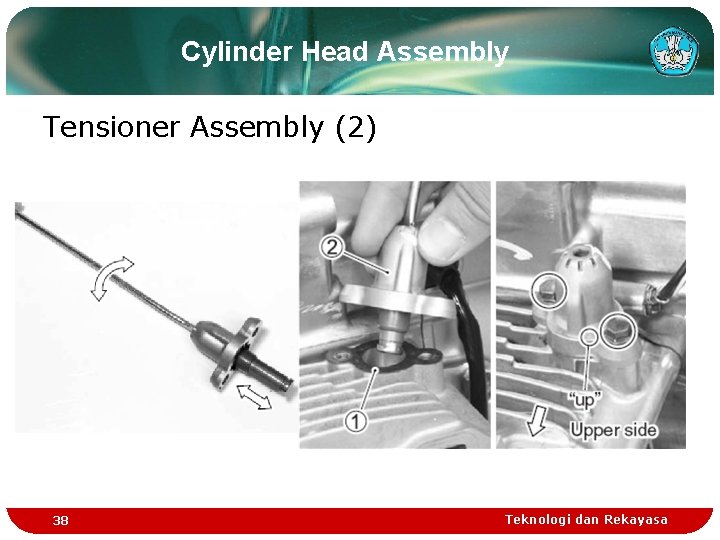

Cylinder Head Assembly Tensioner Assembly (2) 38 Teknologi dan Rekayasa

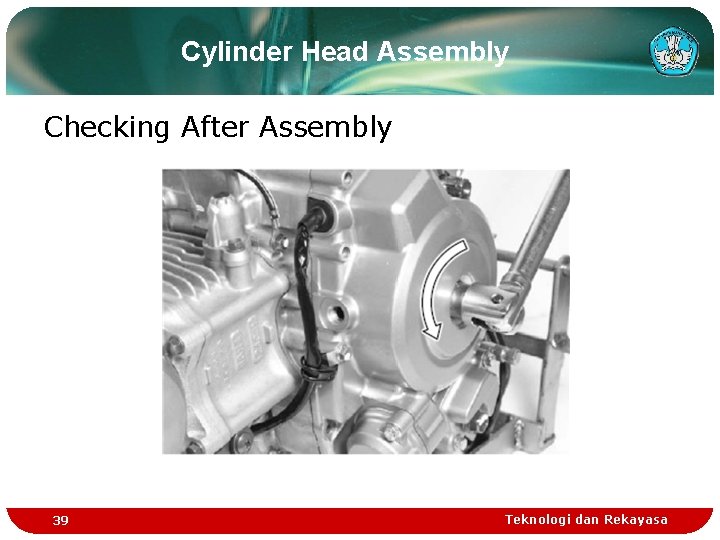

Cylinder Head Assembly Checking After Assembly 39 Teknologi dan Rekayasa

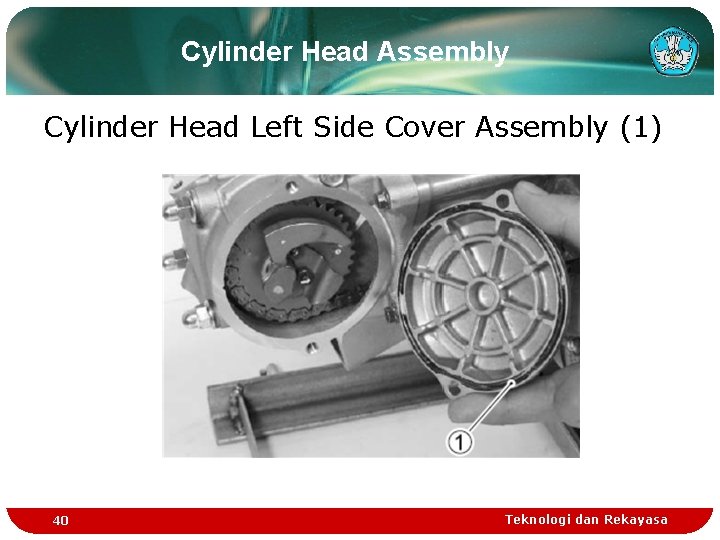

Cylinder Head Assembly Cylinder Head Left Side Cover Assembly (1) 40 Teknologi dan Rekayasa
