CYLINDER AIR WATER IMPEDANCE BOUNDARY 3 D FEM

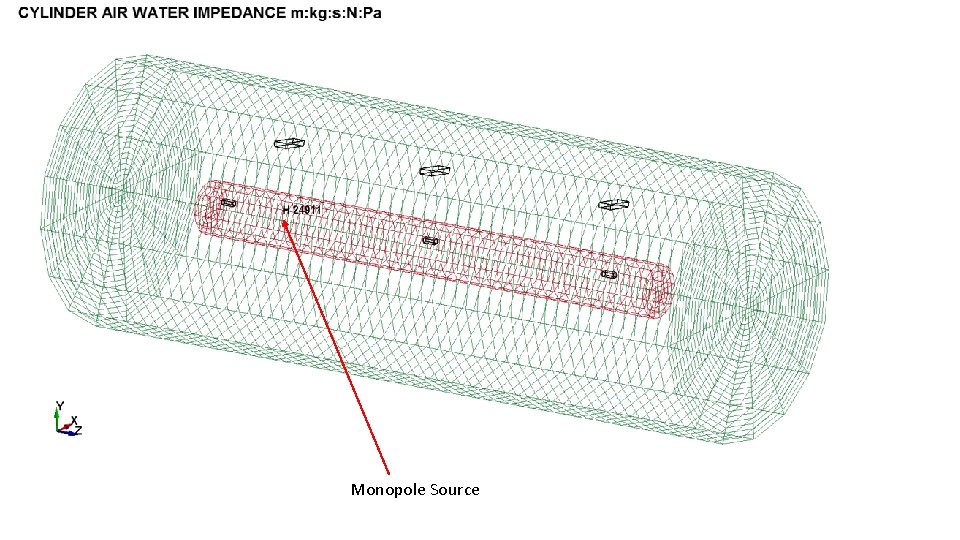

CYLINDER AIR WATER IMPEDANCE BOUNDARY 3 D FEM Monopole Source Water Air and Cylinder

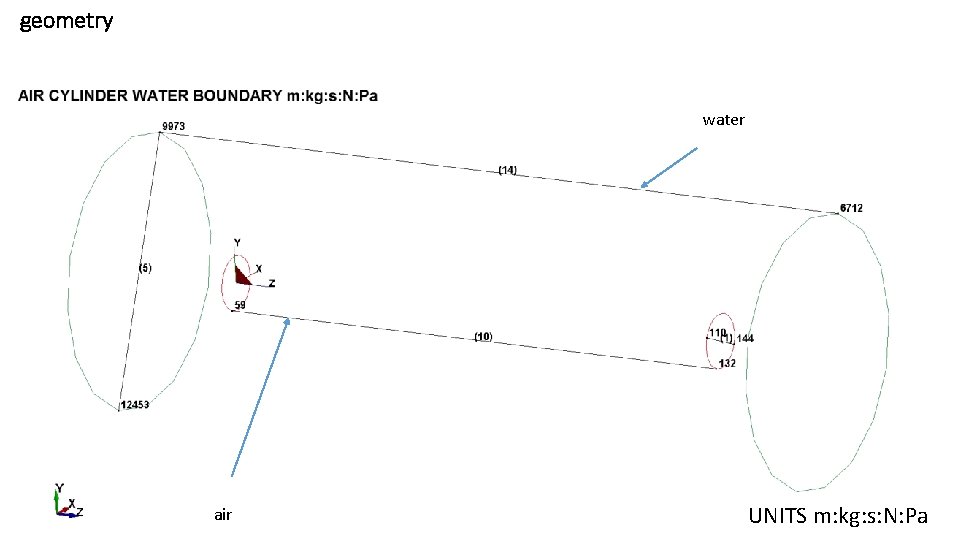

geometry water air UNITS m: kg: s: N: Pa

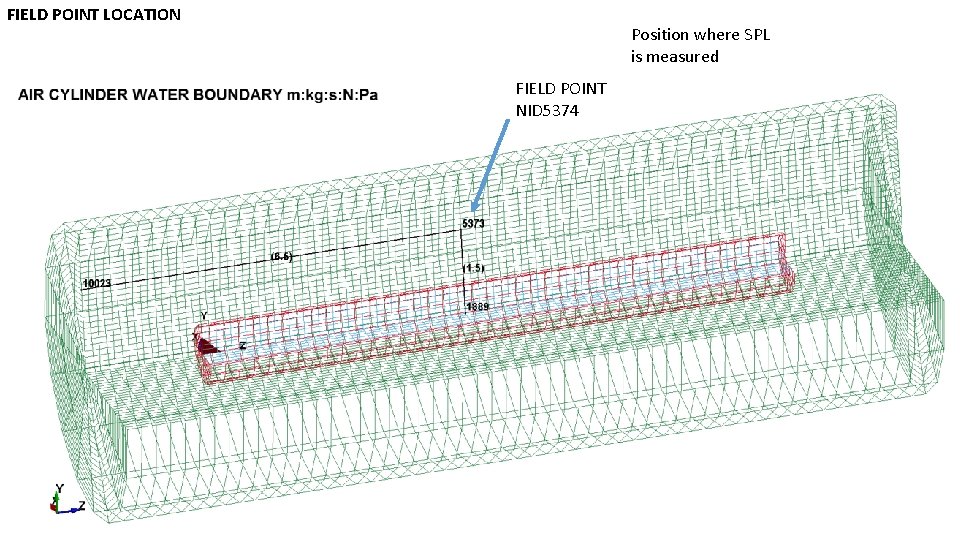

FIELD POINT LOCATION Position where SPL is measured FIELD POINT NID 5374

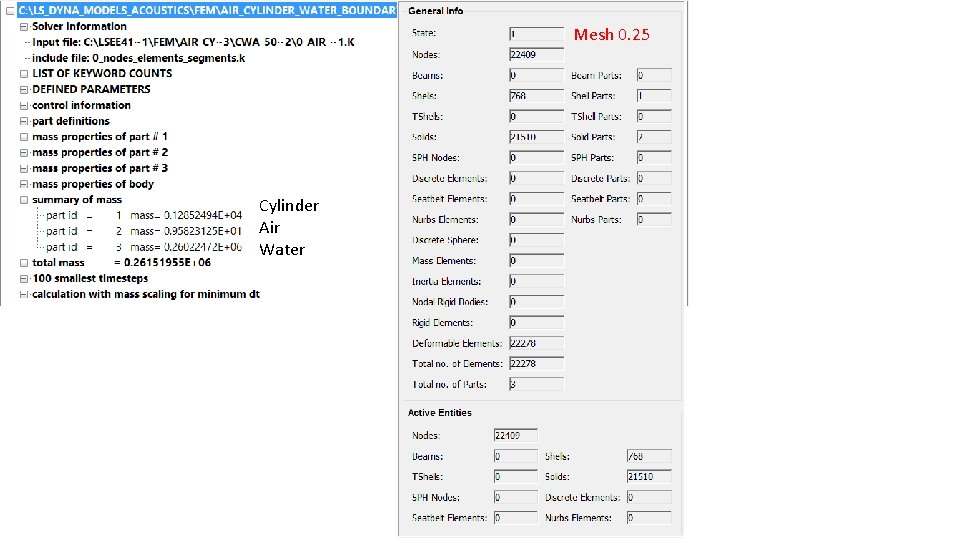

Mesh 0. 25 m

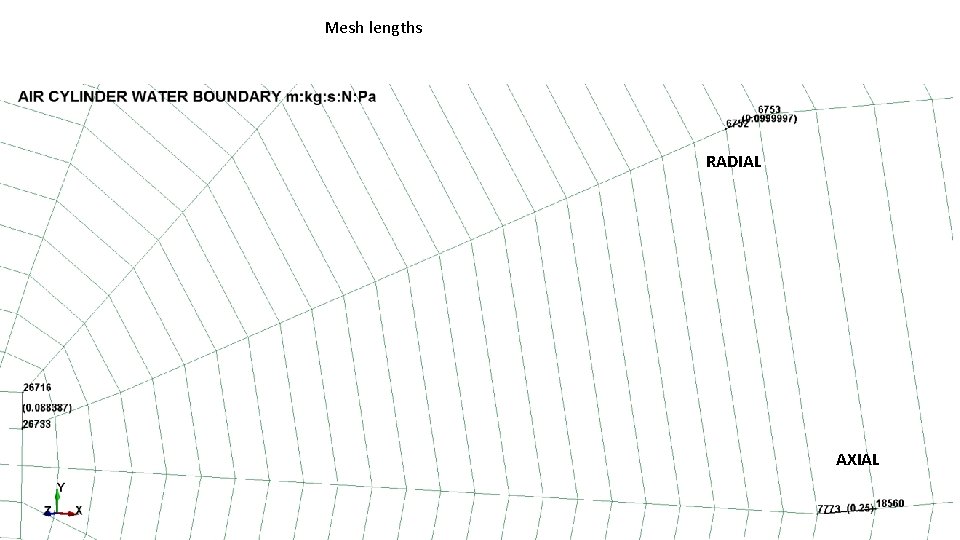

Mesh lengths RADIAL AXIAL

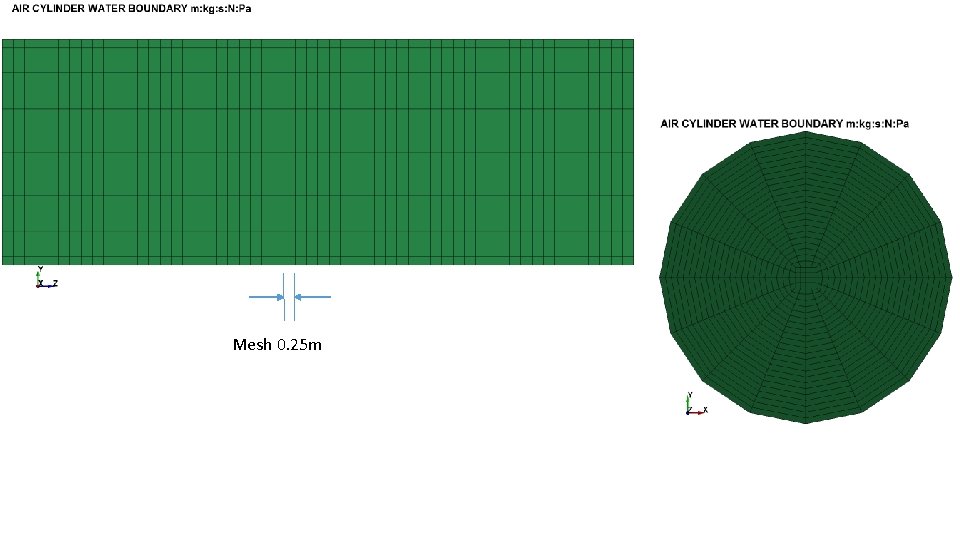

Mesh 0. 25 Cylinder Air Water

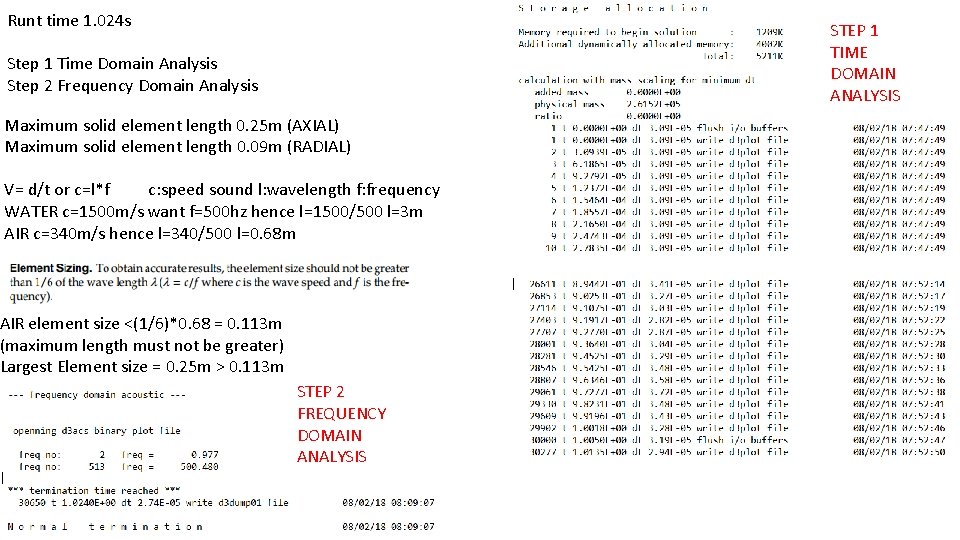

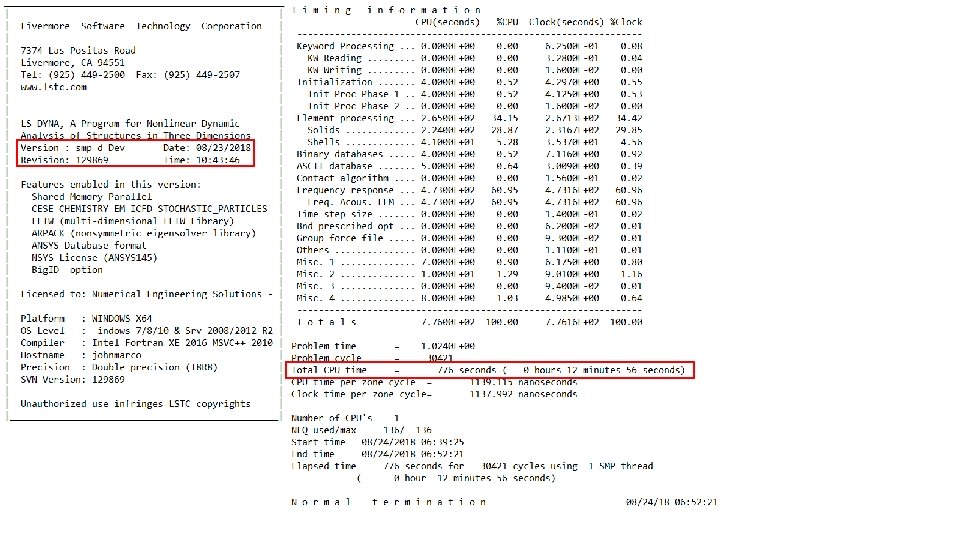

Runt time 1. 024 s STEP 1 TIME DOMAIN ANALYSIS Step 1 Time Domain Analysis Step 2 Frequency Domain Analysis Maximum solid element length 0. 25 m (AXIAL) Maximum solid element length 0. 09 m (RADIAL) V= d/t or c=l*f c: speed sound l: wavelength f: frequency WATER c=1500 m/s want f=500 hz hence l=1500/500 l=3 m AIR c=340 m/s hence l=340/500 l=0. 68 m AIR element size <(1/6)*0. 68 = 0. 113 m (maximum length must not be greater) Largest Element size = 0. 25 m > 0. 113 m STEP 2 FREQUENCY DOMAIN ANALYSIS

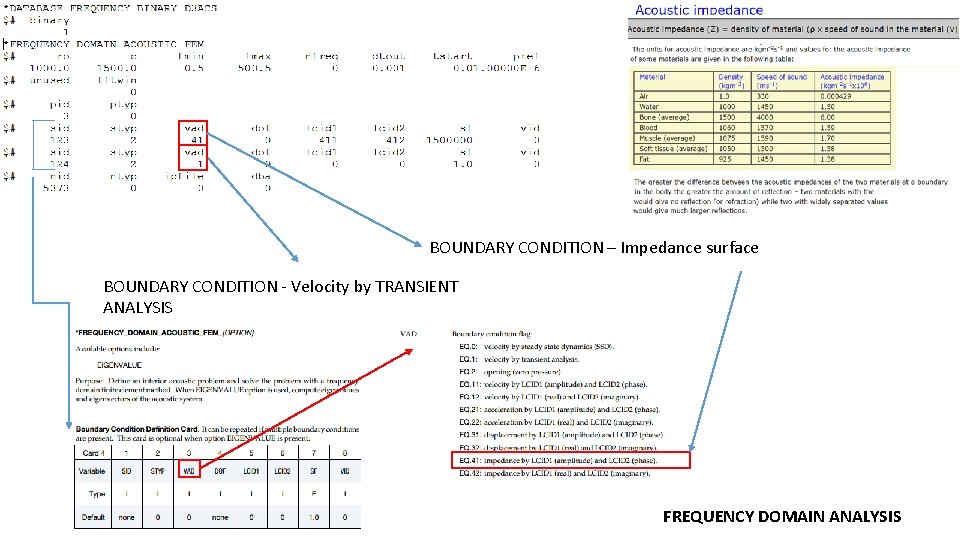

BOUNDARY CONDITION – Impedance surface BOUNDARY CONDITION - Velocity by TRANSIENT ANALYSIS FREQUENCY DOMAIN ANALYSIS

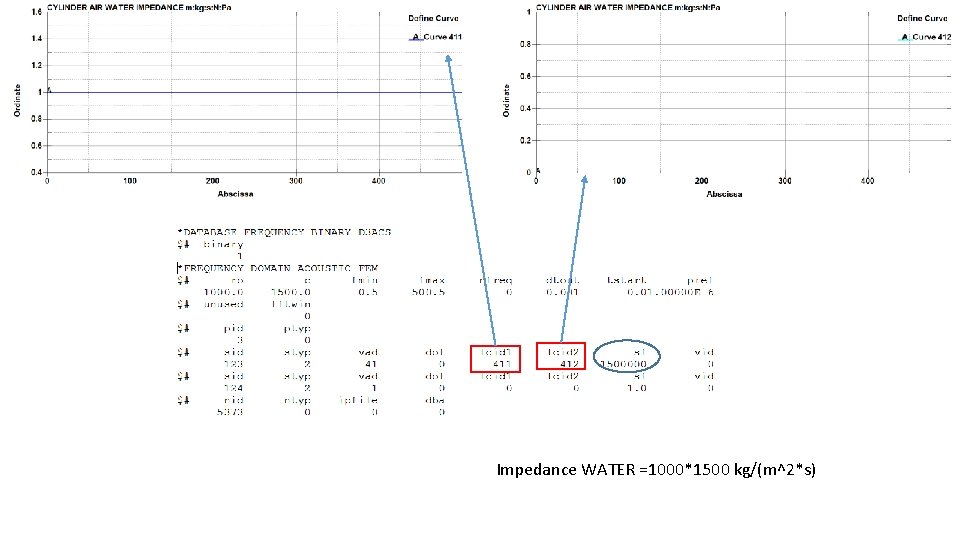

Impedance WATER =1000*1500 kg/(m^2*s)

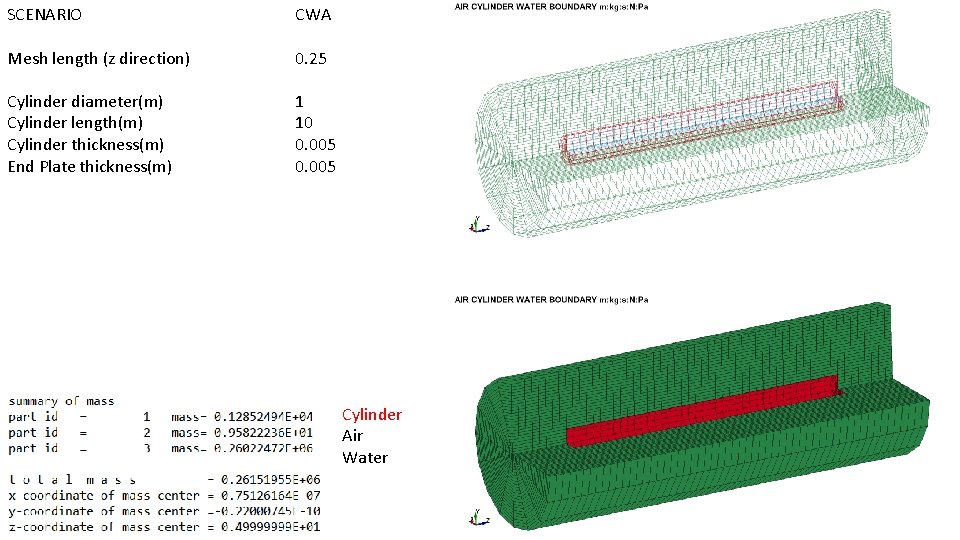

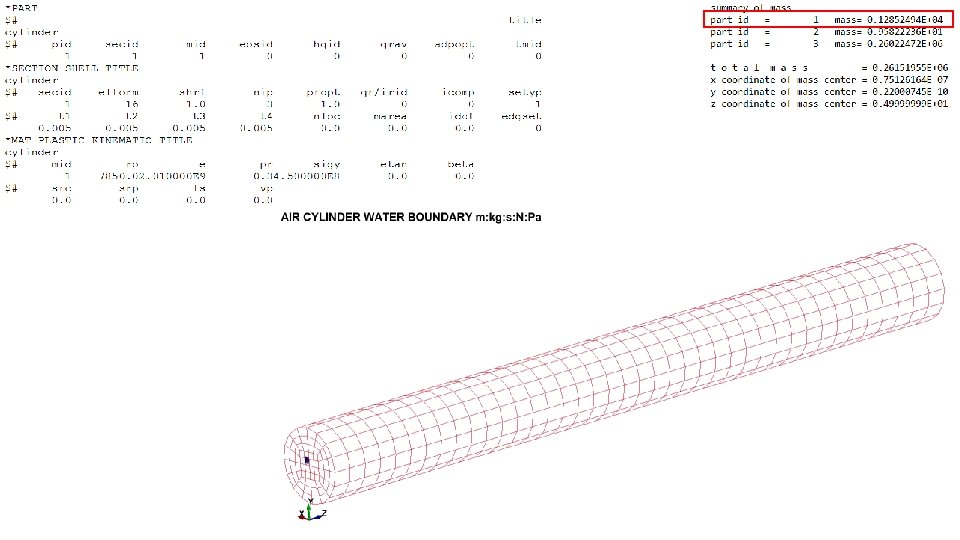

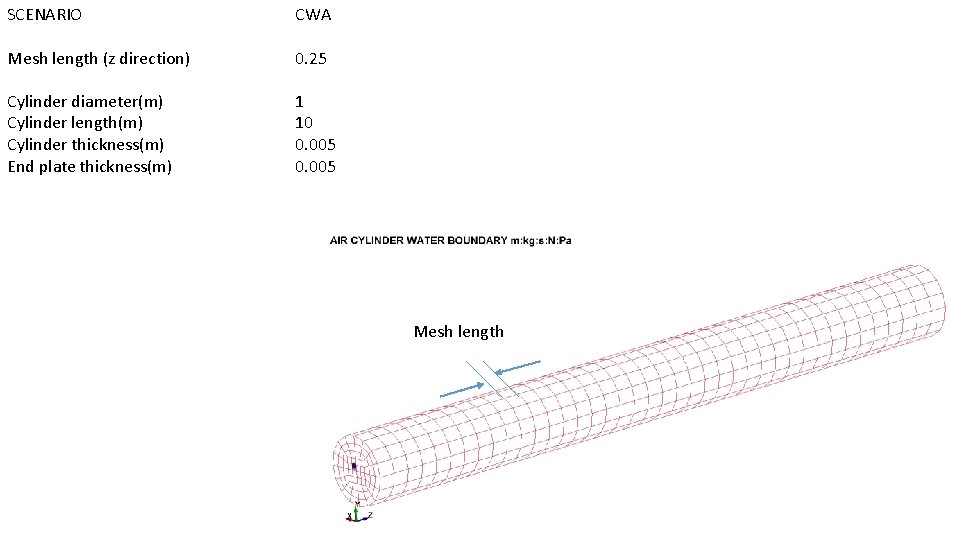

SCENARIO CWA Mesh length (z direction) 0. 25 Cylinder diameter(m) Cylinder length(m) Cylinder thickness(m) End plate thickness(m) 1 10 0. 005 Mesh length

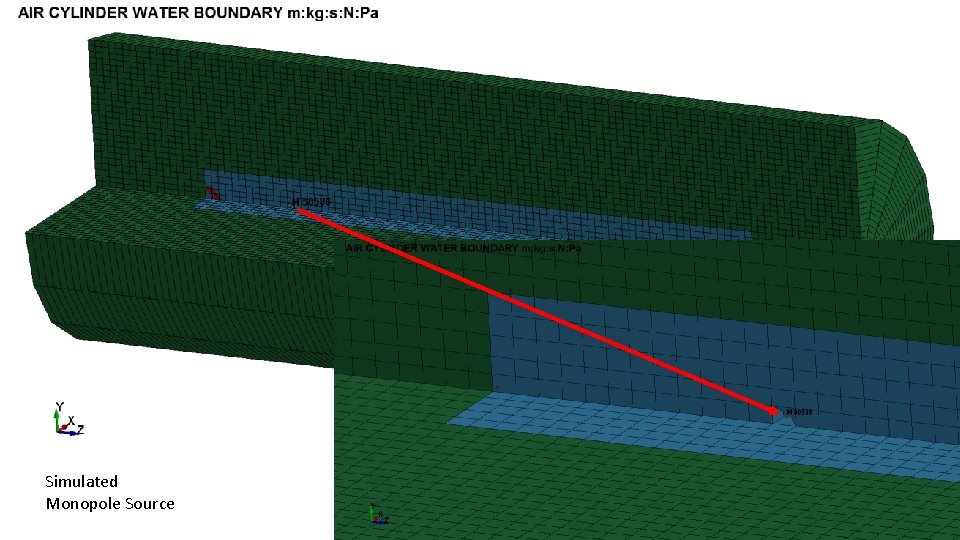

Simulated Monopole Source

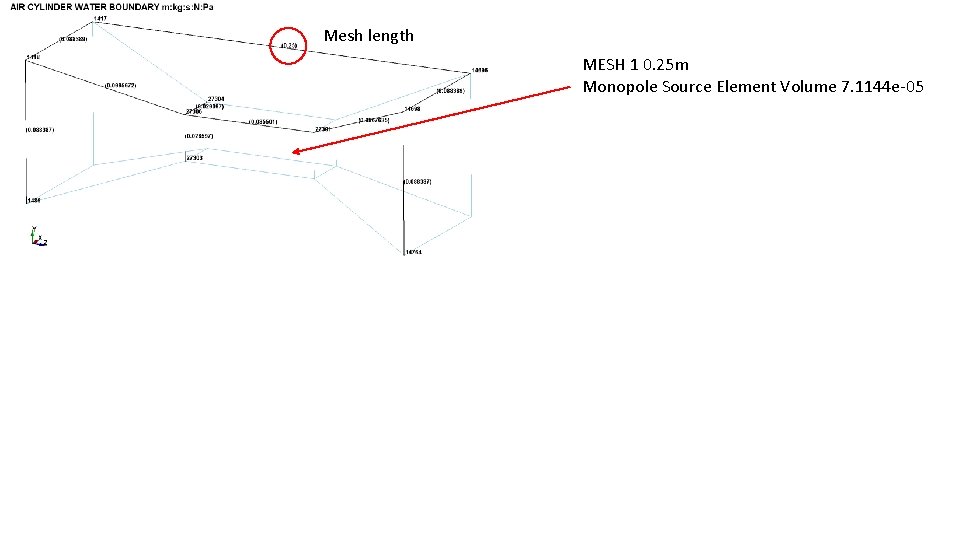

Mesh length MESH 1 0. 25 m Monopole Source Element Volume 7. 1144 e-05

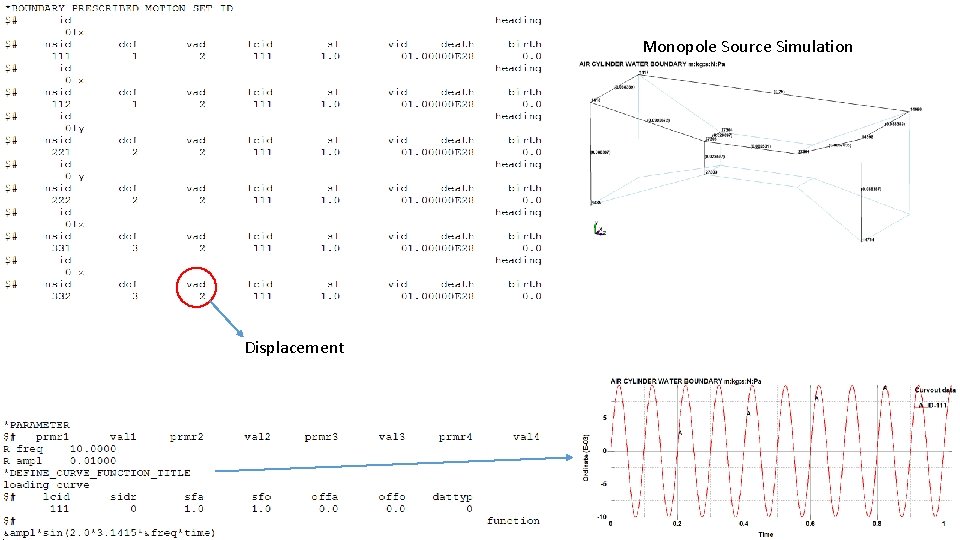

Monopole Source Simulation Displacement

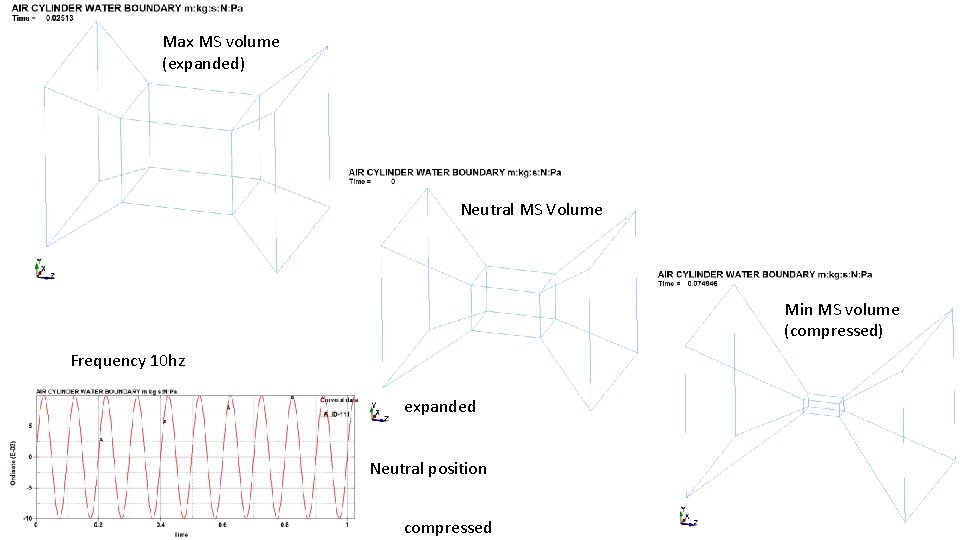

Max MS volume (expanded) Neutral MS Volume Min MS volume (compressed) Frequency 10 hz expanded Neutral position compressed

Mesh 0. 25 m Monopole Source

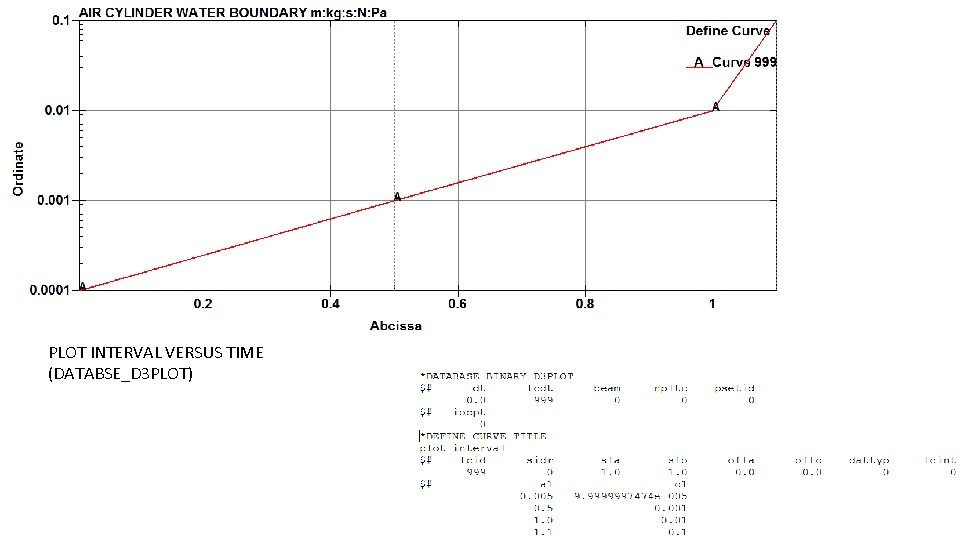

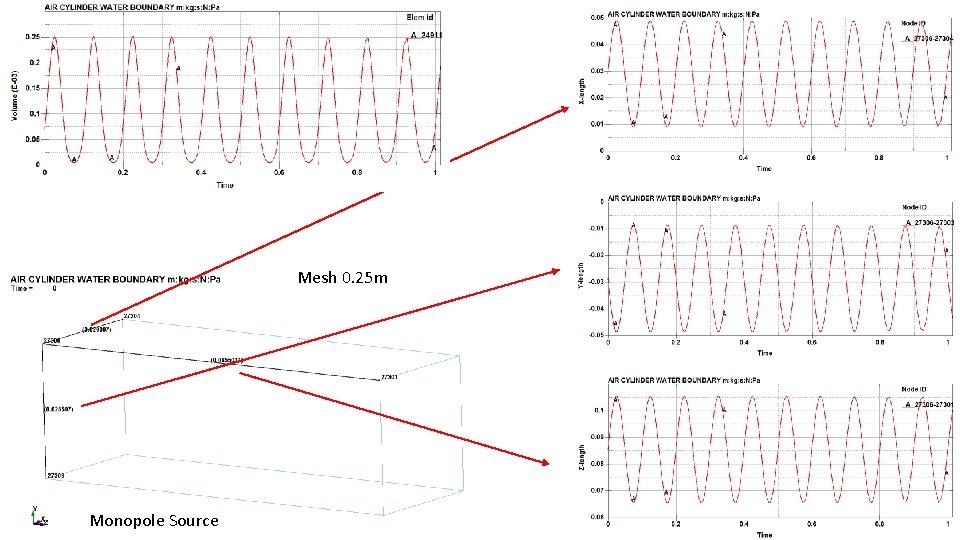

PLOT INTERVAL VERSUS TIME (DATABSE_D 3 PLOT)

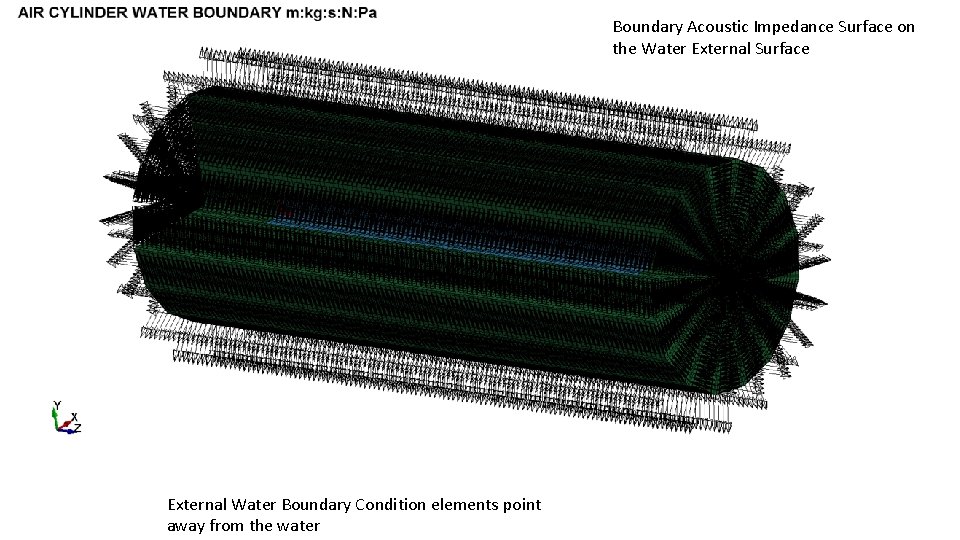

Boundary Acoustic Impedance Surface on the Water External Surface External Water Boundary Condition elements point away from the water

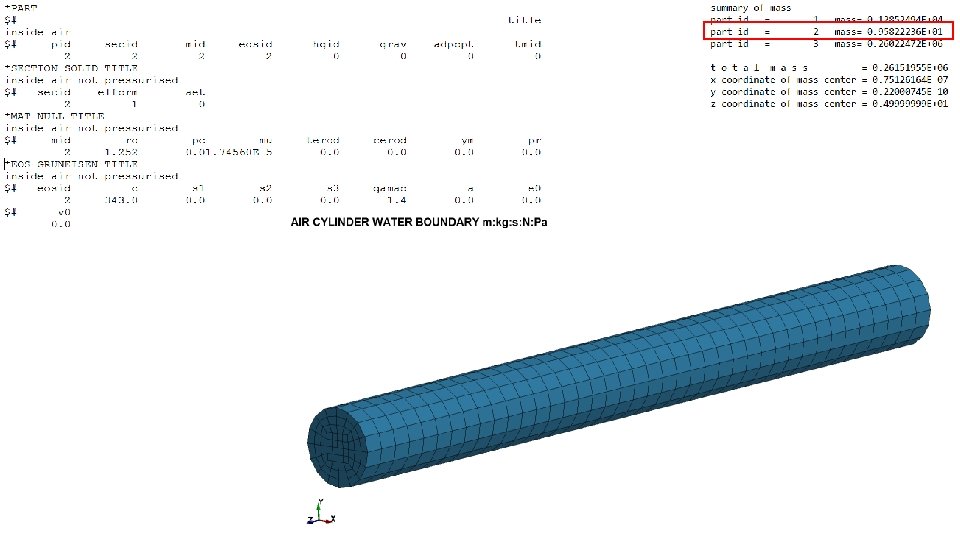

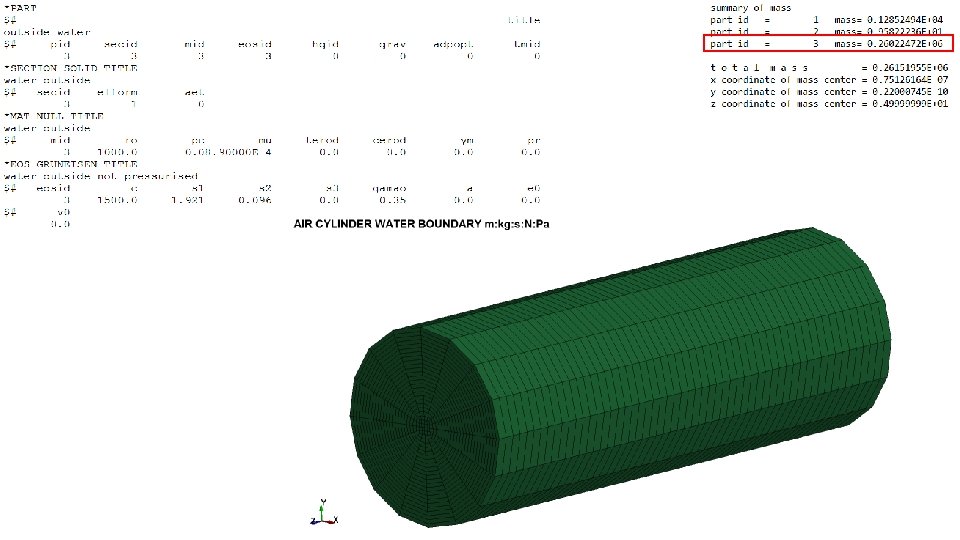

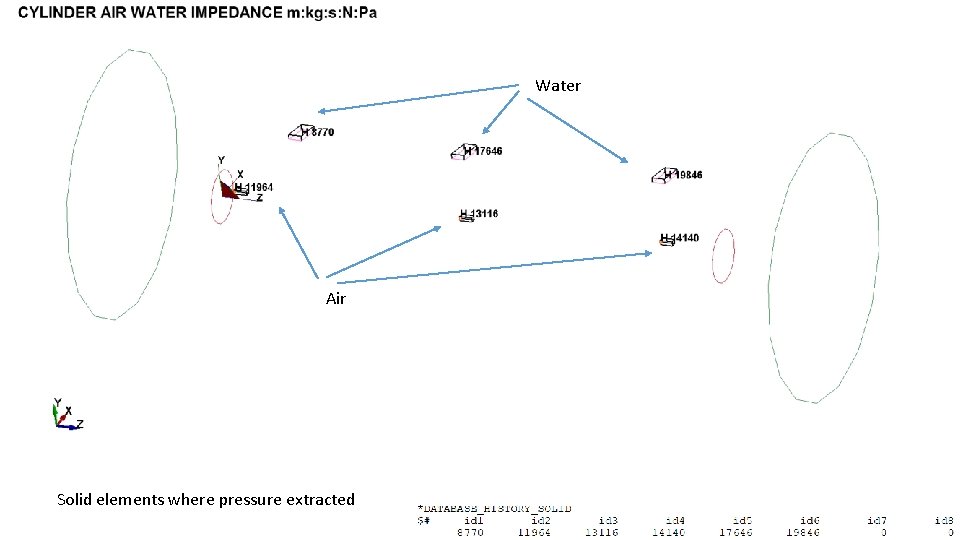

Water WATER AIR Air Solid elements where pressure extracted

Monopole Source

SCENARIO CWA Mesh length (z direction) 0. 25 Cylinder diameter(m) Cylinder length(m) Cylinder thickness(m) End Plate thickness(m) 1 10 0. 005 Cylinder Air Water

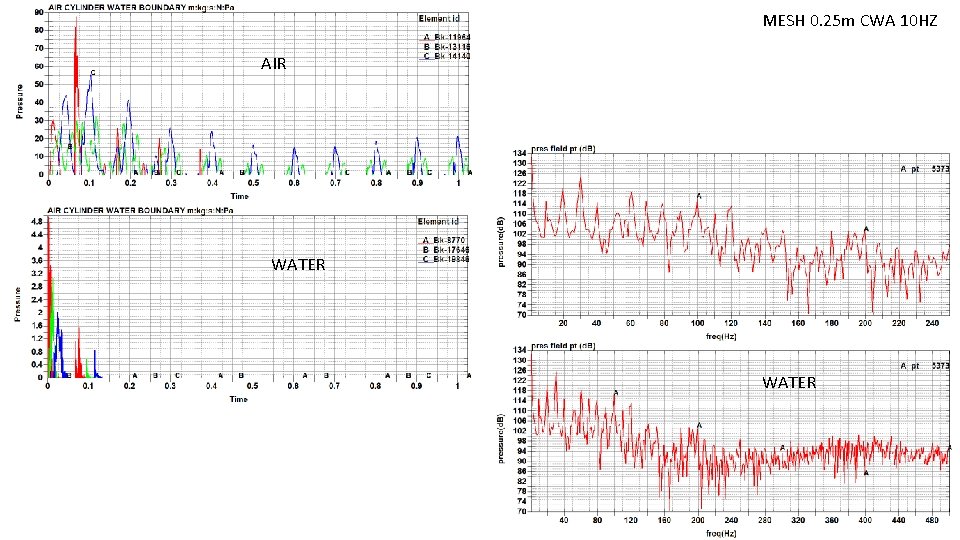

MESH 0. 25 m CWA 10 HZ AIR WATER

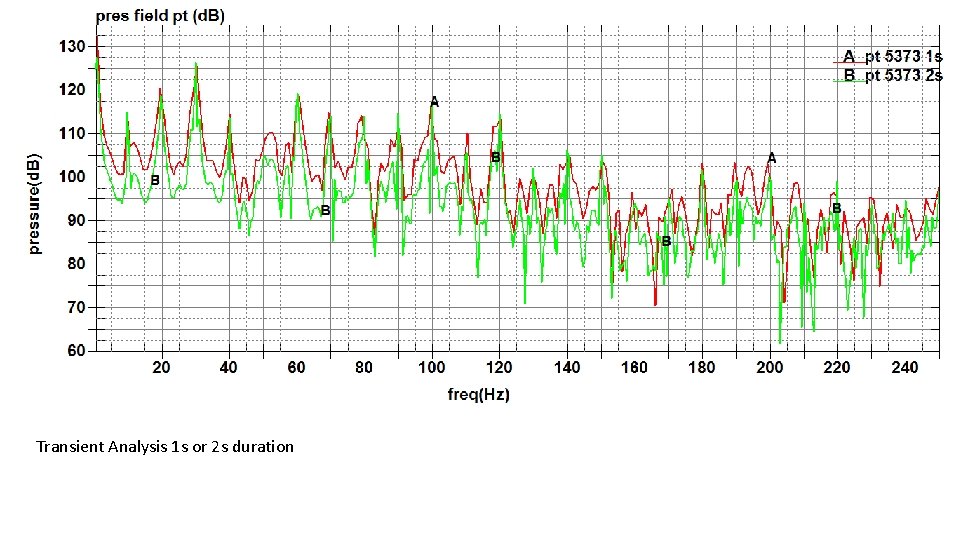

Transient Analysis 1 s or 2 s duration

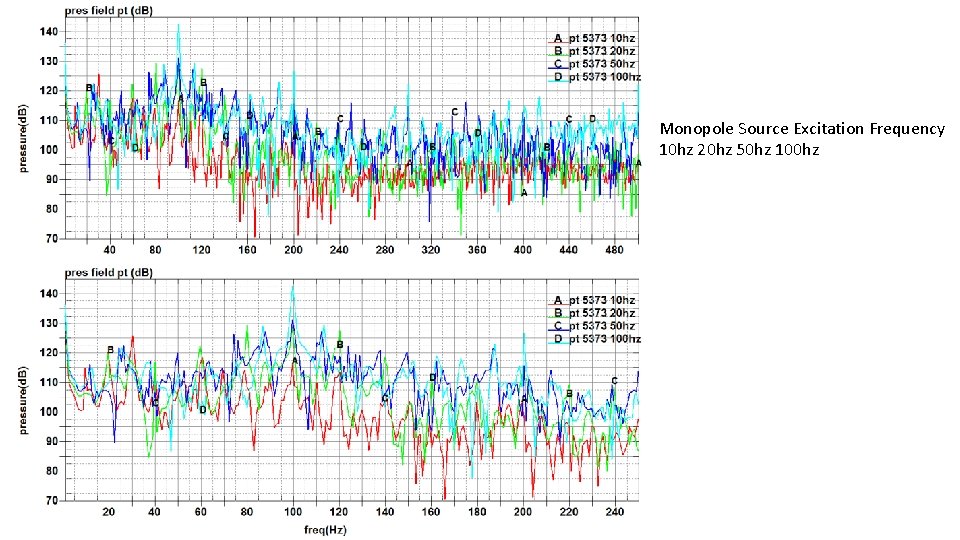

Monopole Source Excitation Frequency 10 hz 20 hz 50 hz 100 hz
