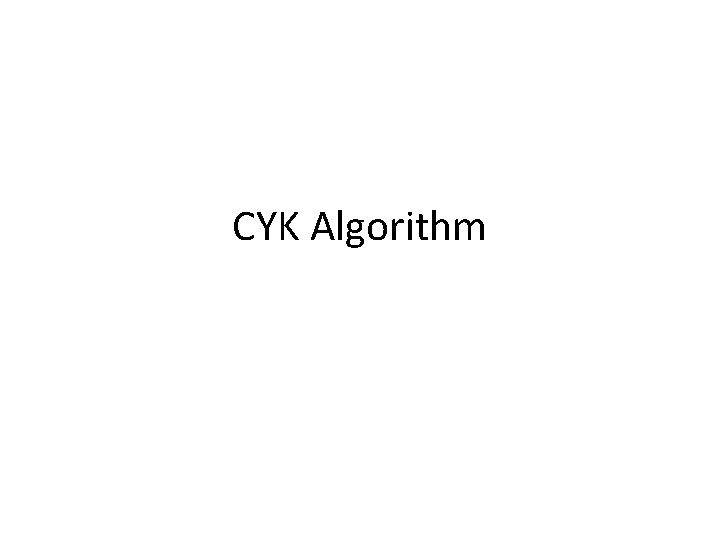

CYK Algorithm Introduction Problem Given a context free
CYK Algorithm
Introduction • Problem: Given a context free grammar and a string s is it possible to decide whether s can be generated by the grammar or not? • If the grammar is not in a very special form this is not so efficient. • If the grammar is in Chomsky Normal Form, we have an elegant algorithm for testing this, the CYK algorithm.
The CYK algorithm • Suppose that we are given a grammar in Chomsky Normal form S → AB A → BB | 0 B → AA |1 • We would like to see if 10110 is generated by this grammar or not.
Substrings of length 1 • Since the only way to produce terminals is by following the rules A → a, just replace every terminal with the variables that produce it. 1 0 1 1 0 B A B B A
Substrings of length 2 Suppose now that we want to see how every substring of length 2 can be generated. This is equivalent with finding ways to produce all the length 2 substrings where terminals are replaced with the variables that represent them. But since every rule is of the form A → BC, it suffices to replace every two consecutive variables with the variables that produce them. 1 B - 0 A S 1 B A 1 B - 0 A
Substrings of length 3 • To produce the substring 101 (in 10110) we can either take 1 with 01 or 10 with 1. Here BS cannot be produced by any variable. 1 B - 0 A S 1 B A 1 B - 0 A
Substrings of length 3 • To produce the substring 101 (in 10110) we can either take 1 with 01 or 10 with 1. Here we don’t have a pair since 10 cannot be produced. 1 B - 0 A S 1 B A 1 B - 0 A
Substrings of length 3 • To produce the substring 011 (in 10110) we can either take 0 with 11 or 01 with 1. Here AA can be produced by B. 1 B - 0 A S B 1 B A 1 B - 0 A
Substrings of length 3 • To produce the substring 011 (in 10110) we can either take 0 with 11 or 01 with 1. Here SB cannot be produced by any variable 1 B - 0 A S B 1 B A 1 B - 0 A
Substrings of length 3 • To produce the substring 110 (in 10110) we can either take 1 with 10 or 11 with 0. Here we don’t have a pair since 10 cannot be produced by a variable. 1 B - 0 A S B 1 B A - 1 B - 0 A
Substrings of length 3 • To produce the substring 110 (in 10110) we can either take 1 with 10 or 11 with 0. Here AA can be produced by B 1 B - 0 A S B 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 1011 (in 10110) we can take 1 with 011 or 10 with 11, or 101 with 1. Here BB can be produced by A. 1 B A 0 A S B 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 1011 (in 10110) we can take 1 with 011 or 10 with 11, or 101 with 1. Here we don’t have a pair since 10 cannot be produced. 1 B A 0 A S B 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 1011 (in 10110) we can take 1 with 011 or 10 with 11, or 101 with 1. Here we don’t have a pair since 101 cannot be produced. 1 B A 0 A S B 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 0110 (in 10110) we can take 0 with 110 or 01 with 10, or 011 with 0. Here AB can be produced by S. 1 B A 0 A S B S 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 0110 (in 10110) we can take 0 with 110 or 01 with 10, or 011 with 0. Here we don’t have a pair since 10 cannot be produced. 1 B A 0 A S B S 1 B A B 1 B - 0 A
Substrings of length 4 • To produce the substring 0110 (in 10110) we can take 0 with 110 or 01 with 10, or 011 with 0. Here BA cannot be produced by any variable. 1 B A 0 A S B S 1 B A B 1 B - 0 A
Combine previous solutions • In order now to produce the whole string 10110 we can take 1 with 0110 or 10 with 110 or 101 with 10, or 1011 with 0. Here, BS cannot be produced. 1 B A - 0 A S B S 1 B A B 1 B - 0 A
Combine previous solutions • In order now to produce the whole string 10110 we can take 1 with 0110 or 10 with 110 or 101 with 10, or 1011 with 0. Here we don’t have a pair. 1 B A - 0 A S B S 1 B A B 1 B - 0 A
Combine previous solutions • In order now to produce the whole string 10110 we can take 1 with 0110 or 10 with 110 or 101 with 10, or 1011 with 0. Here we don’t have a pair. 1 B A - 0 A S B S 1 B A B 1 B - 0 A
Combine previous solutions • In order now to produce the whole string 10110 we can take 1 with 0110 or 10 with 110 or 101 with 10, or 1011 with 0. Here, AA is produced by B. 1 B A B 0 A S B S 1 B A B 1 B - 0 A

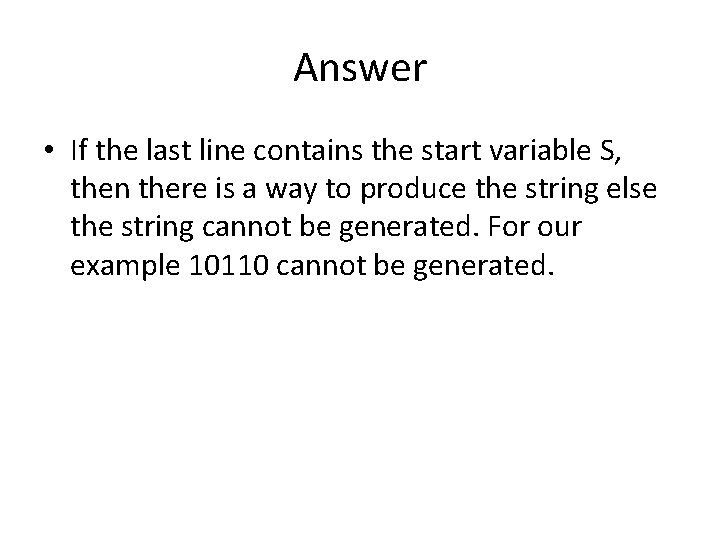

Answer • If the last line contains the start variable S, then there is a way to produce the string else the string cannot be generated. For our example 10110 cannot be generated.
Mechanical way • Now that we show why this method works lets give an easy way to compute the table • Suppose that we are about to fill in the position with the cycle. We take the pairs that the arrows designate 1 B A 0 A S B S 1 B A B 1 B - 0 A
Mechanical way • Now that we show why this method works lets give an easy way to compute the table • Suppose that we are about to fill in the position with the cycle. We take the pairs that the arrows designate 1 B A 0 A S B S 1 B A B 1 B - 0 A
Mechanical way • Now that we show why this method works lets give an easy way to compute the table • Suppose that we are about to fill in the position with the cycle. We take the pairs that the arrows designate 1 B A 0 A S B - 1 B A B 1 B - 0 A
Mechanical way • Now that we show why this method works lets give an easy way to compute the table • Suppose that we are about to fill in the position with the cycle. We take the pairs that the arrows designate 1 B A 0 A S B - 1 B A B 1 B - 0 A

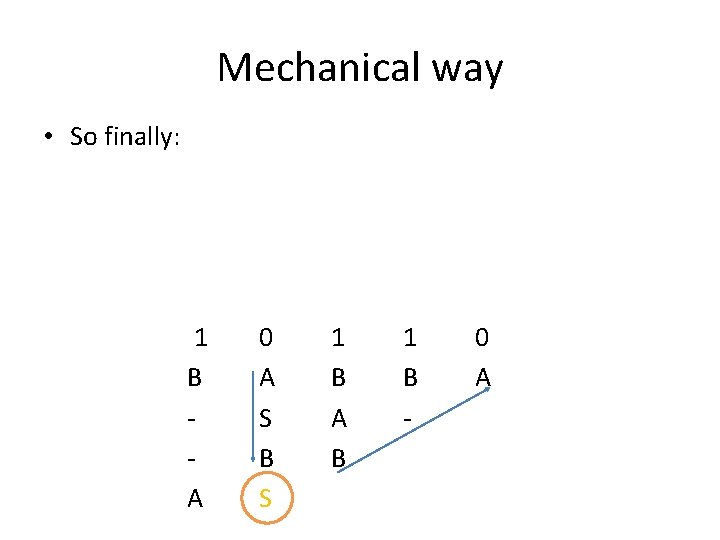

Mechanical way • So finally: 1 B A 0 A S B S 1 B A B 1 B - 0 A

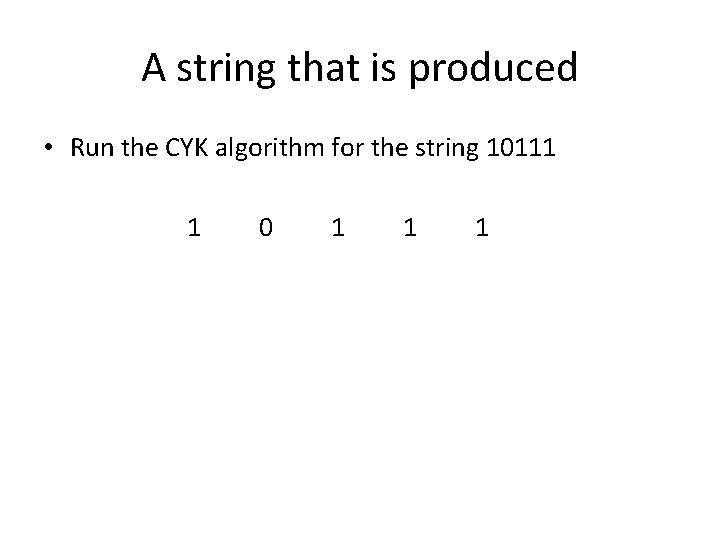

A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 1 1
A string that is produced • Run the CYK algorithm for the string 10111 1 B 0 A 1 B 1 B

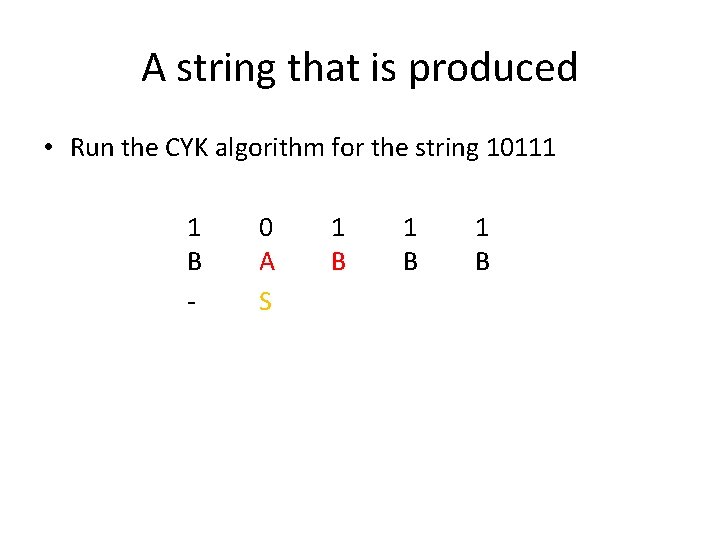

A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A 1 B 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S 1 B 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S 1 B A 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S 1 B A 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S 1 B A 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S 1 B A 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S B 1 B A 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S B 1 B A 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S B 1 B A - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B - 0 A S B 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B - 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B - 1 B A S 1 B - 1 B

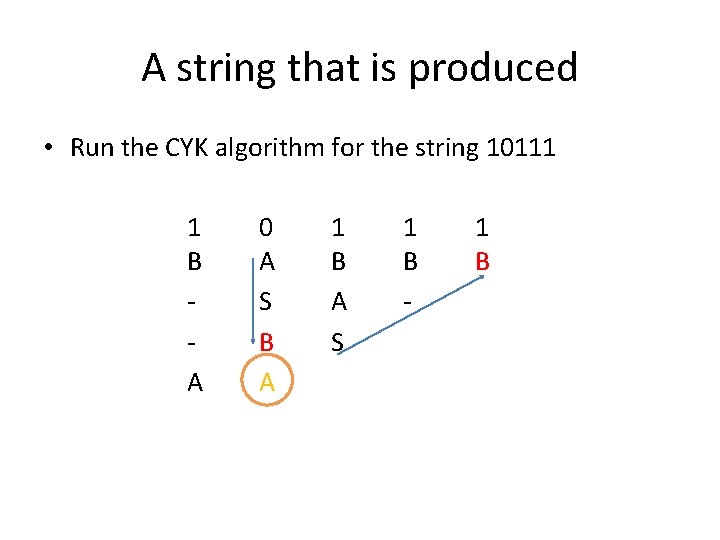

A string that is produced • Run the CYK algorithm for the string 10111 1 B A 0 A S B A 1 B A S 1 B - 1 B

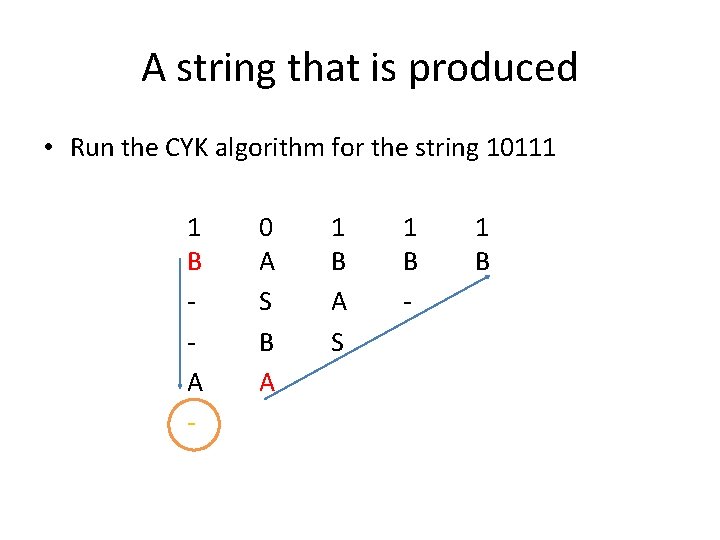

A string that is produced • Run the CYK algorithm for the string 10111 1 B A - 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A - 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A - 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A S 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A S The derivation is: S 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A S The derivation is: S → AB 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A S The derivation is: S → AB → BBB 0 A S B A 1 B A S 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 B A S The derivation is: S → AB → BBB 0 A S B A 1 B A S 1 B - 1 B

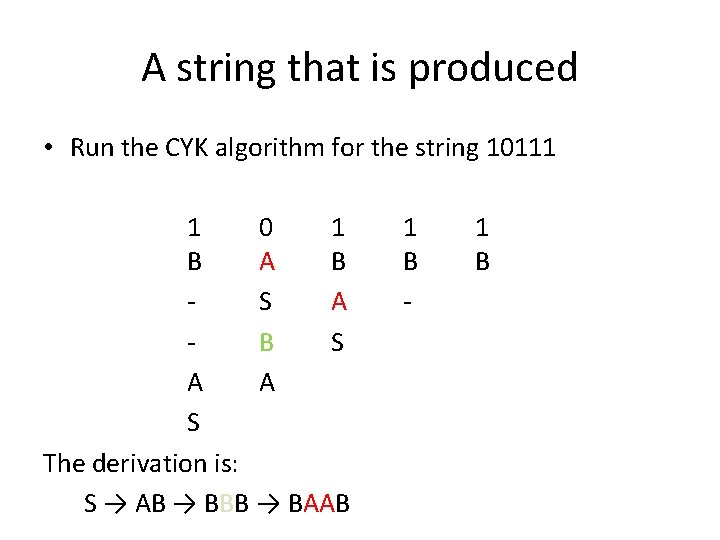

A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 B A B S A A S The derivation is: S → AB → BBB → BAAB 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 B A B S A A S The derivation is: S → AB → BBB → BAAB 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 B A B S A A S The derivation is: S → AB → BBB → BAAB 1 B - 1 B
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 1 1 B A B B B S A A S The derivation is: S → AB → BBB → BAAB → BABBB
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 1 1 B A B B B S A A S The derivation is: S → AB → BBB → BAAB → BABBB
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 1 1 B A B B B S A A S The derivation is: S → AB → BBB → BAAB → BABBB
A string that is produced • Run the CYK algorithm for the string 10111 1 0 1 1 1 B A B B B S A A S The derivation is: S → AB → BBB → BAAB → BABBB
