Cyber Threats Facing Autonomous and Connected Vehicles: Future Challenges Simon Parkinson, Paul Ward, Kyle Wilson, and Jonathon Miller A Review of the Above Document By: Robert James

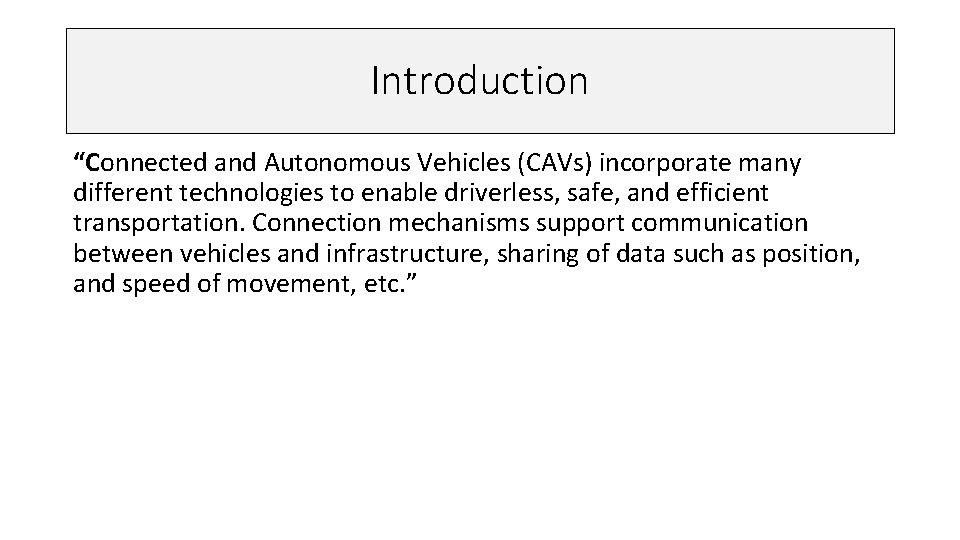

Introduction “Connected and Autonomous Vehicles (CAVs) incorporate many different technologies to enable driverless, safe, and efficient transportation. Connection mechanisms support communication between vehicles and infrastructure, sharing of data such as position, and speed of movement, etc. ”

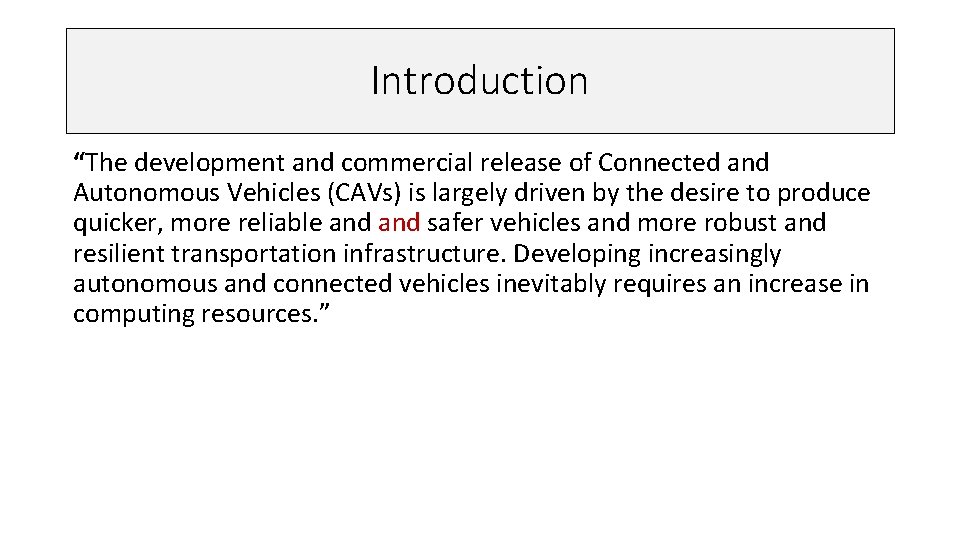

Introduction “The development and commercial release of Connected and Autonomous Vehicles (CAVs) is largely driven by the desire to produce quicker, more reliable and safer vehicles and more robust and resilient transportation infrastructure. Developing increasingly autonomous and connected vehicles inevitably requires an increase in computing resources. ”

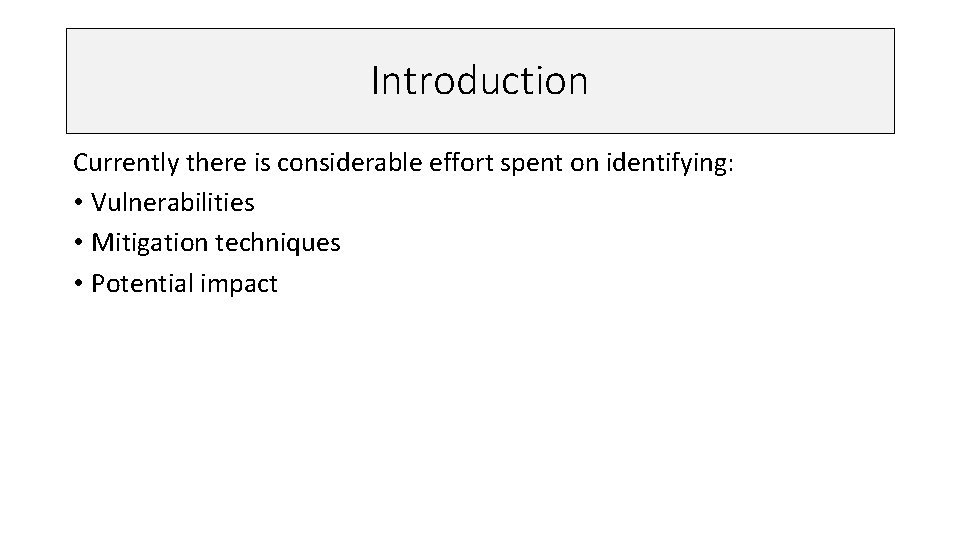

Introduction Currently there is considerable effort spent on identifying: • Vulnerabilities • Mitigation techniques • Potential impact

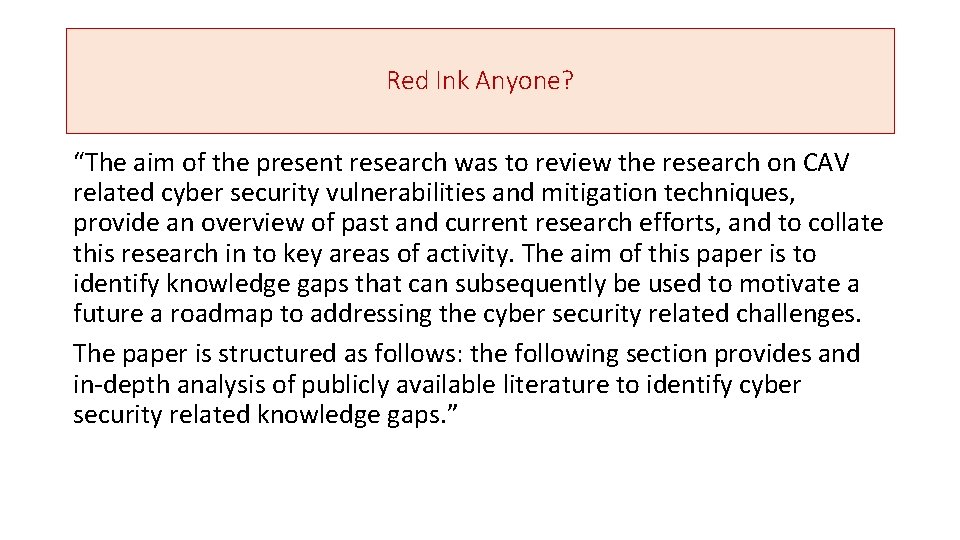

Red Ink Anyone? “The aim of the present research was to review the research on CAV related cyber security vulnerabilities and mitigation techniques, provide an overview of past and current research efforts, and to collate this research in to key areas of activity. The aim of this paper is to identify knowledge gaps that can subsequently be used to motivate a future a roadmap to addressing the cyber security related challenges. The paper is structured as follows: the following section provides and in-depth analysis of publicly available literature to identify cyber security related knowledge gaps. ”

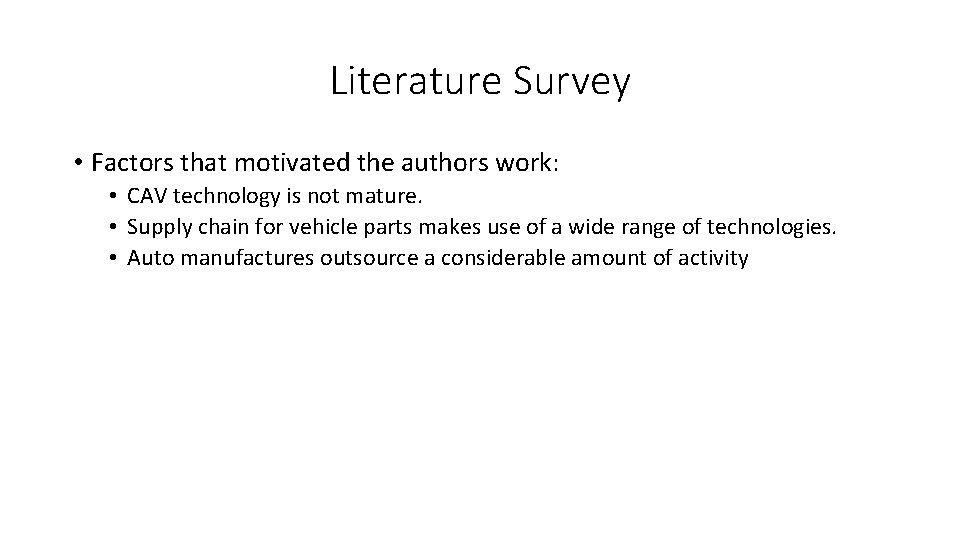

Literature Survey • Factors that motivated the authors work: • CAV technology is not mature. • Supply chain for vehicle parts makes use of a wide range of technologies. • Auto manufactures outsource a considerable amount of activity

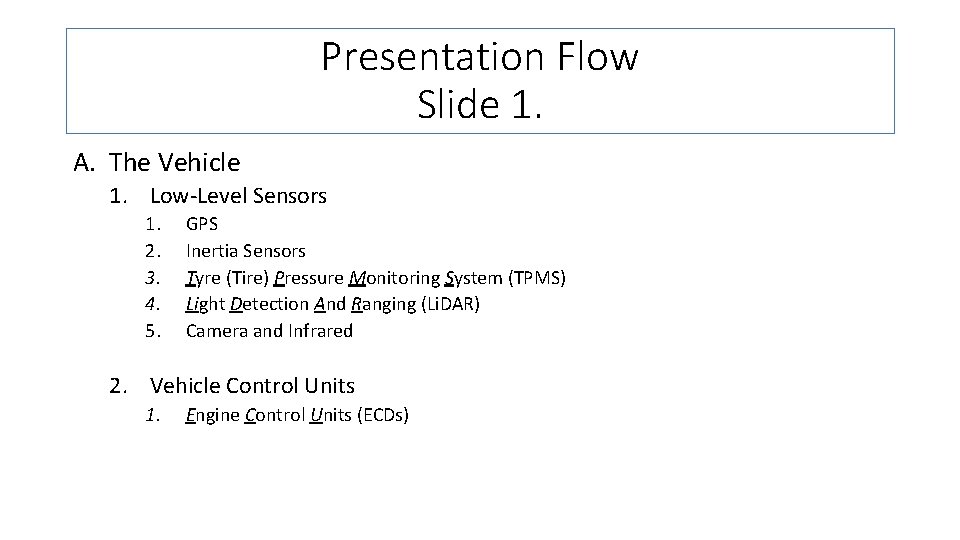

Presentation Flow Slide 1. A. The Vehicle 1. Low-Level Sensors 1. 2. 3. 4. 5. GPS Inertia Sensors Tyre (Tire) Pressure Monitoring System (TPMS) Light Detection And Ranging (Li. DAR) Camera and Infrared 2. Vehicle Control Units 1. Engine Control Units (ECDs)

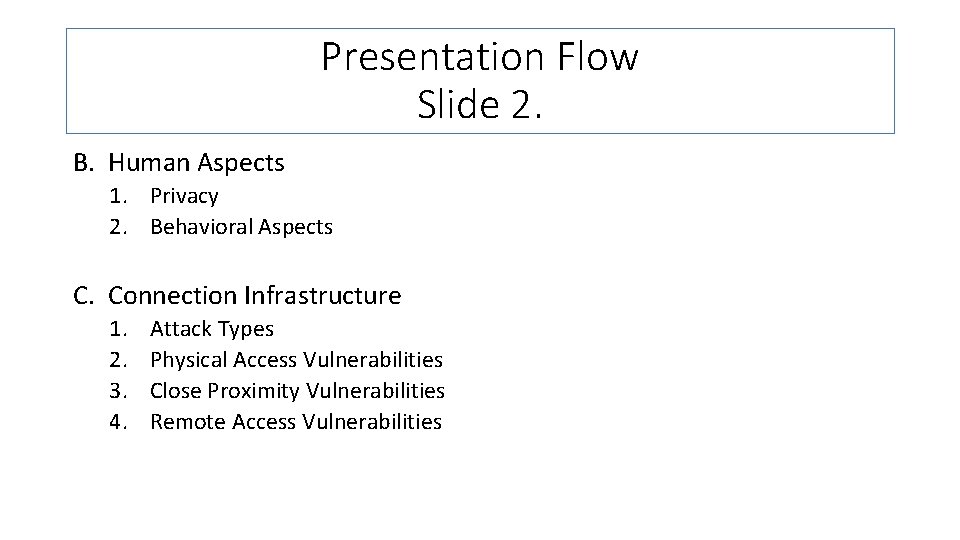

Presentation Flow Slide 2. B. Human Aspects 1. Privacy 2. Behavioral Aspects C. Connection Infrastructure 1. 2. 3. 4. Attack Types Physical Access Vulnerabilities Close Proximity Vulnerabilities Remote Access Vulnerabilities

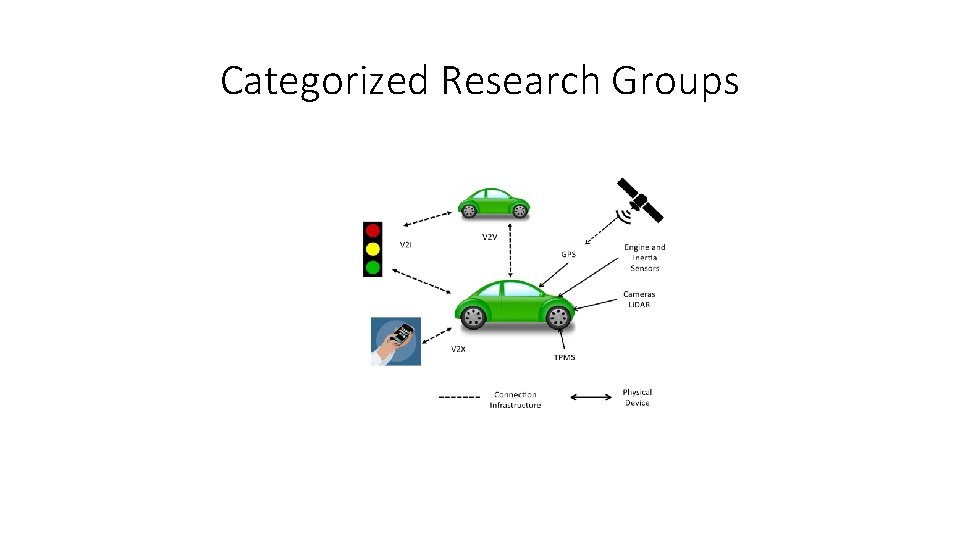

Categorized Research Groups

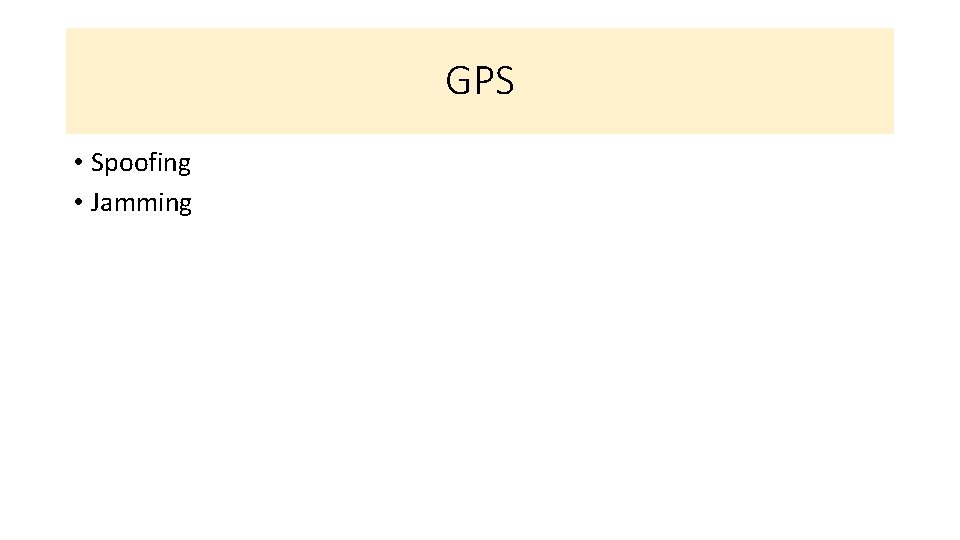

GPS • Spoofing • Jamming

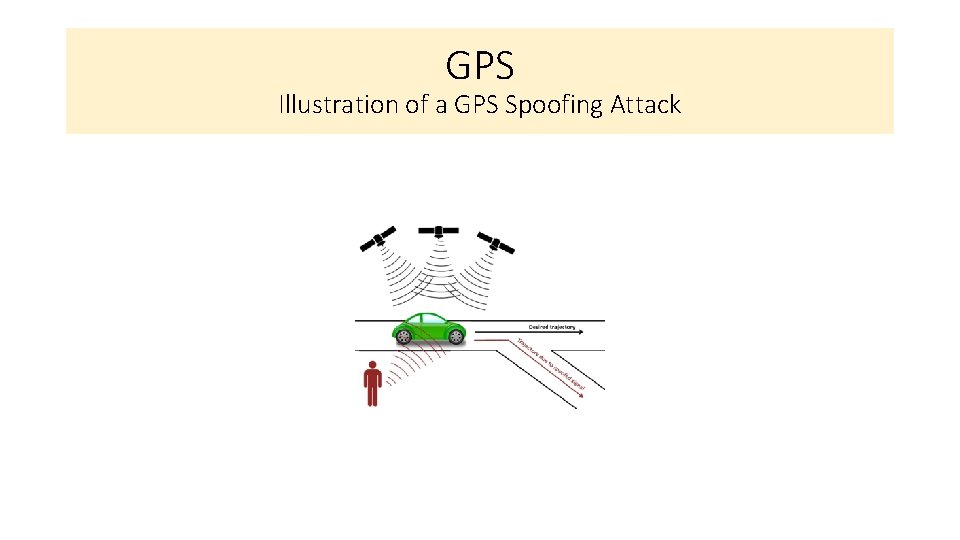

GPS Illustration of a GPS Spoofing Attack

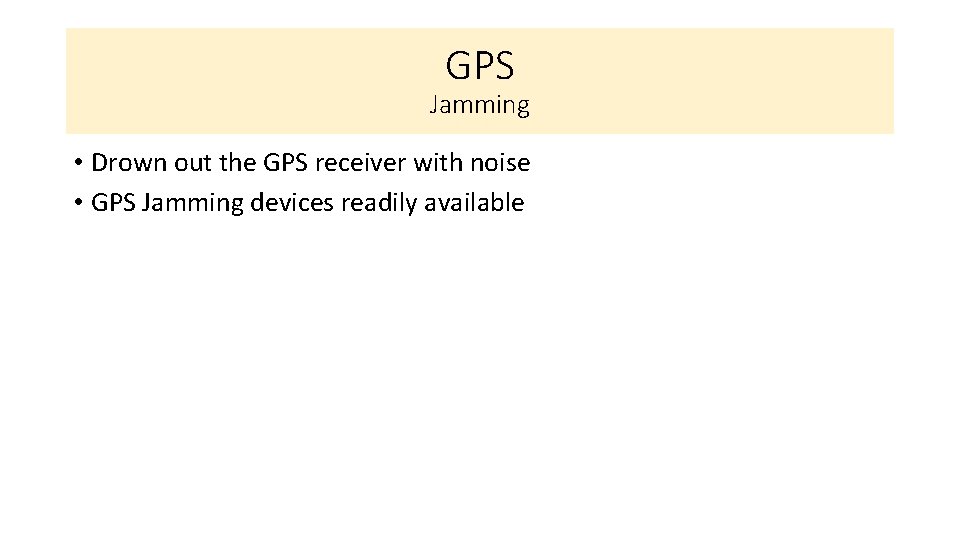

GPS Jamming • Drown out the GPS receiver with noise • GPS Jamming devices readily available

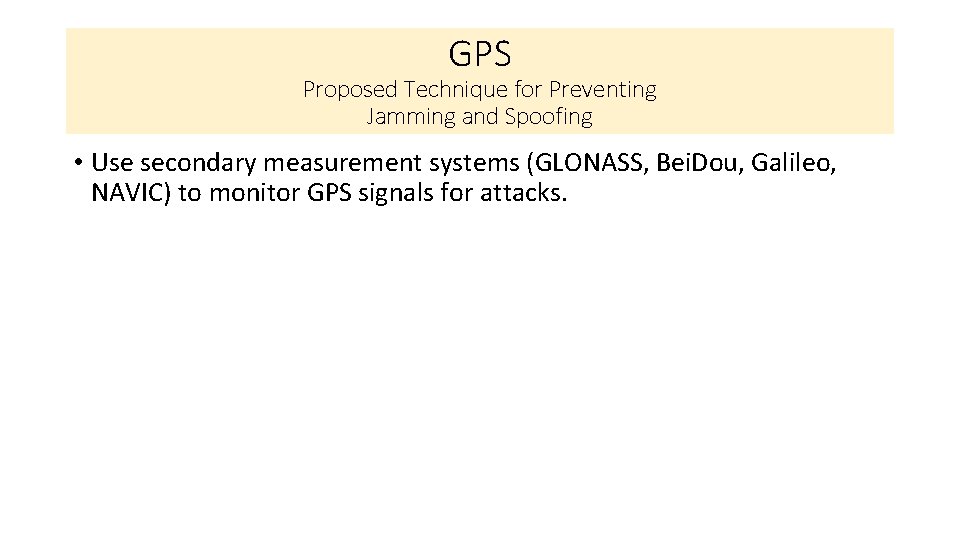

GPS Proposed Technique for Preventing Jamming and Spoofing • Use secondary measurement systems (GLONASS, Bei. Dou, Galileo, NAVIC) to monitor GPS signals for attacks.

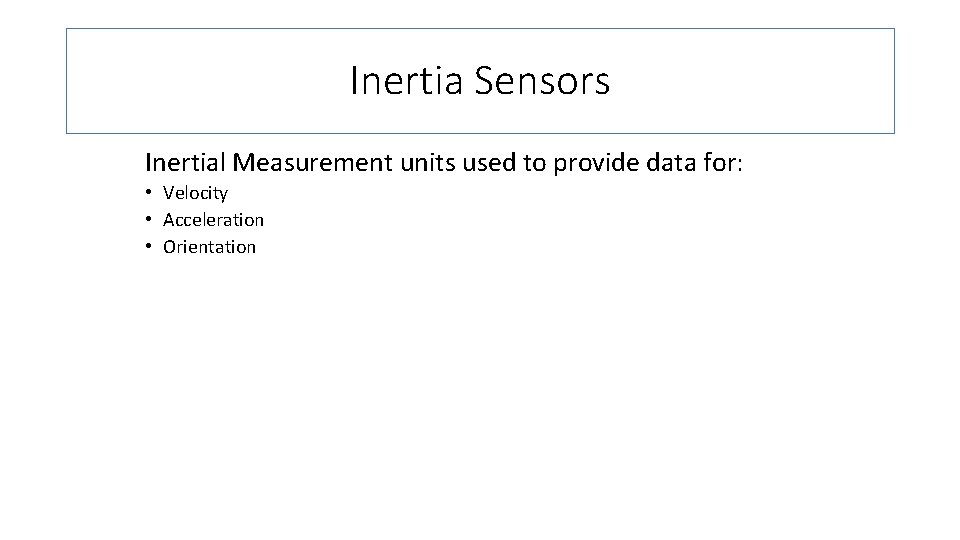

Inertia Sensors Inertial Measurement units used to provide data for: • Velocity • Acceleration • Orientation

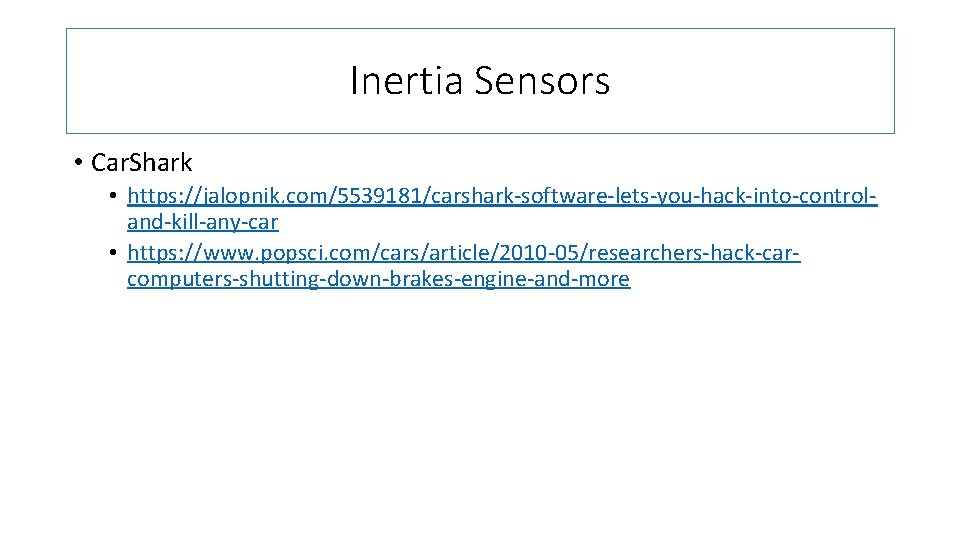

Inertia Sensors • Car. Shark • https: //jalopnik. com/5539181/carshark-software-lets-you-hack-into-controland-kill-any-car • https: //www. popsci. com/cars/article/2010 -05/researchers-hack-carcomputers-shutting-down-brakes-engine-and-more

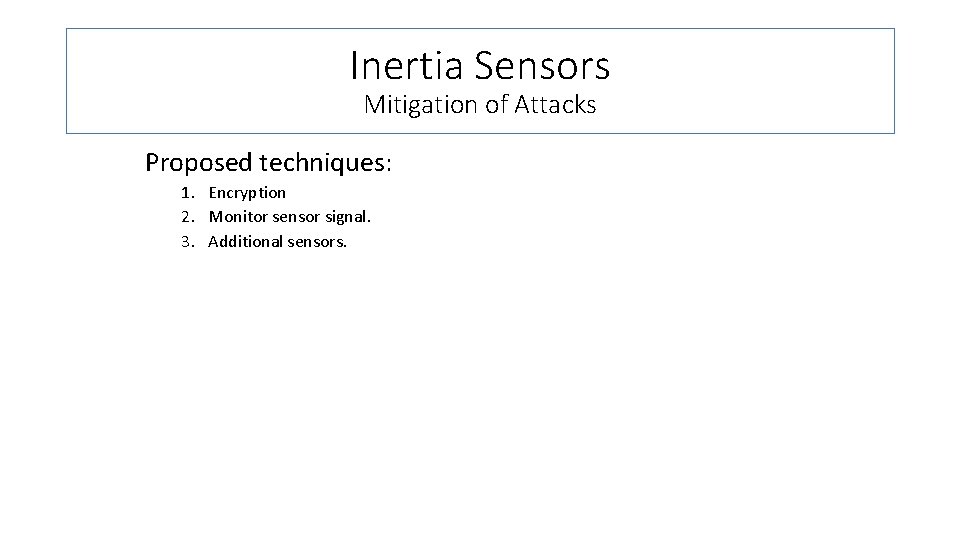

Inertia Sensors Mitigation of Attacks Proposed techniques: 1. Encryption 2. Monitor sensor signal. 3. Additional sensors.

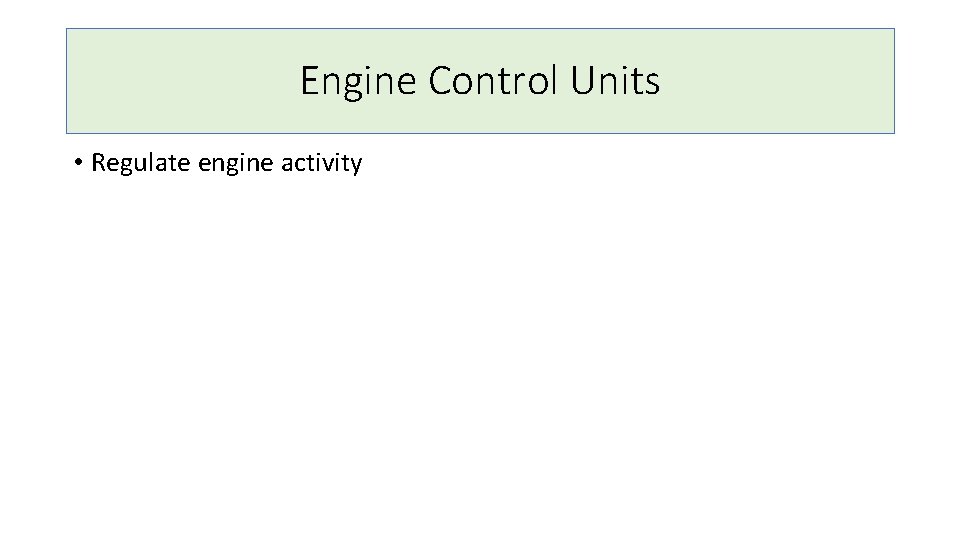

Engine Control Units • Regulate engine activity

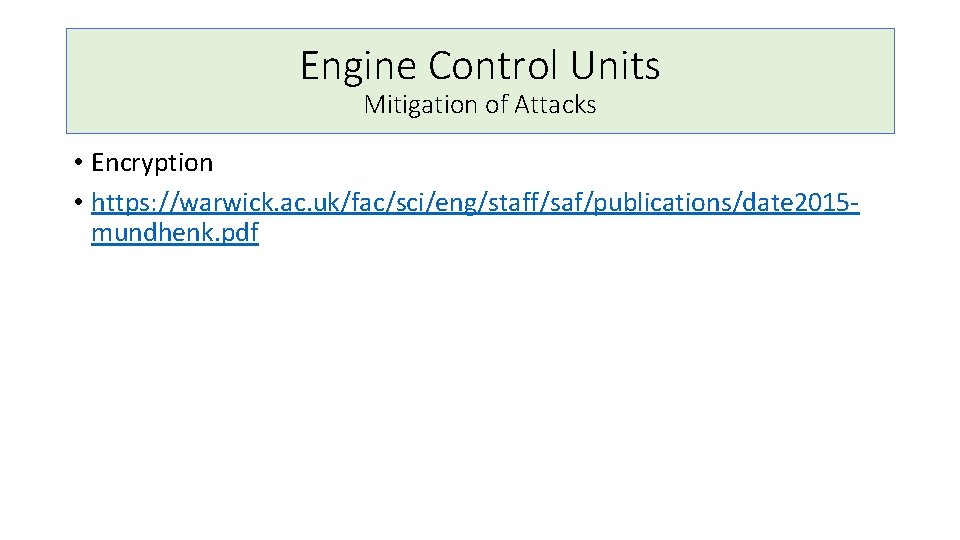

Engine Control Units Mitigation of Attacks • Encryption • https: //warwick. ac. uk/fac/sci/eng/staff/saf/publications/date 2015 mundhenk. pdf

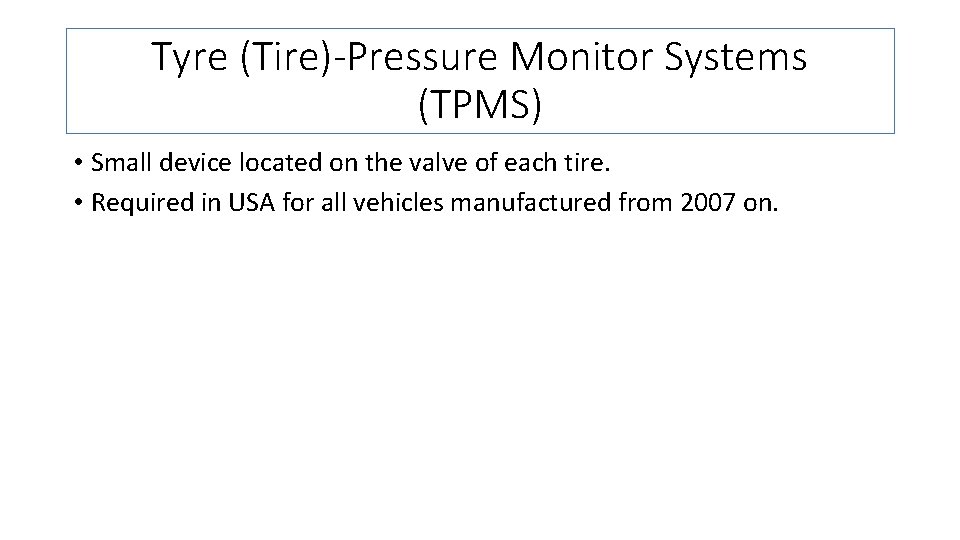

Tyre (Tire)-Pressure Monitor Systems (TPMS) • Small device located on the valve of each tire. • Required in USA for all vehicles manufactured from 2007 on.

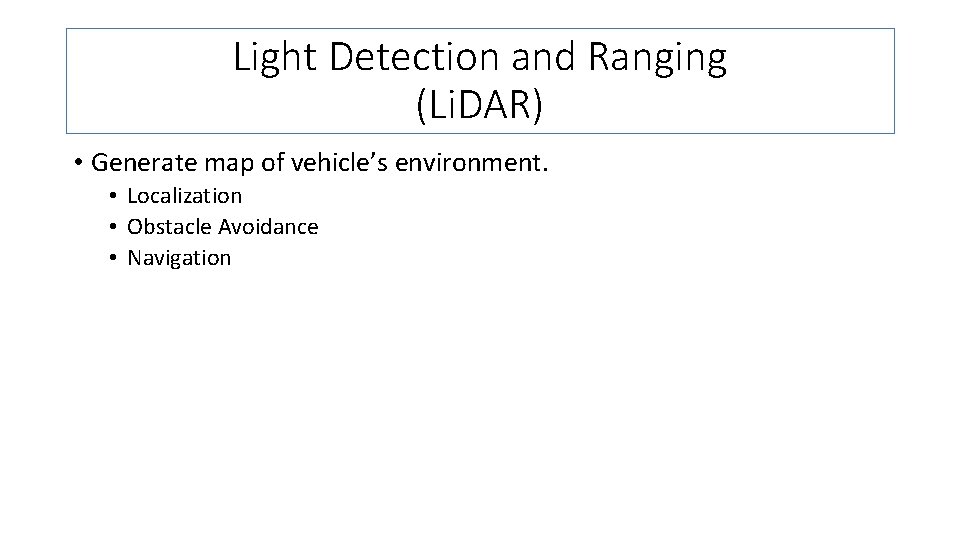

Light Detection and Ranging (Li. DAR) • Generate map of vehicle’s environment. • Localization • Obstacle Avoidance • Navigation

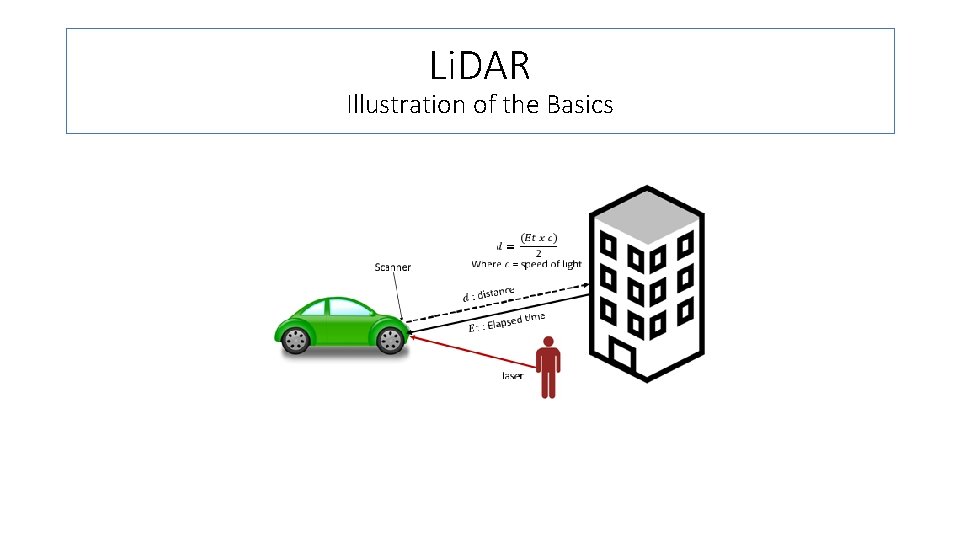

Li. DAR Illustration of the Basics

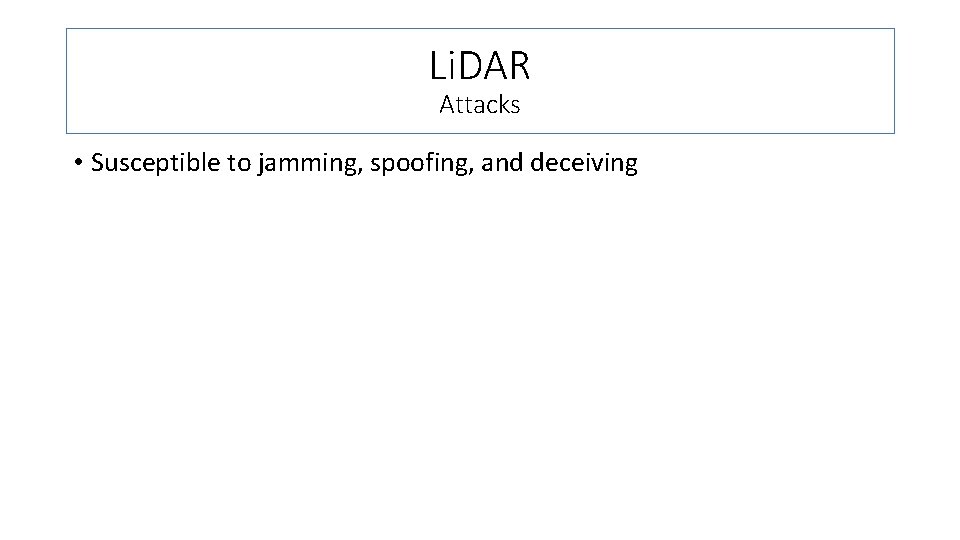

Li. DAR Attacks • Susceptible to jamming, spoofing, and deceiving

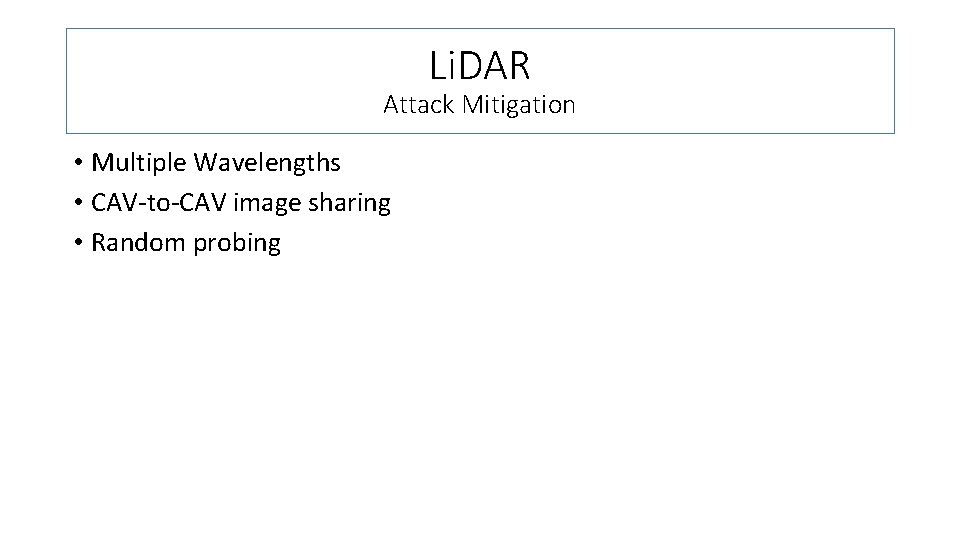

Li. DAR Attack Mitigation • Multiple Wavelengths • CAV-to-CAV image sharing • Random probing

Camera and Infrared Systems • Obstacle detection • Object recognition

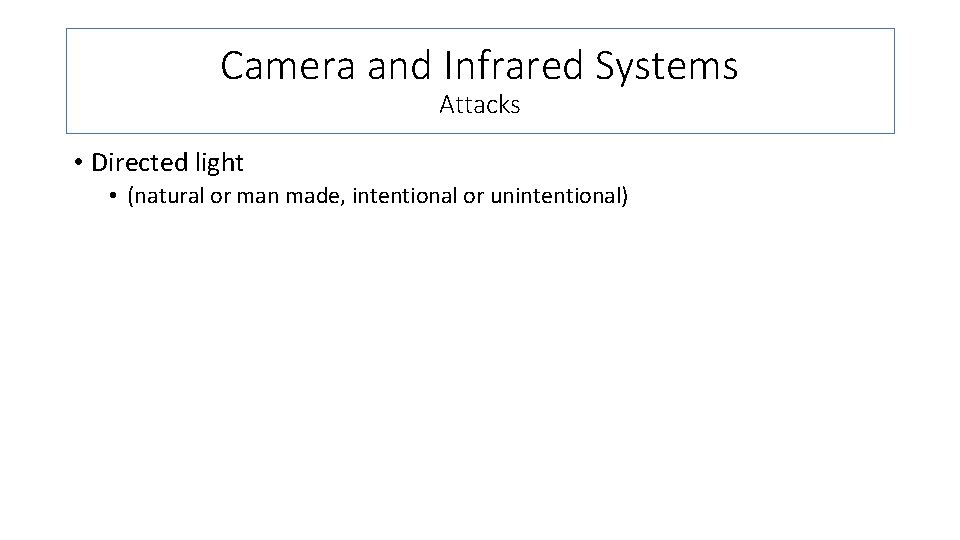

Camera and Infrared Systems Attacks • Directed light • (natural or man made, intentional or unintentional)

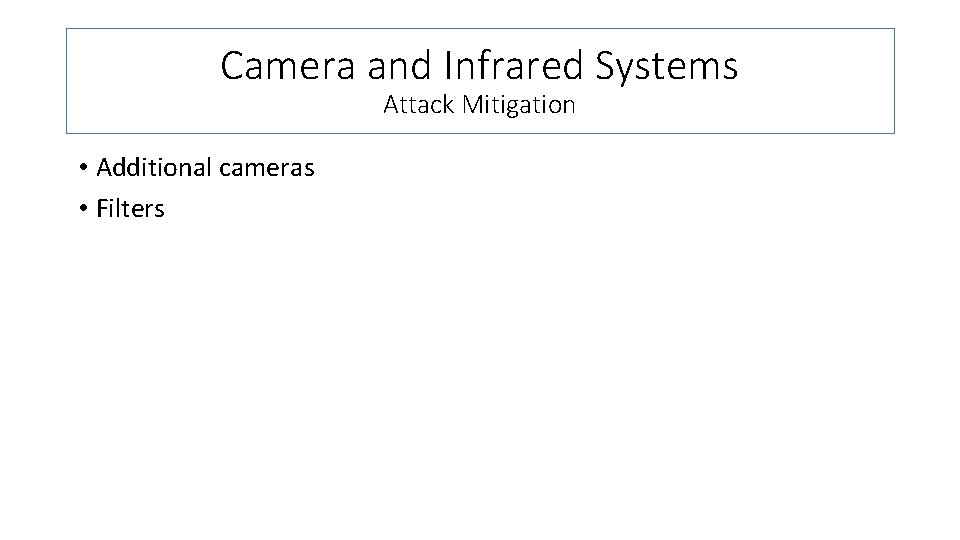

Camera and Infrared Systems Attack Mitigation • Additional cameras • Filters

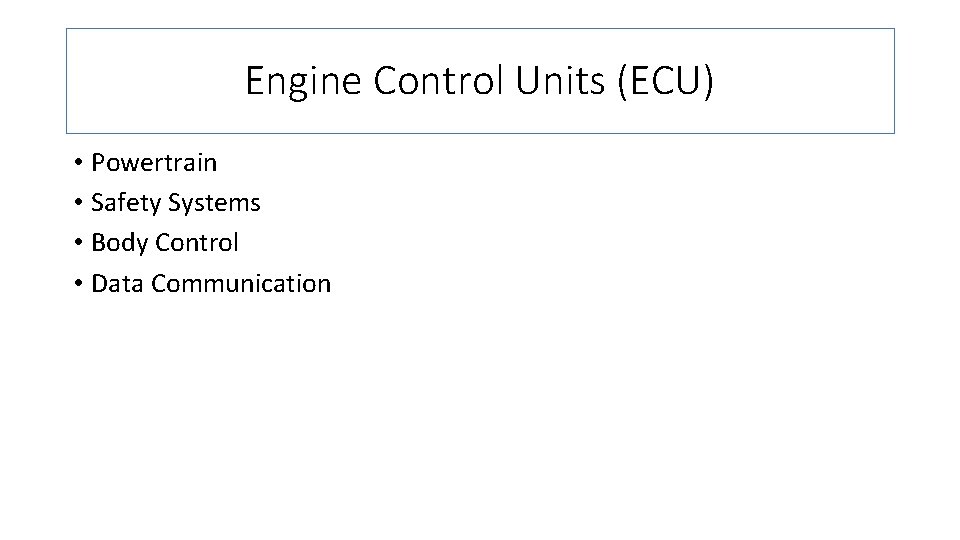

Engine Control Units (ECU) • Powertrain • Safety Systems • Body Control • Data Communication

Engine Control Units (ECU) Key ECUs within a CAV The following list, while not exhaustive, provides a level of importance in descending order. • • • Navigation control module (NCM) Engine control module (ECM) Electronic brake control module (EBCM) Transmission control module (TCM) Telematics module with remote commanding Body control module (BCM) Inflatable restraint module (IRM) Vehicle vision system (VVS) Remote door lock receiver Heating, ventilation, and air conditioning (HVAC) Instrument panel module Radio and entertainment centre

Engine Control Units (ECU) Sample Exploits • http: //www. nationaldefensemagazine. org/articles/2015/5/1/2015 mayresearchers-hack-into-driverless-car-system-take-control-of-vehicle • https: //www. wired. com/2015/07/hackers-remotely-kill-jeep-highway/ • C. Vallance, Car Hack Uses Digital Radio Broadcast to Seize Control. https: //www. bbc. com/news/technology-33622298 • Comprehensive Experimental Analyses of Automotive Attack Surfaces http: //www. autosec. org/pubs/cars-usenixsec 2011. pdf

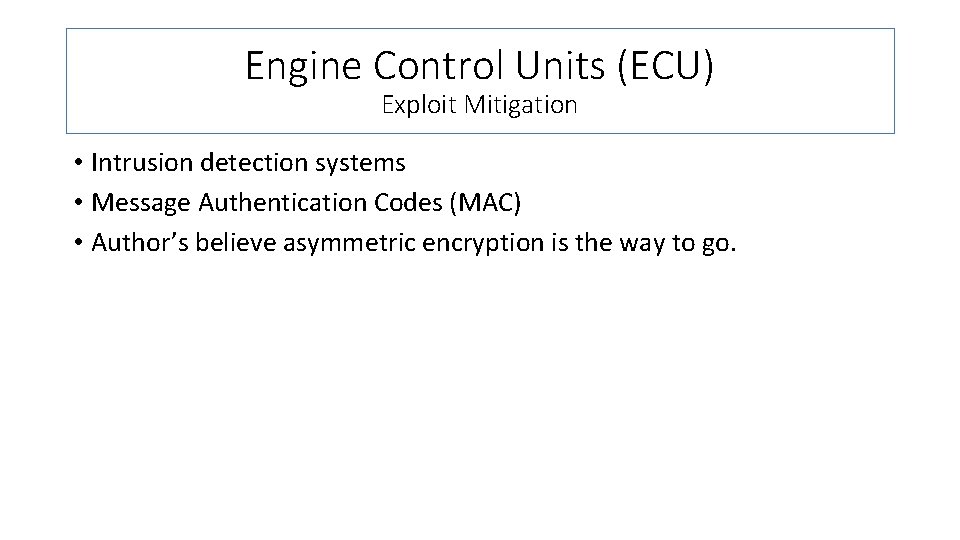

Engine Control Units (ECU) Exploit Mitigation • Intrusion detection systems • Message Authentication Codes (MAC) • Author’s believe asymmetric encryption is the way to go.

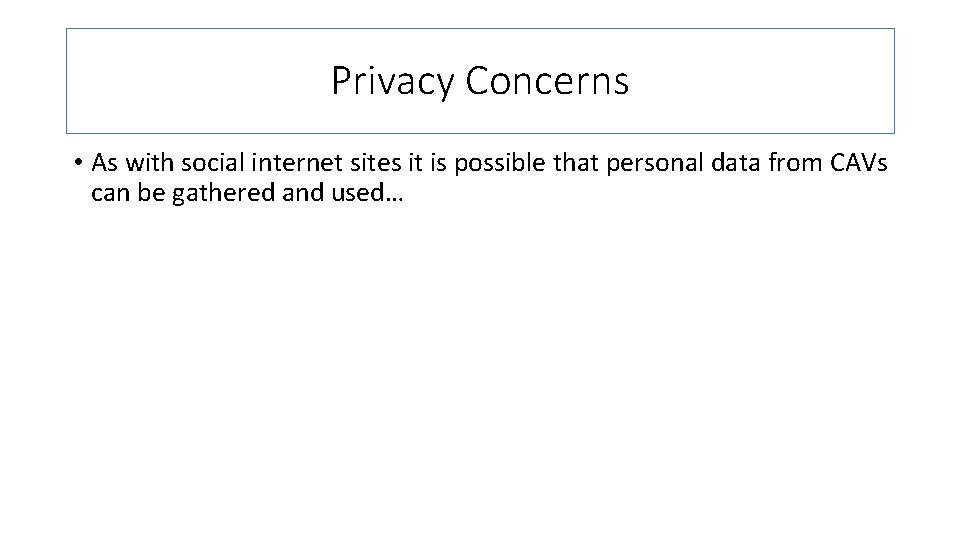

Privacy Concerns • As with social internet sites it is possible that personal data from CAVs can be gathered and used…

Behavioral Aspects • How is a CAV to interact with human operator (of unknown technical expertise) in the event of system malfunction or intrusion detection?

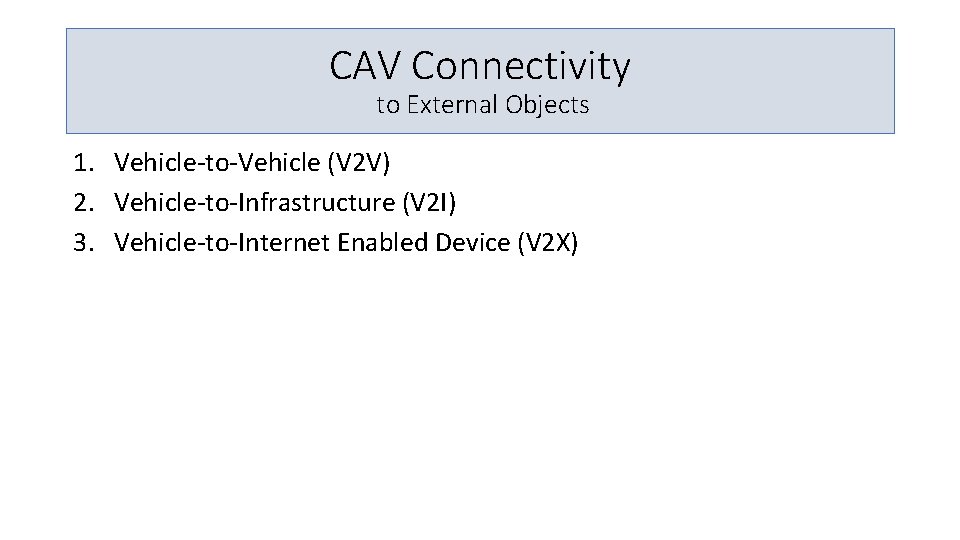

CAV Connectivity to External Objects 1. Vehicle-to-Vehicle (V 2 V) 2. Vehicle-to-Infrastructure (V 2 I) 3. Vehicle-to-Internet Enabled Device (V 2 X)

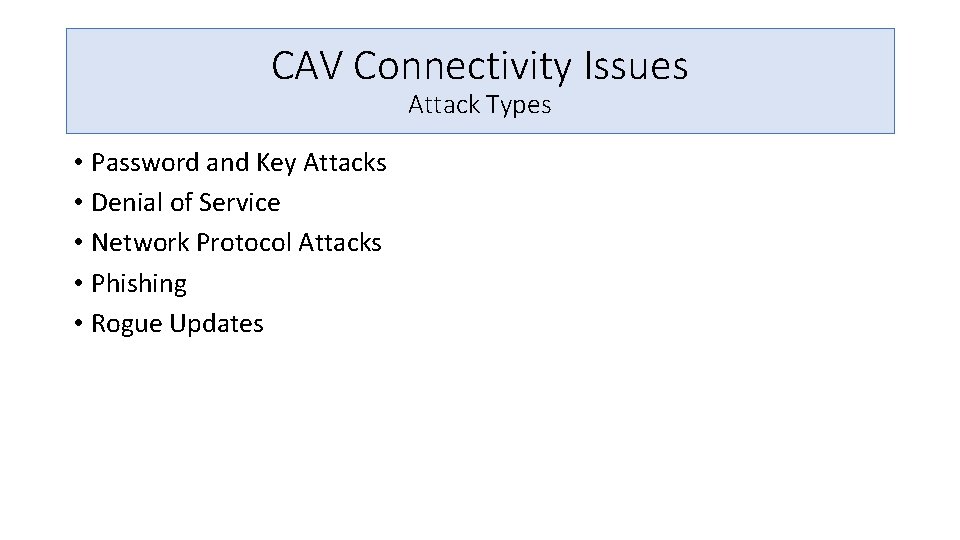

CAV Connectivity Issues Attack Types • Password and Key Attacks • Denial of Service • Network Protocol Attacks • Phishing • Rogue Updates

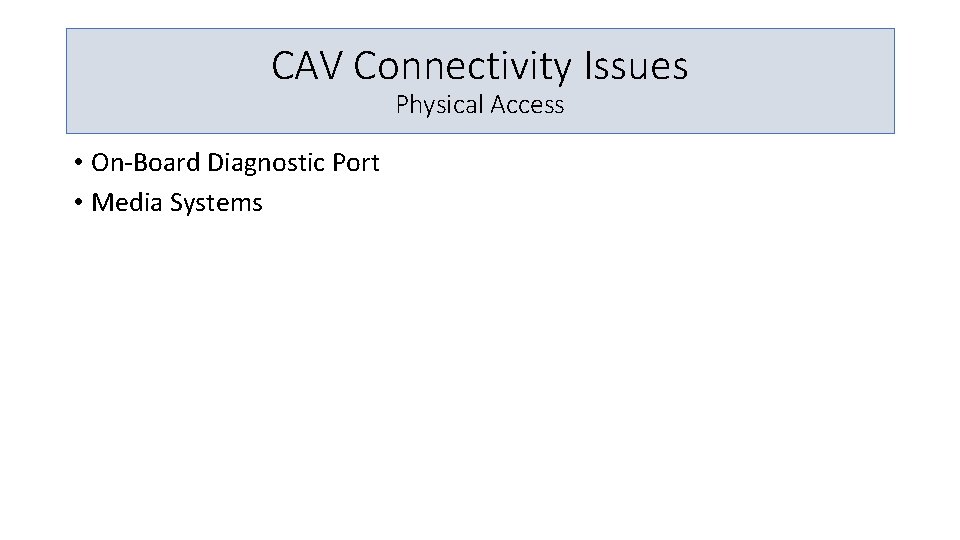

CAV Connectivity Issues Physical Access • On-Board Diagnostic Port • Media Systems

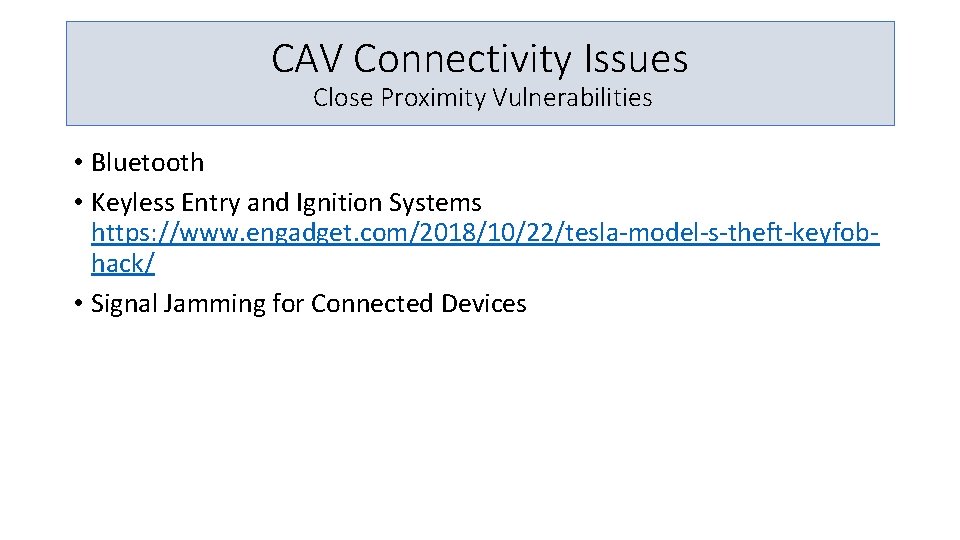

CAV Connectivity Issues Close Proximity Vulnerabilities • Bluetooth • Keyless Entry and Ignition Systems https: //www. engadget. com/2018/10/22/tesla-model-s-theft-keyfobhack/ • Signal Jamming for Connected Devices

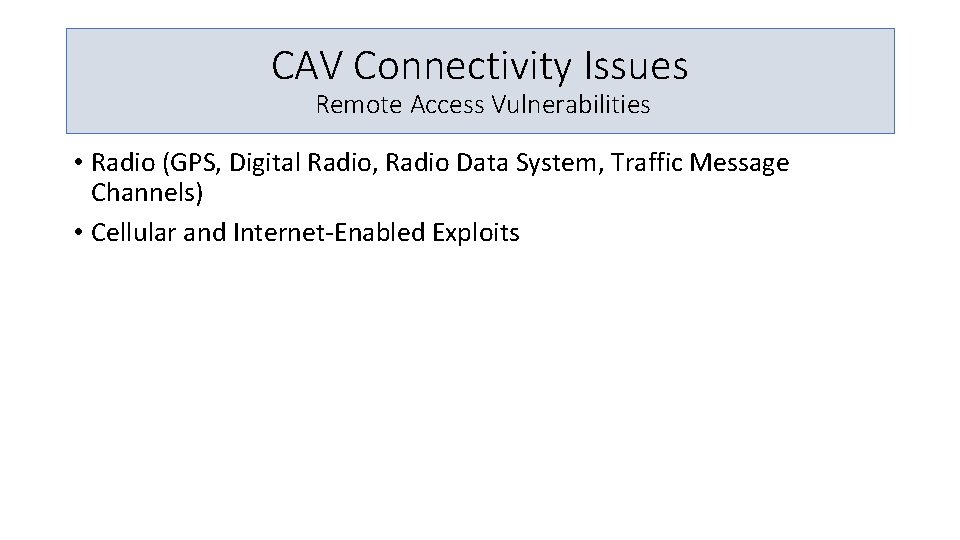

CAV Connectivity Issues Remote Access Vulnerabilities • Radio (GPS, Digital Radio, Radio Data System, Traffic Message Channels) • Cellular and Internet-Enabled Exploits

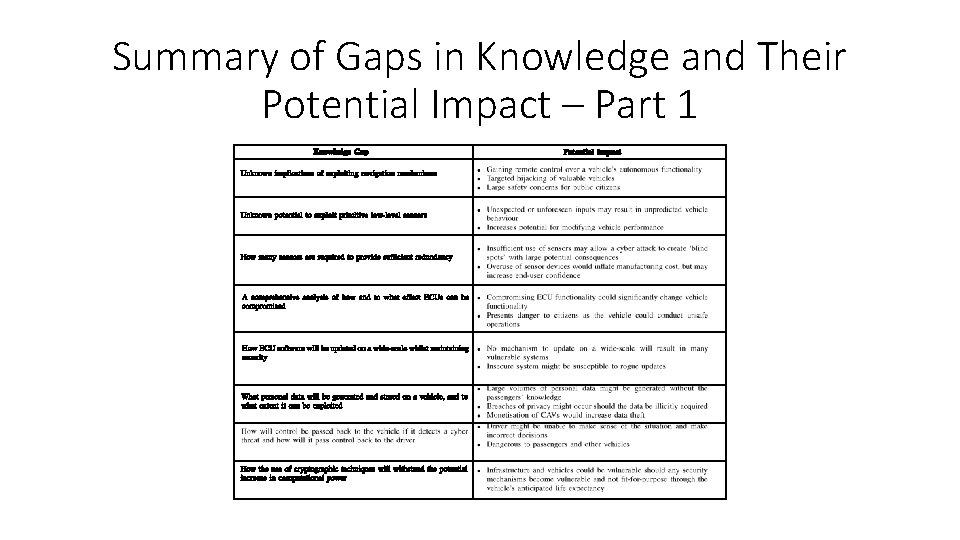

Summary of Gaps in Knowledge and Their Potential Impact – Part 1

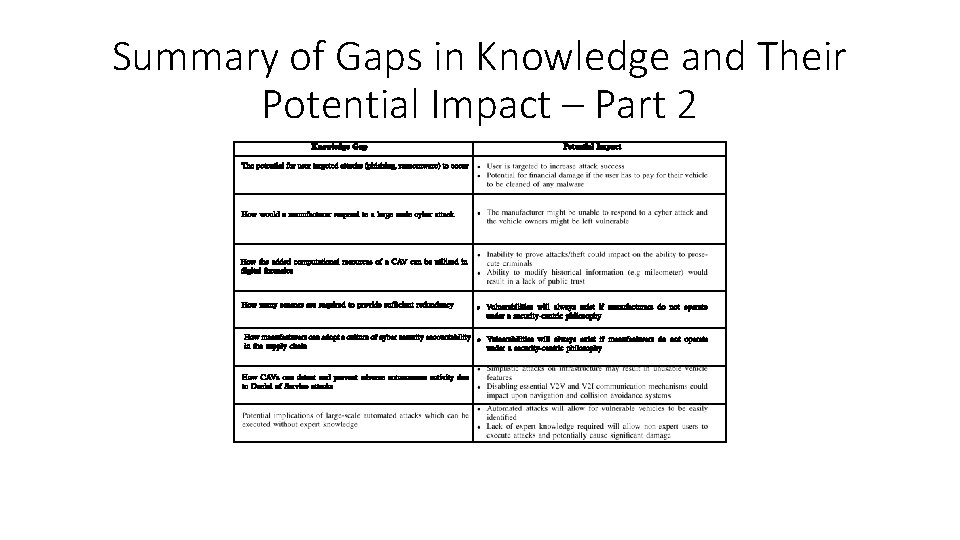

Summary of Gaps in Knowledge and Their Potential Impact – Part 2

The End
