Cyber Security of SCADA Systems TEAM: ANTHONY GEDWILLO (EE) JAMES PARROTT (CPRE) DAVID RYAN (CPRE) CLIENT: DR. GOVINDARASU, IOWA STATE UNIVERSITY

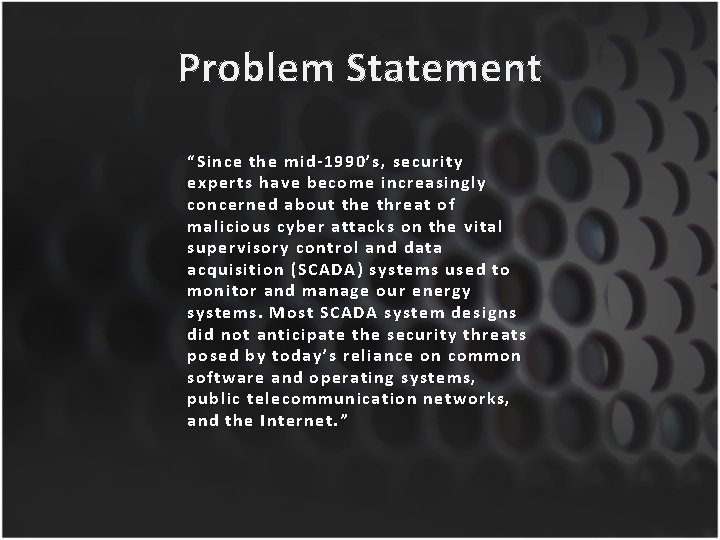

Problem Statement “Since the mid-1990’s, security experts have become increasingly concerned about the threat of malicious cyber attacks on the vital supervisory control and data acquisition (SCADA) systems used to monitor and manage our energy systems. Most SCADA system designs did not anticipate the security threats posed by today’s reliance on common software and operating systems, public telecommunication networks, and the Internet. ”

Operating Environment Our testbed will operate in a permanent location: Coover 3042. User Interface Description Siemens Spectrum Power TG • This software will function as our Human-Machine Interface (HMI) for our SCADA Testbed

Functional Requirements Virtualization • Create a virtualized platform that allows network stack inspection. • Create virtualized images for RTUs, Control Center, firewalls and Relays • Virtualized system should be scalable to provide more realistic scenarios Cyber Security • Produce report detailing security vulnerabilities of the system • I mplement attacks discovered during the vulnerability assessment Power System Integration • Integrate DIg. SILENT Power. Factory with SCADA test bed • Power Simulation should represent real world scenario

Non-Functional Requirements • Minimal configuration on virtual image deployment • Images should have backups to prevent loss • Attack scenarios can be demonstrated without requiring detailed information on attack functionality • Assessment shall function as comprehensive documentation on the security state of the system • • All test equipment should function correctly • Power system should be represented in a manner that is easy to understand

Market Literature Survey • National SCADA Test Bed (NSTB ) • North American Electricity and Reliability Corporation (NERC ) • Critical Infrastructure Protection (CIP ) • United States Computer Emergency and Response Team (US-CERT)

Deliverables A test bed that can be used both for demonstrations and for development of cyber security attacks. • At least 15 nodes (Virtual and Physical Mixed) • Cyber attacks we have created to demonstrate vulnerabilities

Resource Requirements Personnel 500 -600 hours Hardware Virtualization Server(? ) SIPROTEC 4 7 SJ 61 Relay s SCALANCE S 612 Security Module Software Spectrum Power TG SCADA/EMS (HMI) SICAM PAS v 6. 00 (RTU) DIGSI (Relay Configuration) DIg. SILENT Power. Factory (Power Flow) Vm. Ware ESXi NMap Wireshark Back. Track Linux Total $10, 000 -$12, 000 $3000 -$10, 000 $0 $0 $0 $13, 100 -$22, 200

Risks and Mitigation Risks • Equipment Malfunction • Breaking the testbed: -Improper Usage -Successful Attack Mitigation: • Read the provided manuals • System Configuration Back-Up

Functional Decomposition • Our goal is to improve the cyber security of Supervisory Control and Data Acquisition (SCADA) systems SCADA System with Poor Security Improvement Cycle System Configuration and Improvement • We will construct a testbed that mimics a SCADA system • We will be able to run “Improvement Cycles” on the system so a better understanding of its cyber security flaws can be gained SCADA System with Improved Security Attack Scenario Vulnerability Assessment

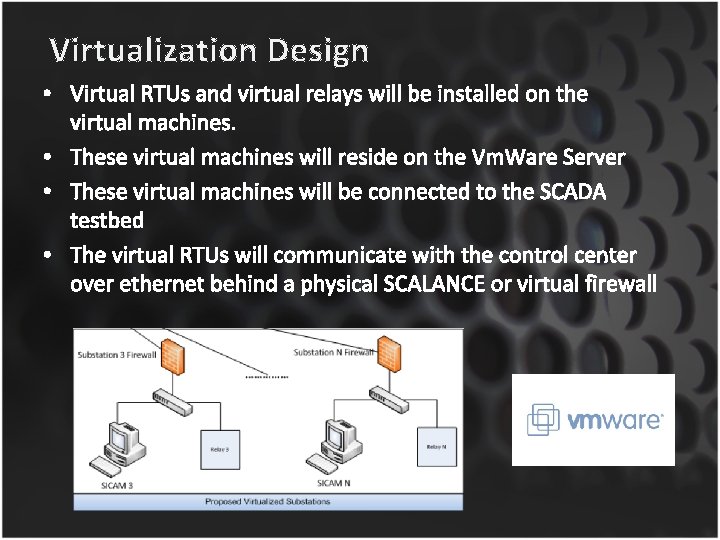

Virtualization Design • Virtual RTUs and virtual relays will be installed on the virtual machines. • These virtual machines will reside on the Vm. Ware Server • These virtual machines will be connected to the SCADA testbed • The virtual RTUs will communicate with the control center over ethernet behind a physical SCALANCE or virtual firewall

Power Flow Simulation Design Virtualized and Real Relays Virtal and Real SICAM PAS (OPC DA Server) DIg. Silent Power. Factory (OPC Client) Siemens Spectrum Power TG (HMI) OPC : = OLE for Process Control OLE : = Object Linking and Embedding

Cyber Security Design • Will use vulnerability scanners to scan for potential vulnerabilities • Document and assess this vulnerabilities for potential attack • Implement an attack to exploit vulnerability, documenting outcomes • Write a report with detail about vulnerabilities, attacks and potential fixes.

Software and Hardware Used Our SCADA network test bed consists of a few key pieces of hardware and software: • Hardware • Siemens SCALANCE S 612 Security Module • Siemens SIPROTEC 4 7 SJ 61 Relay (Sensor) • Software • Siemens Spectrum Power TG SCADA/EMS (HMI) • Siemens SICAM PAS v 6. 00 (RTU) • Siemens DIGSI (Software for SIPROTEC Protection Relays) • Vm. Ware ESXi 4. 1 • Nessus • Other Vulnerability Assessment Software

Vulnerability Assessment Test Plan 1. Validate the System – Eliminate any incorrect assumptions 2. Document Running Services – Evaluate possible network entry point into each device – Check for glaring security holes (Open webserver, mail server, etc. ) 3. Document Well-Known Vulnerabilities – Check for popular exploit opportunities (Windows, Adobe Reader, Flash)

Vulnerability Assessment Test Plan 4. Document Implementation Specific Vulnerabilities – Vulnerabilities specific lab equipment and software 5. Attack Implementation – Implement Attack – Document Attack Procedure 6. Produce Report – Existing Vulnerabilities – Possible Impact – Possible Countermeasures

Prototype Implementations and Results • Delphin-Informatika IEC 61850 Simulator – Software Solution for use a virtual relay – Design for use with SICAM PAS and SIPROTEC Relays – Trial license; limited functionality; expensive – End result: chose to use another software solution • Siemens Spectrum Power TG DTS – Dispatcher Training Simulator – Desired to have DTS read real time data points and update power flow solution in real time – Siemens support period expired, bad/no documentation – End Result: Chose to use DIg. SILENT Power. Factory instead

Current Project Status James Tony David • Port scan all devices • Create 9 -Bus test case on DIg. Silent (NOV 2010) • Setup virtual host and install virtual machines • Document services running on each port • Configure DIg. Silent with OPC connectivity (FEB 2011) • Setup a virtual RTU and connect to HMI • Search for well-known network/server side vulnerabilities • Expand Power System to 15 Busses (MAR 2011) • Develop Display for testbed (OPTIONAL) • Setup a virtual relay that can connect to RTU (FEB 2011) • Create multiple substations in testbed (MAR 2011) • Search for well-known client software vulnerabilities • Search for lab-specific vulnerabilities (CONTINUAL) • Create attacks for significant vulnerabilities (CONTINUAL) • Analyze impact of attacks on system (CONTINUAL)

Plan for Next Semester • Virtualization • Need to finish implementing the virtual relay simulator and connect it to system. • Work on implementing multiple virtual substations into system • Create easy deployments for substations • Power Flow Simulation • Configure Dig. Silent to integrate with testbed • Test out real world scenarios • Cyber Attacks • Implement attacks against vulnerabilities • Document findings

Questions
