Cyber Security of SCADA Systems TEAM ANTHONY GEDWILLO

Cyber Security of SCADA Systems TEAM: ANTHONY GEDWILLO (EE) JAMES PARROTT (CPRE) DAVID RYAN (CPRE) CLIENT: DR. GOVINDARASU, IOWA STATE UNIVERSITY

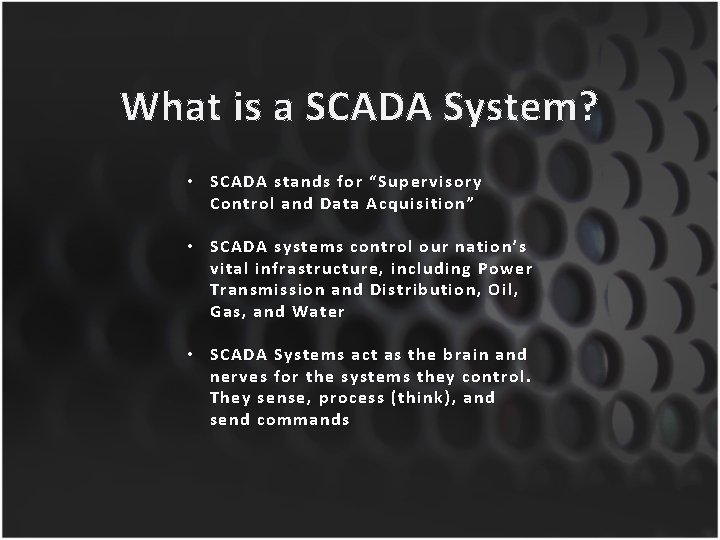

What is a SCADA System? • SCADA stands for “Supervisory Control and Data Acquisition” • SCADA systems control our nation’s vital infrastructure, including Power Transmission and Distribution, Oil, Gas, and Water • SCADA Systems act as the brain and nerves for the systems they control. They sense, process (think), and send commands

Problem Statement • Supervisory control and data acquisition (SCADA) systems are vital parts of our nation’s infrastructure, and the security of these systems is a top priority. However, there is a shortage of adequate research environments for modeling and testing SCADA systems.

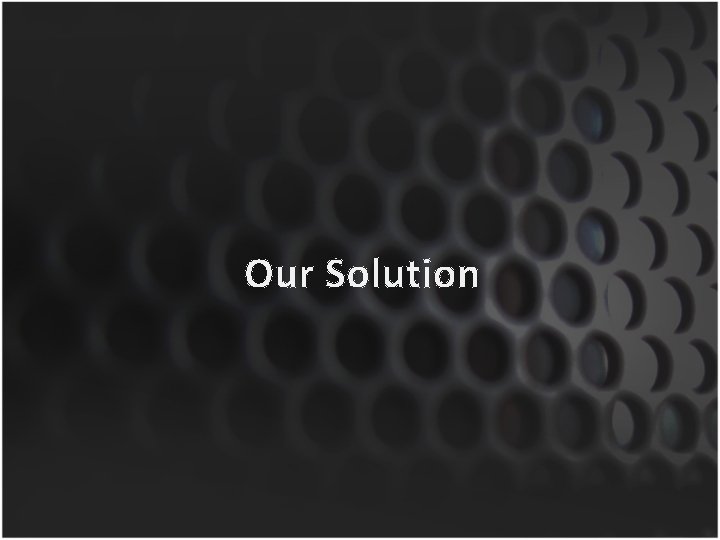

Our Solution

Test Bed Functionality SCADA System with Poor Security SCADA System with Improved Security Improvement Cycle System Configuration and Improvement Attack Scenario Vulnerability Assessment

Concept Diagram

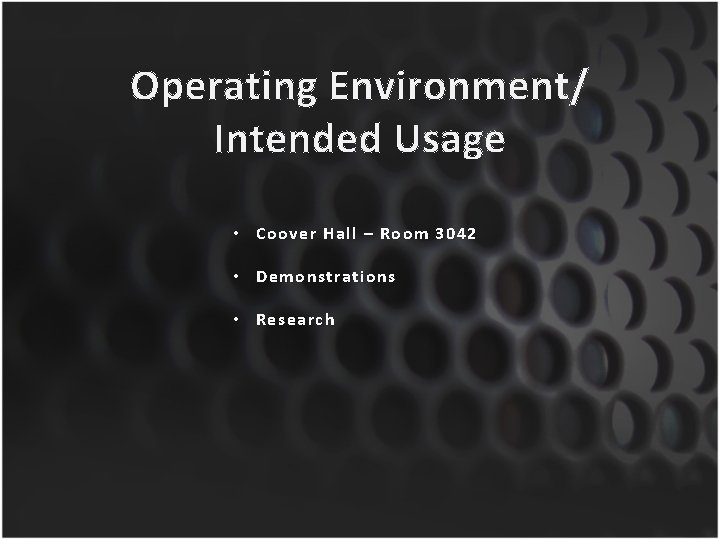

Operating Environment/ Intended Usage • Coover Hall – Room 3042 • Demonstrations • Research

Functional Requirements -Virtualization • Create a virtualized platform that allows network stack inspection. • Create virtualized machines for RTUs and Relays • Virtualized system should be scalable to provide more realistic scenarios

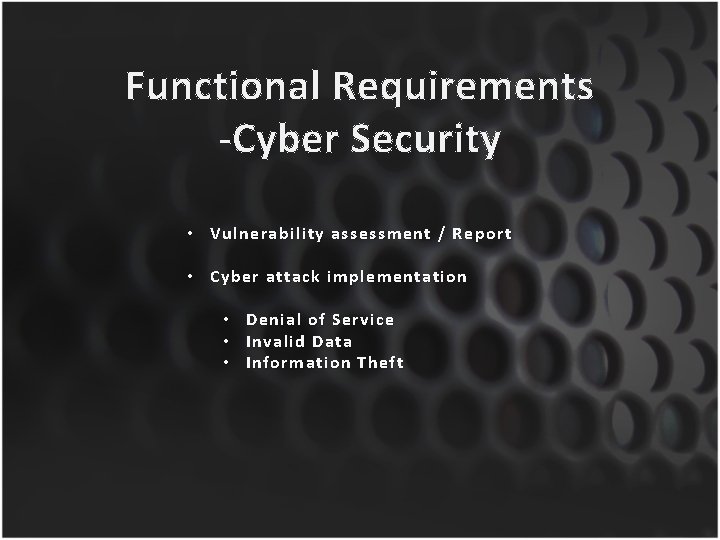

Functional Requirements -Cyber Security • Vulnerability assessment / Report • Cyber attack implementation • Denial of Service • Invalid Data • Information Theft

Functional Requirements -Power System Integration • Integrate DIg. SILENT Power. Factory into current test bed • Configure DIg. SILENT for real time power flow simulation

Non-Functional Requirements • Minimal configuration on virtual image deployment • Images should have backups to prevent loss • Attack scenarios can be demonstrated without requiring detailed information on attack functionality • Power flow system should be easily interpreted

Implemented Design Virtualization

Implememted Design – Power Flow Google Earth

Cyber Security Vulnerability Assessment • Validate the system • Document running services • Document well-known software vulnerabilities • Search for implementation vulnerabilities • Attack Implementation • Produce Report

Attack Implementation • Man in the Middle attacks • Intercept and drop command packets • Ettercap Issues • Modified packet sniffer • Intercept and return fake confirmation • Denial of Service attacks

Virtualization /Power Flow / Cyber Security Testing

Current Test Bed Status

Questions?

Technical Approach Consideration and Results • Virtual hypervisor software selection • Vm. Ware Server • Vm. Ware ESX • Citrix Xen. Server • Microsoft Hyper. V • Relay Virtualization software selection • Delphin-Informatika IEC 61850 Simulator • SISCO AX-S 4 MMS • System. CORP IEC 61850 DLL • Matrikon OPC Server

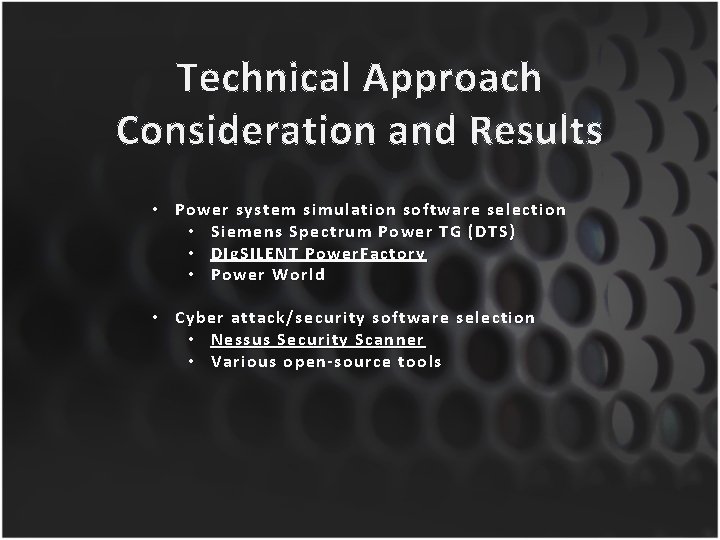

Technical Approach Consideration and Results • Power system simulation software selection • Siemens Spectrum Power TG (DTS) • DIg. SILENT Power. Factory • Power World • Cyber attack/security software selection • Nessus Security Scanner • Various open-source tools
