CX Range Options CX Range Options CX 55

CX Range Options

CX Range Options CX 55

CX 55 Hydraulic Pump options Option Code A Adjustable flow load sensing pump to front, 0 -100 L/M Option Code B Adjustable flow load sensing pump to rear, 0 -100 L/M Front 100 L Rear 100 L Pump Option Code C 100 litre tee connection for load sensing pump from front to rear. Must be used with option A or B Front Rear 100 L Pump To the front OR rear, cannot be used for both at the same time

CX 55 Hydraulic Pump options CX 55 One Pump + Front Mechanical PTO 1000 RPM C. W Note: On the CX 55 there is only room for one pump and the Front Mechanical PTO

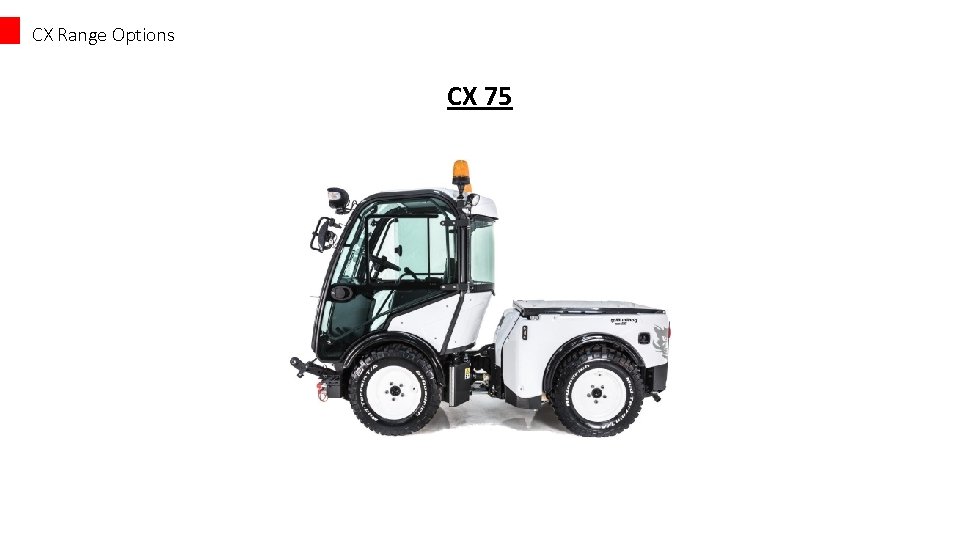

CX Range Options CX 75

CX 75 Hydraulic Pump options Option Code A Adjustable flow load sensing pump to front, 0 -100 L/M Option Code B Adjustable flow load sensing pump to rear, 0 -100 L/M Front 100 L Rear 100 L Pump Option Code C Adjustable flow load sensing pumps to front 0 -100 L/M, to rear 0 -50 L/M Front 100 L Option Code D Adjustable flow load sensing pumps to front 0 -80 L/M, to rear 0 -80 L/M Rear 50 L 100 L Pump Rear 80 L Front 80 L 50 L Pump 80 L Pump Note – With two pumps the max combined flow is 120 L 80 L Pump

CX 75 Hydraulic Pump options Option Code Tee Connection 100 litre tee connection for load sensing pump from front to rear Must be used with option A or B Front Rear Tee connection 100 L Pump To the front OR rear, cannot be used for both at the same time

CX 75 Hydraulic Pump options CX 75 One Pump + Second Pump + Front Mechanical PTO 1000 RPM C. W Note: On the CX 75 there is enough room for 2 Pumps and the Front Mechanical PTO

Hydraulic Valve Options Option 2: “ 2 x DA valves to front (3 x DA total) and 1 x DA valve to rear (1 x DA rear total)” 1 D/A to the front (White) is standard so 2 (1 x. Red and 1 x. Yellow) are added resulting in 3 total to the front, with one D/A the rear (Green) all controlled via the joystick. Adding “Tee connection to rear (maximum 2 x DA connections to rear)” connects the front yellow D/A to the rear.

Hydraulic Valve Options Option code 3: “ 2 x DA lever valve block - required for hydraulic tipping rear and hydraulic rotation of front linkage” This is the valve with two levers. Must also select Hydraulic tipping rear (697 -1030 ) and/or Hydraulic rotation with radial flotation of front linkage (697 -1031 )

Hydraulic Valve Options Option code 4 “ 2 x DA lever valve block with float required for triplex mower wings. ” Levers used to control wings on a triplex mower. They can be put into float so the wings will follow the flow of the ground. Also includes the High Pressure Carry Over (HPCO) which is used with an attachment that has its own control valve and joystick. The City. Vac requires the HPCO.

Hydraulic Valve Options Option code 5: “ 4 x DA lever valve block with float required for hydraulic tipping rear, hydraulic rotation of front linkage and triplex mower wings. ” This option has all of them together. Must also select Hydraulic tipping rear (697 -1030 ) and/or Hydraulic rotation with radial flotation of front linkage (697 -1031 ) HPCO to be used with an attachment that has its own control valve and joystick. The City. Vac requires the HPCO.
