CX 3 CSI2 to USB 3 0 Solution

CX 3: CSI-2 to USB 3. 0 Solution for HD Video CSI-2 = Camera Serial Interface v 2. 0 Sharper Images from a One-Chip Solution: CX 3 Powers the World’s Most Advanced HD Video Cameras Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation

HD Video Requires USB 3. 0 Bandwidth The market requirements for video cameras are changing Consumers are demanding cameras that support high-definition (HD) video with high image quality HD video requires 1. 5 -Gbps bandwidth USB 2. 0 provides only 480 Mbps and requires compression, which degrades image quality USB 3. 0 provides 5 Gbps and delivers high-resolution image quality without the need for compression USB 3. 0 delivers high-resolution image quality that today’s consumers demand The USB 3. 0 Advantage 5. 0 Bandwidth (Gbps) 4. 0 3. 0 2. 0 Compressed USB 2. 0 HD video degrades image quality Bandwidth required for Full-HD (1920 x 1080 @ 30 fps) video 1. 0 Uncompressed USB 3. 0 HD video delivers the best image quality 0. 0 USB 2. 0 Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation IEEE 1394 b Gigabit Ethernet USB 3. 0 2

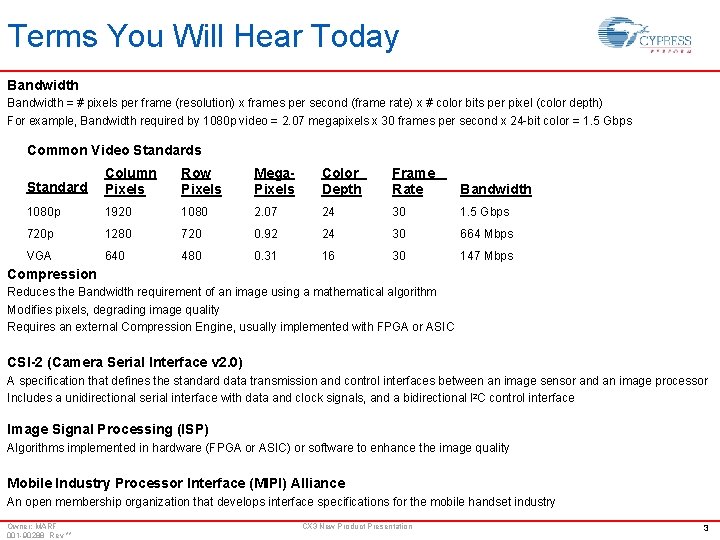

Terms You Will Hear Today Bandwidth = # pixels per frame (resolution) x frames per second (frame rate) x # color bits per pixel (color depth) For example, Bandwidth required by 1080 p video = 2. 07 megapixels x 30 frames per second x 24 -bit color = 1. 5 Gbps Common Video Standards Standard Column Pixels Row Pixels Mega. Pixels Color Depth Frame Rate Bandwidth 1080 p 1920 1080 2. 07 24 30 1. 5 Gbps 720 p 1280 720 0. 92 24 30 664 Mbps VGA 640 480 0. 31 16 30 147 Mbps Compression Reduces the Bandwidth requirement of an image using a mathematical algorithm Modifies pixels, degrading image quality Requires an external Compression Engine, usually implemented with FPGA or ASIC CSI-2 (Camera Serial Interface v 2. 0) A specification that defines the standard data transmission and control interfaces between an image sensor and an image processor Includes a unidirectional serial interface with data and clock signals, and a bidirectional I 2 C control interface Image Signal Processing (ISP) Algorithms implemented in hardware (FPGA or ASIC) or software to enhance the image quality Mobile Industry Processor Interface (MIPI) Alliance An open membership organization that develops interface specifications for the mobile handset industry Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 3

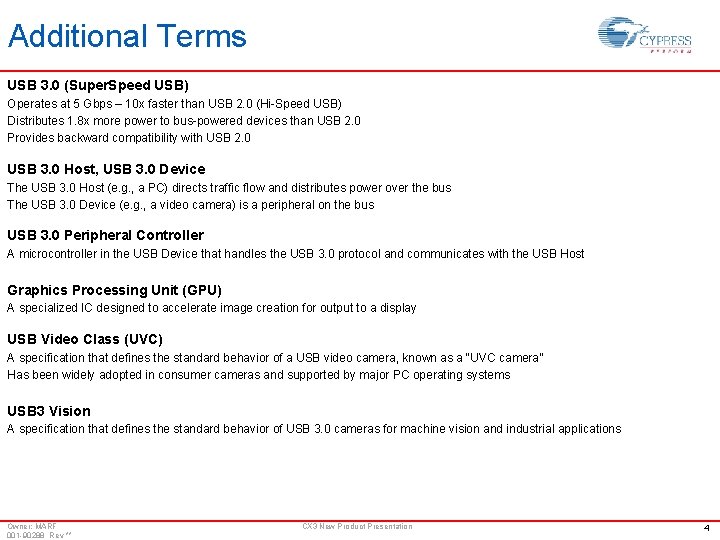

Additional Terms USB 3. 0 (Super. Speed USB) Operates at 5 Gbps – 10 x faster than USB 2. 0 (Hi-Speed USB) Distributes 1. 8 x more power to bus-powered devices than USB 2. 0 Provides backward compatibility with USB 2. 0 USB 3. 0 Host, USB 3. 0 Device The USB 3. 0 Host (e. g. , a PC) directs traffic flow and distributes power over the bus The USB 3. 0 Device (e. g. , a video camera) is a peripheral on the bus USB 3. 0 Peripheral Controller A microcontroller in the USB Device that handles the USB 3. 0 protocol and communicates with the USB Host Graphics Processing Unit (GPU) A specialized IC designed to accelerate image creation for output to a display USB Video Class (UVC) A specification that defines the standard behavior of a USB video camera, known as a “UVC camera” Has been widely adopted in consumer cameras and supported by major PC operating systems USB 3 Vision A specification that defines the standard behavior of USB 3. 0 cameras for machine vision and industrial applications Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 4

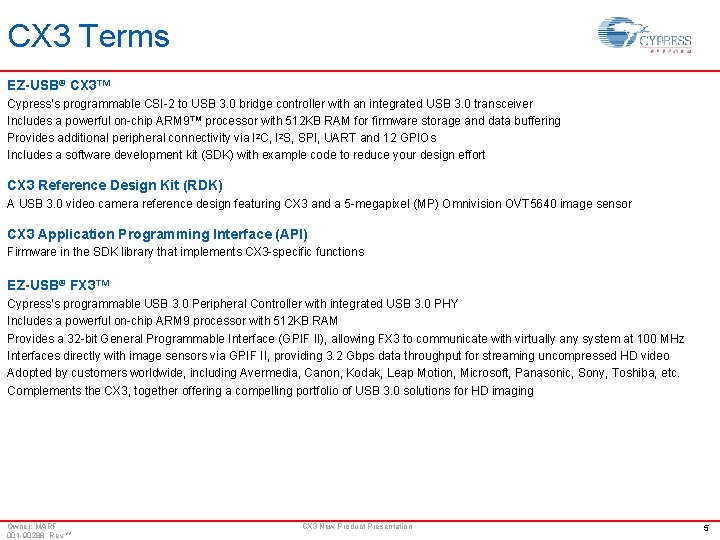

CX 3 Terms EZ-USB® CX 3™ Cypress’s programmable CSI-2 to USB 3. 0 bridge controller with an integrated USB 3. 0 transceiver Includes a powerful on-chip ARM 9™ processor with 512 KB RAM for firmware storage and data buffering Provides additional peripheral connectivity via I 2 C, I 2 S, SPI, UART and 12 GPIOs Includes a software development kit (SDK) with example code to reduce your design effort CX 3 Reference Design Kit (RDK) A USB 3. 0 video camera reference design featuring CX 3 and a 5 -megapixel (MP) Omnivision OVT 5640 image sensor CX 3 Application Programming Interface (API) Firmware in the SDK library that implements CX 3 -specific functions EZ-USB® FX 3™ Cypress’s programmable USB 3. 0 Peripheral Controller with integrated USB 3. 0 PHY Includes a powerful on-chip ARM 9 processor with 512 KB RAM Provides a 32 -bit General Programmable Interface (GPIF II), allowing FX 3 to communicate with virtually any system at 100 MHz Interfaces directly with image sensors via GPIF II, providing 3. 2 Gbps data throughput for streaming uncompressed HD video Adopted by customers worldwide, including Avermedia, Canon, Kodak, Leap Motion, Microsoft, Panasonic, Sony, Toshiba, etc. Complements the CX 3, together offering a compelling portfolio of USB 3. 0 solutions for HD imaging Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 5

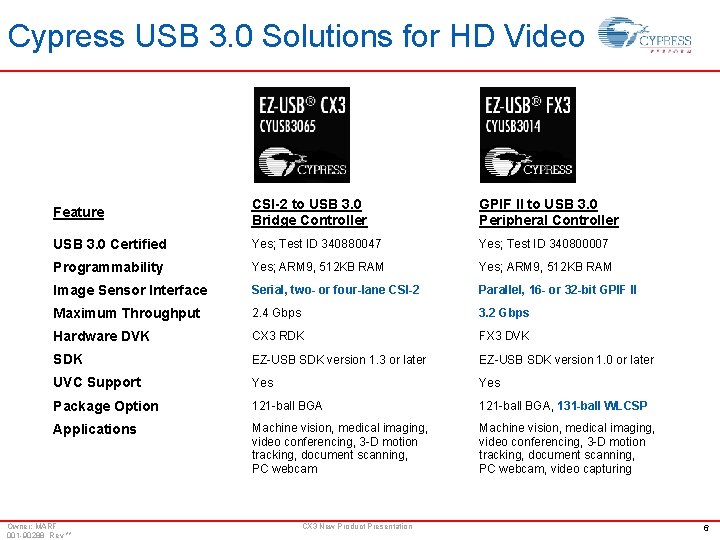

Cypress USB 3. 0 Solutions for HD Video Feature CSI-2 to USB 3. 0 Bridge Controller GPIF II to USB 3. 0 Peripheral Controller USB 3. 0 Certified Yes; Test ID 340880047 Yes; Test ID 340800007 Programmability Yes; ARM 9, 512 KB RAM Image Sensor Interface Serial, two- or four-lane CSI-2 Parallel, 16 - or 32 -bit GPIF II Maximum Throughput 2. 4 Gbps 3. 2 Gbps Hardware DVK CX 3 RDK FX 3 DVK SDK EZ-USB SDK version 1. 3 or later EZ-USB SDK version 1. 0 or later UVC Support Yes Package Option 121 -ball BGA, 131 -ball WLCSP Applications Machine vision, medical imaging, video conferencing, 3 -D motion tracking, document scanning, PC webcam, video capturing Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 6

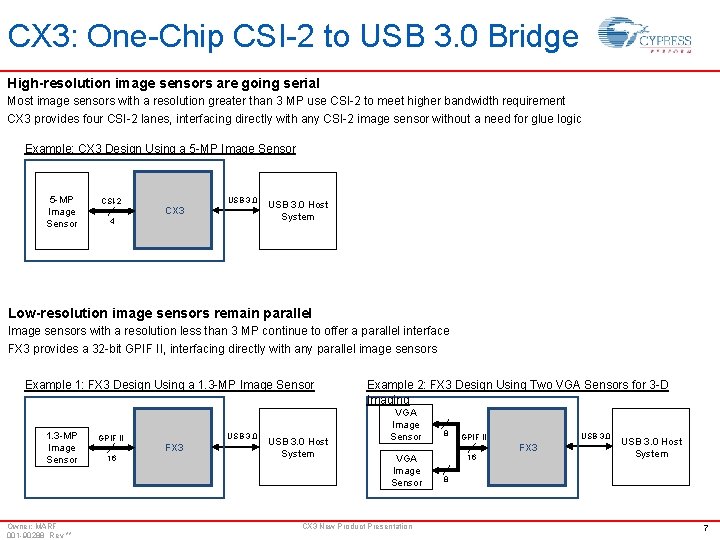

CX 3: One-Chip CSI-2 to USB 3. 0 Bridge High-resolution image sensors are going serial Most image sensors with a resolution greater than 3 MP use CSI-2 to meet higher bandwidth requirement CX 3 provides four CSI-2 lanes, interfacing directly with any CSI-2 image sensor without a need for glue logic Example: CX 3 Design Using a 5 -MP Image Sensor CSI-2 USB 3. 0 CX 3 4 USB 3. 0 Host System Low-resolution image sensors remain parallel Image sensors with a resolution less than 3 MP continue to offer a parallel interface FX 3 provides a 32 -bit GPIF II, interfacing directly with any parallel image sensors Example 1: FX 3 Design Using a 1. 3 -MP Image Sensor Owner: MARF 001 -90288 Rev ** GPIF II 16 USB 3. 0 FX 3 USB 3. 0 Host System Example 2: FX 3 Design Using Two VGA Sensors for 3 -D Imaging VGA Image Sensor CX 3 New Product Presentation 8 USB 3. 0 GPIF II FX 3 16 USB 3. 0 Host System 8 7

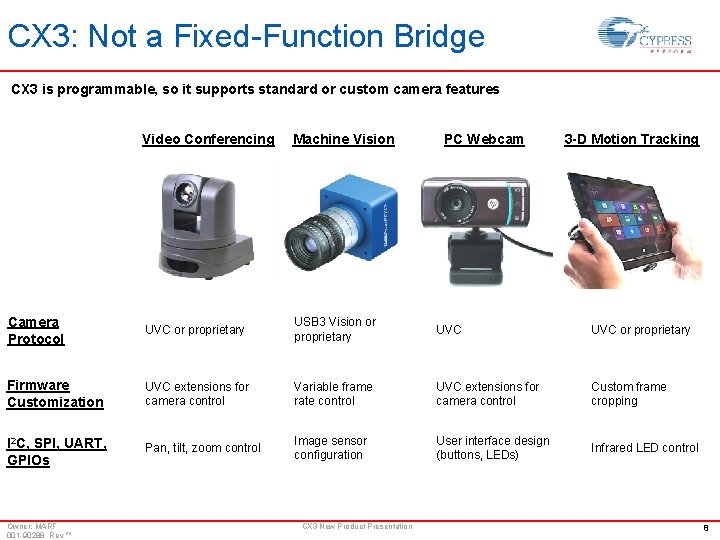

CX 3: Not a Fixed-Function Bridge CX 3 is programmable, so it supports standard or custom camera features Video Conferencing Machine Vision Camera Protocol UVC or proprietary USB 3 Vision or proprietary UVC or proprietary Firmware Customization UVC extensions for camera control Variable frame rate control UVC extensions for camera control Custom frame cropping I 2 C, SPI, UART, GPIOs Pan, tilt, zoom control Image sensor configuration User interface design (buttons, LEDs) Infrared LED control Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation PC Webcam 3 -D Motion Tracking 8

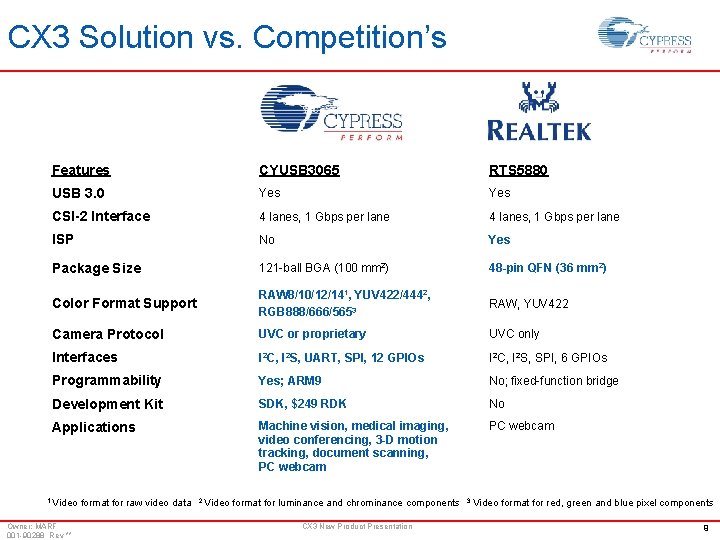

CX 3 Solution vs. Competition’s Features CYUSB 3065 RTS 5880 USB 3. 0 Yes CSI-2 Interface 4 lanes, 1 Gbps per lane ISP No Yes Package Size 121 -ball BGA (100 mm 2) 48 -pin QFN (36 mm 2) Color Format Support RAW 8/10/12/141, YUV 422/4442, RGB 888/666/5653 RAW, YUV 422 Camera Protocol UVC or proprietary UVC only Interfaces I 2 C, I 2 S, UART, SPI, 12 GPIOs I 2 C, I 2 S, SPI, 6 GPIOs Programmability Yes; ARM 9 No; fixed-function bridge Development Kit SDK, $249 RDK No Applications Machine vision, medical imaging, video conferencing, 3 -D motion tracking, document scanning, PC webcam 1 Video Owner: MARF 001 -90288 Rev ** format for raw video data 2 Video format for luminance and chrominance components CX 3 New Product Presentation 3 Video format for red, green and blue pixel components 9

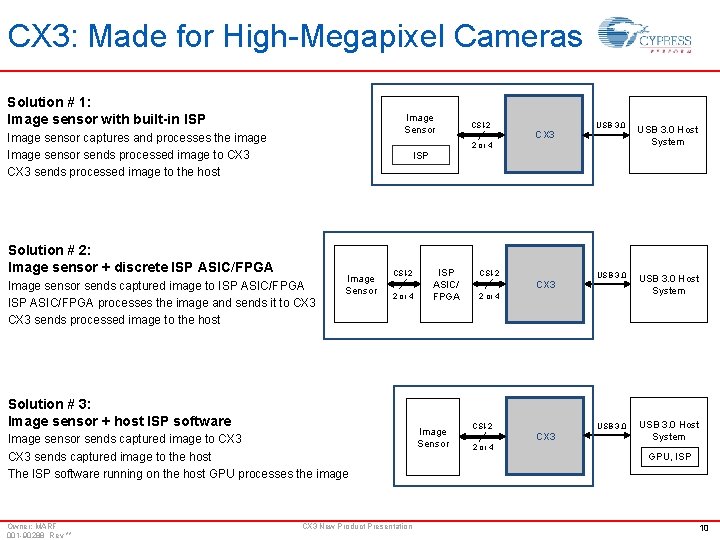

CX 3: Made for High-Megapixel Cameras Solution # 1: Image sensor with built-in ISP Image Sensor Image sensor captures and processes the image Image sensor sends processed image to CX 3 sends processed image to the host Image sensor sends captured image to ISP ASIC/FPGA processes the image and sends it to CX 3 sends processed image to the host Image Sensor CSI-2 2 or 4 Solution # 3: Image sensor + host ISP software Image sensor sends captured image to CX 3 sends captured image to the host The ISP software running on the host GPU processes the image Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation CX 3 USB 3. 0 Host System USB 3. 0 Host System 2 or 4 ISP Solution # 2: Image sensor + discrete ISP ASIC/FPGA CSI-2 ISP ASIC/ FPGA Image Sensor CSI-2 CX 3 2 or 4 GPU, ISP 10

CX 3 Reference Design Kit Hardware CX 3 RDK by e-con Systems Fully functional USB camera with interchangeable image sensor module Includes a 5 -MP OVT 5460 module capable of 1080 p video at 30 fps Preloaded with UVC firmware that works with any PC Includes RS 232 and JTAG connectors for firmware debugging Powered by a USB cable without the need for an external 5 -V supply Available for $249 at: www. e-consystems. com/CX 3 -Reference-Design-Kit. asp Software Includes e-CAMView, a free video-capture application for Windows PCs, and sample camera control plug-ins for: Brightness Contrast Hue Saturation Supported Image Resolution and Sharpness HD Column Row Frame White balance (auto/manual) Std Pixels Rate (fps) Exposure (auto/manual) VGA 640 480 60 Focus (auto/manual) 720 p 1280 720 60 Frame Rate 1 Data Rate (Gbps) 0. 3 0. 9 Available for download at: 1080 p 1920 1080 30 1. 0 www. e-consystems. com/CX 3 -Reference-Design-Kit. asp 5 MP 2592 1944 15 1. 2 1 Using Owner: MARF 001 -90288 Rev ** 16 -bit color, YUV 422 video data format CX 3 New Product Presentation 11

CX 3 Reference Design Kit Details Omnivision OV 5640 Module 5 -MP OV 5640 Image Sensor CSI-2 Connector CX 3 RDK CX 3 Baseboard USB 3. 0 connector CX 3 RS 232 Connector Owner: MARF 001 -90288 Rev ** JTAG Header CSI-2 Connector for Interchangeable Image Sensor Modules GPIO Header CX 3 New Product Presentation 12

CX 3 Software Development Kit (SDK) CX 3 is now part of the EZ-USB FX 3 SDK (version 1. 3 or later) Eclipse IDE New CX 3 APIs: Initialization and configuration of CSI-2 interface Configuration of CSI-2 image sensors Configuration of GPIOs for camera control or user-defined functions New CX 3 firmware example codes: Configuration of Omnivision OV 5640 and Aptina AS 0260 image sensor Implementation of a UVC camera for Full-HD video (1080 p at 30 fps) Familiar FX 3 development tools and documentation: Eclipse Integrated Development Environment (IDE) ARM tool chain and debugger SDK release notes Firmware API guide Programmer’s manual SDK troubleshooting guide Technical Reference Manual Firmware API Guide Available for download at: www. cypress. com/? r. ID=57990 Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 13

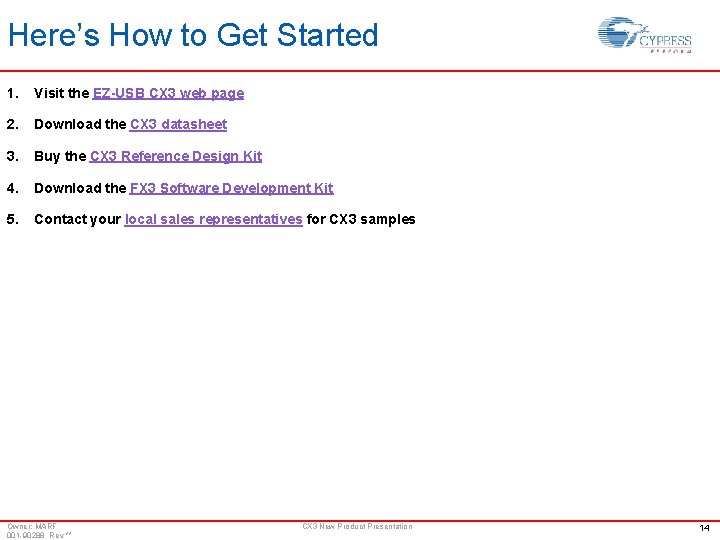

Here’s How to Get Started 1. Visit the EZ-USB CX 3 web page 2. Download the CX 3 datasheet 3. Buy the CX 3 Reference Design Kit 4. Download the FX 3 Software Development Kit 5. Contact your local sales representatives for CX 3 samples Owner: MARF 001 -90288 Rev ** CX 3 New Product Presentation 14

CX 3 USB 3. 0 Solution Summary Block Diagram Applications Consumer webcams Notebook PCs, tablet embedded cameras Industrial, medical, machine vision cameras Document, fingerprint scanners Game consoles Teleconferencing systems Image acquisition systems 5 CX 3 Bridge JTAG 512 KB RAM USB 3. 0 -compliant video-class controller Four-lane MIPI Camera Serial Interface v 2. 0 (CSI-2) input Camera Control Interface (CCI) for image sensor configuration Supports industry-standard video data formats: RAW 8/10/12/141, YUV 422/4442, RGB 888/666/5653 Supports uncompressed streaming video: 1080 p at 30 fps, 720 p at 60 fps On-chip ARM 9 with 512 KB RAM for data processing Supports I 2 C, I 2 S, SPI, UART and 12 GPIOs 121 -ball BGA (10 x 1. 7 mm) Collateral Datasheet: Reference Design Kit: Software Development Kit: 1 Video 4 32 32 32 USB 3. 0 Host 32 UART 4 I 2 C I 2 S 2 4 6 SPI 4 GPIO 12 Availability CX 3 datasheet CX 3 RDK EZ-USB SDK format for raw video data Owner: MARF 001 -90288 Rev ** Image Sensor, Image Processor USB 3. 0 Features MIPI CSI-2 ARM 9 2 Video Sampling: Production: Now Q 4 2013 format for luminance and chrominance components CX 3 New Product Presentation 3 Video format for red, green and blue pixel components 15
