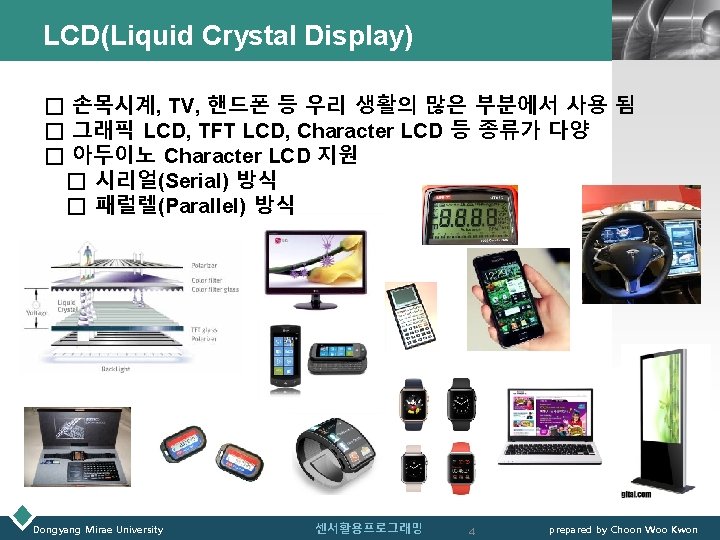

LCD(Liquid Crystal Display) LOGO □ 손목시계, TV, 핸드폰 등 우리 생활의 많은 부분에서 사용

LCD(Liquid Crystal Display) LOGO □ 손목시계, TV, 핸드폰 등 우리 생활의 많은 부분에서 사용 됨 □ 그래픽 LCD, TFT LCD, Character LCD 등 종류가 다양 □ 아두이노 Character LCD 지원 □ 시리얼(Serial) 방식 □ 패럴렐(Parallel) 방식 Dongyang Mirae University 센서활용프로그래밍 4 prepared by Choon Woo Kwon

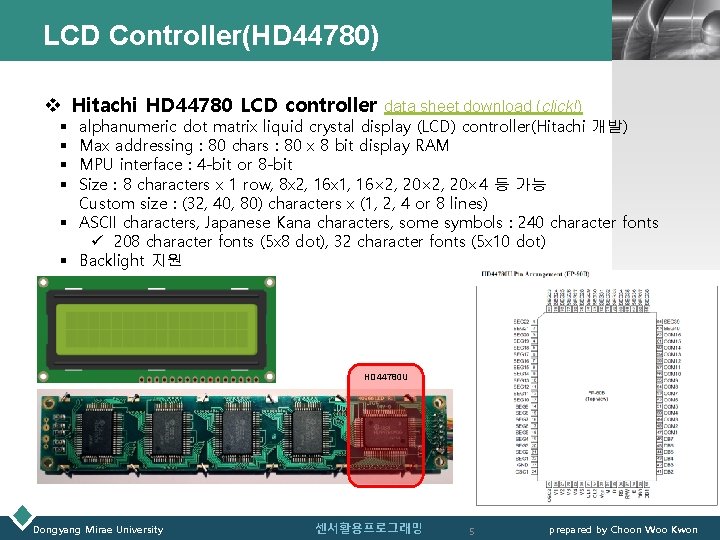

LCD Controller(HD 44780) LOGO v Hitachi HD 44780 LCD controller § § § data

LCD Controller(HD 44780) LOGO v Hitachi HD 44780 LCD controller § § § data sheet download (click!) alphanumeric dot matrix liquid crystal display (LCD) controller(Hitachi 개발) Max addressing : 80 chars : 80 x 8 bit display RAM MPU interface : 4 -bit or 8 -bit Size : 8 characters x 1 row, 8 x 2, 16 x 1, 16× 2, 20× 4 등 가능 Custom size : (32, 40, 80) characters x (1, 2, 4 or 8 lines) ASCII characters, Japanese Kana characters, some symbols : 240 character fonts ü 208 character fonts (5 x 8 dot), 32 character fonts (5 x 10 dot) Backlight 지원 HD 44780 U Dongyang Mirae University 센서활용프로그래밍 5 prepared by Choon Woo Kwon

LCD Controller(HD 44780) 사용 LOGO v Interface MPU - LCD controller - LCD(Liquid Crystal

LCD Controller(HD 44780) 사용 LOGO v Interface MPU - LCD controller - LCD(Liquid Crystal Display) LCD MPU / Arduino / etc. HD 44780 U LCD Dongyang Mirae University 센서활용프로그래밍 6 prepared by Choon Woo Kwon

LCD Controller(HD 44780) 사용 LOGO v MPU - LCD controller Interface Dongyang Mirae University

LCD Controller(HD 44780) 사용 LOGO v MPU - LCD controller Interface Dongyang Mirae University 센서활용프로그래밍 7 prepared by Choon Woo Kwon

HD 44780 U Block Diagram & Pin Functions Dongyang Mirae University 센서활용프로그래밍 8 LOGO

HD 44780 U Block Diagram & Pin Functions Dongyang Mirae University 센서활용프로그래밍 8 LOGO prepared by Choon Woo Kwon

HD 44780 U - 기능 설명 LOGO v Dongyang Mirae University 센서활용프로그래밍 9 prepared

HD 44780 U - 기능 설명 LOGO v Dongyang Mirae University 센서활용프로그래밍 9 prepared by Choon Woo Kwon

HD 44780 U – DDRAM LOGO v DDRAM(Display Data RAM) § 8 -bit 문자코드로

HD 44780 U – DDRAM LOGO v DDRAM(Display Data RAM) § 8 -bit 문자코드로 된 Display 데이터를 저장 § 저장 용량 : 80 character or 80 x 8 bits ü Display로 사용되지 않은 경우 일반 데이터 RAM으로 사용 가능 § DDRAM 주소는 ADD는 AC(address counter)에 16값으로 설정 v 1 -line Display 경우 (N=0) § DDRAM Address § 1 -Line Display § 1 -Line x 8 -Character Display Dongyang Mirae University 센서활용프로그래밍 10 prepared by Choon Woo Kwon

HD 44780 U – DDRAM LOGO v 2 -line Display 경우 (N=1) : 8

HD 44780 U – DDRAM LOGO v 2 -line Display 경우 (N=1) : 8 -char x 2 -line 표시 경우 (Case 1) § 2 -Line Display § 2 -Line x 8 -Character Display Dongyang Mirae University 센서활용프로그래밍 11 prepared by Choon Woo Kwon

HD 44780 U – DDRAM LOGO v 2 -line Display 경우 (N=1) : 8

HD 44780 U – DDRAM LOGO v 2 -line Display 경우 (N=1) : 8 -char x 2 -line 표시 경우(Case 2) § 2 -Line Display § 2 -Line x 8 -Character Display Dongyang Mirae University 센서활용프로그래밍 12 prepared by Choon Woo Kwon

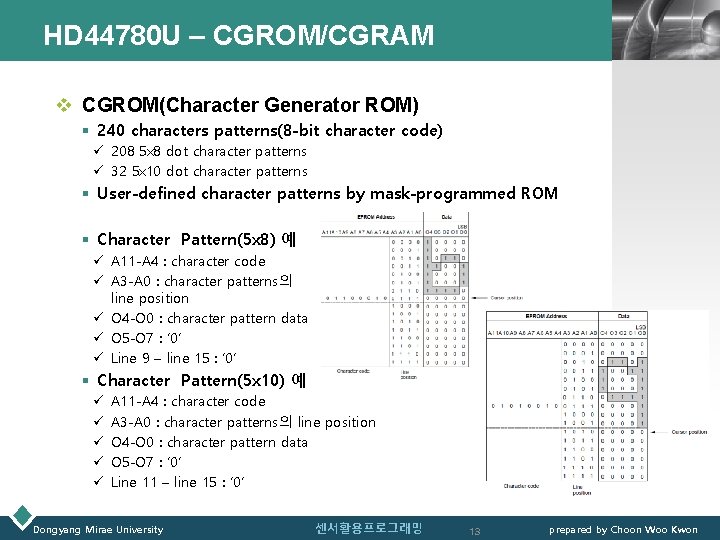

HD 44780 U – CGROM/CGRAM LOGO v CGROM(Character Generator ROM) § 240 characters patterns(8

HD 44780 U – CGROM/CGRAM LOGO v CGROM(Character Generator ROM) § 240 characters patterns(8 -bit character code) ü 208 5 x 8 dot character patterns ü 32 5 x 10 dot character patterns § User-defined character patterns by mask-programmed ROM § Character Pattern(5 x 8) 예 ü A 11 -A 4 : character code ü A 3 -A 0 : character patterns의 line position ü O 4 -O 0 : character pattern data ü O 5 -O 7 : ‘ 0’ ü Line 9 – line 15 : ‘ 0’ § Character Pattern(5 x 10) 예 ü ü ü A 11 -A 4 : character code A 3 -A 0 : character patterns의 line position O 4 -O 0 : character pattern data O 5 -O 7 : ‘ 0’ Line 11 – line 15 : ‘ 0’ Dongyang Mirae University 센서활용프로그래밍 13 prepared by Choon Woo Kwon

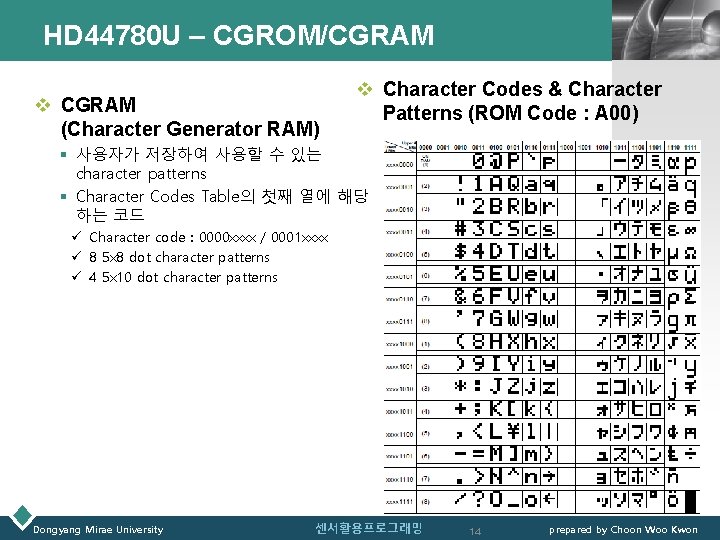

HD 44780 U – CGROM/CGRAM v CGRAM (Character Generator RAM) LOGO v Character Codes

HD 44780 U – CGROM/CGRAM v CGRAM (Character Generator RAM) LOGO v Character Codes & Character Patterns (ROM Code : A 00) § 사용자가 저장하여 사용할 수 있는 character patterns § Character Codes Table의 첫째 열에 해당 하는 코드 ü Character code : 0000 xxxx / 0001 xxxx ü 8 5 x 8 dot character patterns ü 4 5 x 10 dot character patterns Dongyang Mirae University 센서활용프로그래밍 14 prepared by Choon Woo Kwon

HD 44780 Instruction(명령어) LOGO v Dongyang Mirae University 센서활용프로그래밍 15 prepared by Choon Woo

HD 44780 Instruction(명령어) LOGO v Dongyang Mirae University 센서활용프로그래밍 15 prepared by Choon Woo Kwon

HD 44780 Instruction(명령어) LOGO v Instructions Dongyang Mirae University 센서활용프로그래밍 16 prepared by Choon

HD 44780 Instruction(명령어) LOGO v Instructions Dongyang Mirae University 센서활용프로그래밍 16 prepared by Choon Woo Kwon

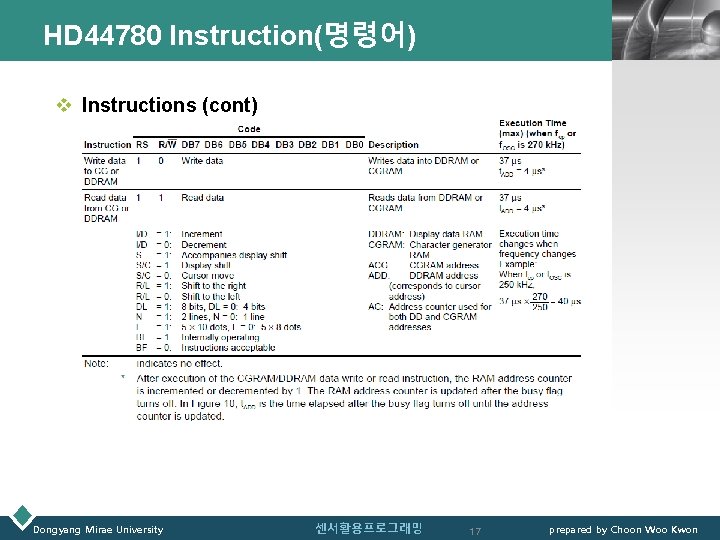

HD 44780 Instruction(명령어) LOGO v Instructions (cont) Dongyang Mirae University 센서활용프로그래밍 17 prepared by

HD 44780 Instruction(명령어) LOGO v Instructions (cont) Dongyang Mirae University 센서활용프로그래밍 17 prepared by Choon Woo Kwon

HD 44780 명령어 설명 v v v LOGO Clear Display Return Home Entry Mode

HD 44780 명령어 설명 v v v LOGO Clear Display Return Home Entry Mode Set Display On/Off Control Cursor/Display Shift Function Set CGRAM Address Set DDRAM Address Read Busy Flag and Address Write Data to CG or DDRAM Read Data from CG/DDRAM Dongyang Mirae University 센서활용프로그래밍 18 prepared by Choon Woo Kwon

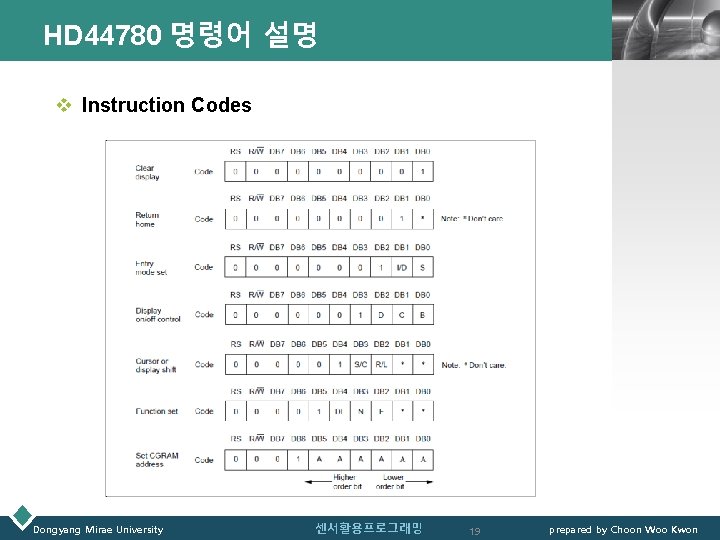

HD 44780 명령어 설명 LOGO v Instruction Codes Dongyang Mirae University 센서활용프로그래밍 19 prepared

HD 44780 명령어 설명 LOGO v Instruction Codes Dongyang Mirae University 센서활용프로그래밍 19 prepared by Choon Woo Kwon

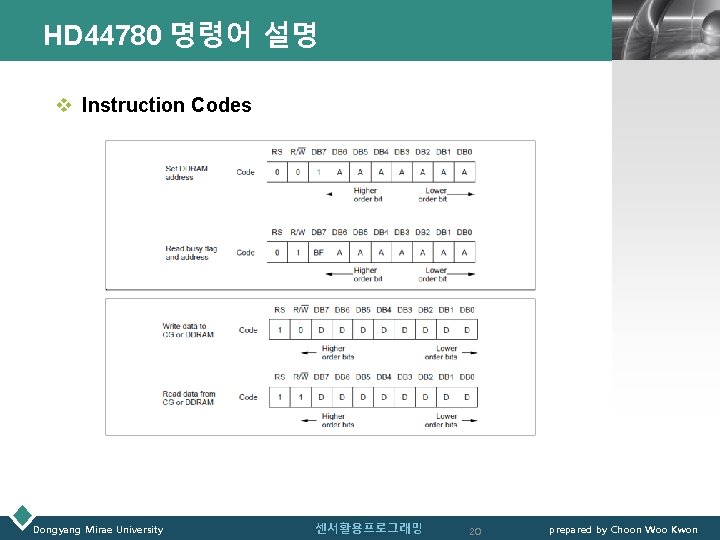

HD 44780 명령어 설명 LOGO v Instruction Codes Dongyang Mirae University 센서활용프로그래밍 20 prepared

HD 44780 명령어 설명 LOGO v Instruction Codes Dongyang Mirae University 센서활용프로그래밍 20 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 연관성 LOGO v 8 -bit operation, 8 -digit x 1 -line

HD 44780 Instruction-Display 연관성 LOGO v 8 -bit operation, 8 -digit x 1 -line display with internal reset § The HD 44780 U functions must be set by the function set instruction prior to the display. Since the display data RAM can store data for 80 characters, the RAM can be used for displays such as for advertising when combined with the display shift operation. Since the display shift operation changes only the display position with DDRAM contents unchanged, the first display data entered into DDRAM can be output when the return home operation is performed. v 4 -bit operation, 8 -digit x 1 -line display with internal reset § The program must set all functions prior to the 4 -bit operation. When the power is turned on, 8 -bit operation is automatically selected and the first write is performed as an 8 -bit operation. Since DB 0 to DB 3 are not connected, a rewrite is then required. However, since one operation is completed in two accesses for 4 -bit operation, a rewrite is needed to set the functions (see Table 12). Thus, DB 4 to DB 7 of the function set instruction is written twice. nstruction. Dongyang Mirae University 센서활용프로그래밍 21 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 연관성 LOGO v 8 -bit operation, 8 -digit x 2 -line

HD 44780 Instruction-Display 연관성 LOGO v 8 -bit operation, 8 -digit x 2 -line display § For a 2 -line display, the cursor automatically moves from the first to the second line after the 40 th digit of the first line has been written. Thus, if there are only 8 characters in the first line, the DDRAM address must be again set after the 8 th character is completed. Note that the display shift operation is performed for the first and second lines. In the example of Table 13, the display shift is performed when the cursor is on the second line. However, if the shift operation is performed when the cursor is on the first line, both the first and second lines move together. If the shift is repeated, the display of the second line will not move to the first line. The same display will only shift within its own line for the number of times the shift is repeated. § Note: When using the internal reset, the electrical characteristics in the Power Supply Conditions Using Internal Reset Circuit table must be satisfied. If not, the HD 44780 U must be initialized by instructions. See the section, Initializing by Instruction. Dongyang Mirae University 센서활용프로그래밍 22 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1 -Line Display Example with Internal Reset Dongyang Mirae University 센서활용프로그래밍 23 prepared by Choon Woo Kwon

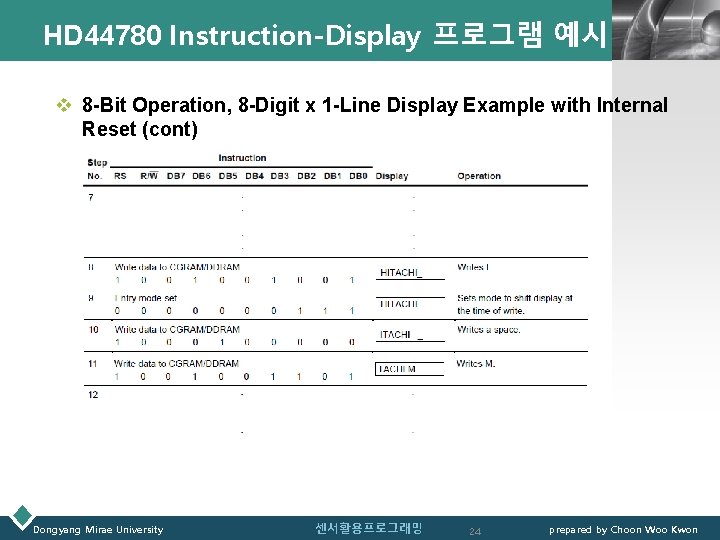

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1 -Line Display Example with Internal Reset (cont) Dongyang Mirae University 센서활용프로그래밍 24 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 1 -Line Display Example with Internal Reset (cont) Dongyang Mirae University 센서활용프로그래밍 25 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 프로그램 예시 LOGO v 4 -Bit Operation, 8 -Digit x 1

HD 44780 Instruction-Display 프로그램 예시 LOGO v 4 -Bit Operation, 8 -Digit x 1 -Line Display Example with Internal Reset Dongyang Mirae University 센서활용프로그래밍 26 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 2

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 2 -Line Display Example with Internal Reset Dongyang Mirae University 센서활용프로그래밍 27 prepared by Choon Woo Kwon

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 2

HD 44780 Instruction-Display 프로그램 예시 LOGO v 8 -Bit Operation, 8 -Digit x 2 -Line Display Example with Internal Reset (cont) Dongyang Mirae University 센서활용프로그래밍 28 prepared by Choon Woo Kwon

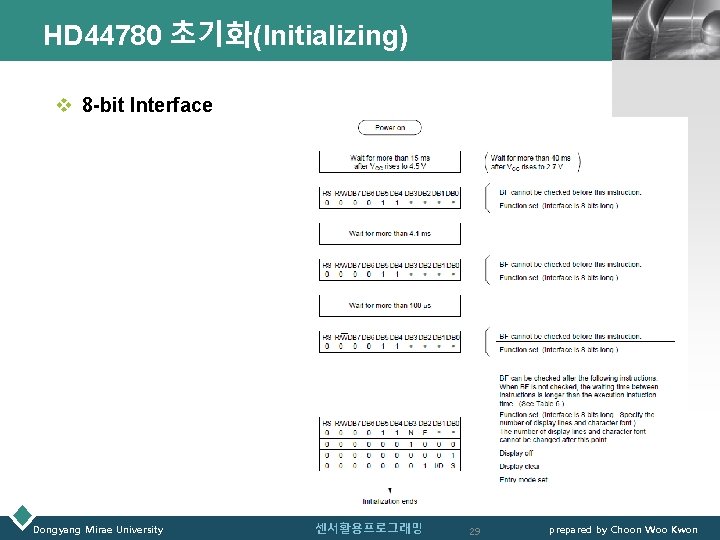

HD 44780 초기화(Initializing) LOGO v 8 -bit Interface Dongyang Mirae University 센서활용프로그래밍 29 prepared

HD 44780 초기화(Initializing) LOGO v 8 -bit Interface Dongyang Mirae University 센서활용프로그래밍 29 prepared by Choon Woo Kwon

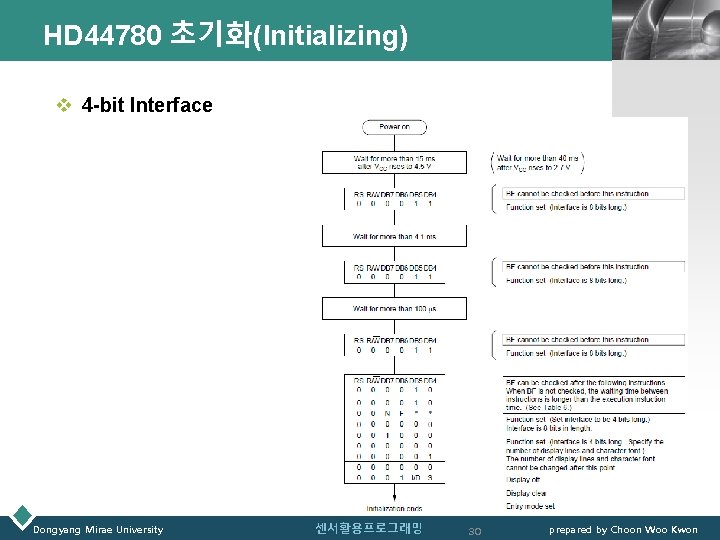

HD 44780 초기화(Initializing) LOGO v 4 -bit Interface Dongyang Mirae University 센서활용프로그래밍 30 prepared

HD 44780 초기화(Initializing) LOGO v 4 -bit Interface Dongyang Mirae University 센서활용프로그래밍 30 prepared by Choon Woo Kwon

LOGO LCD(Liquid Crystal Display) - Parallel(병렬) LCD 디스플레이 § 4 -bit 모드 § 8

LOGO LCD(Liquid Crystal Display) - Parallel(병렬) LCD 디스플레이 § 4 -bit 모드 § 8 -bit 모드 Dongyang Mirae University 센서활용프로그래밍 31 prepared by Choon Woo Kwon

Parallel(병렬) LCD 디스플레이(4 -bit 모드) LOGO v Parallel(병렬) LCD 디스플레이(4 -bit 모드) § Character

Parallel(병렬) LCD 디스플레이(4 -bit 모드) LOGO v Parallel(병렬) LCD 디스플레이(4 -bit 모드) § Character LCD 모듈 : 16 x 1 LCD Module ü Hitachi HD 44780 호환 컨트롤러 사용 ü 데이터 처리 : 4 -bit bus • 회로 측면에서 배선이 용이 § LCD 관련 프로그래밍 라이브러리 : Liquid Crystal Library ü #include <Liquid. Crystal. h> ü 아두이노 IDE 포함 Dongyang Mirae University 센서활용프로그래밍 32 prepared by Choon Woo Kwon

Character LCD Module (Hitachi HD 44780) Pin # Symbol 비고 1 Vss GND 2

Character LCD Module (Hitachi HD 44780) Pin # Symbol 비고 1 Vss GND 2 Vdd LCD 전원 3 V 0 LCD 밝기 조절 4 RS Register Selector 5 R/W Read/Write 6 Enable Clock Enable 7 Data Bit 0 8 Data Bit 1 9 Data Bit 2 10 Data Bit 3 11 Data Bit 4 12 Data Bit 5 13 Data Bit 6 14 Data Bit 7 15 LCD+/A Backlight Anode 백라이트 전원 (5 V) 16 LCD-/K Backlight Cathode 백라이트 GND (0 V) Dongyang Mirae University LOGO LCD GND (0 V) LCD 전원 (+3. 3~5 V) 16 가변저항(보통 10 KΩ)으로 표시 글자의 밝기 조절 RS=0 명령 레지스터 선택, RS=1 데이터 레지스터 선택 R/W=0 레지스터 쓰기 모드, R/W=1 레지스터 읽기 모드 falling-edge trigger (신호 1/HIGH) -> 0/LOW) Data I/O 4 -bit 모드 경우 사용 않음 Data I/O 4 -bit/8 -bit 모드 경우 사용 (4 -bit 모드를 많이 사용 센서활용프로그래밍 33 prepared by Choon Woo Kwon 1

Parallel LCD 디스플레이(4 bit) - 배선도 LOGO LCD-Arduino UNO 핀 연결 LCD UNO 1

Parallel LCD 디스플레이(4 bit) - 배선도 LOGO LCD-Arduino UNO 핀 연결 LCD UNO 1 Vss GND 2 Vdd 5 V 3 V 0 Contrast 5 4 RS D 12 7 5 R/W GND 9 6 Enable D 11 11 7 Data Bit 0 NC 13 8 Data Bit 1 NC 15 9 Data Bit 2 NC 10 Data Bit 3 NC 11 Data Bit 4 D 5 12 Data Bit 5 D 4 13 Data Bit 6 D 3 14 Data Bit 7 D 2 15 LCD+/A 5 V 16 LCD-/K GND Dongyang Mirae University 1 3 센서활용프로그래밍 34 prepared by Choon Woo Kwon

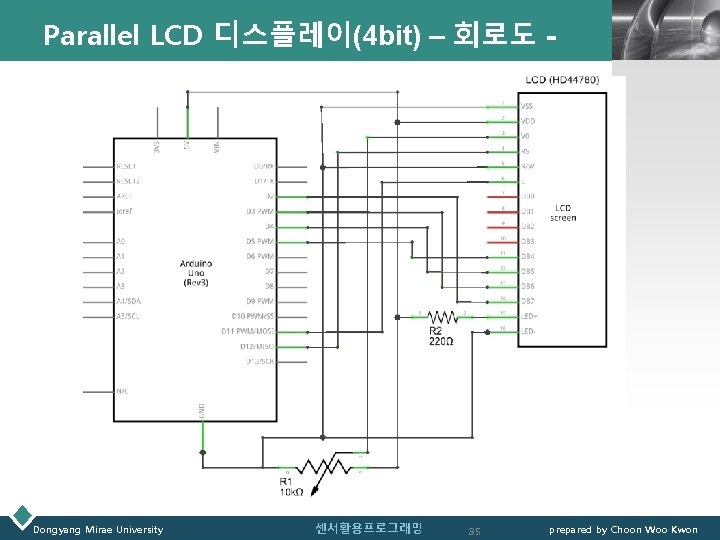

Parallel LCD 디스플레이(4 bit) – 회로도 - Dongyang Mirae University 센서활용프로그래밍 35 LOGO prepared

Parallel LCD 디스플레이(4 bit) – 회로도 - Dongyang Mirae University 센서활용프로그래밍 35 LOGO prepared by Choon Woo Kwon

아두이노 프로그램 – Liquid. Crystal Library v Liquid. Crystal Library LOGO #include <Liquid. Crystal.

아두이노 프로그램 – Liquid. Crystal Library v Liquid. Crystal Library LOGO #include <Liquid. Crystal. h> § Arduino 보드가 Hitachi HD 44780 (or a compatible) chipset 기반 LCD 제어 § LCD 모듈과 4 -bit 또는 8 -bit mode에 동작 § 함수(function) (https: //www. arduino. cc/en/Reference/Liquid. Crystal) • Liquid. Crystal() • no. Blink() • begin() • display() • clear() • no. Display() • home() • scroll. Display. Left() • set. Cursor() • scroll. Display. Right() • write() • autoscroll() • print() • no. Autoscroll() • cursor() • left. To. Right() • no. Cursor() • right. To. Left() • peek() • create. Char() • blink() Dongyang Mirae University 센서활용프로그래밍 36 prepared by Choon Woo Kwon

Parallel LCD 디스플레이(4 bit) – 스케치(1) // include the library code; // 참조 :

Parallel LCD 디스플레이(4 bit) – 스케치(1) // include the library code; // 참조 : https: //www. Arduino. cc/en/Reference/Liquid. Crystal #include<Liquid. Crystal. h> // initialize the library with the numbers of the interface pins // LCD (RS, Enable, D 4, D 5, D 6, D 7) 핀에 대응하는 아두이노 핀 Liquid. Crystal lcd(12, 11, 5, 4, 3, 2); void setup() { // setup the LCD’s number of columns and rows; lcd. begin(16, 2); } void loop() { lcd. set. Cursor(0, 0); Hello. LOGO world 아두이노의 LCD 라이브러리를 사용하기 위해 헤더 파일을 추 가 라이브러리 사용을 위해 초기화 (rs, rw, enable, data bit) Liquid. Crystal lcd(RS, Enable, D 4, D 5, D 6, D 7) Liquid. Crystal lcdl(rs, rw, enable, d 4, d 5, d 6, d 7) Liquid. Crystal lcd(rs, enable, d 0, d 1, d 2, d 3, d 4, d 5, d 6, d 7) Liquid. Crystal lcd(rs, rw, enable, d 0, d 1, d 2, d 3, d 4, d 5, d 6, d 7) LCD 스크린 디스플레이의 폭과 높이 설정 LCD 라이브러리 명령어에 앞서 호출 LCD 커서 위치를 결정(LCD에 Display할 좌표) - 이어서 쓰는 글자가 표시되는 위치 - 시작 위치 값 : 0 LCD 에 텍스트를 표시 LCD의 2번째 행, 1번째 열에 글자 표시 (0이 시작점이기 때문) // print a message to the LCD lcd. print("Hello, world!!"); // set the cursor to column 0, line 1 // note : line 1 is the second row, since counting begins with 0 lcd. set. Cursor(0, 1); lcd. print(“My name is Kwon!"); } 1번째 행에 “Hello, world!” 2번째 행에 “My name is Kwon!”를 표 시 delay(1000); Dongyang Mirae University (Hello world) 센서활용프로그래밍 37 prepared by Choon Woo Kwon

Parallel LCD 디스플레이(4 bit) – 스케치(2) // include the library code: #include <Liquid. Crystal.

Parallel LCD 디스플레이(4 bit) – 스케치(2) // include the library code: #include <Liquid. Crystal. h> char a; int start=0; // initialize the library with the numbers of the interface pins Liquid. Crystal lcd(12, 11, 5, 4, 3, 2); void setup() { // set up the LCD's number of columns and rows: lcd. begin(16, 2); // initialize the serial communications: Serial. begin(9600); } } void loop() { if (start == 0) { lcd. set. Cursor(0, 0); lcd. clear(); lcd. print("+ -"); delay(700); lcd. clear(); lcd. print("- +"); delay(700); } Dongyang Mirae University Serial. Display LOGO // when characters arrive over the serial port. . . if (Serial. available()) { // wait a bit for the entire message to arrive start = 1; 직렬포트 데이터 도착 delay(100); - 리턴 값 : 읽을 수 있는 바이트 수 // clear the screen - 수신버퍼에 저장(64 byte) lcd. clear(); // read all the available characters while (Serial. available() > 0) { // display each character to the LCD lcd. write(a=Serial. read()); Serial. write(a); 입력되는 직렬 데이터를 읽음 } - 리턴 값 : 입력되는 직렬 데이터(int) (데이터 입력 없는 경우 -1 리턴) } LCD 스크린을 지우고 커서를 좌-상 에 위치 시킴 LCD 스크린에 1개 글자를 표시 지우 고 커서를 좌-상에 위치 시킴 (Serial. Display) Serial 모니터 창에 입력한 글 자를 LCD에 표시 센서활용프로그래밍 38 prepared by Choon Woo Kwon

Parallel LCD 디스플레이(4 bit) – 스케치(3) Cursor. Blink LOGO // include the library code:

Parallel LCD 디스플레이(4 bit) – 스케치(3) Cursor. Blink LOGO // include the library code: #include <Liquid. Crystal. h> // initialize the library with the numbers of the interface pins Liquid. Crystal lcd(12, 11, 5, 4, 3, 2); void setup() { // set up the LCD's number of columns and rows: lcd. begin(16, 2); } // Print a message to the LCD. lcd. print("Dongyang Mirae"); lcd. set. Cursor(2, 1); lcd. print("University!"); void loop() { // Turn off the blinking cursor: lcd. no. Blink(); delay(3000); // Turn on the blinking cursor: lcd. blink(); delay(3000); } LCD 커서 깜박임을 ON blink() , OFF no. Blink() (Cursor. Blink) LCD에 Cursor가 3초 간격으로 Blink 상태가 변경 : ON-OFF Dongyang Mirae University 센서활용프로그래밍 39 prepared by Choon Woo Kwon

Parallel LCD 디스플레이(4 bit) – 스케치(4) // include the library code: #include <Liquid. Crystal.

Parallel LCD 디스플레이(4 bit) – 스케치(4) // include the library code: #include <Liquid. Crystal. h> // initialize the library with the numbers of the interface pins Liquid. Crystal lcd(12, 11, 5, 4, 3, 2); int this. Char = 'a'; void setup() { // set up the LCD's number of columns and rows: lcd. begin(16, 2); // turn on the cursor: lcd. cursor(); } // reset at 'z': if (this. Char > 'z') { delay(2000); lcd. clear(); // go to (0, 0): lcd. home(); // start again at 0 this. Char = 'a'; LCD 커서를 상-좌에 위치 } // print the character lcd. write(this. Char); // wait a second: delay(500); // increment the letter: this. Char++; void loop() { } // reverse directions at 'h': if (this. Char == 'h' || this. Char == 'v') { // go right for the next letter lcd. right. To. Left(); LCD에 표시하는 텍스트의 방향을 설정 } - left. To. Right() : 왼쪽-> 오른쪽 (default) // reverse again at 'o': - right. To. Left() : 오른쪽->왼쪽 if (this. Char == 'o') { // go left for the next letter lcd. left. To. Right(); } Dongyang Mirae University Text. Direction LOGO 센서활용프로그래밍 (Text. Direction) LCD에 알파벳이 a-z까지 표시하 는데 입력 방향이 변경 : Left>Right, Right->Left 40 prepared by Choon Woo Kwon

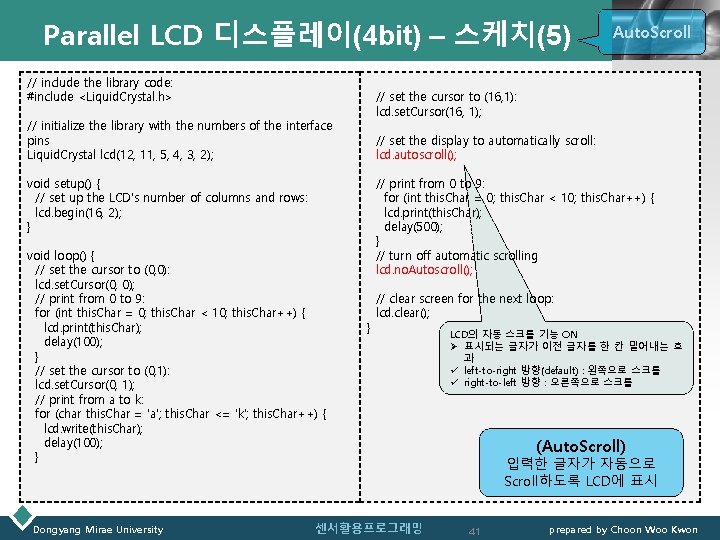

Parallel LCD 디스플레이(4 bit) – 스케치(5) // include the library code: #include <Liquid. Crystal.

Parallel LCD 디스플레이(4 bit) – 스케치(5) // include the library code: #include <Liquid. Crystal. h> // set the cursor to (16, 1): lcd. set. Cursor(16, 1); // initialize the library with the numbers of the interface pins Liquid. Crystal lcd(12, 11, 5, 4, 3, 2); // set the display to automatically scroll: lcd. autoscroll(); void setup() { // set up the LCD's number of columns and rows: lcd. begin(16, 2); } void loop() { // set the cursor to (0, 0): lcd. set. Cursor(0, 0); // print from 0 to 9: for (int this. Char = 0; this. Char < 10; this. Char++) { lcd. print(this. Char); delay(100); } // set the cursor to (0, 1): lcd. set. Cursor(0, 1); // print from a to k: for (char this. Char = 'a'; this. Char <= 'k'; this. Char++) { lcd. write(this. Char); delay(100); } Dongyang Mirae University Auto. Scroll LOGO // print from 0 to 9: for (int this. Char = 0; this. Char < 10; this. Char++) { lcd. print(this. Char); delay(500); } // turn off automatic scrolling lcd. no. Autoscroll(); } // clear screen for the next loop: lcd. clear(); 센서활용프로그래밍 LCD의 자동 스크롤 기능 ON Ø 표시되는 글자가 이전 글자를 한 칸 밀어내는 효 과 ü left-to-right 방향(default) : 왼쪽으로 스크롤 ü right-to-left 방향 : 오른쪽으로 스크롤 (Auto. Scroll) 입력한 글자가 자동으로 Scroll하도록 LCD에 표시 41 prepared by Choon Woo Kwon

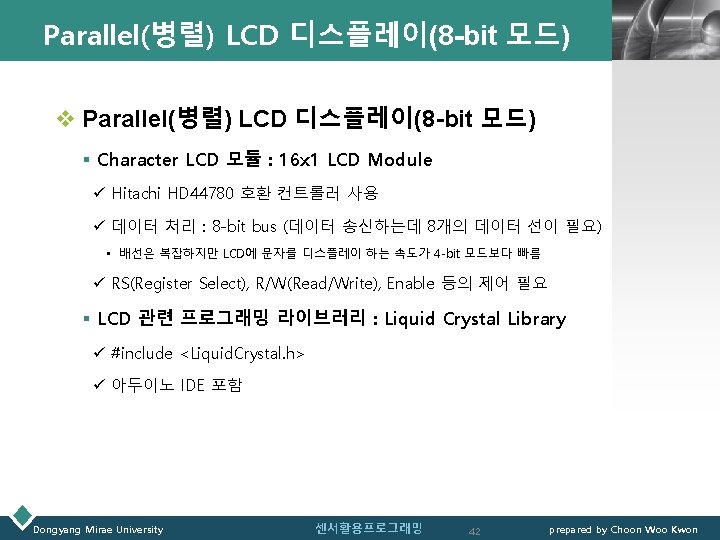

Parallel(병렬) LCD 디스플레이(8 -bit 모드) LOGO v Parallel(병렬) LCD 디스플레이(8 -bit 모드) § Character

Parallel(병렬) LCD 디스플레이(8 -bit 모드) LOGO v Parallel(병렬) LCD 디스플레이(8 -bit 모드) § Character LCD 모듈 : 16 x 1 LCD Module ü Hitachi HD 44780 호환 컨트롤러 사용 ü 데이터 처리 : 8 -bit bus (데이터 송신하는데 8개의 데이터 선이 필요) • 배선은 복잡하지만 LCD에 문자를 디스플레이 하는 속도가 4 -bit 모드보다 빠름 ü RS(Register Select), R/W(Read/Write), Enable 등의 제어 필요 § LCD 관련 프로그래밍 라이브러리 : Liquid Crystal Library ü #include <Liquid. Crystal. h> ü 아두이노 IDE 포함 Dongyang Mirae University 센서활용프로그래밍 42 prepared by Choon Woo Kwon

Parallel(병렬) LCD 디스플레이(8 bit) - 배선도 LOGO LCD-Arduino UNO 핀 연결 LCD UNO 1

Parallel(병렬) LCD 디스플레이(8 bit) - 배선도 LOGO LCD-Arduino UNO 핀 연결 LCD UNO 1 Vss GND 2 Vdd 5 V 1 3 V 0 Contrast 3 4 RS D 12 5 5 R/W D 11 7 6 Enable D 2 9 7 Data Bit 0 D 3 11 8 Data Bit 1 D 4 9 Data Bit 2 D 5 10 Data Bit 3 D 6 11 Data Bit 4 D 5 12 Data Bit 5 D 4 13 Data Bit 6 D 3 14 Data Bit 7 D 2 15 LCD+/A 5 V 16 LCD-/K GND Dongyang Mirae University 13 15 센서활용프로그래밍 43 prepared by Choon Woo Kwon

Parallel(병렬) LCD 디스플레이(8 bit) – 회로도 Dongyang Mirae University 센서활용프로그래밍 44 LOGO prepared by

Parallel(병렬) LCD 디스플레이(8 bit) – 회로도 Dongyang Mirae University 센서활용프로그래밍 44 LOGO prepared by Choon Woo Kwon

LOGO Parallel(병렬) LCD 디스플레이(8 bit) – 스케치(1/2) int int int DI = 12; RW

LOGO Parallel(병렬) LCD 디스플레이(8 bit) – 스케치(1/2) int int int DI = 12; RW = 11; DB[] = {3, 4, 5, 6, 7, 8, 9, 10}; Enable = 2; void Lcd. Command. Write(int value){ // poll all the pins int i=0; for(i=DB[0]; i<=DI; i++){ digital. Write(i, value & 01); value >>= 1; } LCD 라이브러리를 사용하지 않 은 관 계 로 , HD 44780 Controller 초기화나 DDRAM 데이터 쓰기 등을 위해서는 직접 컨트롤러에 접근 (Access)하여야 함. 이러한 처리로 Sketch code 가 복잡하며 HD 44780 Data Sheet의 참조가 필요 // send a pulse to enable digital. Write(Enable, HIGH); delay. Microseconds(1); // pause 1 ms according to datasheet digital. Write(Enable, LOW); delay. Microseconds(1); // pause 1 ms according to datasheet void Lcd. Data. Write(int value){ // poll all the pins int i = 0; digital. Write(DI, HIGH); digital. Write(RW, LOW); for(i=DB[0]; i<=DB[7]; i++){ digital. Write(i, value & 01); value >>= 1; } Dongyang Mirae University } // send a pulse to enable digital. Write(Enable, HIGH); delay. Microseconds(1); digital. Write(Enable, LOW); delay. Microseconds(1); // pause 1 ms according to datasheet void init. LCD(){ delay(100); digital. Write(Enable, LOW); delay. Microseconds(1); } digital. Write(Enable, LOW); delay. Microseconds(1); // initiatize LCD after a short pause // needed by the LCDs controller Lcd. Command. Write(0 x 3 A); // function set; // 8 -bit interface, 2 display lines, display ON delay(10); Lcd. Command. Write(0 x 0 E); // display control; // turn display ON, cursor ON, no blinking delay(10); Lcd. Command. Write(0 x 01); // clear display, set cursor position to zero delay(10); Lcd. Command. Write(0 x 06); // entry mode set; // increment automatically, no display shift delay(10); } // continue to the next slide 센서활용프로그래밍 45 prepared by Choon Woo Kwon

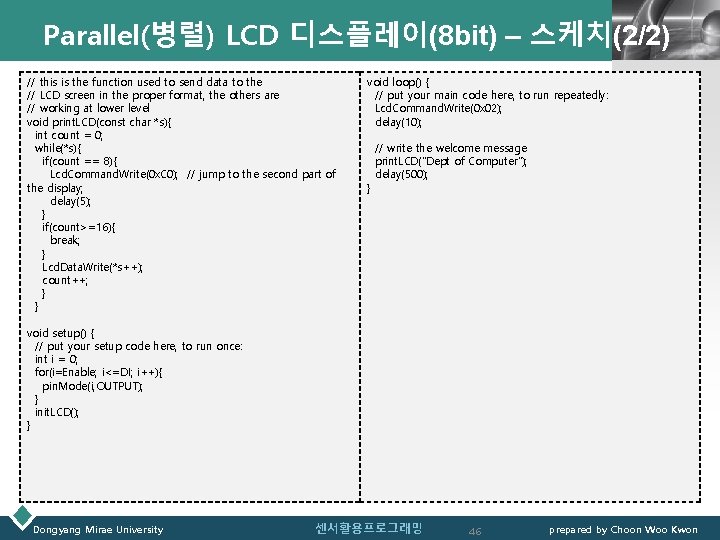

LOGO Parallel(병렬) LCD 디스플레이(8 bit) – 스케치(2/2) // this is the function used to

LOGO Parallel(병렬) LCD 디스플레이(8 bit) – 스케치(2/2) // this is the function used to send data to the // LCD screen in the proper format, the others are // working at lower level void print. LCD(const char *s){ int count = 0; while(*s){ if(count == 8){ Lcd. Command. Write(0 x. C 0); // jump to the second part of the display; delay(5); } if(count>=16){ break; } Lcd. Data. Write(*s++); count++; } } void loop() { // put your main code here, to run repeatedly: Lcd. Command. Write(0 x 02); delay(10); } // write the welcome message print. LCD("Dept of Computer"); delay(500); void setup() { // put your setup code here, to run once: int i = 0; for(i=Enable; i<=DI; i++){ pin. Mode(i, OUTPUT); } init. LCD(); } Dongyang Mirae University 센서활용프로그래밍 46 prepared by Choon Woo Kwon
