CVS Examination Dr. Amr Khayat, MBBS Member of Saudi General Surgery Society Member of Saudi Society for Vascular Surgery Member of Saudi Association for Plastic Surgery
CVS Examination • General appearance The hands The face The neck The praecordium Inspection • Palpation Auscultation
Apex beat The Praecordium Visible pulsations Scars Palpation Apex beat Parasternal heave Palpable thrills
1 - General Appearance • Look for: (ABCDE) Respiratory distress Cachexia Dysmorphic features
Patient Position in CVS Examination
2 - The Hand • Look For : Clubbing Cyanosis Splinter hemorrhage Osler nodes (tender) Janway lesions (not tender) Muscle Wasting.
2 - The Hand • Radial pulse: Rate Rhythm: [regular, irregular (irregularly irregular, regularly irregular)] Character and volume (collapsing, alternans) Radio-radial delay Radiofemoral delay Condition of the vessel wall Blood pressure
3 - The Face • Eye’s : Pallor , Jaundice, Xanthelasma. Mitral features (rosy cheeks, bluish tinge). Central cyanosis in the tongue

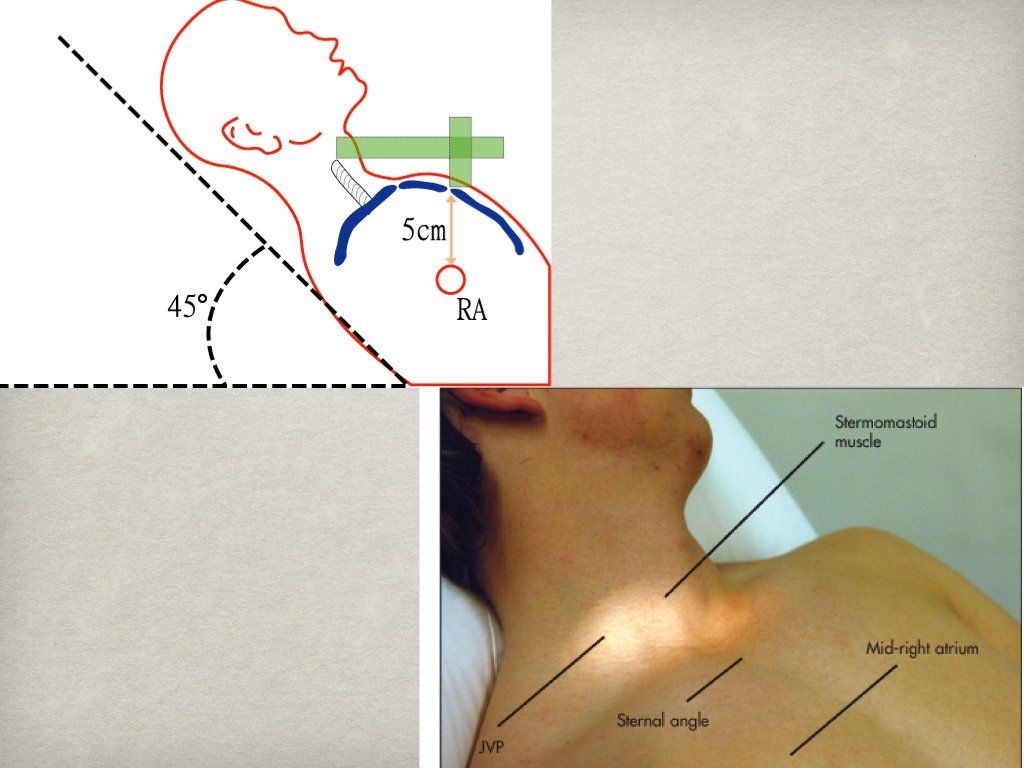

4 - The Neck • Palpate the carotid artery medial to sternomastoid muscle for character (bisferience, collapsing, alternans, jerky) Inspect the height of the JVP by inspecting the internal jugular vein
4 - The Neck • Jugular pulse can be distinguished from arterial pulse by: It is a complex wave (flicker twice) Jugular is visible but not palpable JVP decreases with inspiration It is filled from above after removing pressure applied to the base of the neck.
5 - The Precordium • By INSPECTION: Scars Skeletal abnormalities (pectus excavatum, kyphoscoliosis) Visiable Apex beat Other visible pulsations
• By PALPATION: 5 - The Precordium ➡Apex beat: Site (the most lateral and most inferior; normally in the 5 th left intercostals space in the mid clavicular line) Displaced or not Character (heaving, double impulse, tapping) ➡Parasternal impulse: • By the heel of the hand rested just to the left of the sternum. ➡Palpable murmurs (thrills):
5 - The Precordium • By AUSCULTATION: ➡Start in the mitral area with the bell to hear low pitch sounds like in mitral stenosis then use the diaphragm. ➡Then move to the tricuspid area (5 th Lt. intercostal) ➡Then to pulmonary area (2 nd Lt. intercostal) ➡Then to aortic area (2 nd Rt. intercostal) ➡On auscultation listen to: Heart sounds (S 1, S 2) Abnormalities in heart sounds (loud, soft, increased splitting, fixed splitting, reversed splitting) Additional sounds (S 3, S 4) Heart murmurs
What to look for in murmurs • Site Intensity ( 6 grades ) Time (systole , diastole) Duration (early , pan , late) Radiation (axilla , carotid) Pitch (High, Low) Special character
6 - The Back • Percussion and auscultation of the lung bases looking for signs of pulmonary edema like: Crepitation Dull percussion , decrease air entry (pleural effusion ) In the back look for sacral edema as well
7 - The Abdomen • Look for Ascitis Hepatomegaly
8 - The Lower Limbs • Palpate the: Femoral artery (below inguinal ligament 1/3 of the way up from the pubic tubercle) Popliteal artery (behind the knees) Post. tibial (below medial malleolus half the way between the calcaneus and medial malleolus) Dorsalis pedis (between the 1 st and 2 nd metatarsal bone lateral to flexor hallosis longus) Then look for lower limb edema.
THANK YOU
• 1. A 45 year old man comes into your office complaining of heart palpitations. You listen at his heart apex with the diaphragm of the stethoscope and hear a mid systolic click (an extra beat in between the 1 st and 2 nd heart sound). What is the likely diagnosis? • A-Mitral stenosis B-Aortic regurgitation C-Mitral valve prolapse D-Mitral regurgitation
• 2. A 50 year old woman comes into your office citing exercise intolerance. You listen to her heart at the lower left sternal border with the bell of the stethoscope and hear an S 3 sound (an extra, low frequency heart beat occurring after the 2 nd heart sound). What is the likely diagnosis? • A-Patent ductus arteriosis B-Aortic stenosis C-Congestive heart failure D-Mitral stenosis
• 3. If a patient has atrial fibrillation (the atria no longer respond to heart pace-making cells) an S 4 heart sound (an extra, low frequency beat occurring before the first heart sound) will not exist. • A-True B-False
• 4. A 10 year old boy comes into your office with no symptoms or complaints. When listening with the bell of the stethoscope at the apex, you hear an S 3 heart sound. What is the diagnosis? • A-Chronic heart failure B-Pulmonic Stenosis C-Tricuspid Stenosis D-Normal heart sound
• 5. A 40 year old man comes into your office complaining of exercise intolerance. You listen to his heart at the 3 rd left intercostal space with the diaphragm and hear a murmur that is saw-like in quality that begins after S 1 (first heart sound) and ends before S 2 (2 nd heart sound) during systole (while the heart is contracting). What is a likely diagnosis? • A-Aortic regurgitation B-Tricuspid stenosis C-Mitral stenosis D-Aortic Stenosis
• 6. The diastolic murmur of tricuspid stenosis (narrowing and hardening of the tricuspid valve cusps) can only be heard with the diaphragm of the stethoscope. • A-True B-False

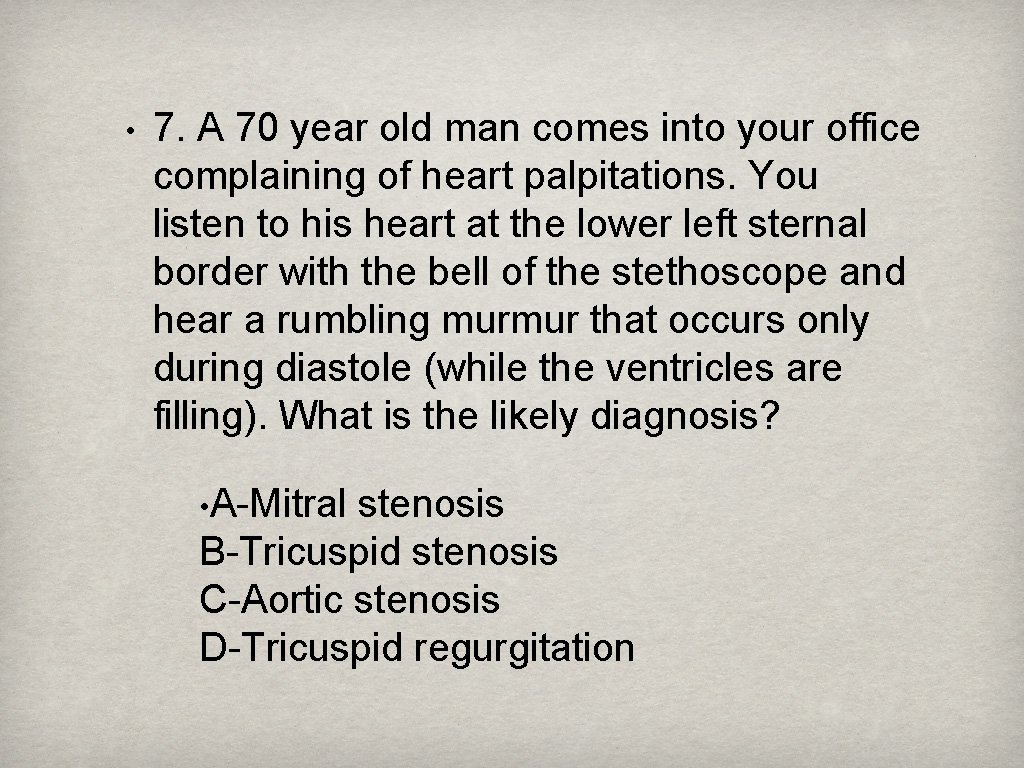

• 7. A 70 year old man comes into your office complaining of heart palpitations. You listen to his heart at the lower left sternal border with the bell of the stethoscope and hear a rumbling murmur that occurs only during diastole (while the ventricles are filling). What is the likely diagnosis? • A-Mitral stenosis B-Tricuspid stenosis C-Aortic stenosis D-Tricuspid regurgitation
• 8. A 55 year old woman comes into your office complaining of exercise intolerance. You listen to her heart at the 2 nd right intercostal space with the diaphragm of the stethoscope and hear a diastolic murmur of blowing quality. What is the likely diagnosis? • A-Aortic stenosis B-Aortic regurgitation C-Mitral regurgitation D-Tricuspid regurgitation
• 9. A 67 year old man enters your office with no complaints. You listen to his heart at the apex and hear an opening snap when listening with the diaphragm and a rumbling diastolic murmur when listening with the bell. What is the likely diagnosis? • A-Pulmonic stenosis B-Tricuspid stenosis C-Mitral stenosis D-Aortic stenosis
• 10. Now for a whopper: A 60 year old woman enters your office with no symptoms to complain of. You listen to her heart at the 2 nd left intercostal space and hear a mid-systolic murmur accompanied with wide fixed splitting of the S 2 heart sound (Usually the 2 nd heart sound is split and widens with inspiration at the 2 nd left intercostal space). What is the diagnosis? • A-Pulmonic regurgitation B-Mitral regurgitation C-Tricuspid regurgitation D-Atrial septal defect
• 1. A 45 year old man comes into your office complaining of heart palpitations. You listen at his heart apex with the diaphragm of the stethoscope and hear a mid systolic click (an extra beat in between the 1 st and 2 nd heart sound). What is the likely diagnosis? • A-Mitral stenosis B-Aortic regurgitation C-Mitral valve prolapse D-Mitral regurgitation
• 2. A 50 year old woman comes into your office citing exercise intolerance. You listen to her heart at the lower left sternal border with the bell of the stethoscope and hear an S 3 sound (an extra, low frequency heart beat occurring after the 2 nd heart sound). What is the likely diagnosis? • A-Patent ductus arteriosis B-Aortic stenosis C-Congestive heart failure D-Mitral stenosis
• 3. If a patient has atrial fibrillation (the atria no longer respond to heart pace-making cells) an S 4 heart sound (an extra, low frequency beat occurring before the first heart sound) will not exist. • A-True B-False
• 4. A 10 year old boy comes into your office with no symptoms or complaints. When listening with the bell of the stethoscope at the apex, you hear an S 3 heart sound. What is the diagnosis? • A-Chronic heart failure B-Pulmonic Stenosis C-Tricuspid Stenosis D-Normal heart sound
• 5. A 40 year old man comes into your office complaining of exercise intolerance. You listen to his heart at the 3 rd left intercostal space with the diaphragm and hear a murmur that is saw-like in quality that begins after S 1 (first heart sound) and ends before S 2 (2 nd heart sound) during systole (while the heart is contracting). What is a likely diagnosis? • A-Aortic regurgitation B-Tricuspid stenosis C-Mitral stenosis D-Aortic Stenosis
• 6. The diastolic murmur of tricuspid stenosis (narrowing and hardening of the tricuspid valve cusps) can only be heard with the diaphragm of the stethoscope. • A-True B-False
• 7. A 70 year old man comes into your office complaining of heart palpitations. You listen to his heart at the lower left sternal border with the bell of the stethoscope and hear a rumbling murmur that occurs only during diastole (while the ventricles are filling). What is the likely diagnosis? • A-Mitral stenosis B-Tricuspid stenosis C-Aortic stenosis D-Tricuspid regurgitation
• 8. A 55 year old woman comes into your office complaining of exercise intolerance. You listen to her heart at the 2 nd right intercostal space with the diaphragm of the stethoscope and hear a diastolic murmur of blowing quality. What is the likely diagnosis? • A-Aortic stenosis B-Aortic regurgitation C-Mitral regurgitation D-Tricuspid regurgitation
• 9. A 67 year old man enters your office with no complaints. You listen to his heart at the apex and hear an opening snap when listening with the diaphragm and a rumbling diastolic murmur when listening with the bell. What is the likely diagnosis? • A-Pulmonic stenosis B-Tricuspid stenosis C-Mitral stenosis D-Aortic stenosis
• 10. Now for a whopper: A 60 year old woman enters your office with no symptoms to complain of. You listen to her heart at the 2 nd left intercostal space and hear a mid-systolic murmur accompanied with wide fixed splitting of the S 2 heart sound (Usually the 2 nd heart sound is split and widens with inspiration at the 2 nd left intercostal space). What is the diagnosis? • A-Pulmonic regurgitation B-Mitral regurgitation C-Tricuspid regurgitation D-Atrial septal defect
Good Luck
