Customer Viewable HPUX 11 i Roadmap HPUX 11

Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i Roadmap This document is the HP-UX 11 i Roadmap. This document represents the current plan and should not be considered a commitment. For specific delivery dates please refer to the BSTO marketing team. The contents of this document are subject to change without notice and will be change based on HP’s execution needs or requirement base on specific economic conditions.

HPUX 11 i Roadmap hp-ux 11 i operating environment goals • have a competitively equal or better feature set than all other UNIX operating systems • continue to increase the visibility to HPUX, its strengths and its mainstream UNIX leadership in the market • ensure that HP-UX is the best UNIX for: • multi-OS environments • deployment from Windows/Linux development • transition to IA-64 HP Confidential Page 3

HPUX 11 i Roadmap dh brown os competitive position Reliability hp-ux 11 i Solaris 8 Aix 4. X Java Optimization hp-ux 11 i Solaris 8 Aix 4. X Web Application Support Scalability hp-ux 11 i Solaris 8 Aix 4. X Workload and bandwidth management hp-ux 11 i Solaris 8 Aix 4. X Web Application Server Options hp-ux 11 i Solaris 8 Aix 4. X HP Confidential Page 4

HPUX 11 i Roadmap HP-UX 11 i operating environments HP-UX 11 i mission-critical OE HP-UX 11 i enterprise OE HP-UX 11 i OE • HP-UX OS • Network Drivers • Web Qo. S peak • Apache web server • Ignite/UX • Java Environment (RTE, JDK, JPI) Note: HP-UX future plans subject to change • Service. Control Manager JPIU • Sys. Config. Repository • Software Distributor/UX • Netscape directory server (Planet Enterprise) • keberos PAM • EMS framework • CIFS Client & Server • Online. JFS 3. 3 • Glanceplus pack • Mirror Disk/UX • Process Resource Mgr • Event Monitor Services (EMS HA Monitors) Open. View Performance Agent Single-system Event and Availability Management • MC/Service. Guard • HP-UX Workload Manager • Host Intrusion Detection • Service. Guard NFS toolkit • Enterprise Cluster Mgmt. toolkit · · Customer Viewable

HP-UX 11 i OE features and benefits • Three different operating environments • integrated environment tested by HP • no codeword required for layered product installation • bundle pricing provides discounts vs. individual pricing • single line item to order • single line item support • Comprehensive multi-OS support • Next generation of OS and discrete components Note: HP-UX future plans subject to change • Get the operating environment that fits your needs • Less time spent performing system integration • Fast time to install/deployment, spent less system admin resources • Enjoy monetary savings Simpler ordering • Spend less time managing support contracts • Support for the use of Linux as a low cost development platform for HP-UX mission critical applications. Develop on Linux, deploy on HPUX. • Easy migration to OE from OS and discrete components. file name file location 3/6/2021 Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i software offering HP-UX 11 i mission-critical OE HP-UX 11 i enterprise OE HP-UX 11 i OE Examples of Independent Software Products: Openview i. Planet Web Server Vx. VM Product C++ compiler Metroclusters Web. Qo. S Premium IPSec/9000 SNA+2 Link Server HP-UX CDSA Examples of Unsupported Software Products Mobile IPv 4 perl IPv 6 Early Release Linux Porting Kit CIFS migration tool Fiber Channel manager Note: HP-UX future plans subject to change Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i OE market position roadmap file/print HP-UX HP 9000 enterprise server Windows HP netserver web serving applications application (department critical) enterprise data center (business critical) (corporate critical) HPUX OEs Current PA-RISC Position HPUX OEs hosted on IA-64 platforms netware HP netserver Linux HP netserver HP runs its business worldwide on HP-UX servers! Note: HP-UX future plans subject to change Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i OE vision roadmap Q 400 Q 201 Q 301 HP 11 i OEs release on IA-64 Platform Q 402 HP 11 i OEs provide hardware independent operating environment HP 11 i OEs become primary OS delivery agent on PA-RISC Platform HP 11 i OEs release on HP Superdome Platform Note: HP-UX future plans subject to change Customer Viewable

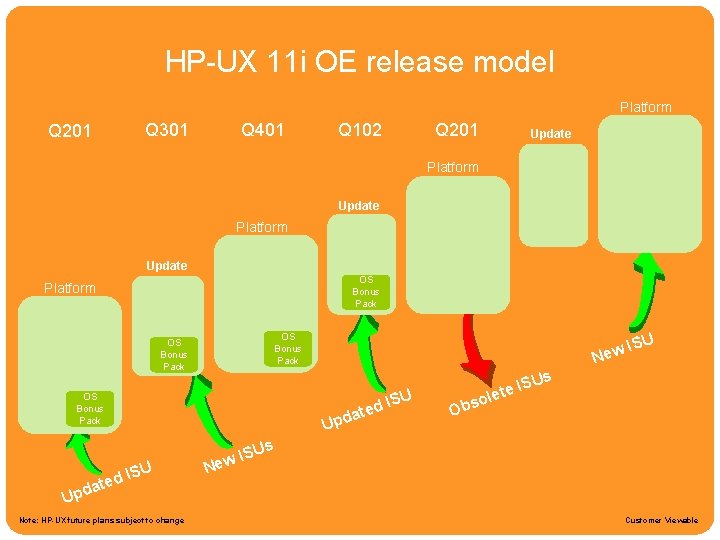

HPUX 11 i Roadmap HP-UX 11 i OE release model Platform Q 301 Q 201 Q 401 Q 201 Q 102 Update Platform Update OS Bonus Pack Platform OS Bonus Pack U IS w e N s OS Bonus Pack SU I d e t a Upd U te IS le o Obs Us U IS d e t a IS w e N Upd Note: HP-UX future plans subject to change Customer Viewable

HPUX 11 i Roadmap Q 201 HP-UX 11 i OE releases Q 301 Update Q 401 • OS Bonus Pack Platform • OS Bonus Pack • v. Pars on SD Update Platform • OS Bonus Pack • Nokia WAP Demo Product 2. 0 • IPv 6 Dev. Env. • Vx. VM Fast Resynch Option • OS Bonus Pack • IPv 6 Phase 1 • Vx. VM works with MC/SG • CVM Base • CVM Full Product • v. Pars on N & L Class • Processor Sets • Real Time Ext. Q 102 ity al n o ti nc u f OE g n i ity l s i a b ti re Inc ompa y. C r a in B Note: HP-UX future plans subject to change Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i HP-UX Enhancements Q 301 Q 201 s es Update Q 401 n i k Update OE number ? ? • Nokia WAP Demo Product 2. 0 • IPv 6 Dev. Env. • MC/Service. Guard • Vx. VM Fast Resynch Option Q 102 r o W o r p • IPv 6 Phase 1 • Vx. VM works with MC/SG • CVM Base • CVM Full Product • v. Pars on N & L Class • Processor Sets • Real Time Ext. n o (D t o om C y ar r g OE number ? ? ? +1 • v. Pars on SD s i d ) te u b i r t lity ibi pat Bin Note: HP-UX future plans subject to change Customer Viewable

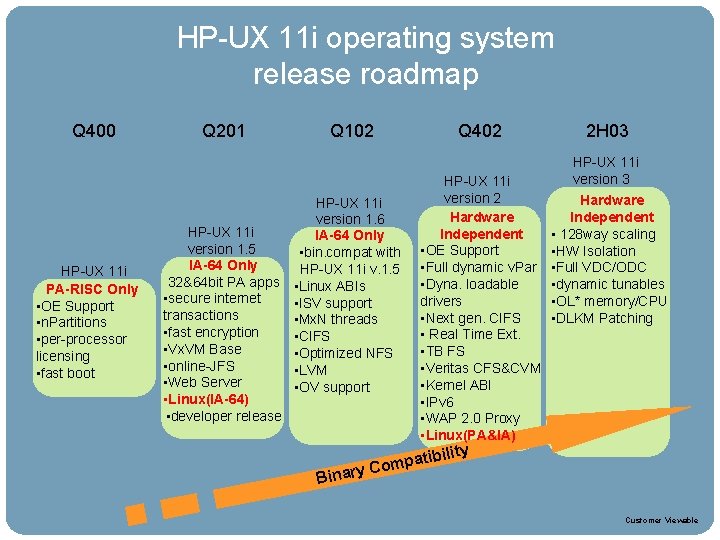

HPUX 11 i Roadmap Q 400 HP-UX 11 i PA-RISC Only • OE Support • n. Partitions • per-processor licensing • fast boot HP-UX 11 i operating system release roadmap Q 201 HP-UX 11 i version 1. 5 IA-64 Only 32&64 bit PA apps • secure internet transactions • fast encryption • Vx. VM Base • online-JFS • Web Server • Linux(IA-64) • developer release Q 102 HP-UX 11 i version 1. 6 IA-64 Only • bin. compat with HP-UX 11 i v. 1. 5 • Linux ABIs • ISV support • Mx. N threads • CIFS • Optimized NFS • LVM • OV support Q 402 HP-UX 11 i version 2 Hardware Independent • OE Support • Full dynamic v. Par • Dyna. loadable drivers • Next gen. CIFS • Real Time Ext. • TB FS • Veritas CFS&CVM • Kernel ABI • IPv 6 • WAP 2. 0 Proxy • Linux(PA&IA) ompa C y r a Bin 2 H 03 HP-UX 11 i version 3 Hardware Independent • • ODC 128 way scaling • HW Isolation • Full VDC/ODC • dynamic tunables • OL* memory/CPU • DLKM Patching tibility Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i operating system release roadmap OE Release 4 Q 00 Q 201 HP-UX 11 Independence Release Q 102 Q 402 HP-UX 11 i Version 1 Note: HP-UX future plans subject to change HP-UX 11 i Version 2 HP-UX 11 i Version 1. 5 HP-UX 11 i Version 1. 6 Itanium Release Consolidation Release ? ? ? Release 2 H 03 HP-UX 11 i Version 3 Customer Viewable

HPUX 11 i OE and OS release and update model HPUX 11 i Roadmap HP-UX 11 i Version 1. 5 4 Q 00 Q 201 OE Update OE Release 1 H 02 OE Update OE Release Note: HP-UX future plans subject to change HP-UX 11 i Version 1. 6 Version 2 OE Update OE Release HP-UX 11 i Version 3 2 H 02 OE Update OE Release 2 H 03 OE Update OE Release Customer Viewable

HPUX 11 i Roadmap HP-UX 11 i version 1 functionality l. PA-RISC only Development Tools PA shared libraries DCE RPC Open GL Open Source Tool Kit CDE/Xt/Motif HP-UX Dev Kit HP-UX MLIB HP-UX STK Languages Perl-32&64 Bit C/ANSI C Dev HP a. C++ Fortran 90 Japan Fort 90 mnl Java 3 D Dev Java Plug-in Java 2 JRE 1. 2 Java 2 SDK 1. 2 OO Cobol RTS Note: HP-UX future plans subject to change Security RSA libs ISUs HP Apache based Web Server Netscape Communicator (v 4. 75) Admin Utilities Cold Install CXperf HP-UX Install Utilities 11. 11 (IUX) Glance + M/M OV Glance. Plus Pak (English) OV Glance. Plus Pak (Japanese) File Systems Base Vx. VM (3. 1) HP JFS(3. 3) HP MPI HP Online. JFS(3. 3) HP Vx. VM (3. 1) System Functions DLKM I/O System Attributes PPL Networking Fast Ethernet LAN - 100 BT Giga. Bit Ethernet LAN - SX & T Storage Adapters Fibre Channel - switched and AL SCSI - FWD and Ultra 2 Customer Viewable, NDA Required

HPUX 11 i Roadmap HP-UX 11 i version 1. 5 functionality l. IA-64 only Development Tools Aries 32&64 bit PA apps support PA shared libraries Linux API (IA-64) Cross Dev on PA DCE RPC Open GL Open Source Tool Kit CDE/Xt/Motif and Xlibx HP-UX Dev Kit HP-UX MLIB HP-UX STK Languages Perl-32&64 Bit C/ANSI C Dev HP a. C++ Fortran 90 Japan Fort 90 mnl Java 3 D Dev Java Plug-in Java 2 JRE 1. 2 Java 2 SDK 1. 2 OO Cobol RTS Note: HP-UX future plans subject to change Security RSA libs ISUs HP Apache based Web Server Admin Utilities Cold Install (IUX) SD and SAM (PA) CXperf Glance + M/M OV Glance. Plus Pak (English) OV Glance. Plus Pak (Japanese) File Systems Base Vx. VM (3. 1) HP JFS(3. 3) HP MPI HP Online. JFS(3. 3) HP Vx. VM (3. 1) System Attributes PPL System Functions DLKM I/O(IA) Networking Fast Ethernet LAN - 100 BT Giga. Bit Ethernet LAN - SX & T Storage Adapters Fibre Channel - switched and AL SCSI - FWD and Ultra 2 3 rd Party and ISV Products Omni. Back II 3. 5 (PA) Oracle datebase Netscape Communicator (v 4. 75) Additions for Tech Server MLIB MPI LIB Customer Viewable, NDA Required

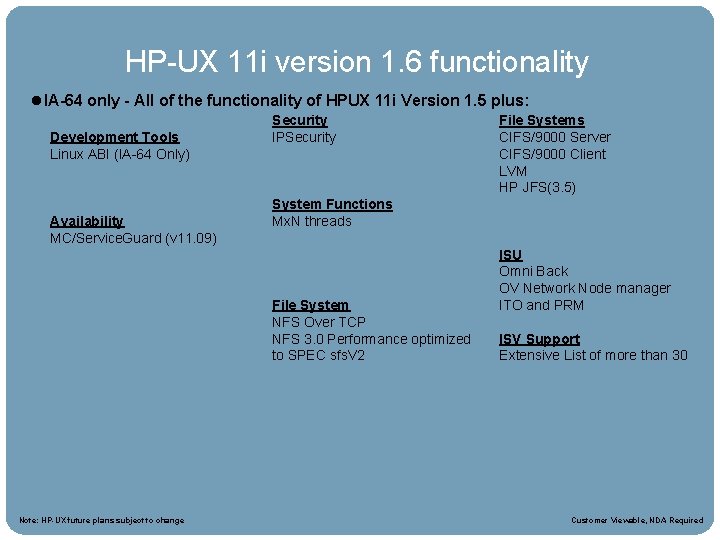

HPUX 11 i Roadmap HP-UX 11 i version 1. 6 functionality l. IA-64 only - All of the functionality of HPUX 11 i Version 1. 5 plus: Development Tools Linux ABI (IA-64 Only) Availability MC/Service. Guard (v 11. 09) Security IPSecurity System Functions Mx. N threads File System NFS Over TCP NFS 3. 0 Performance optimized to SPEC sfs. V 2 Note: HP-UX future plans subject to change File Systems CIFS/9000 Server CIFS/9000 Client LVM HP JFS(3. 5) ISU Omni Back OV Network Node manager ITO and PRM ISV Support Extensive List of more than 30 Customer Viewable, NDA Required

HPUX 11 i Roadmap HP-UX 11 i version 2 functionality l. PA-RISC and IA-64 Operating Environments OE Base OE Enterprise OE Mission Critical Development Tools Aries 32&64 bit support Kernel Driver ABI Linux API (PA & IA) Availability Cell OLA DLKM I/O Full Processor Dealloc & i. COD OLD I/O Scaliablity 128 way boot 128 way DSS & Tech App Perf -way SDET Security Next Gen. CIFS LDAP address mgmt, pthread-safe Next generation audit Root containment / Access control Root file protection Secure defaults, config Support for long file names System Functions Memory Locality Shared Memory Support for PRM Shared Memory Teardown Unified Cache Buffer Mx. N threads Kernel Driver ABI Multiple Add. Space on IA Networking NFS 64 Over TCP 10 Gbit/s Ethernet TCP Offload Engines Wireless IPv 6 WAP 2. 0 Proxy Real Time Ext. Deterministic Response ISUs Fully Dynamic v. Pars File Systems Vx. VM 3. 2 (rootability) 2 TB FS HP JFS(3. 3) JFS 3. 5 Veritas CFS & CVM Hard. Ware Processor Sets Mako in Pinnacles Guadelupe HW/SW Liberation Storage i. SCSI Note: HP-UX future plans subject to change Customer Viewable, NDA Required

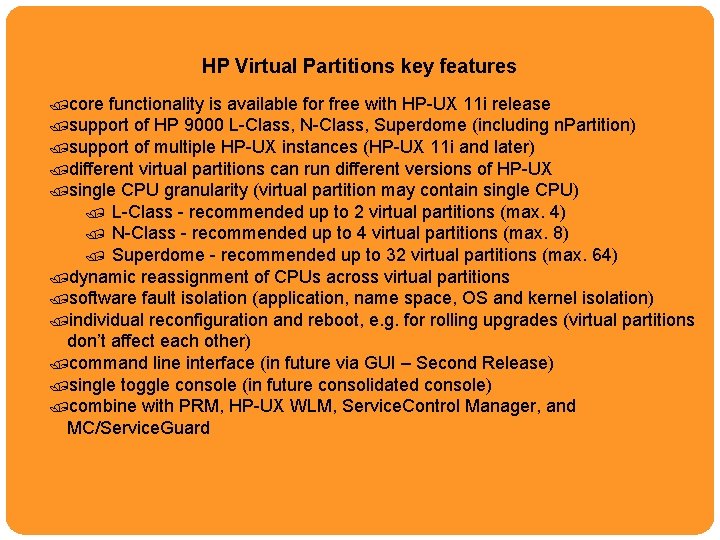

HPUX 11 i Roadmap HP Virtual Partitions key features /core functionality is available for free with HP-UX 11 i release /support of HP 9000 L-Class, N-Class, Superdome (including n. Partition) /support of multiple HP-UX instances (HP-UX 11 i and later) /different virtual partitions can run different versions of HP-UX /single CPU granularity (virtual partition may contain single CPU) / L-Class - recommended up to 2 virtual partitions (max. 4) / N-Class - recommended up to 4 virtual partitions (max. 8) / Superdome - recommended up to 32 virtual partitions (max. 64) /dynamic reassignment of CPUs across virtual partitions /software fault isolation (application, name space, OS and kernel isolation) /individual reconfiguration and reboot, e. g. for rolling upgrades (virtual partitions don’t affect each other) /command line interface (in future via GUI – Second Release) /single toggle console (in future consolidated console) /combine with PRM, HP-UX WLM, Service. Control Manager, and MC/Service. Guard Shipment for L, N-Class 3 Q 01 (Superdome after N and L)

v. Pars technical overview HPUX 11 i Roadmap Dept. A App 1’ Dept. B App 2 Dept. B App 3 HP-UX Revision A. 1 HP-UX Revision A. 2 HP-UX Revision B. 3 v. Par Monitor • a single physical server may be softpartitioned into multiple virtual servers (virtual partitions) • each virtual partition (v. Par) runs an independent instance of HP-UX, providing complete name-space isolation • v. Pars may run separate release and patch levels of HP-UX • using v. Pars, multiple applications or multiple instances of the same application may coexist without kernel or user resource or name-space conflicts • v. Pars may be individually reconfigured and rebooted • v. Pars may be administered via SCM or separately via SAM or other tools

HPUX 11 i Roadmap v. Pars logical overview • multiple applications or multiple instances or versions of the same application • no name space or resource conflicts • creates illusion of many separate hardware platforms • manages shared physical resources • monitors health of operating system instances Dept. A App 1’ HP-UX Revision A Patch Lvl 1 HP-UX Revision A Patch Lvl 2 Dept. B App 2 HP-UX Revision B Patch Lvl 1 v. Par Monitor Hardware Platform / Hard Partition • each operating system instance tailored specifically for the application(s) it hosts • operating systems instances are given a user-defined portion of the physical resources • no name space or resource conflicts • supported on L-, Nand Superdome. Class systems • no additional platform support required

HP Virtual Partitions: multiple applications on the same server with software isolation e Basuct d pro free! for Dept. A App 1’ Dept. B App 2 Dept. B App 3 HP-UX Revisio n A. 1 HP-UX Revisio n A. 2 HP-UX Revisio n B. 3 increased system utilization partitioning a single physical server or hard partition into multiple virtual partitions for L, N-class, and Superdome increased flexibility multiple independent instances of HP-UX dynamic CPU migration across virtual partitions increased isolation application (including name space) isolation across virtual partitions OS (kernel) isolation individual reconfiguration and reboot file name file location 3/6/2021

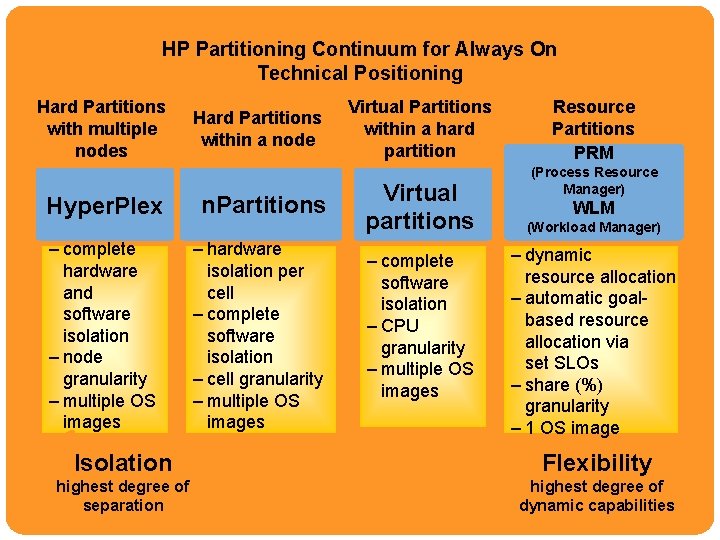

HPUX 11 i Roadmap HP Partitioning Continuum for Always On Technical Positioning Hard Partitions with multiple nodes Hyper. Plex – complete hardware and software isolation – node granularity – multiple OS images Hard Partitions within a node n. Partitions – hardware isolation per cell – complete software isolation – cell granularity – multiple OS images Virtual Partitions within a hard partition Virtual partitions – complete software isolation – CPU granularity – multiple OS images Resource Partitions PRM (Process Resource Manager) WLM (Workload Manager) – dynamic resource allocation – automatic goalbased resource allocation via set SLOs – share (%) granularity – 1 OS image Isolation Flexibility highest degree of separation highest degree of dynamic capabilities

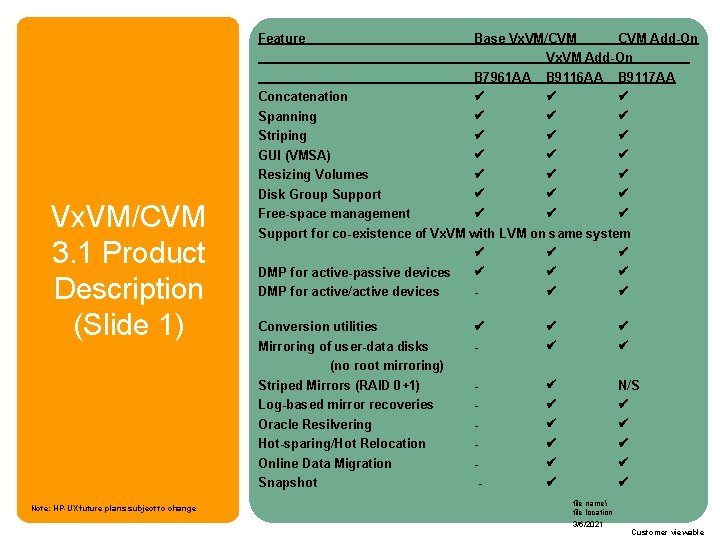

Feature Base Vx. VM/CVM Add-On Vx. VM/CVM 3. 1 Product Description (Slide 1) Note: HP-UX future plans subject to change Concatenation Spanning Striping B 7961 AA B 9116 AA B 9117 AA GUI (VMSA) Resizing Volumes Disk Group Support Free-space management Support for co-existence of Vx. VM with LVM on same system DMP for active-passive devices DMP for active/active devices Conversion utilities Mirroring of user-data disks - (no root mirroring) Striped Mirrors (RAID 0+1) Log-based mirror recoveries Oracle Resilvering Hot-sparing/Hot Relocation Online Data Migration Snapshot - N/S file name file location 3/6/2021 Customer viewable

Feature Base Vx. VM/CVM Add-On Vx. VM/CVM 3. 1 Product Description (Slide 2) Note: HP-UX future plans subject to change Task monitor Online Relayout Mirrored Stripes (RAID 1+0) B 7961 AA Vx. VM only - RAID-5 Support for MC/SG Support for SG OPS Edition Base CVM - N/S Support for mixed clusters only # 8 MC/SG 4 OPS Multiple node cluster support Rolling Upgrade support Online Reconfiguration for shared diskgroups 4 MC/SG 2 OPS # B 9116 AA Diskgroup activated on at most 1 node # N/A file name file location 3/6/2021 B 9117 AA N/S Diskgroup activated on any # of nodes (up to 4) Customer viewable

Milestones • Linux API on IA - Q 201 • Linux ABI on IA - Q 302 • Linux API on PA - Q 402 Linux strategy for HP-UX 11 i Web. Gain Studio for integrated windows app. dev. env. (IDE) targeting HP-UX 11 develop and debug on IA-32/windows and deploy optimized java code on HP-UX 11 i java optimization tools for optimizing java run-time environment. hp j-meter, hp jconfig, etc. (available free from hp. com/java) Use IA-based HPUX or Linux as a low cost development platform for HP-UX mission critical applications develop on Linux or Windows and deploy on HP-UX 11 i Linux being ported onto PA (A, L, and N class) in 2 H 2000 Note: HP-UX future plans subject to change HP believes that Linux has a role to play in: low-end and midrange server environments appliances application development file name file location 3/6/2021 Customer viewable

• core_addshmem_read • core_addshmem_write (VM) shared memory segments in application core dumps • maxuprc (PM) maximum number of processes per user dynamically tunable kernel parameters for HP-UX 11 i OEs • shmmax (VM) shared memory maximum size • shmseg (VM) shared memory segment size • maxfiles_lim* (FS) maximum number of files • maxtsiz (VM) maximum text segment size • maxtsiz_ 64 bit* (VM) maximum text segment size - 64 bit goal is reduction of reboots by 50% • msgmax (PM) maximum number of messages • msgmnb (PM) maximum number of bytes msg queue • scsi_max_qdepth (IO) depth of SCSI I/O queue • semmsl * per process Note: HP-UX future plans subject to change file name file location 3/6/2021 Not customer viewable

Feature Base Vx. VM/CVM Concatenation Spanning Striping GUI (VMSA) Resizing Volumes Disk Group Support Base Vx. VM/CVM Add-On Functionality for HP-UX 11 i OEs Free-space mgmt Support for co-existence of Vx. VM with LVM on same system DMP for act. -passive devices DMP for act. /act. devices # Conversion utilities Task monitor (Vx. VM only) Supt. for MC/SG Supt. for SG/OPS Supt. mixed clusters Multiple node cluster supt. 4 MC/SG or 2 OPS Rolling Upgd supt. Online Reconf. for shared diskgroup 1 node only # Vx. VM/CVM is compatible with the OEs and needs to be purchased separately # Base CVM only Note: HP-UX future plans subject to change file name file location 3/6/2021 Customer viewable

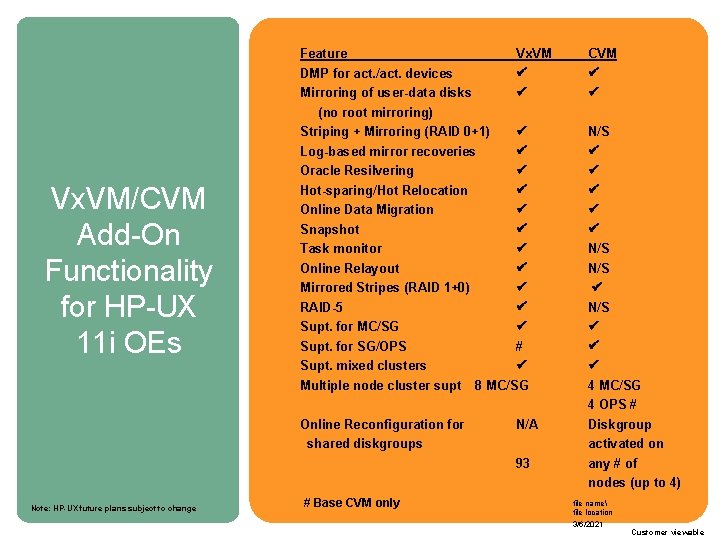

Vx. VM/CVM Add-On Functionality for HP-UX 11 i OEs Feature DMP for act. /act. devices Vx. VM CVM Mirroring of user-data disks (no root mirroring) Striping + Mirroring (RAID 0+1) Log-based mirror recoveries Oracle Resilvering Hot-sparing/Hot Relocation Online Data Migration Snapshot Task monitor Online Relayout Mirrored Stripes (RAID 1+0) RAID-5 Supt. for MC/SG Supt. for SG/OPS Supt. mixed clusters # N/S N/S Multiple node cluster supt Online Reconfiguration for shared diskgroups 8 MC/SG N/A 93 Note: HP-UX future plans subject to change # Base CVM only 4 MC/SG 4 OPS # Diskgroup activated on any # of nodes (up to 4) file name file location 3/6/2021 Customer viewable

Feature Base Vx. VM/CVM Add-On Vx. VM/CVM 3. 1 Product Description (Slide 1) Note: HP-UX future plans subject to change Concatenation Spanning Striping B 7961 AA B 9116 AA B 9117 AA GUI (VMSA) Resizing Volumes Disk Group Support Free-space management Support for co-existence of Vx. VM with LVM on same system DMP for active-passive devices DMP for active/active devices Conversion utilities Mirroring of user-data disks - (no root mirroring) Striped Mirrors (RAID 0+1) Log-based mirror recoveries Oracle Resilvering Hot-sparing/Hot Relocation Online Data Migration Snapshot - N/S file name file location 3/6/2021 Customer viewable

Feature Base Vx. VM/CVM Add-On Vx. VM/CVM 3. 1 Product Description (Slide 2) Note: HP-UX future plans subject to change Task monitor Online Relayout Mirrored Stripes (RAID 1+0) B 7961 AA Vx. VM only - RAID-5 Support for MC/SG Support for SG OPS Edition Base CVM - N/S Support for mixed clusters only # 8 MC/SG 4 OPS Multiple node cluster support Rolling Upgrade support Online Reconfiguration for shared diskgroups 4 MC/SG 2 OPS # B 9116 AA Diskgroup activated on at most 1 node # N/A file name file location 3/6/2021 B 9117 AA N/S Diskgroup activated on any # of nodes (up to 4) Customer viewable

Milestones • v. Pars on L and N class systems - Q 301 • v. Pars on Superdome - Q 401 v. Pars strategy for HP-UX 11 i • Full dynamic v. Pars (include dynamic CPU migration and dynamic memory addition) Q 402 v. Pars Licensing System will ship with demo license that includes two partitions: Unlimited partition and 1 CPU limited partition. Note: HP-UX future plans subject to change v. Pars: The HP-UX 11 i Virtual Machine Environment file name file location 3/6/2021 Customer viewable

Milestones • CIFS/9000 on IA - Q 201 • NG CIFS/9000 client – Q 402 CIFS strategy for HP-UX 11 i Note: HP-UX future plans subject to change CIFS/9000 server based on Samba 2. 2 targeted for release in 1 H 2002 Next Generation CIFS client may include ACL support, ONC Auto. FS and byte-range locking Bi-directional access between HP-UX and Windows as well as HP-UX and HP -UX file name file location 3/6/2021 Customer viewable
