Curve Sketching Lesson 5 4 Motivation Graphing calculators

Curve Sketching Lesson 5. 4

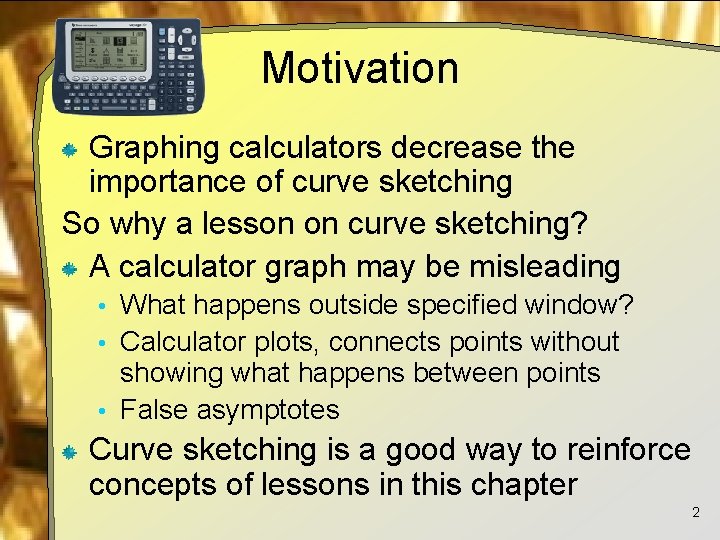

Motivation Graphing calculators decrease the importance of curve sketching So why a lesson on curve sketching? A calculator graph may be misleading • What happens outside specified window? • Calculator plots, connects points without showing what happens between points • False asymptotes Curve sketching is a good way to reinforce concepts of lessons in this chapter 2

Tools for Curve Sketching Test for concavity Test for increasing/decreasing functions Critical points Zeros Maximums and Minimums 3

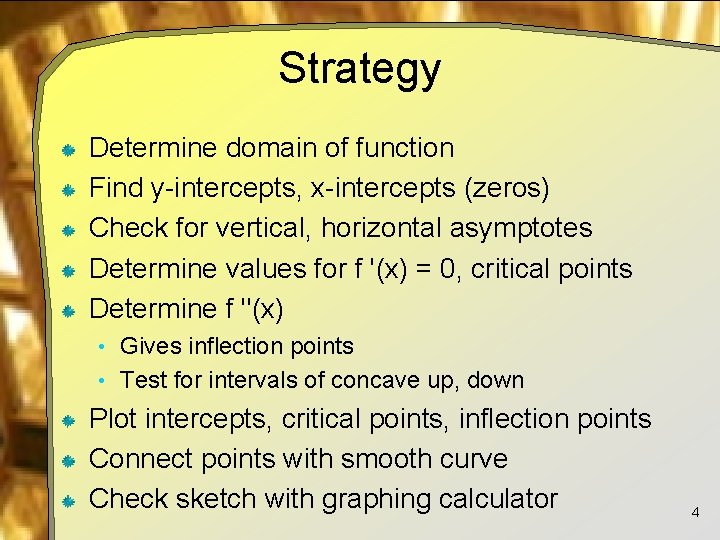

Strategy Determine domain of function Find y-intercepts, x-intercepts (zeros) Check for vertical, horizontal asymptotes Determine values for f '(x) = 0, critical points Determine f ''(x) • Gives inflection points • Test for intervals of concave up, down Plot intercepts, critical points, inflection points Connect points with smooth curve Check sketch with graphing calculator 4

Using First, Second Derivatives Note the four possibilities for a function to be … • Increasing or decreasing • Concave up or concave down f '(x) f ''(x) Positive (increasing function) Negative (decreasing function) Positive (concave up) Negative (concave down) 5

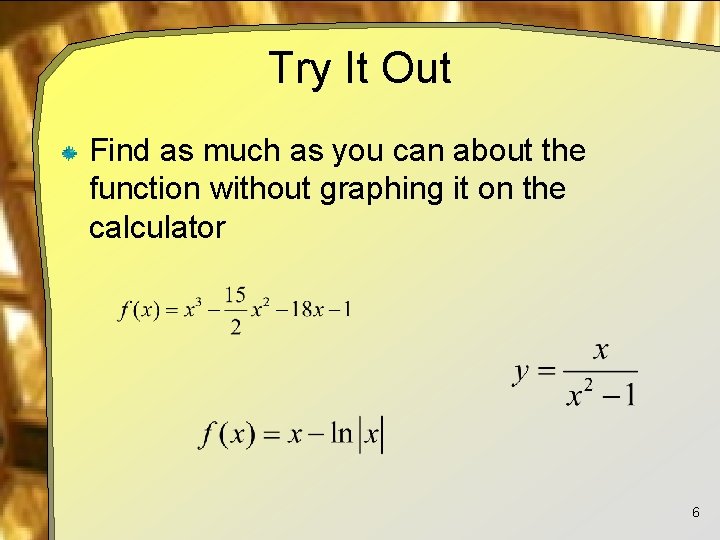

Try It Out Find as much as you can about the function without graphing it on the calculator 6

Graphing Without the Formula Consider a function of this description • Can you graph it? This function is continuous for all reals • • • A y-intercept at (0, 2) 7

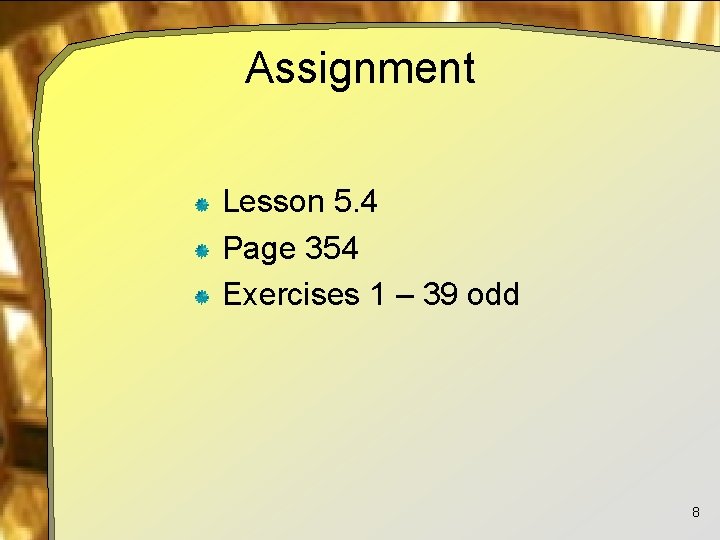

Assignment Lesson 5. 4 Page 354 Exercises 1 – 39 odd 8
