Curtis controller CURTIS CONTROLLERS SPECIFICATION MODEL 1221 C74

Curtis controller

CURTIS CONTROLLERS SPECIFICATION: MODEL: 1221 C-74 XX 1231 C-86 XX INPUT VOLTAGE: 72 - 120 V 96 - 144 V MAX CURRENT: 400 AMPS 500 AMPS 2 -MIN RATING: 400 AMPS 5 -MIN RATING: 250 AMPS 375 AMPS 1 -HR RATING: 150 AMPS 225 AMPS UNDERVOLTAGE CUT BACK @ 45 VDC CUTS BACK @ 64 VDC VOLTAGE DROP: <0. 50 VDC @ 100 AMPS <0. 30 VDC @ 100 AMPS SWITCHING FREQ. : 1. 5 - 15 k. Hz WEIGHT: 13 lbs. 19 lbs DIMENSIONS: 12" L x 7. 1" W x 3. 15"H 13. 3" L x 8. 6" W x 3. 7" H PDF File: 1221 C/1231 C Brochure

CURTIS 1274 SPEX CONROLLER SPECIFICATION: INPUT VOLTAGE: MODEL: 1274 -54 XX 1274 -74 XX 48 V 72 V CONTROL WIRING: 48/12 V 72/12 V MAX CURRENT: 400 A 2 -MIN RATING: 400 A WEIGHT: 8 lbs. DIMENSIONS: 9" L x 7" W x 3. 18" H PDF File: 1274 Brochure

Alltrax controller

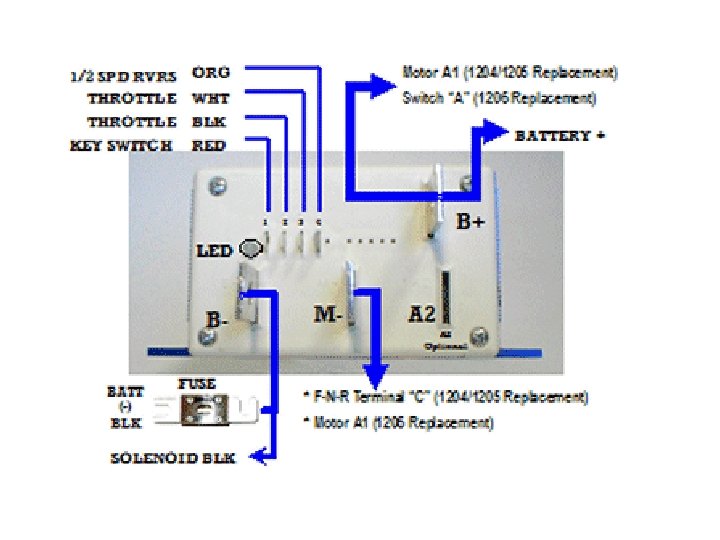

Alltrax info. AXE Performance Products used for SERIES Wound or Permanent Magnet Electric Motors The AXE product line is used with SERIES Wound Motors. These units drive golf cars, scissors lifts, boom trucks, Neighborhood electric vehicles, and a variety of other applications. Features include: • Programmable via RS 232 comm port using PC or Laptop • Integrated anodized heat-sink with multi bolt pattern for flexibility • Fully encapsulated epoxy fill - environmentally rugged design • Available in 300 through 650 amp Performance versions • Advanced MOSFET power transistor design for excellent efficiency and power transfer • 1/2 Speed reverse option and "Plug Brake" options available

Sevcon controller
