Current Status Steve Foley Jonathan Berger SIO Hi
Current Status Steve Foley Jonathan Berger SIO
Hi. Seas. Net Services w w Installation & Commissioning On-going Maintenance Satellite Bandwidth (32/96 C, 64/64 Ku) Hub Station connection to Internet w w w Direct routing through to Home Institution Voice over IP through to Home Institution Email Web Browsing Video Teleconferencing

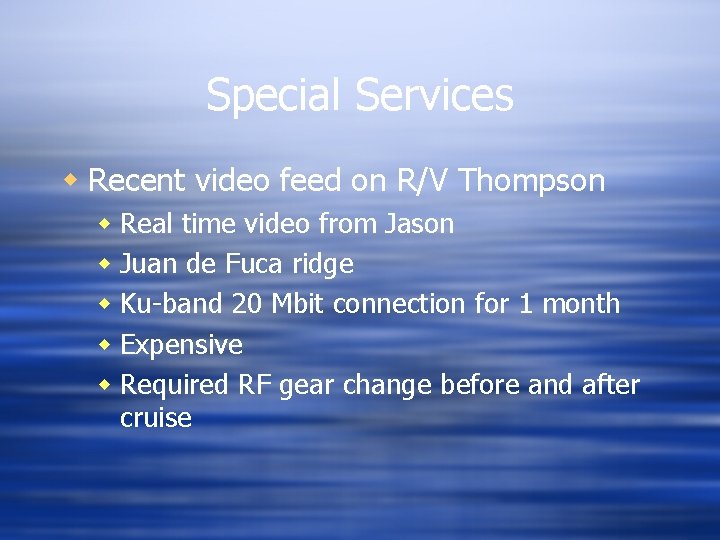

Special Services w Recent video feed on R/V Thompson w Real time video from Jason w Juan de Fuca ridge w Ku-band 20 Mbit connection for 1 month w Expensive w Required RF gear change before and after cruise
Hi. Seas. Net Hub San Diego Supercomputer Center
Hi. Seas. Net “Fleet”
Pacific Coverage
Atlantic/Eastern Pacific
Current KU-Band Coverage
Example Alternate Ku -band Coverage
Current Bandwidth Use w POR hub-to-station (160 kbps, 5 ships): w http: //mercali. ucsd. edu/nagios/opencgibin/apan. cgi? host=roadnet-2611&service=HSNOctets-Out w AOR hub-to-station (128 kbps, 2 ships): w http: //mercali. ucsd. edu/nagios/opencgibin/apan. cgi? host=roadnet-2611&service=AOROctets-Out w Ku-Band hub-to-station (128 kbps, 1. 5 ships): w http: //mercali. ucsd. edu/nagios/opencgibin/apan. cgi? host=earthstation 2821&service=Sat. Mex 5 -Octets-Out w http: //www. hiseasnet. net/traffic-reports. html
Equipment Downtime
Failures and Spares w Most failures are user or ship related w Power outage, antenna repoints, gyro failure, unfamiliarity with gear, etc. w Solution: Learn to work with gear and ship quirks w Antenna pointing failures occur, but usually are not catastrophic w Solution: Work with Sea. Tel and learn to work with gear/ship quirks w When equipment dies, it is usually RF gear, despite it being the “most reliable in the business” w Solution: Spare LNAs, depot converter and power amp spares in SD

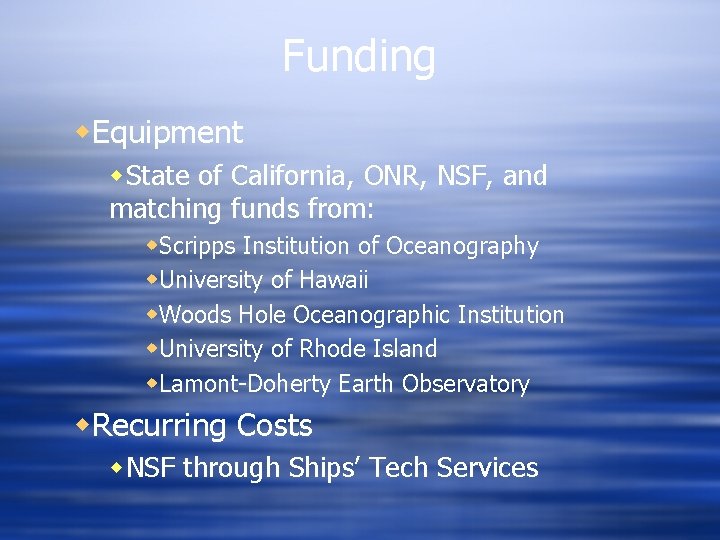

Funding w. Equipment w. State of California, ONR, NSF, and matching funds from: w. Scripps Institution of Oceanography w. University of Hawaii w. Woods Hole Oceanographic Institution w. University of Rhode Island w. Lamont-Doherty Earth Observatory w. Recurring Costs w. NSF through Ships’ Tech Services
2006 Hi. Seas. Net Recurring Costs w Satellite Leases - $280 K w Operations & Maintenance - $180 K w 2 trips to each ship per year w Hub maintenance w Management w Spares - $50 K w Ships Tech Services Day Rates w C-band - $250 w KU-band - $150
Next Generation Ku -Band for Small Ships 1 m
Radome Sizes C-Band KU-Band NG KU-Band 144 in 82 in 48 in
System Comparisons KU-Band NG KU Antenna 1. 2 m 1. 0 m Radome 82 in 48 in Weight 800 lb 250 lb Rx Gain 41. 65 d. B 40. 1 d. B G/T 16. 8 d. B/K˚ 18. 2 d. B/K˚
Block Diagram
NG Ku-Band Cost w Capitol Costs w ~$80 k, installed & commissioned w Incremental Recurring Costs w About $150/day for 64 kbps duplex
