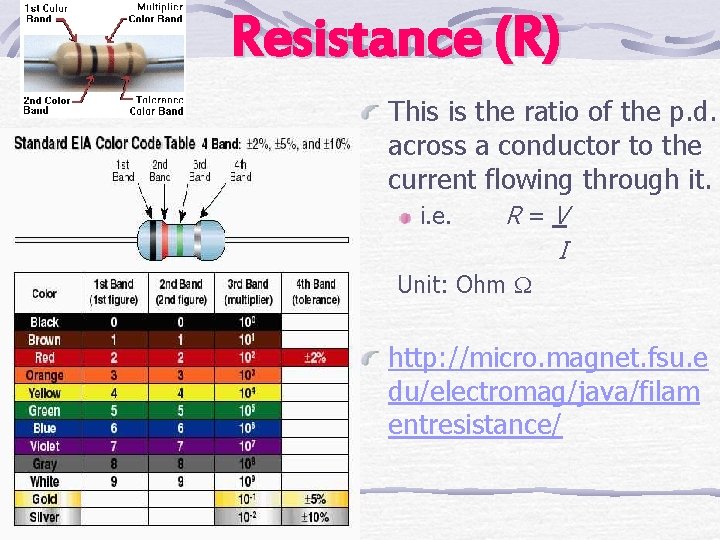

Resistance (R) This is the ratio of the p. d. across a conductor to the current flowing through it. i. e. R=V I Unit: Ohm http: //micro. magnet. fsu. e du/electromag/java/filam entresistance/

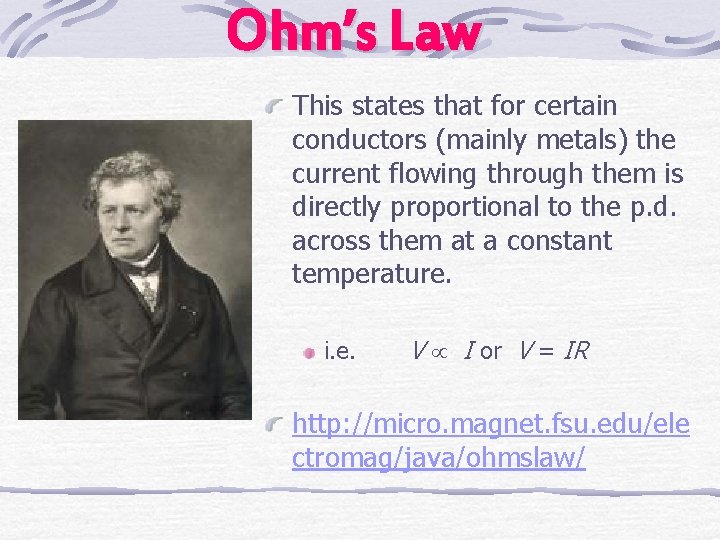

Ohm’s Law This states that for certain conductors (mainly metals) the current flowing through them is directly proportional to the p. d. across them at a constant temperature. i. e. V I or V = IR http: //micro. magnet. fsu. edu/ele ctromag/java/ohmslaw/

Series Vs Parallel + _ Bulb

Resistors in Series and Parallel R 1 R 2 In Series the total resistance is R = R 1 + R 2 + R 3 In Parallel the total resistance is 1=1+1+1 R 2 R 3 R R 1 R 2 R 3 http: //lectureonline. cl. msu. edu/~mmp/kap 20/RR 506 a. htm

Factors affecting Resistance of a conductor Resistance depends on Temperature Material of conductor Length Cross-sectional area Temperature The resistance of a metallic conductor increases as the temperature increases e. g. copper The resistance of a semiconductor/insulator decreases as the temperature increases e. g. thermistor.

Factors affecting Resistance of a conductor Length Resistance of a uniform conductor is directly proportional to its length. i. e. R L Cross-sectional area Resistance of a uniform conductor is inversely proportional to its crosssectional area. i. e. R 1 A

Factors affecting Resistance of a conductor Material The material also affects the resistance of a conductor by a fixed amount for different materials. This is known as resistivity ( ). R = L A = constant of proportionality = R d 2 4 L (For a wire with circular cross-sectional area) Unit: ohm meter m

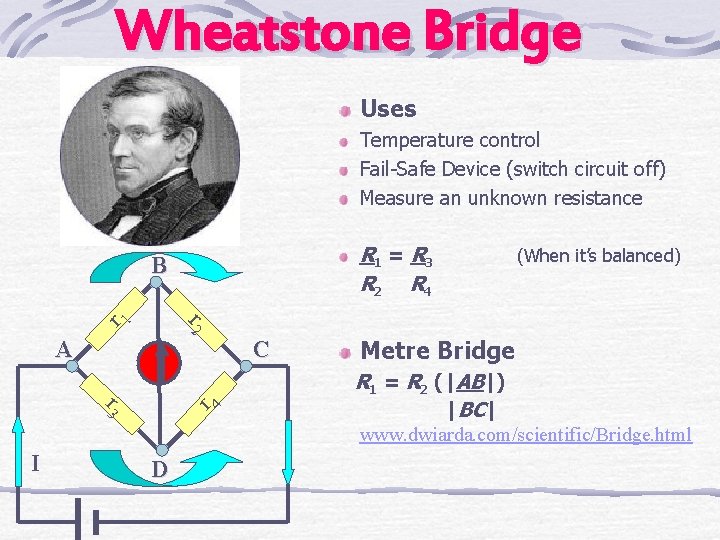

Wheatstone Bridge Uses Temperature control Fail-Safe Device (switch circuit off) Measure an unknown resistance R 1 = R 3 R 2 R 4 r 2 r 1 B A r 4 r 3 C (When it’s balanced) Metre Bridge R 1 = R 2 (|AB|) |BC| www. dwiarda. com/scientific/Bridge. html I D

Effects of an Electric Current 1. 2. 3. Heat Chemical Magnetic Joule’s Law States that the rate at which heat produced in a conductor is directly proportional to the square of the current provided its resistance is constant i. e. P = I 2 R In order to prevent power lines from overheating, electricity is transmitted at a very high voltage (EHT: Extra High Tension). From Joule’s law the larger the current the more heat produced hence a transformer is used to increase voltage and lower current i. e. P = V I

Effects of an Electric Current Electrolysis is the chemical effect of an electric current Voltameter consists of electrodes, an electrolyte and a container Inactive electrodes are electrodes that don’t take part in the chemical reaction e. g. platinum in H 2 SO 4 Active electrodes are electrodes that take part in the chemical reaction e. g. copper in Cu. SO 4

Effects of an Electric Current Ion is an atom or molecule that has lost or gained 1 or more electrons Charge Carriers in an electrolyte are + and – carriers Uses Electroplating to make metal look better, prevent corrosion Purifying metals Making electrolytic capacitors

Relationship between V and I for conductors Metallic conductor Negative electrons are the charge carriers I V Filament bulb I Negative electrons are the charge carriers Semiconductor Negative electrons and positive holes are the charge carriers V I V

Relationship between V and I for conductors Active electrodes Positive and negative ions are the charge carriers Inactive (Inert) electrodes Positive and negative ions are the charge carriers Gas Positive and negative ions and electrons are the charge carriers Vacuum Electrons are the charge carriers I V I V

Domestic Electric Circuits Electricity entering the home is supplied at 230 V a. c. 2 wires enter the house from the mains: Live + neutral and pass through the meter box These 2 wires pass into a distribution box with fuses

Domestic Electric Circuits Radial circuit are used for appliances that take a large current. Each closed circuit has its own live wire, neutral wire and fuse e. g. cooker, electric shower Ring circuit are used for connections to sockets. Live terminals are connected together as are the neutral terminals Lights are connected in parallel and a number of them are connected to the same fuse

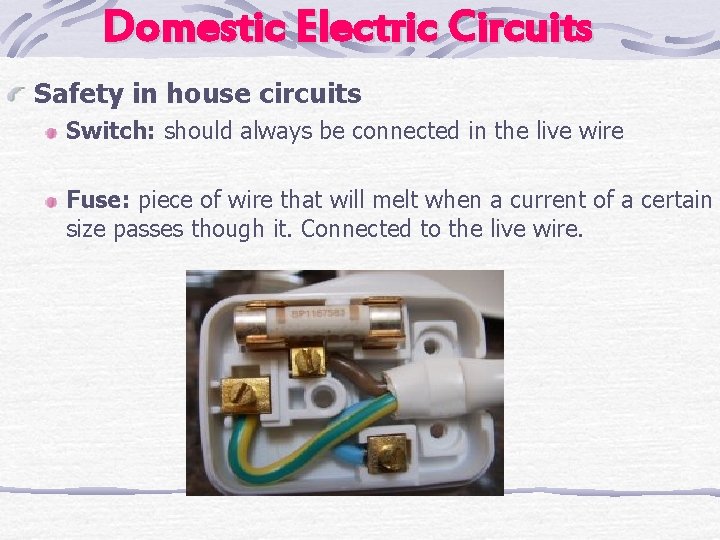

Domestic Electric Circuits Safety in house circuits Switch: should always be connected in the live wire Fuse: piece of wire that will melt when a current of a certain size passes though it. Connected to the live wire.

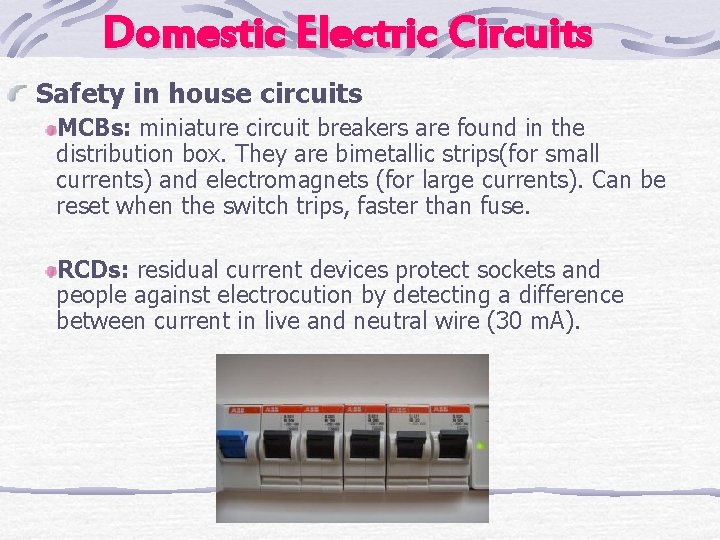

Domestic Electric Circuits Safety in house circuits MCBs: miniature circuit breakers are found in the distribution box. They are bimetallic strips(for small currents) and electromagnets (for large currents). Can be reset when the switch trips, faster than fuse. RCDs: residual current devices protect sockets and people against electrocution by detecting a difference between current in live and neutral wire (30 m. A).

Domestic Electric Circuits Safety in house circuits Bonding: All metal taps, pipes, water tanks etc are connected to the earth Earthing: Earth wire prevents electrocution from touching metal parts of appliances by providing a path of least resistance when faults occur.

E. S. B Kilowatt-hour k. Wh • This is the amount of energy used by a 1000 W appliance in one hour • The ESB charge bills based on the no. of units, k. Wh, used in the home
