Current Development of Power Sector in Lao PDR
- Slides: 20
Current Development of Power Sector in Lao PDR Presented by Lao Delegation Study tour to Power Pooling in Europe November 24 -28, 2003 1
Contents Power sector structure l Current situation l Power policy l Progress of Nam. Theun-2 project l Power grid interconnection l 2
I. INTRODUCTION • Lao PDR is a mountainous country without direct access to the sea. • Area: 236, 800 km 2 • Population: about 5. 5 mio. (est. 2002), over 80% lives in rural areas and is engaged in rice-based agriculture and harvesting of forest products. • Per capita Gross National Product of US$ 326 per annum (est. 2002). • Exploitable hydro potential=18, 000 MW, less than 2% has been harnessed. 3

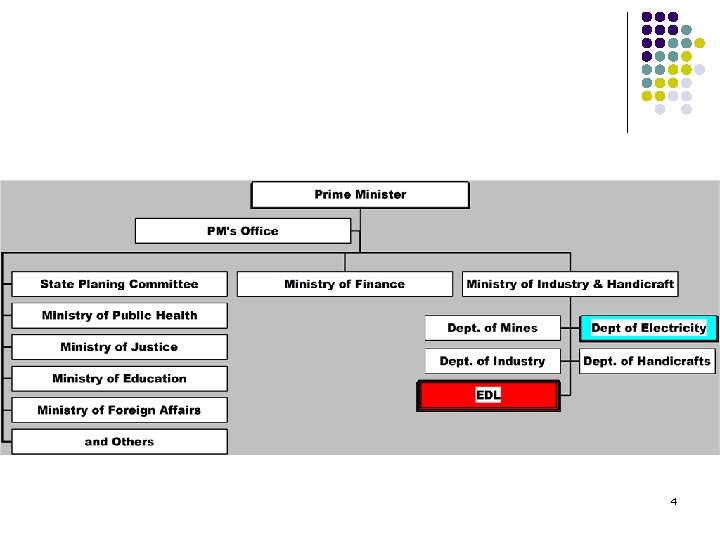

4
5
Northern Area: 2002: 7. 8 MW peak, 18 GWh 2010: 35 MW peak, 184 GWh Central-1 Area: 2002: 140 MW peak, 681 GWh 2010: 256 MW peak, 1, 345 GWh Central-2 Area: 2002: 32 MW peak, 153 GWh 2010: 168 MW peak, 885 GWh Southern Area: 2002: 24 MW peak, 104 GWh 2010: 83 MW peak, 360 GWh 6

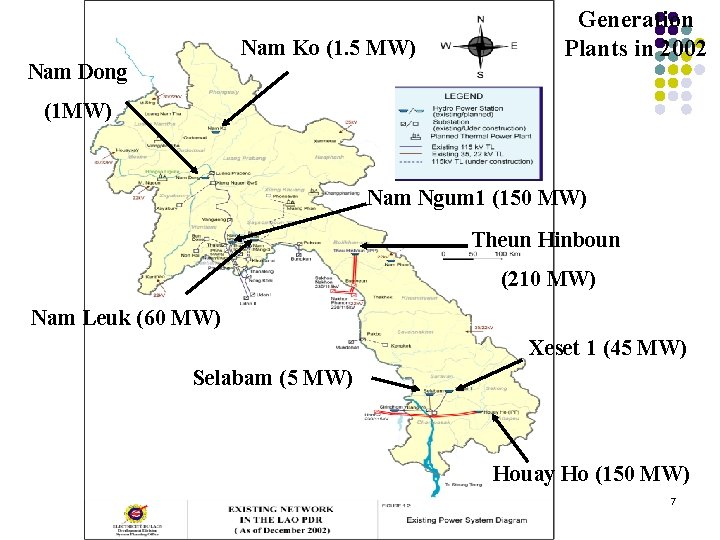

Nam Ko (1. 5 MW) Nam Dong Generation Plants in 2002 (1 MW) Nam Ngum 1 (150 MW) Theun Hinboun (210 MW) Nam Leuk (60 MW) Xeset 1 (45 MW) Selabam (5 MW) Houay Ho (150 MW) 7

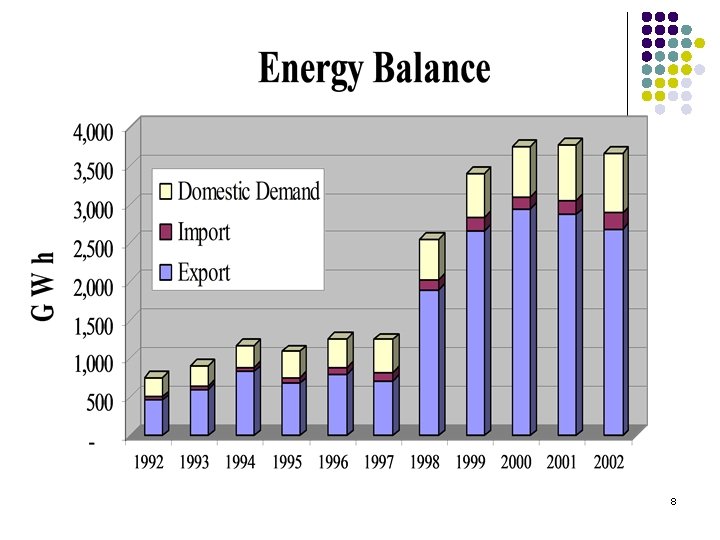

8
Share of total installed capacity Year 2002 9
10

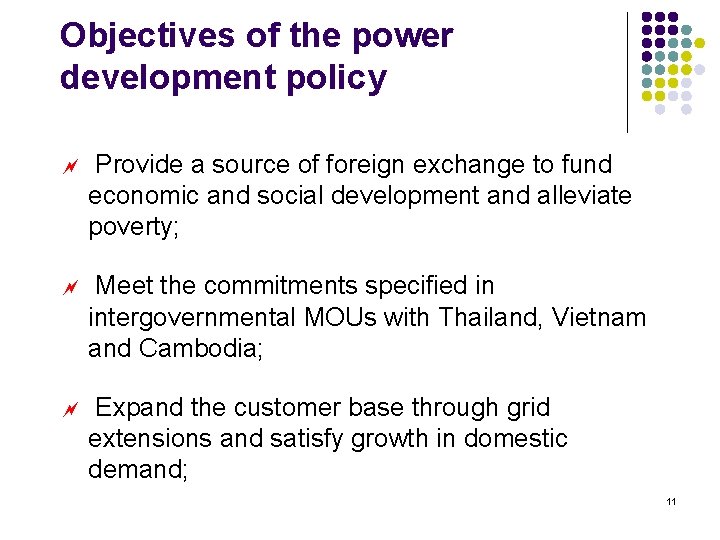

Objectives of the power development policy ~ Provide a source of foreign exchange to fund economic and social development and alleviate poverty; ~ Meet the commitments specified in intergovernmental MOUs with Thailand, Vietnam and Cambodia; ~ Expand the customer base through grid extensions and satisfy growth in domestic demand; 11
Objectives of the power development policy (Con’t) ~ Explore and exploit mutually beneficial cross border exchanges of electricity with neighbouring countries of the sub-region. ~ Extend off-grid rural electrification to promote better socio-economic conditions within isolated communication. 12

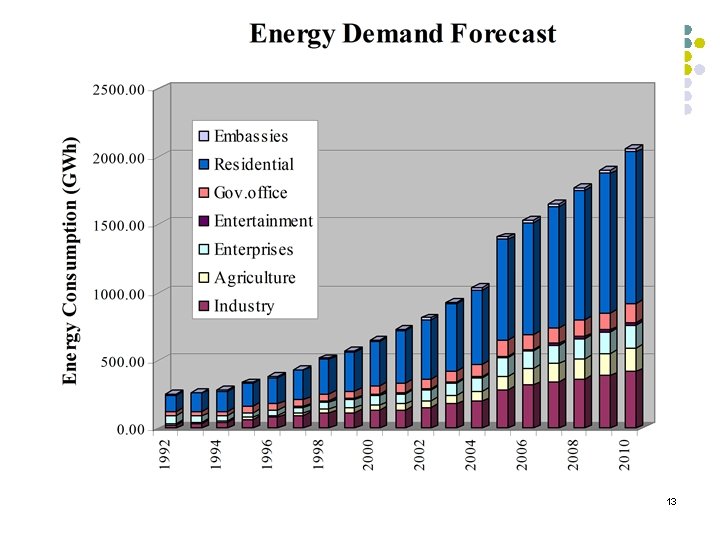

13
Transmission Network by 2012 14
Share of total installed capacity Year 2002 Year 2007 15 Year 2010

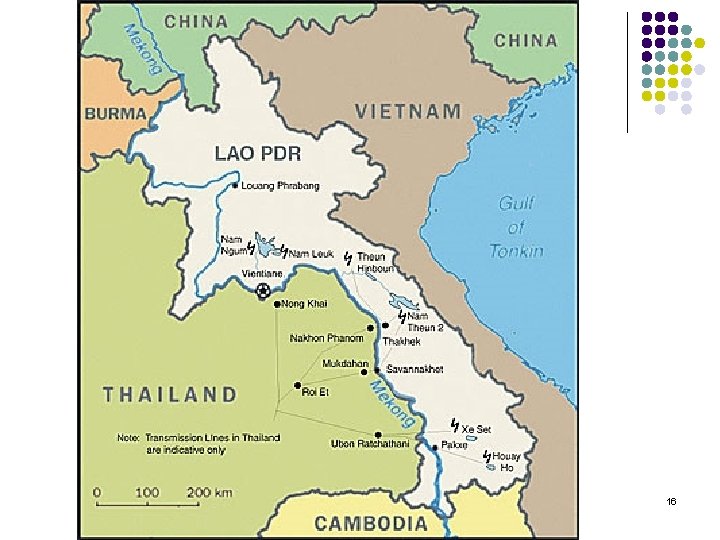

16
17
Project Structure 18

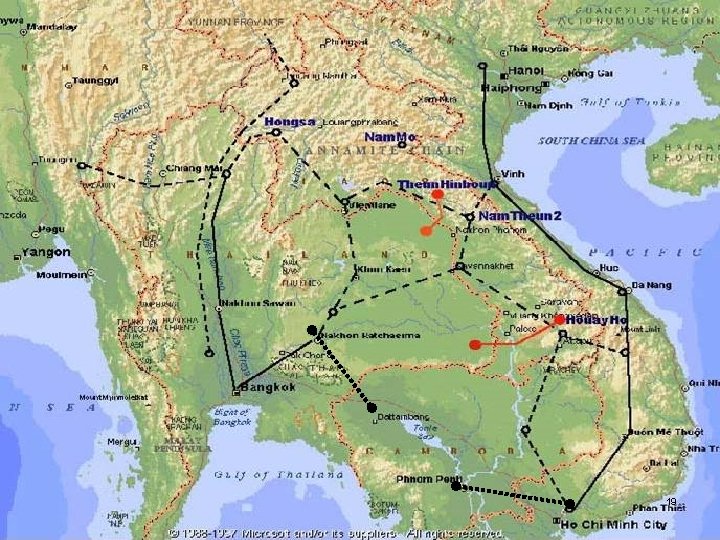

19
Thank you for your attention 20
