Current and Future Challenges in Mathematical and Computational Biology Louis J. Gross The Institute for Environmental Modeling Departments of Ecology and Evolutionary Biology and Mathematics University of Tennessee

Overview • Complex systems – examples and a game • Biology – opportunities for quantitative approaches • Computational ecology – panthers, bears and gators, oh my! • Everglades restoration - Tales from the Real World: Mathematics and Computing Meets Greed, Politics, Lawyers and the Army Corps of Engineers

What is biocomplexity? Bio – pertaining to life, so must include some aspect of this. Complexity – A complex system is one in which a well trained scientist knowledgable about the system of concern cannot rapidly intuit how the system will behave. By rapidly here, I mean with the aid of simple computational tools (pencil and paper, computer, calculator, etc. ) in a few minutes.

Routes to complexity Complexity should include systems that may be quite easily described, but have underlying complicated responses (e. g. the chaotic dynamics models of single or multiple populations) that one cannot intuit easily, as well as systems that most of us would agree are complicated due to multiple interacting factors (food webs with many components, ecosystems with dynamic and spatial responses on multiple scales).

www. clearwater. org

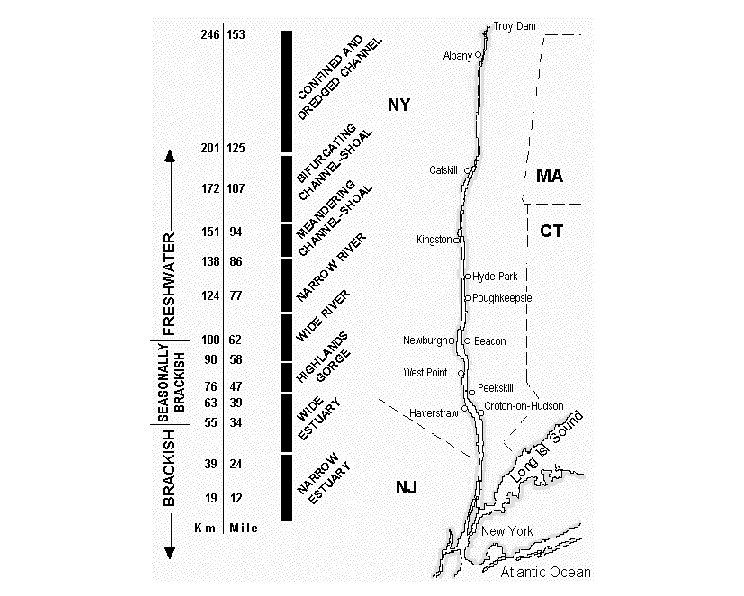

Hudson River System – questions that might be asked: • What are the projected changes in fish populations in the next few years? • What is the impact of salt water dynamics along the river on the biota present? • How are pollutants such as PCB transported through the natural system? • What are the effects of PCB on the organisms present?

How does math relate to this? • Models in the form of systems of differential equations describing the levels of toxicants in different “compartments”, such as reaches, sediments, and species populations, carry out a mass balance, tracking the changes in amounts of toxicants throughout the natural system. Fate Models

These mass balance models are elaborated to account for the changes in body burden of various toxicants through the river system, particularly in fish. This requires models for the effects of toxicants on physiology, behavior and reproduction. Effects Models.

Effects models for various species taking account of the interactions across the food webs in the river are combined with physical models for salinity, hydrology and nutrients to provide an assessment of system response to alternative management (e. g. dredging). Ecosystem models.

Some of these models are done for the Hudson, but not all. • It takes a great deal of data and iterative modeling to make this work. There’s alot left for you to do here. • For now though, let’s go to something “simple”.

Music courtesy of Steve Kaufman, 3 -time National Flatpicking champion

What is going on here? • This is an example of a Polya Urn scheme • If you think of what is happening in one particular cup, this corresponds to the sample path or trajectory for a Stochastic Process (a collection of random variables, Xn which give the number of dark beans in the cup at time n) • Each cup (or sample path) is independent of the others, and we describe the whole process by looking at the collection of sample paths at each time, and calculate the fraction of these having a particular value – this gives a histogram that describes the probability distribution at each time.

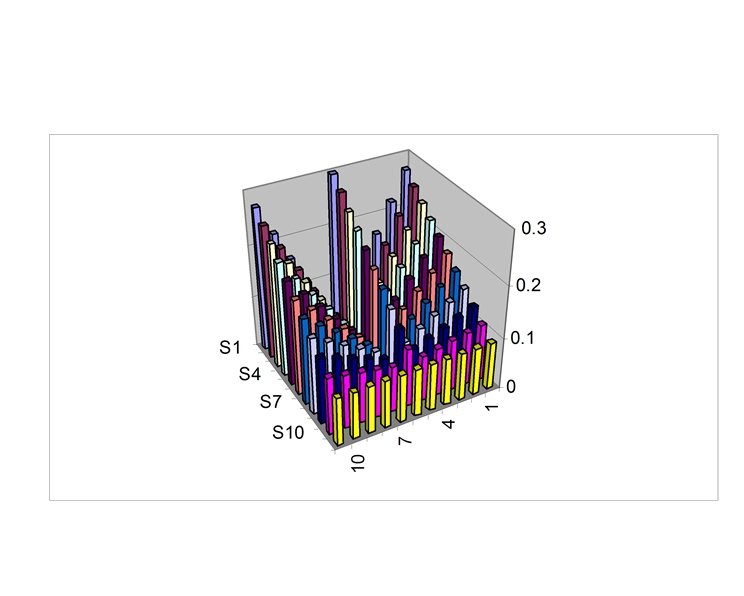

• We can simulate this and we see that each sample path approaches a particular fraction of beans in the cup of a particular color. • When we look across all cups after a long period of time we see that the histogram approaches a particular distribution – in the case we did it is the Uniform distribution – each possible fraction between 0 and 1 is equally likely.

Why does this happen? • If we let Zn = Xn / (n+2) be the fraction of dark beans in the cup after we draw and add a bean n times, then we can show so Zn is a martingale.

A martingale can be proved to have a limiting distribution so that Where Z is the limiting random variable and it’s distribution is called the limiting distribution – this is the Uniform distribution in our cup experiment.

Urn Schemes and Null Models: Cohen, Joel E. 1976. Irreproducible Results and the Breeding of Pigs (or Nondegenerate Limit Random Variables in Biology). Bio. Science 26: 391 -394. For an ecological example of extensions of these ideas see The Unified Neutral Theory of Biodiversity and Biogeography. Stephen P. Hubbell. Princeton University Press. 2001. For an evolutionary theory example of extensions see Gavrilets, S, R. Acton and J. Gravner. 2000. Dynamics of speciation and diversification in a metapopulation. Evolution 54: 1493 -1501

What is computational ecology? An interdisciplinary field devoted to the quantitative description and analysis of ecological systems using empirical data, mathematical models (including statistical models), and computational technology. Focus includes: Data Management, Modeling, and Visualization (Helly et al. , 1995)

Computational Ecology Theory development • How do population and community properties arise from individual behaviors? • How does spatial and temporal heterogeneity affect population and communities? • How are distribution and abundance of species linked to spatio-temporal patterns of evolution? Applications • How do we link dynamic models with spatial data to aid natural system monitoring and management, including reserve design, water flow control, and harvesting schedules? • How do we include socio -economic analysis with ecological models?

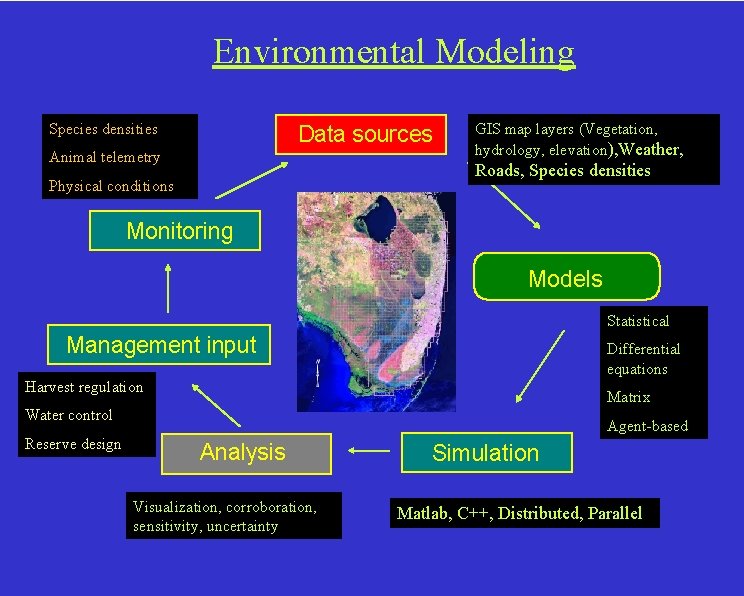

Environmental Modeling Species densities Data sources Animal telemetry GIS map layers (Vegetation, hydrology, elevation), Weather, Roads, Species densities Physical conditions Monitoring Models Statistical Management input Differential equations Harvest regulation Matrix Water control Reserve design Agent-based Analysis Visualization, corroboration, sensitivity, uncertainty Simulation Matlab, C++, Distributed, Parallel

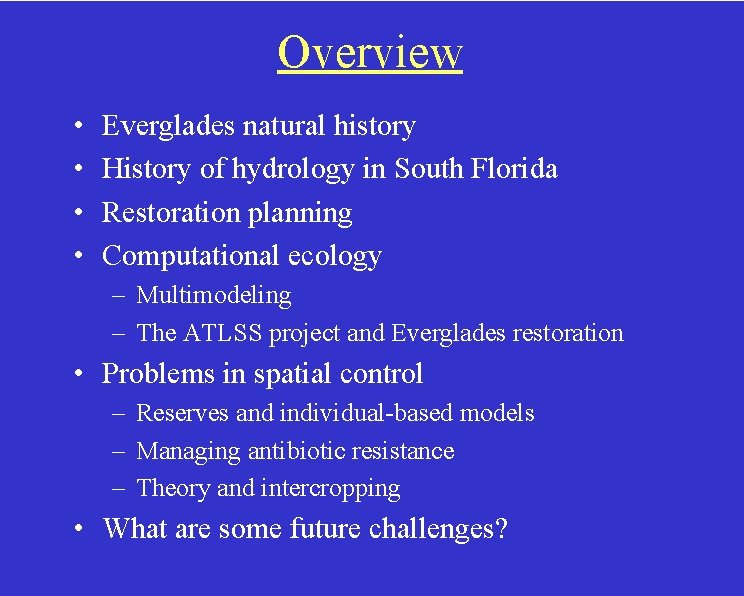

Overview • • Everglades natural history History of hydrology in South Florida Restoration planning Computational ecology – Multimodeling – The ATLSS project and Everglades restoration • Problems in spatial control – Reserves and individual-based models – Managing antibiotic resistance – Theory and intercropping • What are some future challenges?

Key Points • Realistic modeling of natural systems requires multiple linked approaches – multimodeling - and new methods are needed to develop and analyze these. • Much of applied ecology deals with problems of spatial control – what to do, where to do it, when to do it, and how to monitor it – and these problems are not easily solved, opening up many new, fascinating problems in applied mathematics and computational science. • It can be very rewarding for mathematicians to get involved in “big” multidisciplinary problems

Wet Season: May-October Dry Season: November-April Photos: South Florida Water Management District

Everglades Restoration The Everglades and Big Cypress Swamp of South Florida are characterized by complex patterns of spatial heterogeneity and temporal variability, with water flow being the major factor controlling the trophic dynamics of the system. A key objective of modeling studies for these systems is to compare the future effects of alternative hydrologic scenarios on the biotic components of the systems.

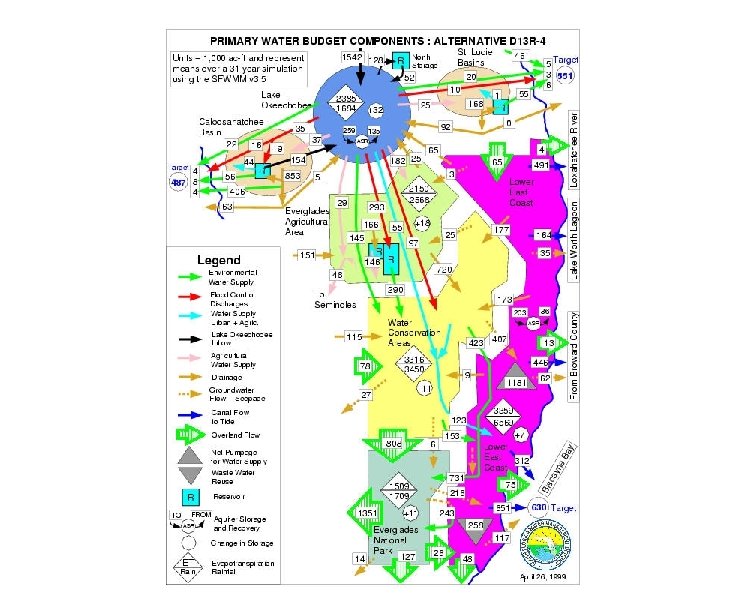

Recent History of Everglades Restoration C&SF Project facilities developed since 1940’s include 30 pumping stations, 212 control and diversion structures, 990 miles of levees, 978 miles of canals, 25 navigation locks, and 56 railroad bridges. 1992 - Congress authorizes Comprehensive Review Study (Restudy) of the C&SF Project to develop modifications to restore the Everglades and Florida Bay ecosystems while providing for the other water-related needs of the region. 1999 - Restudy Plan submitted to Congress on July 1. Restudy Objective: Develop a comprehensive plan for implementing changes needed to meet water supply needs through 2050 and restore over 2. 4 million acres of the greater Everglades ecosystem

Agencies involved in Restudy: U. S. Army Corps of Engineers Environmental Protection Agency National Park Service National Marine Fisheries Service Natural Resources Conservation Service U. S. Fish and Wildlife Service Florida Department of Agriculture and Consumer Services Florida Department of Environmental Protection Florida Game and Fresh Water Fish Commission South Florida Water Management District Miccosukee Tribe Seminole Tribe plus input from numerous NGO's and individuals.

Plan includes: Reconnecting over 80 percent of the remaining Everglades by removing over 240 miles of internal levees and canals. Reduce the average of 1. 7 billion gallons of water wasted every day from discharges to the ocean Additional land purchases of 47, 000 acres as an addition to ENP Approximate cost: $7. 8 Billion over 20 years

What is computationally challenging in this? • Space-time linkages • GIS very limited at dynamic modeling • Different components operate on different scales (resolution required differs between components) • Model data can be huge • Models are complex • Large state variable dynamical systems • Large numbers of interconnected agents • Models are not independent - multimodeling

Everglades natural system management requires decisions on short time periods about what water flows to allow where and over longer planning horizons how to modify the control structures to allow for appropriate controls to be applied. This is very difficult! • The control objectives are unclear and differ with different stakeholders. • Natural system components are poorly understood. • The scales of operation of the physical system models are coarse.

So what have we done? Developed a multimodel (ATLSS - Across Trophic Level System Simulation) to link the physical and biotic components. Compare the dynamic impacts of alternative hydrologic plans on various biotic components spatially. Let different stakeholders make their own assessments of the appropriate ranking of alternatives. http: //atlss. org

ATLSS (Across Trophic Level System Simulation) ATLSS is structured as a multimodel, a mixture of modeling approaches based upon the inherent temporal scales and spatial extent of various trophic components, linked together by spatially-explicit information on underlying environmental (e. g. water, soil structure, etc. ), biotic (e. g. vegetation), and anthropogenic factors (e. g. land-use). The approaches currently involved include static spatially -explicit indices, compartment analysis, differential equations for structured populations and communities, and individual -based models.

What ATLSS attempts to do • Provide a general methodology for regional assessment of natural systems by coupling physical and biotic processes in space and time using a mixture of modeling approaches. • Utilize the best available science and intuition of many biologists with extensive field experience to construct models for particular system components and link these at appropriate spatial and temporal resolutions

What ATLSS attempts to do (con’d) • Provide a method to compare the relative impacts of alternative management of the region on the natural systems, so different stakeholders can focus on sub-regions, species, or conditions of particular interest to them. • Ensure that the structure of the multimodel is extensible so that as new models, data and monitoring information becomes available, it may be efficiently utilized.

Individual-Based Models Age/Size Structured Models Cape Sable Seaside Sparrow Snail Kite White-tailed Deer Wading Birds Florida Panther Fish Functional Groups Alligators Radio-telemetry Tracking Tools Reptiles and Amphibians Linked Cell Models Lower Trophic Level Components Vegetation Process Models Spatially-Explicit Species Index Models Abiotic Conditions Models Cape Sable Seaside Sparrow Long-legged Wading Birds Short-legged Wading Birds Snail Kite High Resolution Topography High Resolution Hydrology White-tailed Deer Alligators Disturbance © TIEM / University of Tennessee 1999

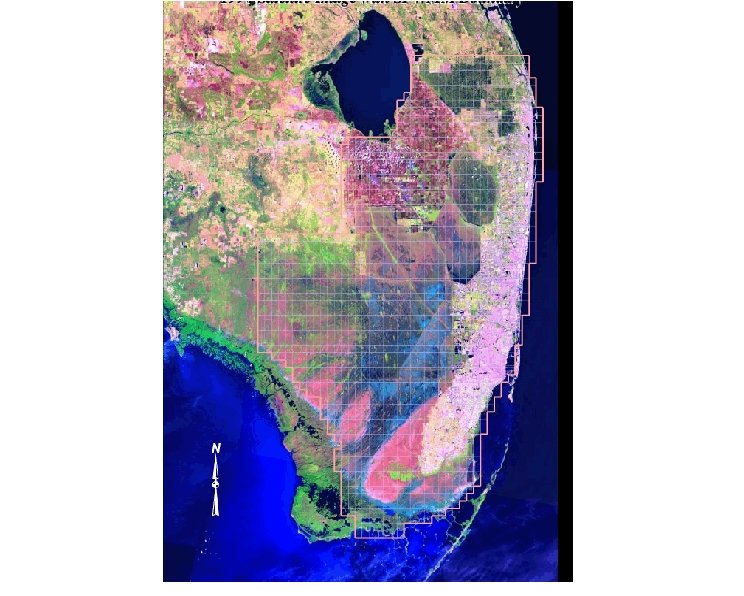

ATLSS High Resolution Topography * The High Resolution Topography model provides more detail about local variation in elevation. * The detail captures variation in elevation due to important features such as tree islands. ATLSS High Resolution Hydrology * With the High Resolution Topography, High Resolution Hydrology values can be created from the SFWMD hydrology. High Resolution Topography 4 m iles 4 m Water Management Model Topography iles High Resolution Hydrology * Hydrology values created in this way provide the spatial variation and resolution required to model the dynamics of many animal populations in South Florida. SFWMD Hydrology 4 miles 4 m How High Resolution Topography Is Made. Habitat cover map, provided by the Florida GAP analysis 4 miles At each location in the Florida GAP map, the model predicts a ground surface which is higher or lower than the base ground surface, derived from the hydroperiod of the cell, as given by the SFWMD hydrology data, and the estimated hydroperiod for the habitat type at that location. The total volume of water predicted by the SFWMD model in each grid cell is preserved in the High Resolution Hydrology Model. Estimates of hydroperiod for each habitat type in the Florida GAP analysis map. A hydroperiod curve for each location on the map showing the number of days the water surface was at or above each elevation. This curve is generated from the Calibration/Validation run of the SFWMD hydrology model.

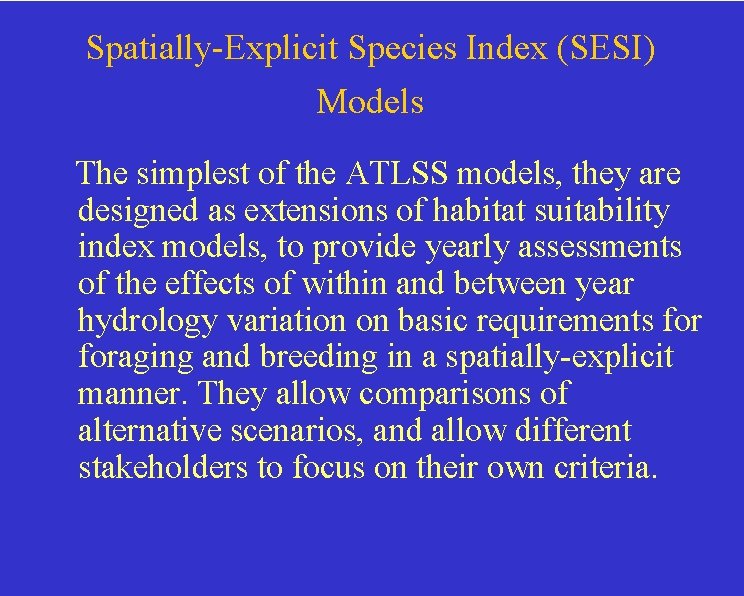

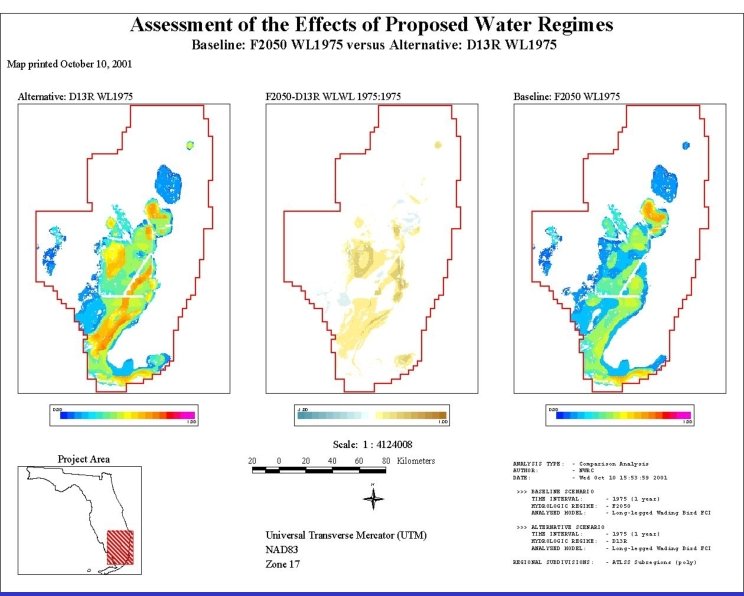

Spatially-Explicit Species Index (SESI) Models The simplest of the ATLSS models, they are designed as extensions of habitat suitability index models, to provide yearly assessments of the effects of within and between year hydrology variation on basic requirements foraging and breeding in a spatially-explicit manner. They allow comparisons of alternative scenarios, and allow different stakeholders to focus on their own criteria.

ATLSS SESI Models Implement and Execute the Models for a Hydrology Scenario Objectives: Integrate SESI components into a cohesive computational framework and apply the models to a hydrology scenario. Hydrology Scenario Daily Water Depth Distribute water over high resolution topography High Resolution Hydrology SESI Models Cape Sable Seaside Sparrow Are the nests flooded during egg incubation? Snail Kite Are conditions favorable for the apple snails they depend on? Wading Birds Are water depths in the correct range for the fish they eat? Standard Output Generation/Visualization Tools White-tailed Deer Is breeding disrupted by high water levels? American Alligator Is there high ground to build a nest on?

ATLSS Fish Functional Group Dynamics Model Fish biomass is one of the most important components of the Everglades system. To produce projections of fish biomass ATLSS uses a. . . … spatially explicit size-structured dynamic simulation model, ALFISH simulates the number, size-structure and biomass densities of “small fish” and “large fish” functional groups in the freshwater marsh on 5 -day time steps. This represents the temporally and spatially varying food base for wading birds. ALFISH has been evaluated through comparisons to some sites in Shark Slough and WCA 3.

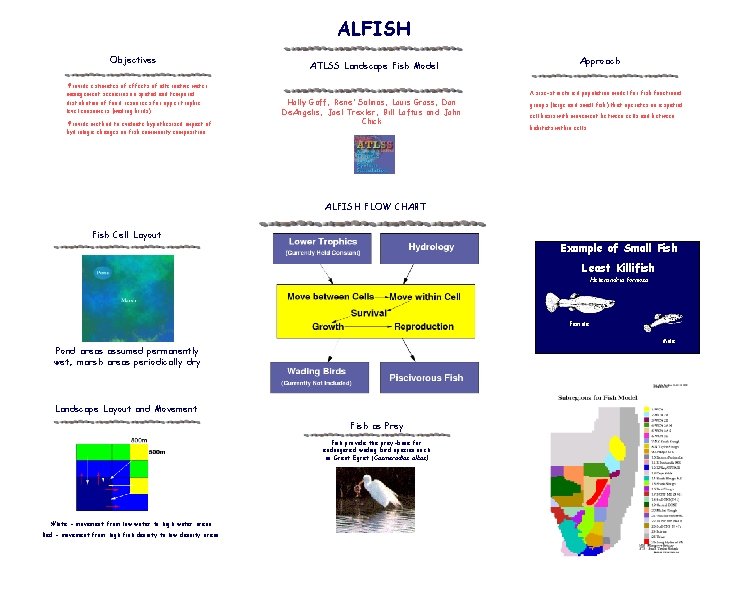

ALFISH Objectives ATLSS Landscape Fish Model • Provide estimates of effects of alternative water management scenarios on spatial and temporal distribution of food resources for upper trophic level consumers (wading birds). • Provide method to evaluate hypothesized impact of Holly Gaff, Rene’ Salinas, Louis Gross, Don De. Angelis, Joel Trexler, Bill Loftus and John Chick hydrologic changes on fish community composition. Approach A size-structured population model for fish functional groups (large and small fish) that operates on a spatial cell basis with movement between cells and between habitats within cells. ALFISH FLOW CHART Fish Cell Layout Example of Small Fish Least Killifish Heterandria formosa Female Male Pond areas assumed permanently wet, marsh areas periodically dry Landscape Layout and Movement Fish as Prey Fish provide the prey-base for endangered wading bird species such as Great Egret (Casmerodius albus) White - movement from low water to high water areas Red - movement from high fish density to low density areas

ALFISH MODEL EXAMPLE RESULTS - Alt D 13 r 4 compared to F 2050 Base Fish Available as Prey during a Typical Rainfall Year Fish Available as Prey during a High Rainfall Year Average Fish Available as Prey from 1965 - 1995 Fish Available as Prey during a Low Rainfall Year Distribution of Sizes for Fish in WCA 3 A Total Fish Densities through 31 -year Model Run Average Fish Available as Prey during Breeding Season for Wading Birds Total Fish Densities for Certain Years in Given Areas

ATLSS Individual-Based Demographic Models The ATLSS SESI models can provide considerable information about spatial and temporal patterns of habitat conditions affecting breeding and foraging. They can indicate how one scenario differs from another, but no demographics are included. To include demographics and thus project population-level dynamics, ATLSS uses. . . … spatially explicit individual-based (SEIB) demographic models: Snail kite, Cape Sable seaside sparrow, Florida panther/white-tailed deer These contain life cycle and behavioral information and they allow the user to simulate population levels, structure and growth.

SIMSPAR Flow Diagram

Projected Population Size Fledgling Productivity Maps

Take-Home Messages • Realistic modeling of natural systems requires multiple linked approaches – multimodeling. • ATLSS has been successful in providing a flexible structure in which new models can be included, and new data taken into account to modify existing models • ATLSS has provided a rational approach, based upon the best available science, for providing multiple stakeholders with some of the tools they need to have input into regional planning

Collaborations in ATLSS In addition to various Federal and State cooperators, ATLSS has involved researchers at Florida International University Southwestern Louisiana University of Florida University of Maryland University of Miami University of Tennessee University of Washington National Wetland Research Center (USGS) The Institute for Bird Populations Everglades Research Group Netherlands Institute of Ecology

Some other spatial control problems • Bears and hunting preserves – an application of individual-based modeling (Rene’ Salinas) • Controlling antibiotic resistance – numerically intensive spatial modeling (Scott Duke-Sylvester) • Intercropping – a theoretical approach coupling reaction-diffusion and ODE models (Suzanne Lenhart)

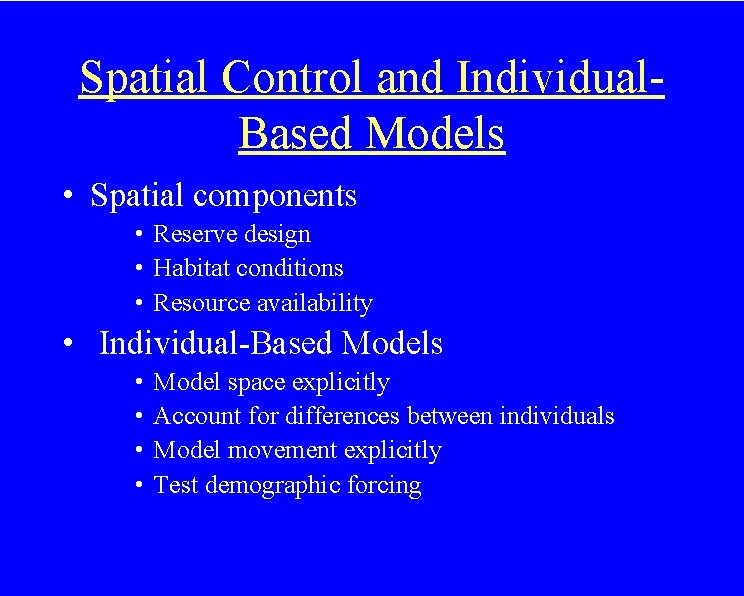

Spatial Control and Individual. Based Models • Spatial components • Reserve design • Habitat conditions • Resource availability • Individual-Based Models • • Model space explicitly Account for differences between individuals Model movement explicitly Test demographic forcing

American Black Bear (Ursus americanus)

Current Black Bear Distribution Southeastern U. S. Source: Pelton and van Manen (1994)

Model Description • Individual-Based • Time • Daily time step • Length of run is user defined • Area • 450 m x 450 m Cells • 279 Km x 175. 5 Km (effective area is smaller) • Allows for variation in various spatial components. • Sanctuaries • Park and forest boundaries

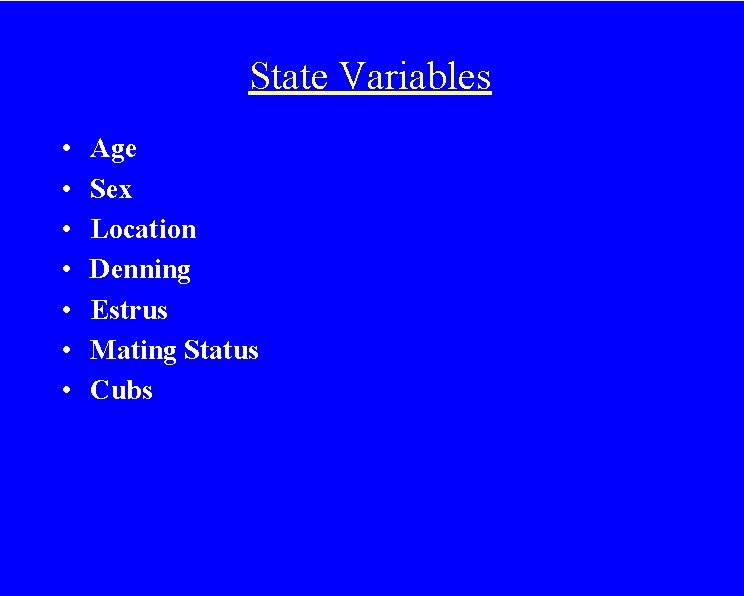

State Variables • • Age Sex Location Denning Estrus Mating Status Cubs

Flow Diagram

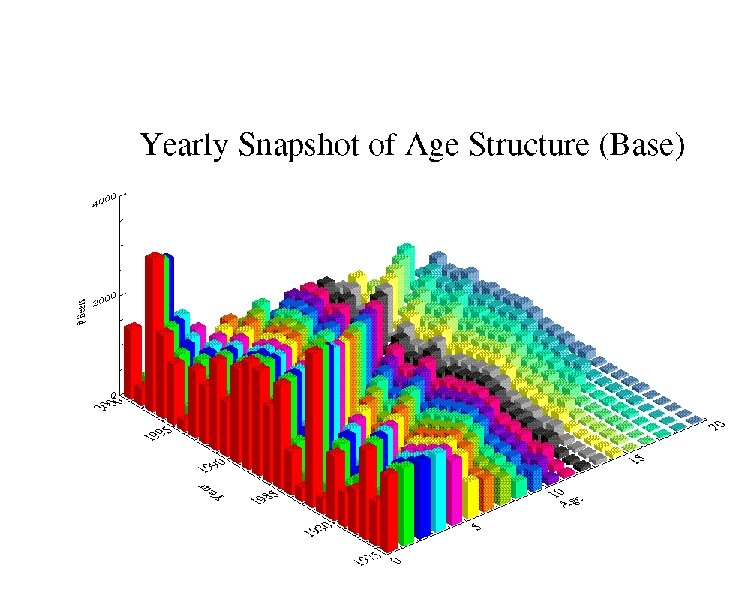

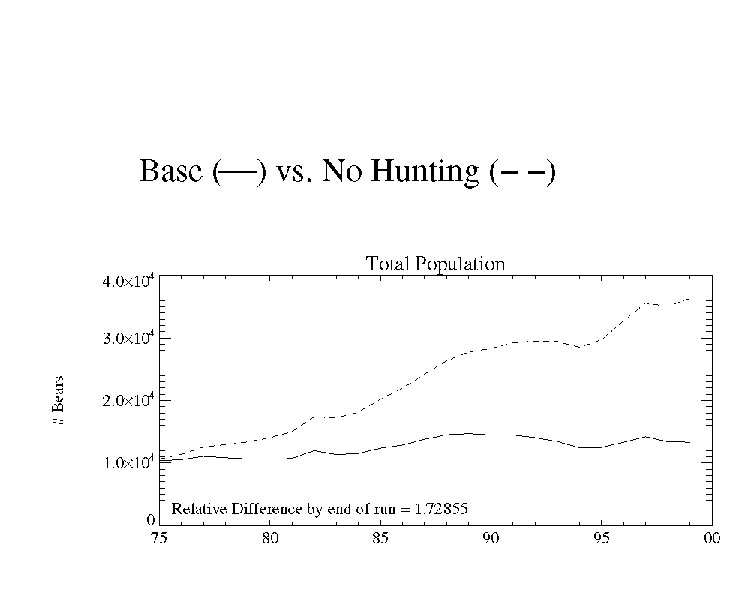

Harvesting • Tennessee Season • Dec. 1 - Dec. 14 • No cubs or females with cubs. • North Carolina Season • Oct. 14 - Nov. 21 and Dec. 14 - Dec. 31 • No cubs or females with cubs. • No harvesting in GSMNP or bear sanctuaries. • One bear limit per calendar year

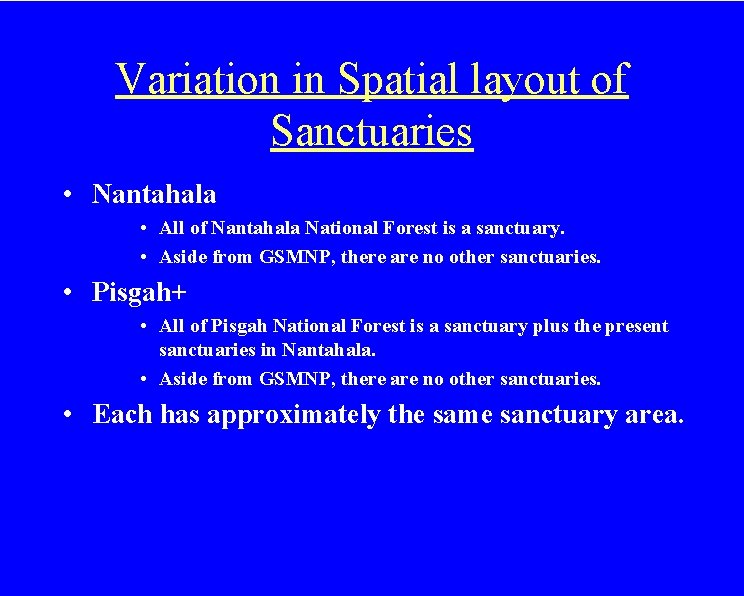

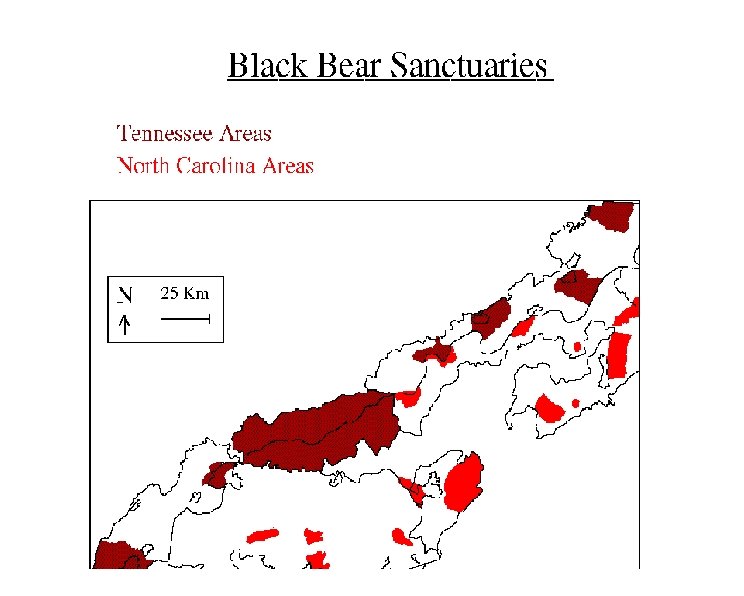

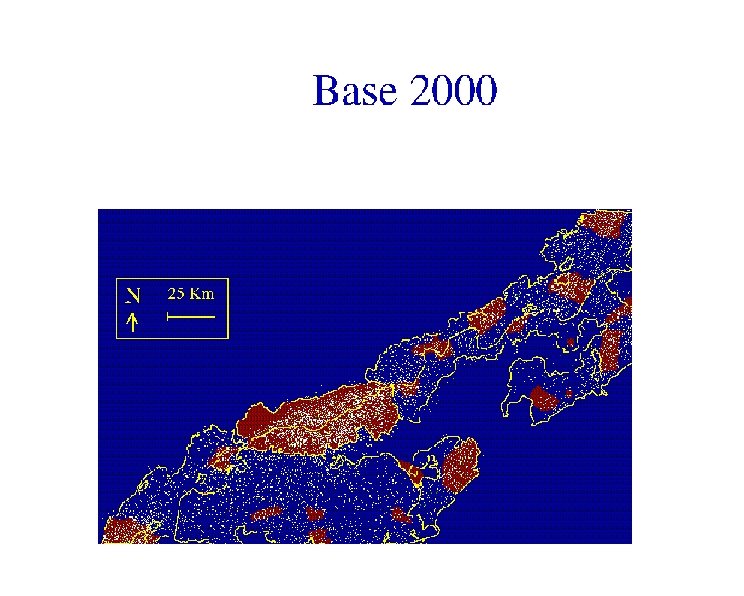

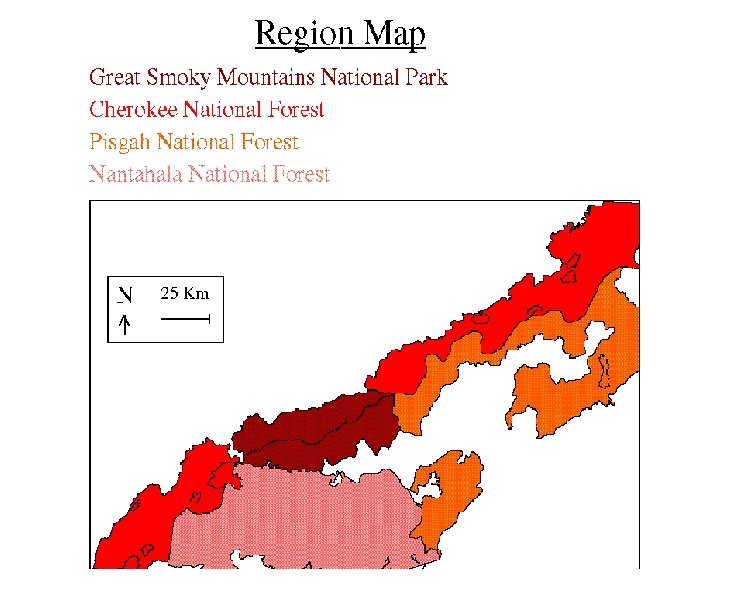

Variation in Spatial layout of Sanctuaries • Nantahala • All of Nantahala National Forest is a sanctuary. • Aside from GSMNP, there are no other sanctuaries. • Pisgah+ • All of Pisgah National Forest is a sanctuary plus the present sanctuaries in Nantahala. • Aside from GSMNP, there are no other sanctuaries. • Each has approximately the same sanctuary area.

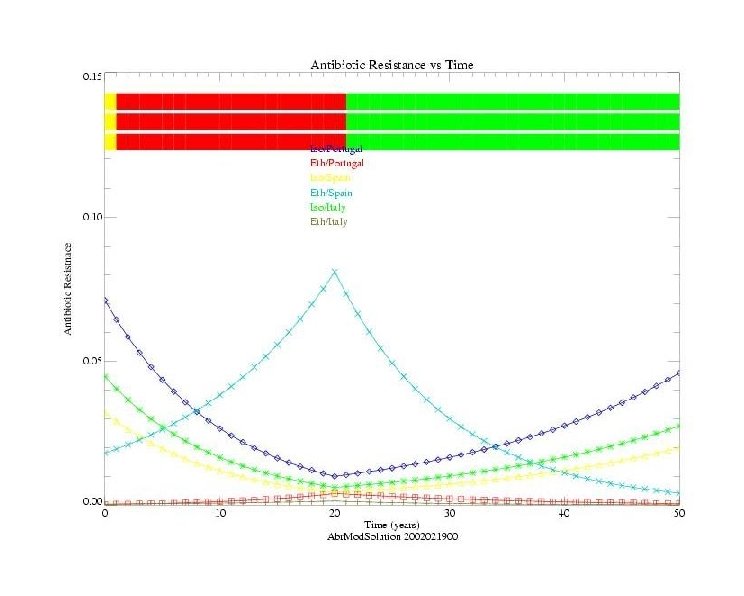

Spatial Control of Antibiotic Resistance • Assumption: Limitations on the application of certain antibiotics can be viewed in a spatial context which, if effectively implemented, could extend the time period of utility of a particular antibiotic treatment. • Question: Under what circumstances would a spatial control policy be preferable to a policy of uniform spatial rotation or a policy of local choice with no overall spatial management?

Approach Formulate the underlying problem in a discretetime, discrete-space, continuous state-variable, finite control-set framework. Assume a discrete set of spatial regions (cells), interconnected by movements of individuals between them, causing associated movements of resistance to particular disease strains. Do not track population movements between regions, in order to reduce the complexity and state space of the problem. The state variables within each spatial cell are the continuous levels of resistance to particular disease strains.

Intercropping and Pathogen Dispersion • Assumption: There are two crop varieties, one of which is more resistant to a pathogen but which has an associated higher cost or lower yield than the crop with lower resistance. • Question: How might we analyze the spread of the pathogen linked to the growth of the crop and produce optimal spatial planting patterns which maximize yield, or minimize cost. • Approach: Develop a general theory for boundarycontrol of reaction-diffusion type equations linked to ordinary differential equations for local crop growth.

Pathogen and 2 crop model u(t) and v(t) are time-dependent local crop densities, p(x, t) is pathogen density. u and v vary with x but with no movement, while the pathogen does move.

Objective function is: And choose u 0(x) + vo(x) < K the maximum initial planting density. Assume Dirichlet boundary conditions for the pathogen, some initial pathogen distribution, and assume the spatial domain is [0, 1]. Then with appropriate assumptions it is possible to develop optimal solutions. We are also working on spatial control for integrodifference equations models of population spread.

Take-Home Messages • Realistic modeling of natural systems requires multiple linked approaches – multimodeling - and new methods are needed to develop and analyze these. • Much of applied ecology deals with problems of spatial control – what to do, where to do it, when to do it, and how to monitor it – and these problems are not easily solved, opening up many new, fascinating problems in applied mathematics and computational science.

Acknowledgements • USGS Biological Resources Division • National Science Foundation • UT Center for Information Technology Research • UT Scalable Intra-Campus Network Grid
