Cubi Board http cubieboard org Cubieboard 2012 97

Cubi Board 官網 http: //cubieboard. org/

Cubieboard 公司 – 新聞 2012年 9月7日 ◦ Respberry Pi 增強版 Cubieboard現身售價 $49 2013年 6月 ◦ 推出Cubieboard 2 2013年 11月5日 ◦ Cubieboard : 享譽國外Linux 圈中的中國產品 2013年年底 ◦ Cubietruck / Cubieboard 3 2015年三月 ◦ 正式公佈 Cubieboard 4

相關設備 Beagle Board Panda Board Raspberry Pi Banana Pi Intel Galileo Arduino

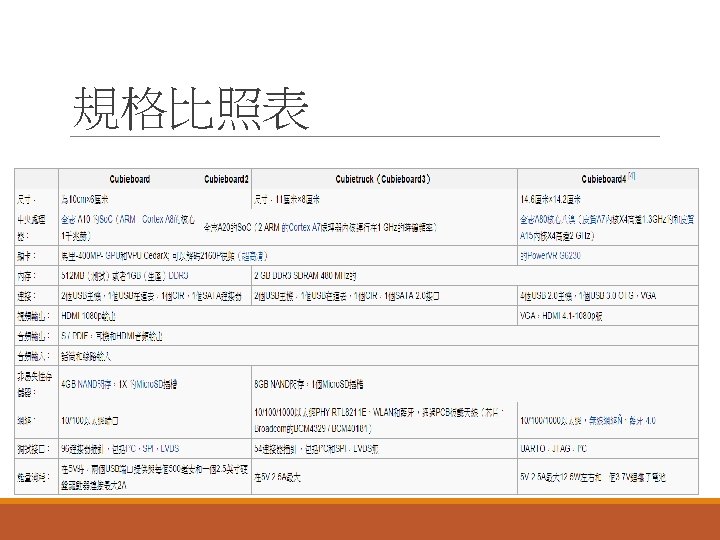

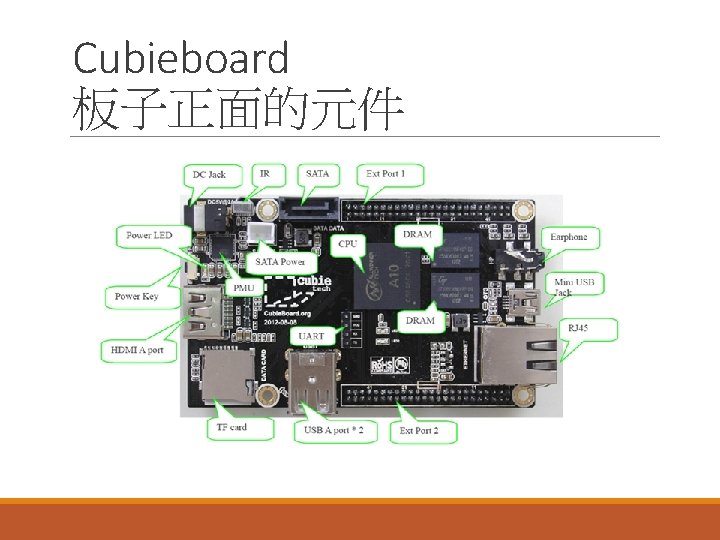

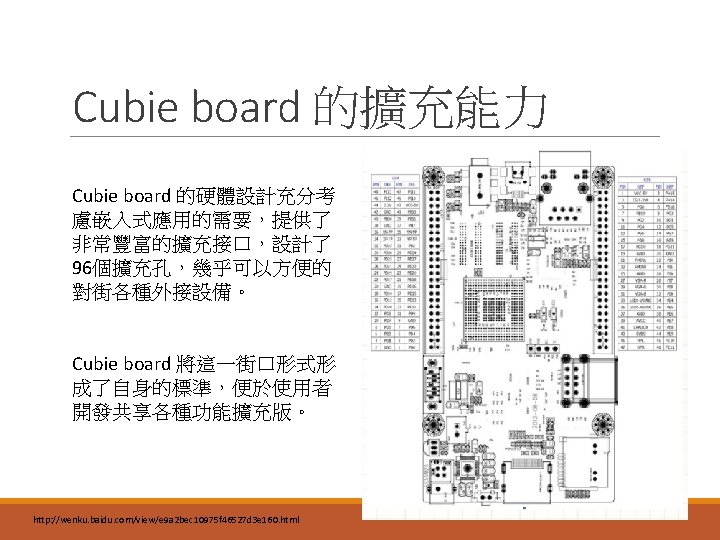

硬體規格 - Cubieboard 1 So. C: All. Winner A 10 ◦ ◦ CPU: Cortex-A 8 @ 1 GHz CPU, GPU Mali-400 MP video acceleration: Cedar. X able to decode 2160 p video display controller: unknown, supports HDMI 1080 p 512 Mi. B (beta) or 1 Gi. B (final) DDR 3 4 GB NAND flash built-in, 1 x micro. SD slot, 1 x SATA port. 10/100 Ethernet connector 2 x USB Host, 1 x USB OTG, 1 x CIR. 96 extend pin including I²C, SPI, LVDS Dimensions: 10 cm × 6 cm

硬體規格 – Cubieboard 2 So. C: Allwinner A 20 ◦ CPU: ARM Cortex-A 7 @ 1 GHz dual-core ◦ GPU: Mali-400 MP 2 ◦ display controller: unknown, supports HDMI 1080 p, no LVDS support Mali-400 GPU (Mali-400 MP 2) 512 Mi. B (beta) or 1 Gi. B (final) DDR 3 4 GB NAND flash built-in, 1 x micro. SD slot, 1 x SATA port. 10/100 Ethernet connector 2 x USB Host, 1 x USB OTG, 1 x CIR. 96 extend pin including I²C, SPI, LVDS Dimensions: 10 cm × 6 cm

硬體規格 – Cubieboard 3 So. C: Allwinner A 20 ◦ CPU: ARM Cortex-A 7 @ 1 GHz dual-core ◦ GPU: Mali-400 MP 2 ◦ display controller: unknown, supports HDMI 1080 p, no LVDS support 2 Gi. B DDR 3 @ 480 MHz 8 GB NAND flash built-in, 1 x micro. SD slot, 1 x SATA 2. 0 port (Hard Disk of 2, 5"). 10/1000 RTL 8211 E Gigabit Ethernet 2 x USB Host, 1 x USB OTG, 1 x CIR. S/PDIF, headphone and HDMI audio out, mic and line-in via extended pins Wi-Fi and Bluetooth on board with PCB antenna (Broadcom BCM 4329/BCM 40181) 54 extended pins including I²C, SPI Dimensions: 11 cm × 8 cm

Raspberry pi VS Cubieboard Raspberry pi Cubieboard CPU 700 MHz ARM 1176 JZF-Single core 1 GHz Dual-Core Cortex™-A 7 GPU Broadcom Video. Core IV @ 250 MHz ARM Mali 400 MP 2 @350 MHz Open. GL ES 2. 0/1. 1 DRAM(Bytes) 512 MB (shared with GPU) 1 GB DDR 3 (shared with GPU) Power 5 Vdc/ 0. 7 A Micro. USB or GPIO header 5 Vdc/ 2 A Micro. USB 2 x USB 2. 0 HOST, 1 x Micro. USB(Power) 2 x USB 2. 0 HOST, 1 x Micro. USB 2. 0 OTG, 1 x Micro. USB(Power) Network 10 M/100 M Ethernet Gigabit Ethernet SATA None SATA 2. 0 IR Sensor None 1 x
