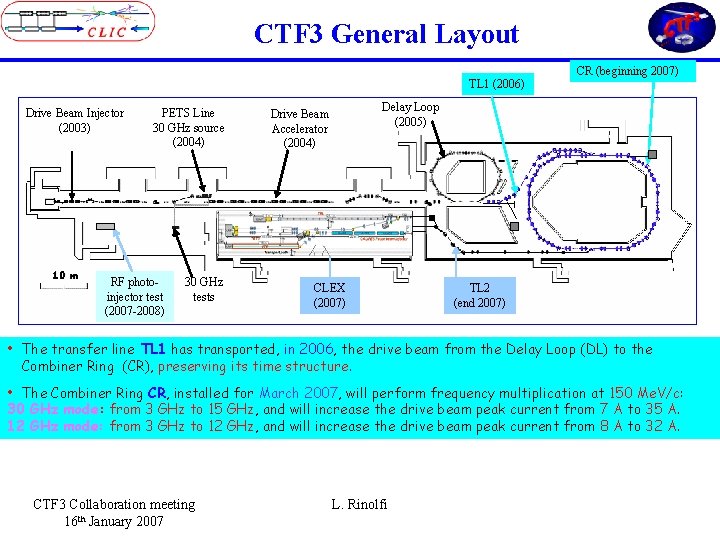

CTF 3 General Layout TL 1 (2006) Drive Beam Injector (2003) PETS Line 30 GHz source (2004) RF photoinjector test (2007 -2008) 30 GHz tests CR (beginning 2007) Delay Loop (2005) Drive Beam Accelerator (2004) CLEX (2007) TL 2 (end 2007) • The transfer line TL 1 has transported, in 2006, the drive beam from the Delay Loop (DL) to the Combiner Ring (CR), preserving its time structure. • The Combiner Ring CR, installed for March 2007, will perform frequency multiplication at 150 Me. V/c: 30 GHz mode: from 3 GHz to 15 GHz, and will increase the drive beam peak current from 7 A to 35 A. 12 GHz mode: from 3 GHz to 12 GHz, and will increase the drive beam peak current from 8 A to 32 A. CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

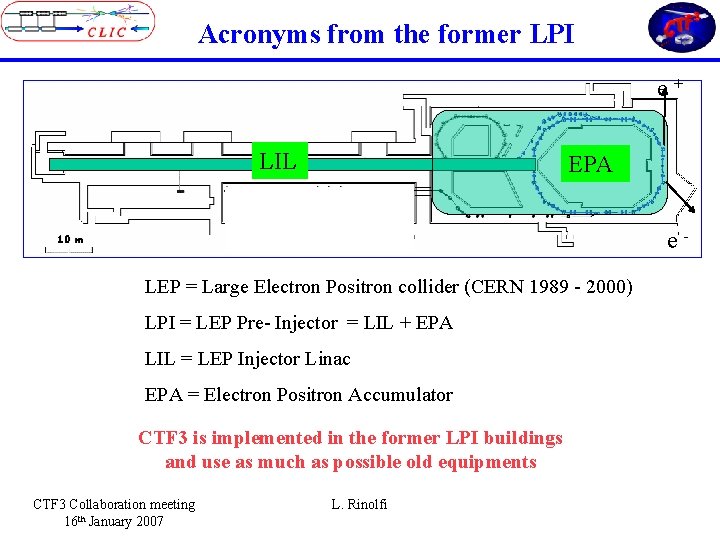

Acronyms from the former LPI e+ LIL EPA e- LEP = Large Electron Positron collider (CERN 1989 - 2000) LPI = LEP Pre- Injector = LIL + EPA LIL = LEP Injector Linac EPA = Electron Positron Accumulator CTF 3 is implemented in the former LPI buildings and use as much as possible old equipments CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

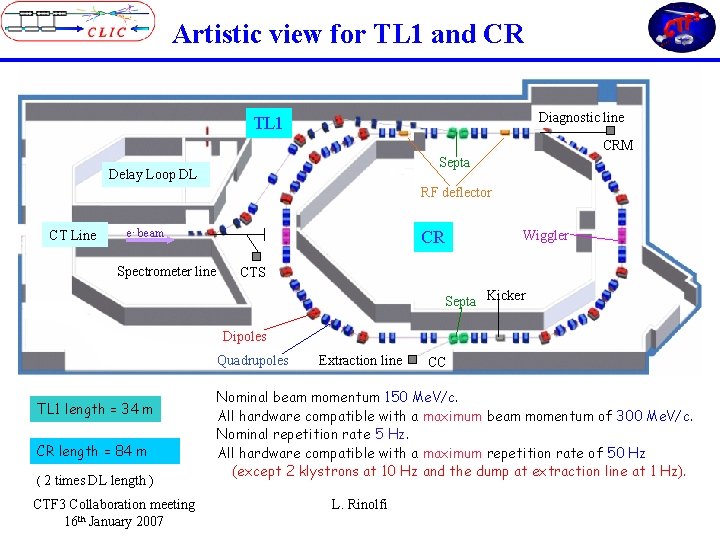

Artistic view for TL 1 and CR Diagnostic line TL 1 CRM Septa Delay Loop DL RF deflector CT Line e- beam Spectrometer line Wiggler CR CTS Septa Kicker Dipoles Quadrupoles TL 1 length = 34 m CR length = 84 m ( 2 times DL length ) CTF 3 Collaboration meeting 16 th January 2007 Extraction line CC Nominal beam momentum 150 Me. V/c. All hardware compatible with a maximum beam momentum of 300 Me. V/c. Nominal repetition rate 5 Hz. All hardware compatible with a maximum repetition rate of 50 Hz (except 2 klystrons at 10 Hz and the dump at extraction line at 1 Hz). L. Rinolfi

Optics for the CR Design by C. Biscari / LNF + F. Tecker / CERN CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

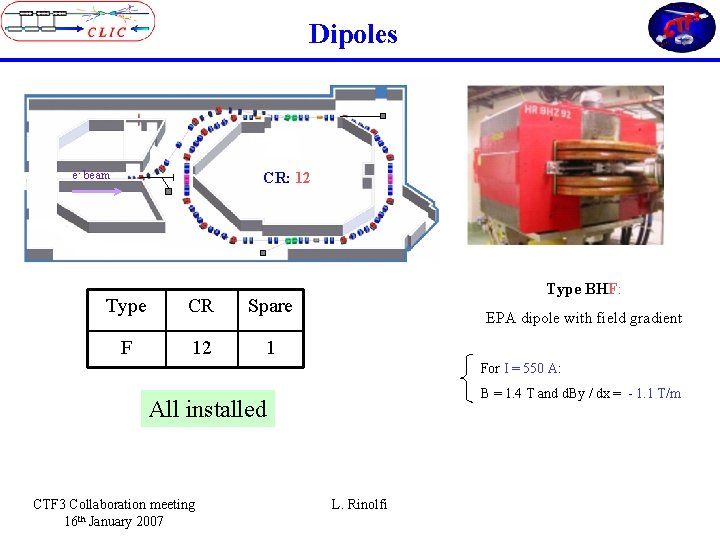

Dipoles e- beam CR: 12 Type CR Spare F 12 1 Type BHF: EPA dipole with field gradient For I = 550 A: B = 1. 4 T and d. By / dx = - 1. 1 T/m All installed CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

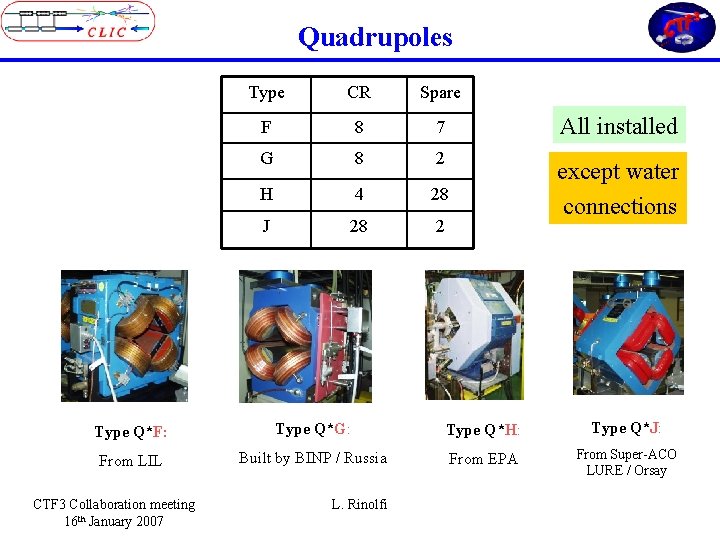

Quadrupoles Type CR Spare F 8 7 G 8 2 H 4 28 J 28 2 All installed except water connections Type Q*F: Type Q*G: Type Q*H: Type Q*J: From LIL Built by BINP / Russia From EPA From Super-ACO LURE / Orsay CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

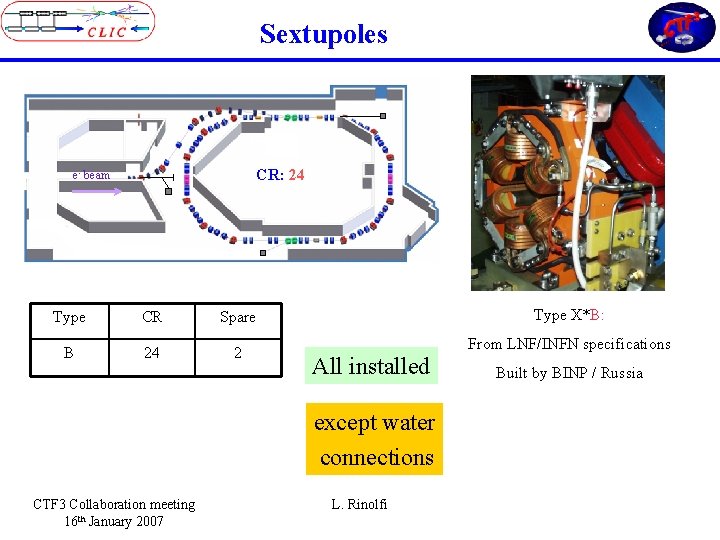

Sextupoles CR: 24 e- beam Type CR Spare B 24 2 Type X*B: From LNF/INFN specifications All installed except water connections CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi Built by BINP / Russia

Dipolar correctors e- beam CR: 24 Type CR Spare D 24 3 Type DHD / DVD: All installed CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi From LNF/INFN specifications Built by CIEMAT / Spain

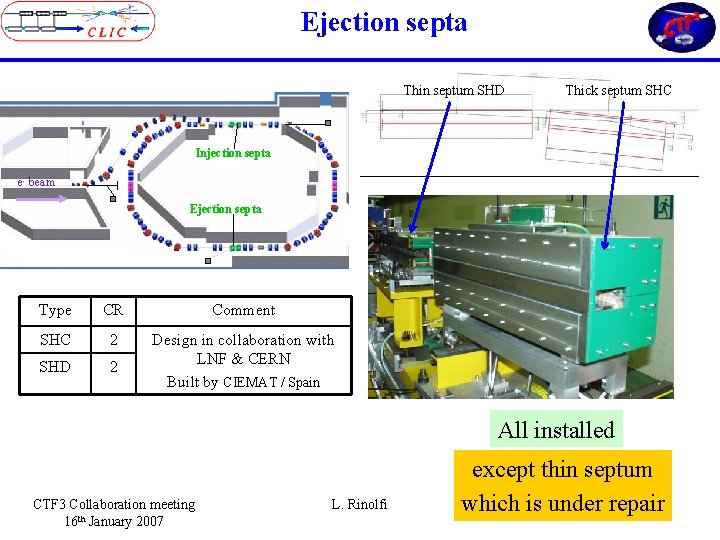

Ejection septa Thin septum SHD Thick septum SHC Injection septa e- beam Ejection septa Type CR Comment SHC 2 SHD 2 Design in collaboration with LNF & CERN Built by CIEMAT / Spain All installed CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi except thin septum which is under repair

Ejection kicker Kicker pulse beam current e- beam Ejection kicker Type CR Spare KHA 1 4 KHA installed 280 ns Parameters Units Aperture Hx. V 110 X 35 mm x mm Field 0. 0237 T Integ. Field 0. 084 T. m Rise time 35 ns PFN voltage 40 k. V Current 660 A 140 ns Type KHA: From EPA CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi ex-KFI 11

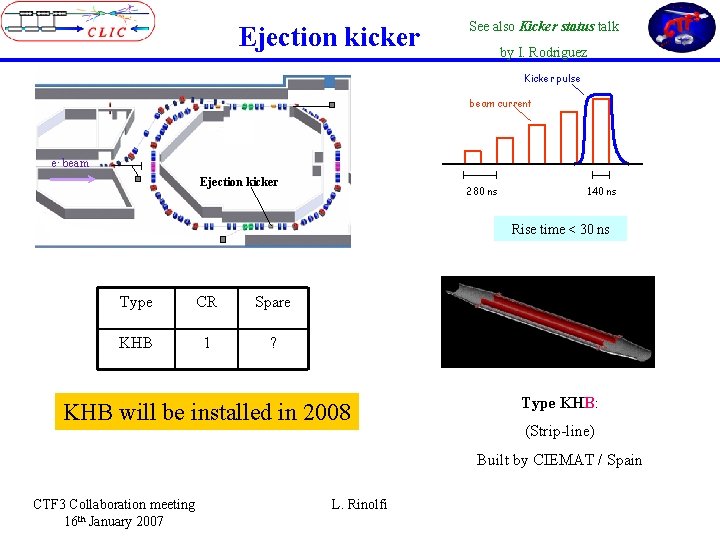

Ejection kicker See also Kicker status talk by I. Rodriguez Kicker pulse beam current e- beam Ejection kicker 280 ns 140 ns Rise time < 30 ns Type CR Spare KHB 1 ? KHB will be installed in 2008 Type KHB: (Strip-line) Built by CIEMAT / Spain CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Wiggler ? e- beam Wiggler Type WHA: Type CR Spare WHA 1 0 Design by LNF/INFN Built by Sigmaphi / France WHA installed except water connections CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Summary for magnets Type CR Spare Dipoles 12 1 Quadrupoles 48 Depends on family type. Minimum 2 for each family Sextupoles 24 2 Correctors 24 3 Septa 4 1 thin coil for the injection and 1 coil for ejection 0 thick coil for both 0 yoke for both Kickers 1 4 tanks with magnets 6 generators Wiggler 1 0 CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Power supplies for CR Magnets Number Power supplies I (A) U (V) Comment Dipoles 1 320 140 from LPI Quadrupoles 18 Sextupole 3 150 20 Correctors 24 x 2 10 4 Horizontal & Vertical Septa 1 2100 20 from LPI Wiggler 2 300 250 15 Central coil + external coils Depends on family type All installed CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi 4 different families

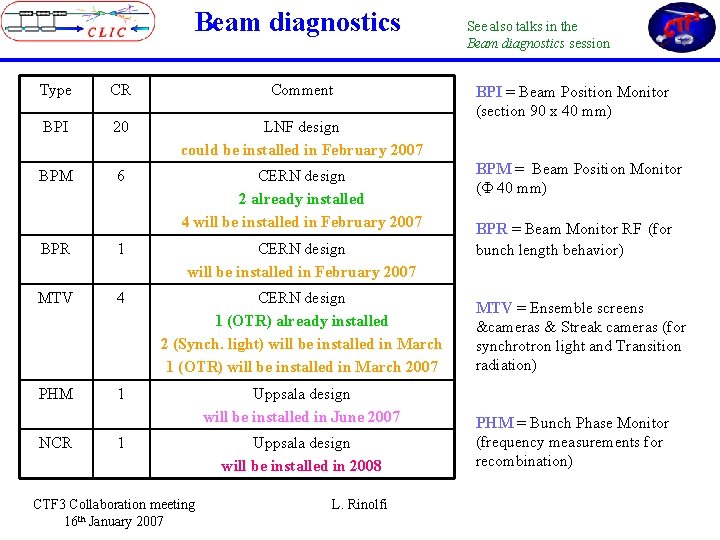

Beam diagnostics Type CR Comment BPI 20 LNF design could be installed in February 2007 BPM 6 CERN design 2 already installed 4 will be installed in February 2007 BPR 1 CERN design will be installed in February 2007 MTV 4 CERN design 1 (OTR) already installed 2 (Synch. light) will be installed in March 1 (OTR) will be installed in March 2007 PHM 1 Uppsala design will be installed in June 2007 NCR 1 CTF 3 Collaboration meeting 16 th January 2007 Uppsala design will be installed in 2008 L. Rinolfi See also talks in the Beam diagnostics session BPI = Beam Position Monitor (section 90 x 40 mm) BPM = Beam Position Monitor ( 40 mm) BPR = Beam Monitor RF (for bunch length behavior) MTV = Ensemble screens &cameras & Streak cameras (for synchrotron light and Transition radiation) PHM = Bunch Phase Monitor (frequency measurements for recombination)

BPI 0952 BPM 0195 QFF 0190 QDF 0160 BPM 0155 HDS 0150 BPI 0130 QDG 0140 QFG 0120 CT. SHD 0790 CT. SHC 0780 BPI 1070 QFG 1080 BHF 0950 QDG 1060 BPI 0992 CRM. MTV 0210 BHF 0205 HDS 1050 QFJ 0955 BPM 1025 QFJ 0985 QDJ 0970 QDF 1040 QFF 1010 BHF 0995 BPI 0208 QFJ 0215 QDJ 0230 QFJ 0245 BHF 0250 BPI 0248 QFJ 0945 QFJ 0255 QDJ 0270 QDJ 0930 BPI 0275 BPI 0925 QFJ 0915 BHF 0905 QFJ 0285 CTF 3 - Combiner Ring - 20 BPI BHF 0295 6 BPM BPI 0895 QFJ 0880 QDH 0860 BPI 0305 8 January 2007 1 BPR QFJ 0320 QDH 0340 4 MTV Beam diagnostic 1 PHM QDH 0840 WHA 0350 QDH 0360 QFJ 0820 BPI 0805 PHM 0572 BHF 0795 BHF 0405 BPI 0775 L. CC. Rinolfi BPM 0130 QDJ 0430 BPR 0505 QFF 0510 QDF 0540 BPI 0448 KHA 0550 QDG 0560 QFG 0580 CC. SHD 0110 QFG 0620 QDG 0640 BPM 0650 QDF 0660 CTF 3 Collaboration meeting BHF 0705 16 th January 2007 BPM 0695 QFJ 0745 QDJ 0730 QFJ 0715 QFF 0690 BHF 0750 BPI 0748 CC. SHC 0120 QFJ 0755 BPI 0570 BPI 0610 QDJ 0770 QFJ 0415 BPI 0425 BPI 0708 QFJ 0785 QFJ 0380 BPI 0395 BPI 0475 QFJ 0445 BHF 0450 QFJ 0455 QDJ 0470 QFJ 0485 BHF 0495 CC. MTV 0140 MTV 0496 MTV 0451

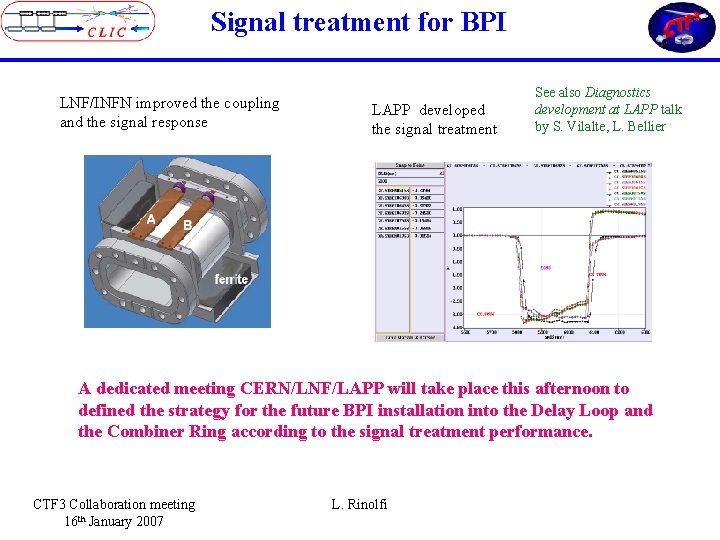

Signal treatment for BPI LNF/INFN improved the coupling and the signal response LAPP developed the signal treatment See also Diagnostics development at LAPP talk by S. Vilalte, L. Bellier A dedicated meeting CERN/LNF/LAPP will take place this afternoon to defined the strategy for the future BPI installation into the Delay Loop and the Combiner Ring according to the signal treatment performance. CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

New streak camera laboratory QDH 0360 QFJ 0380 BPI 0395 BHF 0405 QFJ 0415 BPI 0570 BPI 0425 QDJ 0430 BPR 0505 QFF 0510 QDF 0540 BPI 0448 KHA 0550 QDG 0560 See also Optical and electronic diagnostics talk by C. Welsch QFJ 0445 BHF 0450 QFJ 0455 BPI 0475 1) Define and install optics lines. QDJ 0470 QFJ 0485 2) Drill hole in the wall. BHF 0495 New Streak camera lab CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi 3) Implement laboratory into existing building 2012.

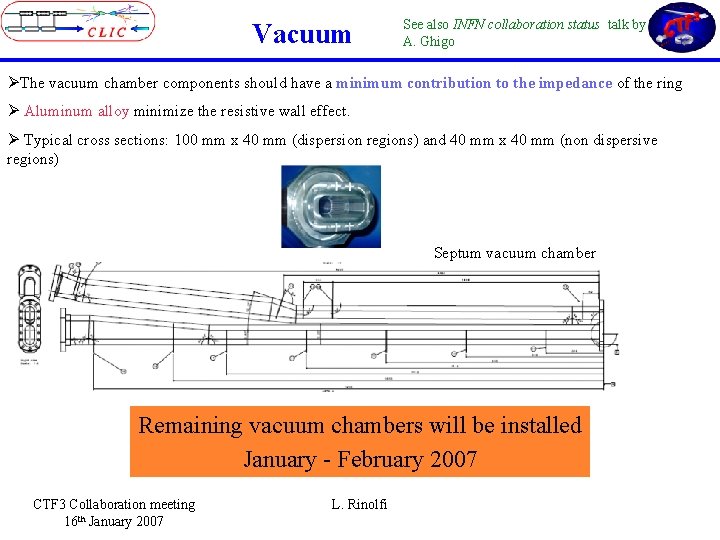

Vacuum See also INFN collaboration status talk by A. Ghigo ØThe vacuum chamber components should have a minimum contribution to the impedance of the ring Ø Aluminum alloy minimize the resistive wall effect. Ø Typical cross sections: 100 mm x 40 mm (dispersion regions) and 40 mm x 40 mm (non dispersive regions) Septum vacuum chamber Remaining vacuum chambers will be installed January - February 2007 CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

RF deflectors from Delay Loop RF deflector To CLEX Both deflectors installed Nominal deflection angle = 12. 5 mrad Nominal Beam Momentum E = 150 Me. V/c Nominal input power P = 10 MW Type HDS: Design by LNF/INFN Built by SOLTAN / Poland Reduce deflection angle with a bump close to the septum: Maximum Beam Momentum E = 300 Me. V/c Maximum input power P = 40 MW Ø Bump = 5 mrad Ø = 7. 5 mrad Ø P = 13 MW CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Klystrons MKS 02 50 Hz 40 MW 3 GHz MKS 03 MKS 05 50 Hz 40 MW 3 GHz SHB 1 SHB 2 SHB 3 40 MW LIPS MKS 06 MKS 07 MKS 11 MKS 12 50 Hz 10 Hz 50 Hz 30 MW 3 GHz MKS 15 MKL 02 50 Hz 10 Hz 50 Hz 30 MW 20 MW 3 GHz LIPS BOC LIPS 3 GHz MKS 14 MKS 13 3 GHz 1. 5 GHz LIPS BOC Gun PB 2 B 1 A 1 TDS A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 11 A 12 A 13 A 14 A 17 A 18 SICA TWT 02 TWT 01 A 10 RF deflectors in CR TWT 03 RF gun in CTF 2 (2007) 40 k. W 1. 5 GHz BW 200 MHz LIPS Photo-injector RF 2 deflectors RF deflectors CTF 3 Collaboration meeting 16 th January 2007 CTF 2 L. Rinolfi Combiner Ring 1 RF deflector Delay Loop

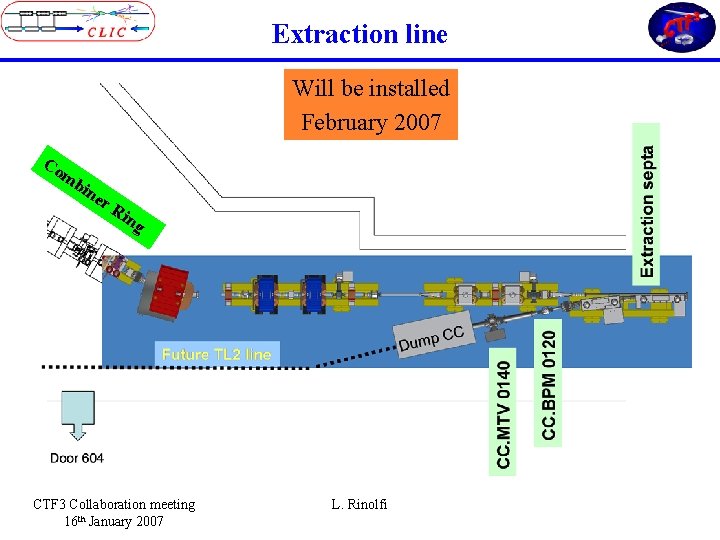

Extraction line Will be installed February 2007 Co mb in er Ri ng CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Alignment Magnets, BPM, BPI, BPR and MTV aligned to: ± 0. 1 mm Target for BPM alignment Magnets, MTV, BPM, BPR and BPI will be aligned in February - March 2007 Last BPI will be aligned in April 2007 CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

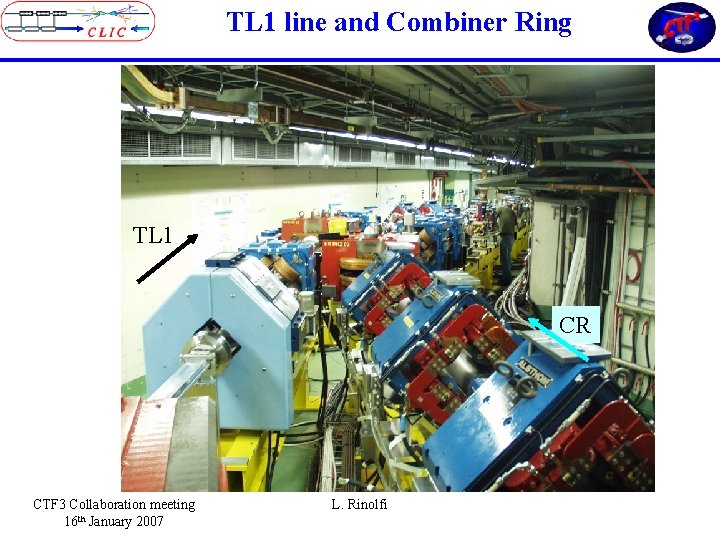

TL 1 line and Combiner Ring TL 1 CR CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

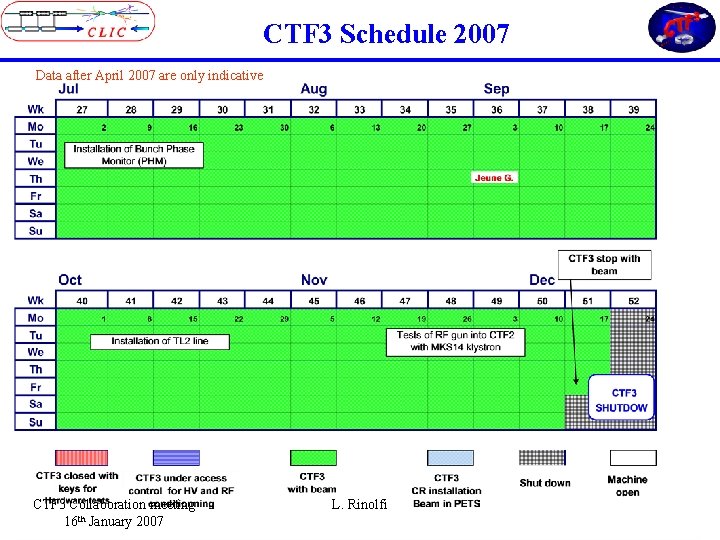

CTF 3 Schedule 2007 Data after April 2007 are only indicative CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

CTF 3 Schedule 2007 Data after April 2007 are only indicative CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi

Conclusion ØTwo open questions for the beam diagnostics: 1) Number of BPI to be installed is under discussion (according to performance). 2) New Streak camera laboratory not yet available for the start-up in March. ØInstallation of the Combiner Ring and the extraction line will be completed for the end of February 2007. Ø Alignment and hardware tests (Vacuum, Power supplies, Diagnostics, …) will be completed for mid-March 2007. Ø The commissioning, with beam, should start 19 th March 2007. CTF 3 Collaboration meeting 16 th January 2007 L. Rinolfi
