CTE Sistemi MACHINES FOR CERNLHC DIPOLES PRODUCTION CTE

CTE Sistemi MACHINES FOR CERN-LHC DIPOLES PRODUCTION CTE Sistemi Srl 16128 GENOVA - I Via Galeazzo Alessi, 5 Tel +39 010 5761629 Fax +39 010 5530345 info@ctesistemi. com

CTE Sistemi The machines presented here have been made by the Consortium CTE Sistemi - Carpenteria S. Antonio during the years 1999 - 2004 Photo credit CERN

Welding Press Length capacity 15500 mm Pressing capacity 192 MN STT + GMAW Welding Adaptive Laser Tracking System CTE Sistemi

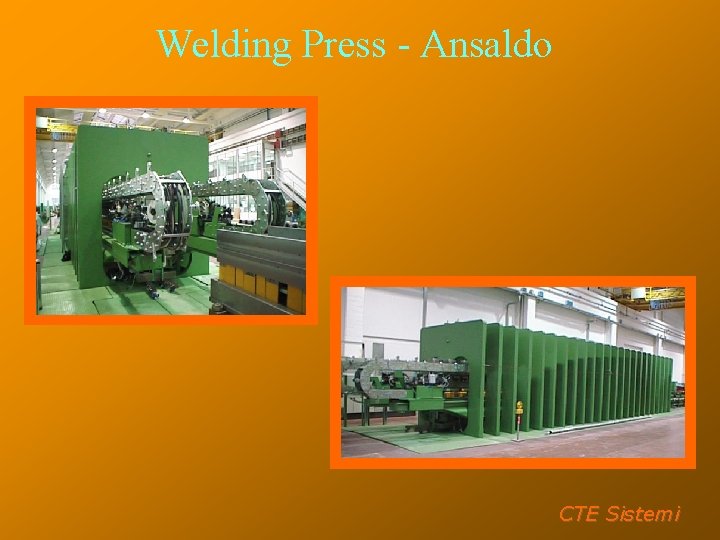

Welding Press - Ansaldo CTE Sistemi

Welding Press - Alstom CTE Sistemi

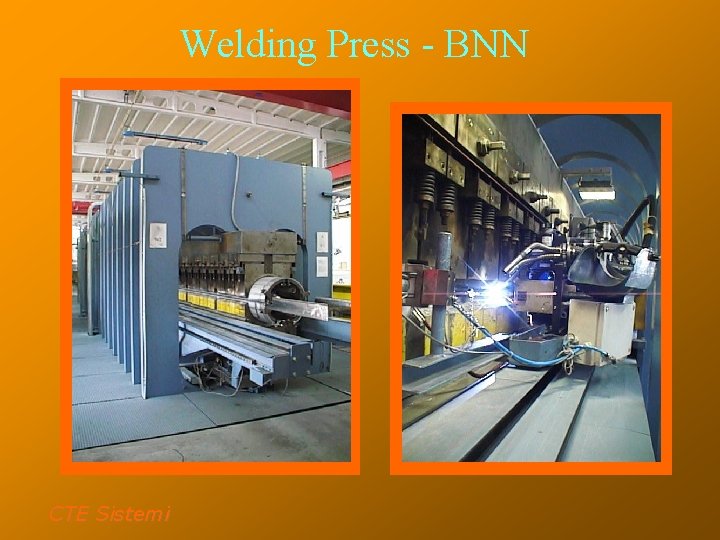

Welding Press - BNN CTE Sistemi

Polymerisation Press Length capacity 15000 mm Pressing capacity 60 - 90 MN Polymerisation temperature 200 °C CTE Sistemi

Polymerisation Press - Jeumont CTE Sistemi

Polymerisation Press - BNN CTE Sistemi

Polymerisation Press - Ansaldo CTE Sistemi

Winding Machine Length capacity 15000 mm Winding angle without manual intervention ± 90° Automatic coil clamping CTE Sistemi

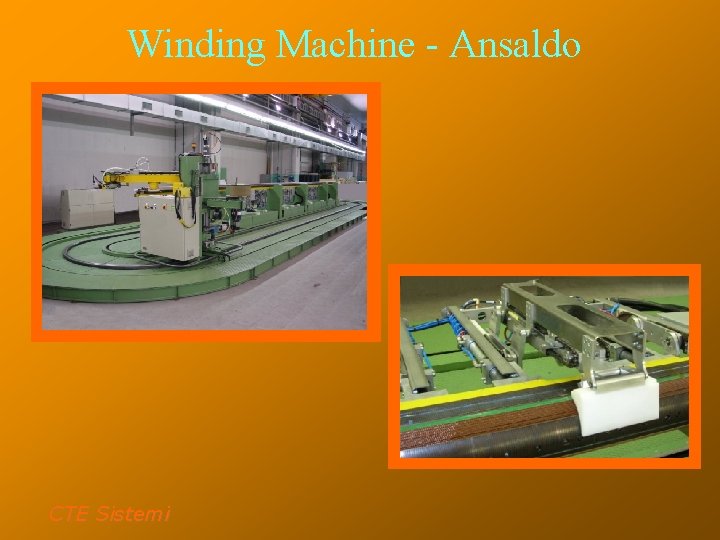

Winding Machine - Ansaldo CTE Sistemi

Assembly Tooling Assembly table lifting capacity 350 KN 3 axis cryostat alignment capability Hydraulic aids for ancillary equipment installation CTE Sistemi

Assembly Tooling CTE Sistemi

E-Measurement Machine Nominal capacity 160 MPa Maximum capacity 200 MPa Lab-View measuring feature Fully automatic working CTE Sistemi

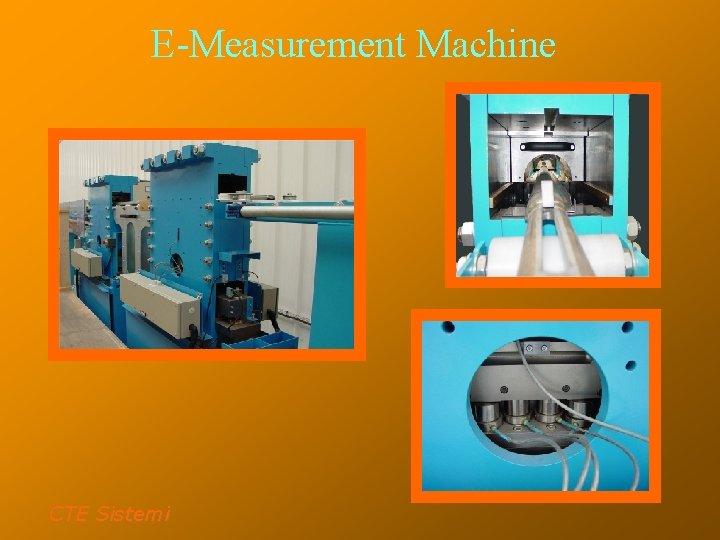

E-Measurement Machine CTE Sistemi
