CTD Cryo Coat Ultra Light Insulation presented by
CTD Cryo. Coat™ Ultra. Light™ Insulation presented by: Michael L. Tupper COMPOSITE TECHNOLOGY DEVELOMENT INC. 1505 Coal Creek Drive Lafayette, Colorado 80026 January 2001 COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD l The Innovation of Ultra. Light™ is a high integrity, low density material. . . that is not a foam! l l Mechanical integrity of a syntactic foam density & thermal conductivity of a chemically expanded foam Material lighter than 5 PCF has been fabricated Meet the requirements for insulating the space shuttle external tank COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD The Systems Approach l Layered, Cryogenic Insulation System l Incorporates CTD’s expertise: Adhesives Thermal Insulation Protective Coatings l Each layer can be optimized gives best system performance COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD Cryo. Coat™ Ultra. Light™ Cryogenic Insulation COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD Advantages l Light weight l Dimensional stability l Easily machined or modified l Field repairable l Consistent manufacturing process l Easy to apply l Tailorable properties l Low cost COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD Thermal Conductivity Range COMPOSITE TECHNOLOGY DEVELOPMENT INC.

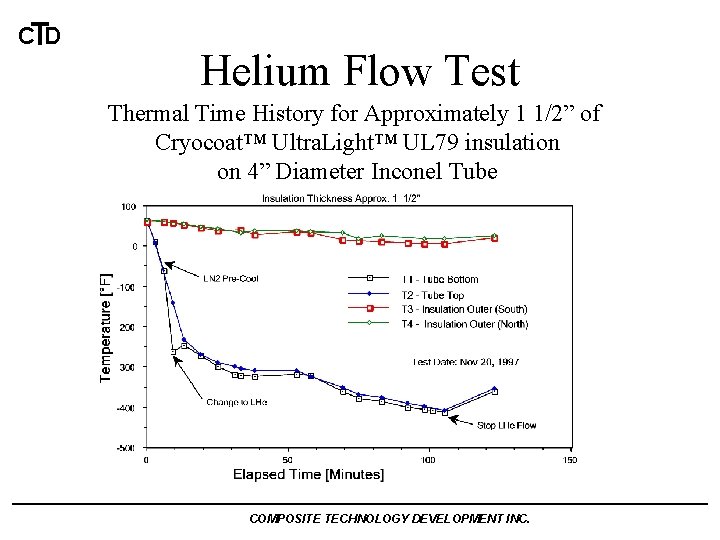

CTD Helium Flow Test Thermal Time History for Approximately 1 1/2” of Cryocoat™ Ultra. Light™ UL 79 insulation on 4” Diameter Inconel Tube COMPOSITE TECHNOLOGY DEVELOPMENT INC.

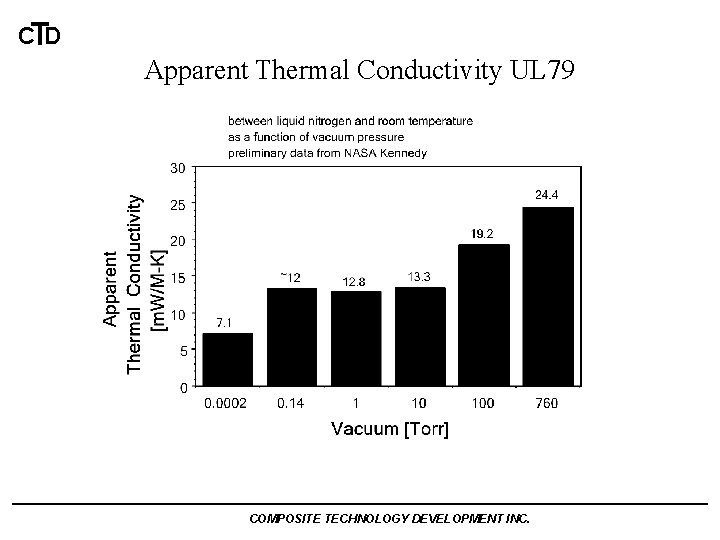

CTD Apparent Thermal Conductivity UL 79 COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD Tensile Cryoflex Data Substrate Aluminum Carbon Composite Temperature [K (°F)] Maximum Substrate Strain [ ] 77 (-320) 4 (-454) >10, 000 9, 000 >6500 ~5000 Comments Substrate Yielded No Failure Insulation Cracking COMPOSITE TECHNOLOGY DEVELOPMENT INC.

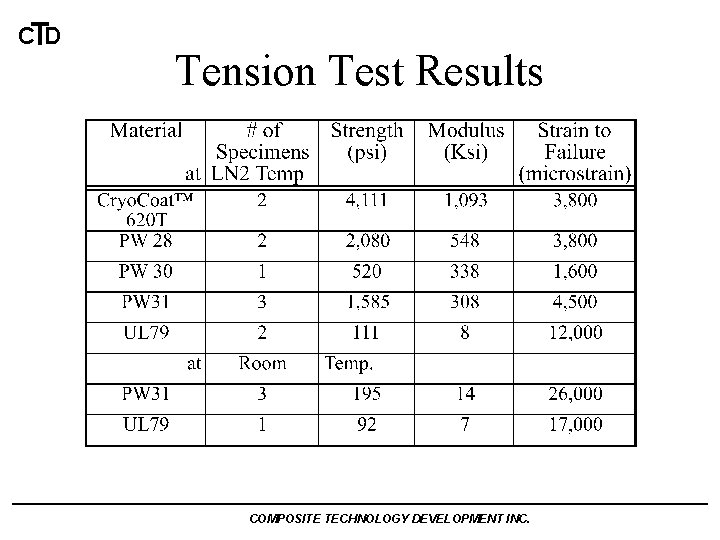

CTD Tension Test Results COMPOSITE TECHNOLOGY DEVELOPMENT INC.
CTD Moisture Barrier Coating 85% Relative Humidity at Room Temperature COMPOSITE TECHNOLOGY DEVELOPMENT INC.
- Slides: 11
