CT-321 Digital Signal Processing Lecture 2: Types of Signals 3 rd August 2016 Yash Vasavada Autumn 2016 DA-IICT

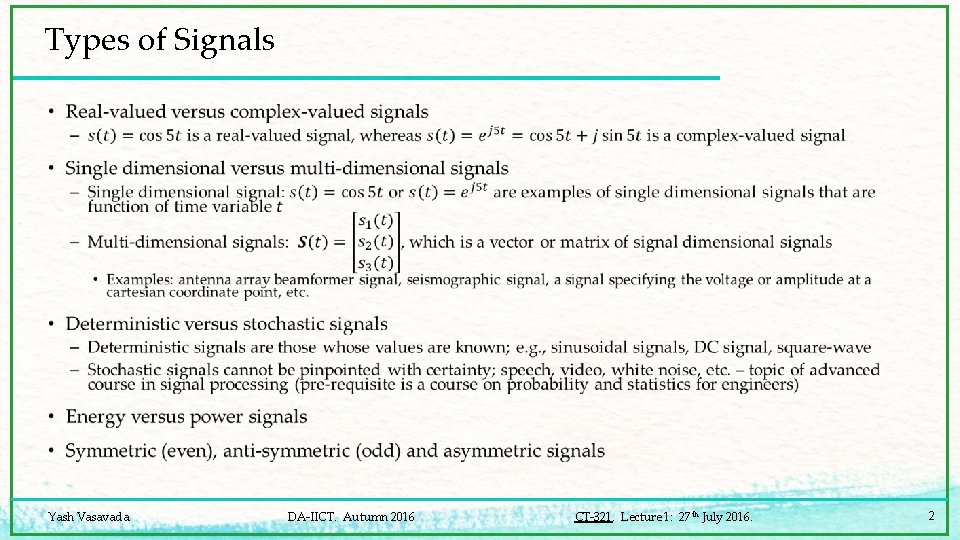

Types of Signals • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 2

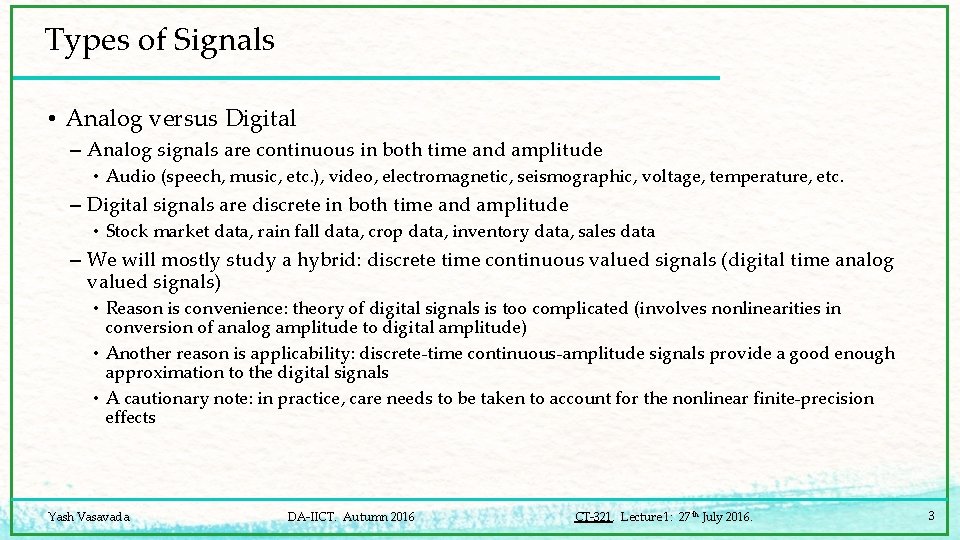

Types of Signals • Analog versus Digital – Analog signals are continuous in both time and amplitude • Audio (speech, music, etc. ), video, electromagnetic, seismographic, voltage, temperature, etc. – Digital signals are discrete in both time and amplitude • Stock market data, rain fall data, crop data, inventory data, sales data – We will mostly study a hybrid: discrete time continuous valued signals (digital time analog valued signals) • Reason is convenience: theory of digital signals is too complicated (involves nonlinearities in conversion of analog amplitude to digital amplitude) • Another reason is applicability: discrete-time continuous-amplitude signals provide a good enough approximation to the digital signals • A cautionary note: in practice, care needs to be taken to account for the nonlinear finite-precision effects Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 3

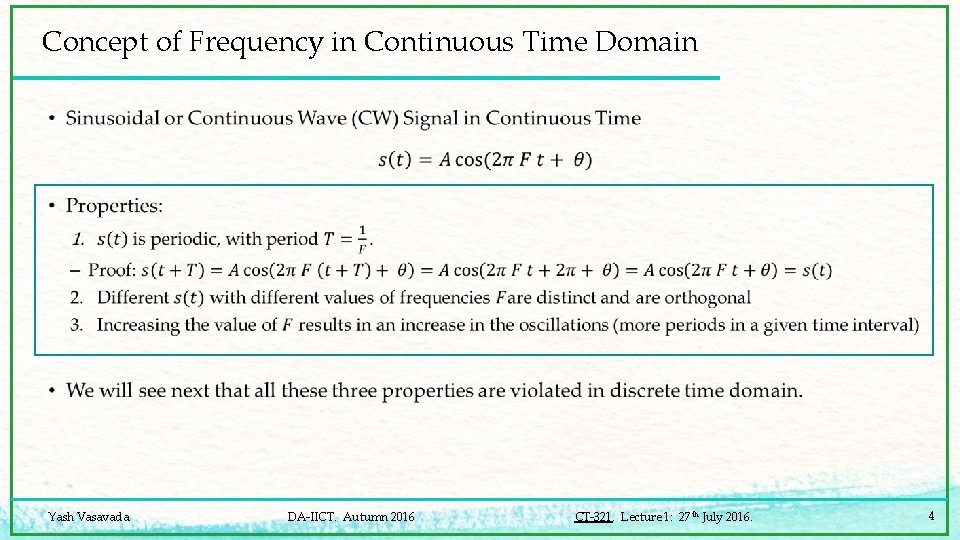

Concept of Frequency in Continuous Time Domain • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 4

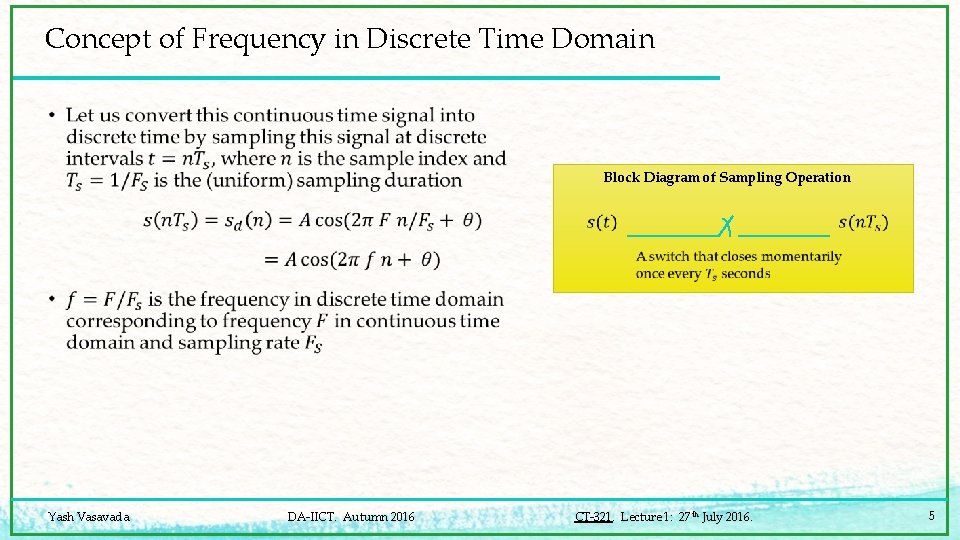

Concept of Frequency in Discrete Time Domain • Block Diagram of Sampling Operation Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 5

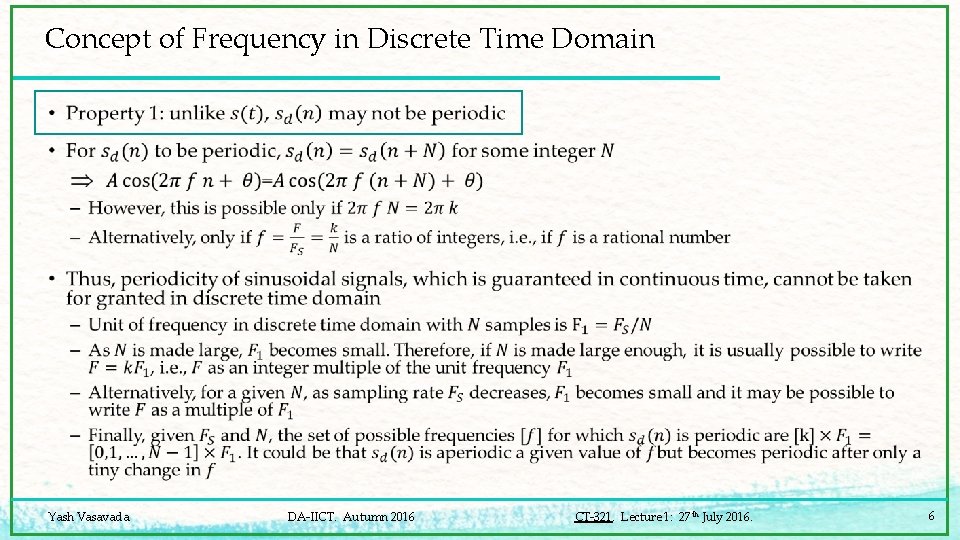

Concept of Frequency in Discrete Time Domain • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 6

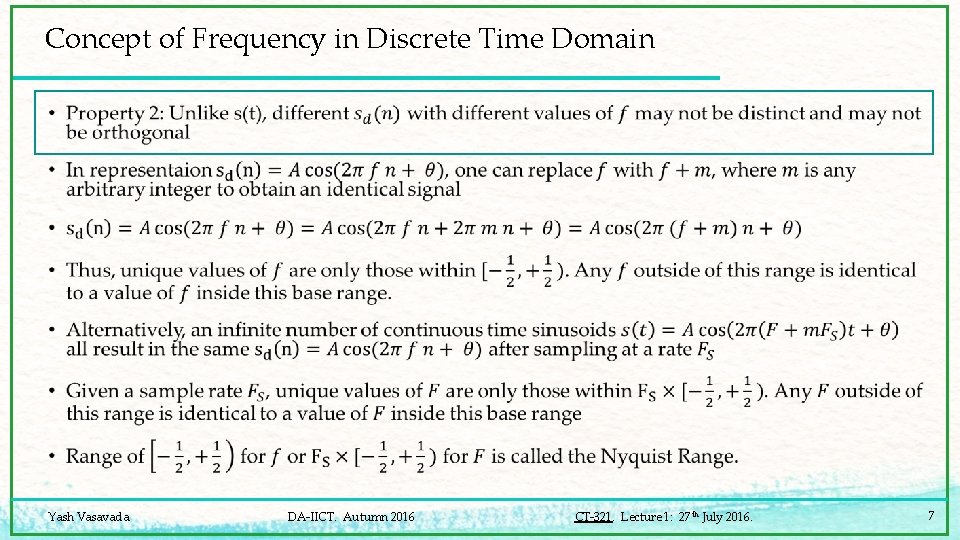

Concept of Frequency in Discrete Time Domain • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 7

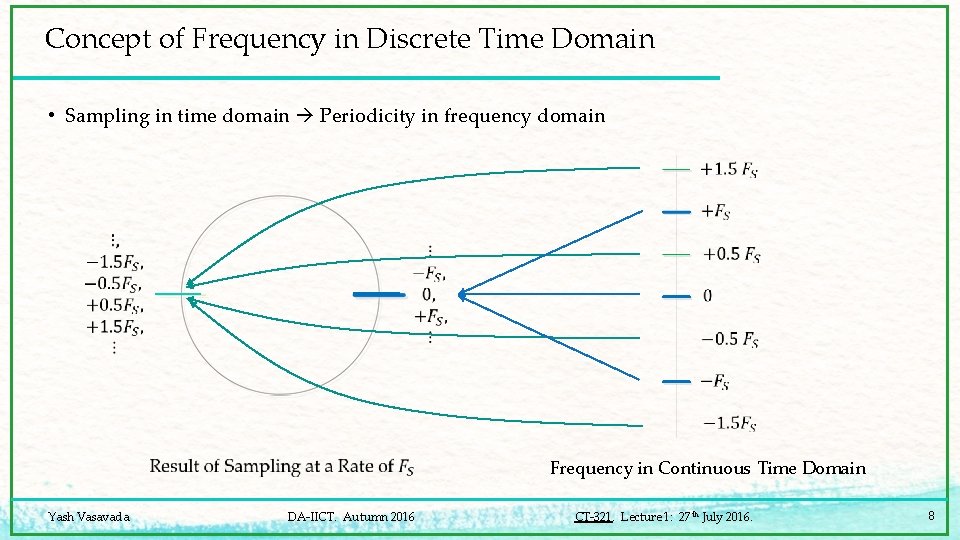

Concept of Frequency in Discrete Time Domain • Sampling in time domain Periodicity in frequency domain Frequency in Continuous Time Domain Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 8

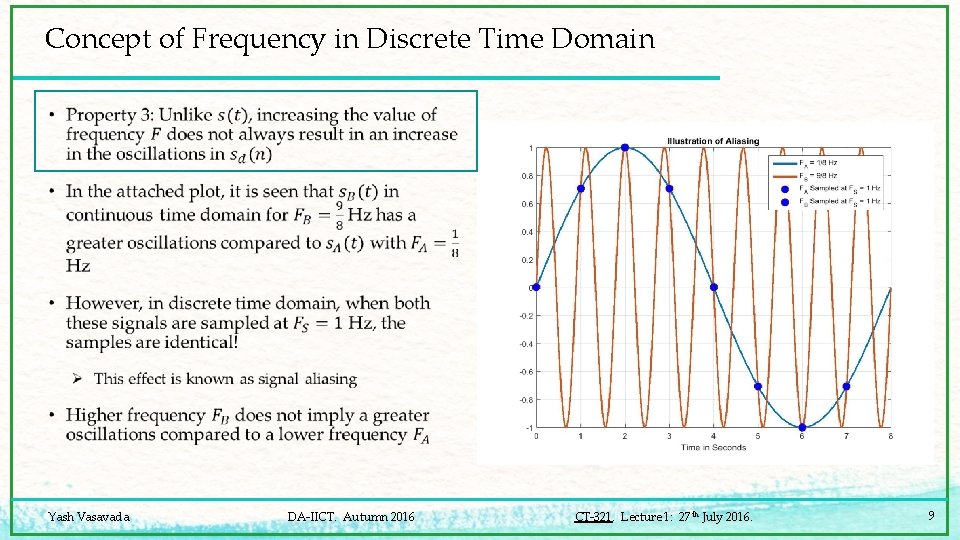

Concept of Frequency in Discrete Time Domain • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 9

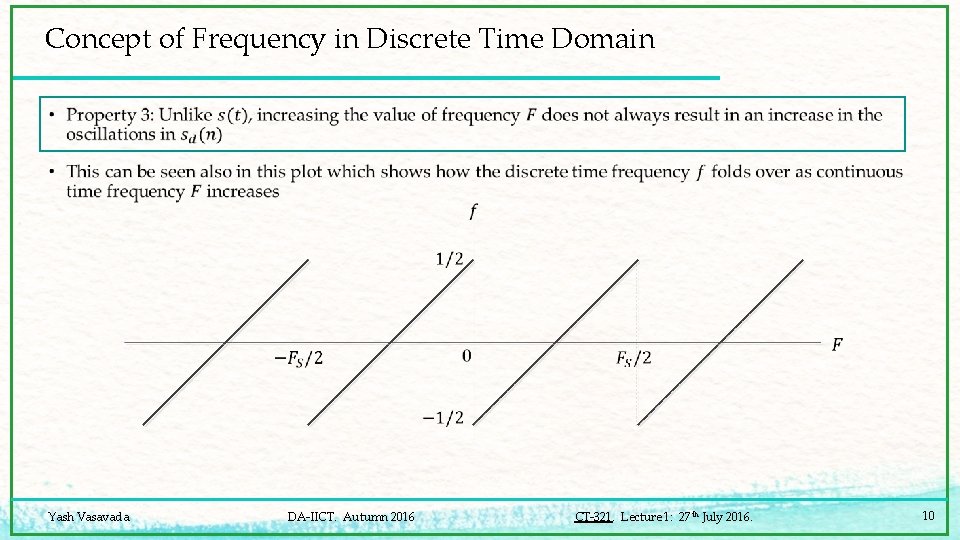

Concept of Frequency in Discrete Time Domain Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 10

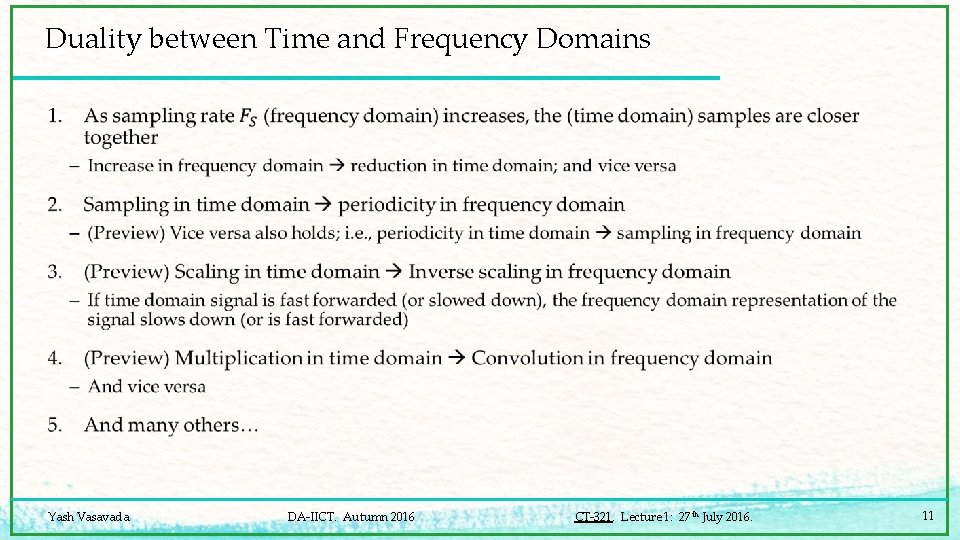

Duality between Time and Frequency Domains • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 11

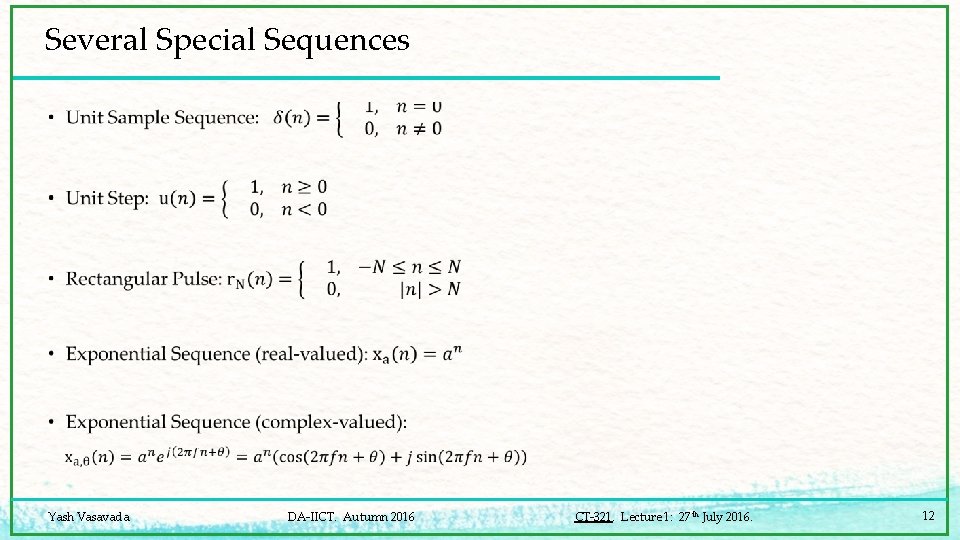

Several Special Sequences • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 12

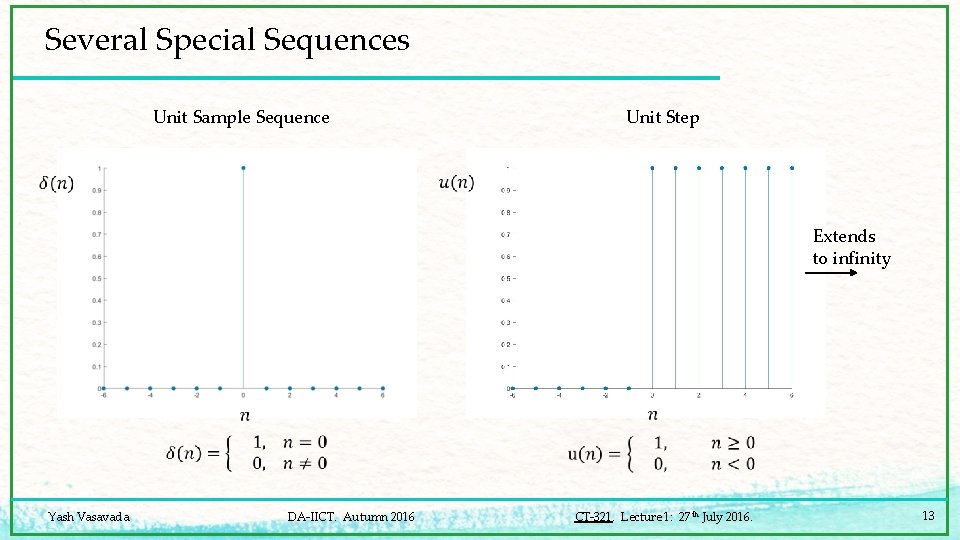

Several Special Sequences Unit Sample Sequence Unit Step Extends to infinity Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 13

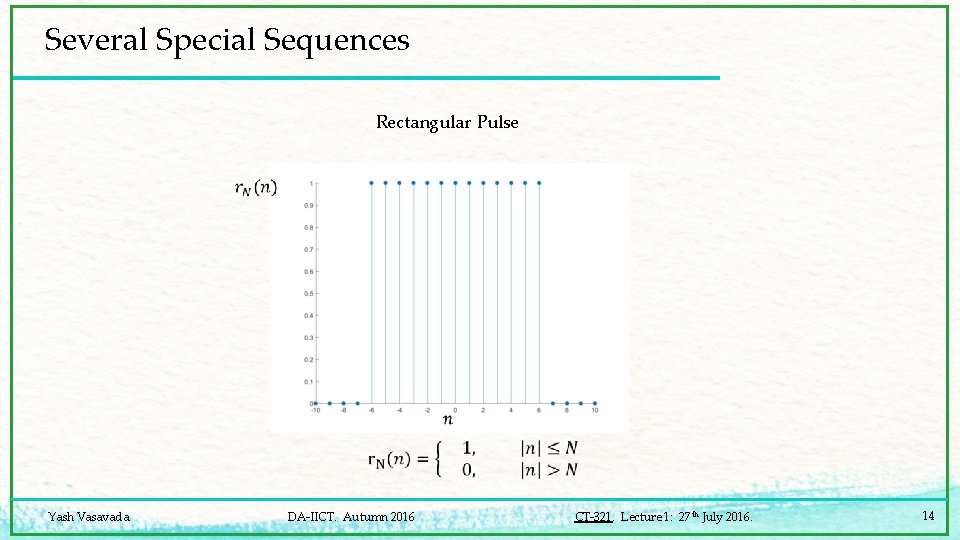

Several Special Sequences Rectangular Pulse Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 14

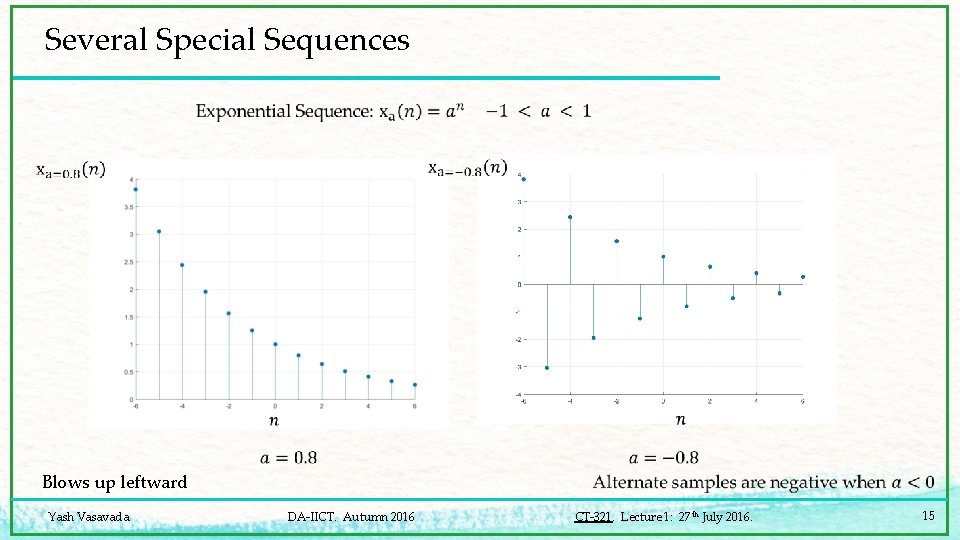

Several Special Sequences Blows up leftward Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 15

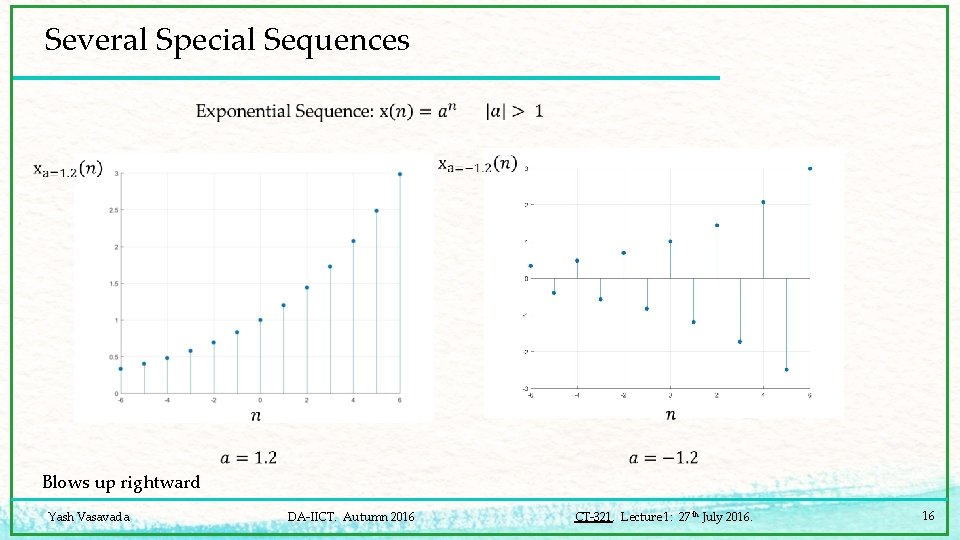

Several Special Sequences Blows up rightward Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 16

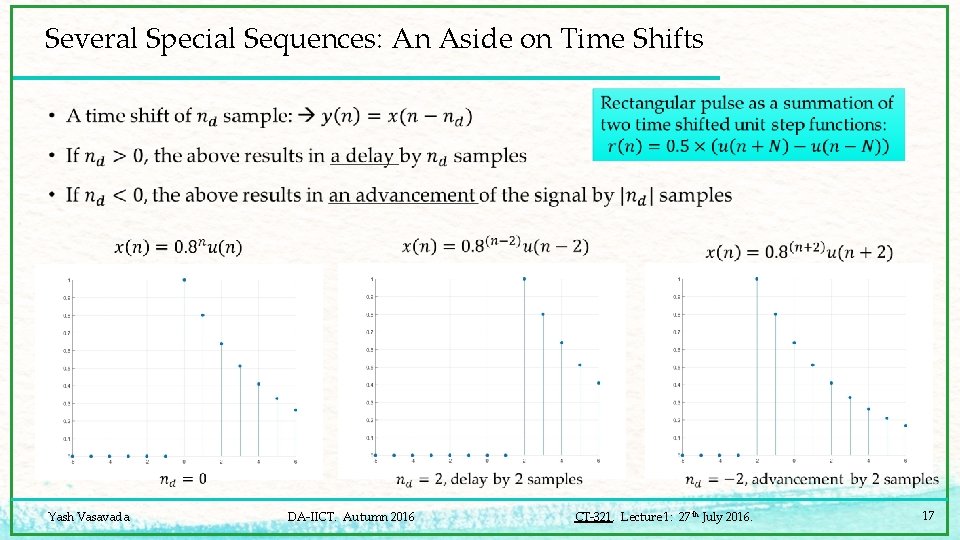

Several Special Sequences: An Aside on Time Shifts • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 17

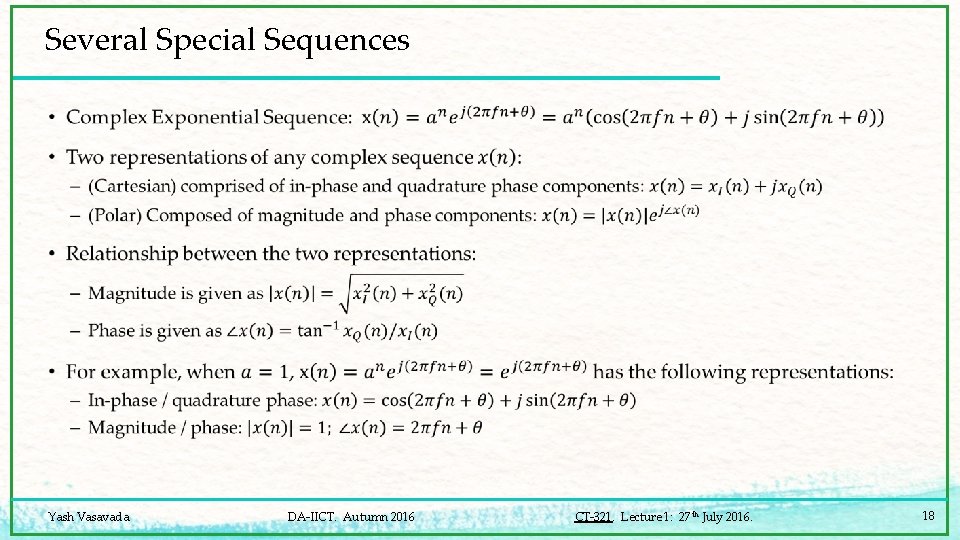

Several Special Sequences • Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 18

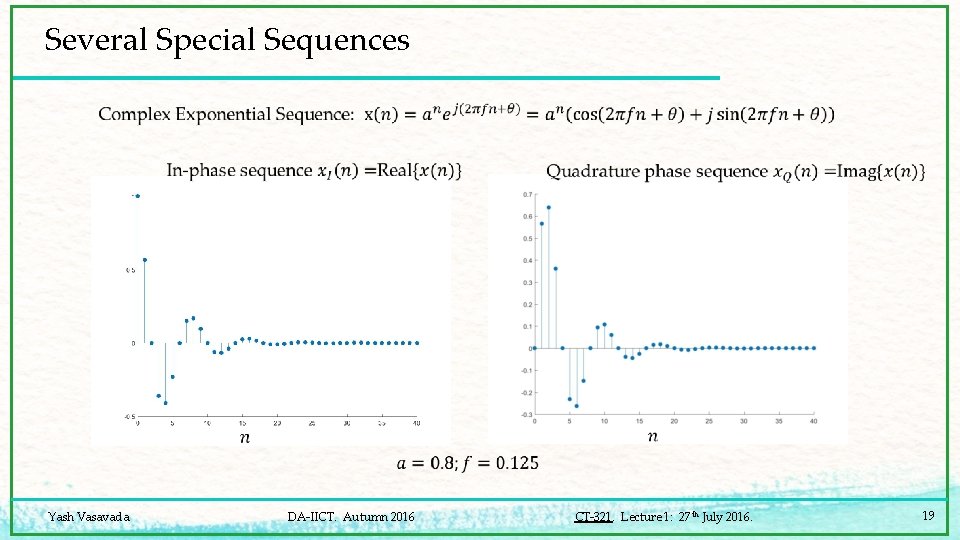

Several Special Sequences Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 19

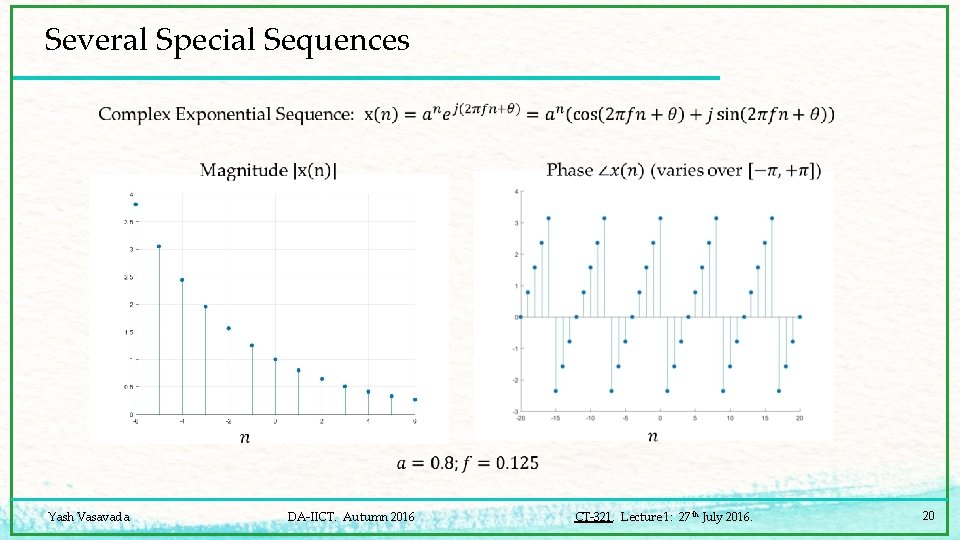

Several Special Sequences Yash Vasavada DA-IICT. Autumn 2016 CT-321. Lecture 1: 27 th July 2016. 20
