CT 11 Models for excess Gibbs energy Models

CT – 11 : Models for excess Gibbs energy Models for the excess Gibbs energy: associate-solution model, quasi-chemical model, cluster-variation method, modeling using sublattices: models using two sublattices

The associate-solution model Systems with SRO: „associate“ – association between unlike atoms when attractive forces are not strong enough to form stable molecule (If the molecule is formed (introduced) – it is constituent in the solution) LFS - CT

The associate-solution model – cont. Associate-solution model introduce formaly fictitious „associate“ („cluster“) as a constituent in the solution as a modeling tool: it is not stable enough to be isolated, but its life time is longer than the mean time between thermal collisions „Associate“ is a new constituent (it has to be introduced!) and it creates an internal degree of freedom: Gibbs energy of its formation should fit experimental data – sharp minimum in the enthalpy curve corresponds to enthalpy of formation of associate and its stoichiometry. Stoichiometric composition: concentration of associate is high, configurational entropy is low.

The associate-solution model – cont. Gibbs-energy expression for substitutional associated solution (i is constituent): yi is site fraction of constituent (molar fractions of components are not the same as constituent fractions) EG can be modeled as in the substitutional solution LFS -CT

Example of introducing associates System Mg-Sn: additional constituent Mg 2 Sn in the liquid (high degree of SRO) – (see concentration scale) LFS - CT

Example of introducing associates – cont. Gibbs energy expression: o. G determines the fraction of Mg 2 Sn in the liquid Model will behave differently for the model (Mg, Sn, Mg 2/3 Sn 1/3) Mg 2 Sn LFS -CT

The associate-solution model – example Zimmermann E. , Hack K. , Neuschütz K. : CALPHAD 18 1995, 356 – associate-solution model Ba – O system J. Houserová, J. Vřešťál: VII. seminar Diffusion and Thermodynamics of Materials, Brno, 1998, p. 93 - ionic liquid model Ba – O system x. O

The associate-solution model – example (Comparison with ionic liquid model) J. Houserová, J. Vřešťál: VII. seminar Diffusion and Thermodynamics of Materials, Brno, 1998, p. 93. Example: Ba-O system - parameters (database) Model: PHASE IONIC_LIQUIDBA 2 1 1 ! CONST IONIC_LIQUIDBA : BA+2: O, O-2, VA-2: ! Data: n n n n PARA G(IONIC_LIQUIDBA, BA+2: O; 0) +31. 44*T; , , N ! PARA G(IONIC_LIQUIDBA, BA+2: VA-2; 0) PARA G(IONIC_LIQUIDBA, BA+2: O-2; 0) 298. 15 +2*GHSEROO-2648. 9 298. 15 +2*GBALIQ; , , N ! 298. 15 +2*GBAO; , , N ! PARA L(IONIC_LIQUIDBA, BA+2: VA-2, O-2; 0) 298. 15 -41429. 53 -6. 897814*T; , , N! PARA L(IONIC_LIQUIDBA, BA+2: O, O-2; 0) 298. 15 -61973. 98; , , N! (Associate-solution model is better for description of less ordered systems, liquid model is more appropriate for solutions with high degree of ordering. ) ionic

The ionic liquid model is the modified sublattice model, where the constituents are cations (Mq+), vacancies (Vaq–), anions (Xp–) and neutral species (Bo). Assumes separate „sublattices“ for Mq+ and Vaq-, Xp–, Bo, e. g. , (Cu+)P(S 2–, Va–, So)Q, (Ca 2+, Al 3+)P(O 2–, Al. O 1. 5 o)Q or (Ca 2+)P(O 2–, Si. O 44–, Va 2–, Si. O 2 o)Q The number of „sites“ (P, Q) varies with composition to maintain electroneutrality. It is possible to handle the whole range of compositions from pure metal to pure non-metal.

Non-random configurational entropy Strong interactions: Random (ideal) entropy of mixing, Sid = -R in yi ln(yi), is not valid Long-range ordering (LRO): sublattices model Short-range ordering (SRO): Quasi-chemical approach – pairwise bonds Cluster variation method (CVM) – clusters = new fictitious constituents in the equation Sid = -R in yi ln(yi)

The quasi-chemical model Guggenheim (1952): Assuming the bonds AA, BB and AB Formation of bonds is treated as chemical reaction: AA + BB AB + BA „fictitious“ constituents AB and BA (bonds in crystalline solids of different orientation) Number of bonds per atom for a phase = z, Gibbs energy expression for the „bonds“: LFS -CT

The quasi-chemical model - cont. In the expression for surface reference: o. G o (due to symmetry) AB = GBA If y. AB = y. BA no LRO – „degeneracy“ in disordered state It should be added the additional term: RT y. AB ln 2 compared with the case on ignoring this degeneracy In the expression for configurational entropy: cnf. S is overestimated: number of bonds is z/2 times larger than the number of atoms per mole and, for o. GAB = 0 entropy should be identical to Sid of components A and B. ) Therefore, modified configurational entropy expression (Guggenheim 1952): LFS -CT

The quasi-chemical model - cont. No SRO - modified configurational entropy expression gives the same configurational entropy as a random mixing of the atoms A and B (first term=0): constituent fractions can be calculated from the mole fractions by the set of equations: y. AA = x. A 2 , y. AB = y. BA = x. A x. B, y. BB = x. B 2 Small SRO - Modified configurational entropy expression is valid! Strong SRO, z > 2, may be even cnf. S < 0 Very strong SRO: situation can be treated as LRO: sublattice model (Quasichemical and CVM models are alternative models to the regular solution model – Differences in entropy term)

Cluster variation method Kikuchi (1951): Clusters with 3, 4, and more atoms – depending on the crystal structure are independent constituents (similarity with the quasi-chemical formalism) Corrections to the entropy expression taking into account that clusters are not independent (share corners, edges, surfaces…) Example: configurational entropy for FCC lattice in tetrahedron approximation: No LRO: clusters A, A 0. 75 B 0. 25, A 0. 5 B 0. 5, A 0. 25 B 0. 75, B are „end members“ of the phase: Surface of reference is: The ideal configurational entropy for this system is: LFS - CT

Cluster variation method – cont. Typical cluster used in tetrahedron approximation in FCC lattice Saunders N. , Miodownik P. : CALPHAD, Pergamon Press, 1998.

Cluster variation method – cont. Typical cluster used in tetrahedron approximation in BCC lattice B. Sundman, J. Lacaze: Intermetallics 2009

Cluster variation method – cont. Example: tetrahedron approximation – cont. Clusters are not independent (share corners…) – it reduces the configurational entropy: The term deg. Sm is due the fact that the 5 clusters above are degenerate cases of the 16 clusters needed to describe LRO (4 different A 0. 75 B 0. 25, 6 different A 0. 5 B 0. 5, and 4 different A 0. 25 B 0. 75 this means adding term LFS. - CT

Cluster variation method – cont. The variable p. AA is a pair probability that is equal to the bond fraction in the quasi-chemical-entropy expression. It can be calculated from the cluster fractions as: and the mole fractions from the pair probabilities are: x. A = p. AA + p. AB x. B = p. BB + p. BA LFS - CT

Cluster variation method – cont. LFS - CT

Cluster variation method – cont. n Discussion: - Associate model overestimates the contribution of SRO to the Gibbs energy - The CVM extrapolation gives an unphysical negative entropy at low T - Cluster energies in CVM depend on composition. In CEF - energies are fixed but the dependence of Gibbs energy on composition is modeled with EG (needs less composition variables than CVM does – see example) Example: CVM tetrahedron model for FCC with 8 elements: at least 84=4096 clusters CEF 4 -sublattice requires only 8 x 4 = 32 constituents.

Cluster variation method – cont. – example:

Cluster variation method – cont. n Example: T. Mohri et al. : First-principles calculation of L 10 -disorder phase equilibria for Fe-Ni system. CALPHAD 33 (2009) 244 -249 N is total number of atoms, xi, yij, wijkl are cluster probabilities of finding atomic configuration specified by subscript (s) on a point, pair and tetrahedron clusters, respectively, and , distinguish two sublattices in the L 10 ordered phase. Entropy is calculated for disordered, S(dis), and ordered: L 10, S(L 10), phases, k. B is Boltzmann constant.

Cluster variation method – cont. Example: T. Mohri et al. : First-principles calculation of L 10 -disorder phase equilibria for Fe-Ni system. CALPHAD 33 (2009) 244 -249

Modeling using sublattices Atoms in crystalline solids – occupy different type of sublattices Sublattices represent LRO – modify entropy and excess Gibbs energy Example: (A, B)m(C, D)n m, n – ratio of sites on the two sublattices (smallest possible integer numbers) A, B, C, D – constituents (in CEF)

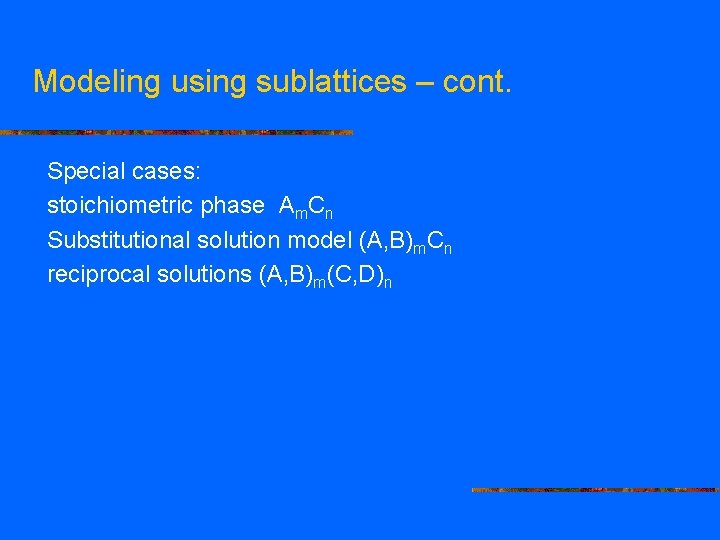

Modeling using sublattices – cont. Special cases: stoichiometric phase Am. Cn Substitutional solution model (A, B)m. Cn reciprocal solutions (A, B)m(C, D)n

Reciprocal solutions Example: Na. Cl + KBr = Na. Br + KCl Model: (Na, K) (Cl, Br) as (A, B)1(C, D)1 Reciprocal Gibbs energy of reaction: ∆G = o. GA: C + o. GB: D - o. G A: D - o. GB: C Entropy: ideal configurational entropy in each sublattice weighted for total entropy with respect to the number of sites on each sublattice (different from the configurational entropy given by substitutional model!):

Reciprocal solutions – cont. Partial Gibbs energy cannot be calculated for components but for end members only LFS - CT

Reciprocal solutions – cont. Excess Gibbs energy: Excess parameters are multiplied with three fractions - two from one sublattice and one from the other. Additionally, reciprocal excess parameter is multiplied by all four fractions having largest influence in the center of the square (A, B, C, D – components, primes – sublattices): Binary L – parameters can be expanded in an Redlich – Kister formula (with concentration dependence – not advisable) LFS - CT

Reciprocal solutions – cont. Surface of reference for reciprocal system In models with more sublattices – major part of Gibbs energy is described in the surface of reference !

Reciprocal solutions – cont. Miscibility gap in reciprocal solution model – inherent tendency to form it in the middle of the system. Sometimes difficult to suppress. When no data for one end member of reciprocal system are available – recommended assumption is (e. g. to calculate o. GA: C) ∆G = o. GA: C + o. GB: D - o. G A: D - o. GB: C = 0 To avoid the miscibility gap – introduction of (Hillert 1980) EG = (y y )1/2 L m A B C D A, B: C, D where LA, B: C, D = - ∆G 2 / (z. RT) , z is the number of nearest neighbors (Successful also for carbides and nitrides. )

Reciprocal solutions – cont. Example: LFS - CT

Reciprocal solutions – cont. - example . Projection of miscibility gap in the HSLA steels – (Nb, Ti) (C, N) system M. Zinkevich-Sommer school Stuttgart 2003

Models using two sublattices Two-sublattice CEF – generally: (A, B, …. )m(U, V, …. )n The same constituents can be in both sublattices. Gibbs energy for this model is: LFS - CT

Interstitial solutions Most common application of two-sublattice model: C and N in metals. They occupy the interstitial sites in metallic sublattices. Introducing vacancies (Va): „real“ constituents with chemical potential equal zero they are excluded from the summation to calculate mole fraction Model for carbide, nitride, boride – B 1 structure, (can be treated as fcc structure), is: (Fe, Cr, Ni, Ti, …. )1 (Va, C, N, B)1

Models for phases with metals and non-metals According to crystallography – two metallic sublattices for metallic elements can be modeled: e. g. case M 23 C 6 (Fe, Cr, …)20 (Cr, Fe Mo, W, …)3 C 6 Another interesting case is the spinel phase – constituents are ions: (Fe 2+, Fe 3+)1 (Fe 2+, Fe 3+, Va)2 (O 2 -)4

The Wagner-Schottky defect model (1930) Ideal compound (of constituents A, B) + 2 defects (X, Y) allowing deviation from stoichiometry (a, b) on both sides of the ideal composition: CEF description as reciprocal solution model is: (A, X)a (B, Y)b The defects can be: a) Anti-site atoms b) Vacancies c) Intersticials d) Mixture of above defects

The Wagner-Schottky defect model – cont. Various types of models: (A)a (B)b (Va, A, B)c Both A and B prefer to appear as interstitials on the same interstitial sublattice (A, B)1 (B, Va)1 Ordered bcc (B 2) has two identical sublattices – they often have anti-site atoms on one side of the ideal composition and vacancies on the other (A, B, Va)1 (B, A, Va)1 Defects including on both sublattices (anti-site atoms and vacancies)

The Wagner-Schottky defect model - cont. Mathematical expressions for Wagner- Schottky model in CEF: c nx is the number of X on A sites, ny number of Y on B sites, n is the total number of sites, o. GX: B is energy for creating defect X in first sublattice. . . LFS - CT

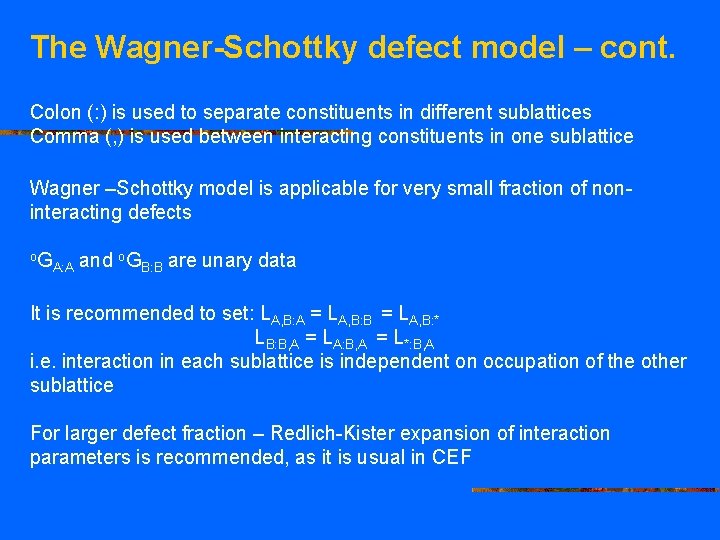

The Wagner-Schottky defect model – cont. Colon (: ) is used to separate constituents in different sublattices Comma (, ) is used between interacting constituents in one sublattice Wagner –Schottky model is applicable for very small fraction of noninteracting defects o. G A: A and o. GB: B are unary data It is recommended to set: LA, B: A = LA, B: B = LA, B: * LB: B, A = LA: B, A = L*: B, A i. e. interaction in each sublattice is independent on occupation of the other sublattice For larger defect fraction – Redlich-Kister expansion of interaction parameters is recommended, as it is usual in CEF

A model for B 2/A 2 ordering of bcc LFS - CT Ordering = atom in the center of the unit cell is different from those at the corners Examples: Fe-Si, Cu-Zn systems: B 2 to A 2 is second-order transition – both phases are treated by the same Gibbs energy expression, Fe-Ti: separate phase from the disordered A 2 (treated using Wagner-Schottky model)– It is not recommended for problems with extension to ternary systems. Extending into the ternary – B 2 may form continuous solution to another binary system with second-order A 2/B 2 transition (e. g. Al-Fe-Ni).

A model for B 2/A 2 ordering of bcc – cont. Phase diagram Cu-Zn: A. Dinsdale, A. Watson, A. Kroupa, J. Vrestal, A. Zemanova, J. Vizdal: Atlas pf Phase Diagrams for Lead-Free Soldering. COST 2008, Printed in Brno, Czech Rep. LFS - CT

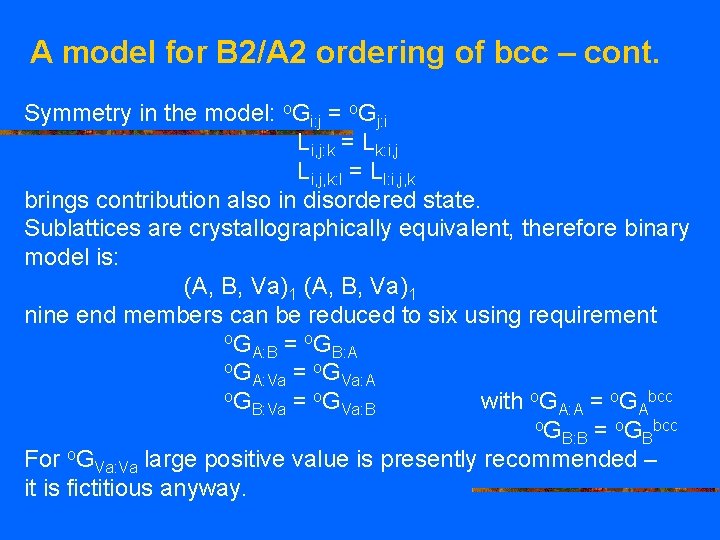

A model for B 2/A 2 ordering of bcc – cont. Symmetry in the model: o. Gi: j = o. Gj: i L i, j: k = Lk: i, j L i, j, k: l = Ll: i, j, k brings contribution also in disordered state. Sublattices are crystallographically equivalent, therefore binary model is: (A, B, Va)1 nine end members can be reduced to six using requirement o. G o A: B = GB: A o. G o A: Va = GVa: A o. G o with o. GA: A = o. GAbcc B: Va = GVa: B o. G o bcc B: B = GB For o. GVa: Va large positive value is presently recommended – it is fictitious anyway.

B 2 ordering in bcc lattice – example Fe-Al system B. Sundman, J. Lacaze: Intermetallics 2009

A model of L 12/A 1 ordering of fcc LFS - CT The L 12 ordering means that the atoms in the corners are of different kind from the atoms on the sides: ideal stoichiometry is A 3 B which can be modeled as (A, B)3 (A, B)1. (Usually firstorder transition, two different models. ) (Constituents in the first sublattice have eight nearest neighbors in the same sublattice – relation exists between o. GA: B and LA, B: *. Possible improvement is foursublattice model: Fe-Al system. More sublattice model is substantiated only with enough experimetal data or ab initio data. It is still subject of discussion. )

L 10, L 12/A 1 ordering in fcc lattice-example: Au-Cu system LIQ FCC_A 1 L 12 B. Sundman, J. Lacaze: Intermetallics 2009 L 10 L 12

Questions for learning 1. Describe associate-solution model 2. Describe quasi-chemical model and cluster variation method 3. Describe model for reciprocal solutions and their tendency to create miscibility gap 4. Describe Wagner-Schottky model and two sublattice model for interstitial solutions 5. Describe model for B 2/A 2 ordering in BCC structure and L 10, L 12/A 1 ordering in FCC structure
