Workflow Management n n The important achievement of workflow management is explicit representation of process structures in process models The goal of workflow is to manage the flow of work so that right work is performed by right person at right time Workflow is the automation of a business process, in whole or part, during which documents, information, or tasks are passed from one participant to another for action, according to a set of procedural rules Department of Computer Science 2
Workflow Management A workflow management system (WFMS) is a software package that can be used to support the definition, management and execution of workflow processes A workflow management system is a software systems that defines, creates, and manages the execution of workflows through the use of software, running one or more workflow engines, which is able to interpret the process definition, interact with workflow participants, and, where required, invoke the use of IT tools and applications Department of Computer Science 3
Informal Workflow Department of Computer Science 4
Business Process Management n “True Business Process Management is an amalgam of traditional workflow and the 'new' BPM technology. It then follows that as BPM is a natural extension of – and not a separate technology to – Workflow, BPM is in fact the merging of process technology covering 3 process categories: interactions between (i) people-to-people; (ii) systems-to-systems and (iii) systems-to-people – all from a processcentric perspective. This is what true BPM is all about. ” Jon Pyke, CTO Staffware. Department of Computer Science 5
WFMS, EAI, BPMS Department of Computer Science 6

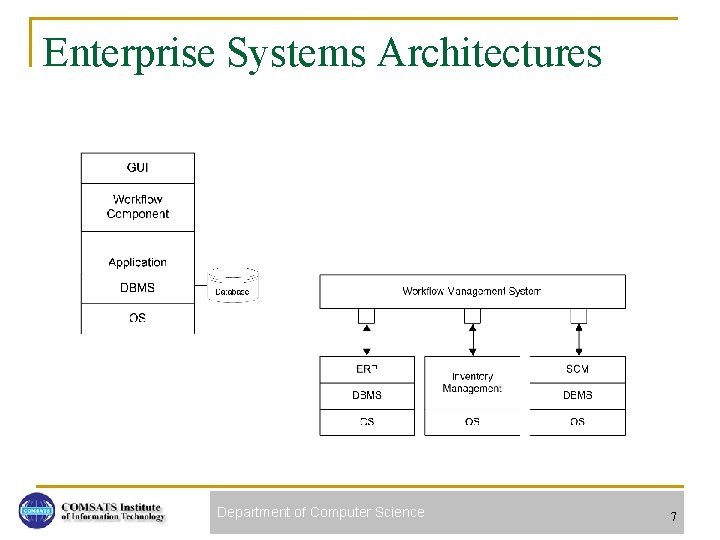

Enterprise Systems Architectures Department of Computer Science 7

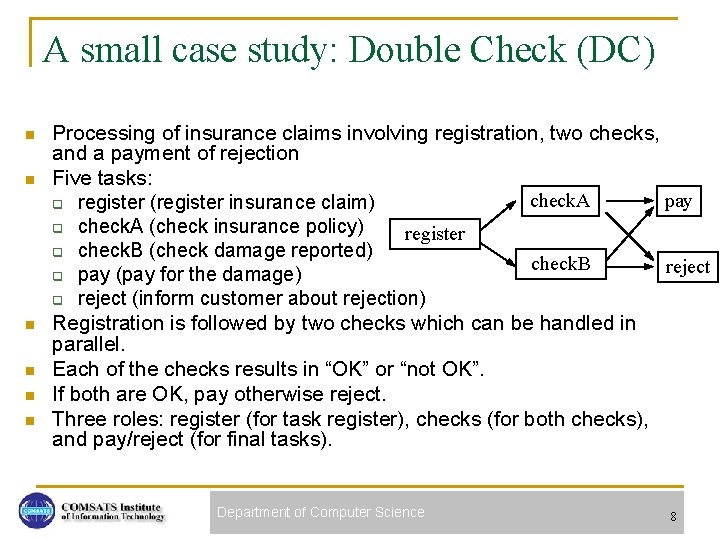

A small case study: Double Check (DC) n n n Processing of insurance claims involving registration, two checks, and a payment of rejection Five tasks: check. A pay q register (register insurance claim) q check. A (check insurance policy) register q check. B (check damage reported) check. B reject q pay (pay for the damage) q reject (inform customer about rejection) Registration is followed by two checks which can be handled in parallel. Each of the checks results in “OK” or “not OK”. If both are OK, pay otherwise reject. Three roles: register (for task register), checks (for both checks), and pay/reject (for final tasks). Department of Computer Science 8

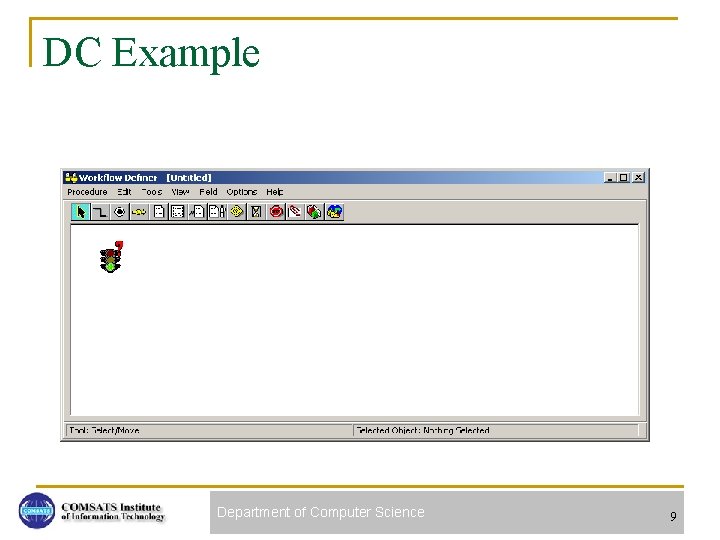

DC Example Department of Computer Science 9
DC Example n Adding a step Department of Computer Science 10

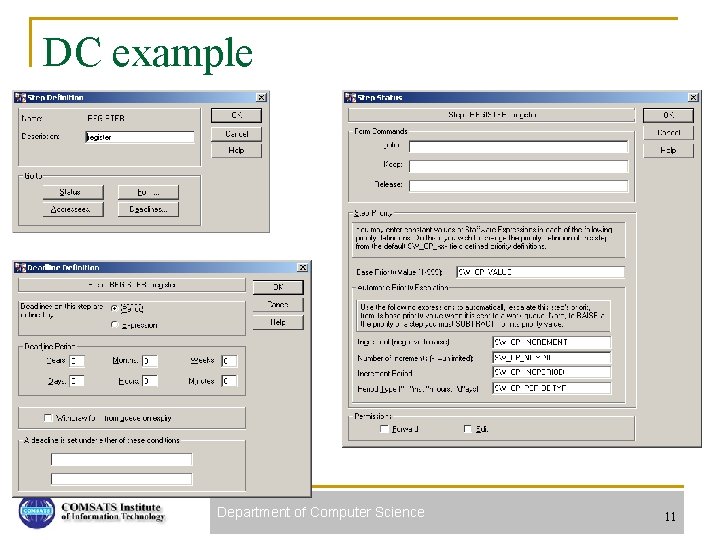

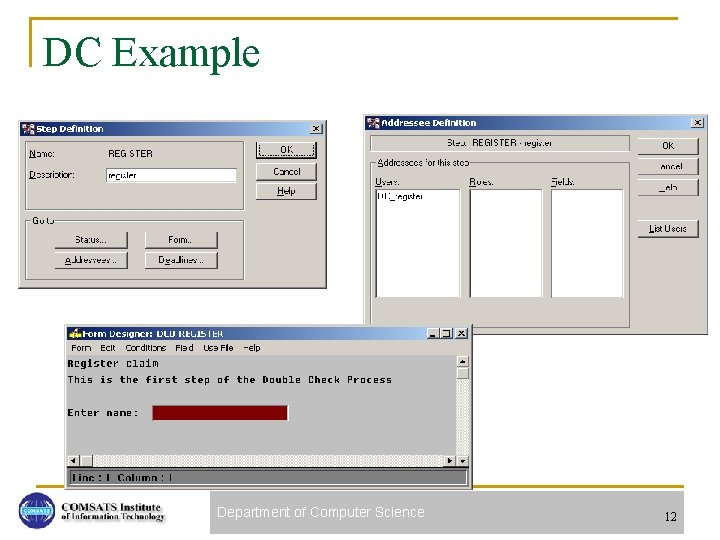

DC example Department of Computer Science 11
DC Example Department of Computer Science 12
DC Example Department of Computer Science 13
DC Example Department of Computer Science 14

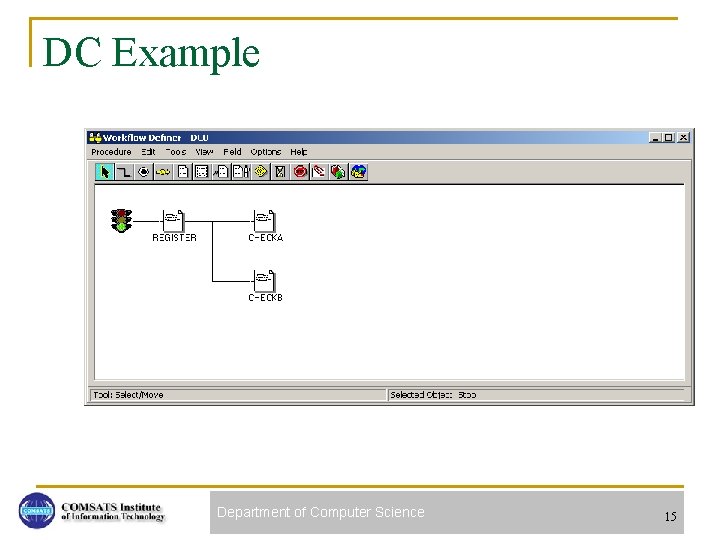

DC Example Department of Computer Science 15
DC Example Department of Computer Science 16
DC Example Department of Computer Science 17

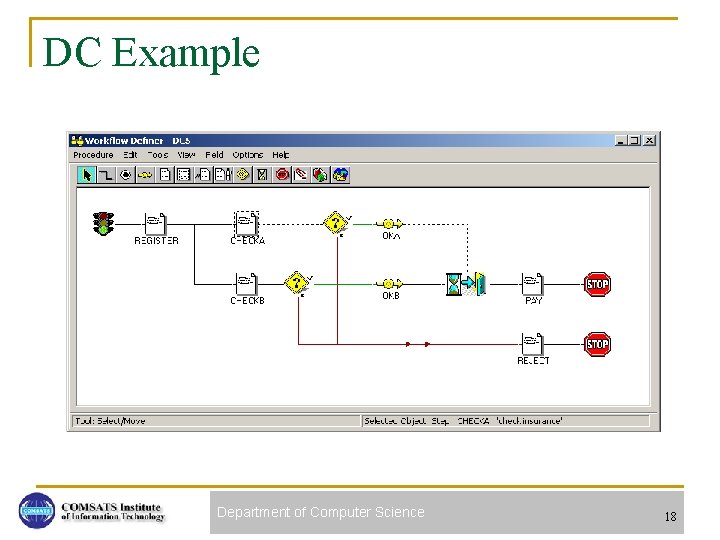

DC Example Department of Computer Science 18

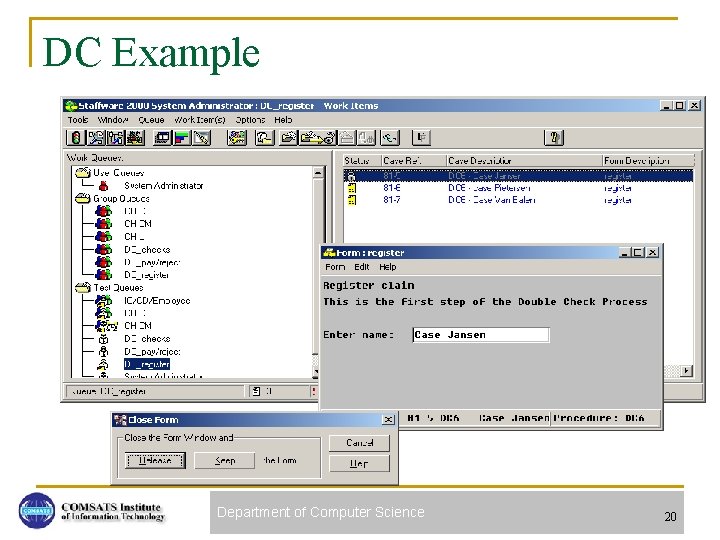

DC Example n The manager’s view Managing users/groups Department of Computer Science Monitoring and managing processes and cases 19
DC Example Department of Computer Science 20

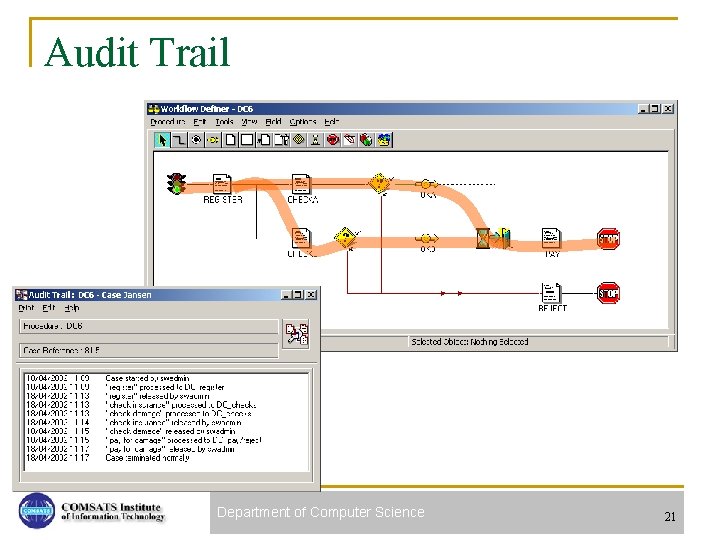

Audit Trail Department of Computer Science 21

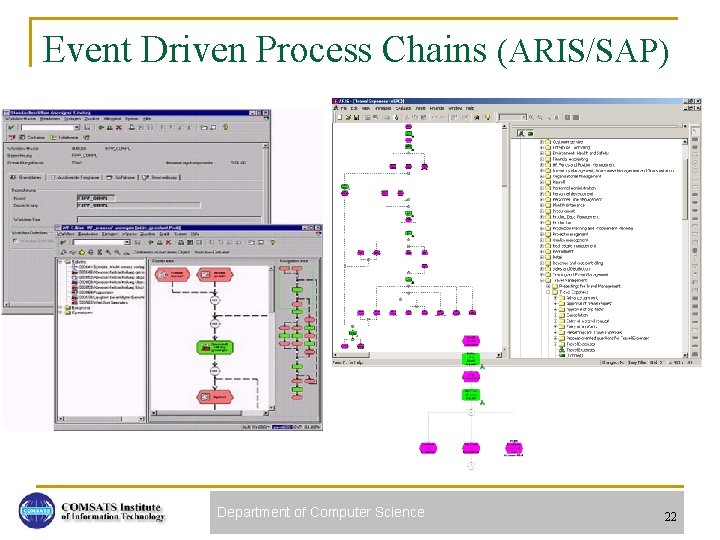

Event Driven Process Chains (ARIS/SAP) Department of Computer Science 22
Complex Process Department of Computer Science 23
Classification of Workflows n System Workflows q n A system workflow consists of activities that are implemented by software systems without any user involvement Human Interaction Workflows q Workflows in which humans are actively involved and interact with information systems are called human interaction workflows Department of Computer Science 24
Classification of Workflows n System Workflows q n A system workflow consists of activities that are implemented by software systems without any user involvement Human Interaction Workflows q Workflows in which humans are actively involved and interact with information systems are called human interaction workflows Department of Computer Science 25
