CSI447 Multimedia Systems Chapter 2 Media and Data
- Slides: 19
CSI-447: Multimedia Systems Chapter 2: Media and Data Streams
The Term Multimedia • Multi – Prefix – From Latin “Multus” meaning numerous • Media – Root – Plural form of the Latin word “Medium”. – “Medium” is a noun meaning middle or center.
The Term Media • Media: A means to distribute and present information – Text – Graphics – Pictures – Voice – Sound – Music
Attributes of Media • • Perception Media Representation Media Presentation Media Storage Media Transmission Media Information Exchange Media Presentation Spaces and Presentation Values Presentation Dimensions
Key Properties of a Multimedia System • Discrete and continuous media – Support of one type does not constitute multimedia (according to authors) • Independent media – Unlike video, one can have more than one type. • Computer-controlled systems – Video recorder is not sufficient • Integration
Characterizing Data Streams • Distributed networked multimedia systems transmit continuous and discrete data • Data transmission characteristics: – Asynchronous – Synchronous – Isochronous
Asynchronous Transmission • The sender and the receiver do not need to coordinate before data can be transmitted. – Two independent clocks (one at the sender and the other at the receiver) determine the start of each bit (bit synchronization)

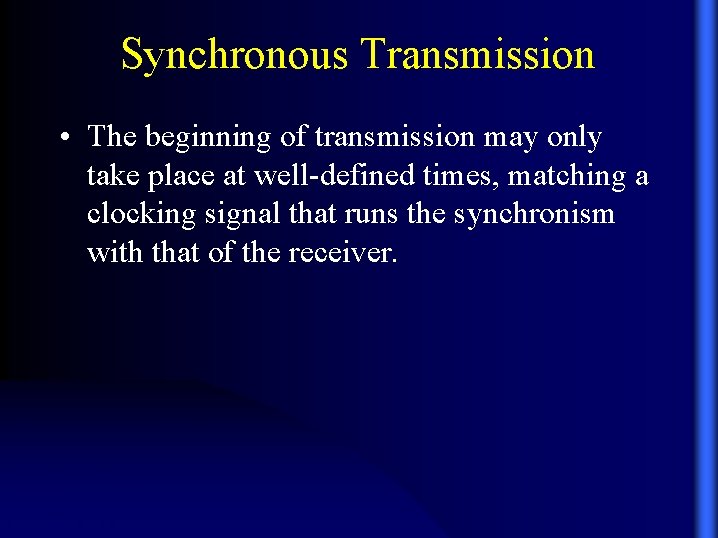

Synchronous Transmission • The beginning of transmission may only take place at well-defined times, matching a clocking signal that runs the synchronism with that of the receiver.
Isochronous Transmission • The time interval separating any two corresponding transitions is equal to the unit interval or to a multiple of the unit interval. – Transmission rate “guaranteed” and jitter is minimized. • Significant instants of two or more sequential signals have a constant phase relationship.
Characterizing Continuous Data Streams • This is in relation to audio and video transmission – Strongly and Weakly Periodic Data Streams – Variation of the data volume of consecutive information units. – Interrelationship of consecutive packets.
Strongly Periodic Data Stream • Constant time interval • Minimum jitter • e. g. PCM encoded voice in telephone systems
Weakly Periodic Data Stream • Duration of time intervals between neighboring packets is a function with finite period duration. • Time intervals between neighboring packets is not constant.

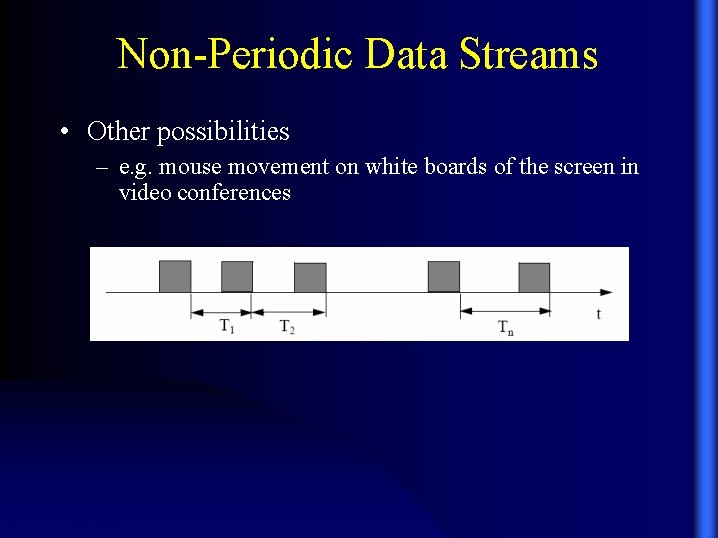

Non-Periodic Data Streams • Other possibilities – e. g. mouse movement on white boards of the screen in video conferences
Variation of the Data Volume of Consecutive Information Units. Strongly Regular e. g. uncompressed audio/video Periodically Regular e. g. MPEG
Variation of the Data Volume of Consecutive Information Units. Irregular e. g. JPEG
Connection between consecutive packets: Interrelated • No gaps in between • Maximal throughput and use of resources – e. g. ISDN channel transmitting audio
Connection between consecutive packets: Non-Interrelated • Gaps between some packets – e. g. DVI-PLV encoded streams over FDDI
Comparison
Information Units • Logical Data Units – E. g. Video Data • • • Clips Scenes Images Regions Pixels
