CSI 5171 (95. 533) Network Architectures, Services, Protocols and Standards General Packet Radio Service (GPRS) Miao Lu (mlu@site. uottawa. ca) Nancy Samaan (nsamaan@site. uottawa. ca) SITE, Ottawa University 1

Agenda Ø Introduction Ø Part I • GPRS Architecture Ø Part II Ø Bearer Services and Supplementary Services Ø Mobility Management Ø GPRS Limitations 2

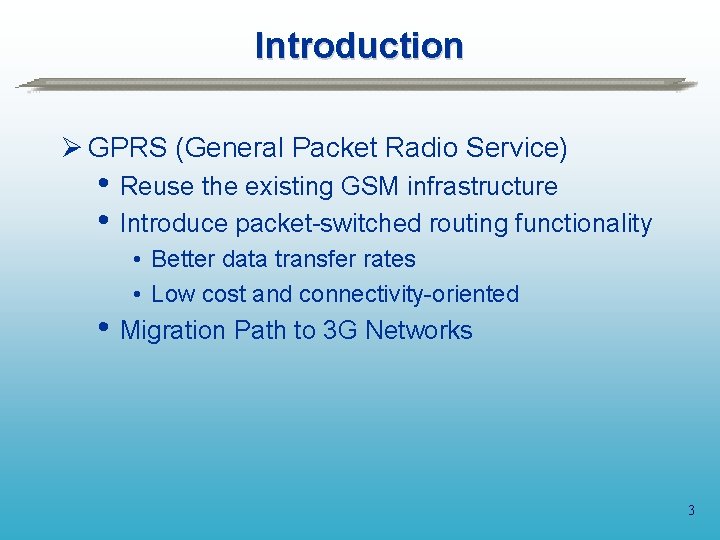

Introduction Ø GPRS (General Packet Radio Service) • Reuse the existing GSM infrastructure • Introduce packet-switched routing functionality • Better data transfer rates • Low cost and connectivity-oriented • Migration Path to 3 G Networks 3

Packet-switched technique Ø Share radio resources: users share a pool of channels • Channels are allocated to users only when • packets are to be sent or received Users can use several time slots (packet data channels) simultaneously Ø Volume-charging: charging is based on traffic volume instead of the duration of a session 4

Comparison Ø Packet-switched • • High bit rates (up to 170 kbit/s) Short access times Friendly bill (based on volume) Robust application support • Frequent transmission of small volumes • Infrequent transmission of small or medium volumes Ø Circuit-switched • • Low bit rates (maximum 14. 4 kbit/s) Long access times Unfriendly bill (based on duration) Limited application support • Large volumes 5

GPRS Architecture 6

GPRS Architecture - Components Ø New components introduced for GPRS services: • SGSN (Serving GPRS Support Node) • GGSN (Gateway GPRS Support Node) • IP-based backbone network Ø Old components in GSM upgraded for GPRS services: • HLR • MSC/VLR • Mobile Station 7

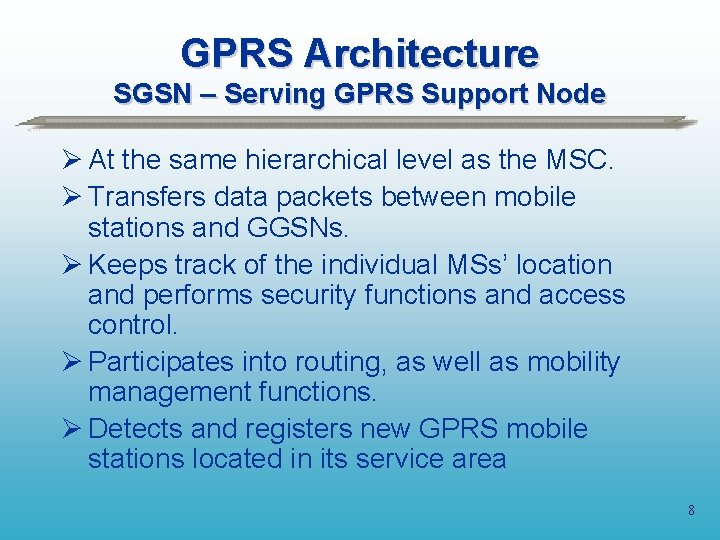

GPRS Architecture SGSN – Serving GPRS Support Node Ø At the same hierarchical level as the MSC. Ø Transfers data packets between mobile stations and GGSNs. Ø Keeps track of the individual MSs’ location and performs security functions and access control. Ø Participates into routing, as well as mobility management functions. Ø Detects and registers new GPRS mobile stations located in its service area 8

GPRS Architecture GGSN – Gateway GPRS Support Node Ø Provides inter-working between PLMN and external packet-switched networks. Ø Converts the GPRS packets from SGSN into the appropriate packet data protocol format (e. g. , IP or X. 25) and sends out on the corresponding packet data network. Ø Participates into the mobility management. Ø Maintains the location information of the mobile stations that are using the data protocols provided by that GGSN. Ø Collects charging information for billing purpose. 9

GPRS Architecture Backbone Network Ø Tunnels of data and signaling messages between GPRS support nodes. Ø Protocol architecture based on the Internet Protocol (IP). Ø GTP (GPRS Tunneling Protocol) used to tunnel user data and signaling between GPRS Support Nodes. All PDP (Packet Data Protocol) PDUs (Protocol Data Units) shall be encapsulated by GTP. 10

GPRS Architecture Backbone Network (cont. ) Ø Two kinds of GPRS backbone Network: • • Intra-PLMN backbone network: The IP network interconnecting GSNs within the same PLMN. Inter-PLMN backbone network: The IP network interconnecting GSNs and intra-PLMN backbone networks in different PLMNs. Ø Two intra-PLMN backbone networks are connected via the Gp interface using Border Gateways and an inter-PLMN backbone network. Ø Border Gateway handles the packet transfer between GPRS PLMNs. 11

GPRS Architecture Backbone Network Packet Data Network Inter-PLMN Backbone Gi GGSN BG Intra-PLMN Backbone SGSN Gi Gp SGSN BG GGSN Intra-PLMN Backbone SGSN 12

GPRS Architecture HLR Ø Enhanced with GPRS subscription data and routing information. Ø Accessible from the SGSN via the Gr interface and from the GGSN via the Gc interface. 13

GPRS Architecture MSC/VLR Ø Not needed for routing of GPRS data. Ø Needed for the co-operation between GPRS and the other GSM services. e. g. , • Paging for circuit-switched calls that can be • performed more efficiently via the SGSN Combining GPRS and non-GPRS location updates Ø Receives location information from SGSN or sends paging requests to SGSN via the Gs interface. 14

GPRS Architecture Mobile Station Ø GPRS MS includes two components: • MT (Mobile Terminal). Typically a handset • used to access the radio interface. TE (Terminal Equipment). Typically a laptop or a Personal Digital Assistant (PDA). Ø Could be one unit combing the functionalities of a MT and a TE. 15

GPRS Architecture Mobile Station (cont. ) Ø Three types of MS: • Class-A: Could be attached to both GPRS and • • other GSM services, and the MS supports simultaneous operation of GPRS and other GSM services. Class-B: Could be attached to both GPRS and other GSM services, but the MS can only operate one set of services at a time. Class-C: Could be exclusively attached to one service type at a given time. 16

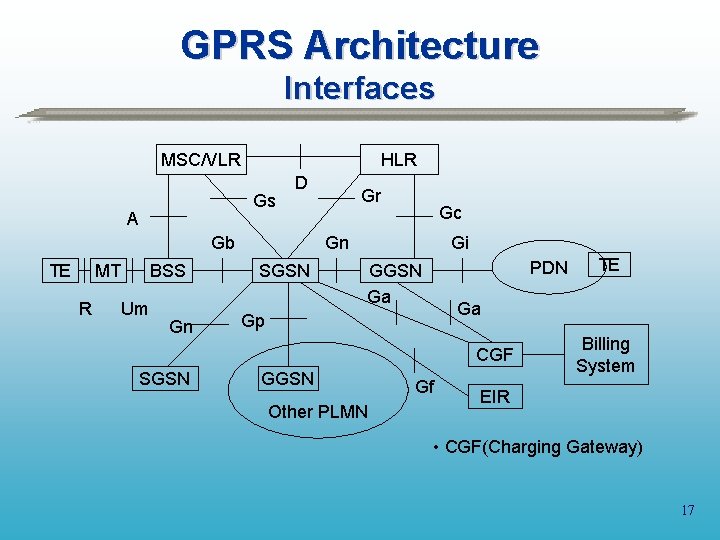

GPRS Architecture Interfaces MSC/VLR HLR Gs A D Gb TE MT R BSS Um Gn Gr Gc Gn SGSN Gi PDN GGSN Ga Ga Gp CGF SGSN GGSN Other PLMN TE Gf Billing System EIR • CGF(Charging Gateway) 17

Packet transfer 18

Packet Transfer Ø A laptop connects with a GPRS-capable handset. Ø The handset communicates with GSM base station. Ø Base station sends the GPRS packets to SGSN. Ø GPRS packets routing information and handset location information are updated in other GSM components, such as HLR. Ø SGSN communicates with GGSN. Ø GGSN sends the packets to PDNs. 19

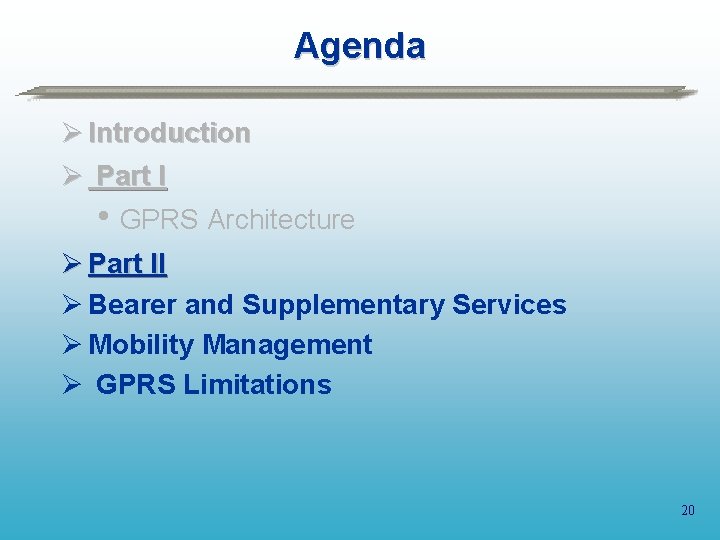

Agenda Ø Introduction Ø Part I • GPRS Architecture Ø Part II Ø Bearer and Supplementary Services Ø Mobility Management Ø GPRS Limitations 20

Bearer and Supplementary Services of GPRS Ø The bearer services of GPRS offer end-to-end packet switched data transfer. Ø Two different kinds of bearer services : • • PTP (Point-to-point) services PTM (Point-to-multipoint) services • Supplementary Services : SMS call, call forwarding unconditional (CFU), call forwarding on mobile subscriber not reachable (CFNRc), and closed user group (CUG). 21

GPRS Bearer Services PTP services Two types : ØConnection-Oriented Network Service (PTP-CONS) : • A logical relation is established between users. • supports bursty transactional or interactive APs based on X. 25. • Multiple packets are sent between a single source and destination. • Examples : Credit card validations, Telnet, and Database access. ØConnection. Less Network Service (PTP-CLNS) : • A datagram type service based on the connectionless network protocol (ex: IP). • Supports bursty non-interactive applications. • No logical link required between users. • Each packet is sent is independent of other packets. • Examples : Electronic mail, Internet ‘s World Wide Web. 22

GPRS Bearer Services PTM Services enables the transmission of a single message to multiple destinations. Ø Multicast service (PTM-M): • Addressed to all subscribers in a geographical area group identifier indicating whether to all subscribers or to a specific PTM group • Example : News, Weather and Traffic reports. Ø Group call service (PTM-G): • Only a predefined group of subscribers controlled by a multicast server will receive the message transmitted. • Group members must join the PTM-G call. • Real time delivery. • Example: Conferencing services. Ø IP Multicast (IP-M ): • Messages are transmitted to a specific group. • Group members must join the IP-M call. • Real time delivery. • Examples : Live multimedia transmissions. 23

Mobility Management • Mobility management is the means by which GPRS keeps track of a mobile subscriber location while connected to the Network. • Main concepts : • GPRS Identifiers. • GPRS service areas. • GPRS mobility management states • GPRS network access. • Attachment. • Location management • Packet Data protocol PDP context • Detachment • Routing Example 24

Mobility Management Identifiers Ø International Mobile station Equipment Identity (IMEI) : Specified for each equipment by the manufacturer Ø International Mobile Subscriber Identity (IMSI): • It is stored in the subscriber identity module (SIM). Ø Temporary International Mobile Subscriber Identity (TMSI): • assigned by the VLR. Ø Packet Temporary Mobile Subscriber Identity (P-TMSI): • (during attachment by the SGSN). Ø Temporary Link Layer Identifier (TLLI): • During the attachment phase , a TLLI is randomly generated by mobile. 25

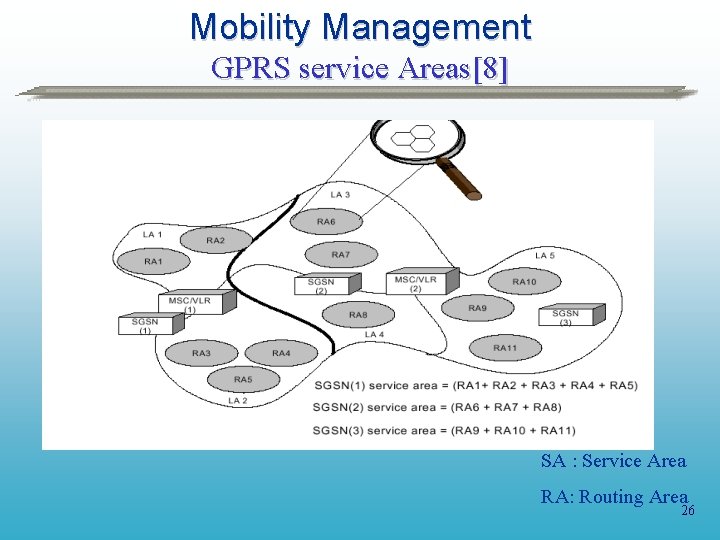

Mobility Management GPRS service Areas[8] SA : Service Area RA: Routing Area 26

Mobility Management States IDLE unreachable mobile GPRS Attach Explicit Detach GPRS Detach READY reachable mobile PDU Transmission /Reception Timer expiry/ Force STANDBY/ Abnormal RLC condition STANDBY 27

Mobility Management States (cont. ) ØIDLE State Ÿ GPRS MS is unreachable - MS may receive PTM-M message ØREADY state Ÿ MS can send and receive PDP PDU, and receive PTM-P and PTM-G data. MS informs SGSN when it changes cells. Ÿ A timer monitors the ready state and upon its expiry, the MS is put on standby. ØSTANDBY State Ÿ MS is attached to GPRS MM. - MS and SGSN have established MM contexts. MS can receive PTM-M and PTM-G data (i. e. can receive paging message) Ÿ MS execute MM procedure to inform SGSN when MS enter a new RA Ÿ PTP data reception and transmission, and PTM-G data transmission are not possible Ÿ MS does not inform SGSN when a change of cell in the same RA 28

Mobility Management GPRS network access • An MS can connect to the GPRS network by requesting a GPRS attach procedure. • The outcome is the establishment of a logical link between the MS and a single SGSN and the creation of a mobility management context • The logical link is uniquely defined by the identifier TLLI and is used subsequently in messages exchanged between the MS and SGSN. • This identifier is changed when the MS is served by a new SGSN. 29

Mobility Management Attachment Before a mobile station can use GPRS services, it must register with an SGSN of the GPRS network. The network checks if the user is authorized, copies the user profile from the HLR to the SGSN, and assigns a packet temporary mobile subscriber identity (P-TMSI) to the user. Steps : • Inform the network for the MS’s request to be active • Network checks the Ms’s identity • Download MS’s subscription information from HLR to SGSN. • Update MSC/HLR 30

Mobility Management Attachment GPRS Attach function : Authenticate the mobile Generate the ciphering key Enable the ciphering Allocate temporary identity (TLLI) Copy subscriber profile from HLR to SGSN After GPRS attach The location of the mobile is tracked Communication between MS and SGSN is secured Charging information is collected SGSN knows what the subscriber is allowed to do HLR knows the location of the MS in accuracy of SGSN • • • 31

Mobility Management -Attachment [5] MS BSS New SGSN Old SGSN 1. Attach Request 3. Identity Request GGSN EIR 2. Identification Request New old HLR MSC/VLR 3. Identification Response 3. Identity Response 4. Authentication 5. IMEI check 6 a. Update Location 6 b. Cancel Location 6 c. Cancel Location ACK 6 d. Insert Subscriber Data ACK 6 e. Update Location ACK 7 a. Location Update Request 7 b. Update Location 8. Attach Accept 7 h. Location Update Accept 9. Attach Complete 10. TMSI Reallocation complete 7 c. Cancel Location 7 d. ACK 7 e. Insert Subscriber data 7 f. Insert Subscriber data ACK 7 b. Update Location ACK 32

Mobility Management – Location management Three types of location management procedures: • Cell Update: • MS informs the network of its current cell location( in READY state). • MS listens periodically to special control channel for cell identity. • Intra-SGSN routing update : • MS changes RA and remains in the same SGSN(STANDBY &READY states). • Inter-SGSN routing update: • When the entry of MS to a new RA triggers a change of SGSN service area(STANDBY &READY states). 33

Mobility Management Packet Data Protocol(PDP) Session • An MS can request to activate one or more PDP (Packet Data Protocol) contexts which specify the PDNs (Packet Data Networks) it want to access. • A PDP context activation procedure is initiated for each required PDP session. • Triggered by the MS or a request from a PDN. • Contains the parameters required to transfer packets between the MS and the PDN via a GGSN. • An MS can have more than one PDP context. 34

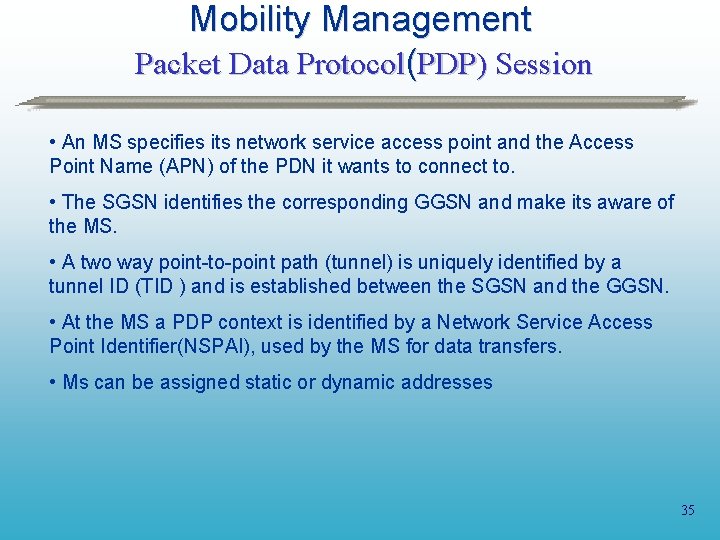

Mobility Management Packet Data Protocol(PDP) Session • An MS specifies its network service access point and the Access Point Name (APN) of the PDN it wants to connect to. • The SGSN identifies the corresponding GGSN and make its aware of the MS. • A two way point-to-point path (tunnel) is uniquely identified by a tunnel ID (TID ) and is established between the SGSN and the GGSN. • At the MS a PDP context is identified by a Network Service Access Point Identifier(NSPAI), used by the MS for data transfers. • Ms can be assigned static or dynamic addresses 35

Mobility Management Packet Data Protocol(PDP) Content • A PDP (PACKET Data Protocol) contains: • The type of network PDP used (X 25, IP. . . ). • PDP Addresses of the terminal (x. 121, IP). • IP Addresses of the SGSN where the subscriber is localized. • The access point to the service network used (NSAPI). • The quality of service. 36

Mobility Management Packet Data Protocol(PDP) Session[8] An MS with two PDP contexts Active 37

Mobility Management PDP context Activation [5] MS SGSN GGSN Activate PDP Context Request PDP type, PDP Address Qo. S Requested, Access Point, … Create PDP Context Request PDP type, PDP Address, IMSI, Qo. S Negotiated, Access Point, … MS Activate PDP Context Accept PDP type, PDP Address Qo. S Negotiated, … Create PDP Context Response PDP type, Qo. S Negotiated, … 38

Mobility Management PDP context Deactivation [5] MS SGSN GGSN MS DEACTIVATE PDP CONTEXT REQUEST(NSAPI) GTP DELETE PDP CONTEXT REQUEST (NSAPI, IMSI) SM DEACTIVATE PDP CONTEXT ACCEPT(NSAPI) GTP DELETE PDP CONTEXT RESPONSE 39

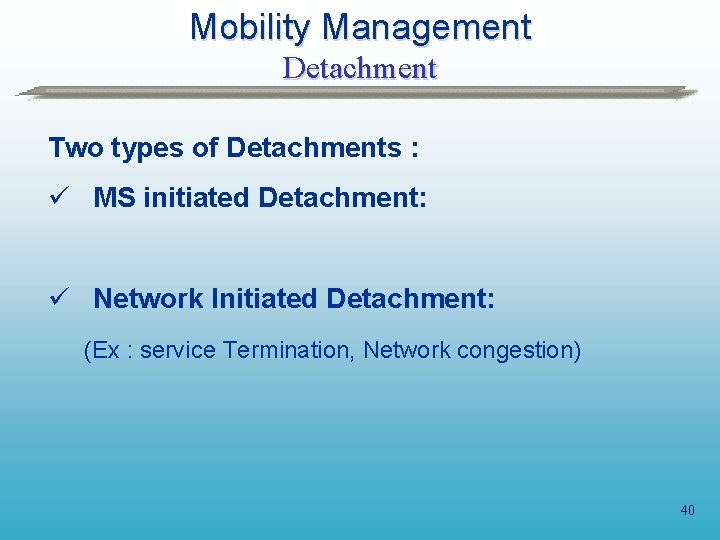

Mobility Management Detachment Two types of Detachments : ü MS initiated Detachment: ü Network Initiated Detachment: (Ex : service Termination, Network congestion) 40

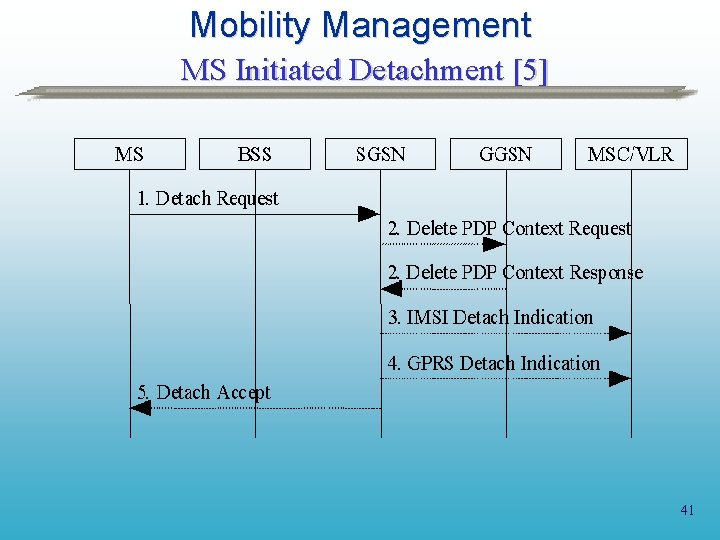

Mobility Management MS Initiated Detachment [5] 41

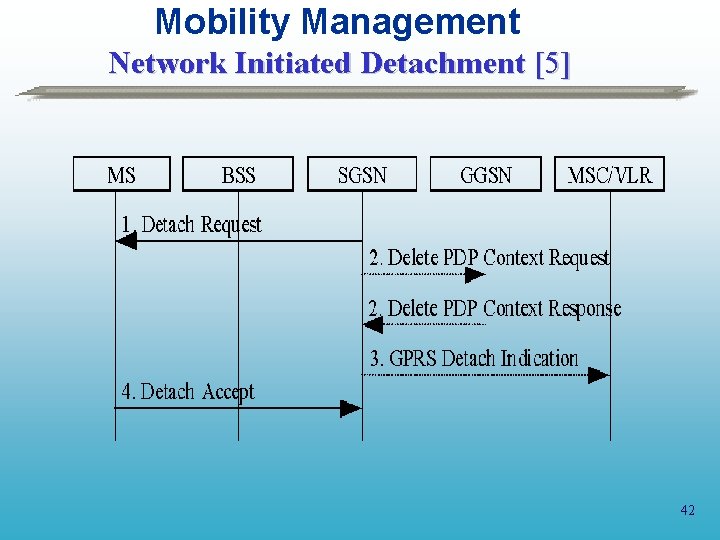

Mobility Management Network Initiated Detachment [5] 42

Routing Example BSC BTS SGSN MS PLMN 1 Intra-PLMN GPRS Backbone Inter-PLMN GPRS Backbone Gn Border Gateway Gn Intra-PLMN GPRS Backbone Gp PLMN 2 Border Gateway Gn GGSN SGSN Gi Packet Data Network(PDN) Eg. Internet, Intranet Router LAN Host 43

GPRS Limitations • Speeds Much Lower in Reality • Support of GPRS Mobile Terminate by Terminals is Not Ensured • Packet switching means that data packets can traverse different routes and then be reassembled in their final destination leading to potential transit delays affecting the Quality of Service. • Operators may decide to charge based on time rather than volume, which may destroy the cost advantage that GPRS provides today. • Requires major network modifications: Many network elements to be upgraded and totally new to be introduced • Expensive: Not much time for invest to be returned due to upcoming 3 rd generation technology 44
