CSI 315 Web Technology and Applications Rapid Applications

CSI 315 Web Technology and Applications Rapid Applications Development

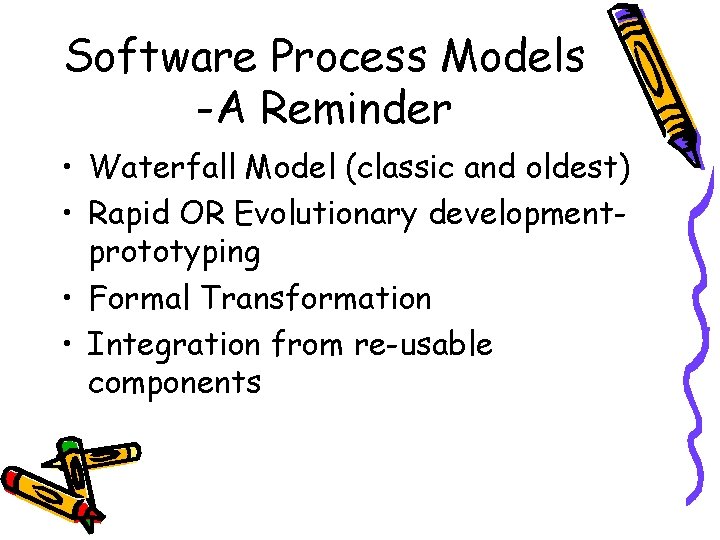

Software Process Models -A Reminder • Waterfall Model (classic and oldest) • Rapid OR Evolutionary developmentprototyping • Formal Transformation • Integration from re-usable components

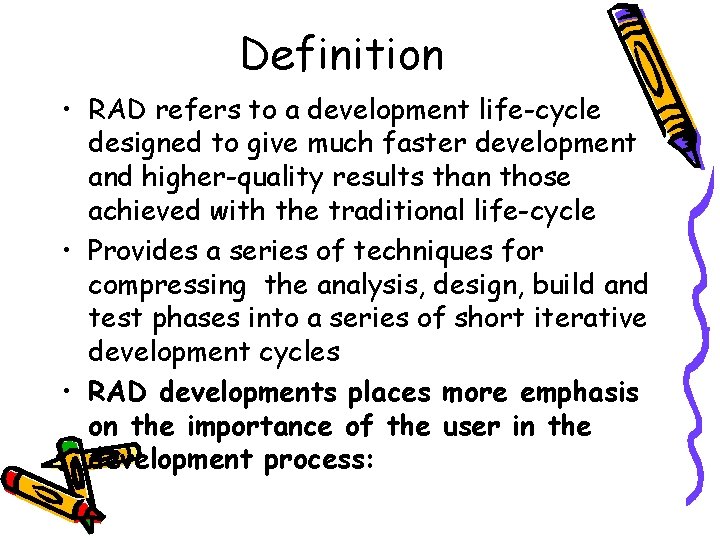

Definition • RAD refers to a development life-cycle designed to give much faster development and higher-quality results than those achieved with the traditional life-cycle • Provides a series of techniques for compressing the analysis, design, build and test phases into a series of short iterative development cycles • RAD developments places more emphasis on the importance of the user in the development process:

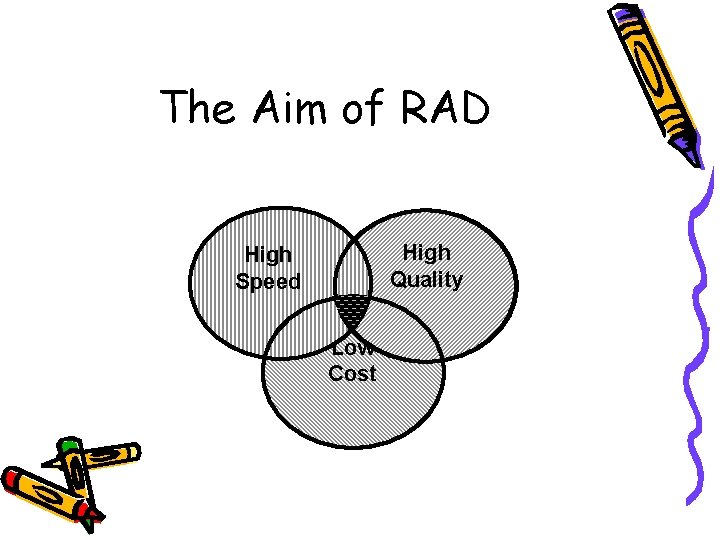

The Aim of RAD High Quality High Speed Low Cost

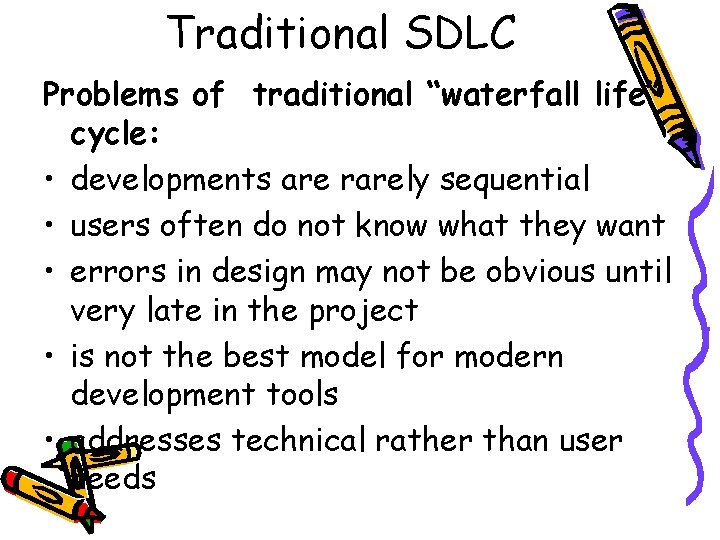

Traditional SDLC Problems of traditional “waterfall life” cycle: • developments are rarely sequential • users often do not know what they want • errors in design may not be obvious until very late in the project • is not the best model for modern development tools • addresses technical rather than user needs

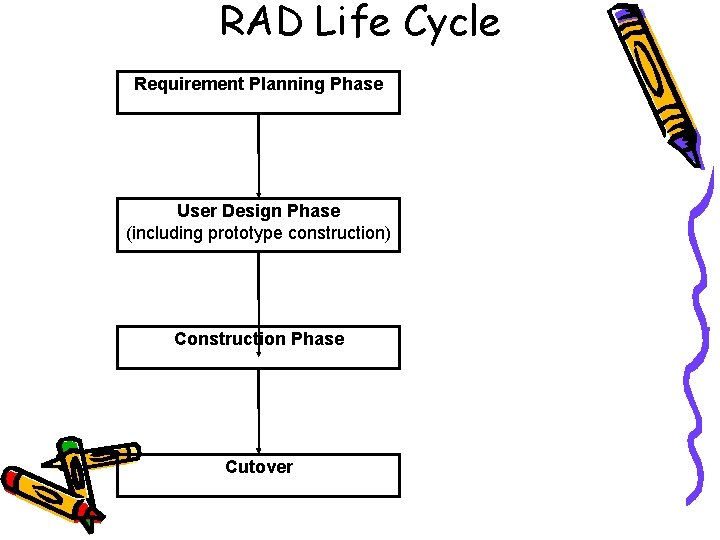

RAD Life Cycle Requirement Planning Phase User Design Phase (including prototype construction) Construction Phase Cutover

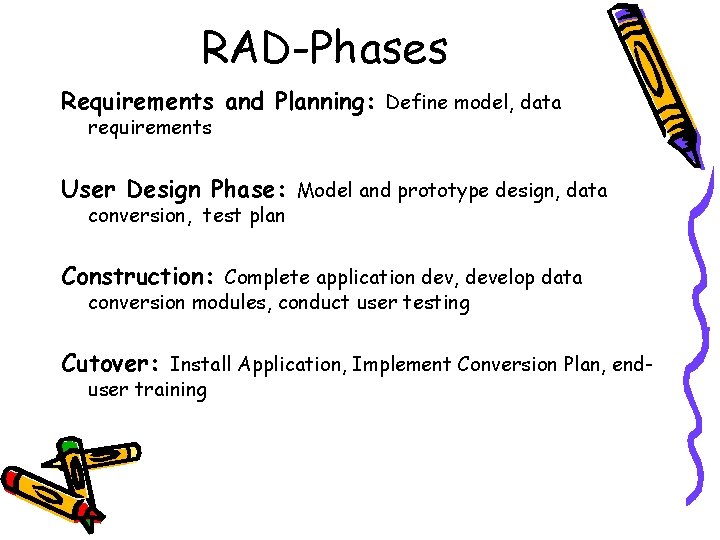

RAD-Phases Requirements and Planning: Define model, data requirements User Design Phase: Model and prototype design, data conversion, test plan Construction: Complete application dev, develop data conversion modules, conduct user testing Cutover: Install Application, Implement Conversion Plan, enduser training

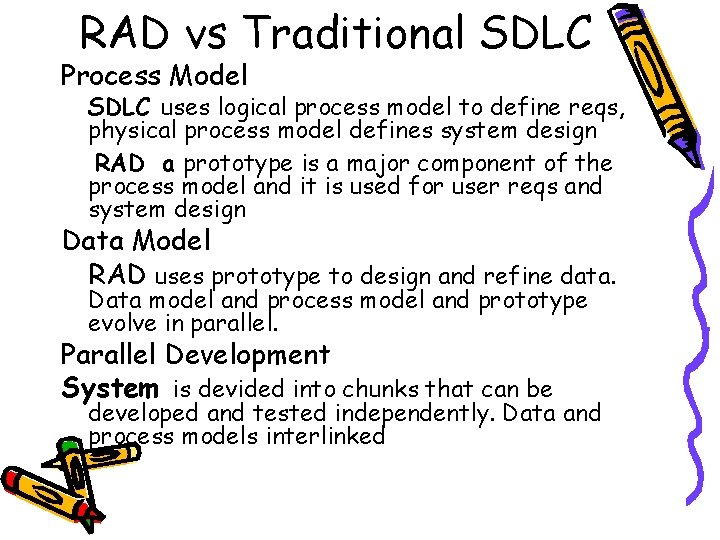

RAD vs Traditional SDLC Process Model SDLC uses logical process model to define reqs, physical process model defines system design RAD a prototype is a major component of the process model and it is used for user reqs and system design Data Model RAD uses prototype to design and refine data. Data model and process model and prototype evolve in parallel. Parallel Development System is devided into chunks that can be developed and tested independently. Data and process models interlinked

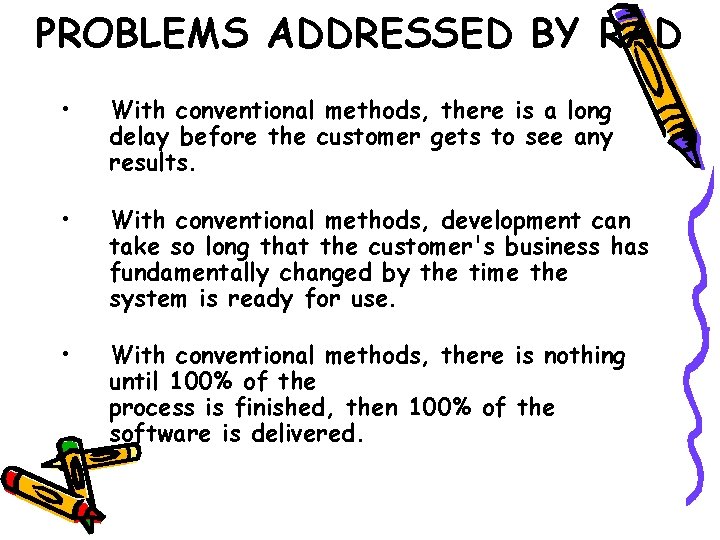

PROBLEMS ADDRESSED BY RAD • With conventional methods, there is a long delay before the customer gets to see any results. • With conventional methods, development can take so long that the customer's business has fundamentally changed by the time the system is ready for use. • With conventional methods, there is nothing until 100% of the process is finished, then 100% of the software is delivered.

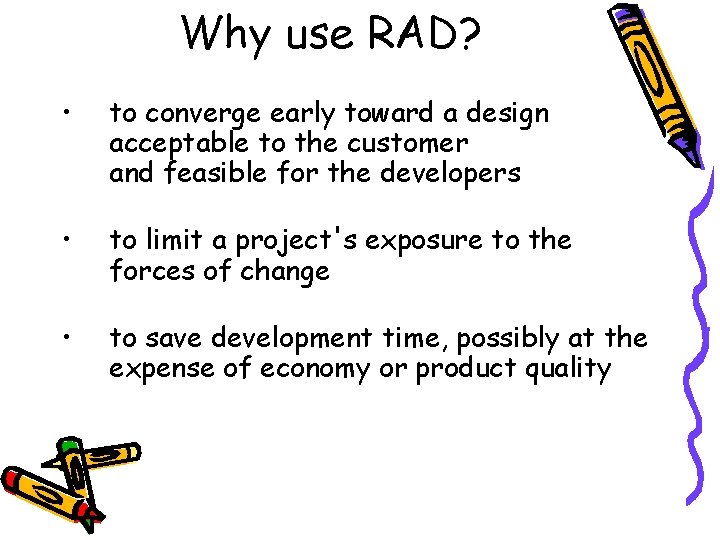

Why use RAD? • to converge early toward a design acceptable to the customer and feasible for the developers • to limit a project's exposure to the forces of change • to save development time, possibly at the expense of economy or product quality

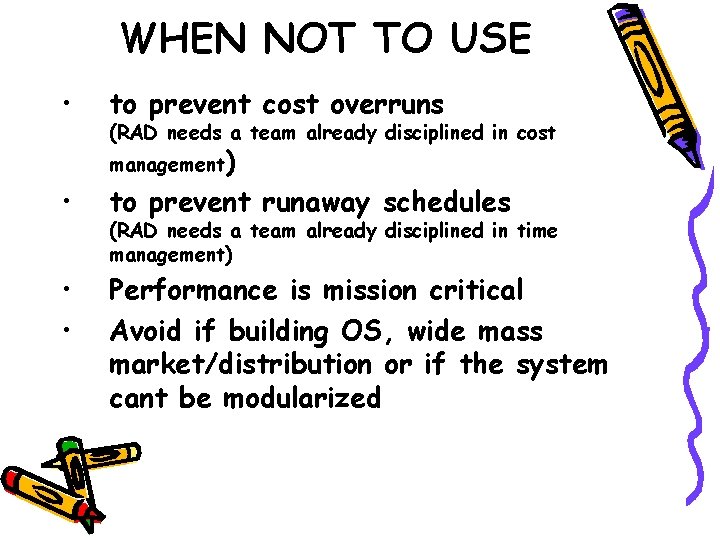

WHEN NOT TO USE • to prevent cost overruns (RAD needs a team already disciplined in cost management) • to prevent runaway schedules • • Performance is mission critical Avoid if building OS, wide mass market/distribution or if the system cant be modularized (RAD needs a team already disciplined in time management)

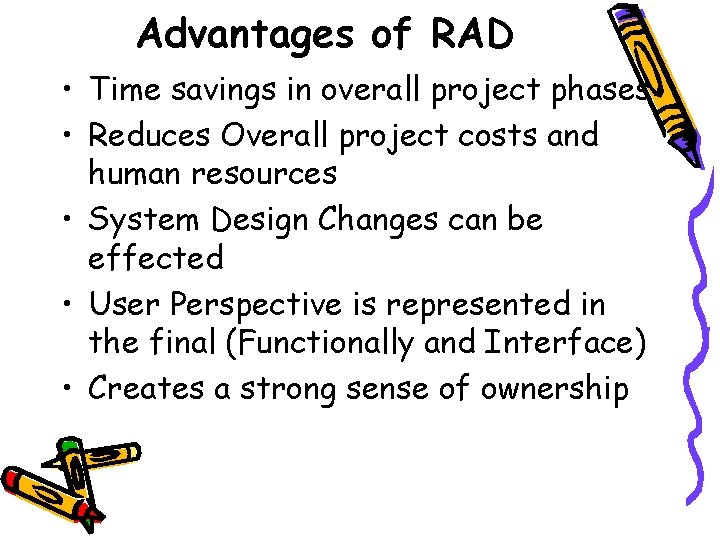

Advantages of RAD • Time savings in overall project phases • Reduces Overall project costs and human resources • System Design Changes can be effected • User Perspective is represented in the final (Functionally and Interface) • Creates a strong sense of ownership

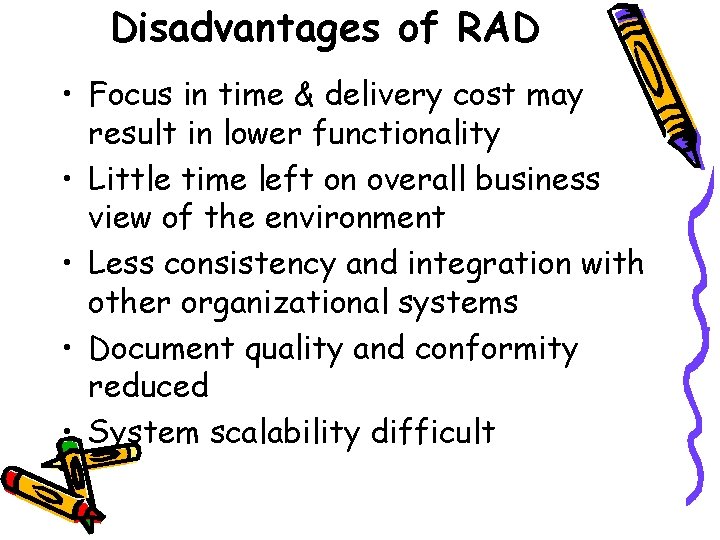

Disadvantages of RAD • Focus in time & delivery cost may result in lower functionality • Little time left on overall business view of the environment • Less consistency and integration with other organizational systems • Document quality and conformity reduced • System scalability difficult

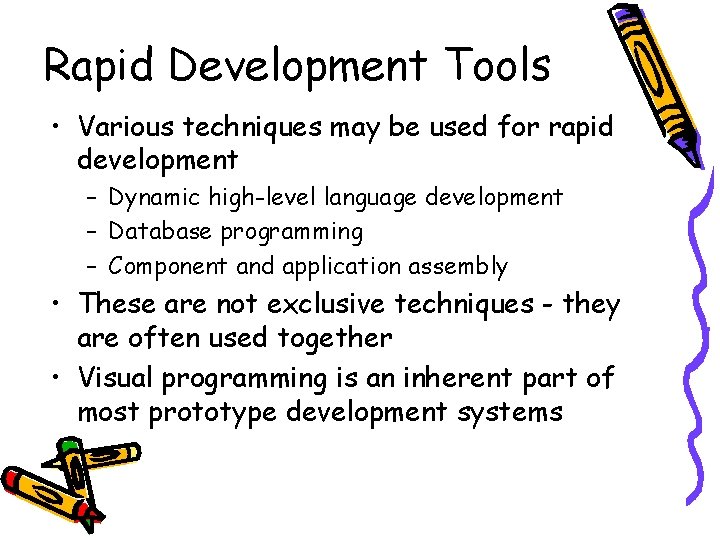

Rapid Development Tools • Various techniques may be used for rapid development – Dynamic high-level language development – Database programming – Component and application assembly • These are not exclusive techniques - they are often used together • Visual programming is an inherent part of most prototype development systems

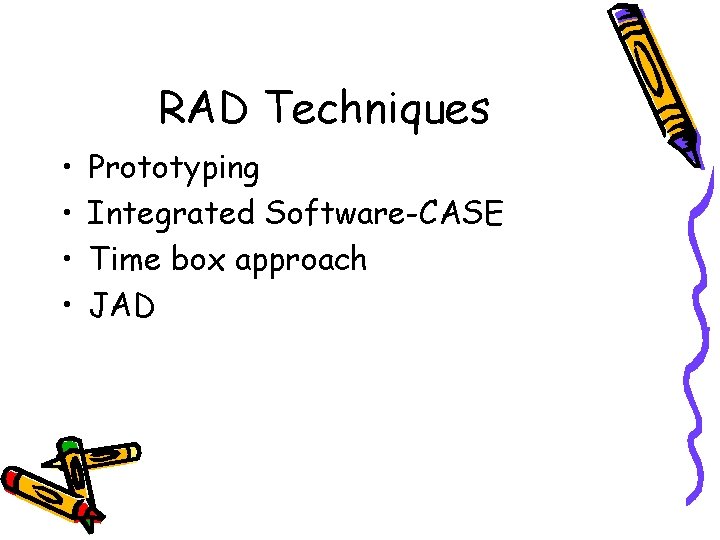

RAD Techniques • • Prototyping Integrated Software-CASE Time box approach JAD

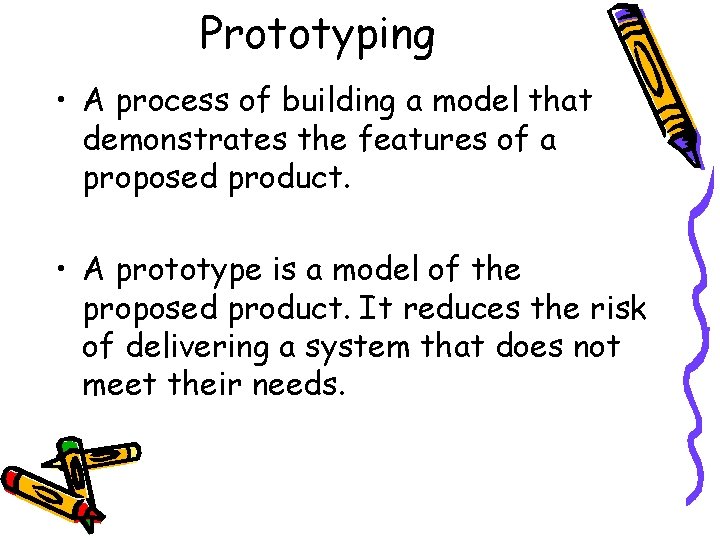

Prototyping • A process of building a model that demonstrates the features of a proposed product. • A prototype is a model of the proposed product. It reduces the risk of delivering a system that does not meet their needs.

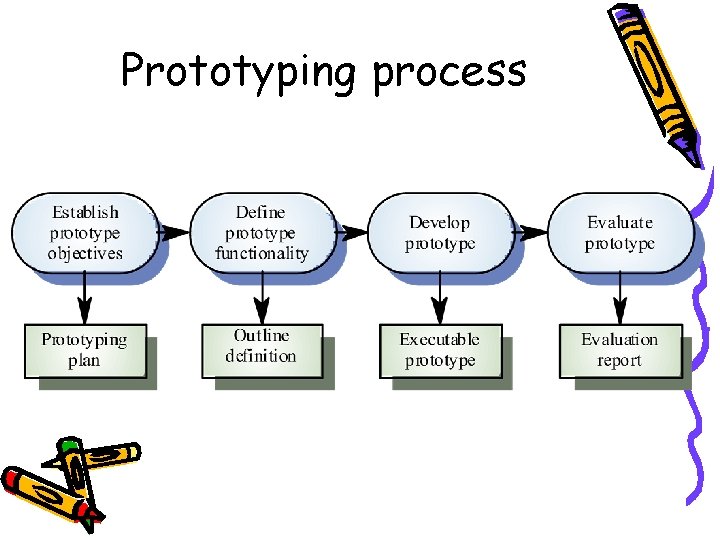

Prototyping process

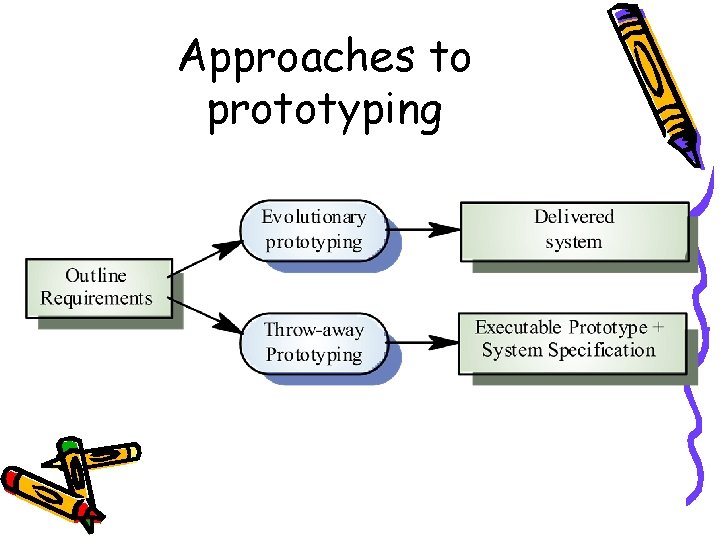

Approaches to prototyping

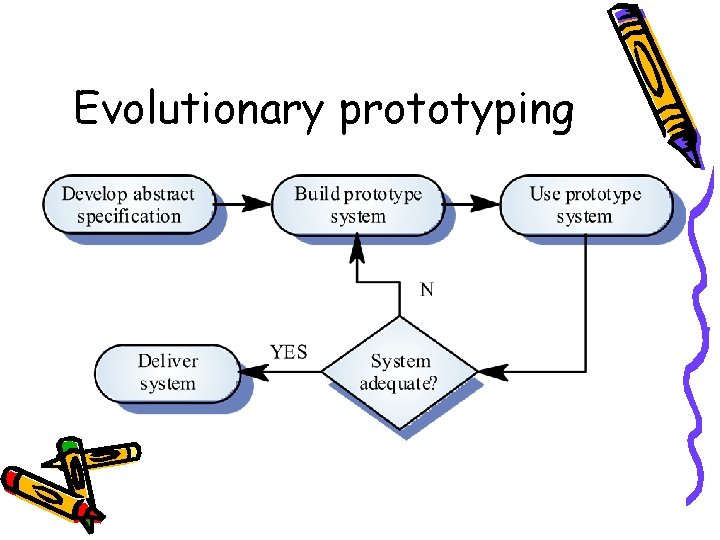

Evolutionary prototyping

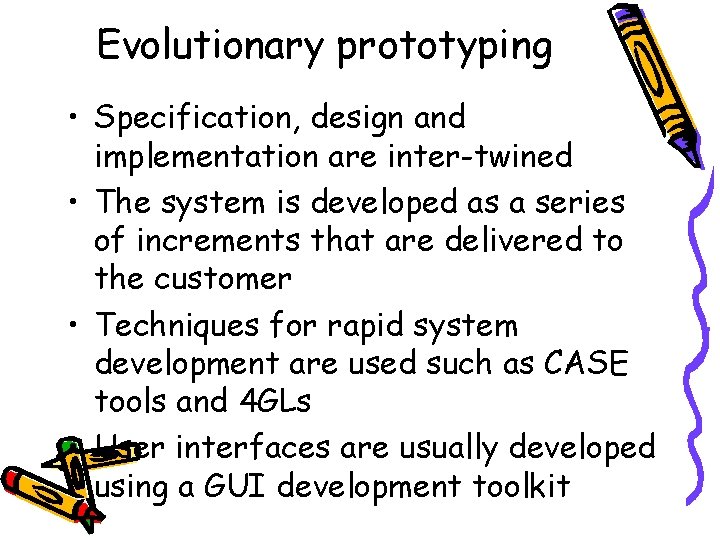

Evolutionary prototyping • Specification, design and implementation are inter-twined • The system is developed as a series of increments that are delivered to the customer • Techniques for rapid system development are used such as CASE tools and 4 GLs • User interfaces are usually developed using a GUI development toolkit

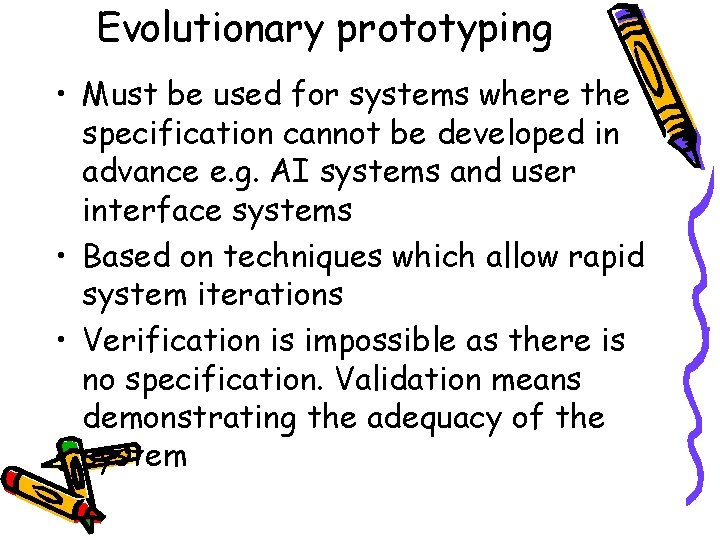

Evolutionary prototyping • Must be used for systems where the specification cannot be developed in advance e. g. AI systems and user interface systems • Based on techniques which allow rapid system iterations • Verification is impossible as there is no specification. Validation means demonstrating the adequacy of the system

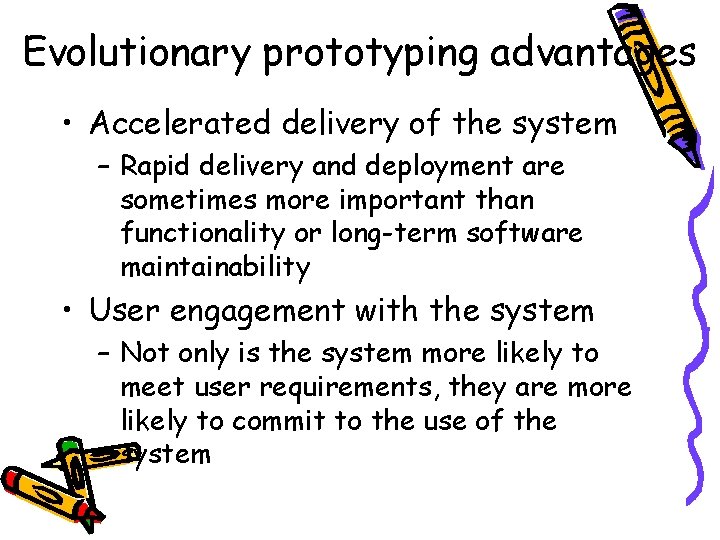

Evolutionary prototyping advantages • Accelerated delivery of the system – Rapid delivery and deployment are sometimes more important than functionality or long-term software maintainability • User engagement with the system – Not only is the system more likely to meet user requirements, they are more likely to commit to the use of the system

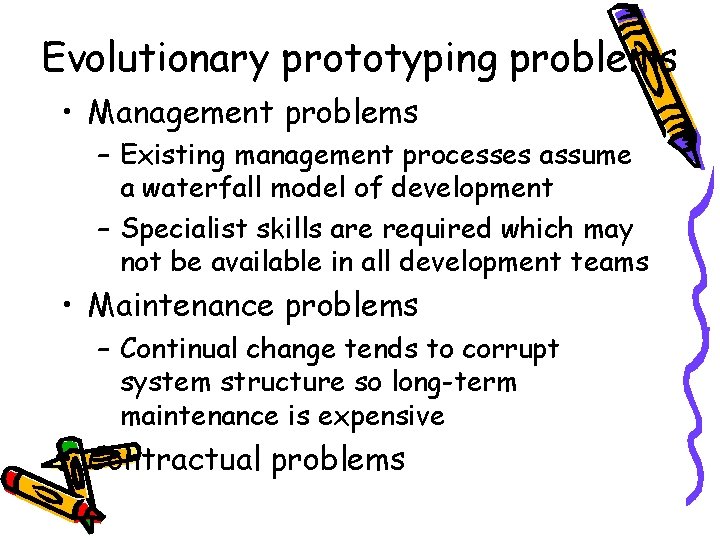

Evolutionary prototyping problems • Management problems – Existing management processes assume a waterfall model of development – Specialist skills are required which may not be available in all development teams • Maintenance problems – Continual change tends to corrupt system structure so long-term maintenance is expensive • Contractual problems

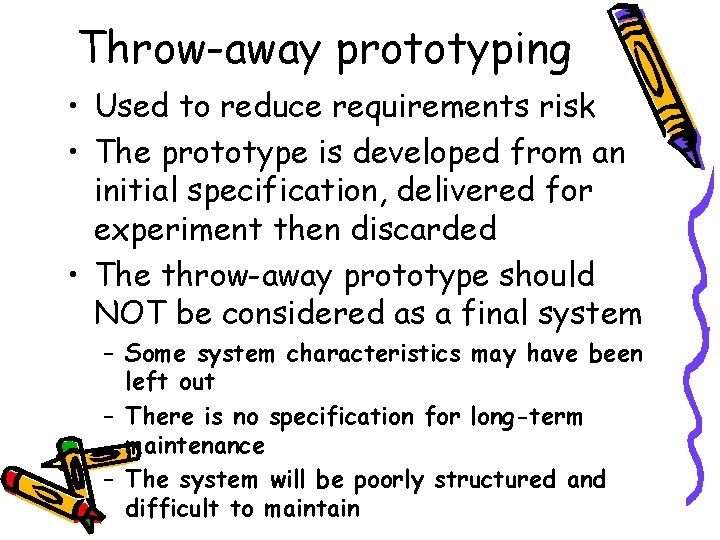

Throw-away prototyping • Used to reduce requirements risk • The prototype is developed from an initial specification, delivered for experiment then discarded • The throw-away prototype should NOT be considered as a final system – Some system characteristics may have been left out – There is no specification for long-term maintenance – The system will be poorly structured and difficult to maintain

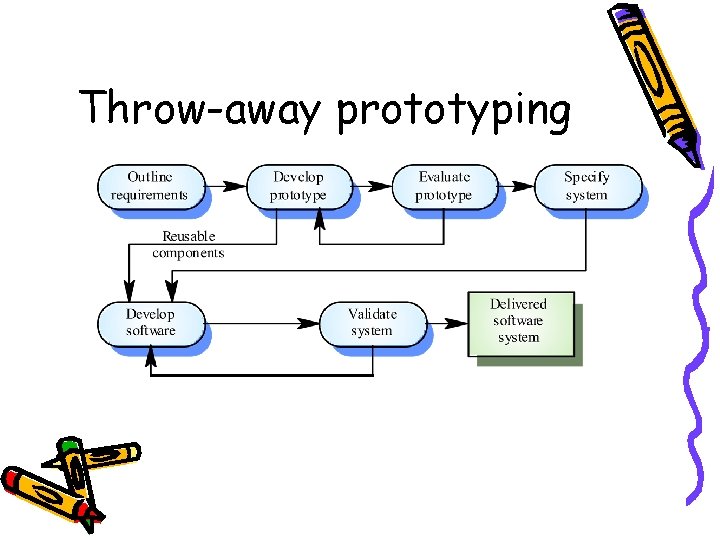

Throw-away prototyping

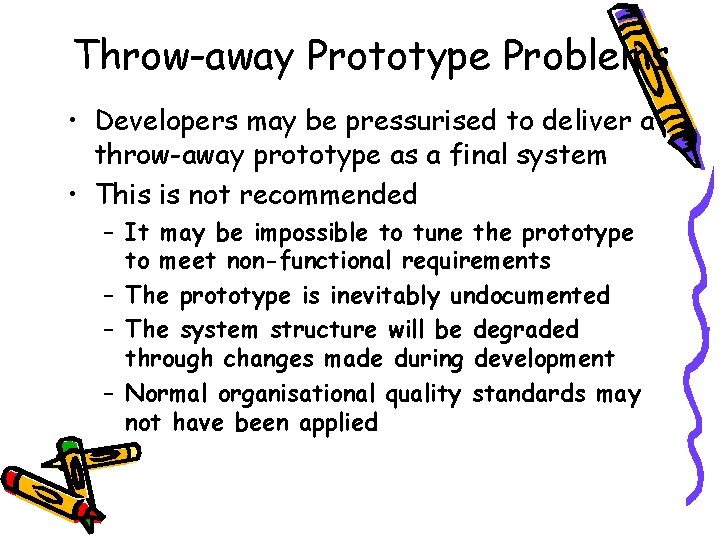

Throw-away Prototype Problems • Developers may be pressurised to deliver a throw-away prototype as a final system • This is not recommended – It may be impossible to tune the prototype to meet non-functional requirements – The prototype is inevitably undocumented – The system structure will be degraded through changes made during development – Normal organisational quality standards may not have been applied

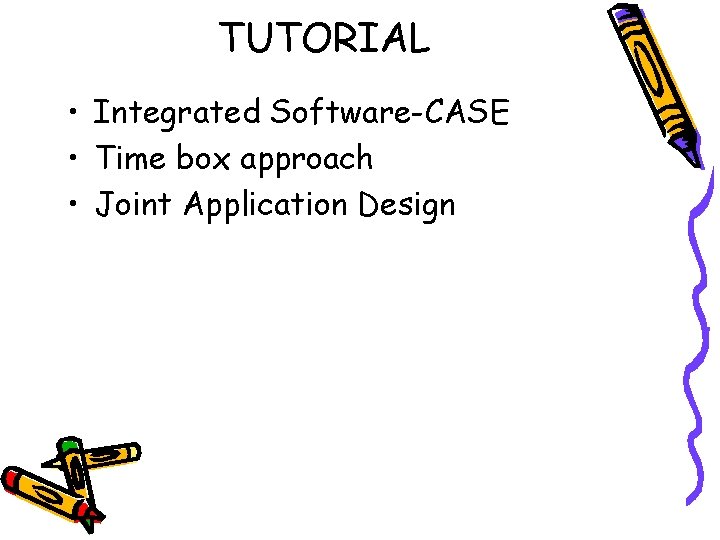

TUTORIAL • Integrated Software-CASE • Time box approach • Joint Application Design
