CSE 5810: Intro to Biomedical Informatics CSE 5810 Dynamically Generated Adaptive Credentials for Health Information Exchange Eugene Sanzi-1
Problem Many stakeholders want easy access to new systems Physicians need to access patient data, no matter where it may be Researchers want access to de-identified data repositories Data may be needed quickly Emergency medical situations leave little time to gain proper authorization Systems today still use outdated username/password techniques Incorrect assumption that physicians have time and ability to register with these systems CSE 5810 Sanzi-2
Requirements CSE 5810 Need a way for physicians identify themselves to any system Users possess an electronic ID that they can present for authentication Provide a method for verifying that presented credentials are legitimate Allow systems to automatically allow or deny different levels of access based on the presented credentials Sanzi-3
Solution Overview CSE 5810 A physician gains access to different systems over the course of a career Ex. - Access to their local hospital's data Access may happen under different roles Use the physician's system access history as a set of credentials Each system grants a certificate if access is allowed Physicians can collect these certificates into a digital wallet and present them as credentials Systems can see which other systems have granted access Sanzi-4

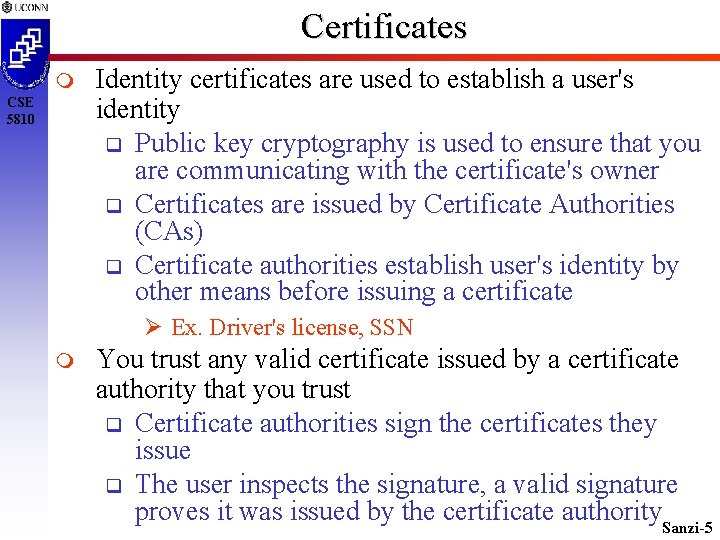

Certificates CSE 5810 Identity certificates are used to establish a user's identity Public key cryptography is used to ensure that you are communicating with the certificate's owner Certificates are issued by Certificate Authorities (CAs) Certificate authorities establish user's identity by other means before issuing a certificate Ex. Driver's license, SSN You trust any valid certificate issued by a certificate authority that you trust Certificate authorities sign the certificates they issue The user inspects the signature, a valid signature proves it was issued by the certificate authority. Sanzi-5
Certificates CSE 5810 Sanzi-6
Attribute Certificates CSE 5810 A specialized certificate that stores attributes in a keyvalue pair format Attribute certificates are signed by an attribute authority rather than a certificate authority Attribute certificates are connected to an identity certificate An identity certificate may be tied to multiple attribute certificates We will use this ability to store information related to user access Save information on user role assigned by the system Sanzi-7
DIRECT Project CSE 5810 Has the concept of a HISP (Health Information Service Provider) Concept encapsulates systems needed for health exchange HISPs must maintain their domain and a list of Trusted Anchors are like root certificates If one certificate in a certificate chain during the certificate validation process is found to be a trusted anchor, the leaf certificate is valid Sanzi-8
DIRECT Project CSE 5810 Sanzi-9
OIDs CSE 5810 HL 7 OIDs are prefixed with the code 2. 16. 840. 1. 113883 There are 3 root branches The 2 indicates that the root of this branch is managed by JOINT-ISO-ITU-T Each number represents another branch in a hierarchy HL 7 controls all the children of this code New OIDs can be generated by registering them with a node's registration authority HL 7 provides a form where new OIDs can be submitted and become part of the HL 7 OID standard A record of the user who submitted the OID is kept on record Sanzi-10
Gaining Access CSE 5810 When John Smith wants to obtain access to a new system, he will: Create a secure connection to the system Decide which credentials he will send to gain access Send the relevant identity and attribute certificates along with the request If access is granted, John Smith will generate a new public/private key pair and receive a new identity and attribute certificate issued by the system's certificate and attribute authority The system may choose to use a session-scoped Rule Certificate to define John's security policy Sanzi-12
Defining An Access Policy CSE 5810 Each system defines a security policy that specifies constraints based on: The user role The type of data being accessed Valid certificates presented Provide a mapping from HL 7 defined roles to the data that the system guards Mappings for remote, automatically authenticated users may be different from the mappings given to local users Sanzi-13
Example CSE 5810 John Smith wants to access research data on diabetes management from Day Kimball Hospital He does not have any kind of affiliation with Day Kimball Hospital He does have his digital wallet of certificates proving his active involvement in the field of medical research Sanzi-14
John Smith's Wallet CSE 5810 Sanzi-15
Choose Relevant Credentials CSE 5810 Sanzi-16
Send Request With Credentials CSE 5810 Sanzi-17
Check Security Policy CSE 5810 Sanzi-18
Generate Certificates CSE 5810 Sanzi-19

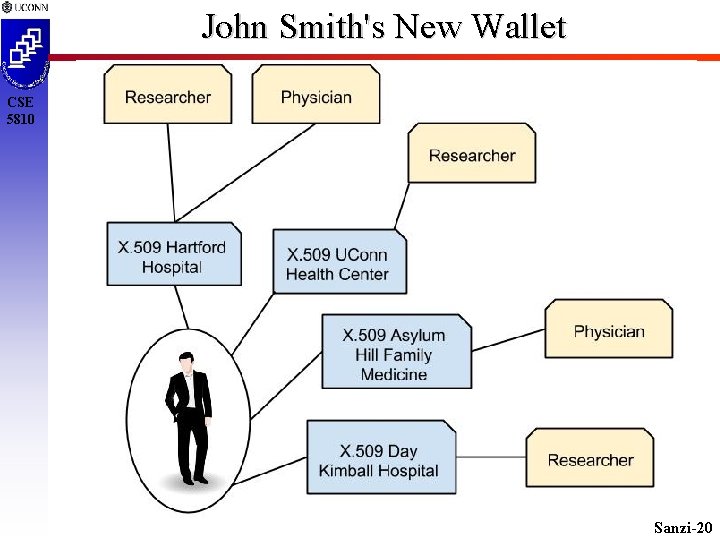

John Smith's New Wallet CSE 5810 Sanzi-20
John Smith's New Wallet CSE 5810 John Smith adds the identity and attribute certificates issued to him to his digital wallet He can now use the certificate issued to him by Day Kimball hospital to gain access to other new systems Day Kimball Hospital can now identify him with his new identity certificate John Smith could also make requests for Physician role access using his attribute certificates that name him a physician and the certificates given to him by Day Kimball Hospital Sanzi-21
Future Work CSE 5810 Increase the granularity of security policies Providers may want to allow/deny access based on location as in Access Control based on Attribute Certificates for Medical Intranet Applications If a physician is requesting information for a specific patient they have already treated it may help the decision process May require extension to attribute certificates Security based on Access Time or Count Someone who only accessed research data once 20 years ago for a school project should not have automatic access to research data now Differentiate between certificates issued by an employer and certificates issued in an automatic fashion Sanzi-22
Future Work Increase efficiency Validating long certificate chains is a time consuming process Updates to saved attributes would result in needing to have the Attribute Authority resign attribute certificates How can a physician regain proper credentials if a CA is compromised? How to handle local practices which may not have a separation between certificate administration and the medical providers using certificates Need a method for constraining what local CAs can do CSE 5810 Sanzi-23
