CSE 480 Database Systems Lecture 24 Concurrency Control

CSE 480: Database Systems Lecture 24: Concurrency Control 1

Concurrency Control l Reasons for concurrency control – Although serial execution of a set of transactions may be correct, concurrent (interleaved) transactions may be incorrect u Lost Update Problem u Temporary Update (or Dirty Read) Problem u Incorrect Summary Problem u Nonrepeatable read – Database recovery from transaction failure or system crash becomes more complicated if you don’t control the read/write operations performed by the concurrent transactions 2

Lost update problem l Lost Update Problem – When two transactions that update the same database items have their operations interleaved in a way that makes the value of some database item incorrect 3

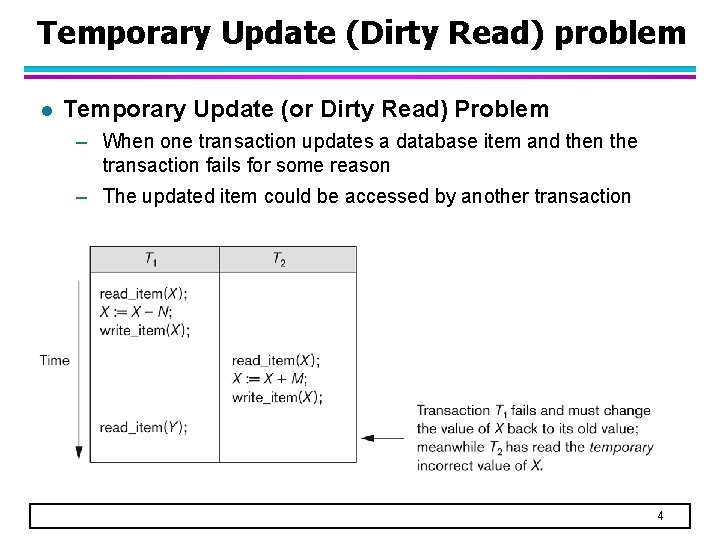

Temporary Update (Dirty Read) problem l Temporary Update (or Dirty Read) Problem – When one transaction updates a database item and then the transaction fails for some reason – The updated item could be accessed by another transaction 4

Incorrect Summary Problem l Incorrect Summary Problem – If a transaction is calculating an aggregate function while others are updating some of these records, the aggregate function may calculate some values before they are updated and others after they are updated 5

Nonrepeatable Read Problem l Nonrepeatable Read Problem – If a transaction reads the same data item twice and the item is changed by another transaction between the two reads Value of X has changed 6

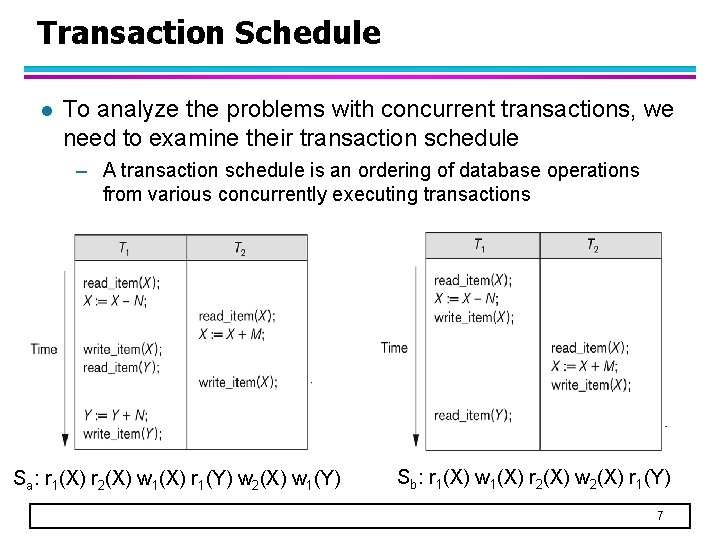

Transaction Schedule l To analyze the problems with concurrent transactions, we need to examine their transaction schedule – A transaction schedule is an ordering of database operations from various concurrently executing transactions Sa: r 1(X) r 2(X) w 1(X) r 1(Y) w 2(X) w 1(Y) Sb: r 1(X) w 1(X) r 2(X) w 2(X) r 1(Y) 7

Why Study Transaction Schedule? l Characteristics of a transaction schedule will determine – whether it is “easy” to recover from transaction failures (see slide 10) – whether concurrent execution of transactions is “correct” (see slide 11) 8

Characterizing Schedules based on Recoverability T 1 x x T 2 T 3 T 4 c 1 xx x x c 2 x x x T 5 T 6 c 3 x x c 4 xx xx x x a 6 x xx x x time What to do when transaction T 6 aborts? - Do we need to rollback transactions that have already committed (e. g. , T 1. . T 4) - Do we need to rollback other uncommitted transactions beside T 6? 9

Characterizing Schedules based on Serializability Is the effect of executing transactions in the order shown in schedule D equivalent to executing transactions in the order shown in schedule A or B? 10

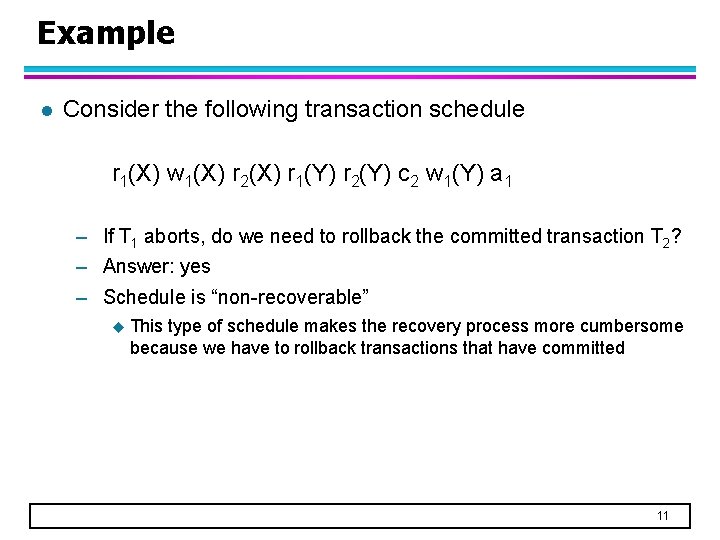

Example l Consider the following transaction schedule r 1(X) w 1(X) r 2(X) r 1(Y) r 2(Y) c 2 w 1(Y) a 1 – If T 1 aborts, do we need to rollback the committed transaction T 2? – Answer: yes – Schedule is “non-recoverable” u This type of schedule makes the recovery process more cumbersome because we have to rollback transactions that have committed 11

Recoverable Schedule l l l A schedule where no committed transactions need to be rolled back A transaction T must not commit until all transactions T’ that have written an item that T reads have committed Examples: – r 1(X) w 1(X) r 2(X) r 1(Y) w 2(X) c 2 a 1 u Nonrecoverable (T 2 must be rolled back when T 1 aborts) – r 1(X) r 2(X) w 1(X) r 1(Y) w 2(X) c 2 w 1(Y) a 1 u Recoverable (T 2 does not have to be rolled back when T 1 aborts) – r 2(X) w 2(X) r 1(Y) w 1(X) c 2 w 1(Y) a 1 u Recoverable (T 2 does not have to be rolled back when T 1 aborts) 12

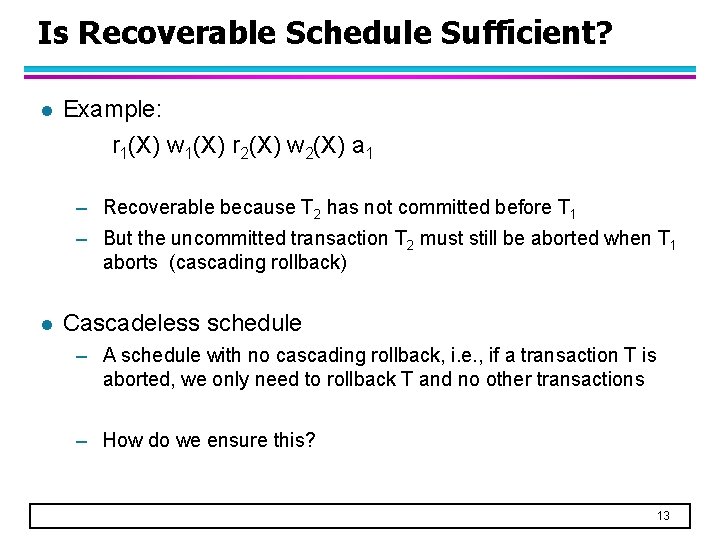

Is Recoverable Schedule Sufficient? l Example: r 1(X) w 1(X) r 2(X) w 2(X) a 1 – Recoverable because T 2 has not committed before T 1 – But the uncommitted transaction T 2 must still be aborted when T 1 aborts (cascading rollback) l Cascadeless schedule – A schedule with no cascading rollback, i. e. , if a transaction T is aborted, we only need to rollback T and no other transactions – How do we ensure this? 13

Cascadeless Schedules l Every transaction in the schedule reads only items that were written by committed transactions l Examples: – r 1(X) w 1(X) r 2(X) r 3(X) w 2(X) c 2 a 1 u Must rollback T 2 and T 3 (Not recoverable, not cascadeless) – r 1(X) r 2(X) w 1(X) r 3(X) w 2(X) c 2 a 1 u Must rollback T 3 only (Recoverable, not cascadeless) – r 1(X) r 2(X) r 3(X) w 1(X) c 2 a 1 u l No need to rollback T 2 nor T 3 (Recoverable, cascadeless) Cascadeless schedules are recoverable and avoid cascading rollback 14

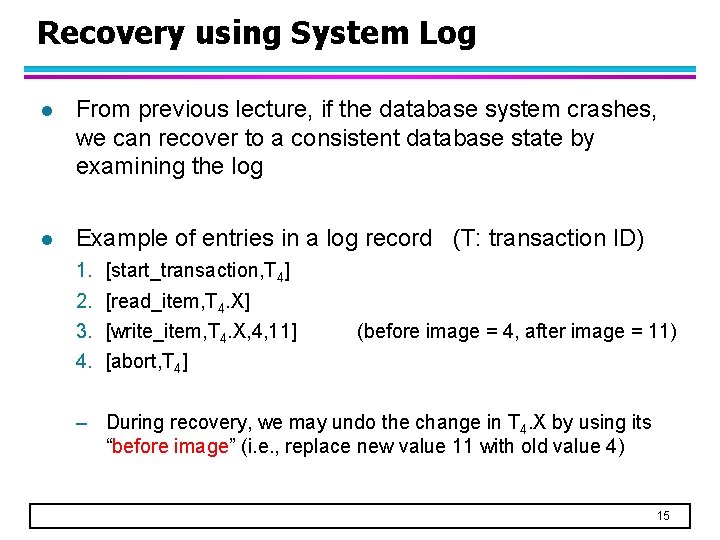

Recovery using System Log l From previous lecture, if the database system crashes, we can recover to a consistent database state by examining the log l Example of entries in a log record (T: transaction ID) 1. 2. 3. 4. [start_transaction, T 4] [read_item, T 4. X] [write_item, T 4. X, 4, 11] (before image = 4, after image = 11) [abort, T 4] – During recovery, we may undo the change in T 4. X by using its “before image” (i. e. , replace new value 11 with old value 4) 15

Strict Schedules l But with concurrency, it is not always possible to restore the database to its original state after abort using the before image of data item l Example: r 2(X) r 1(X) w 2(X) a 1 – Is the transaction recoverable? – Is the transaction cascadeless? – If the original value for X is 5, T 1 modifies X to 10 and T 2 modifies it to 8. After we undo the changes of T 1, will X returned to a correct value? 16

Strict Schedules l A schedule in which we can restore the database to a consistent state after abort using the before image of data item l A schedule in which a transaction can neither read nor write an item X until the last transaction that wrote X has committed or aborted l Example: r 2(X) r 1(X) w 2(X) a 1 – Schedule is cascadeless but not strict 17

Characterizing Schedules based on Recoverability l Summary – Recoverable schedules: no need to rollback committed transactions – Cascadeless schedules: no cascading rollback (rollback only the aborted transaction) – Strict schedules: undo changes by aborted transaction by applying the before image of affected data items l l l Cascadeless schedules are recoverable Strict schedules are cascadeless and recoverable More stringent condition means easier to do recovery from failure but less concurrency 18

Serial Schedules l A schedule S is serial if all operations in transactions are executed consecutively in the schedule – Otherwise, it is called nonserial schedule Serial: r 1(X) w 1(X) r 1(Y) w 1(Y) r 2(X) w 2(X) Nonserial: r 1(X) w 1(X) r 2(X) w 2(X) r 1(Y) w 1(Y) 19

Serial Schedules l Every serial schedule is correct, i. e. , leads to a consistent database state Schedule A Schedule B read_item(X) X=X+3 write_item(X) read_item(X) X = X – 2 Y write_item(X) read_item(X) X=X+3 write_item(X) – But executions of serial schedules are highly inefficient (because there is no concurrency) 20

Serializable Schedules l A schedule S is serializable if its execution is equivalent to some serial schedule of the same transactions – Otherwise, S is non-serializable l We consider a special type of serializable schedule called conflict serializable schedule 21

Conflict Serializable l A schedule S is said to be conflict serializable if it is conflict equivalent to some serial schedule of the same transactions – Two schedules are said to be conflict equivalent if the order of any two conflicting operations is the same in both schedules – Two operations in a transaction schedule are in conflict if l u They belong to different transactions u They access the same data item u At least one of them is a write operation If a schedule is conflict serializable, we can reorder the nonconflicting operations until we form an equivalent serial schedule 22

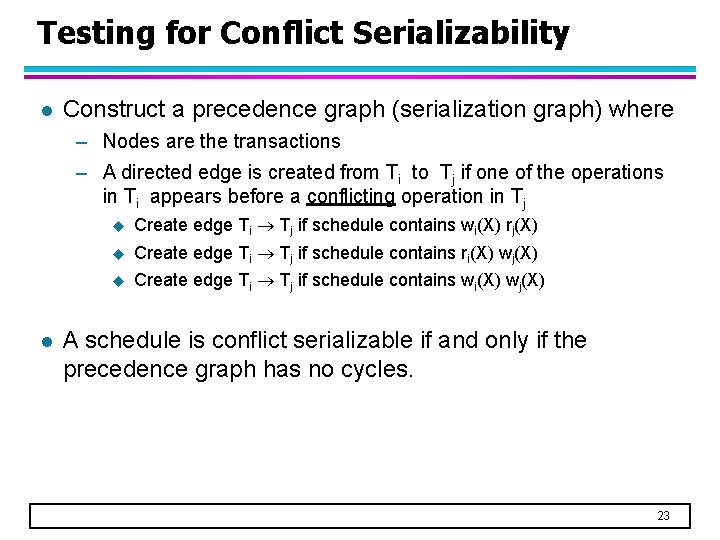

Testing for Conflict Serializability l Construct a precedence graph (serialization graph) where – Nodes are the transactions – A directed edge is created from Ti to Tj if one of the operations in Ti appears before a conflicting operation in Tj l u Create edge Ti Tj if schedule contains wi(X) rj(X) u Create edge Ti Tj if schedule contains ri(X) wj(X) u Create edge Ti Tj if schedule contains wi(X) wj(X) A schedule is conflict serializable if and only if the precedence graph has no cycles. 23

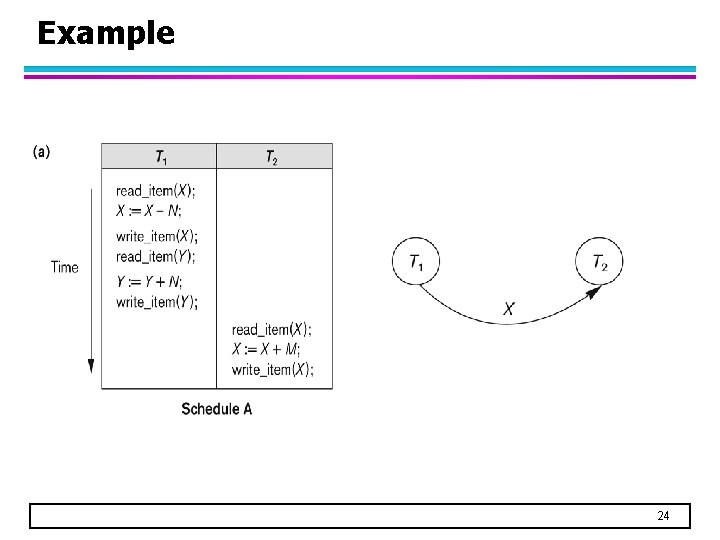

Example 24

Example This schedule is non-serializable because precedence graph has a cycle 25

Example This schedule is conflict serializable because precedence graph has no cycle 26

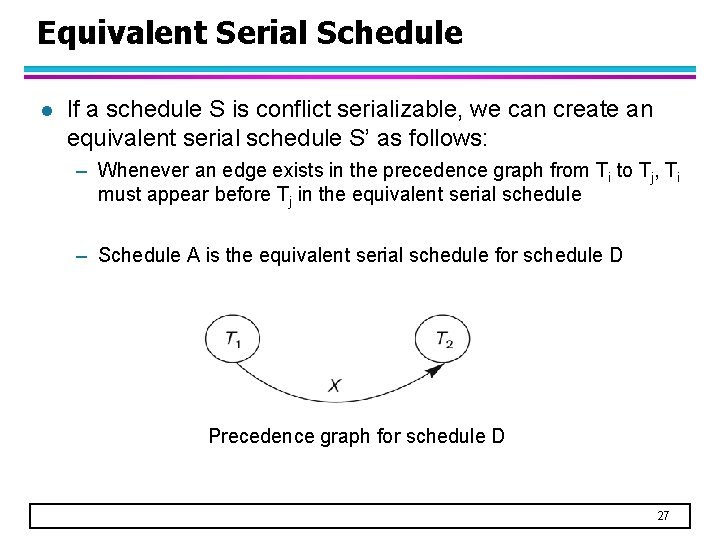

Equivalent Serial Schedule l If a schedule S is conflict serializable, we can create an equivalent serial schedule S’ as follows: – Whenever an edge exists in the precedence graph from Ti to Tj, Ti must appear before Tj in the equivalent serial schedule – Schedule A is the equivalent serial schedule for schedule D Precedence graph for schedule D 27

Example Is it conflict serializable? What is the equivalent serial schedule? 28

Example Is it conflict serializable? What is the equivalent serial schedule? 29

Characterizing Schedules based on Serializability l Summary – Serial schedule is inefficient (no parallelism) – Serializable schedule gives benefits of concurrent executions without giving up correctness l Concurrency control subsystem of DBMS must use certain protocol to ensure serializability of all schedules in which the transactions participate – 2 -Phase locking protocol (Chapter 22) – May cause deadlocks – DBMS will automatically abort one of the transactions, releasing the locks for other transactions to continue 30

My. SQL Example Client 1: Client 2: Consider two concurrent transactions 31

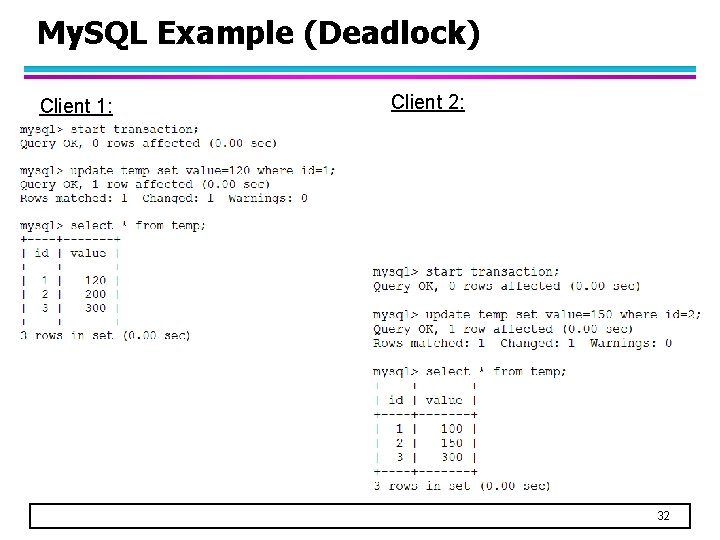

My. SQL Example (Deadlock) Client 1: Client 2: 32

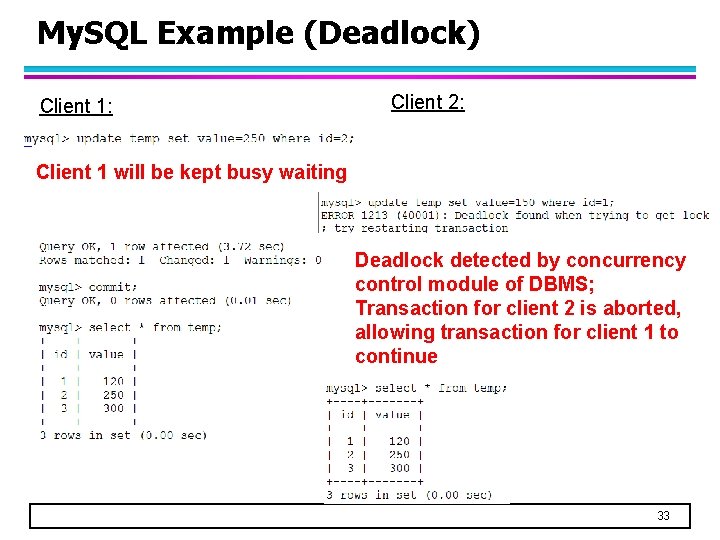

My. SQL Example (Deadlock) Client 1: Client 2: Client 1 will be kept busy waiting Deadlock detected by concurrency control module of DBMS; Transaction for client 2 is aborted, allowing transaction for client 1 to continue 33
