CSE 325 Computer Science and Sculpture Prof George
- Slides: 72
CSE 325 Computer Science and Sculpture Prof. George Hart
2. Polyhedra in Art + Sculpture A Historical View

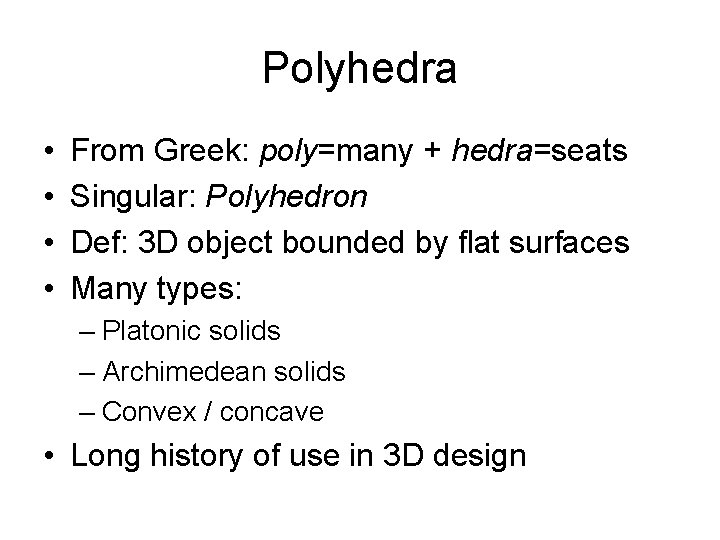

Polyhedra • • From Greek: poly=many + hedra=seats Singular: Polyhedron Def: 3 D object bounded by flat surfaces Many types: – Platonic solids – Archimedean solids – Convex / concave • Long history of use in 3 D design

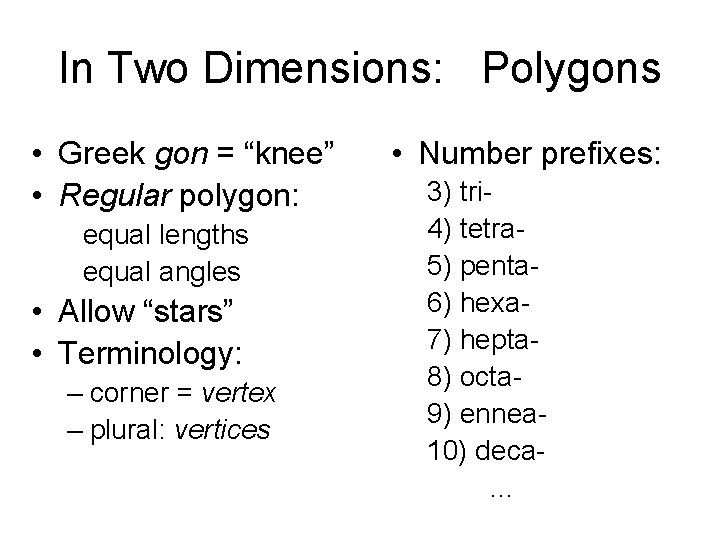

In Two Dimensions: Polygons • Greek gon = “knee” • Regular polygon: equal lengths equal angles • Allow “stars” • Terminology: – corner = vertex – plural: vertices • Number prefixes: 3) tri 4) tetra 5) penta 6) hexa 7) hepta 8) octa 9) ennea 10) deca…

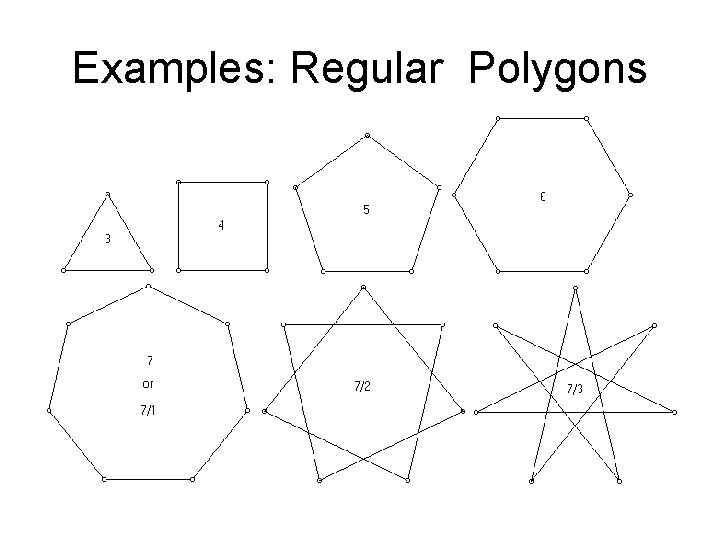

Examples: Regular Polygons

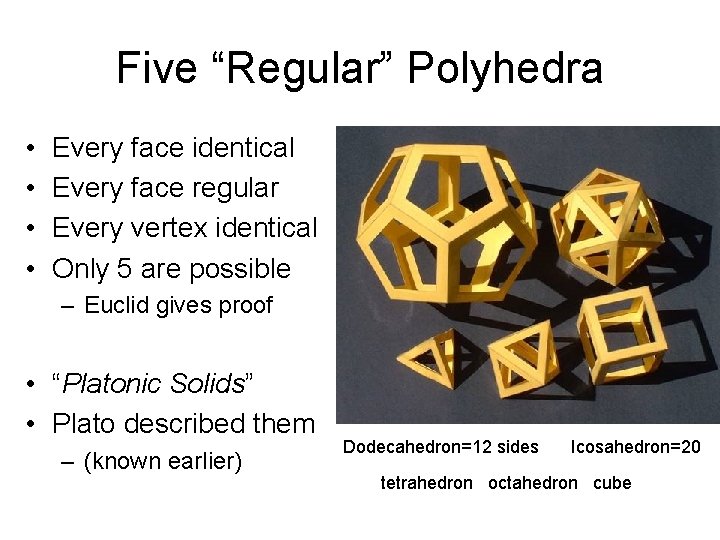

Five “Regular” Polyhedra • • Every face identical Every face regular Every vertex identical Only 5 are possible – Euclid gives proof • “Platonic Solids” • Plato described them – (known earlier) Dodecahedron=12 sides Icosahedron=20 tetrahedron octahedron cube
Some Dodecahedra 12 isosceles triangles 12 rhombi Regular: 12 pentagons “rhombic dodechedron” 12 isosceles triangles 12 kites 12 irregular pentagons

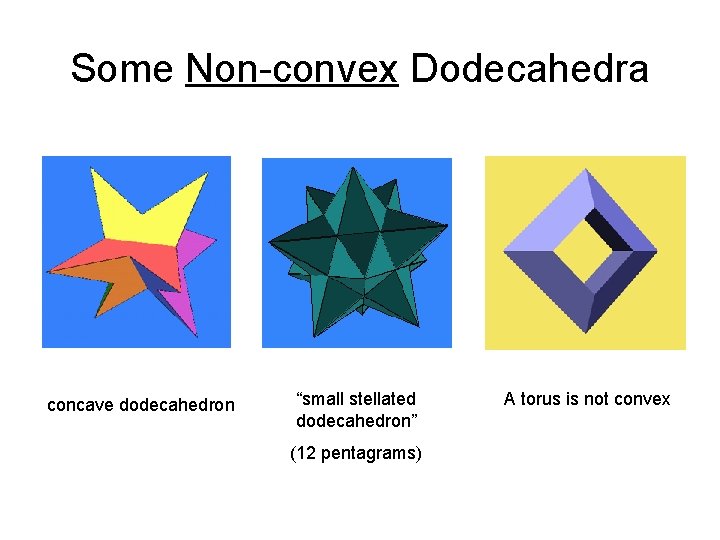

Some Non-convex Dodecahedra concave dodecahedron “small stellated dodecahedron” (12 pentagrams) A torus is not convex
Historical Examples • • • Stone, ivory, wood carving Bronze casting Drawing, woodcut, engraving, etc Painting Stone or wood tiling (mosaics = “intarsia”) Wood, glass, or metal assembly Guess: How old is the oldest existing dodecahedron?
Prehistoric Scotland Carved stone from circa 2000 B. C. E. Hundreds known. Most are cube-based. I don’t know of any icosahedron-based examples.

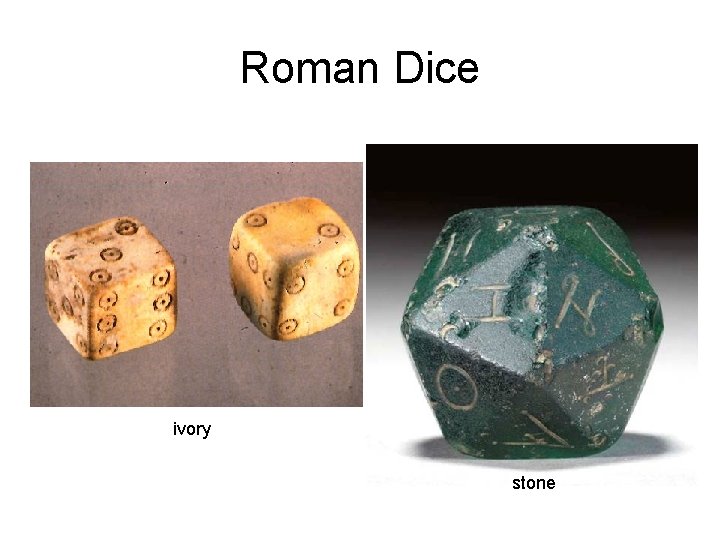

Roman Dice ivory stone
Roman Dodecahedra Bronze, unknown function

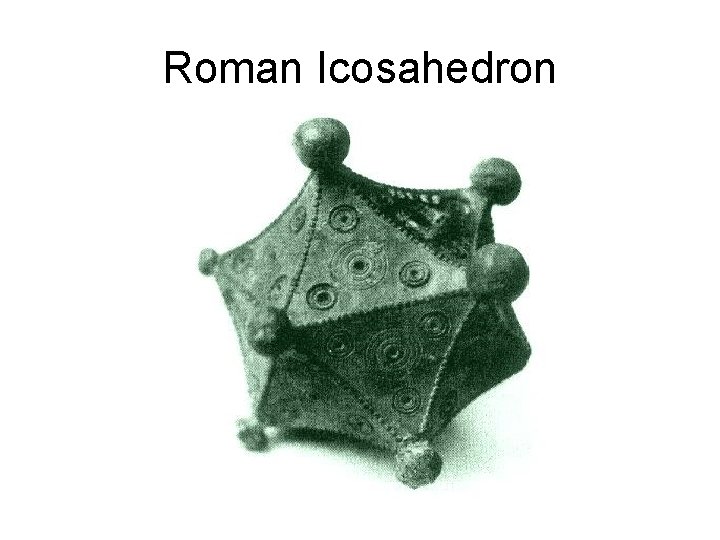

Roman Icosahedron
Paolo Uccello (1397 -1475) Small stellated dodecahedron mosaic mazzocchio (donut hat)

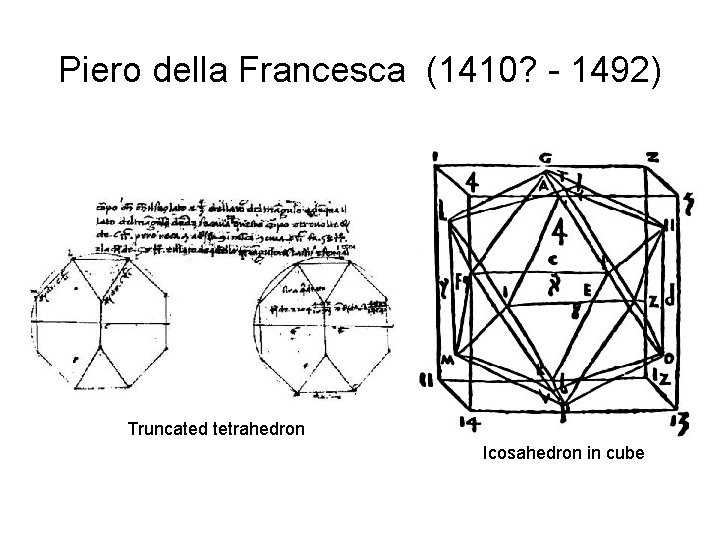

Piero della Francesca (1410? - 1492) Truncated tetrahedron Icosahedron in cube
Leonardo da Vinci (1452 -1519) Illustrations for Luca Pacioli's 1509 book The Divine Proportion
Leonardo da Vinci Illustrations for Luca Pacioli's 1509 book The Divine Proportion
Compare “Solid Edges” to Lines
Leonardo da Vinci “Elevated” Forms
Leonardo Doodles
Leonardo Doodles

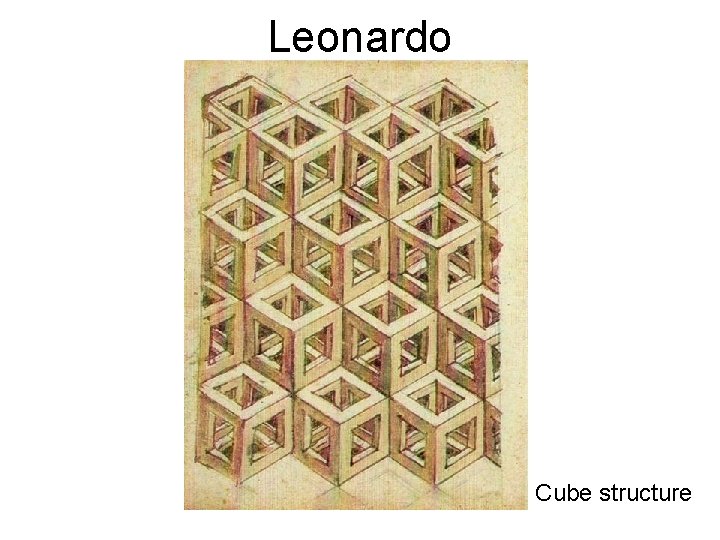

Leonardo Cube structure
Leonardo’s Ludo Geometrico ludo geometrico = “geometry game” = “make systematic modifications”

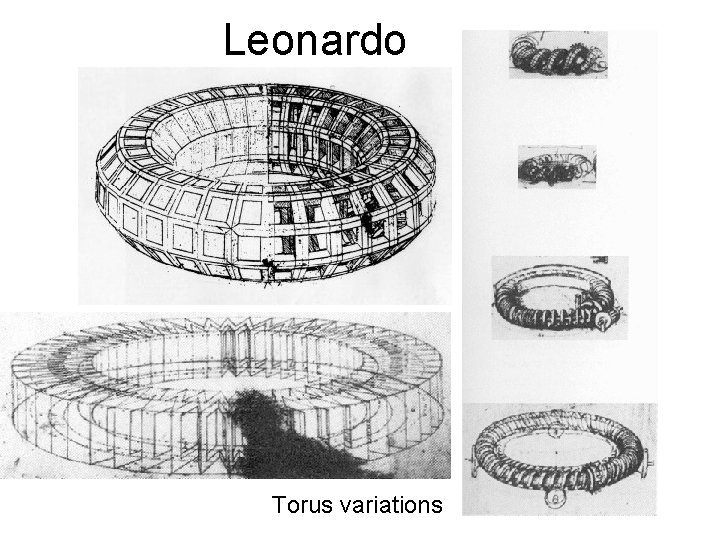

Leonardo Torus variations
Luca Pacioli (1445 -1514) Portrait of Pacioli, by Jacopo de Barbari, 1495
Luca Pacioli
The Divine Proportion “Golden ratio”

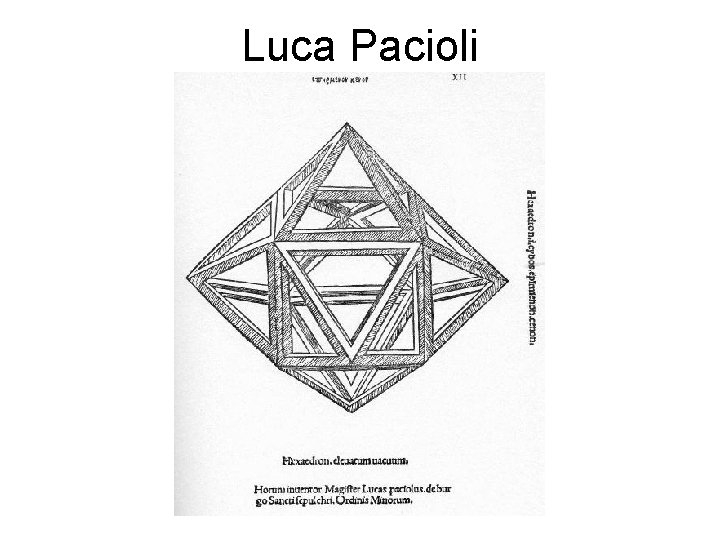

Luca Pacioli
Pacioli + Leonardo Printed as woodcuts in 1509
Fra Giovanni da Verona, 1520’s
Intarsia by Giovanni da Verona
Albrecht Durer (1471 -1528) Melancholia I, 1514
Albrecht Durer Painter’s Manual, 1525 Net of snub cube
Albrecht Durer Find the error! Painter’s Manual, 1525
Daniele Barbaro (1513 -1570) La Practica della Perspectiva, 1568
Wentzel Jamnitzer (1508 -1585) Perspectiva Corporum Regularium, 1568
Wentzel Jamnitzer
Wentzel Jamnitzer
Wentzel Jamnitzer (oldest chiral icosahedral image)

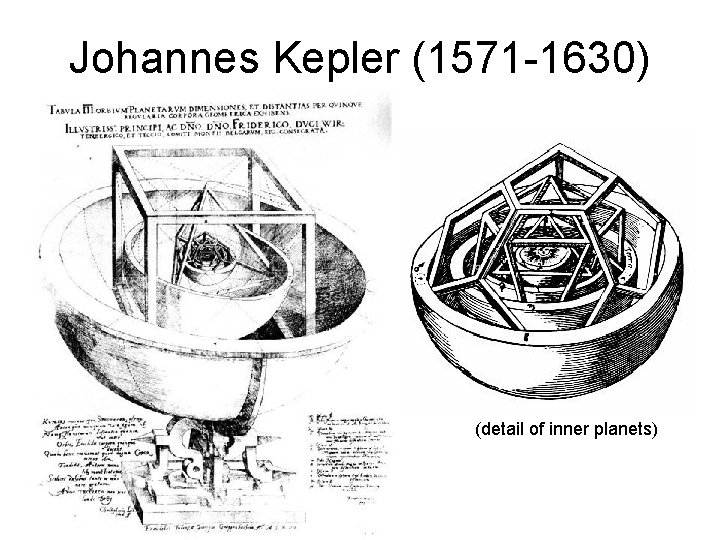

Johannes Kepler (1571 -1630) (detail of inner planets)
Johannes Kepler Harmonice Mundi, 1619
Kepler: Archimedean Solids Faces regular, vertices identical, but faces need not be identical
Johannes Kepler Regular Dodecahedron Rhombic Dodecahedron
Johannes Kepler Symbolism from Plato: Octahedron = air Tetrahedron = fire Cube = earth Icosahedron = water Dodecahedron = the universe

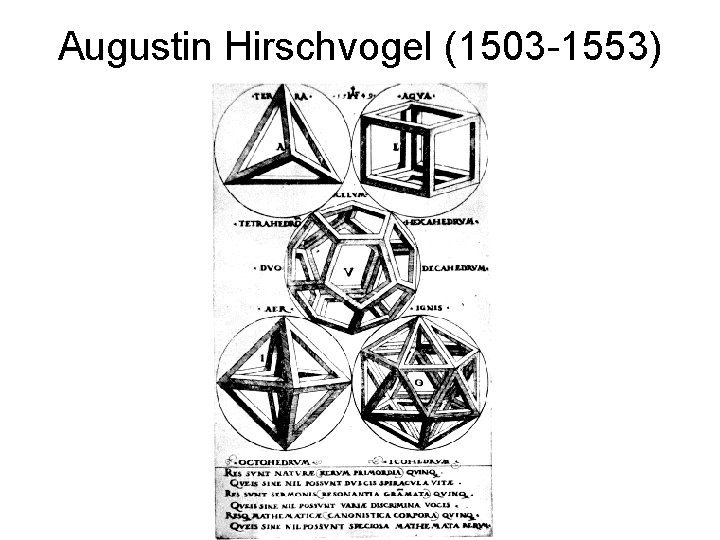

Augustin Hirschvogel (1503 -1553)
Lorenz Stoer Geometria et Perspectiva, 1567
Lorenz Stoer Geometria et Perspectiva, 1567

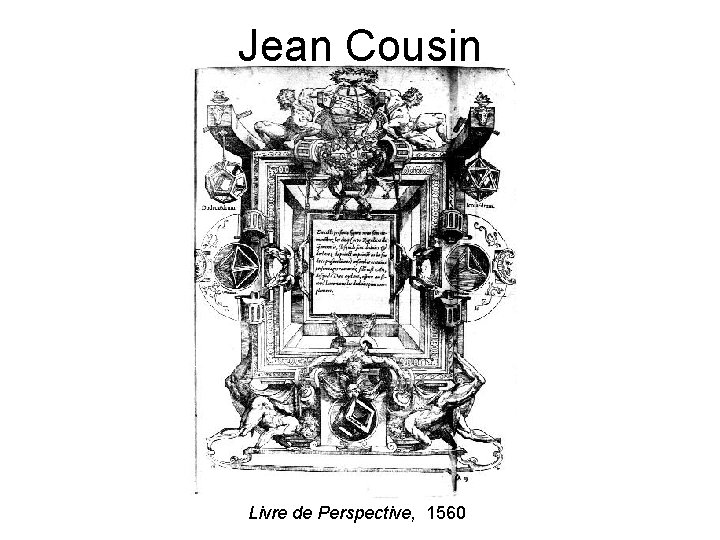

Jean Cousin Livre de Perspective, 1560
Nicolas Neufchatel Portrait of Johann Neudorfer and his Son, 1561
Hans Lencker Perspectiva, 1571
Hans Lencker Perspectiva, 1571
Lorenzo Sirigatti La pratica di prospettiva, 1596

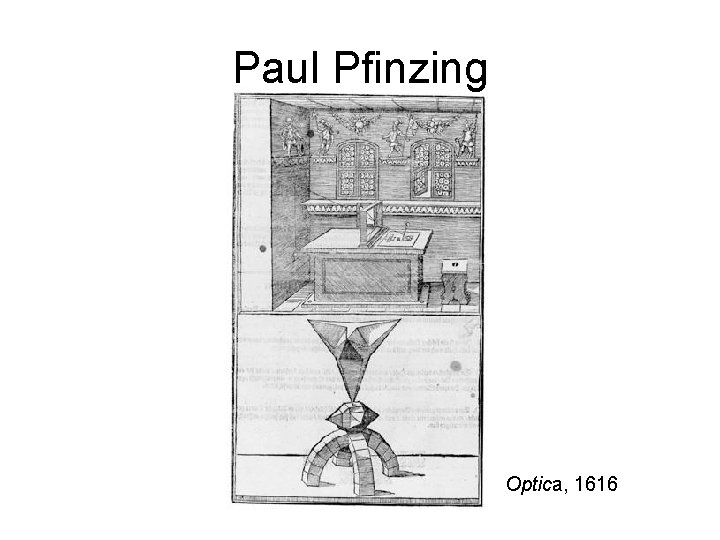

Paul Pfinzing Optica, 1616

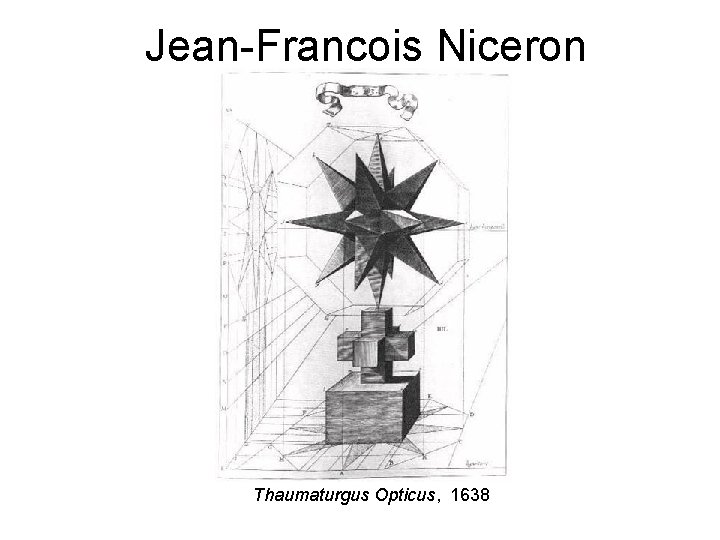

Jean-Francois Niceron Thaumaturgus Opticus, 1638
Jean Dubreuil La Perspective Pratiq, 1642
Jean Dubreuil La Perspective Pratiq, 1642
Tomb of Sir Thomas Gorges Salisbury Cathedral, 1635
Lorenz Zick (1594 -1666) Turned Ivory Spheres Modern Asian example
Jacques Ozanam Geometrie pratique, 1684
Alain Manesson Mallet La Geometrie Pratique, 1702
Abraham Sharp (1651 -1742) Geometry Improv'd, 1718

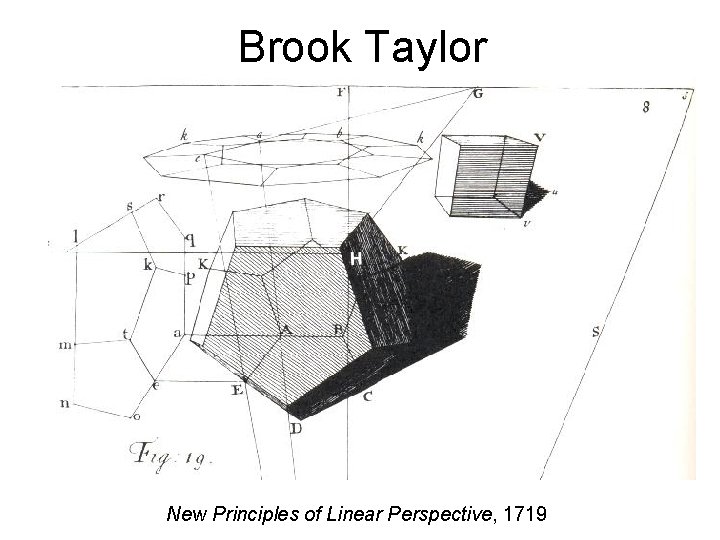

Brook Taylor New Principles of Linear Perspective, 1719
Brook Taylor New Principles of Linear Perspective, 1719
Paul Heinecken Lucidum Prospectivae Speculum 1727
Thomas Malton Compleat Treatise on Perspective, 1779
Christoph Nilson Anleitung zur Linearperspective, c. 1800

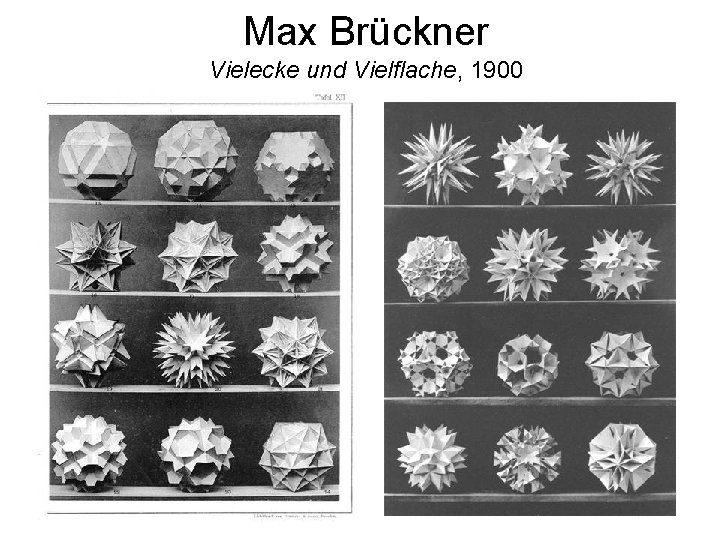

Max Brückner Vielecke und Vielflache, 1900
M. C. Escher (1898 -1972) Stars, 1948
M. C. Escher Double Planetoid, 1949
M. C. Escher Waterfall, 1961
M. C. Escher Reptiles, 1943
Conclusions • Polyhedra, especially the five Platonic solids, have been an element of Western art for centuries. • Beauty of symmetry • Challenging models to show mastery of perspective • Symbolic meaning assigned by Plato • Mathematical foundation for artistry • Good starting point for computer constructions
