CSCI383 ObjectOriented Programming Design Lecture 12 UML Diagrams

CSCI-383 Object-Oriented Programming & Design Lecture 12

UML Diagrams

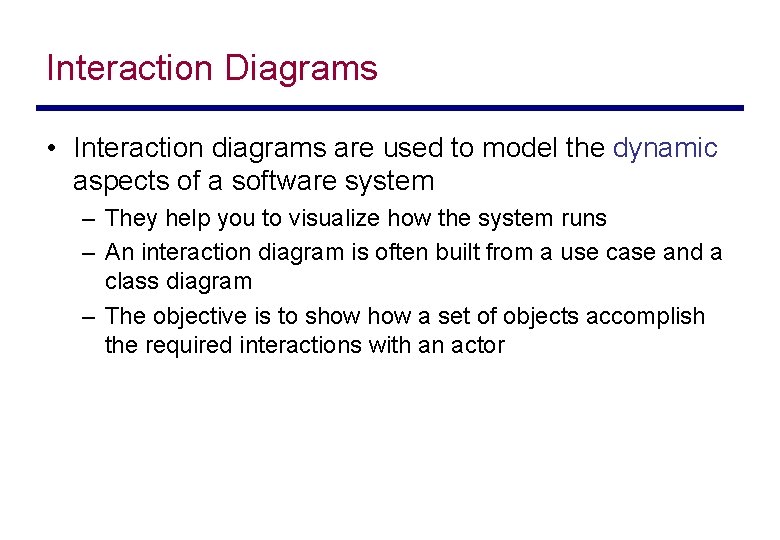

Interaction Diagrams • Interaction diagrams are used to model the dynamic aspects of a software system – They help you to visualize how the system runs – An interaction diagram is often built from a use case and a class diagram – The objective is to show a set of objects accomplish the required interactions with an actor

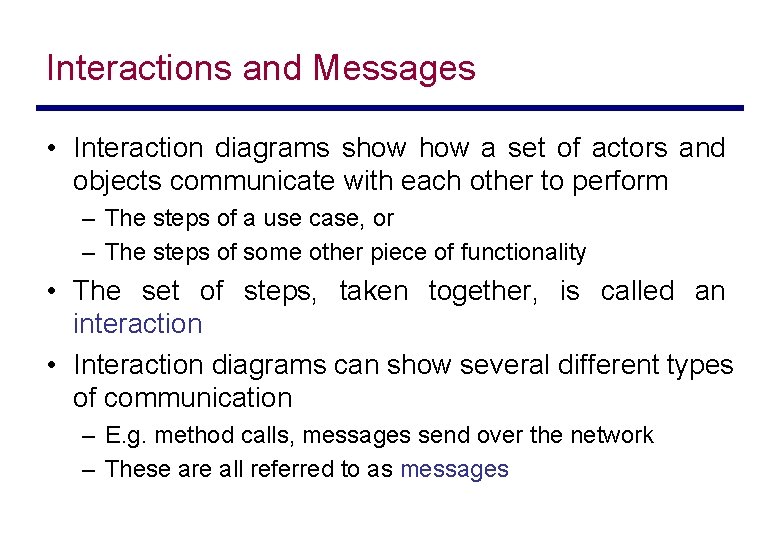

Interactions and Messages • Interaction diagrams show a set of actors and objects communicate with each other to perform – The steps of a use case, or – The steps of some other piece of functionality • The set of steps, taken together, is called an interaction • Interaction diagrams can show several different types of communication – E. g. method calls, messages send over the network – These are all referred to as messages

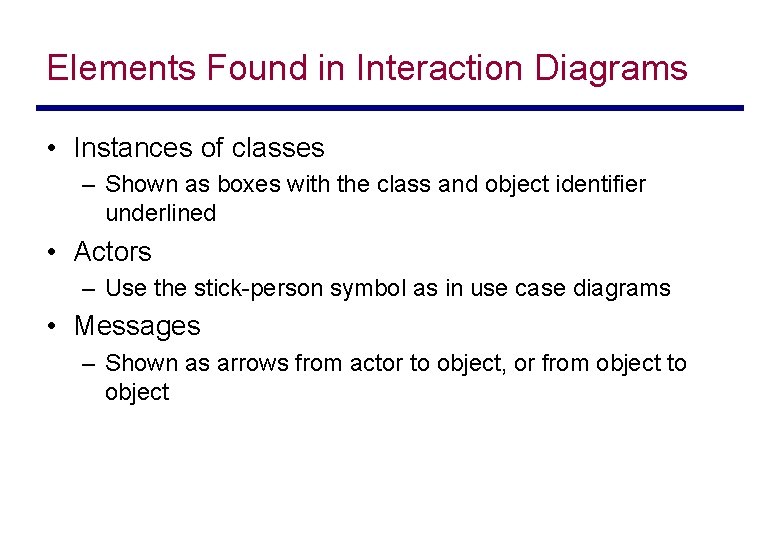

Elements Found in Interaction Diagrams • Instances of classes – Shown as boxes with the class and object identifier underlined • Actors – Use the stick-person symbol as in use case diagrams • Messages – Shown as arrows from actor to object, or from object to object

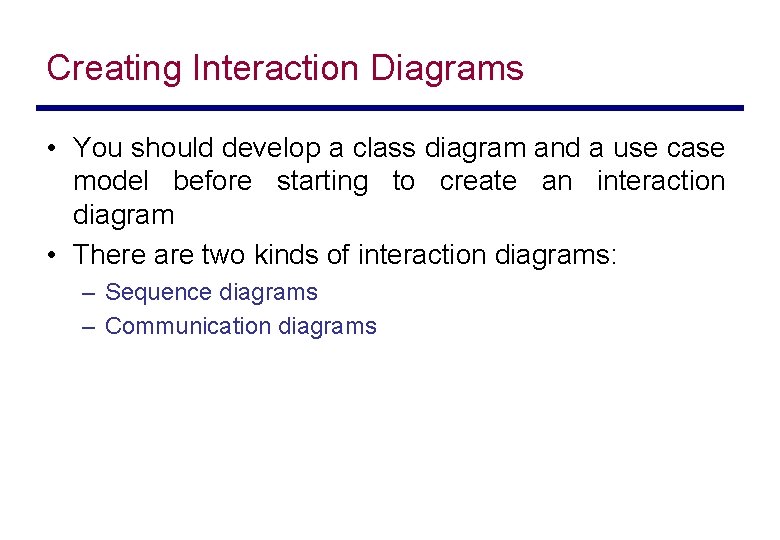

Creating Interaction Diagrams • You should develop a class diagram and a use case model before starting to create an interaction diagram • There are two kinds of interaction diagrams: – Sequence diagrams – Communication diagrams

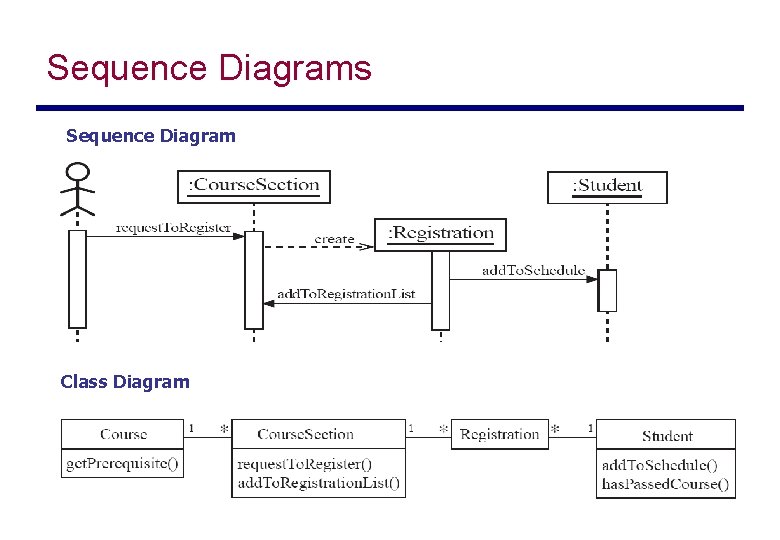

Sequence Diagrams Sequence Diagram Class Diagram

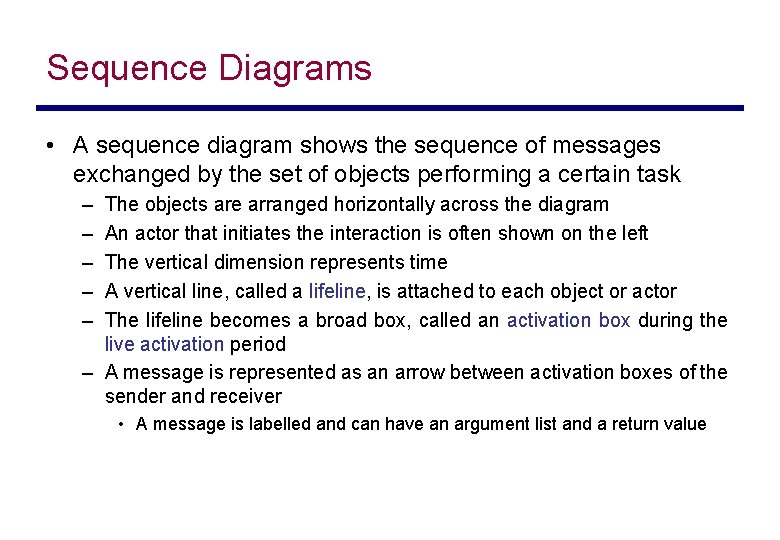

Sequence Diagrams • A sequence diagram shows the sequence of messages exchanged by the set of objects performing a certain task – – – The objects are arranged horizontally across the diagram An actor that initiates the interaction is often shown on the left The vertical dimension represents time A vertical line, called a lifeline, is attached to each object or actor The lifeline becomes a broad box, called an activation box during the live activation period – A message is represented as an arrow between activation boxes of the sender and receiver • A message is labelled and can have an argument list and a return value

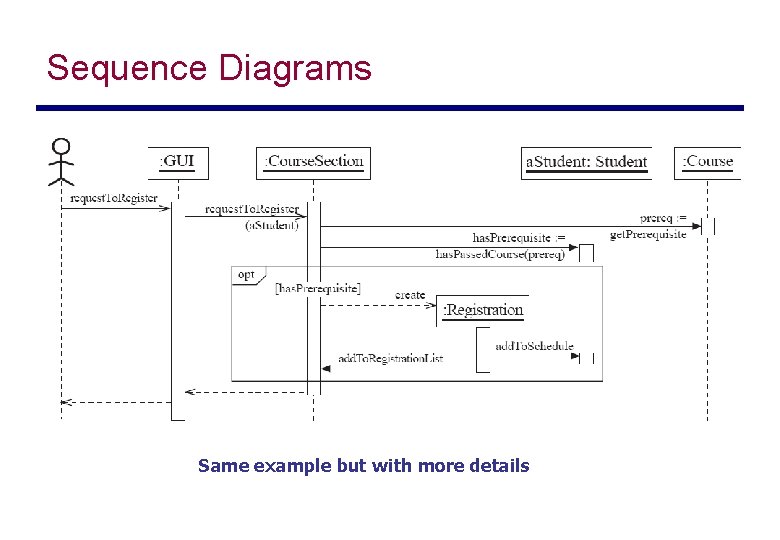

Sequence Diagrams Same example but with more details

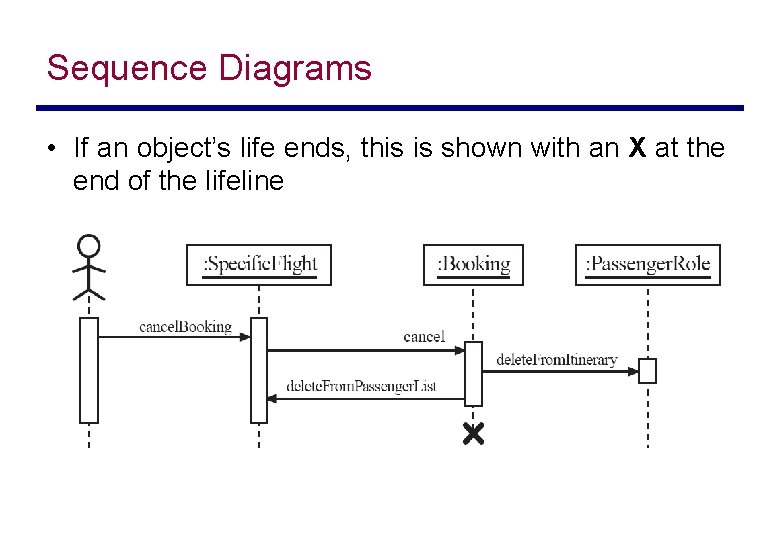

Sequence Diagrams • If an object’s life ends, this is shown with an X at the end of the lifeline

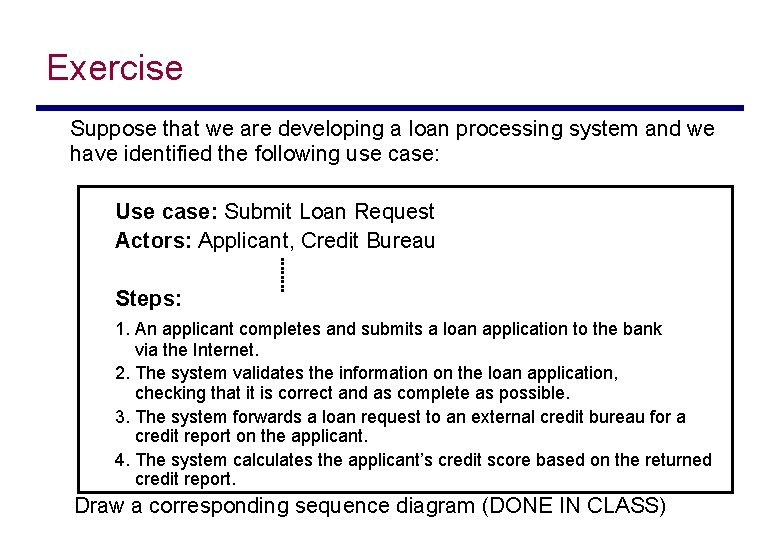

Exercise Suppose that we are developing a loan processing system and we have identified the following use case: Use case: Submit Loan Request Actors: Applicant, Credit Bureau Steps: 1. An applicant completes and submits a loan application to the bank via the Internet. 2. The system validates the information on the loan application, checking that it is correct and as complete as possible. 3. The system forwards a loan request to an external credit bureau for a credit report on the applicant. 4. The system calculates the applicant’s credit score based on the returned credit report. Draw a corresponding sequence diagram (DONE IN CLASS)

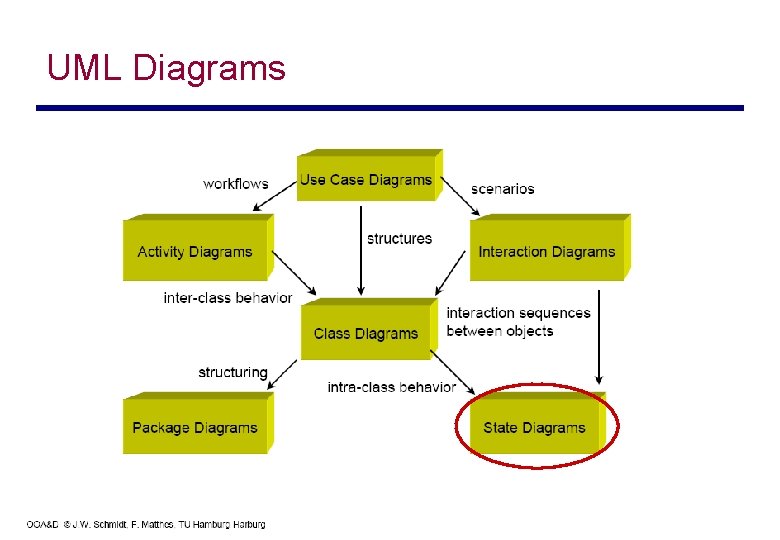

UML Diagrams

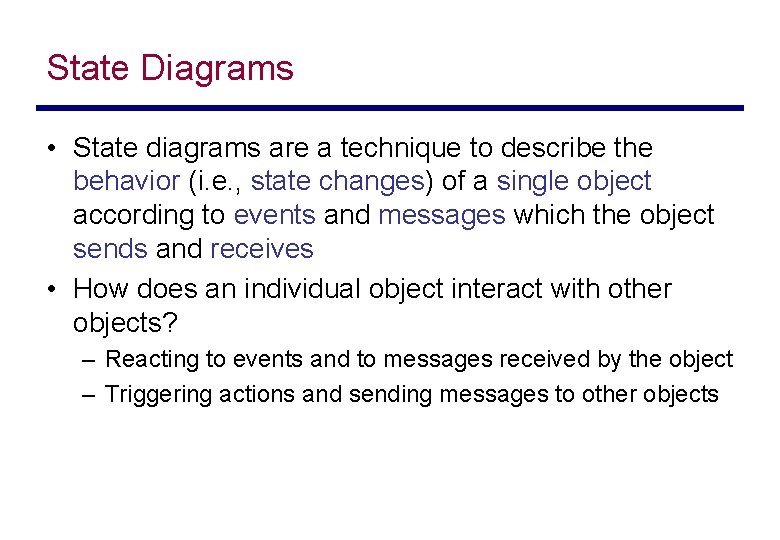

State Diagrams • State diagrams are a technique to describe the behavior (i. e. , state changes) of a single object according to events and messages which the object sends and receives • How does an individual object interact with other objects? – Reacting to events and to messages received by the object – Triggering actions and sending messages to other objects

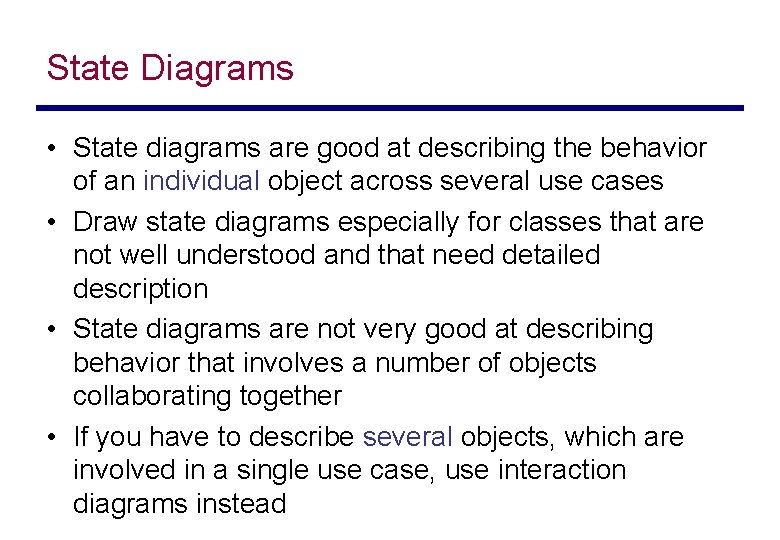

State Diagrams • State diagrams are good at describing the behavior of an individual object across several use cases • Draw state diagrams especially for classes that are not well understood and that need detailed description • State diagrams are not very good at describing behavior that involves a number of objects collaborating together • If you have to describe several objects, which are involved in a single use case, use interaction diagrams instead

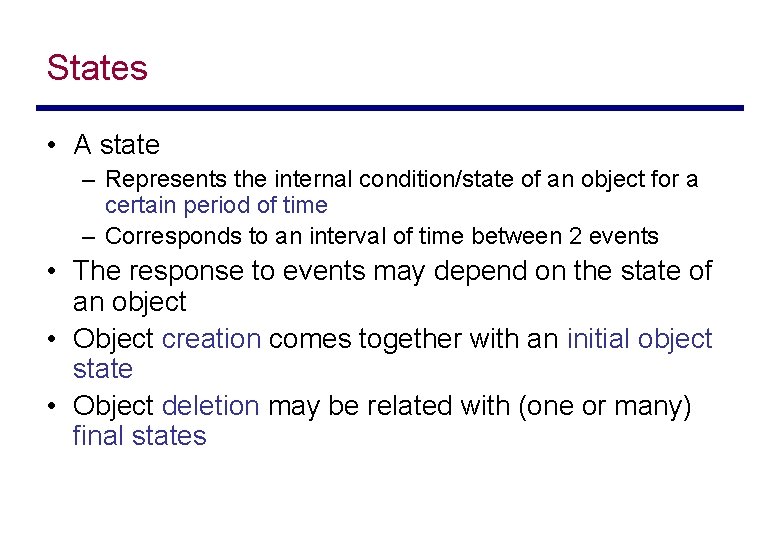

States • A state – Represents the internal condition/state of an object for a certain period of time – Corresponds to an interval of time between 2 events • The response to events may depend on the state of an object • Object creation comes together with an initial object state • Object deletion may be related with (one or many) final states

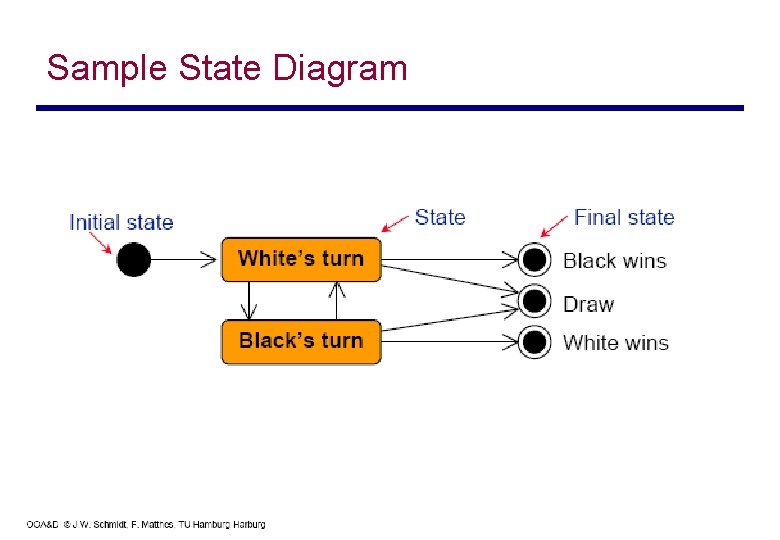

Sample State Diagram

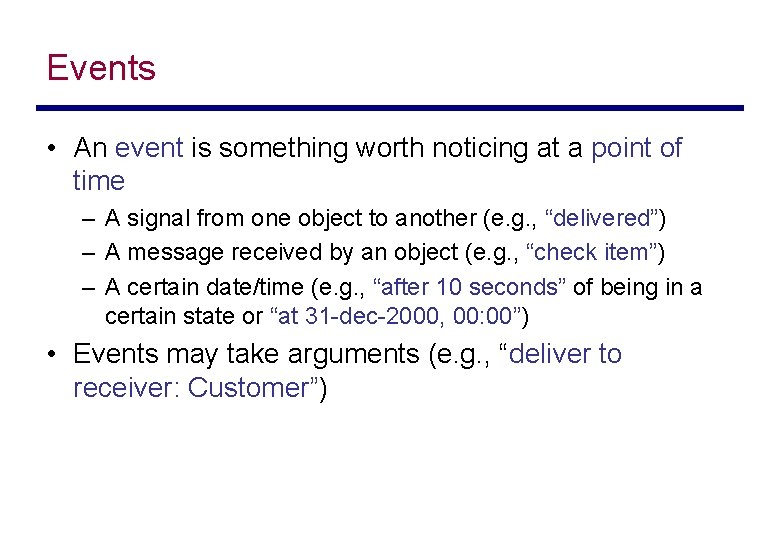

Events • An event is something worth noticing at a point of time – A signal from one object to another (e. g. , “delivered”) – A message received by an object (e. g. , “check item”) – A certain date/time (e. g. , “after 10 seconds” of being in a certain state or “at 31 -dec-2000, 00: 00”) • Events may take arguments (e. g. , “deliver to receiver: Customer”)

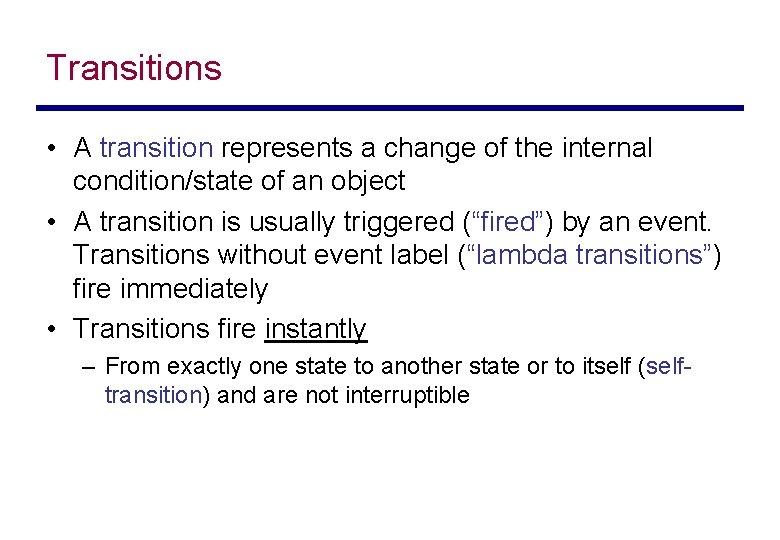

Transitions • A transition represents a change of the internal condition/state of an object • A transition is usually triggered (“fired”) by an event. Transitions without event label (“lambda transitions”) fire immediately • Transitions fire instantly – From exactly one state to another state or to itself (selftransition) and are not interruptible

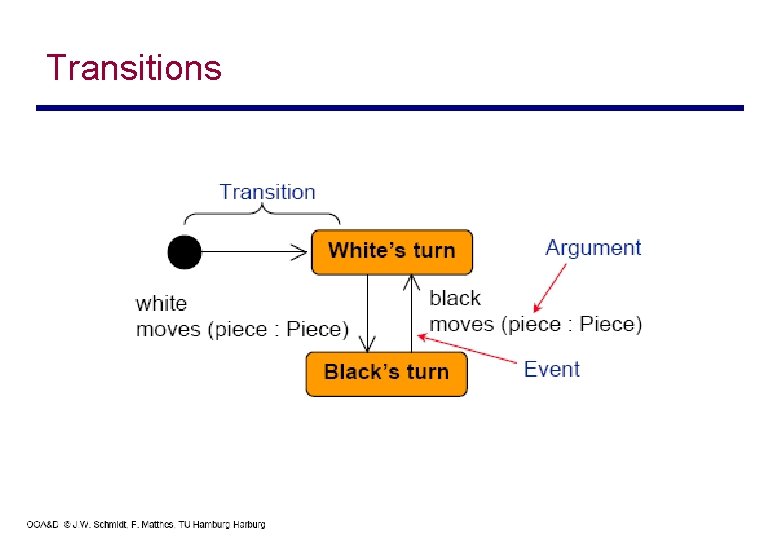

Transitions

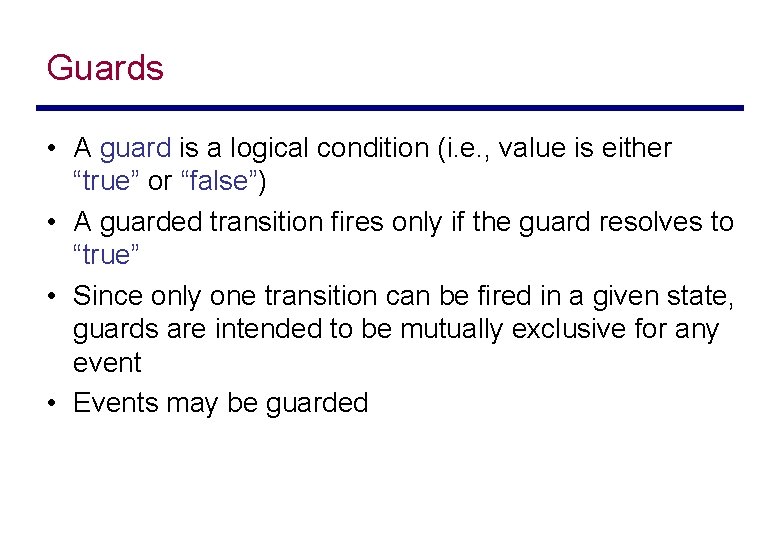

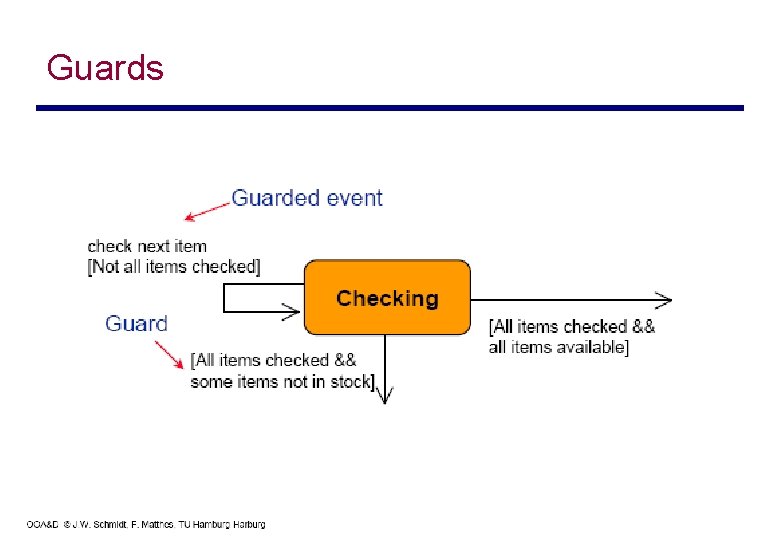

Guards • A guard is a logical condition (i. e. , value is either “true” or “false”) • A guarded transition fires only if the guard resolves to “true” • Since only one transition can be fired in a given state, guards are intended to be mutually exclusive for any event • Events may be guarded

Guards

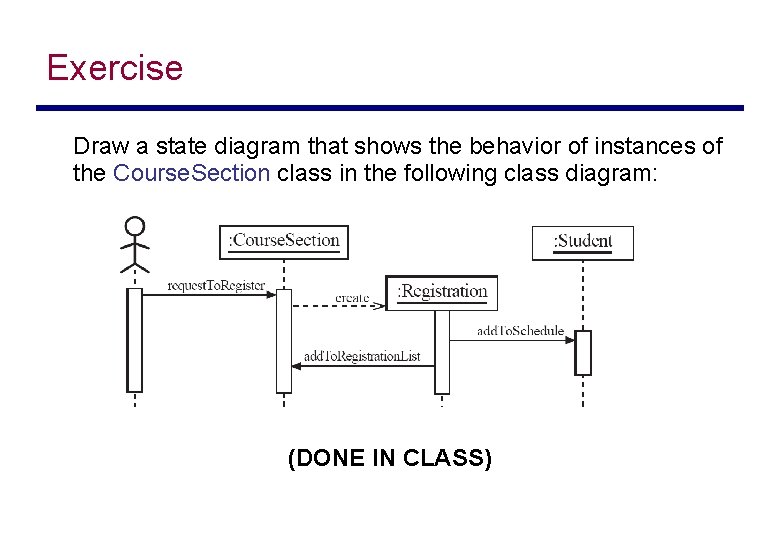

Exercise Draw a state diagram that shows the behavior of instances of the Course. Section class in the following class diagram: (DONE IN CLASS)
