![CSCI 3130 Formal languages and automata theory Tutorial 6 Chin CSCI 3130: Formal languages and automata theory Tutorial 6 Chin](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-1.jpg)
CSCI 3130: Formal languages and automata theory Tutorial 6 Chin
![Reminder Homework 4 is due next thursday Reminder • Homework 4 is due next thursday.](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-2.jpg)
Reminder • Homework 4 is due next thursday.
![LR0 parsing A a Ab After reading an a the next LR(0) parsing • A a • Ab • After reading an ‘a’, the next](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-3.jpg)

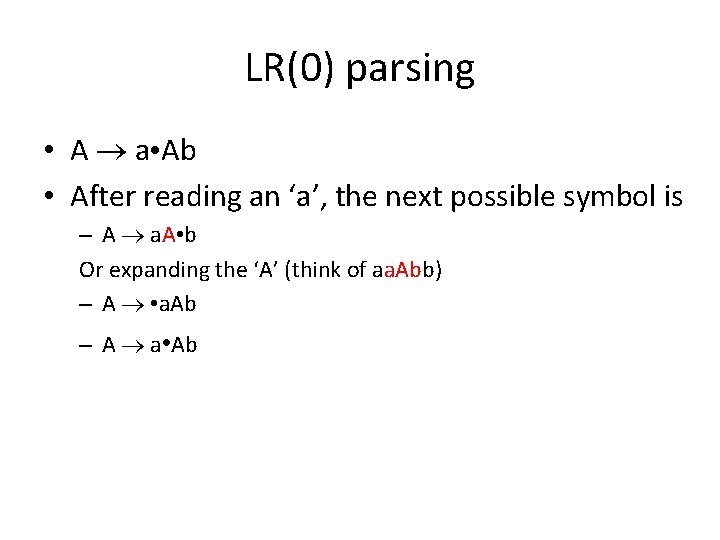

LR(0) parsing • A a • Ab • After reading an ‘a’, the next possible symbol is – A a. A • b Or expanding the ‘A’ (think of aa. Abb) – A • a. Ab – A a • Ab
![LR0 parsing E ET a T bc LR(0) parsing • E E+T | a • T b|c](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-4.jpg)
LR(0) parsing • E E+T | a • T b|c
![LR0 parsing E ET a T bc Put a dot in any LR(0) parsing E E+T | a T b|c Put a dot • in any](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-5.jpg)
LR(0) parsing E E+T | a T b|c Put a dot • in any possible positions E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • These are valid items. The bottom ones are complete items. When you see complete items, reduce. T • c T c •
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-6.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Suppose we are given a+b+c Before reading anything, the valid items are: E • E+T, E • a, T • b, T • c No complete items, shift. state stack 1 valid items E • E+T, E • a, T • b, T • c reading • a+b+c action Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-7.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Read an input and push it in the stack. a • +b+c E • E+T < fail E a • E • a a T • b < fail T • c < fail state stack 1 2 a valid items E • E+T, E • a, T • b, T • c reading • a+b+c action Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-8.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is E a • When you see exactly one item and it is complete, reduce. * If there are more than 1 complete items, R/R conflict. * If there is another item, but it is not complete, S/R conflict. state stack valid items reading action 1 E • E+T, E • a, T • b, T • c • a+b+c Shift 2 a E a • +b+c Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-9.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. E a • ) R. H. S. has k symbols, pop k symbols out of the stack (i. e. pop ‘a’) Consider the valid items in corresponding state (i. e. items in state 1) Then push the symbol on the L. H. S. to the stack (i. e. push ‘E’) state stack valid items reading action 1 E • E+T, E • a, T • b, T • c • a+b+c Shift 2 a E a • +b+c Reduce E • E+T, E • a, T • b, T • c E
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-10.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • E • E+T E • a < fail T • b < fail T • c < fail state stack 2 T • b T b • E T • c T c • E E • +T E a • T • b T • c valid items reading a E a • +b+c E • E+T, E • a, T • b, T • c a • +b+c E E E • +T a • +b+c action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-11.jpg)

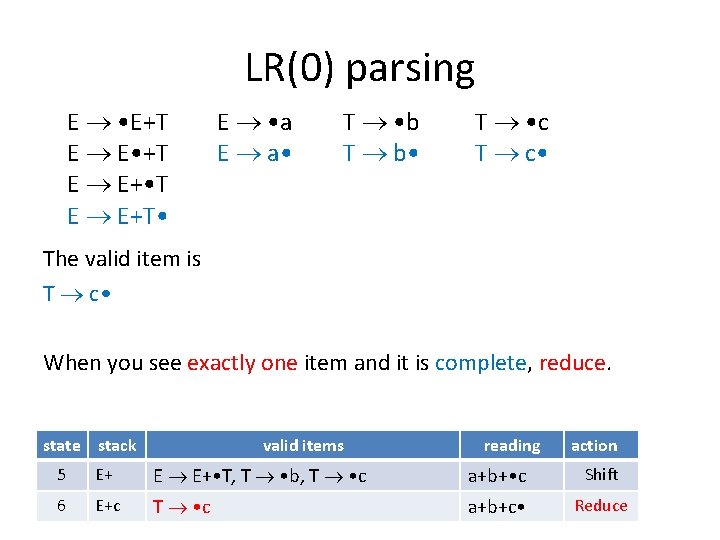

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is: E E • +T No complete items, shift. state stack 2 valid items reading a E a • +b+c E • E+T, E • a, T • b, T • c a • +b+c E E E • +T a • +b+c action Reduce Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-12.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Read an input and push it in the stack. a+ • b+c E E+ • T E E • +T + state stack 2 3 valid items a E a • E+T, E • a, T • b, T • c E E E • +T E+ reading a • +b+c action Reduce Shift a+ • b+c
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-13.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid items are E E+ • T T • b <- This comes from expanding T • b T • c <- This comes from expanding T • c No complete items, shift. state stack 2 3 valid items a E a • E+T, E • a, T • b, T • c E E E • +T E+ E E+ • T, T • b, T • c reading a • +b+c action Reduce Shift a+ • b+c Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-14.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Read an input and push it in the stack. a+b • +c E E+ • T < fail T b • T • b b T • c < fail state stack 3 E+ 4 E+b valid items E E+ • T, T • b, T • c reading a+ • b+c action Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-15.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is T b • When you see exactly one item and it is complete, reduce. state stack valid items reading action 3 E+ E E+ • T, T • b, T • c a+ • b+c Shift 4 E+b T b • a+b • +c Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-16.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. T b • ) R. H. S. has k symbols, pop k symbols out of the stack (i. e. pop ‘b’) Consider the valid items in corresponding state (i. e. items in state 3) Then push the symbol on the L. H. S. to the stack (i. e. push ‘T’) state stack valid items reading action 3 E+ E E+ • T, T • b, T • c a+ • b+c Shift 4 E+b T b • a+b • +c Reduce E+ E E+ • T, T • b, T • c E+T
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-17.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • E E+ • T T • b < fail T • c < fail state stack 4 T • b T b • T valid items E+b T b • E+ E E+ • T, T • b, T • c E+T E E+T • T • c T c • E E+T • T • b < fail T • c < fail reading a+b • +c action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-18.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is E E+T • When you see exactly one item and it is complete, reduce. state stack 4 valid items E+b T b • E+ E E+ • T, T • b, T • c E+T E E+T • reading a+b • +c action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-19.jpg)

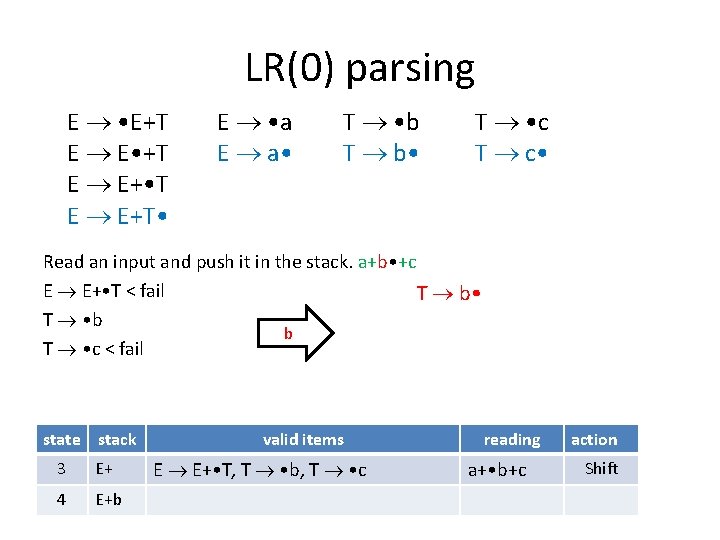

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. E E+T • ) R. H. S. has k symbols, pop k symbols out of the stack (i. e. pop ‘E+T’) Consider the valid items in corresponding state (i. e. items in state 1) Then push the symbol on the L. H. S. to the stack (i. e. push ‘E’) state stack 1 valid items E • E+T, E • a, T • b, T • c E+T E E+T • E+T, E • a, T • b, T • c reading • a+b+c action Shift … 4 E Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-20.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • E • E+T E • a < fail T • b < fail T • c < fail state stack 4 T • b T b • E T • c T c • E E • +T E a • T • b T • c valid items reading E+T E E+T • a+b • +c E • E+T, E • a, T • b, T • c a+b • +c E E E • +T a+b • +c action Reduce Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-21.jpg)

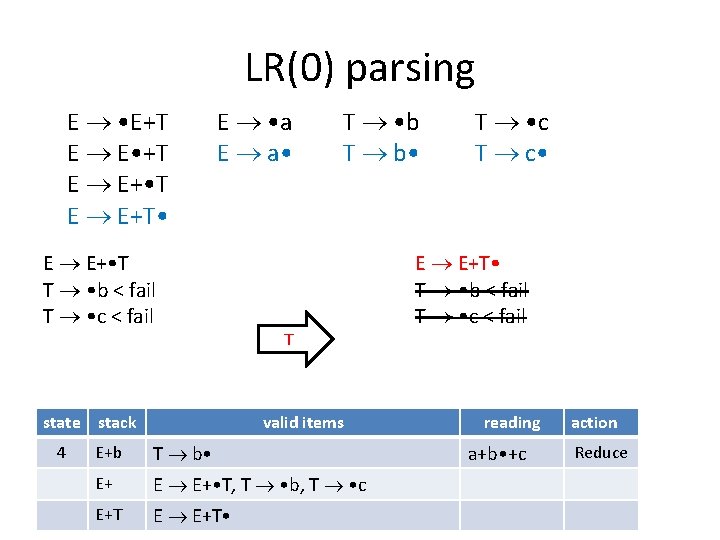

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is: E E • +T No complete items, shift. state stack 4 valid items reading E+T E E+T • a+b • +c E • E+T, E • a, T • b, T • c a+b • +c E E E • +T a+b • +c action Reduce Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-22.jpg)

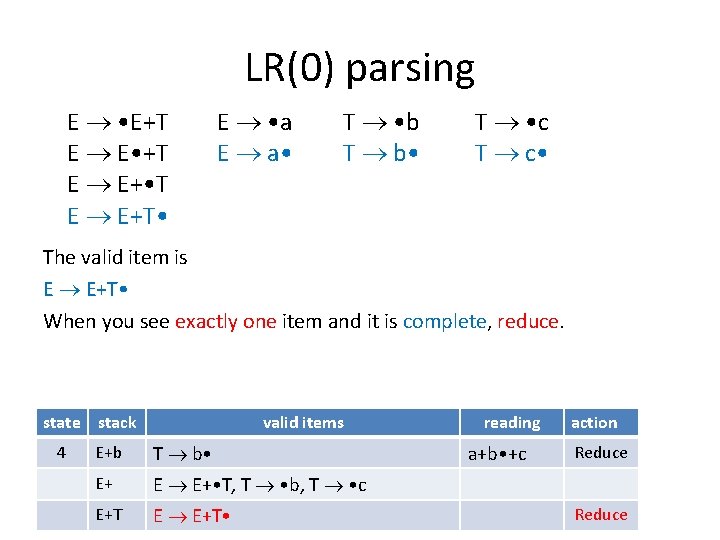

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Read an input and push it in the stack. a+b+ • c E E • +T T E+ • T + state stack E 5 E+ valid items E E • +T reading a+b • +c a+b+ • c action Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-23.jpg)

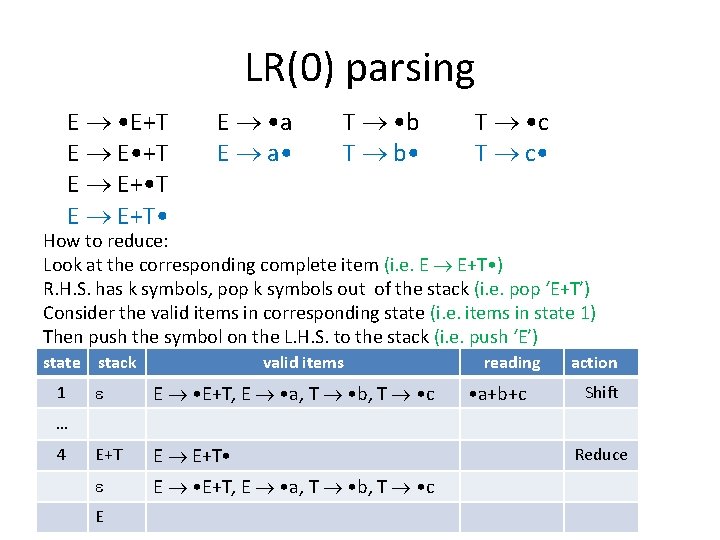

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid items are E E+ • T T • b <- This comes from expanding T • b T • c <- This comes from expanding T • c No complete items, shift. state stack 5 valid items reading action E E E • +T a+b • +c Shift E+ E E+ • T, T • b, T • c a+b+ • c Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-24.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • Read an input and push it in the stack. a+b+c • E E+ • T < fail T c • T • b < fail c T • c state stack valid items reading action 4 E E E • +T a+b • +c Shift 5 E+ E E+ • T, T • b, T • c a+b+ • c Shift
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-25.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is T c • When you see exactly one item and it is complete, reduce. state stack valid items reading action 5 E+ E E+ • T, T • b, T • c a+b+ • c Shift 6 E+c T • c a+b+c • Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-26.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. T c • ) R. H. S. has k symbols, pop k symbols out of the stack. (i. e. pop ‘c’) Consider the valid items in corresponding state (i. e. items in state 5) Then push the symbol on the L. H. S. to the stack (i. e. push ‘T’) state stack 6 valid items E+c T • c E+ E E+ • T, T • b, T • c E+T reading a+b+c • action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-27.jpg)

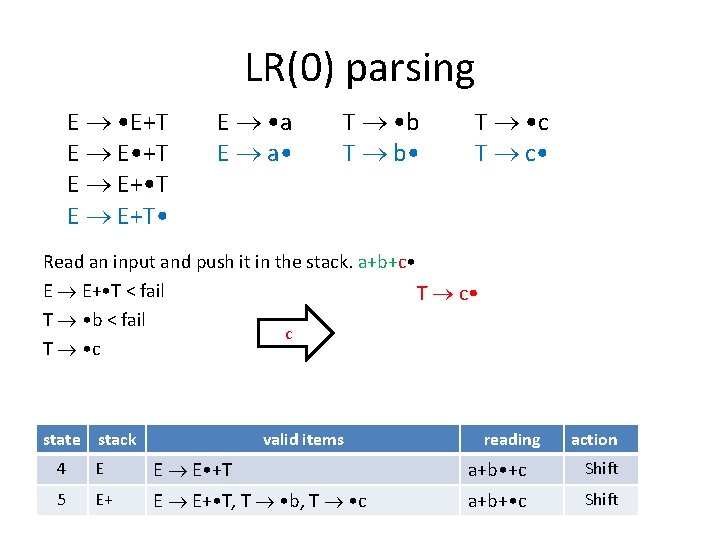

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E E+ • T T • b < fail T • c < fail state stack 6 E • a E a • T • b T b • T valid items E+c T • c E+ E E+ • T, T • b, T • c E+T T • c T c • E E+T • T • b < fail T • c < fail reading a+b+c • action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-28.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • The valid item is E E+T • When you see exactly one item and it is complete, reduce. state stack 6 valid items E+c T • c E+ E E+ • T, T • b, T • c E+T E E+T • reading a+b+c • action Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-29.jpg)

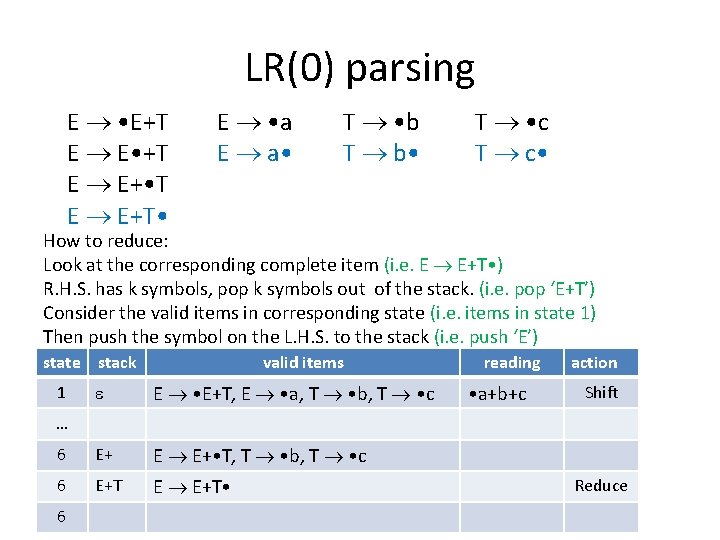

LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. E E+T • ) R. H. S. has k symbols, pop k symbols out of the stack. (i. e. pop ‘E+T’) Consider the valid items in corresponding state (i. e. items in state 1) Then push the symbol on the L. H. S. to the stack (i. e. push ‘E’) state stack valid items E • E+T, E • a, T • b, T • c 6 E+ E E+ • T, T • b, T • c 6 E+T E E+T • 1 reading • a+b+c action Shift … 6 Reduce
![LR0 parsing state stack valid items reading action 1 E ET E LR(0) parsing state stack valid items reading action 1 E • E+T, E •](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-30.jpg)
LR(0) parsing state stack valid items reading action 1 E • E+T, E • a, T • b, T • c • a+b+c Shift 2 a E a • +b+c Reduce E • E+T, E • a, T • b, T • c a • +b+c E E E • +T a • +b+c Shift 3 E+ E E+ • T, T • b, T • c a+ • b+c Shift 4 E+b T b • a+b • +c Reduce E+ E E+ • T, T • b, T • c a+b • +c E+T E E+T • a+b • +c Reduce a+b • +c Shift a+b+ • c Shift a+b+c • Reduce 5 E+ E • a E • E+T, E • a, T • b, T • c E a • T • b E E • +T E E+ • T, T • b, T • c T b • 6 E+c T • c E+ E E+ • T, T • b, T • c E+T E E+T • E E T • c a+b • +c T c • Reduce
![LR0 parsing E ET E E T E E T E LR(0) parsing E • E+T E E • +T E E+ • T E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-31.jpg)
LR(0) parsing E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • How to reduce: Look at the corresponding complete item (i. e. E E+T • ) R. H. S. has k symbols, pop k symbols out of the stack. (i. e. pop ‘E+T’) Consider the valid items in corresponding state (i. e. items in state 1) Then push the symbol on the L. H. S. to the stack (i. e. push ‘E’) state stack valid items E • E+T, E • a, T • b, T • c 6 E+ E E+ • T, T • b, T • c 6 E+T E E+T • 1 reading • a+b+c action Shift … 6 Reduce
![LR0 parsing NFA representation q 0 a b terminals notation A B C variables LR(0) parsing: NFA representation q 0 a, b: terminals notation A, B, C: variables](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-32.jpg)
LR(0) parsing: NFA representation q 0 a, b: terminals notation A, B, C: variables , , d: mixed strings X: terminal or variable S • For every item S • A • X X A X • For every item A • X A • C C • d For every pair of items A • C , C • d
![LR0 parsing NFA representation E ET E E T E E LR(0) parsing: NFA representation E • E+T E E • +T E E+ •](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-33.jpg)
LR(0) parsing: NFA representation E • E+T E E • +T E E+ • T E E+T • E • a E a • T • b T b • T • c T c • 1. Each of these items is a state E • E+T E E • +T E • a E a • T • c T c • T • b T b • q 0 E E+ • T E E+T •
![LR0 parsing NFA representation q 0 S For every item S q LR(0) parsing: NFA representation q 0 S • For every item S • q](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-34.jpg)

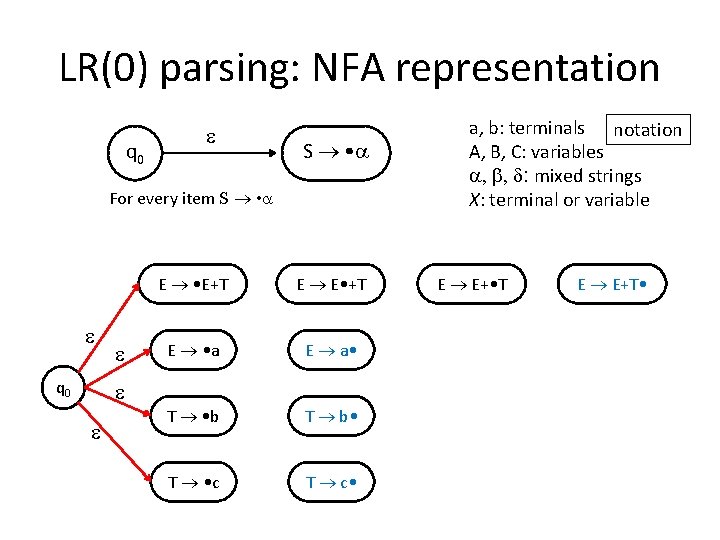

LR(0) parsing: NFA representation q 0 S • For every item S • q 0 E • E+T E E • +T E • a E a • T • b T b • T • c T c • a, b: terminals notation A, B, C: variables , , d: mixed strings X: terminal or variable E E+ • T E E+T •
![LR0 parsing NFA representation A X X A X For every item LR(0) parsing: NFA representation A • X X A X • For every item](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-35.jpg)

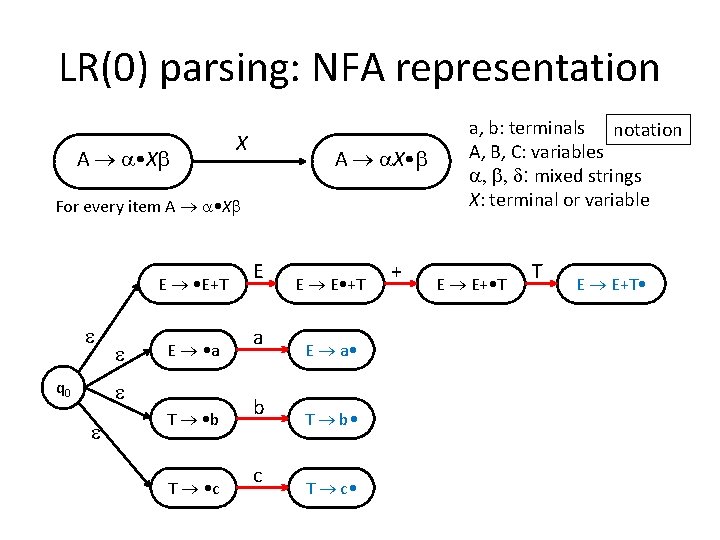

LR(0) parsing: NFA representation A • X X A X • For every item A • X E • E+T q 0 E • a T • b T • c E a b c E E • +T E a • T b • T c • + a, b: terminals notation A, B, C: variables , , d: mixed strings X: terminal or variable E E+ • T T E E+T •
![LR0 parsing NFA representation A C a b terminals notation A B C LR(0) parsing: NFA representation A • C a, b: terminals notation A, B, C:](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-36.jpg)
LR(0) parsing: NFA representation A • C a, b: terminals notation A, B, C: variables , , d: mixed strings X: terminal or variable C • d For every pair of items A • C , C • d a E • a E E • E+T q 0 E a • E E • +T + E E+ • T T E E+T • T • b T • c b c T b • T c •
![LR0 parsing NFA representation Convert the NFA to DFA 2 a 1 E LR(0) parsing: NFA representation • Convert the NFA to DFA 2 a 1 E](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-37.jpg)
LR(0) parsing: NFA representation • Convert the NFA to DFA 2 a 1 E • E+T E • a T • b T • c E b c 3 E a • 6 E E • +T 4 5 + b T b • T c • c E E+ • T T • b T • c T 7 E E+T •
![LR0 parsing remember state in stack When we reduce we have to consider LR(0) parsing: remember state in stack • When we reduce, we have to consider](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-38.jpg)
LR(0) parsing: remember state in stack • When we reduce, we have to consider the valid items in the corresponding state in the past. How? • Remember the states in the stack instead. 2 a 1 E • E+T E • a T • b T • c E b c 3 E a • 6 E E • +T 4 5 + b T b • T c • c E E+ • T T • b T • c T 7 E E+T •
![LR0 parsing remember state in stack 2 a 1 E ET E LR(0) parsing: remember state in stack 2 a 1 E • E+T E •](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-39.jpg)
LR(0) parsing: remember state in stack 2 a 1 E • E+T E • a T • b T • c E b c 3 E a • 6 E E • +T 4 5 + b T b • T c • c E E+ • T T • b T • c T 7 E E+T • Stack State Reading Action 1 • a+b+c S 1 2 a • +b+c R 1 3 a • +b+c S 13 6 a+b • +c S 136 4 a+b • +c R 136 7 a+b • +c R 1 3 a+b • +c S 13 6 a+b+ • c S 136 5 a+b+c • R 136 7 a+b+c • R
![End Questions End • Questions?](https://slidetodoc.com/presentation_image/8df6edb50531d5d23c207338a2c136af/image-40.jpg)
End • Questions?
