CSCE 555 Bioinformatics Lecture 3 Gene Finding Meeting

CSCE 555 Bioinformatics Lecture 3 Gene Finding Meeting: MW 4: 00 PM-5: 15 PM SWGN 2 A 21 Instructor: Dr. Jianjun Hu Course page: http: //www. scigen. org/csce 555 University of South Carolina Department of Computer Science and Engineering 2008 www. cse. sc. edu.

Roadmap � Transcription � Structure � Gene and Translation and Organization of Genes Finding in genomes of Prokaryotic organisms � Introduction to Sequence Alignment � Summary 1/16/2022 2

How to Do Great Bioinformatics? �You need to understand biology �You need to understand the NEEDS of biologists �You know how to identify the key problems in biology that become addressable today

Transcription & Translation Prokaryotic Cells Eukaryotic Cells

Transcription Process: RNA Polymerase

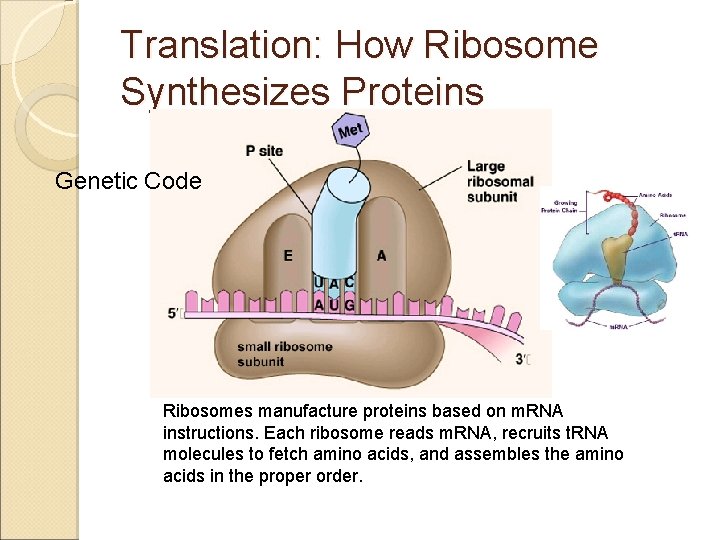

Translation: How Ribosome Synthesizes Proteins Genetic Code Ribosomes manufacture proteins based on m. RNA instructions. Each ribosome reads m. RNA, recruits t. RNA molecules to fetch amino acids, and assembles the amino acids in the proper order.

Genetic Code

Gene Structure of Prokaryotic Cells TAA TGA TAG

Genes in Eukaryotic Cells

Pre-m. RNA Splicing Process

1 M Alternative Splicing Gene Info: 1) A DNA sequence coding for the pre-m. RNA 2) An additional DNA code or other regulating process, which regulates the alternative splicing.

Core Promoter Structure

Roadmap � Transcription � Structure � Gene and Translation and Organization of Genes Finding in genomes of Prokaryotic organisms � Introduction to Sequence Alignment � Summary 1/16/2022 13

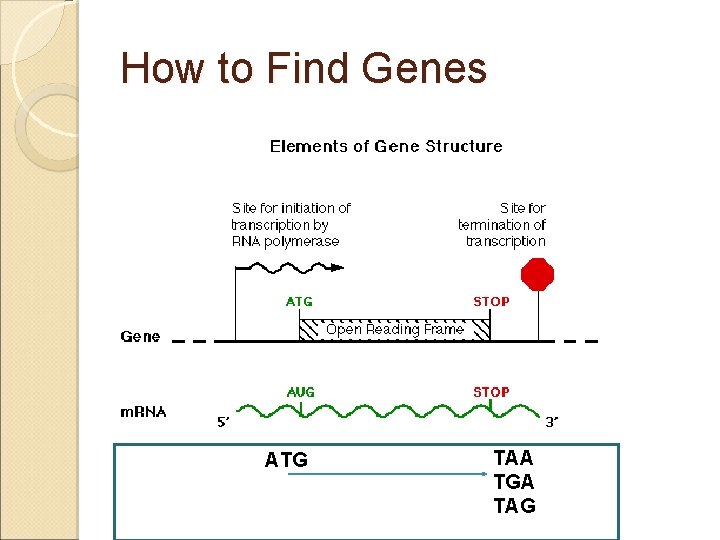

How to Find Genes ATG TAA TGA TAG

Gene-Finding Algorithm �Input: DNA sequences, a threshold gene length K �Output: All possible ORF sequences �Procedure: �Scan each of 3 ORFs, and find subsequence that start with ATG and end with one of (TAA, TAG, TGA) �Repeat above for the complementary sequences also

Risk of the Simple Gene Finding Algorithm �The identified ORFs may arise just from randomness. �How likely is it for an ORF to be a result of random sequences? �Significance of an ORF to be Gene: ◦ We expect the likelihood of ORF being result of random sequences to be less than p.

Calculating p � 3 out of 64 are stopping condons �P( run of k non-stop condons)=(61/64)^k �(61/64)^62=0. 051 �Setting k=64 (62+1 ATG+ 1 Stop. Condon) will make sure the identified ORFs are less likely to be out of random permutation.

Permutation Test/Randomization Test �A generic method to estimate significance level (p value) �Example: how likely that a 10 -condon ORF is result of random permutation? �Method: ◦ Randomly generate (or permute given sequences) 10, 000 sequences ◦ Draw a histogram of seq lengths of sequences that have a stop-condon (Null distribution) ◦ Calculate the percentage of random ORFs that have lengths >=10.

Estimating cut-off K for gene finding algorithm �Exact theoretical calculation: sensitive to the assumptions, equal probability of condons, etc �Randomized test: do a permutation test, find a length k such that <5% of random ORFs have lengths greater than k.

Sequence Alignment: the Problem �Given two sequences, measure their similarity �ATAACTTTAA �ATCCTTTTACTAAA

Web Tool to Align Two Sequences �http: //www. ebi. ac. uk/emboss/align

Applications of Sequence Alignment �Prediction of functions of (gene/protein/promoters) homology �Database search ◦ Find similar sequences that are similar to our query sequence (e. g. new gene) �Gene finding by genome comparison �Sequence divergence/phylogeny �Sequence Assembly

Summary �Transcription, Translation �Gene structures of Prokaryotic and Eukaryotic cells �Finding genes (ORFs) for prokaryotic cells �Sequence alignment applications
