CSCE 3193: Programming Paradigms Nilanjan Banerjee University of Arkansas Fayetteville, AR nilanb@uark. edu http:

CSCE 3193: Programming Paradigms Nilanjan Banerjee University of Arkansas Fayetteville, AR [email protected] edu http: //www. csce. uark. edu/~nilanb/3193/S 10/ Programming Paradigms 1

Concurrent Programming • Running tasks in parallel • Multiple processes • Multiple threads in

Concurrent Programming • Running tasks in parallel • Multiple processes • Multiple threads in one process? • Advantage: speed if you can decompose a task into parallel independent tasks • Examples • Webserver: multiple requests to cater to. • Web browser: multiple objects loading simultaneously • Assignment 4: quickly cracking a hash of a password? • Encoding multiple blocks simultaneously • Almost everything today can be broken into parallel tasks. 2

Threads and running processes 3

Threads and running processes 3

Creating Threads: extend the Thread class • Thread is a basic class which provides

Creating Threads: extend the Thread class • Thread is a basic class which provides two methods void start() • Creates a new thread and makes it runnable void run() • A new Thread begins its life inside this method public class A extends Thread { public A() { … constructor…} public void run() {…method that will run in the thread…. } } 4

Lets take a concrete example in eclipse Application: Provide parallel addition Input: array of

Lets take a concrete example in eclipse Application: Provide parallel addition Input: array of integers a[1, …, k] Divide array into segments and in parallel add segments of the array For example: Thread 1: add a[1: k/2] Theads 2: add a[k/2: k] Add both of them together 5

Thread Creation Diagram Object A Object BThread (extends Thread) BThread() { } Thread t

Thread Creation Diagram Object A Object BThread (extends Thread) BThread() { } Thread t = new BThread(); t. start(); do. More. Stuff(); void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More.

Thread Creation Diagram Object A Thread t = new BThread(); t. start(); do. More. Stuff(); Object BThread (extends Thread) BThread() { } void start() { // create thread } void run() { do. Something(); }

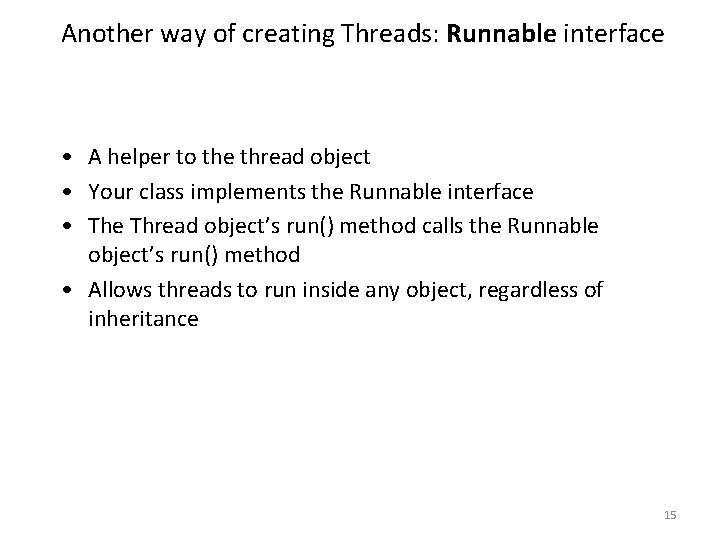

Another way of creating Threads: Runnable interface • A helper to the thread object

Another way of creating Threads: Runnable interface • A helper to the thread object • Your class implements the Runnable interface • The Thread object’s run() method calls the Runnable object’s run() method • Allows threads to run inside any object, regardless of inheritance 15

Example of using the Runnable interface public class My. Runnable implements Runnable { String

Example of using the Runnable interface public class My. Runnable implements Runnable { String name; public My. Runnable(String name) { this. name = name; } public void run() { for(int i; i < 10; i++) { System. out. println(i + “ “ + name()); try { sleep((long)(Math. random() * 1000)); } catch(Interrupted. Exception e) {} } public class Thread. Test { public static void main(String[] args) { for(int i = 0; i < args. length; i++) { Thread t = new Thread(new My. Runnable(args[i]), args[i]); t. start(); } } } 16

Blocking Threads • When reading from a stream, if input is not available, the

Blocking Threads • When reading from a stream, if input is not available, the thread will block • Thread is suspended (“blocked”) until I/O is available • Allows other threads to automatically activate • When I/O available, thread wakes back up again – Becomes “runnable” – Not to be confused with the Runnable interface

Thread Scheduling • In general, the runnable thread with the highest priority is active

Thread Scheduling • In general, the runnable thread with the highest priority is active (running) • Java is priority-preemptive – If a high-priority thread wakes up, and a low-priority thread is running – Then the high-priority thread gets to run immediately • Allows on-demand processing – Efficient use of CPU

Thread Starvation • If a high priority thread never blocks • Then all other

Thread Starvation • If a high priority thread never blocks • Then all other threads will starve • Must be clever about thread priority

Thread Priorities: General Strategies • • Threads that have more to do should get

Thread Priorities: General Strategies • • Threads that have more to do should get lower priority Counterintuitive Cut to head of line for short tasks Give your I/O-bound threads high priority – Wake up, immediately process data, go back to waiting for I/O

Thread interruption • Threads execution exits when the run() method returns • Or if

Thread interruption • Threads execution exits when the run() method returns • Or if it throws an exception that is not handled in the run() method • What if you want to interrupt a running Thread? • Thread. interrupt() --- call interrupts a Thread – Sets a interrupt flag for the Thread object! – How does a Thread check whether the flag is checked? – Thread. current. Thread. is. Interrupted()?

Example while (!Thread. current. Thread(). is. Interrupted()) { …do something …. } What if

Example while (!Thread. current. Thread(). is. Interrupted()) { …do something …. } What if the Thread is sleeping or blocked? Solution: catch Interrupted. Exception? try { while(!Thread. current. Thread. is. Interrupted()) {. . do something…} catch(Interrupted. Exception e) { //thread interrupted during sleep or wait} When interrupted, interrupt flag is set and the Thread is woken up!

Race Conditions • Two threads are simultaneously modifying a single object • Both threads

Race Conditions • Two threads are simultaneously modifying a single object • Both threads “race” to store their value • In the end, the last one there “wins the race” • (Actually, both lose)

Race Condition Example Lets take an example in eclipse to illustrate this

Race Condition Example Lets take an example in eclipse to illustrate this

Thread Lifecycle Active sleep(500) wake up JVM Born start() suspend() resume() Runnable stop() wait

Thread Lifecycle Active sleep(500) wake up JVM Born start() suspend() resume() Runnable stop() wait stop() notify Dead block on I/O available Blocked
