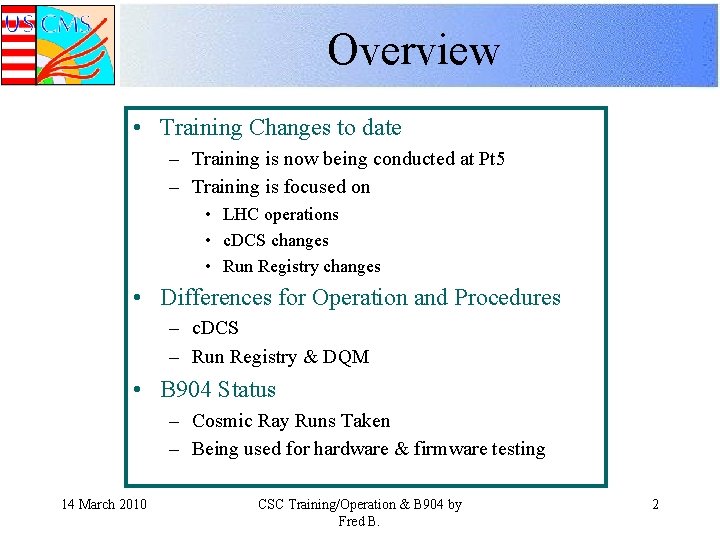

Overview • Training Changes to date – Training is now being conducted at Pt 5 – Training is focused on • LHC operations • c. DCS changes • Run Registry changes • Differences for Operation and Procedures – c. DCS – Run Registry & DQM • B 904 Status – Cosmic Ray Runs Taken – Being used for hardware & firmware testing 14 March 2010 CSC Training/Operation & B 904 by Fred B. 2
New Main Shift Station • Main station now has 4 monitors – UL > EMU Page 1 – UR > DCS – LL > Run Registry – LR > DQM / Run Evaluation 14 March 2010 CSC Training/Operation & B 904 by Fred B. 3
Changes to Shifter Training • Moved training to Pt 5 – Classroom training in meeting room – With laptop project slides and/or real-time views of shifter pages • Point where training could be improved – Assistance with language • Often with training in English for non-native speakers question go unasked and misunderstanding is too common 14 March 2010 • Set requirements on 1 st time shifters and returning shifters • More formal shifter certification? – Now training is required – Require minimum of training and hands on shift training for shift to count • Sit as 2 nd shifter for part of a shift to complete certification • Who certifies? Now> Me, Richard • Need someone to conduct training who is based at CERN CSC Training/Operation & B 904 by Fred B. 4

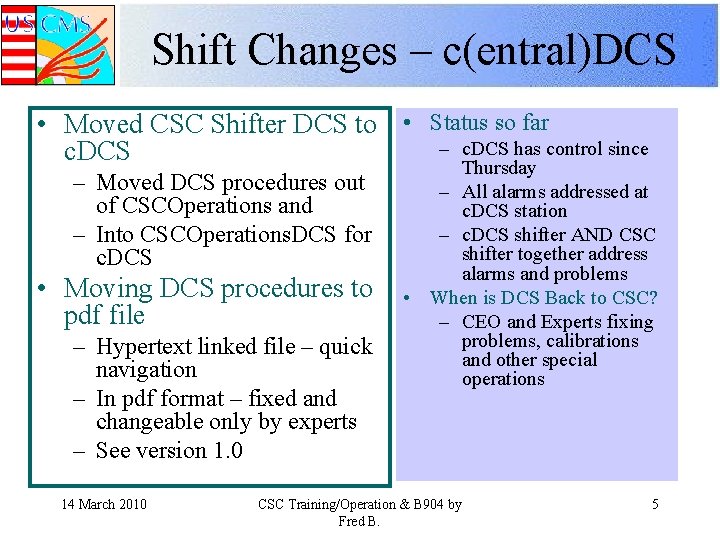

Shift Changes – c(entral)DCS • Moved CSC Shifter DCS to • Status so far – c. DCS has control since c. DCS Thursday – Moved DCS procedures out of CSCOperations and – Into CSCOperations. DCS for c. DCS • Moving DCS procedures to pdf file – Hypertext linked file – quick navigation – In pdf format – fixed and changeable only by experts – See version 1. 0 14 March 2010 – All alarms addressed at c. DCS station – c. DCS shifter AND CSC shifter together address alarms and problems • When is DCS Back to CSC? – CEO and Experts fixing problems, calibrations and other special operations CSC Training/Operation & B 904 by Fred B. 5
Top Level of CSC DCS UI Key Login Panel CSC End View * CSC * PCrates Who to Contact CSC Shifter • CSC Shifter shifter address problem • CSC CEO – shifter contact CEO Communication Status CSC Shifter Subsystem Panel CSC CEO Value Monitor HV, LV, FEDS CSC CEO Majority Logic 14 March 2010 CSC CEO >>16 1972 CSC Training/Operation & B 904 by Fred B. 6
Top Level Procedures for CSC DCS CEO Level Alarms • Shifter Level Alarms • Subsystem Panel – Alarm <RED> indicates problem in all or one end of CSC – Contact CEO 16 1972 – Check if c. DCS has infrastructure alarms • • – Multiple chambers or crates in Alarm <RED> – indicates there may be a major problem – check bottom of the display – Contact CEO 16 1972 – Single chamber or crate in Alarm <RED> indicates chamber or crate has a single device in error – CSC Shifter follow detailed procedure Majority Logic – Alarm <RED> indicates that a significant percentage of CSC devices are in alarm – Contact CEO 16 1972 • HV, LV, FEDS – Alarm <RED> indicates that a major component of the HV, LV or FEDS is in alarm • – Contact CEO 16 1972 – Do NOT turn these back on – ONLY expert should correct 14 March 2010 End View Communication Status – Alarm <RED> monitor, if it does not clear itself after 5 minutes contact CEO 16 1972 – NOTE: Question marks ‘? ’ will also appear on End View Value Monitor – This is a diagnostic panel – Shifter hourly cycle through displays and follow detailed procedures CSC Training/Operation & B 904 by Fred B. 7

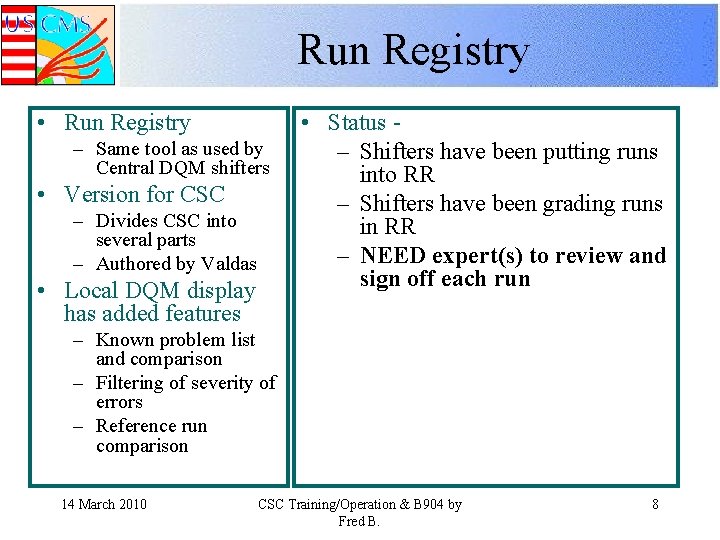

Run Registry • Run Registry – Same tool as used by Central DQM shifters • Version for CSC – Divides CSC into several parts – Authored by Valdas • Local DQM display has added features • Status – Shifters have been putting runs into RR – Shifters have been grading runs in RR – NEED expert(s) to review and sign off each run – Known problem list and comparison – Filtering of severity of errors – Reference run comparison 14 March 2010 CSC Training/Operation & B 904 by Fred B. 8

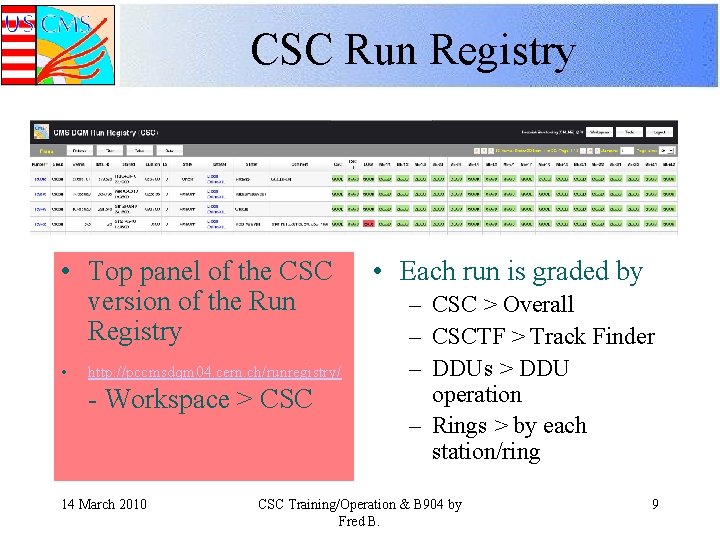

CSC Run Registry • Top panel of the CSC version of the Run Registry • http: //pccmsdqm 04. cern. ch/runregistry/ - Workspace > CSC 14 March 2010 • Each run is graded by – CSC > Overall – CSCTF > Track Finder – DDUs > DDU operation – Rings > by each station/ring CSC Training/Operation & B 904 by Fred B. 9
Categories • CSC >> Overall grade for this run – BAD > tbd • CSC TF >> Grade and details for TF – tbd • DDUs >> Grade and details for DDU • Rings >> – BAD > 2 or more CRITICAL or DEAD (including known) – Insert details for each CRITICAL and list DEAD – BAD > 2 or more CRITICAL (including known) 14 March 2010 CSC Training/Operation & B 904 by Fred B. 10
New DQM Features • NOTE – The light grey are filtered out errors – – The blue are the same as for the reference run The Hot Pink are KNOWN PROBLEMS • The DQM display has new features – Compare to run > REAPEATING_PROB LEMS > when current has same problem – KNOWN_PROBLEM > compares to a list of known problems – Filtering > FILTERS > only shows the severity of interest 14 March 2010 CSC Training/Operation & B 904 by Fred B. 11
Action • NOTE – The example ME-2/1/02 is BLUE because it has the exact same problems as for the reference run. Since the display is filtered we see only the CRITICAL chambers • These ‘CRITICAL’ CSC problems are not a ‘Known Problem’ – Enter the problem’s messages into the RR 14 March 2010 CSC Training/Operation & B 904 by Fred B. 12
Action (cont. ) • These ‘CRITICAL’ CSC problems are the same as for the reference run – Do not enter into the ELOG – If these CRITICAL problems were new for this run it should be entered into the ELOG 14 March 2010 CSC Training/Operation & B 904 by Fred B. 13
B 904 • Future • CTS changes – Can run CR – HV connected to CAEN supply • Duplicate HV source possible – Computers and base crates connected to wall power • Duplicate power available – Set up for LVDB diagnosis / repair? – Dedicated 2 nd chamber? – UPS for computers? – Remove chiller from rack DSS interlock? – Train more people to operate the DSS rack interface? – DSS system has been upgraded 14 March 2010 CSC Training/Operation & B 904 by Fred B. 14

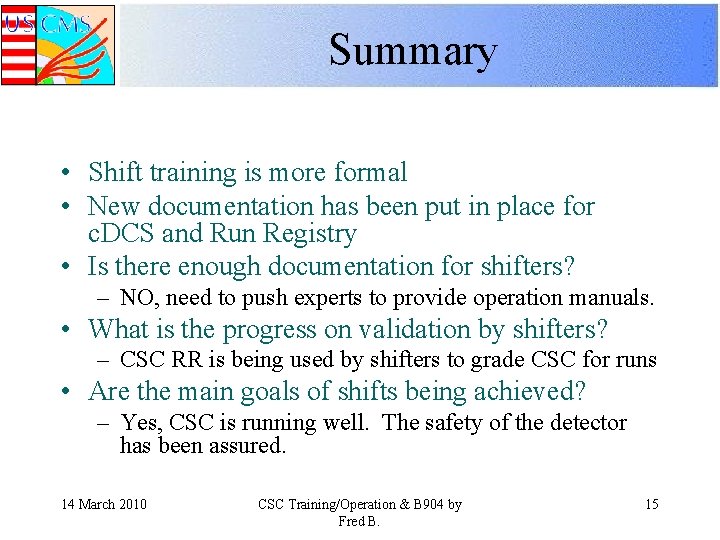

Summary • Shift training is more formal • New documentation has been put in place for c. DCS and Run Registry • Is there enough documentation for shifters? – NO, need to push experts to provide operation manuals. • What is the progress on validation by shifters? – CSC RR is being used by shifters to grade CSC for runs • Are the main goals of shifts being achieved? – Yes, CSC is running well. The safety of the detector has been assured. 14 March 2010 CSC Training/Operation & B 904 by Fred B. 15
